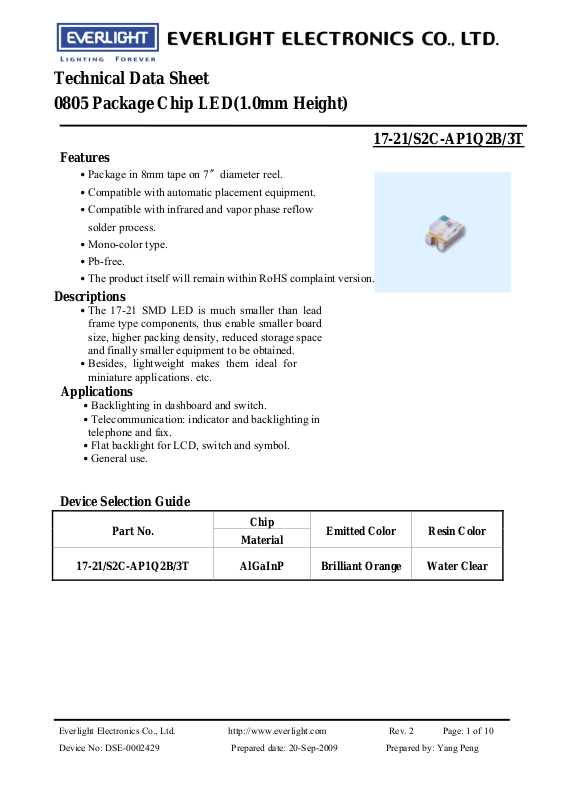

EVERLIGHT EVL 17-21/S2C-A Datasheet

Technical Data Sheet 0805 Package Chip LED(1.0mm Height)

17-21/S2C-AP1Q2B/3T

Features

․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS complaint version.

Descriptions

․The 17-21 SMD LED is much smaller than lead

frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․General use.

Device Selection Guide

Part No.

17-21/S2C-AP1Q2B/3T AlGaInP Brilliant Orange Water Clear

Chip

Emitted Color Resin Color

Material

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 1 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

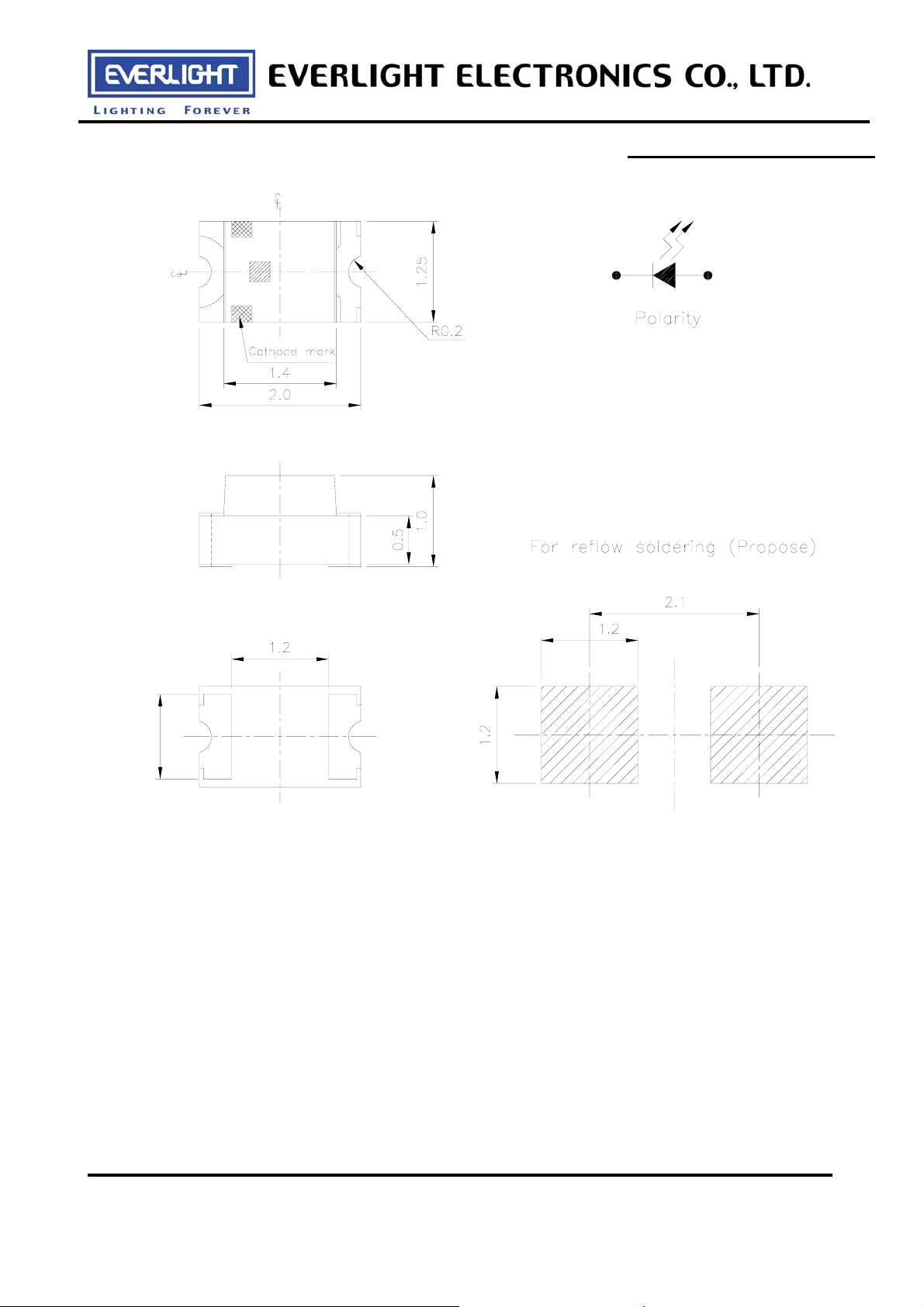

Package Outline Dimensions

17-21/S2C-AP1Q2B/3T

-

+

1.05

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 2 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

17-21/S2C-AP1Q2B/3T

Absolute Maximum Ratings (Ta=25 )℃

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V

Forward Current IF 25 mA

Peak Forward Current

IFP 60 mA

(Duty 1/10 @1KHz)

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 2000 V

Operating Temperature Topr -40 ~ +85 ℃

Storage Temperature Tstg -40 ~ +90 ℃

Reflow Soldering : 260 for 10 sec.℃

Soldering Temperature Tsol

Hand Soldering : 350 for 3 sec.℃

℃

Electro-Optical Characteristics (Ta=25 )℃

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity IV 45.0 ----- 112 mcd

Viewing Angle 2θ

Peak Wavelength λp ----- 611 ----- nm

Dominant Wavelength

Spectrum Radiation

Bandwidth

Forward Voltage VF

Reverse Current IR ----- ----- 10 µA

----- 140 ----- deg

1/2

λd 600.5 ----- 612.5 nm

λ△ ----- 17 ----- nm

1.75 ----- 2.35

V

Notes:

1.Tolerance of Luminous Intensity ±11%

IF=20mA

VR=5V

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 3 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

17-21/S2C-AP1Q2B/3T

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

P1 45.0 57.0

P2 57.0 72.0

Q1 72.0 90.0

Q2 90.0 112

Bin Range Of Dom. Wavelength

Group Bin Min Max Unit Condition

D8 600.5 603.5

D9 603.5 606.5

A

D10 606.5 609.5

D11 609.5 612.5

mcd IF=20mA

nm IF=20mA

Bin Range Of Forward Voltage

Group Bin Min Max Unit Condition

0 1.75 1.95

B

1 1.95 2.15

2 2.15 2.35

V I

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

=20mA

F

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 4 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

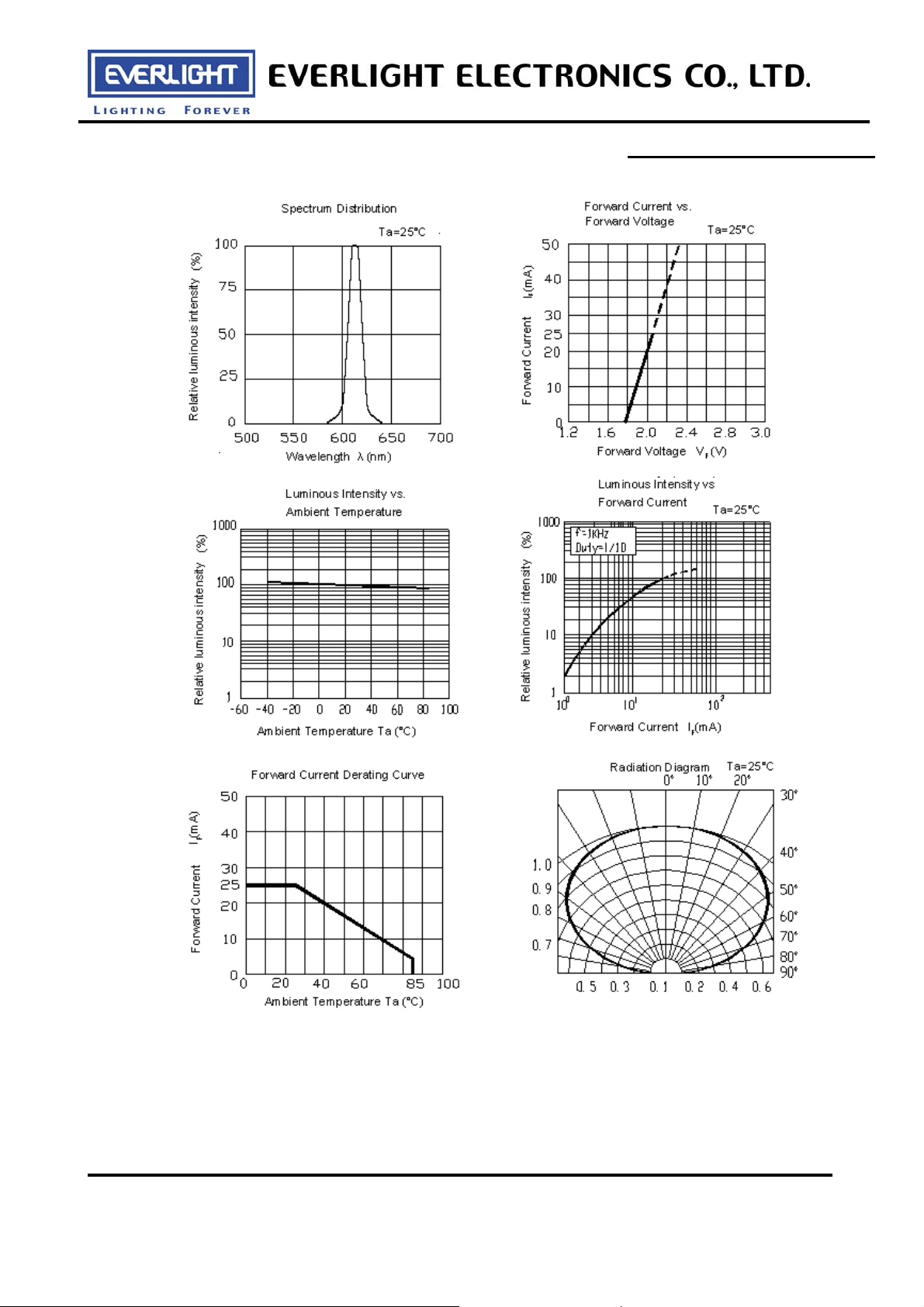

Typical Electro-Optical Characteristics Curves

17-21/S2C-AP1Q2B/3T

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 5 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

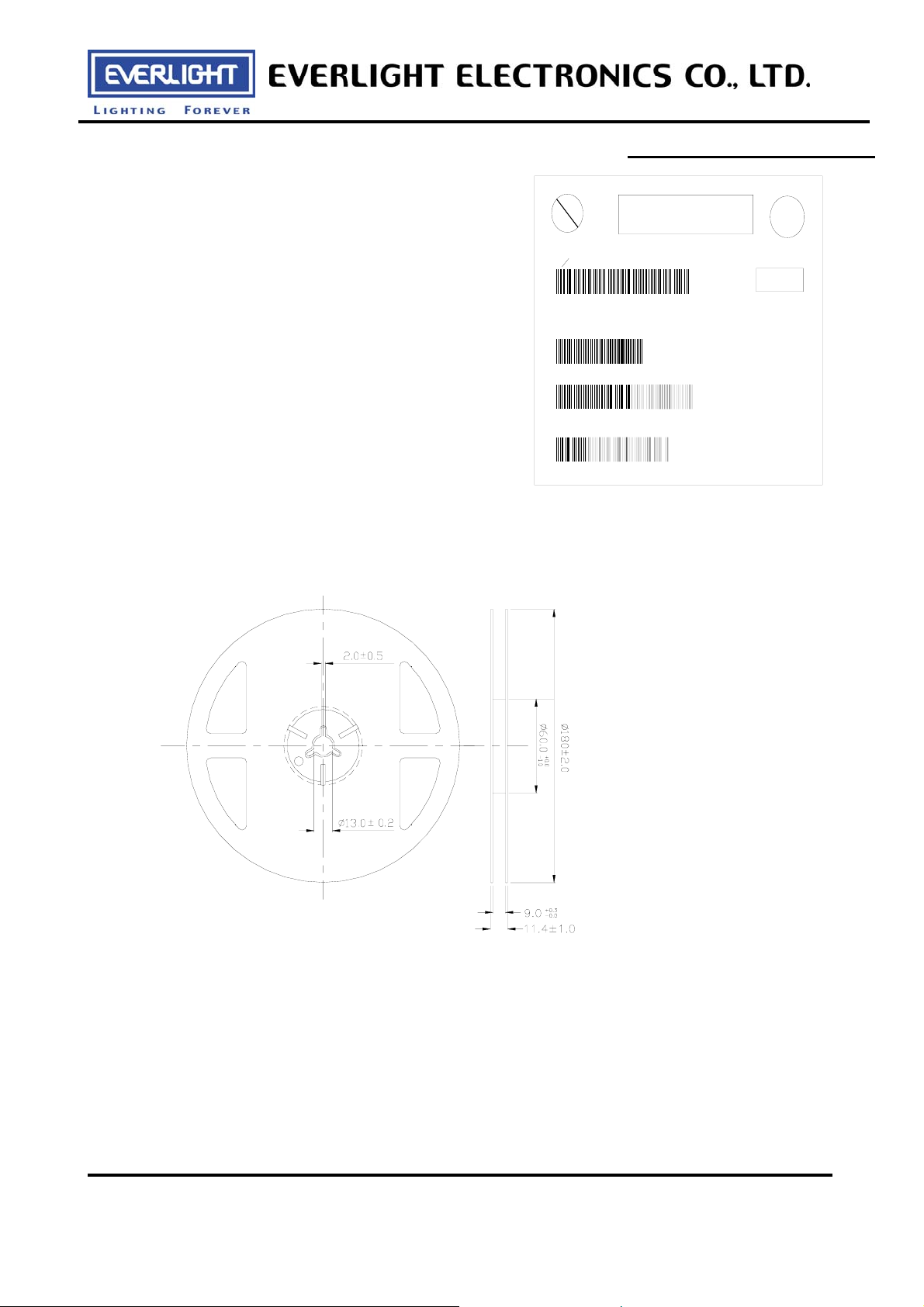

Label explanation

CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

Reel Dimensions

17-21/S2C-AP1Q2B/3T

Pb

CPN :

N : XXXXXXXXXXXXX

P

XXXXXXXXXXXXX

QTY : XXX

LOT NO : XXXXXXXXXX

Reference : XXXXXXX X

EVERLIGHT

MADE IN TAIWAN

RoHS

CAT : XXX HUE : XXX REF : XXX

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 6 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

17-21/S2C-AP1Q2B/3T

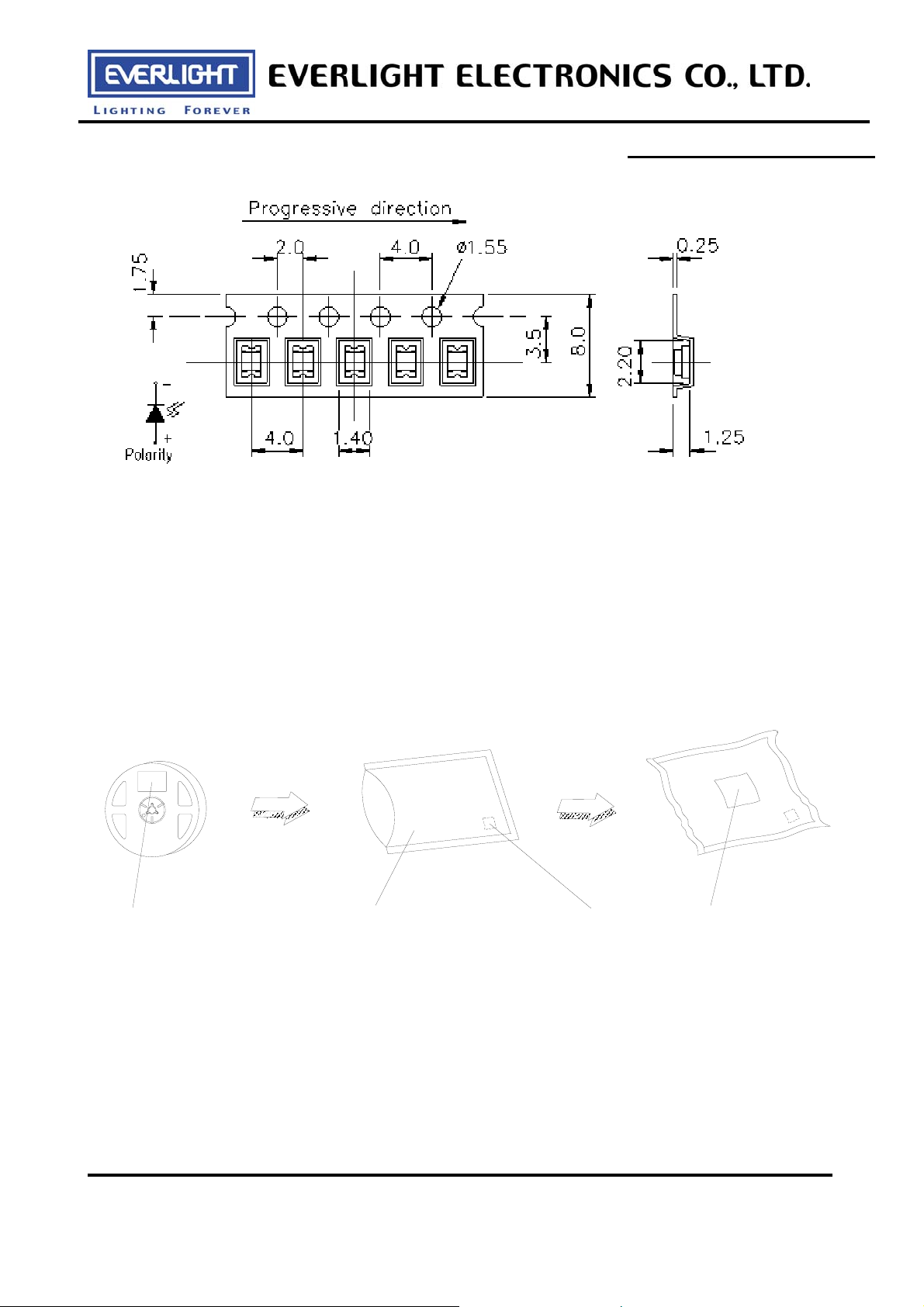

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 7 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below. Confidence level：90%

LTPD：10%

No. Items Test Condition

Hours/Cycles

Temp. : 260 ±5 ℃℃

1 Reflow Soldering

6 Min. 22 PCS. 0/1

Min. 5sec.

2 Temperature Cycle

H : +100 15min℃

∫ 5 min

300 Cycles

L : -40 15min℃

H : +100 5min℃

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10 5min℃

17-21/S2C-AP1Q2B/3T

Test

Sample

Ac/Re

Size

22 PCS. 0/1

4

Temp. : 100℃

Storage

Low Temperature

High Temperature

5

Temp. : -40℃

Storage

6 DC Operating Life IF = 20 mA

High Temperature /

7

85 / 85%RH℃

High Humidity

1000 Hrs.

22 PCS. 0/1

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 8 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

17-21/S2C-AP1Q2B/3T

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection , otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30 or less and 90%R℃ H or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.

If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

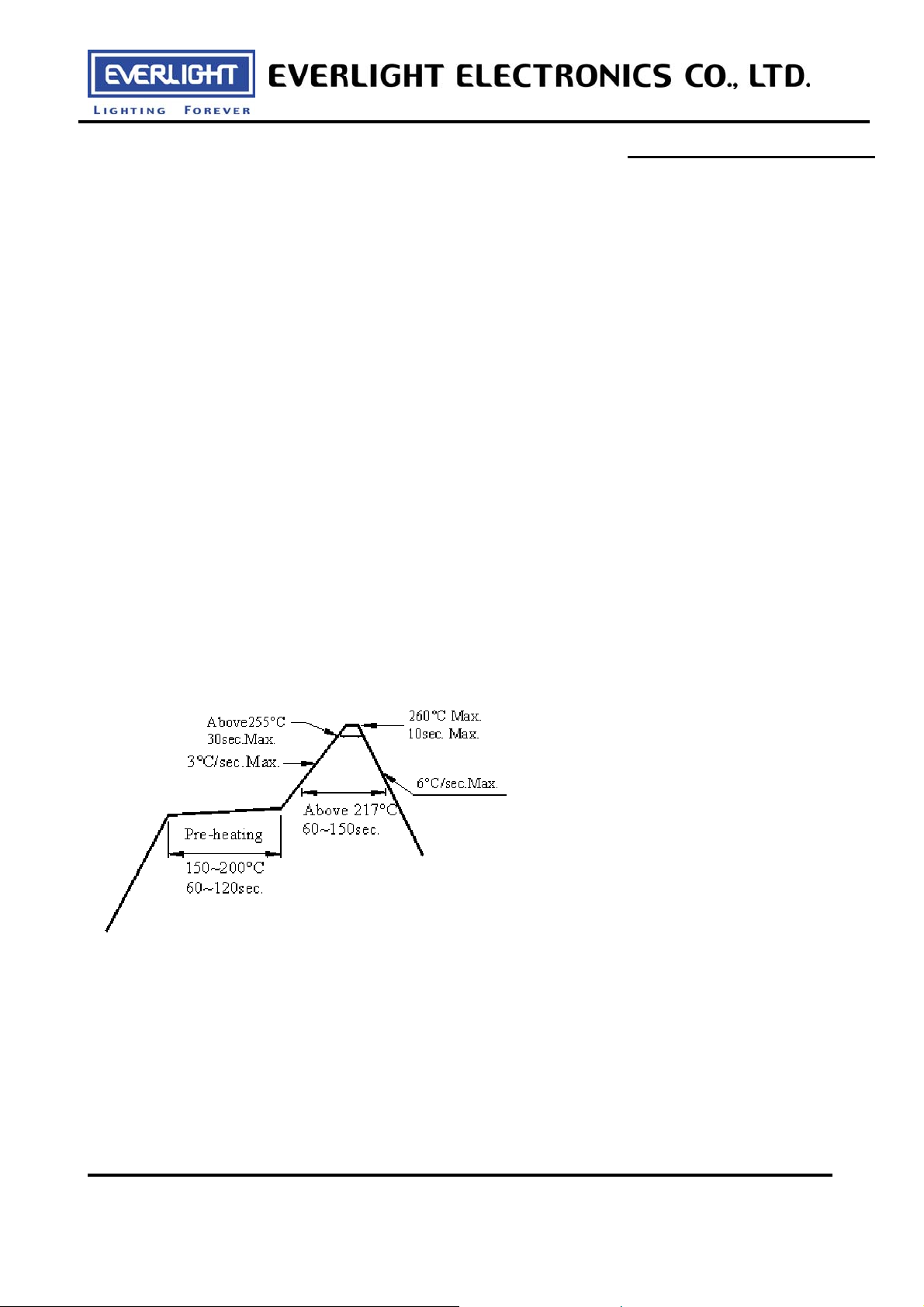

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 9 of 10

Device No: DSE-0002429 Prepared date: 20-Sep-2009 Prepared by: Yang Peng

17-21/S2C-AP1Q2B/3T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds ℃

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do

soldering of each terminal. Be careful because the damage of the product is often started at the time of

the hand solder.

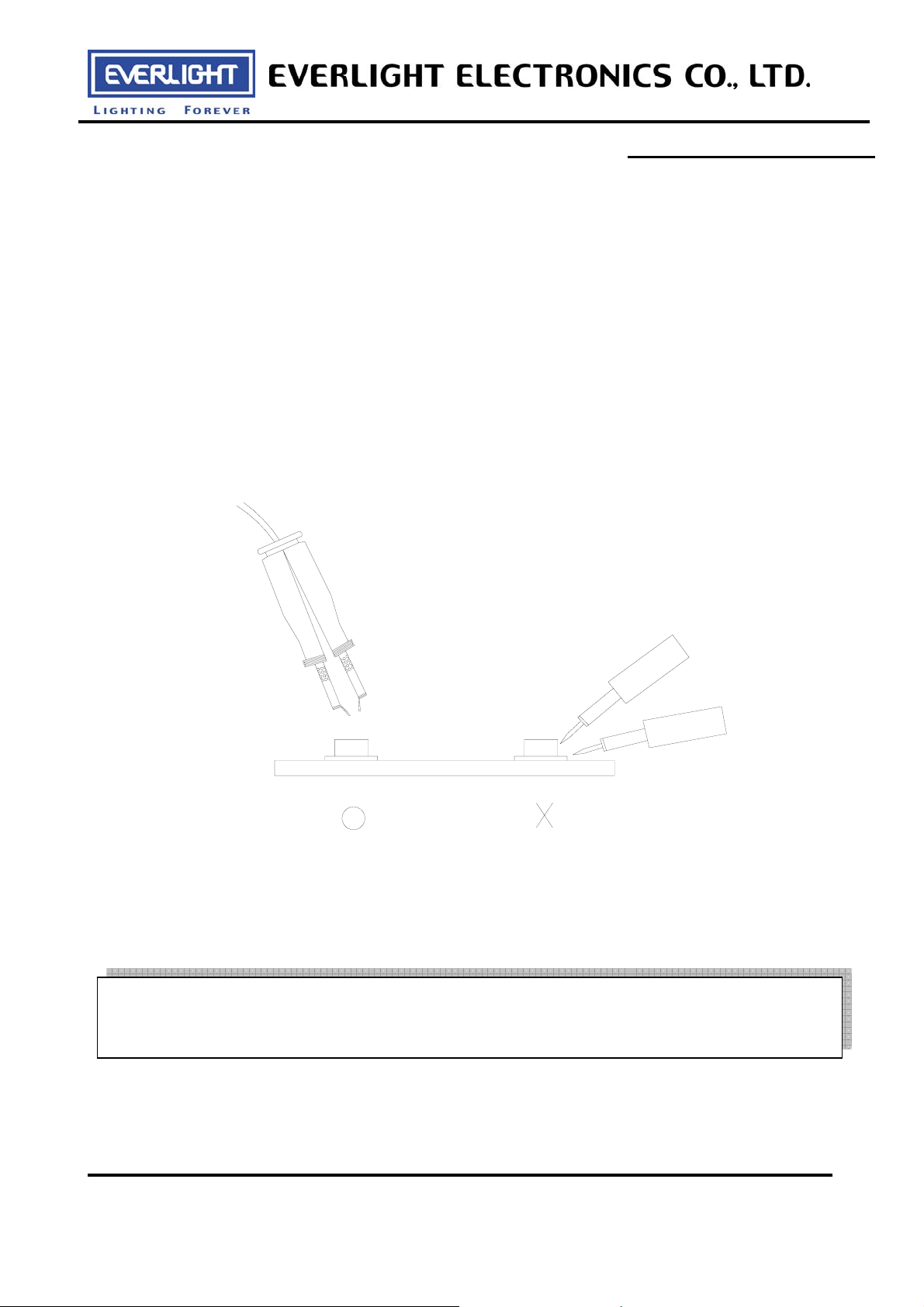

5.Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a

double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether

the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
