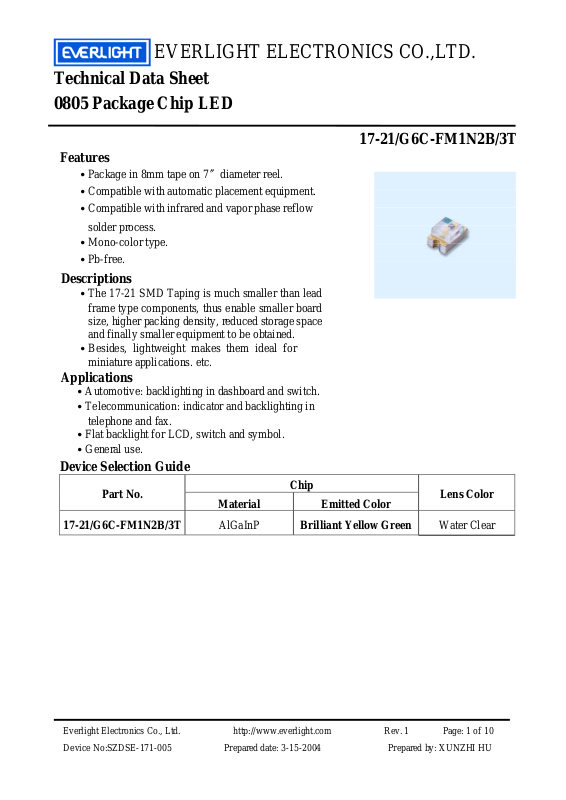

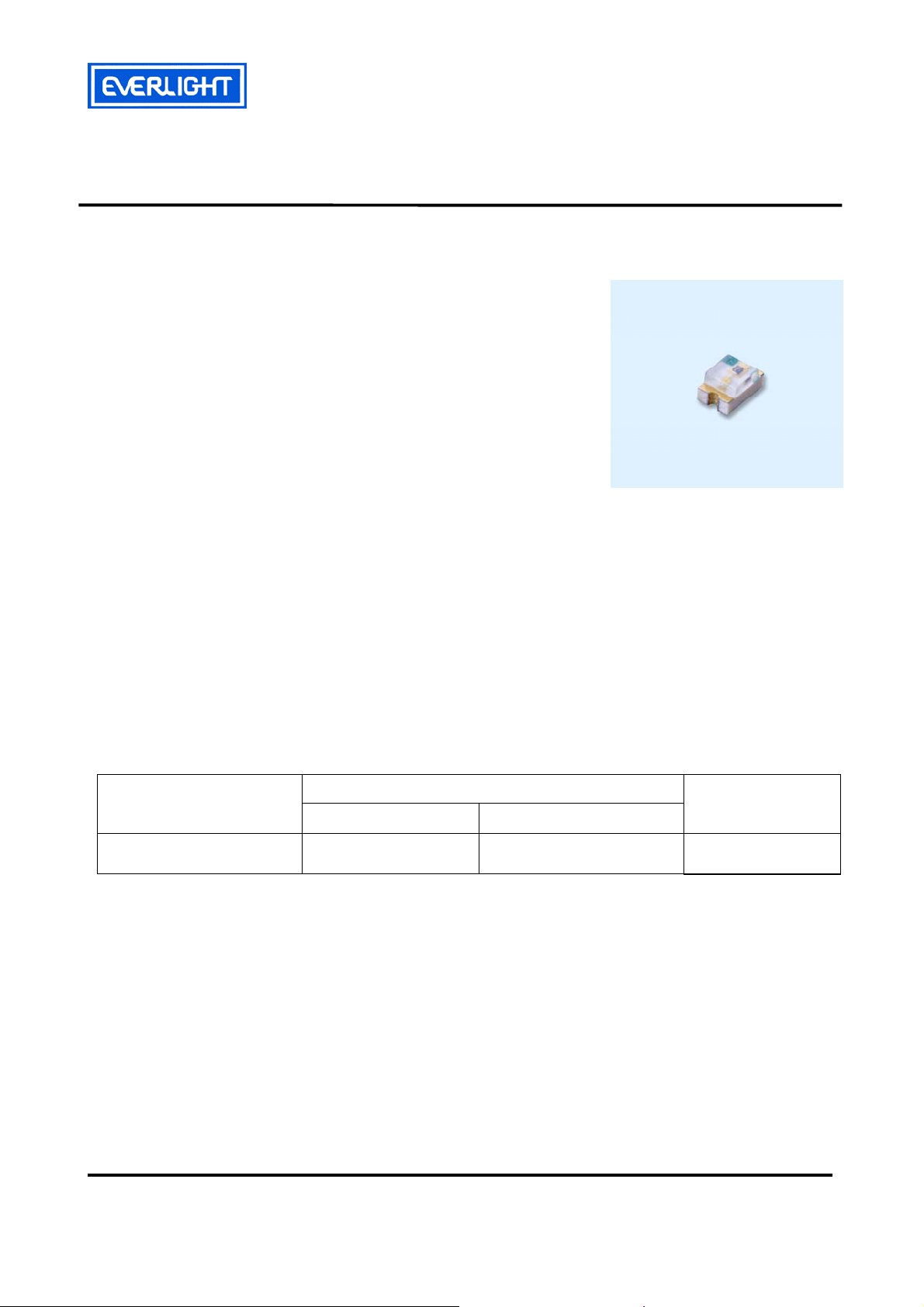

Technical Data Sheet 0805 Package Chip LED
17-21/G6C-FM1N2B/3T
Features
solder process.
Mono-color type. Pb-free.
Descriptions
The 17-21 SMD Taping is much smaller than lead
frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Automotive: backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
Part No.
17-21/G6C-FM1N2B/3T
Material Emitted Color
AlGaInP
Chip
Brilliant Yellow Green
Lens Color
Water Clear
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T

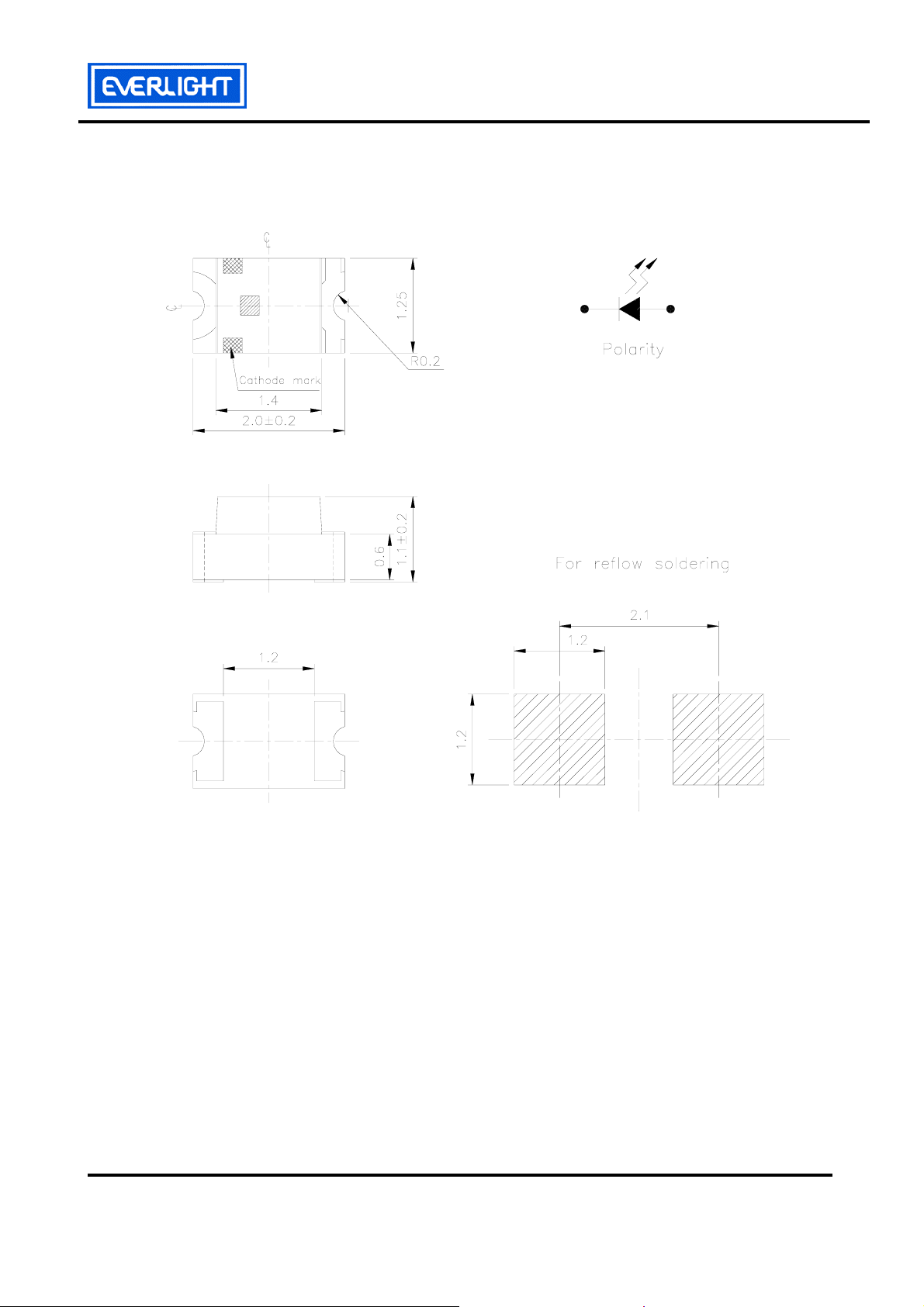

Package Outline Dimensions
-
+
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol
Electrostatic Discharge ESD 2000 V
Power Dissipation Pd 60 mW
Peak Forward Current
(Duty 1/10 @1KHz)
I
FP 60 mA
260
(for 5 second)
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 18.0 ----- 45.0 mcd
Viewing Angle 2θ1/2 ----- 140 ----- deg
Peak Wavelength λp ----- 575 ----- nm
Dominant Wavelength
λd 570.0 ----- 574.5 nm
Spectrum Radiation
Bandwidth
△λ ----- 20 ----- nm
IF=20mA
Forward Voltage VF
Reverse Current IR ----- ----- 10 μA
1.75 ----- 2.35
V
VR=5V
Notes:
1.Tolerance of Luminous Intensity ±15%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T
Bin Rang Of Dom. Wavelength
Group Bin Min Max Unit Condition
CC2 570.0 571.5
F
CC3 571.5 573.5 CC4 573.5 574.5
nm I
Bin Rang Of Luminous Intensity
Bin Min Max Unit Condition M1 18.0 22.5 M2 22.5 28.5
N1 28.5 36.0 N2 36.0 45.0
mcd IF=20mA
Bin Rang Of Luminous Voltage
Group Bin Min Max Unit Condition
0 1.75 1.95
B
1 1.95 2.15 2 2.15 2.35
V I
F=20mA
F=20mA
Notes:
1.Tolerance of Luminous Intensity ±15%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T

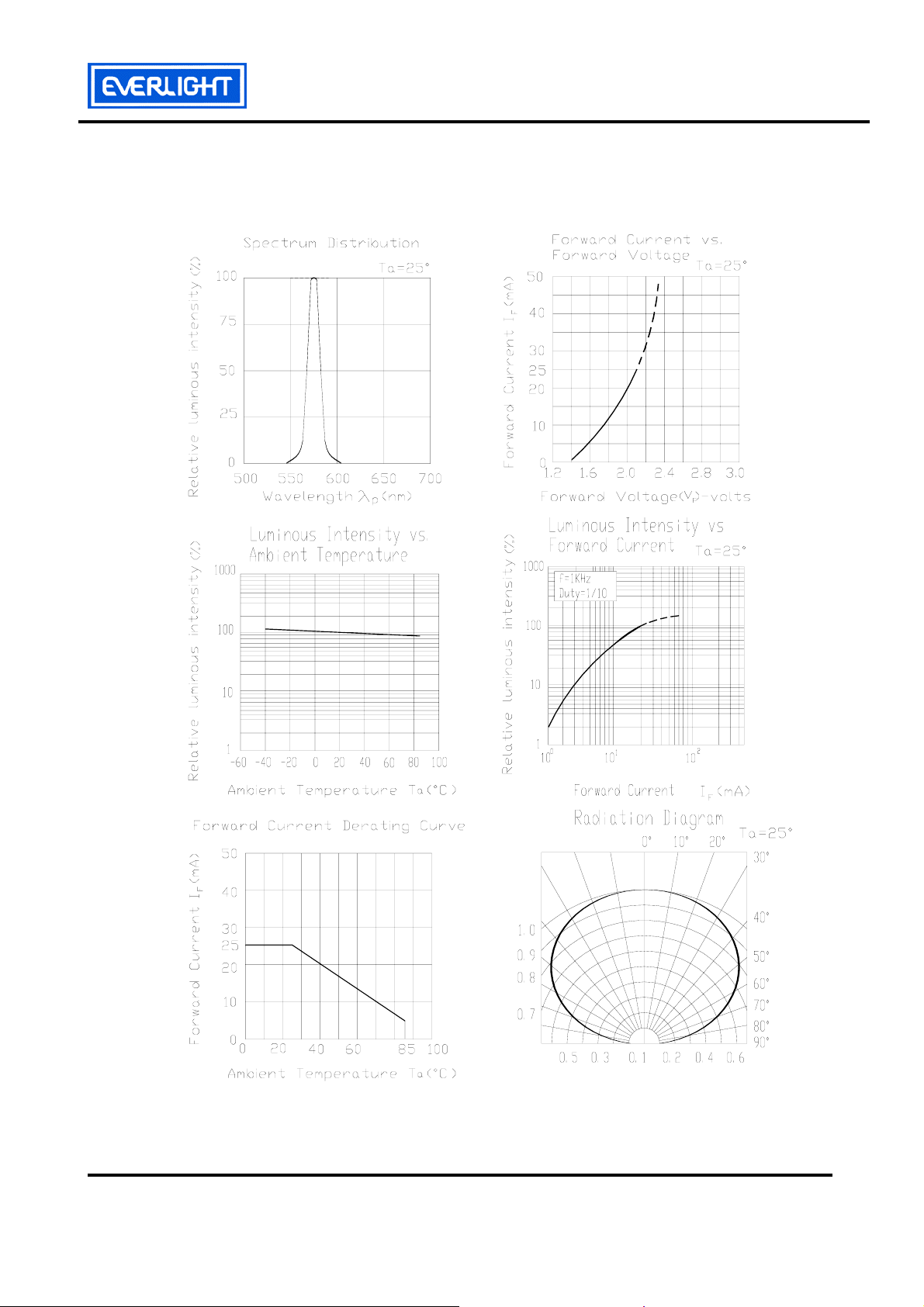

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

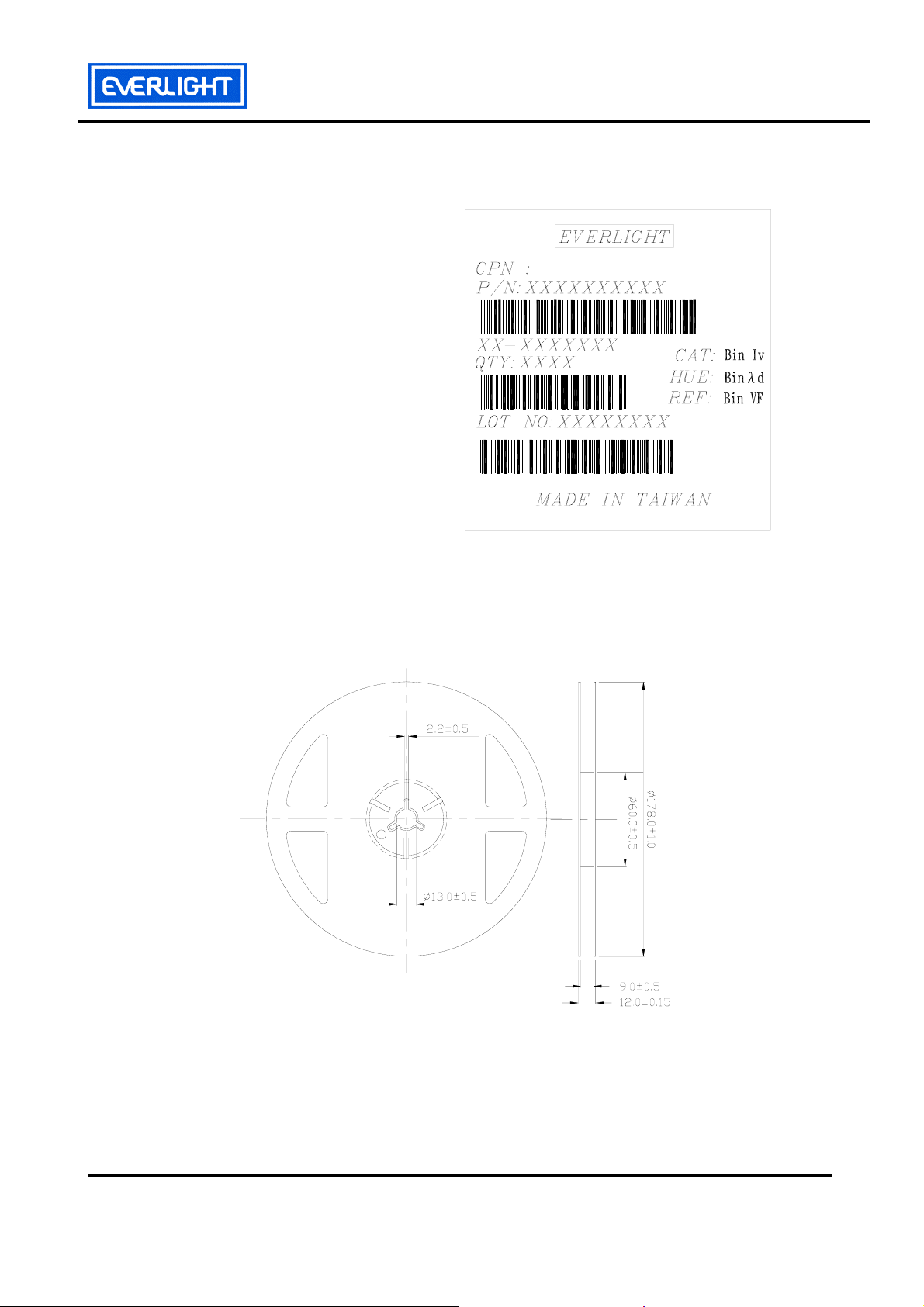

Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T

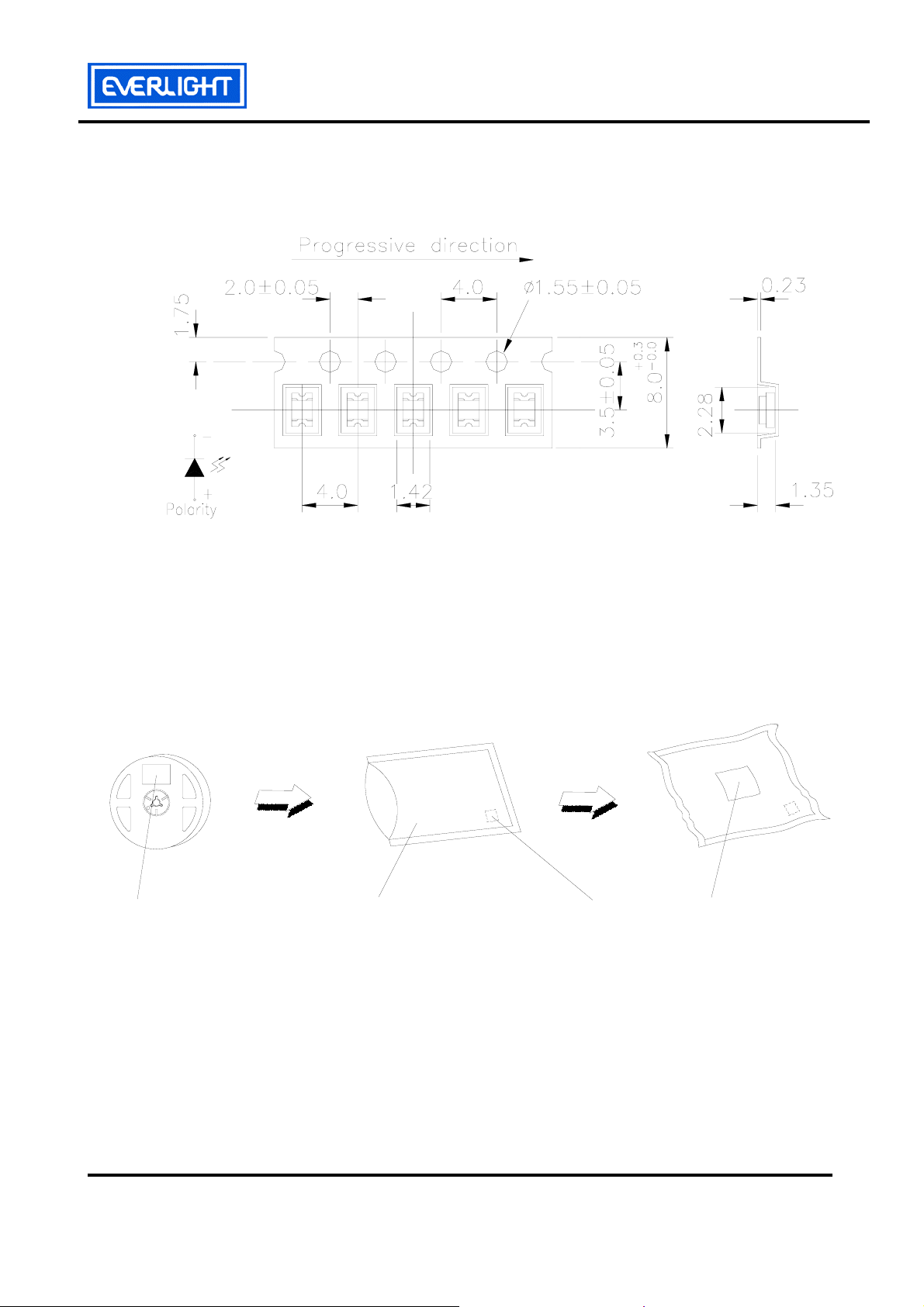

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moistue-proof bag
LabelDesiccant
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 8
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD10%
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
Min. 5sec.
6 Min.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85/ 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 9
EVERLIGHT ELECTRONICS CO.,LTD.
17-21/G6C-FM1N2B/3T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30 or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30 or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

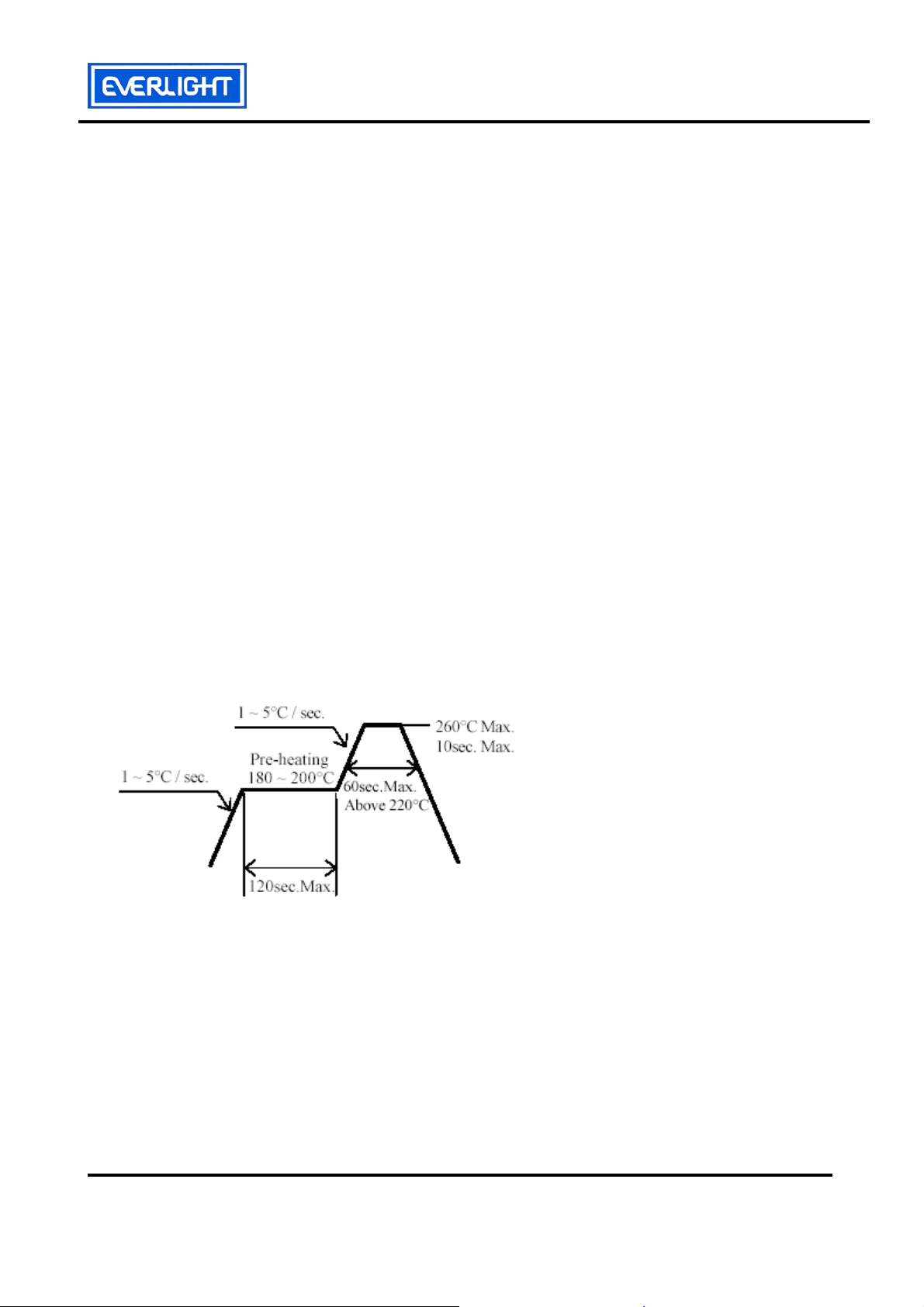

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
Page 10
EVERLIGHT ELECTRONICS CO.,LTD.
E
17-21/G6C-FM1N2B/3T
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 280 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

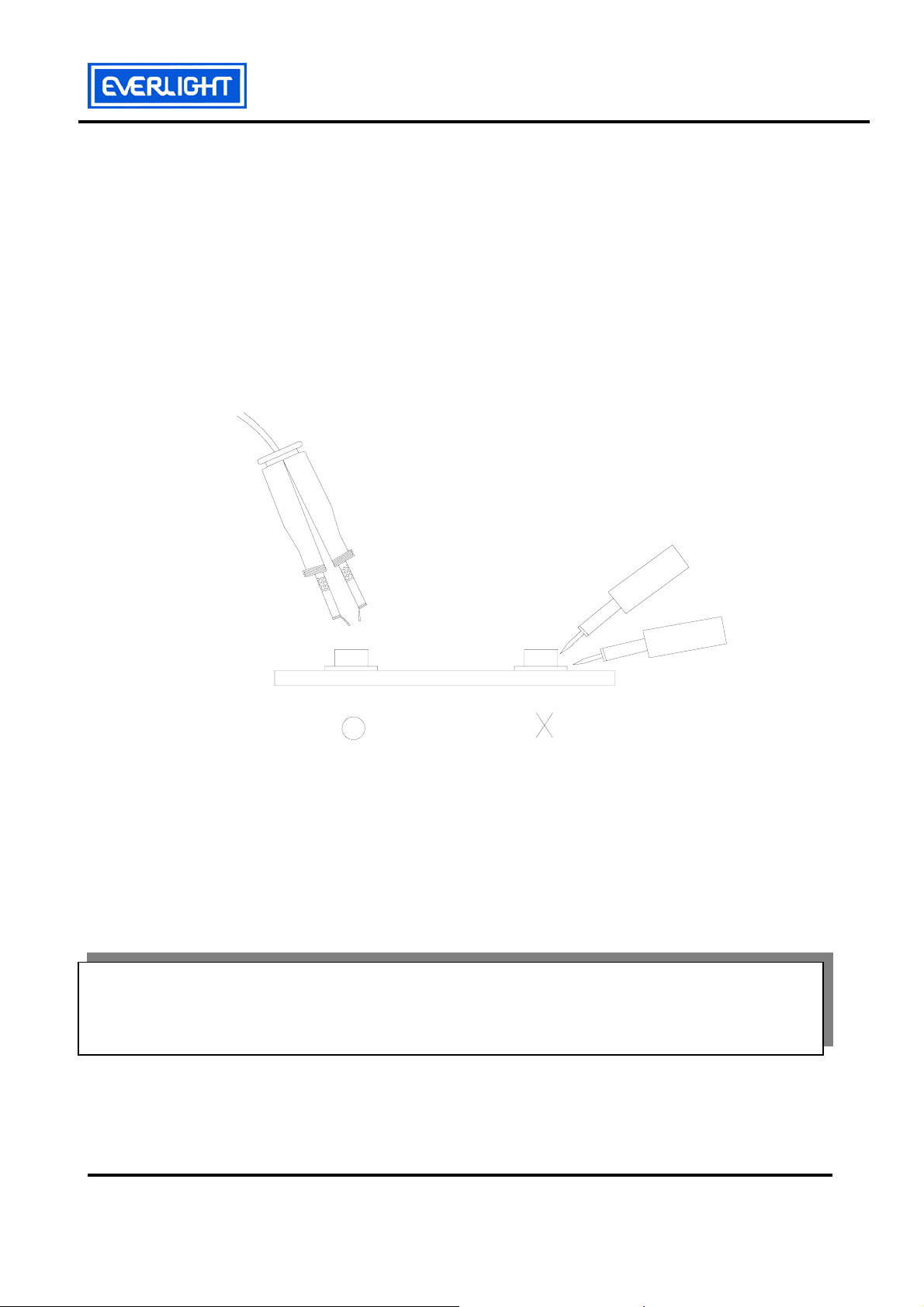

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
VERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Reliability Test Items And Conditions
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
The reliability of products shall be satisfied with items listed below.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10 Device No:SZDSE-171-005 Prepared date: 3-15-2004 Prepared by: XUNZHI HU
