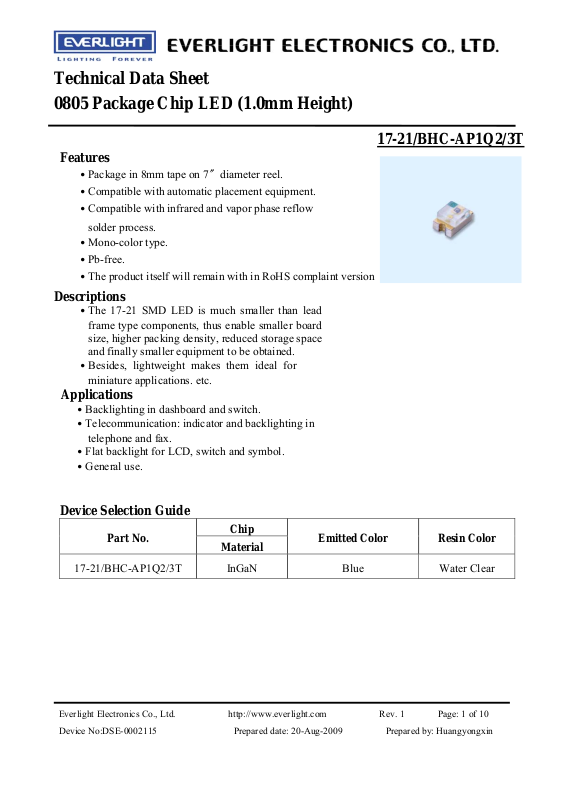

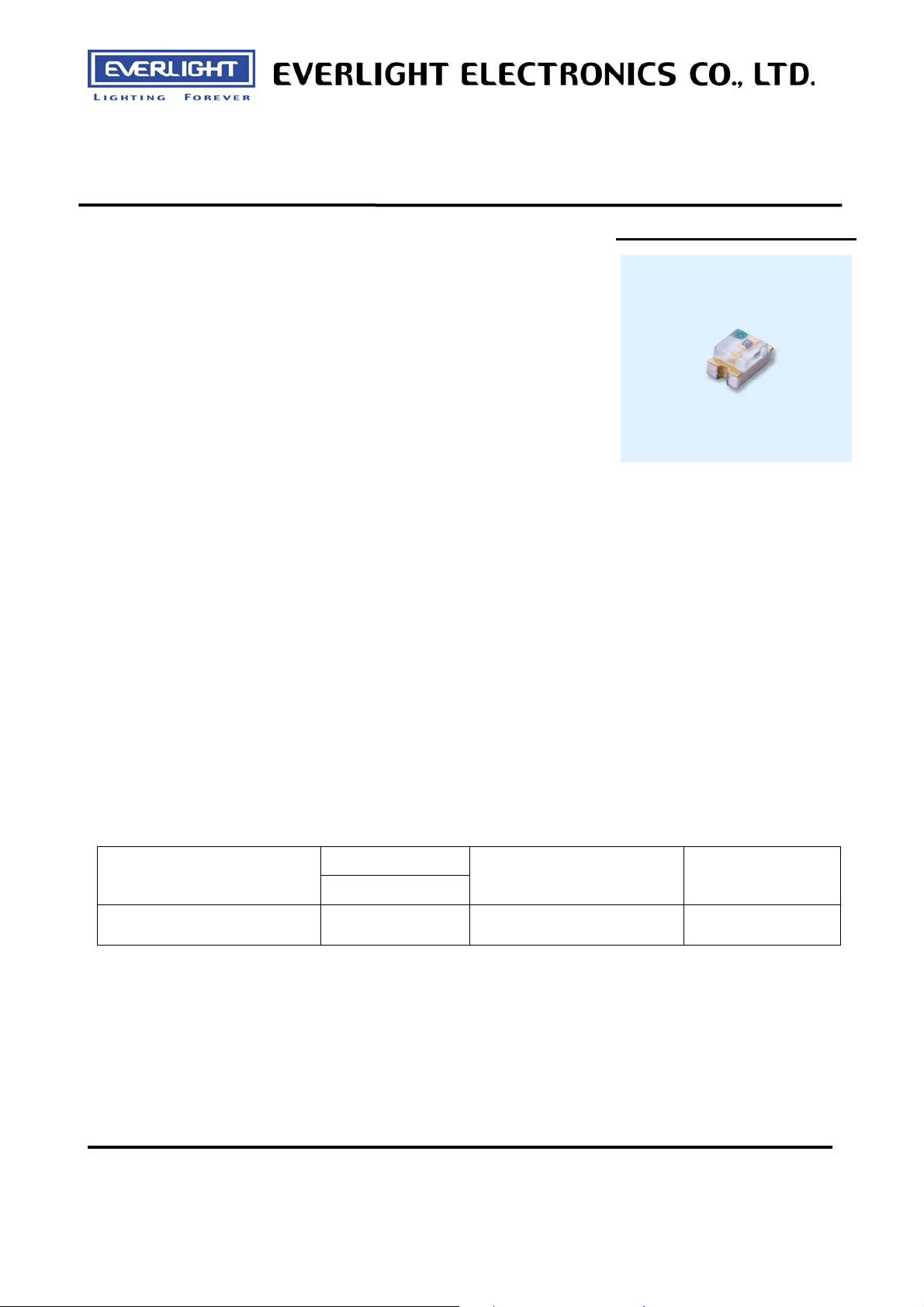

EVERLIGHT EVL 17-21/BHC-A Datasheet

Technical Data Sheet 0805 Package Chip LED (1.0mm Height)

17-21/BHC-AP1Q2/3T

Features

․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type. ․Pb-free.

․The product itself will remain with in RoHS complaint version

Descriptions

․The 17-21 SMD LED is much smaller than lead

frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․General use.

Device Selection Guide

Part No.

17-21/BHC-AP1Q2/3T InGaN Blue Water Clear

Chip

Emitted Color Resin Color

Material

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

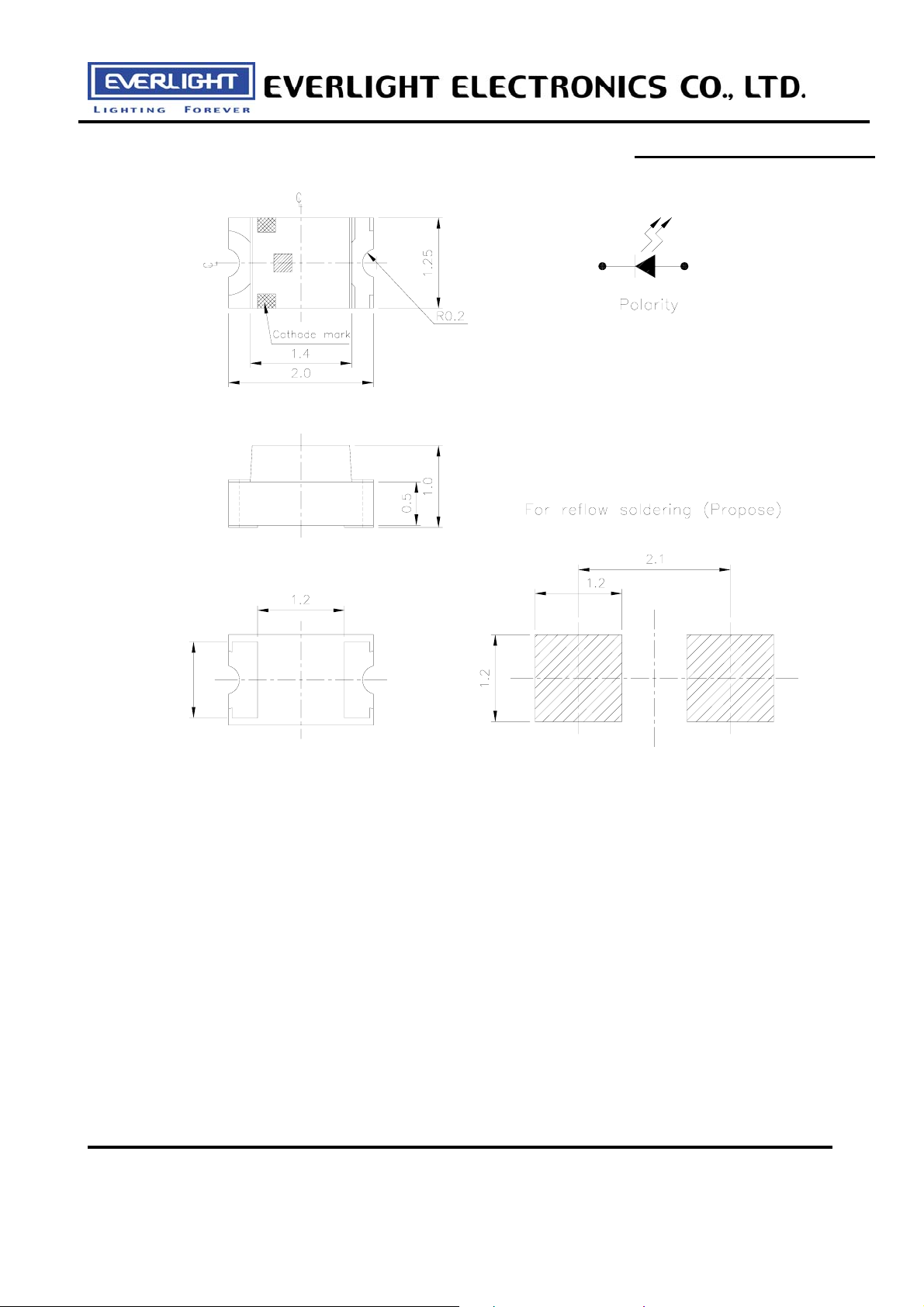

Package Outline Dimensions

17-21/BHC-AP1Q2/3T

-

+

1.05

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

17-21/BHC-AP1Q2/3T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit

Reverse Voltage

Forward Current

Peak Forward Current

(Duty 1/10 @1KHz)

Power Dissipation

Electrostatic Discharge(HBM) ESD 150 V

Operating Temperature Topr -40 ~ +85

Storage Temperature Tstg -40 ~ +90

Soldering Temperature Tsol

VR

IF

IFP

Pd

5 V

25 mA

100 mA

95 mW

Reflow Soldering : 260 ℃ for 10 sec.

Hand Soldering : 350 ℃ for 3 sec.

℃

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity

Viewing Angle 2θ1/2

Peak Wavelength λp ----- 468 ----- nm

Dominant Wavelength

Spectrum Radiation

Bandwidth

Forward Voltage VF

Reverse Current IR ----- ----- 50 μA VR =5V

IV

λd

△λ

45 ----- 112 mcd

----- 140 -----

464.5 ----- 476.5

----- 25 -----

2.7 3.3 3.7

deg

nm

V

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

IF=20mA

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

Bin Range Of Dom. Wavelength

Bin Bin Min Max Unit Condition

A9 464.5 467.5

A10 467.5 470.5

B

A11 470.5 473.5

A12 473.5 476.5

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

P1 45 57

P2 57 72

Q1 72 90

Q2 90 112

17-21/BHC-AP1Q2/3T

nm IF=20mA

mcd IF=20mA

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

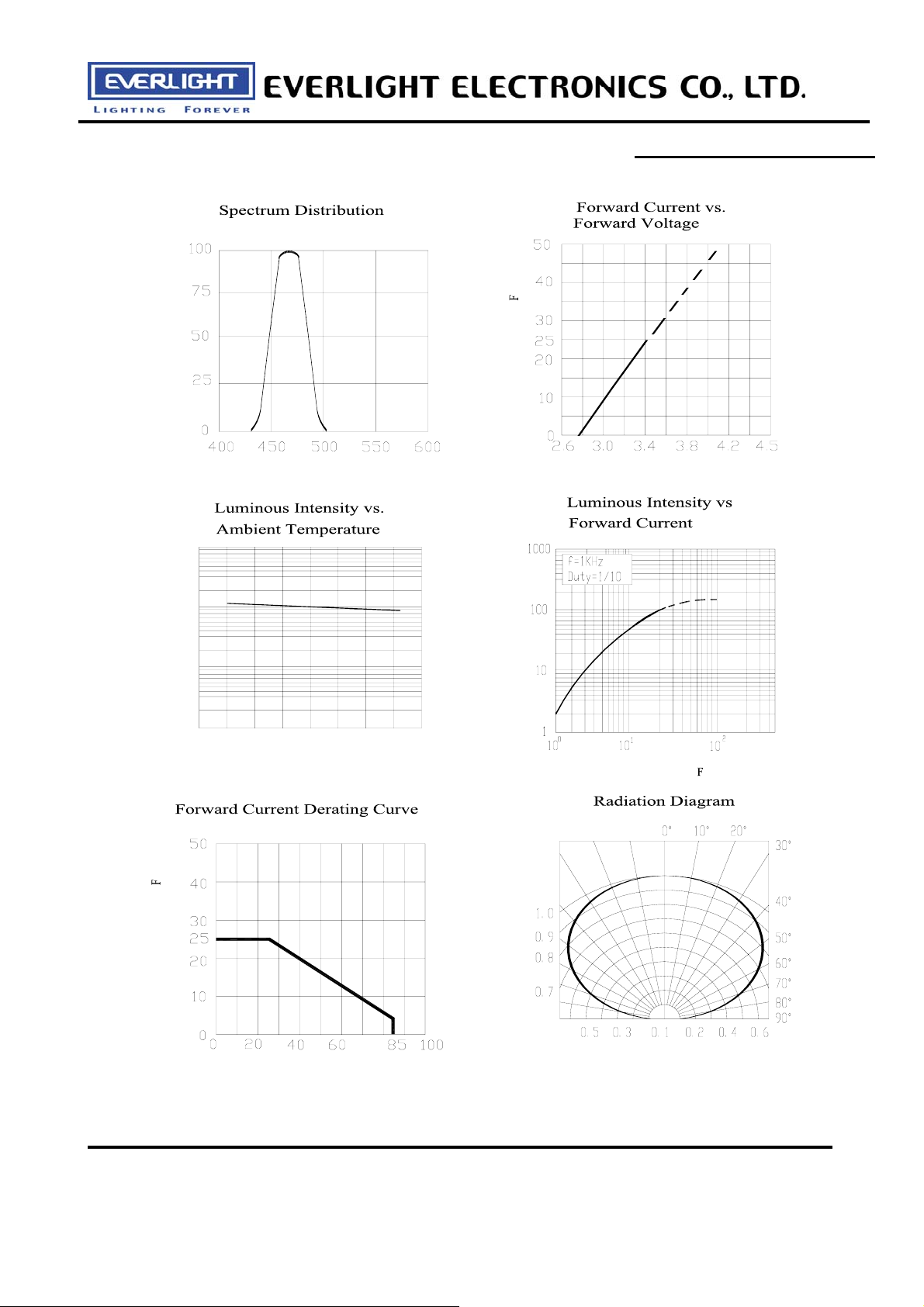

Typical Electro-Optical Characteristics Curves

Ta=25°C

) %

(

I (mA)

Relative luminous intensity

%) (

Wavelength λp(nm)

1000

Forward Current

17-21/BHC-AP1Q2/3T

Ta=25°C

Forward Voltage V (V)

) %

(

F

Ta=25°C

Relative luminous intensity

Forward Current I (mA)

100

10

1

-60

-20-40 0 206040

Ambient Temperature T (°C

Relative luminous intensity

10080

)

a

Forward Current I (mA)

Ambient Temperature T (°C

)

a

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

Label explanation

CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

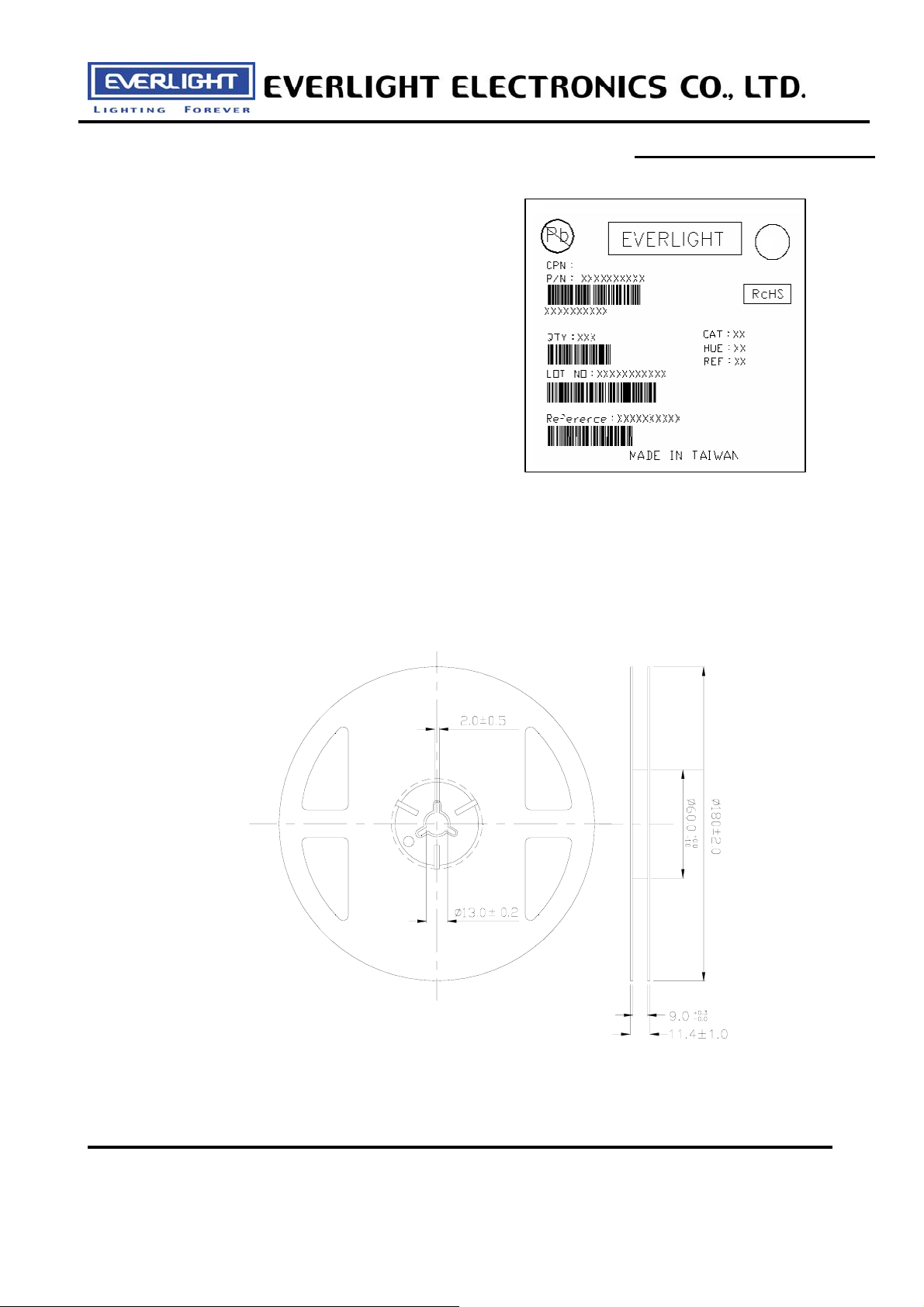

Reel Dimensions

17-21/BHC-AP1Q2/3T

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

17-21/BHC-AP1Q2/3T

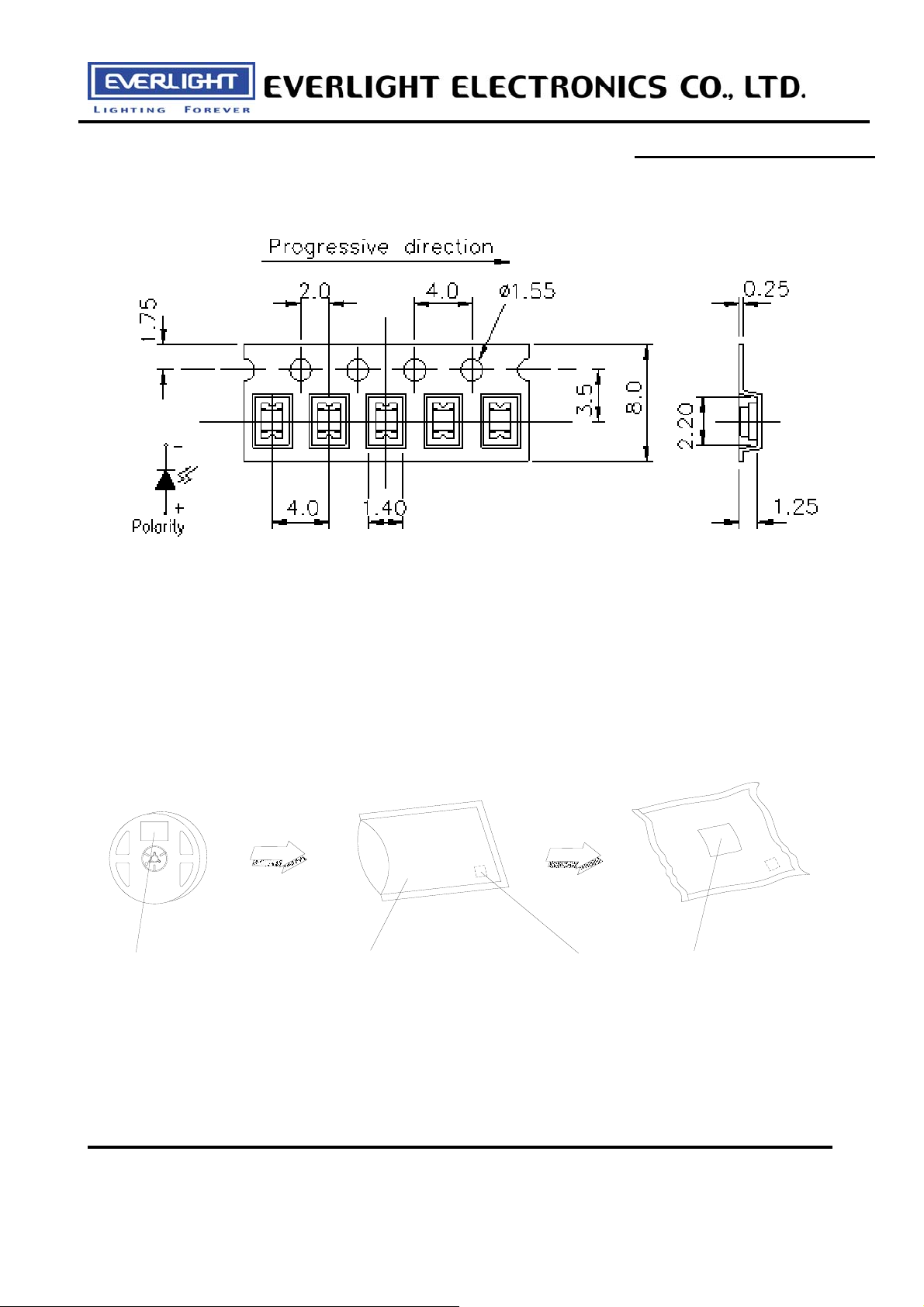

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below. Confidence level：90%

LTPD：10%

No. Items Test Condition

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min. 5sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

17-21/BHC-AP1Q2/3T

Test

Sample

Ac/Re

Size

22 PCS. 0/1

4

High Temperature

Temp. : 100℃

Storage

5

Low Temperature

Temp. : -40℃

Storage

6 DC Operating Life IF = 20 mA

7

High Temperature /

85℃/ 85%RH

High Humidity

1000 Hrs.

1000 Hrs. 1000 Hrs.

22 PCS. 0/1

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

17-21/BHC-AP1Q2/3T

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.

If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

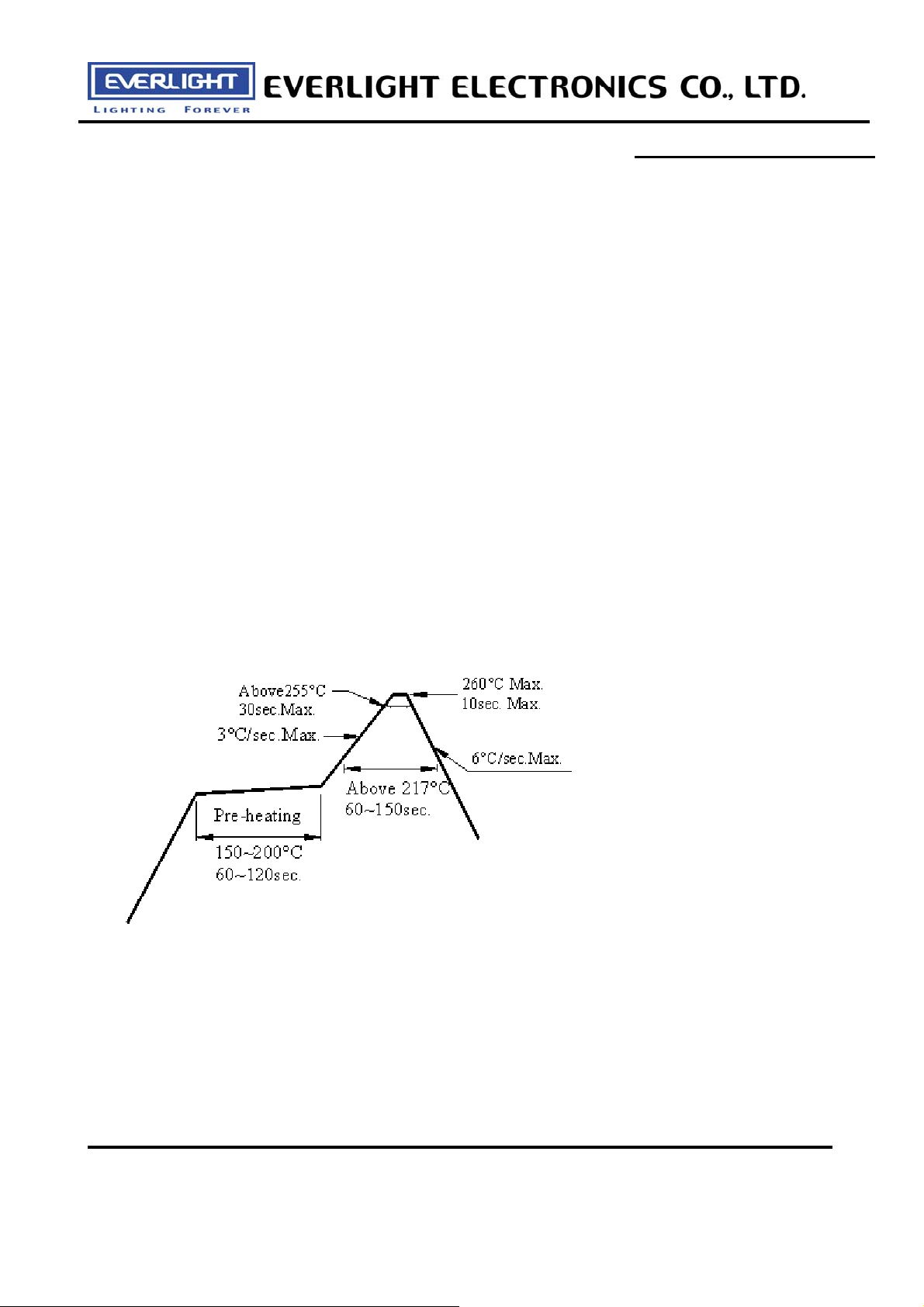

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin

17-21/BHC-AP1Q2/3T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do

soldering of each terminal. Be careful because the damage of the product is often started at the time of

the hand solder.

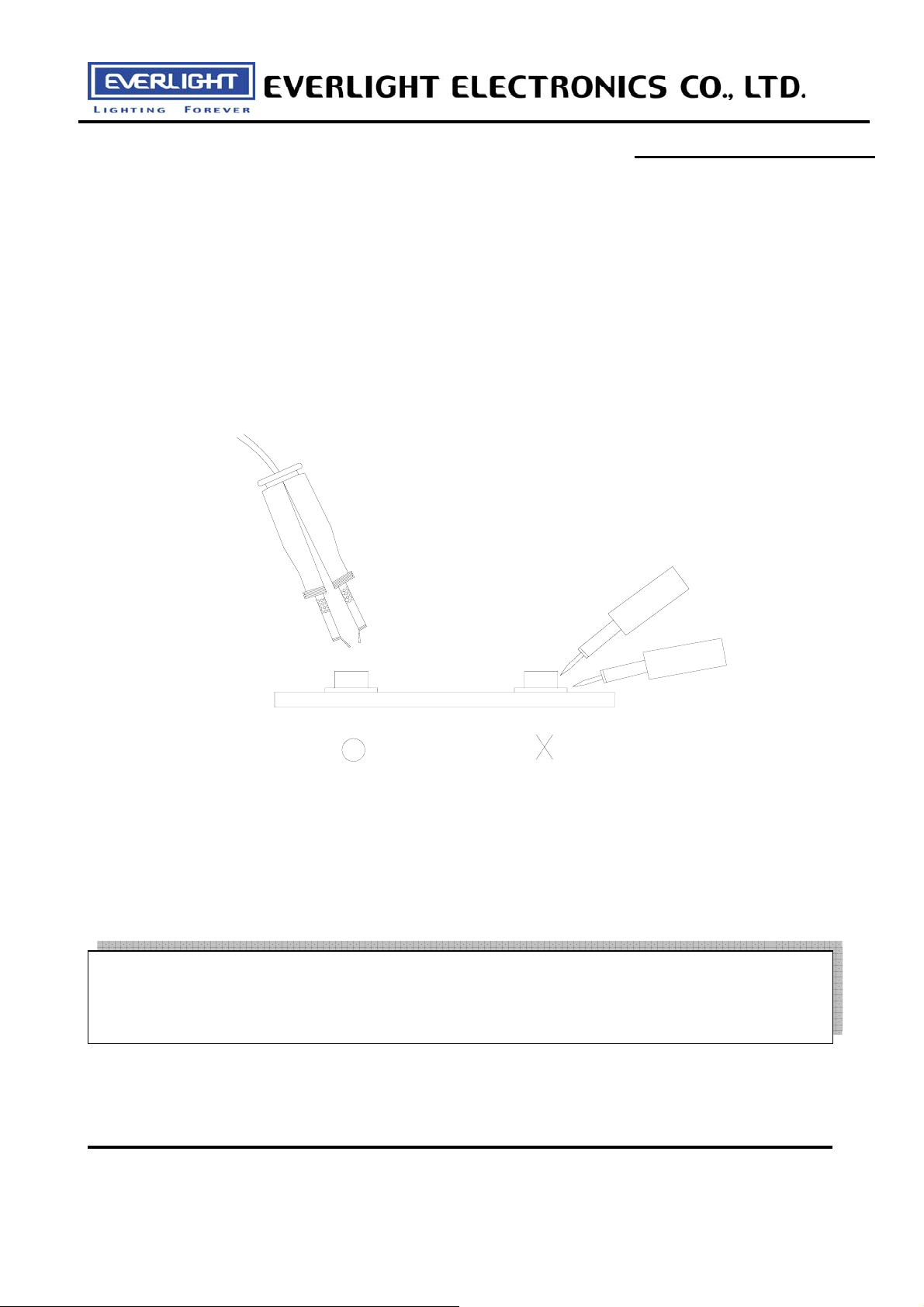

5.Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a

double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10

Device No:DSE-0002115 Prepared date: 20-Aug-2009 Prepared by: Huangyongxin
