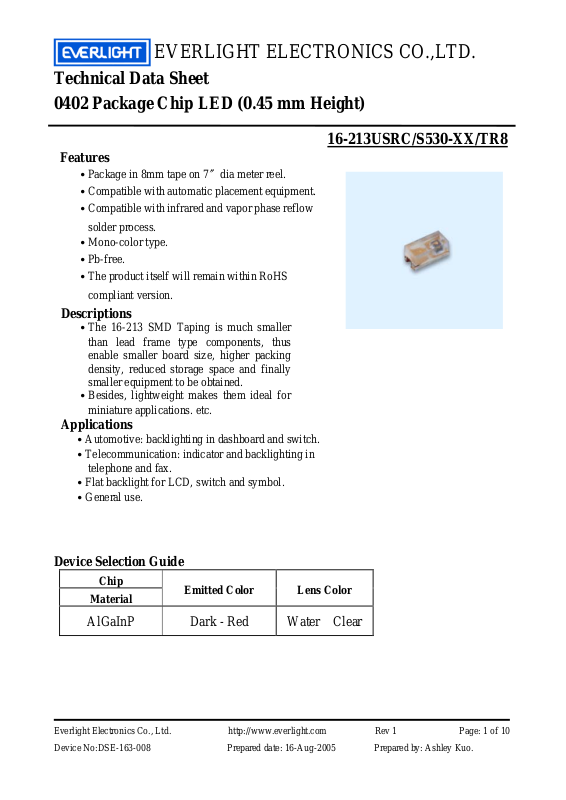

EVERLIGHT ELECTRONICS CO.,LTD.

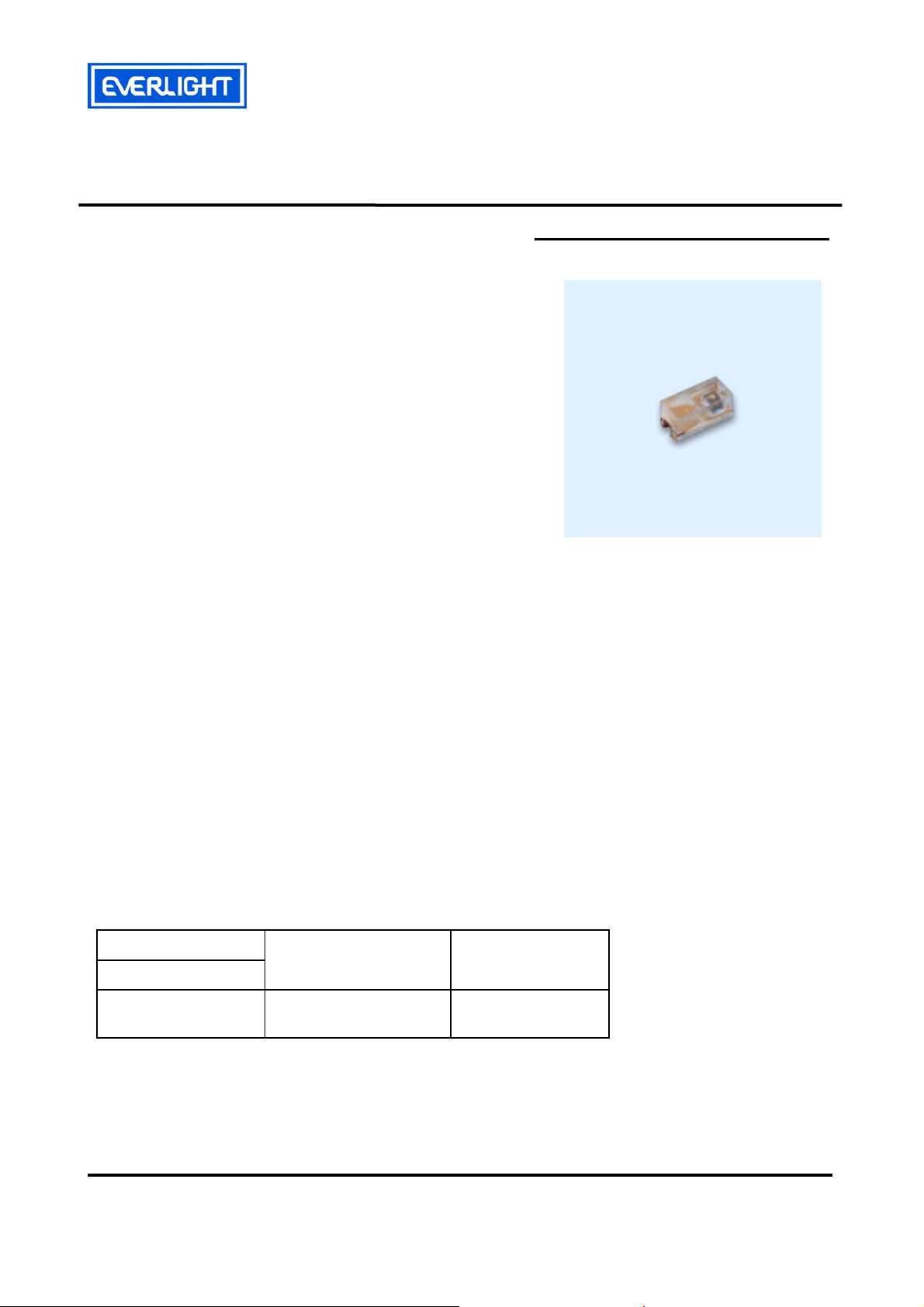

Technical Data Sheet 0402 Package Chip LED (0.45 mm Height)
16-213USRC/S530-XX/TR8
Package in 8mm tape on 7dia meter reel.Compatible with automatic placement equipment.Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free. The product itself will remain within RoHS
compliant version.
Descriptions
The 16-213 SMD Taping is much smaller
than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Automotive: backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color Lens Color
Dark - Red
Water Clear
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 1 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8

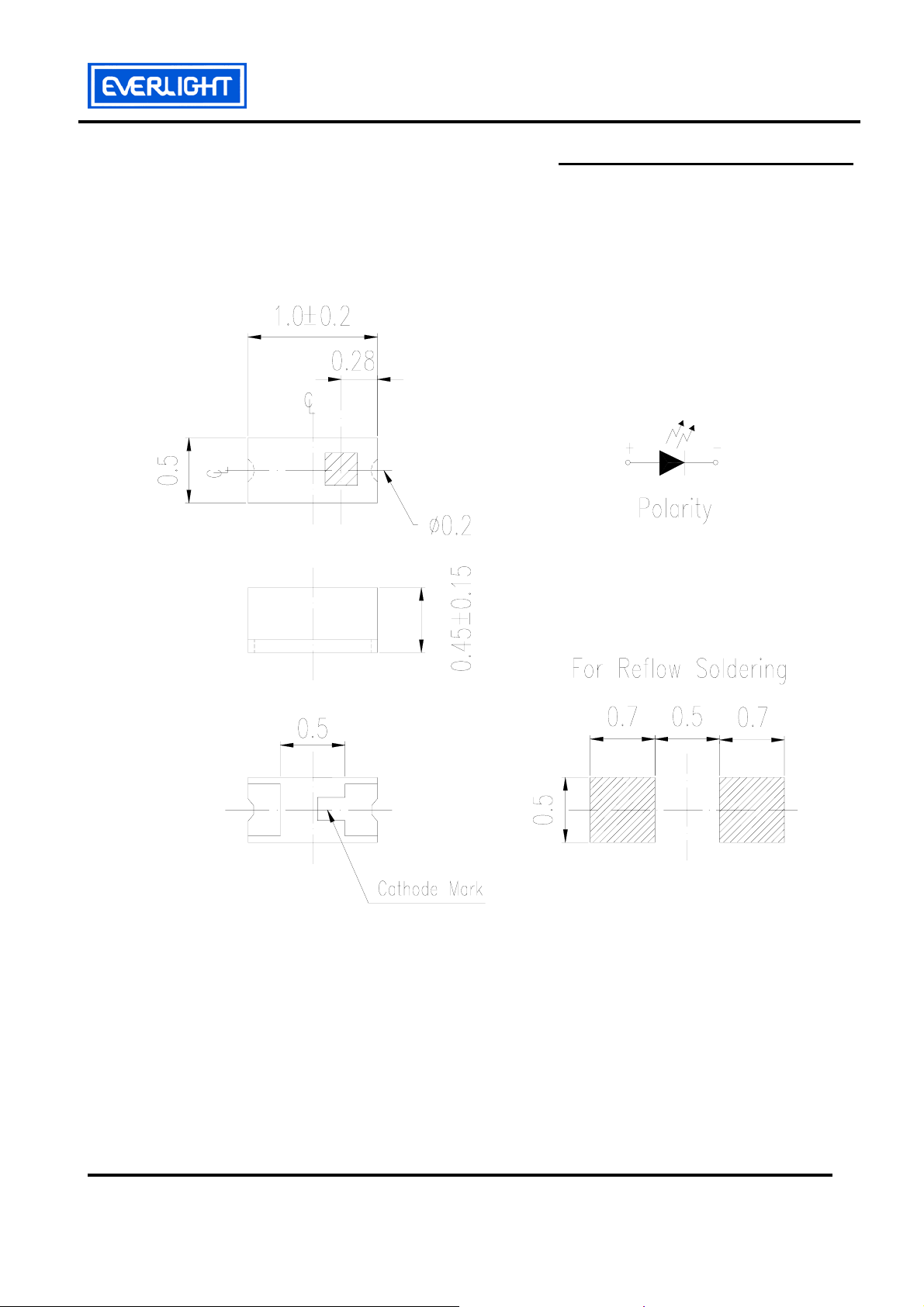

Package Outline Dimensions
Note: The tolerances unless mentioned is ±0.1mm,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 2 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40~ +90
Soldering Temperature Tsol 260 (for 5 second)
Electrostatic Discharge (HBM) ESD 2000 V
Power Dissipation Pd 60 mW
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature Tsol
IFP 60 mA
Reflow Soldering : 260 for 10 sec.
Hand Soldering : 350 for 3 sec.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 3 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8
Electro-Optical Characteristics (Ta=25)
Parameter Symbol
*Chip
Min. Typ. Max. Unit Condition
Rank
A2 12 30 ----­A3 23 40 -----
Luminous Intensity Iv
A4 28 47 -----
mcd IF=20 mA
A5 38 63 ----­A6 48 77 -----
Viewing Angle 2θ1/2 ----- ----- 120 ----- deg IF=20mA
Peak Wavelength λp ----- ----- 639 ----- nm IF=20mA
Dominant Wavelength
λd ----- ----- 631 ----- nm
Spectrum Radiation
Bandwidth
Forward Voltage VF
Reverse Current IR ----- ----- ----- 10 μA
△λ ----- ----- 20 ----- nm
----- 1.7 2.0 2.4
V
IF=20mA
IF=20mA
IF=20mA
VR=5V
*16-213USRC/S530-XX/TR8
Chip Rank
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 4 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8

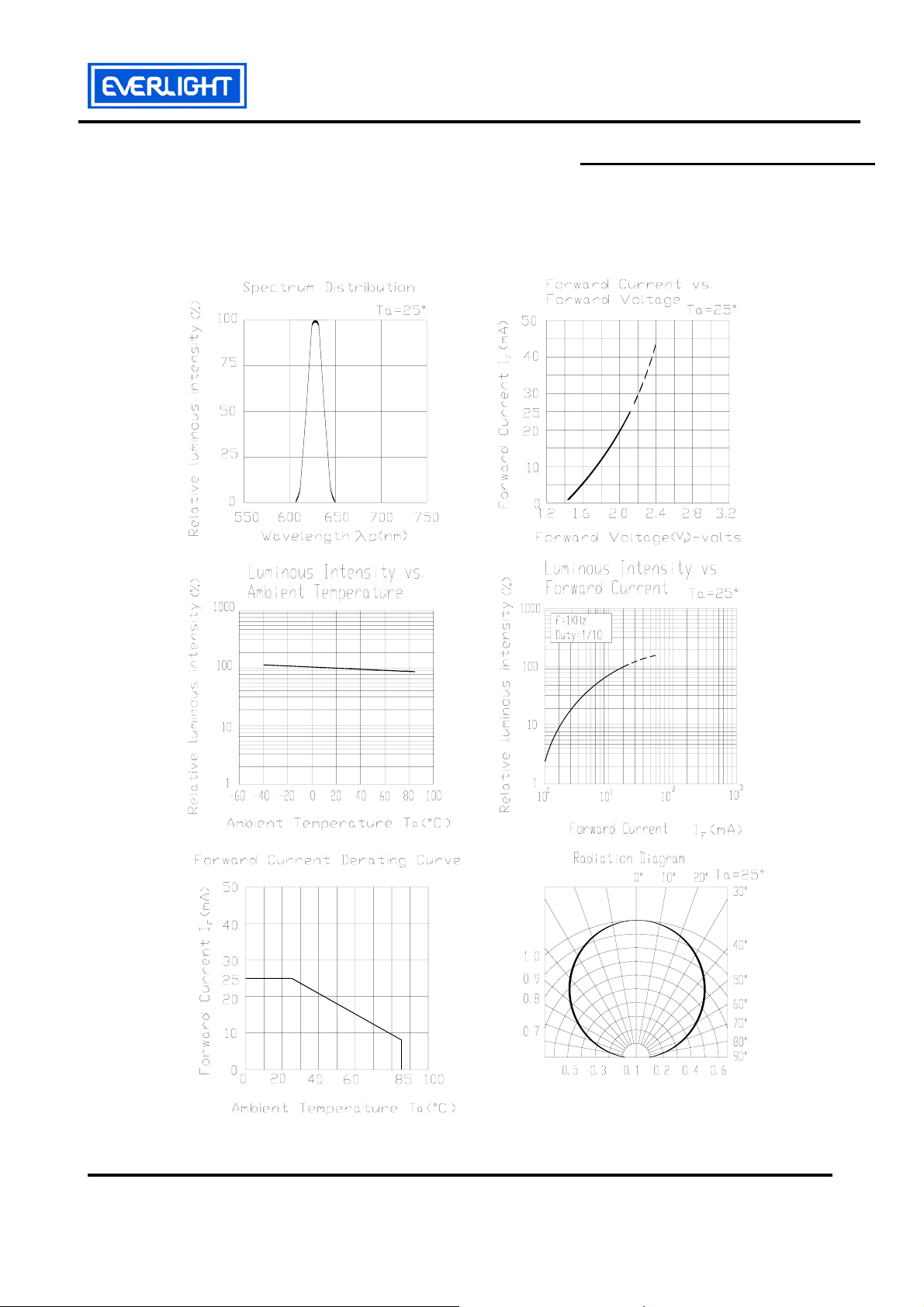

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 5 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8

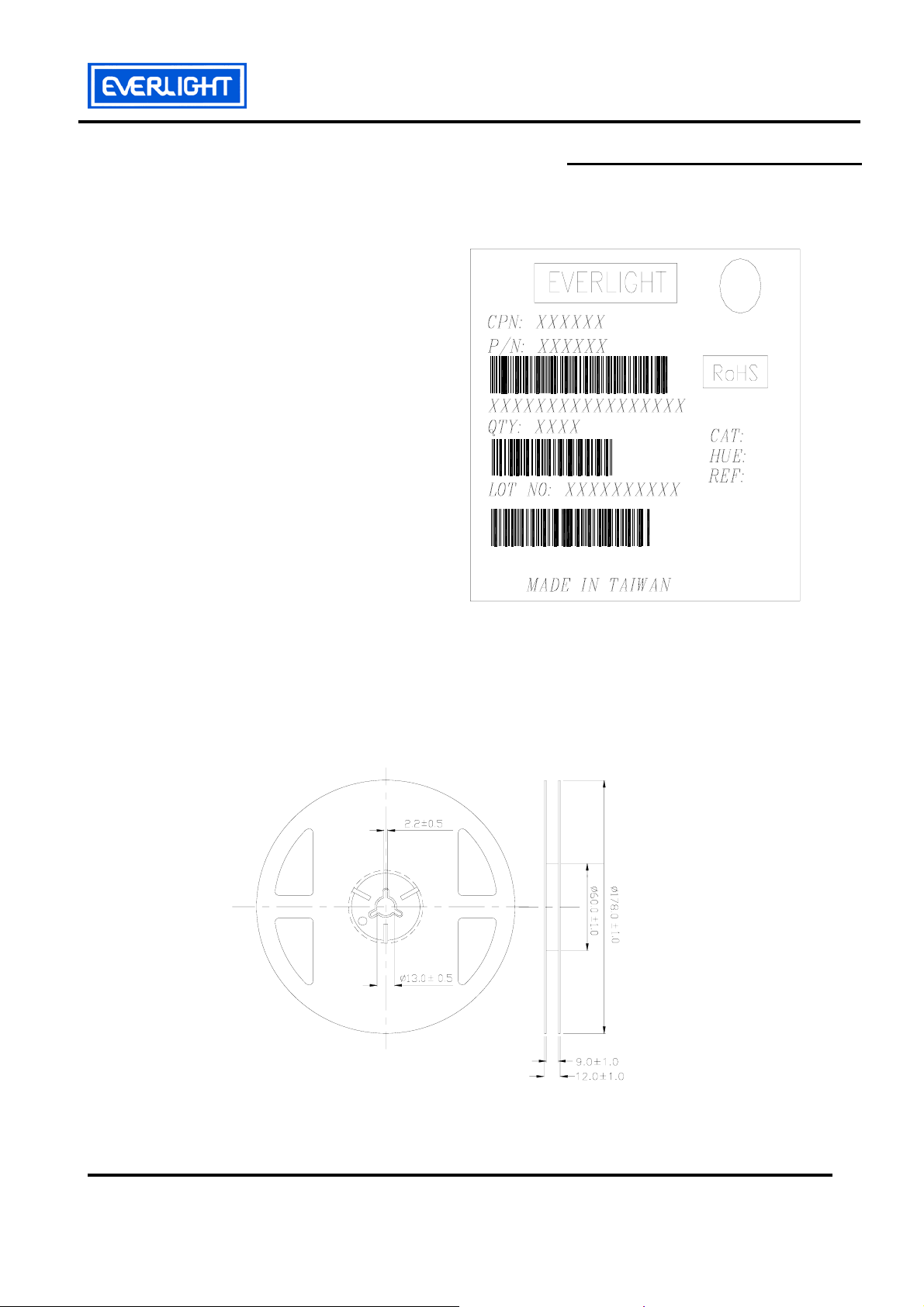

Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 6 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8

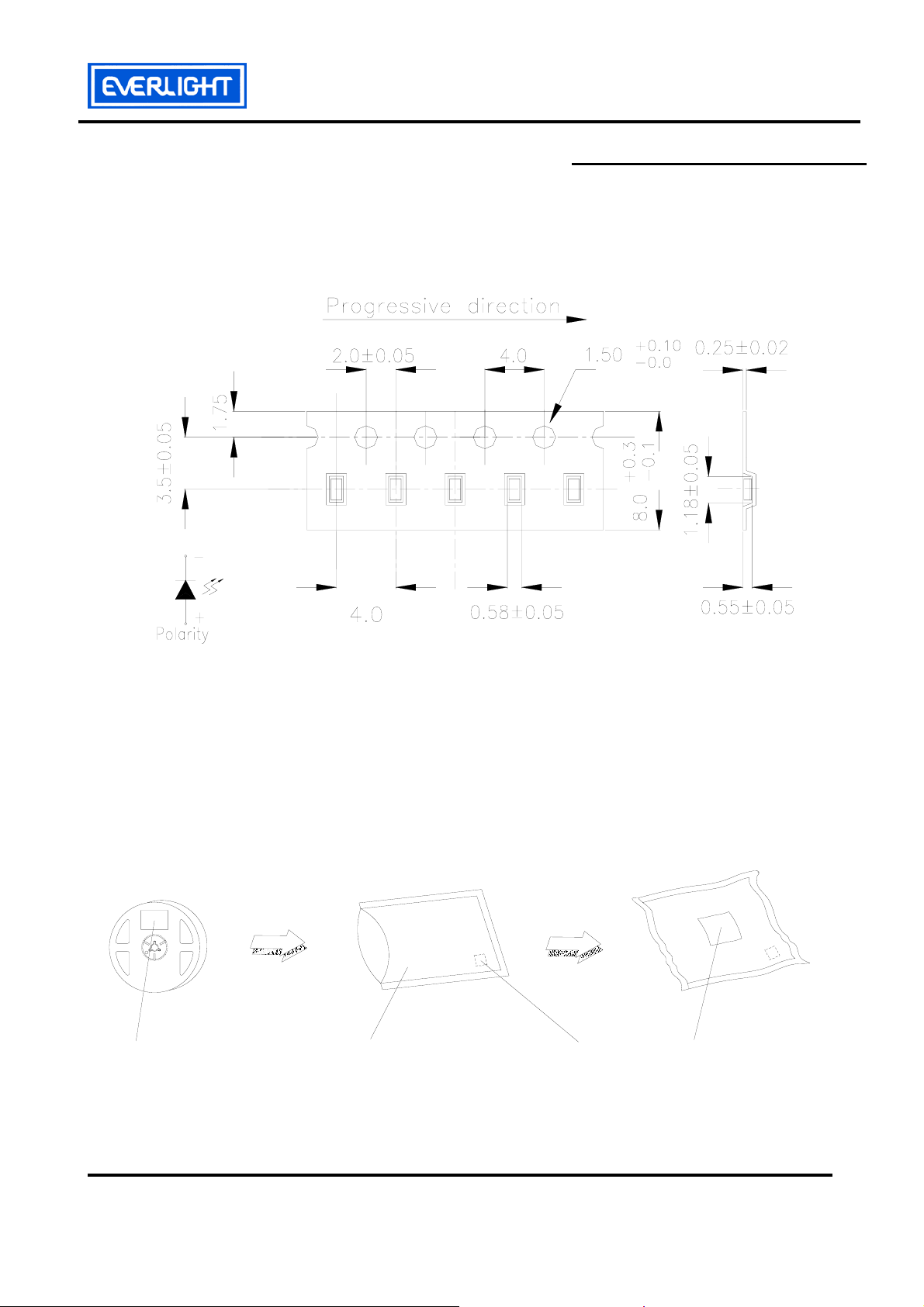

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 7 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 8
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD10%
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
Min. 5sec.
6 Min.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85/ 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 8 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 9
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 deg C or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

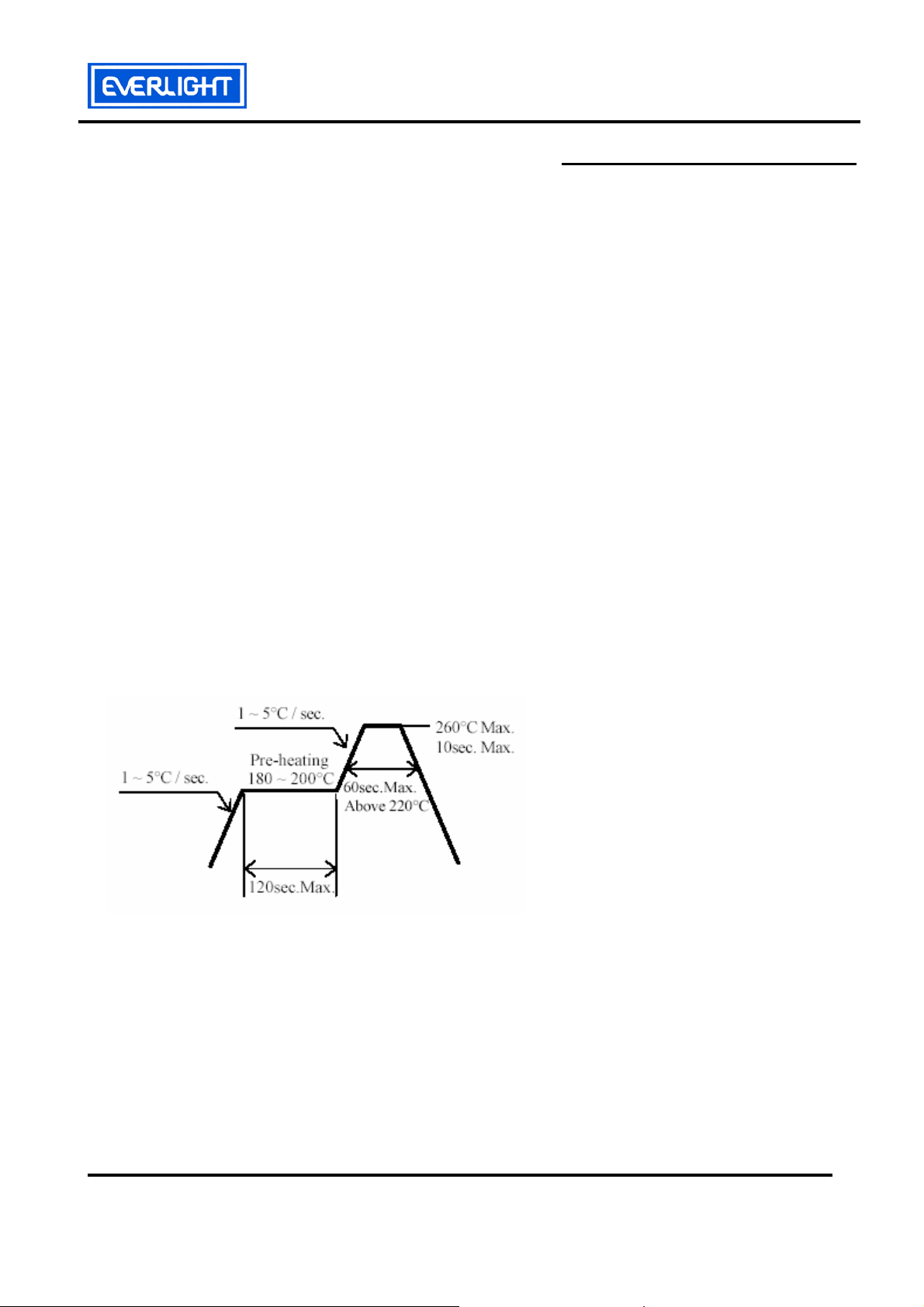

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 9 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
Page 10
EVERLIGHT ELECTRONICS CO.,LTD.
16-213USRC/S530-XX/TR8
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds within
once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

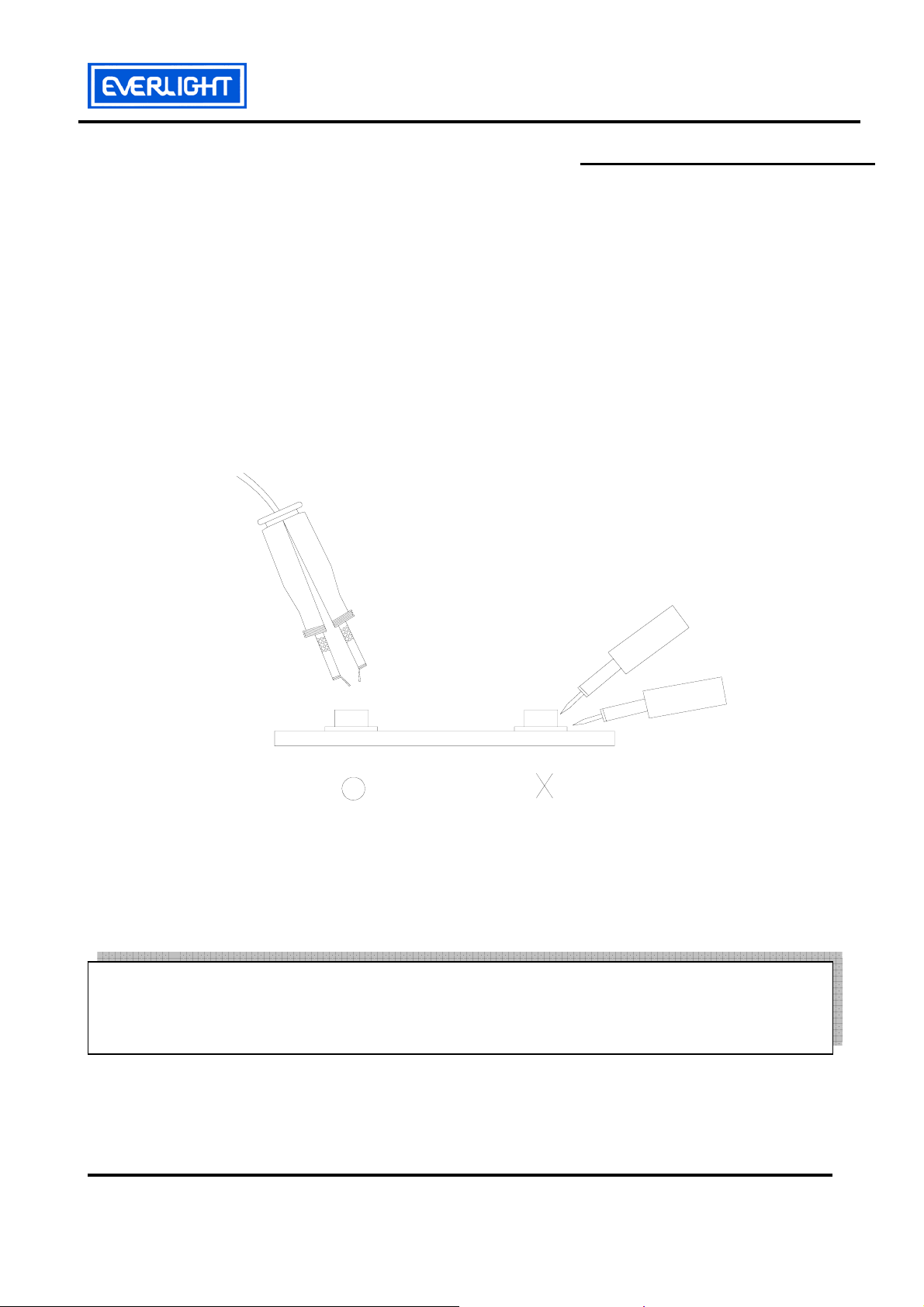

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 10 of 10 Device No:DSE-163-008 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo.
