EVERLIGHT EVL 16-213/BHC Datasheet

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet

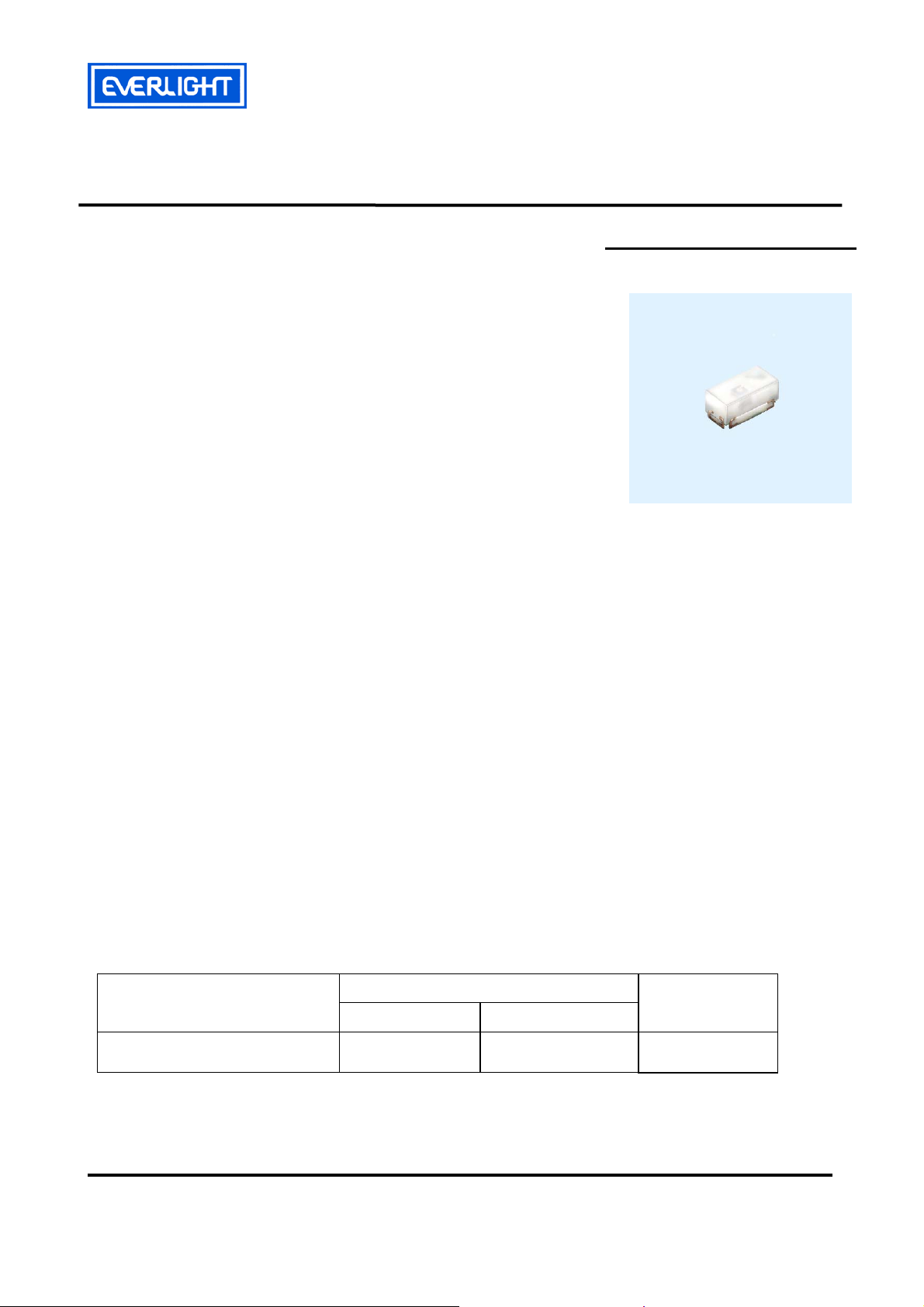

0402 Package Chip LED (0.45mm Height)
Package in 8mm tape on 7diameter reel.Compatible with automatic placement equipment.Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free. The product itself will remain within RoHS
compliant version.
Descriptions
The 16-213 SMD Taping is much smaller than
lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use. Indoor signboard use.
16-213/BHC-AN1P2/3T
Device Selection Guide
Part No.
16-213/BHC-AN1P2/3T
Material Emitted Color
InGaN Blue Water Clear
Chip
Lens Color
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 1 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T

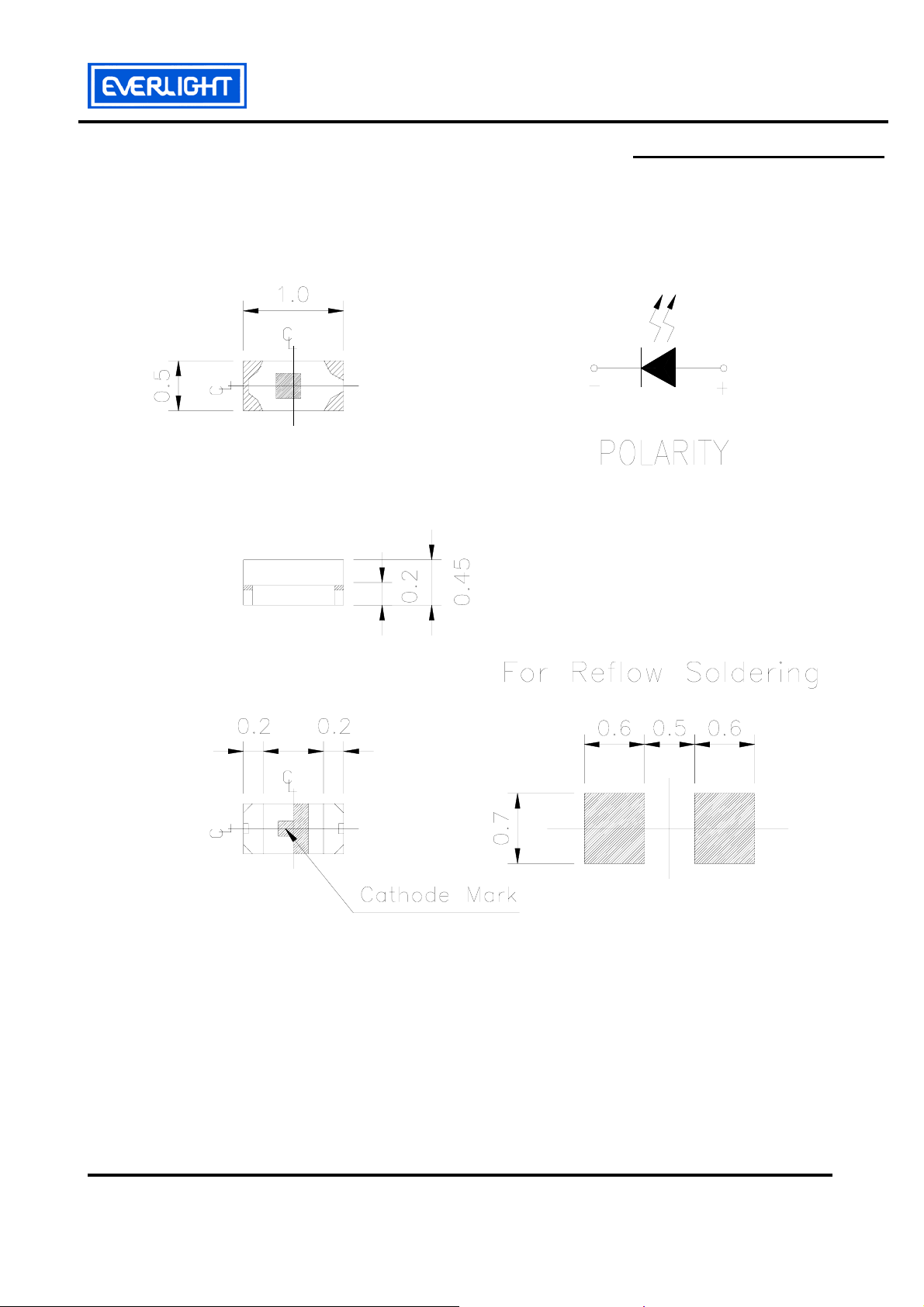

Package Outline Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 2 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Absolute Maximum Ratings (Ta=25)
Parameter
Reverse Voltage VR 5 V Forward Current IF 25 mA
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol 260 (for 5 seconds)
Electrostatic Discharge (HBM) ESD 150 V
Power Dissipation Pd 110 mW
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature Tsol
Symbol Rating Unit
IFP 100 mA
Reflow Soldering : 260 for 10 sec.
Hand Soldering : 350 for 3 sec.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 3 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Reverse Current
Iv 28.5 ---- 72.0
λp
λd
△λ
2θ1/2
VF
---- 468 ----
464.5 ---- 476.5
---- 35 ----
---- 120 ----
2.7 3.3 3.7
IR ---- ---- 50
Notes:
1.Tolerance of Luminous Intensity ±10%
2.Tolerance of Dominant Wavelength ±1nm
mcd
nm
nm
nm
deg
V
μA
IF=20mA
VR=5V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 4 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Bin Range Of Dom. Wavelength
Group Bin Min Max Unit Condition
A9 464.5 467.5
A
A10 467.5 470.5 A11 470.5 473.5 A12 473.5 476.5
Bin Range Of Luminous Intensity
Bin Min Max Unit Condition
N1 28.5 36.0 N2 36.0 45.0
P1 45.0 57.0 P2 57.0 72.0
Notes:
1.Tolerance of Luminous Intensity ±10%
2.Tolerance of Dominant Wavelength ±1nm
nm IF=20mA
mcd IF=20mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 5 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T

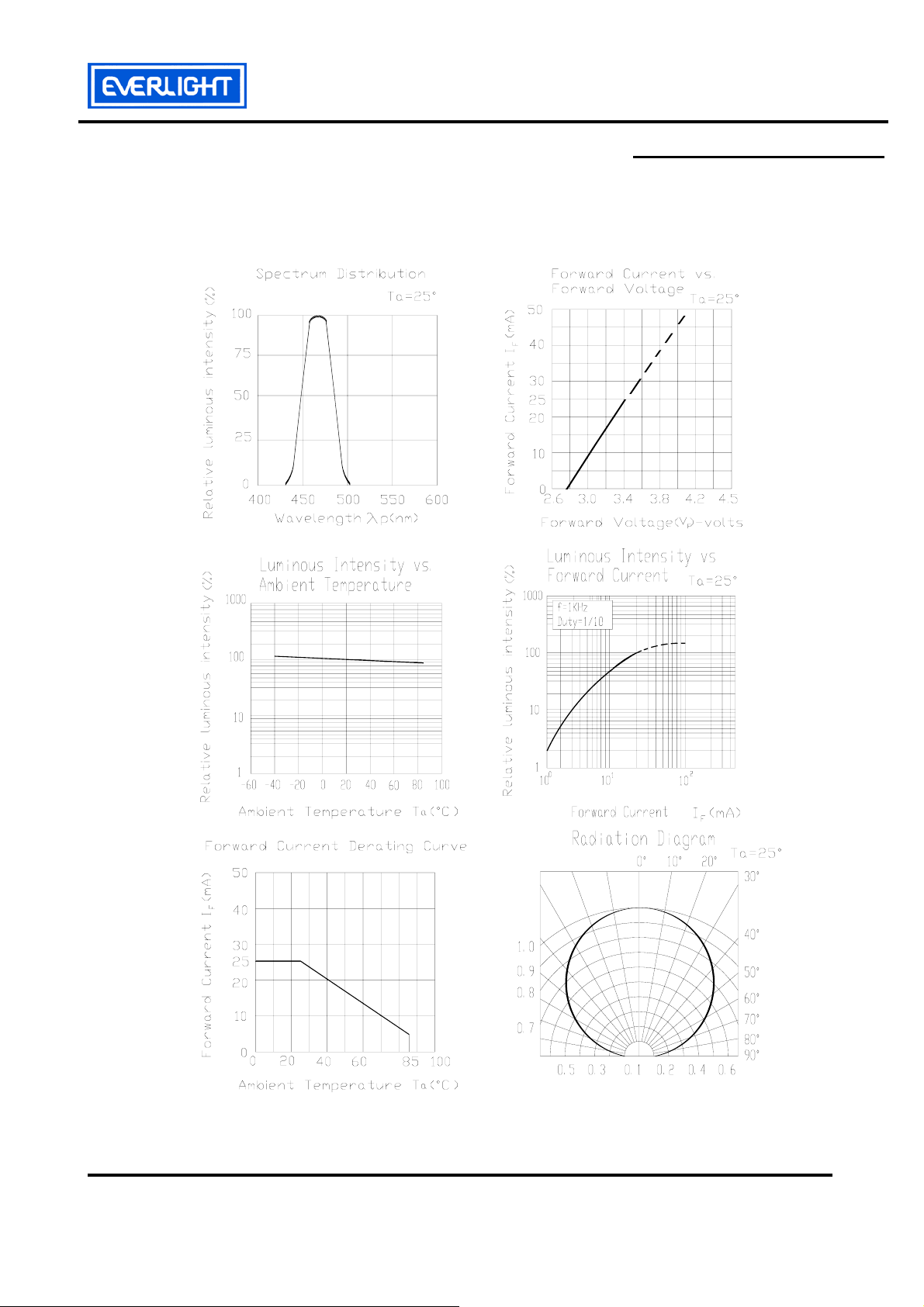

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 6 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm , Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 7 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 8
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T

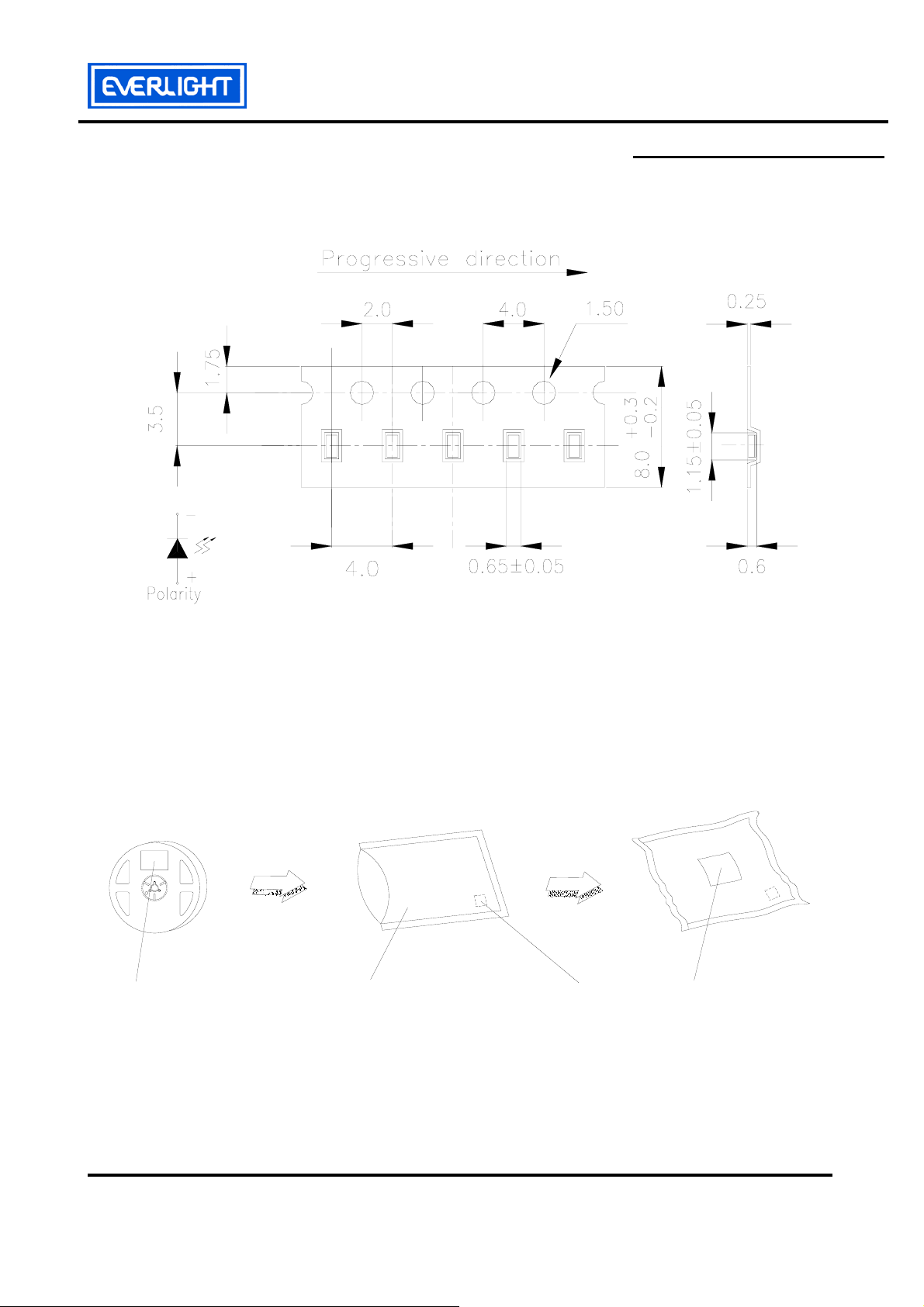

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 8 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 9
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD10%
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
Min. 5sec.
6 Min.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85/ 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 9 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 10
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 deg C or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 10 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
Page 11
EVERLIGHT ELECTRONICS CO.,LTD.
16-213/BHC-AN1P2/3T
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.
5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 11 of 11 Device No. : DSE-163-B03 Prepared date: 09-Jan-2006 Prepared by: Ashley Kuo
