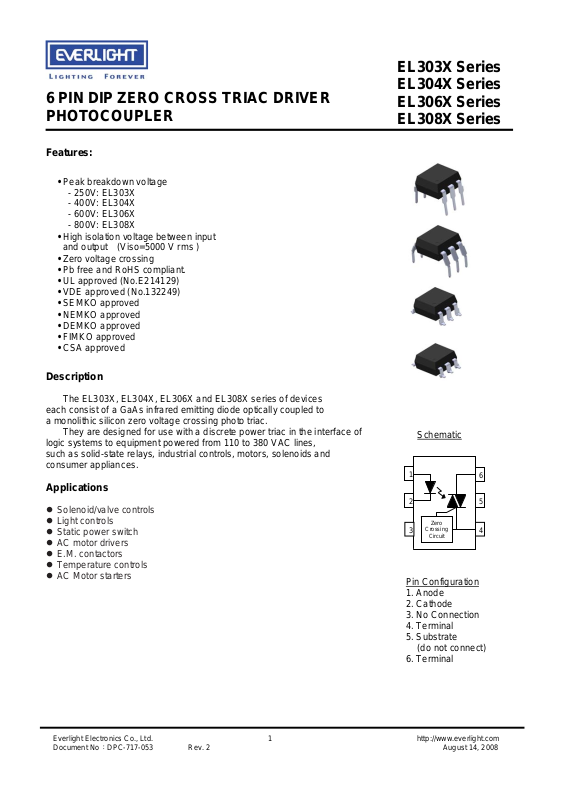

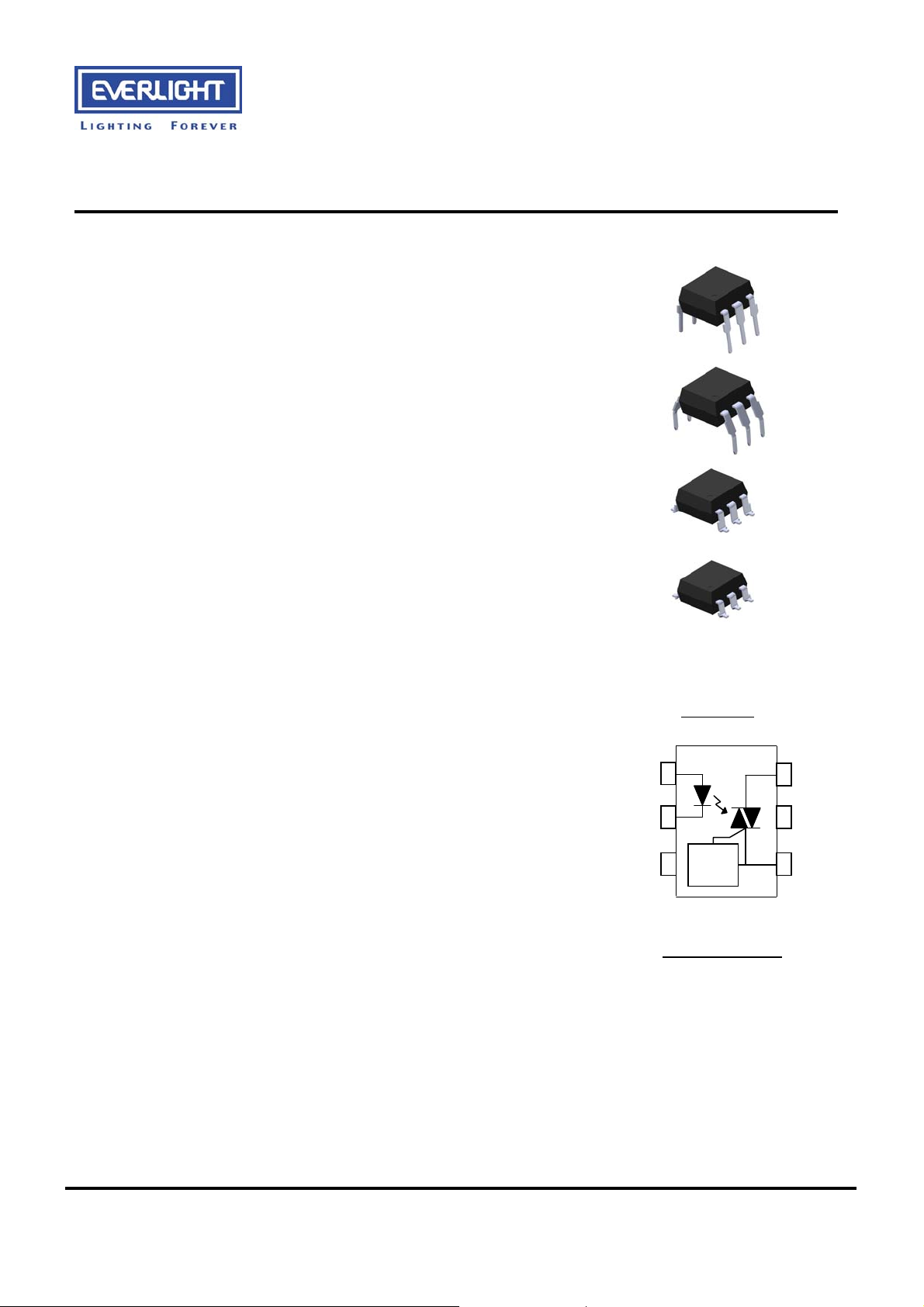

6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
Features:
• Peak breakdown voltage
- 250V: EL303X
- 400V: EL304X
- 600V: EL306X
- 800V: EL308X
• High isolation voltage between input
and output (Viso=5000 V rms )
• Zero voltage crossing
• Pb free and RoHS compliant.
• UL approved (No.E214129)
• VDE approved (No.132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved
• CSA approved
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Description
The EL303X, EL304X, EL306X and EL308X series of devices
each consist of a GaAs infrared emitting diode optically coupled to
a monolithic silicon zero voltage crossing photo triac.
They are designed for use with a discrete power triac in the interface of
logic systems to equipment powered from 110 to 380 VAC lines,
such as solid-state relays, industrial controls, motors, solenoids and
consumer appliances.
Applications
z Solenoid/valve controls
z Light controls
z Static power switch
z AC motor drivers
z E.M. contactors
z Temperature controls
z AC Motor starters
Schematic
1
2
Zero
Crossing
Circuit
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. Terminal
5. Substrate
(do not connect)
6. Terminal
6
5
43
Everlight Electronics Co., Ltd. 1 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 2
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
Absolute Maximum Ratings (Ta=25°C)
Parameter Symbol Rating Unit
EL303X Series
EL304X Series
EL306X Series
EL308X Series
I
Forward current
Reverse voltage
Input
Power dissipation
Derating factor (above 85°C)
Off-state Output
Terminal Voltage
Output
Peak Repetitive Surge Current I
Power dissipation
Derating factor (above 85°C)
Isolation voltage *1 V
Total power dissipation PD 330 mW
Operating temperature
EL303X 250
EL304X 400
EL306X 600
EL308X
F
V
R
PD
V
DRM
1
TSM
P
D
iso
T
opr
60
6
100
3.8
800
300
7.6
5000 V rms
-55~+100 °C
mA
V
mW
mW /°C
V
A
mW
mW /°C
T
Storage temperature
Soldering temperature
Notes
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6
are shorted together.
*2 For 10 seconds.
*2
T
stg
sol
-55~+125 °C
260 °C
Everlight Electronics Co., Ltd. 2 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 3
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
Electrical Characteristics (Ta=25°C unless specified otherwise)
Input
Parameter Symbol Min. Typ.* Max. Unit Condition
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Forward voltage
Reverse Leakage current
V
F
I
R
- - 1.5 V
- - 10 µA
Output
Parameter Symbol Min. Typ.* Max. Unit Condition
Peak Blocking Current
Peak On-state Voltage VTM - - 3 V Critical
Rate of
Rise of
off-state
Inhibit Voltage (MT1-MT2 voltage above which device will not trigger)
Leakage in lnhibited State I
EL303X/304X 100
EL306X/308X
EL303X /304X /306X
EL308X
I
DRM1
dv/dt
- - 20 V IF= Rated IFT
V
INH
- - 500 µA
DRM2
- 500
1000 - -
600 - -
nA
V/µs
Transfer Characteristics
Parameter Symbol Min. Typ.* Max. Unit Condition
IF = 30mA
VR = 6V
V
= Rated V
DRM
= 0mA
I
F
I
=100mA peak, IF=Rated
TM
I
FT
=Rated V
V
PEAK
(Fig. 10)
I
= Rated IFT,
F
=Rated V
V
DRM
DRM
DRM
, off state
DRM
, IF=0
EL3031
LED Trigger
Current
Holding Current
* Typical values at T
EL3041
EL3061
EL3081
EL3032
EL3042
EL3062
EL3082
EL3033
EL3043
EL3063
EL3083
= 25°C
a
I
FT
I
H
- - 15
- - 10
- - 5
- 280 -
mA Main terminal Voltage=3V
µA
Everlight Electronics Co., Ltd. 3 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 4
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

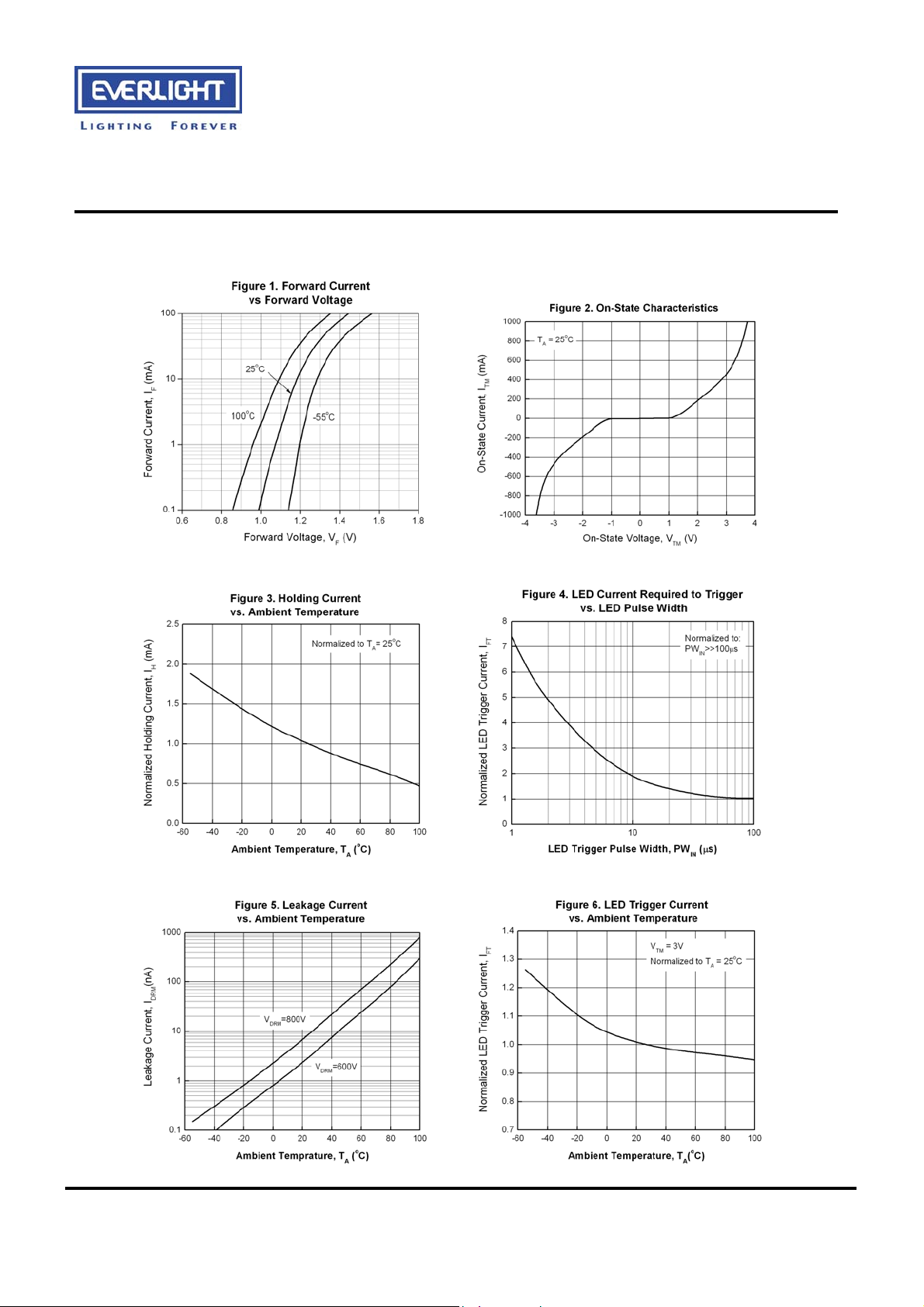

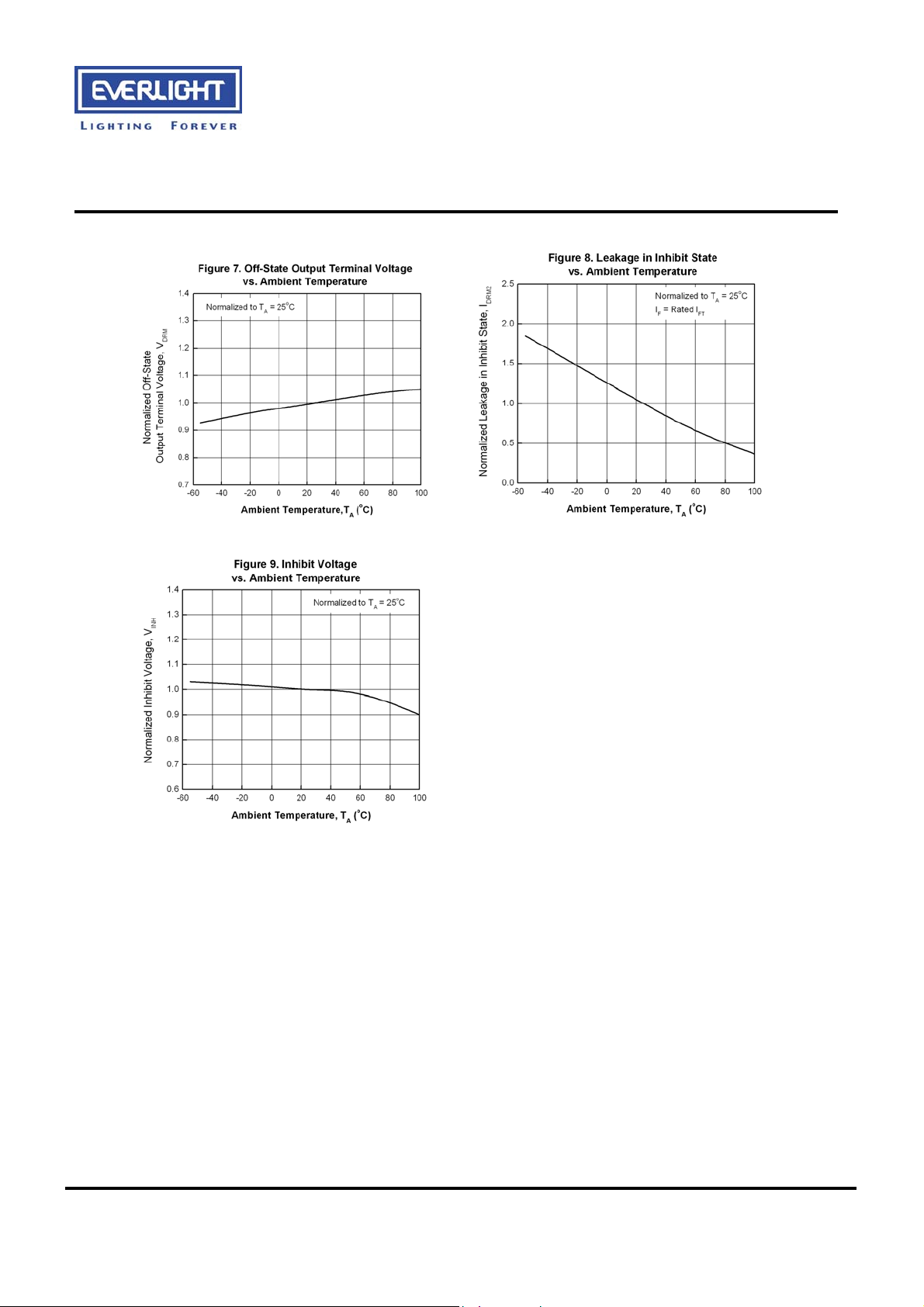

Typical Performance Curves
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Everlight Electronics Co., Ltd. 4 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 5
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Everlight Electronics Co., Ltd. 5 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 6
A
k
A
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

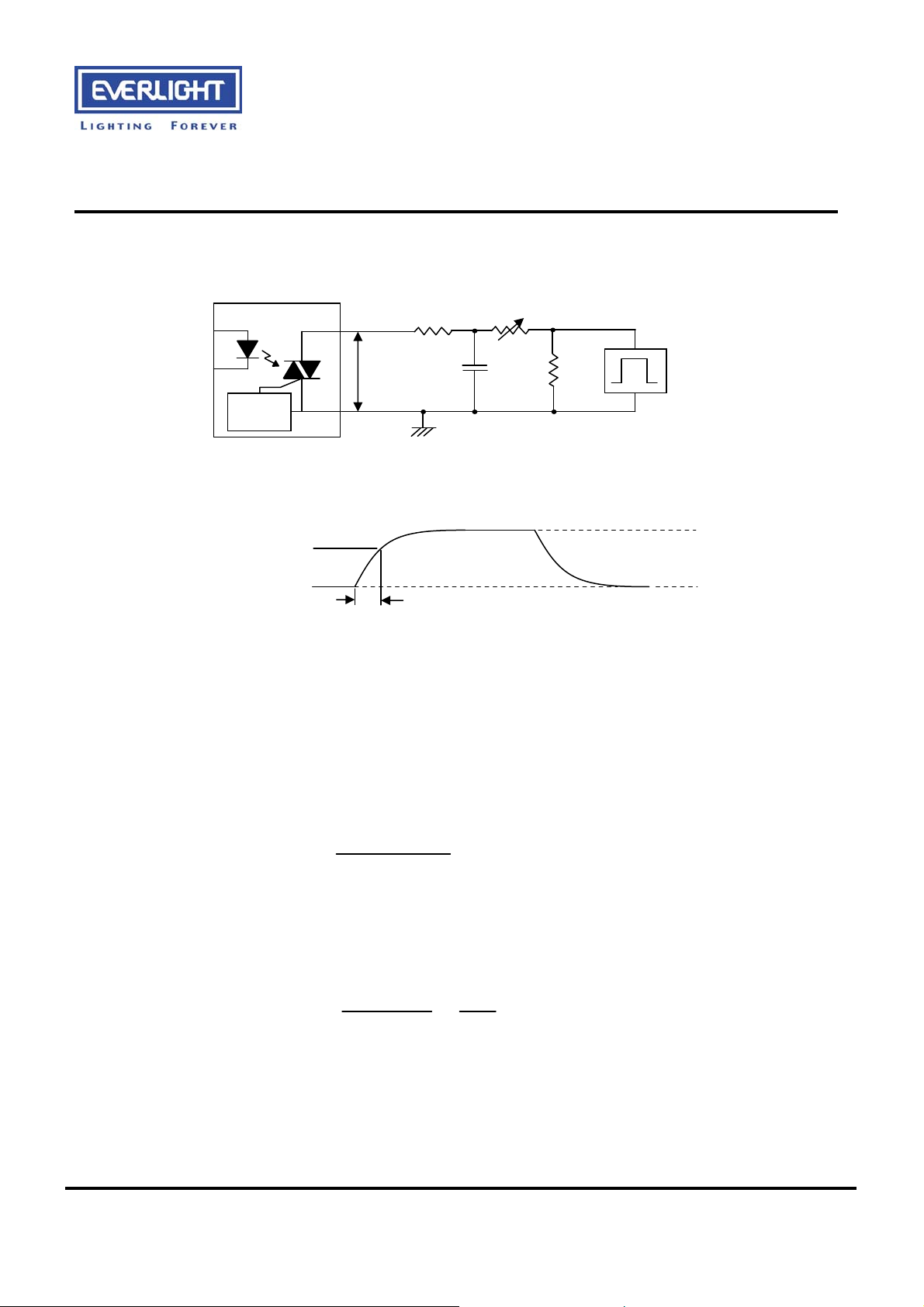

Figure 10. Static dv/dt Test Circuit & Waveform
EL303X Series
EL304X Series
EL306X Series
EL308X Series
K
D.U.T.
Zero
Crossing
T1
T2
R
10
Ω
V
T
C
TEST
TEST
50 Ω
pplied VT
Waveform
0.632 x V
PEAK
Measurement Method
The high voltage pulse is set to the required V
circuit above. LED current is not applied. The waveform V
varying R
dv/dt is then decreased until the D.U.T. stops triggering. At this point, τ
calculated.
, the dv/dt (slope) is increased, until the D.U.T. is observed to trigger (waveform collapses). The
TEST
τRC
value and applied to the D.U.T. output side through the RC
PEAK
is monitored using a x100 scope probe. By
T
is recorded and the dv/dt
RC
High Voltage
Pulse Source
V
PEAK
0
dv/dt =
0.632 x V
PEAK
τRC
For example, V
= 600V for EL306X series. The dv/dt value is calculated as follows:
PEAK
dv/dt =
0.63 x 600
τRC
378
=
τ
RC
Everlight Electronics Co., Ltd. 6 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 7
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
Order Information
Part Number
EL303XY(Z)-V
or EL304XY(Z)-V
or EL306XY(Z)-V
or EL308XY(Z)-V
Note
X = Part No. (1, 2 or 3)
Y = Lead form option (S, S1, M or none)
Z = Tape and reel option (TA, TB or none).
V = VDE safety approved option
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Option Description Packing quantity
None Standard DIP-6 65 units per tube
M Wide lead bend (0.4 inch spacing) 65 units per tube
S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel
S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel
S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel
S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel
Everlight Electronics Co., Ltd. 7 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 8
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

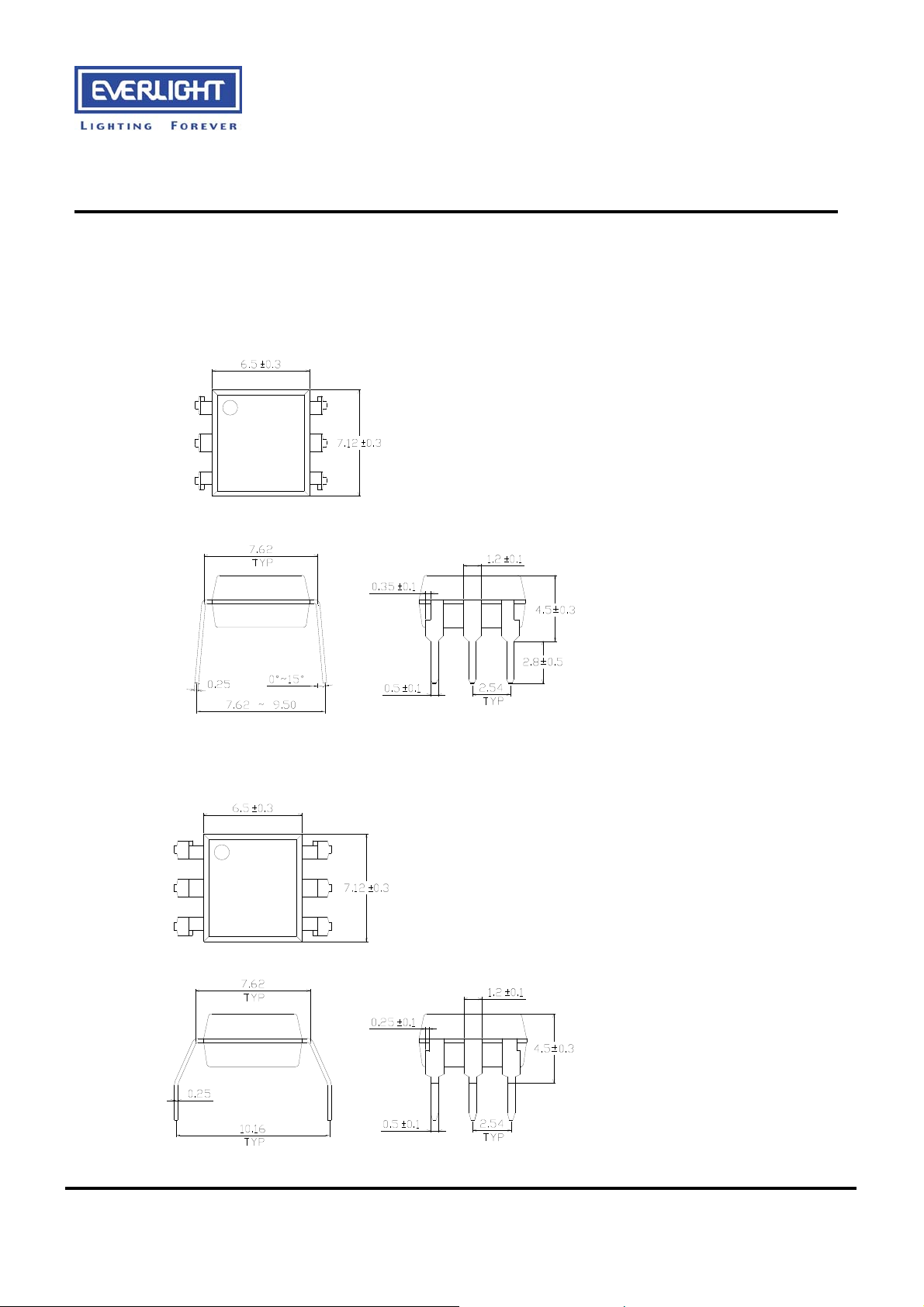

Package Drawings
(Dimensions in mm)
Standard DIP Type
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Option M Type
Everlight Electronics Co., Ltd. 8 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 9
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

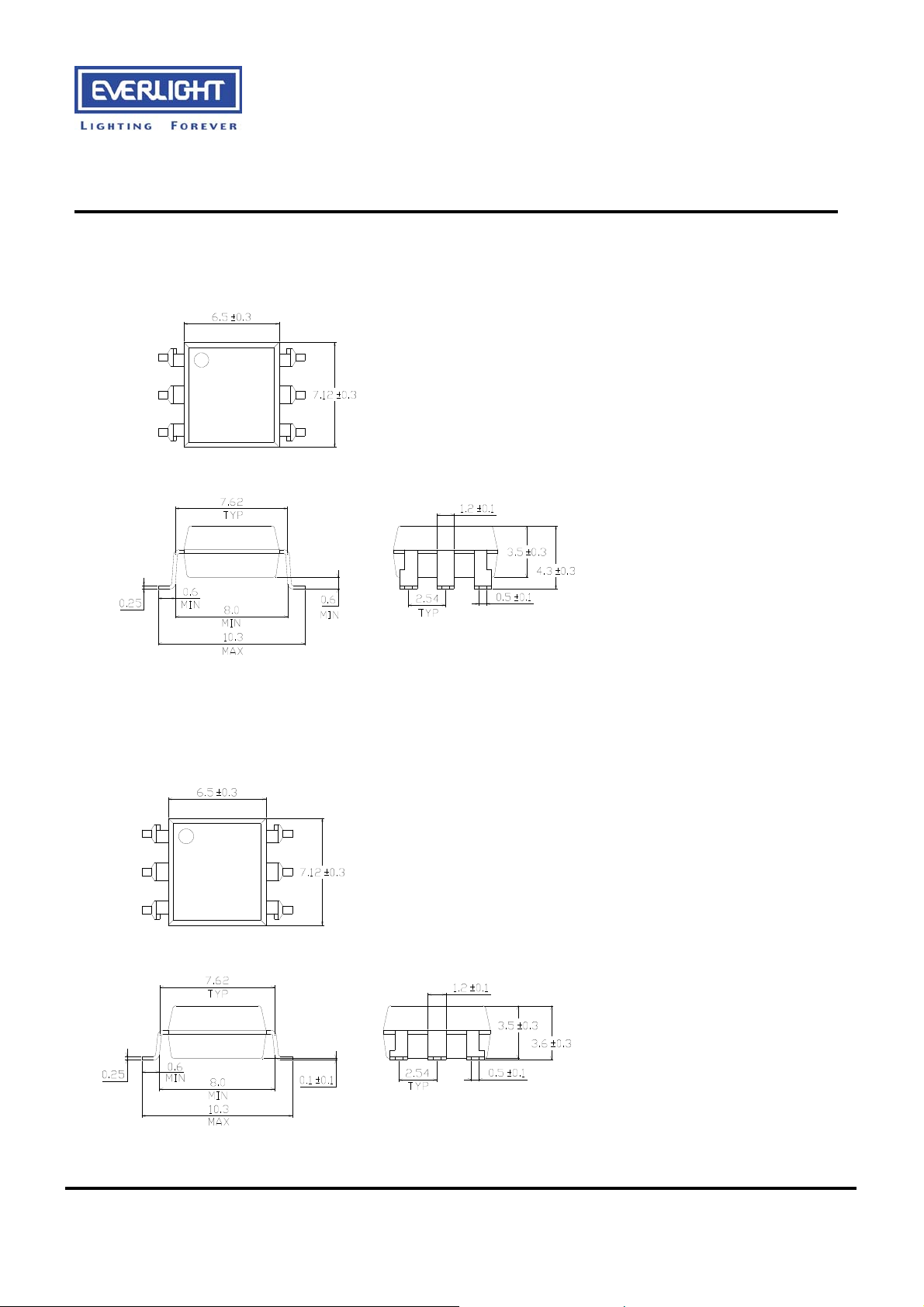

Option S Type
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Option S1 Type
Everlight Electronics Co., Ltd. 9 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 10
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

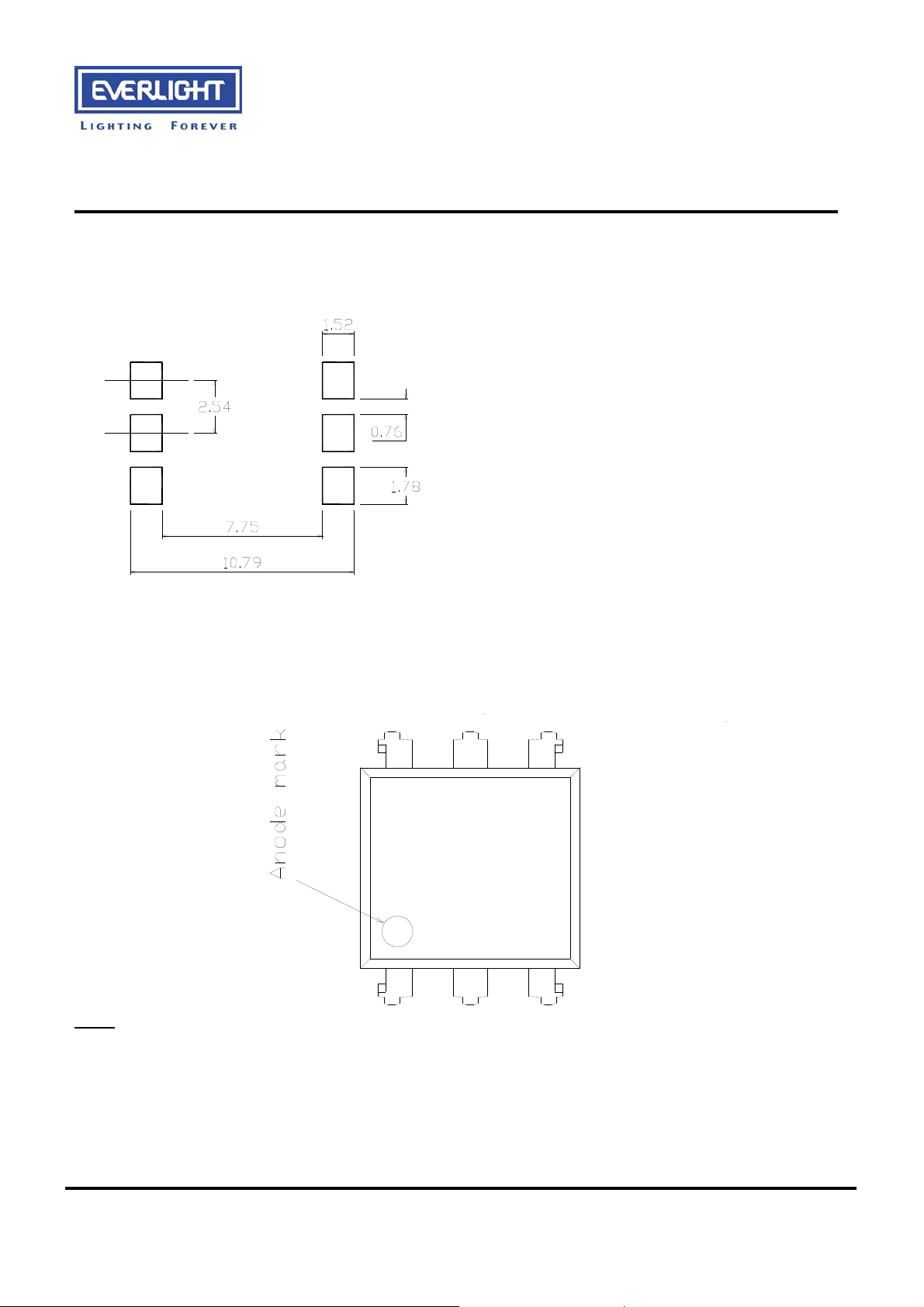

Recommended pad layout for surface mount leadform
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Device Marking
Notes
EL denotes Everlight
3083 denotes Device Number
Y denotes 1 digit Year code
WW denotes 2 digit Week code
V denotes VDE option
EL
3083
YWWV
Everlight Electronics Co., Ltd. 10 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 11
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
Tape & Reel Packing Specifications

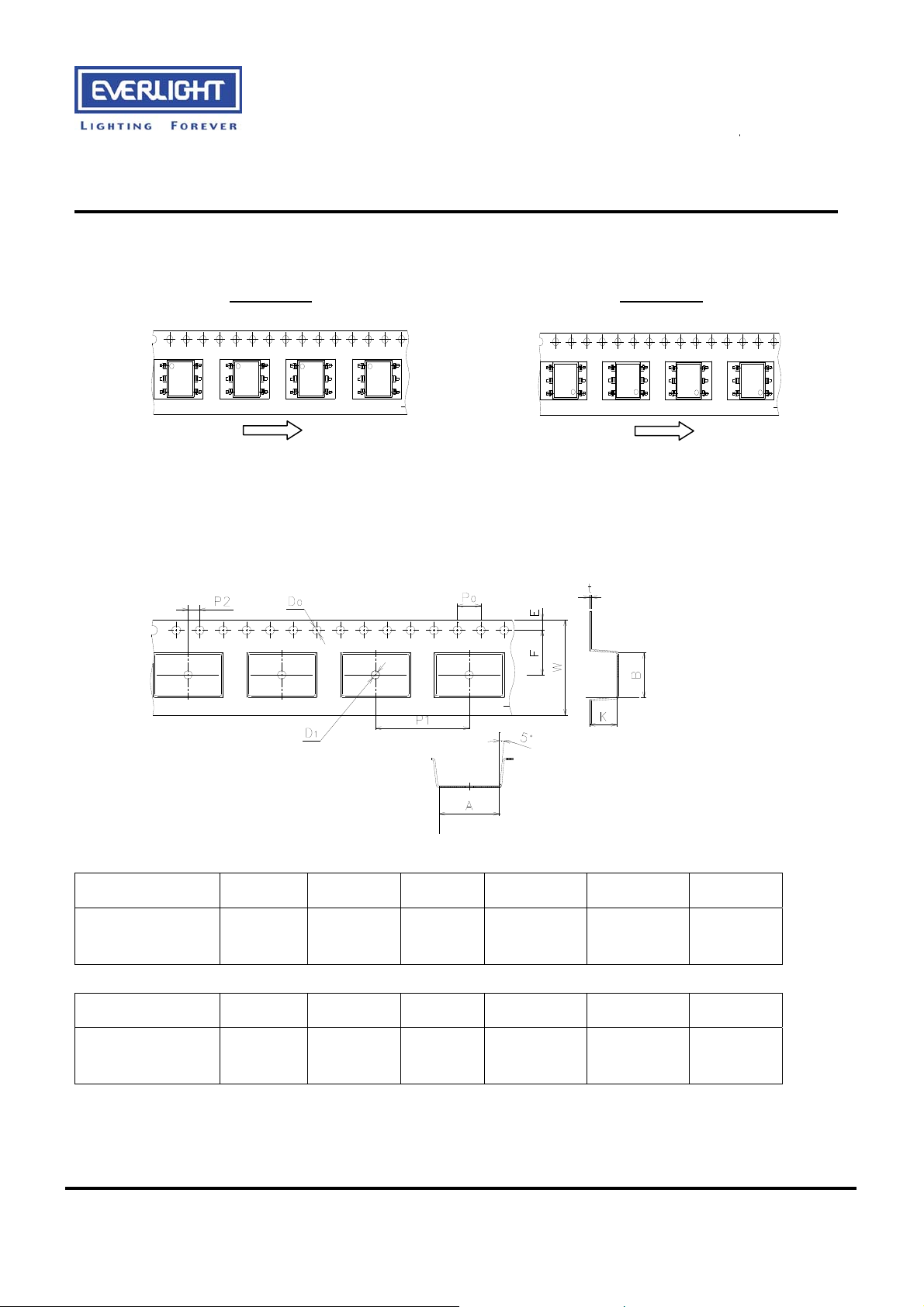

Tape dimensions
Option TA Option TB
Direction of feed from reel
EL303X Series
EL304X Series
EL306X Series
EL308X Series
Direction of feed from reel
Dimension No.
Dimension (mm)
Dimension No.
A B Do D1 E F
10.4±0.1 7.52±0.1 1.5+0.1/-0 1.5+0.1/-0 1.75±0.1 7.5±0.1
Po P1 P2 t W K
Dimension (mm)
4.0±0.15 1.6±0.1 2.0±0.1 0.35±0.03 16.0±0.2 4.5±0.1
Everlight Electronics Co., Ltd. 11 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 12
(
)
p
50°C
3 °C/S
0 –
00°C
C
(30
)
C/Sec Ma
–
(S)
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER

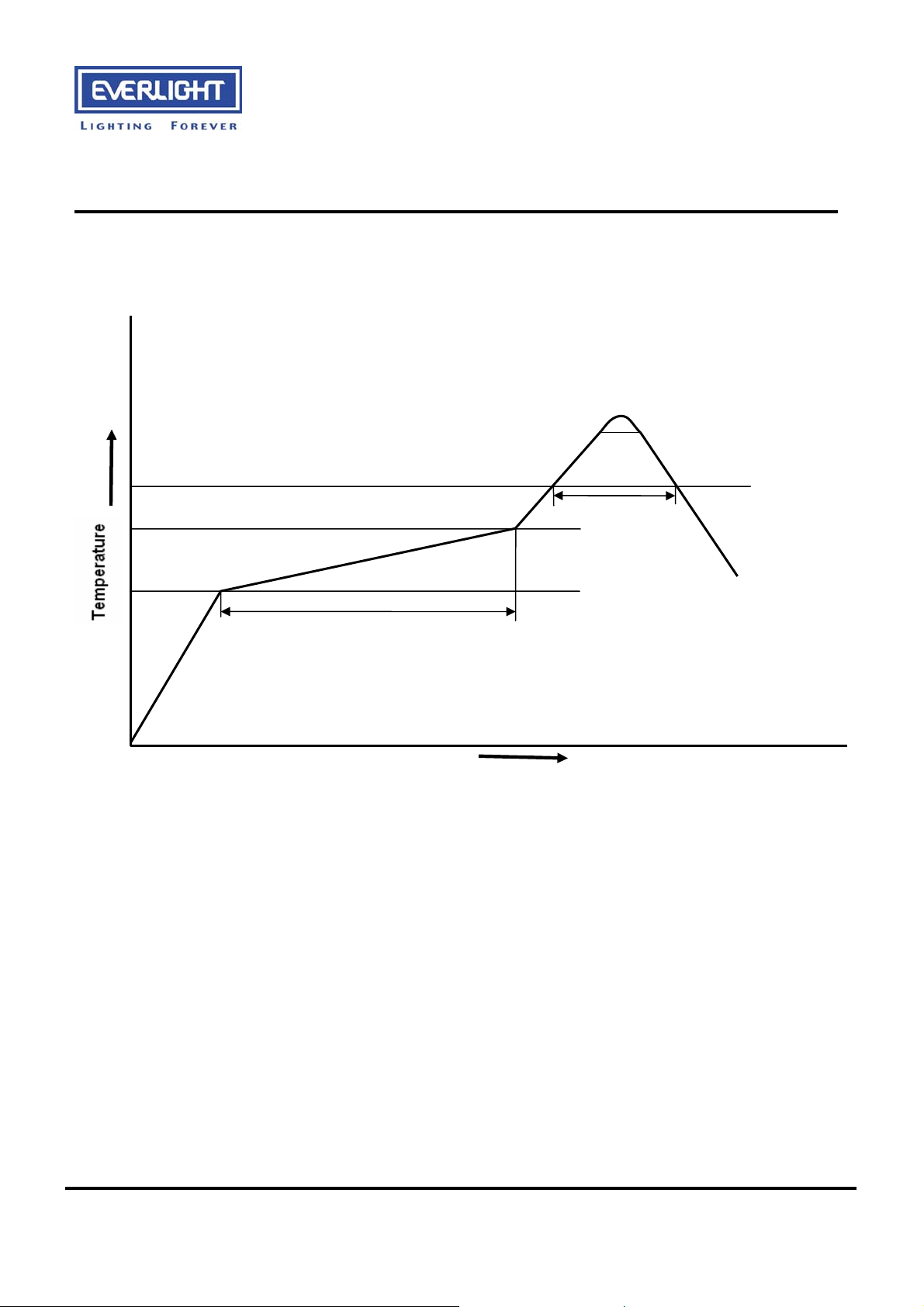

Solder Reflow Temperature Profile
EL303X Series
EL304X Series
EL306X Series
EL308X Series
217°
2
1
1-
ec Max
7
170 Sec
1-3 °
TIME
260 °C
x
60
eak,10 Sec Max
>255 °C
140 Sec
s Max
Everlight Electronics Co., Ltd. 12 http://www.everlight.com
Document No：DPC-717-053 Rev. 2 August 14, 2008
Page 13
EL303X Series
6 PIN DIP ZERO CROSS TRIAC DRIVER
PHOTOCOUPLER
EL304X Series
EL306X Series
EL308X Series
