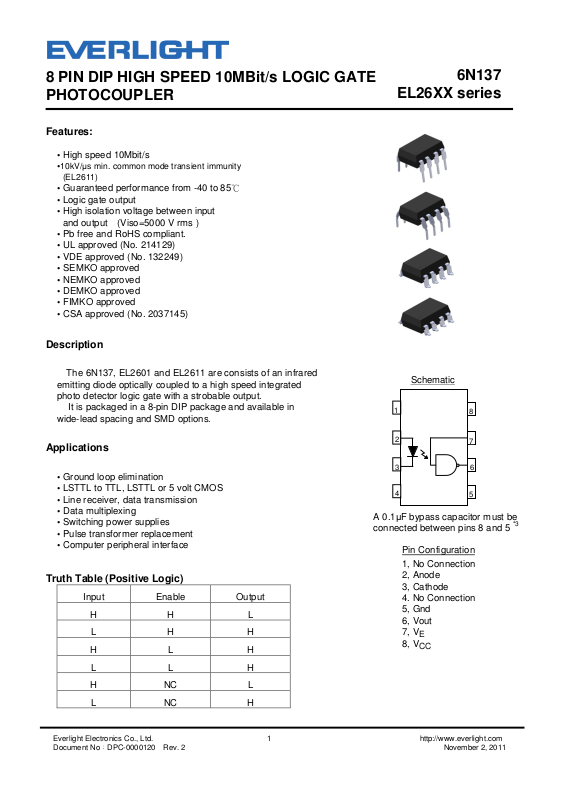

EVERLIGHT 6N137 EVL Datasheet

EL26XX series

Schematic

5

6

7

8

1

2

3

4

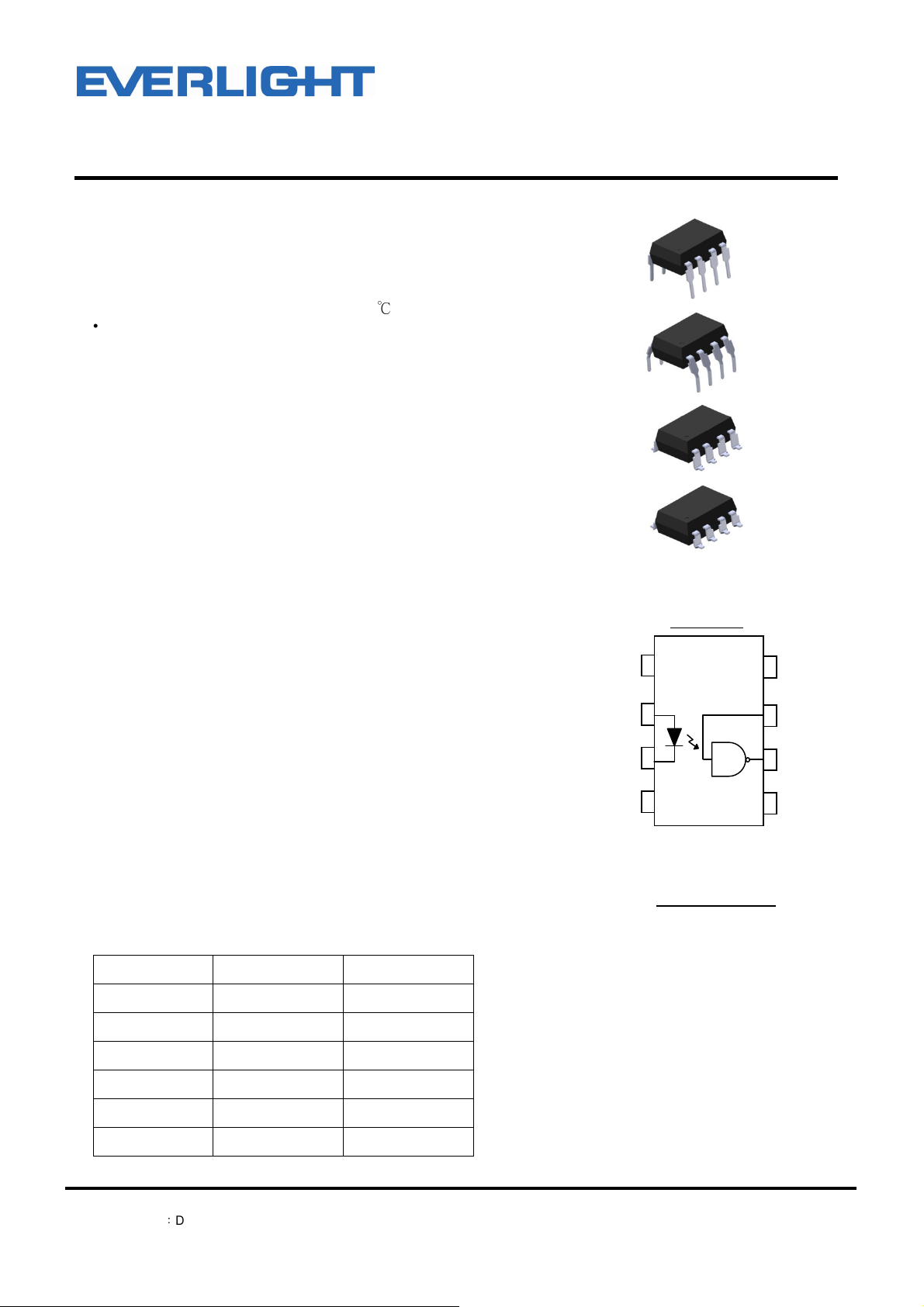

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Features:

• High speed 10Mbit/s

•

10kV/µs min. common mode transient immunity

(EL2611)

• Guaranteed performance from -40 to 85℃

• Logic gate output

• High isolation voltage between input

and output (Viso=5000 V rms )

• Pb free and RoHS compliant.

• UL approved (No. 214129)

• VDE approved (No. 132249)

• SEMKO approved

• NEMKO approved

• DEMKO approved

• FIMKO approved

• CSA approved (No. 2037145)

Description

The 6N137, EL2601 and EL2611 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output.

It is packaged in a 8-pin DIP package and available in

wide-lead spacing and SMD options.

Applications

• Ground loop elimination

• LSTTL to TTL, LSTTL or 5 volt CMOS

• Line receiver, data transmission

• Data multiplexing

• Switching power supplies

• Pulse transformer replacement

• Computer peripheral interface

Truth Table (Positive Logic)

Input Enable Output

H H L

L H H

H L H

A 0.1µF bypass capacitor must be connected between pins 8 and 5 *3

Pin Configuration 1, No Connection

2, Anode 3, Cathode

4. No Connection 5, Gnd 6, Vout 7, VE 8, V

CC

L L H

H NC L

L NC H

Everlight Electronics Co., Ltd. 1 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

by

more than 500mV

5, 6, 7 &

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Absolute Maximum Ratings (Ta=25°C)

Parameter Symbol Rating Unit

Forward current

Enable input voltage Not exceed VCC

Input

Reverse voltage

Power dissipation

Output current

Output

Output voltage

Supply voltage

Output Power Dissipation

Isolation voltage *1 V

Operating temperature

Storage temperature

*2

Soldering temperature

T

IF

VE

VR

PD

PC

IO

VO

VCC

PO

ISO

T

OPR

T

STG

SOL

50 mA

5.5 V

5 V

100 mW

85 mW

50 mA

7.0 V

100 mW

5000 V rms

-40 ~ +85 °C

-55 ~ +125 °C

260 °C

Notes

*1

AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2, 3 & 4 are shorted together, and pins

8 are shorted together.

*2 For 10 seconds.

Everlight Electronics Co., Ltd. 2 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Electrical Characteristics (Ta=-40 to 85°C unless specified otherwise)

Input

Parameter Symbol

Forward voltage

Reverse voltage

Temperature coefficient of forward voltage

Input capacitance

Output

Parameter Symbol

High level supply current

Low level supply current

High level enable current

Low level enable current

High level enable voltage

∆V

VF

VR

/

F

C

IN

I

CCH

I

CCL

IEH

IEL

VEH

∆T

Min. Typ.* Max. Unit Condition

- 1.4 1.8 V

5.0 - - V

A

- -1.8 - mV/°C

- 60 - pF

Min. Typ.* Max. Unit Condition

- 7 10

- 9 13 mA

- - 0.6 -1.6 mA

- - 0.8 -1.6 mA

2.0 - - V

mA

I

= 10mA

F

IR = 10µA

IF =10mA

VF=0, f=1MHz

IF=10mA, VE=0.5V, VCC=5.5V

IF=0mA, VE=0.5V, VCC=5.5V

VE=0.5V, VCC=5.5V

VE=2.0V, VCC=5.5V

IF=10mA, VCC=5.5V

Low level enable voltage*

4

Transfer Characteristics

Parameter Symbol

HIGH Level Output Current

LOW Level Output Current

Input Threshold Current

VEL

(Ta=-40 to 85°C unless specified otherwise)

IOH

VOL

IFT

- - 0.8 V

IF=10mA, VCC=5.5V

Min. Typ.* Max. Unit Condition

- 2.1 100 uA

- 0.35 0.6

- 2.5 5 mA

VCC=5.5V, VO=5.5V,

IF=250µA, VE=2.0V

VCC = 5.5V, IF=5mA,

V

VE=2.0V,ICL=13mA

VCC= 5.5V, VO=0.6V, VE =2.0V,IOL=13mA

Everlight Electronics Co., Ltd. 3 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

L

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Switching Characteristics

(Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise)

Parameter Symbol Min. Typ.* Max. Unit Condition

Propagation delay time to output High level*5 (Fig.12)

Propagation delay time to output Low level*6 (Fig.12)

Pulse width distortion

Output rise time*7 (Fig.12)

Output fall time*8 (Fig.12)

T

PHL

T

PLH

|Tphl – Tplh|

tr

tf

- 35 75 ns

- 40 75

- 5 35

- 40 -

- 10 -

ns

C

= 15pF, RL=350Ω,

L

TA=25°C

C

= 15pF, RL=350Ω,

L

TA=25°C

C

= 15pF, RL=350Ω

C

= 15pF, RL=350Ω

L

C

= 15pF, RL=350Ω

L

Switching Characteristics

(Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise)

Enable Propagation Delay Time to Output High Level* (Fig.13)

Enable Propagation Delay Time to Output Low Level* (Fig.13)

Common Mode

EL2601

6N137

9

t

ELH

10

t

EHL

- 15 -

ns

- - -

5,000 - -

Transient Immunity at Logic High

*11

Common Mode

EL2611

6N137

EL2601

CMH

10,000

20,000

- -

- - -

5,000 - -

V/µS

Transient Immunity at Logic Low

*12

CML

EL2611

10,000

20,000

- -

V/µS

Everlight Electronics Co., Ltd. 4 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

I

= 7.5mA , VEH=3.5V,

F

C

= 15pF, RL=350Ω

L

I

= 7.5mA , VEH=3.5V,

F

C

= 15pF, RL=350Ω

L

I

= 7.5mA , VOH=2.0V,

F

RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) I

= 7.5mA , VOH=2.0V,

F

RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) I

= 7.5mA , VOH=2.0V,

F

RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14) I

= 7.5mA , VOH=2.0V,

F

RL=350Ω, TA=25°C VCM=400Vp-p (Fig.15) I

= 0mA , VOL=0.8V,

F

RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) I

= 0mA , VOL=0.8V,

F

RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) I

= 0mA , VOL=0.8V,

F

RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14)

I

= 7.5mA , VOH=2.0V,

F

RL=350Ω, TA=25°C V

=400Vp-p (Fig.15)

CM

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

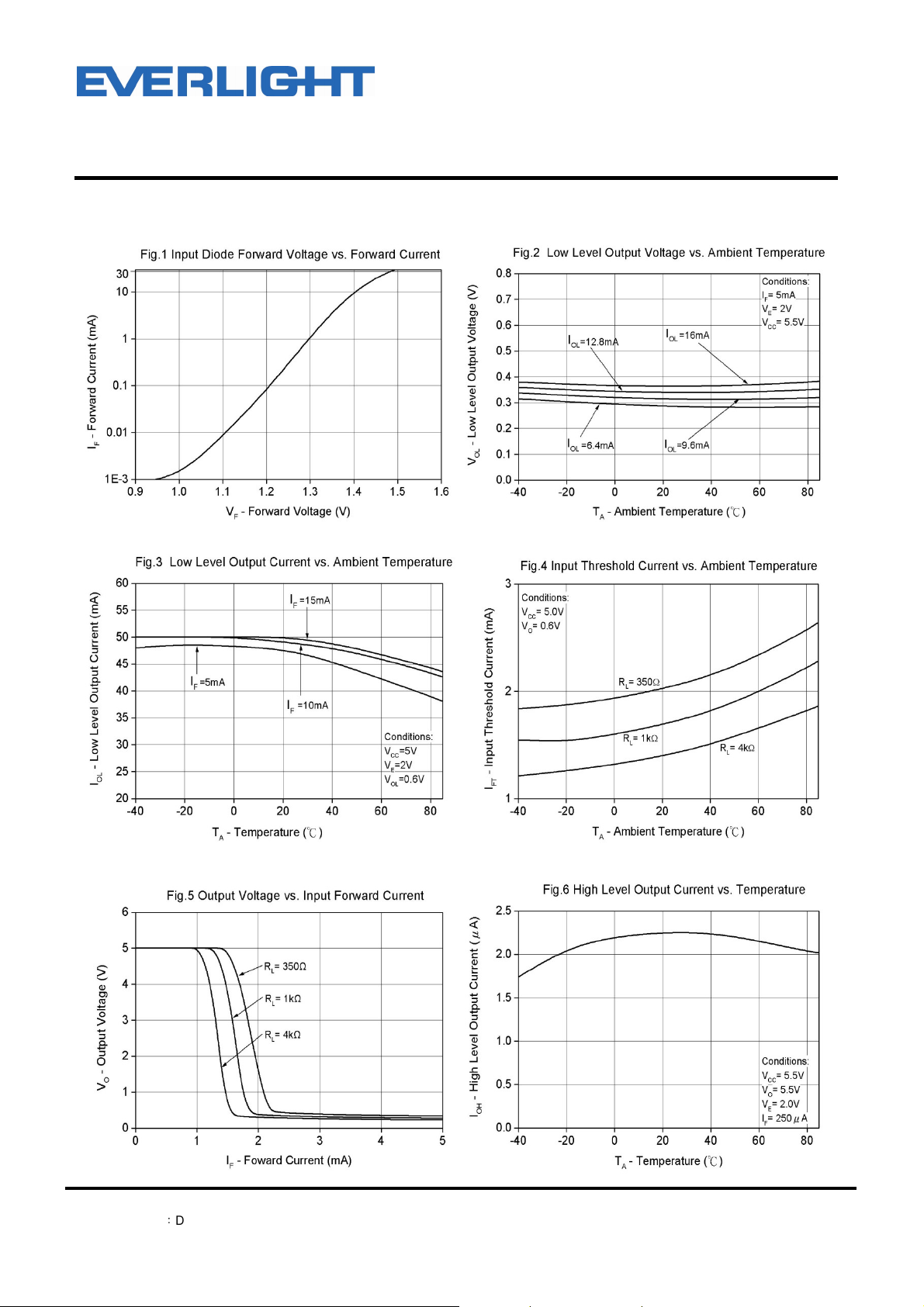

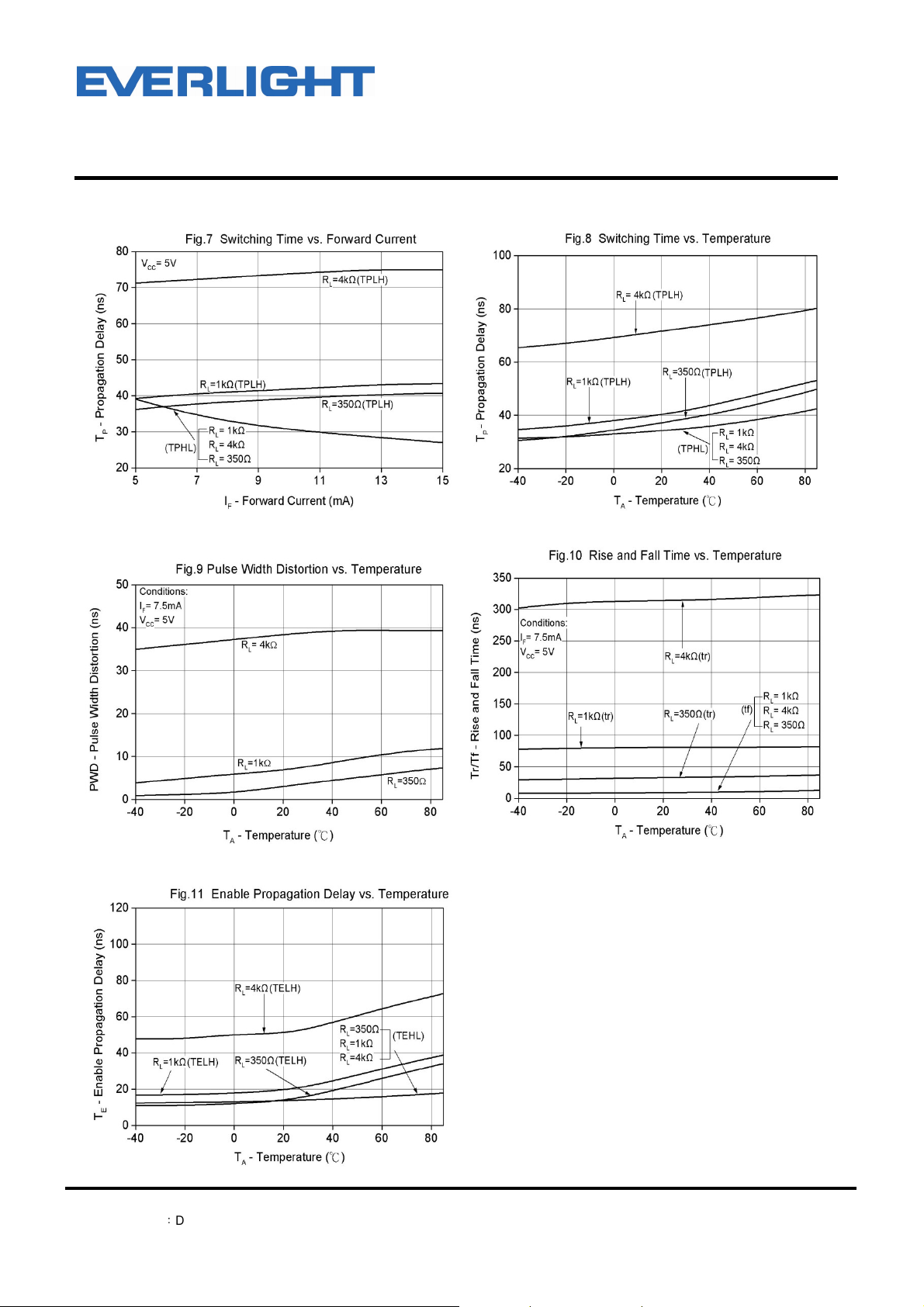

Typical Performance Curves

Everlight Electronics Co., Ltd. 5 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Everlight Electronics Co., Ltd. 6 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

10%

(I)

1.5V

(V)

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

IF=7.5mA

Input

t

Ω

Output (Vo)

Ω

Output (Vo)

PHL

90%

t

PLH

IF=3.75mA

tr tf

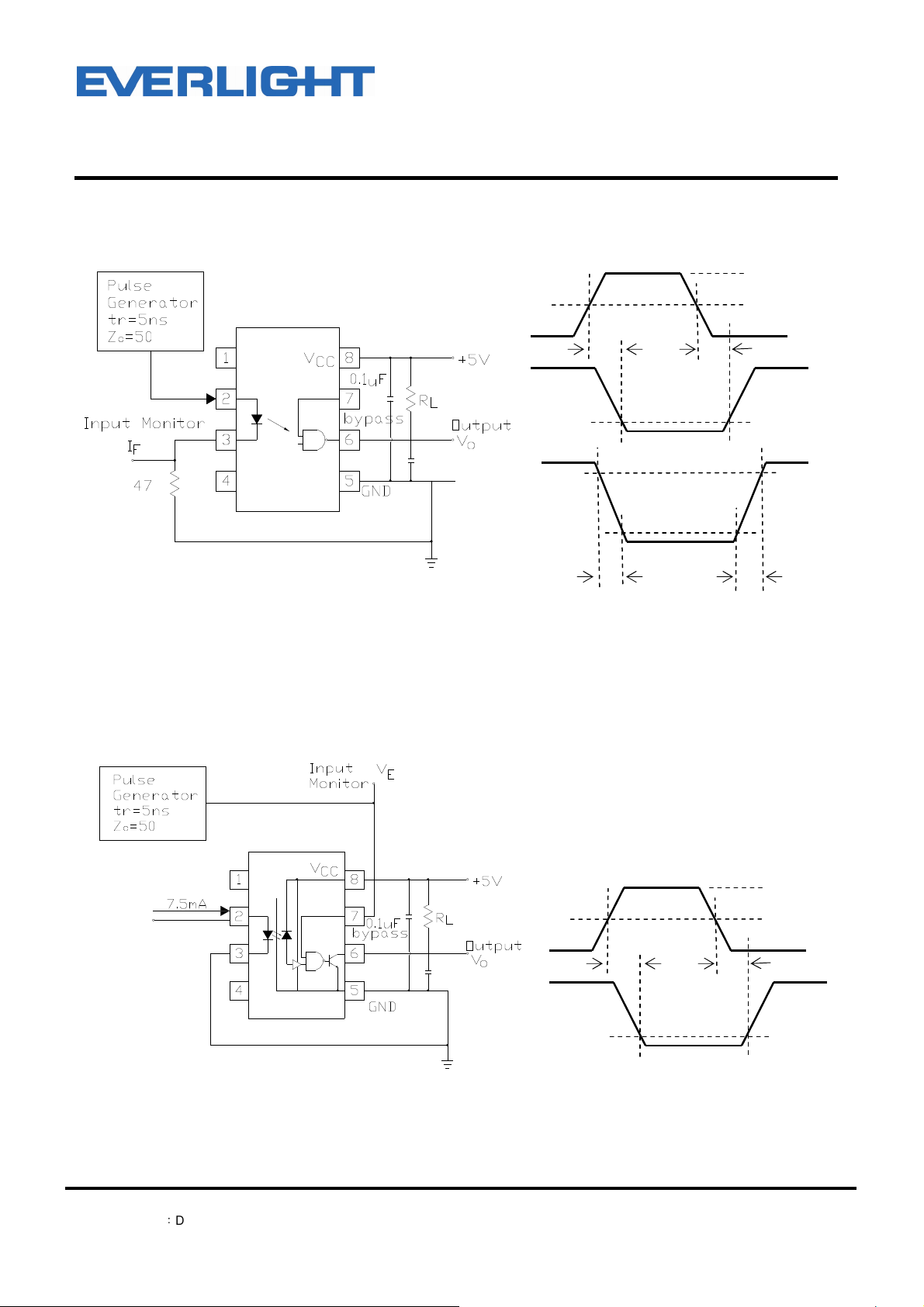

Fig. 12 Test circuit and waveforms for t

PHL

, t

PLH

, tr, and t

f

Ω

3.0V

Input

Output (Vo)

t

EHL

t

ELH

1.5V

Fig. 13 Test circuit and waveform for t

Everlight Electronics Co., Ltd. 7 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EHL

and t

ELH

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Ω

Peak

V

0V

CM

5V

Vo

Switching Pos. (A), IF=0

VO(Min)

CMH

V

CM

0.5V

VO(Max)

Switching Pos. (B), IF=7.5mA

CML

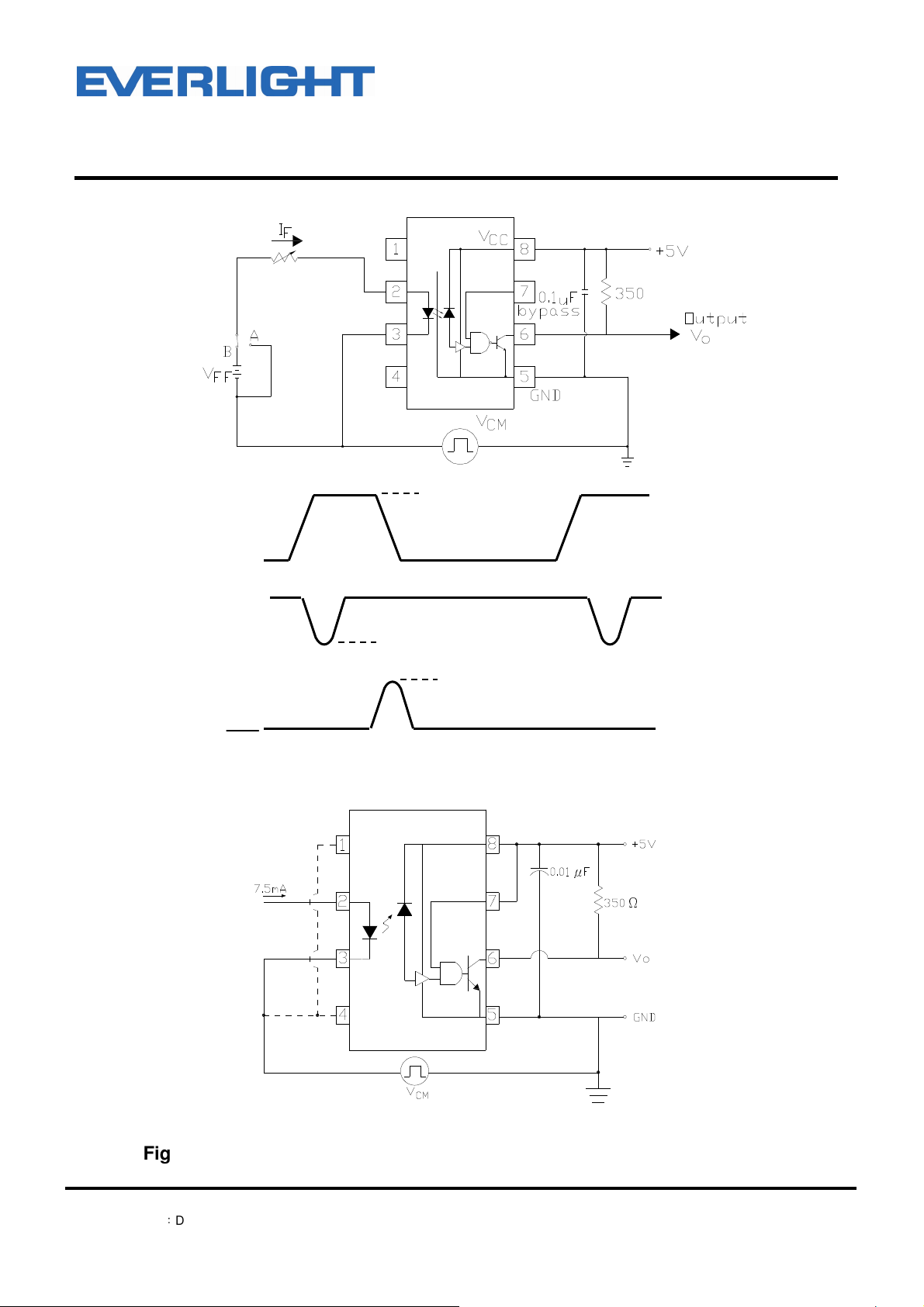

Fig. 14 Test circuit Common mode Transient Immunity

μ

Ω

Fig. 15 Recommended drive circuit for ELW2611 families for high-CMR

Everlight Electronics Co., Ltd. 8 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

Notes:

*3 The VCC supply must be bypassed by a 0.1µF capacitor or larger. This can be either a ceramic or solid

tantalum capacitor with good high frequency characteristic and should be connected as close as possible to

the package VCC and GND pins *4. Enable Input – No pull up resistor required as the device has an internal pull up resistor. *5. tPLH– Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input

current pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse. *6. tPHL– Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input

current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse. *7. tr– Rise time is measured from the 90% to the 10% levels on the LOW to HIGH transition of the output

pulse. *8. tf– Fall time is measured from the 10% to the 90% levels on the HIGH to LOW transition of the output

pulse. *9. tELH– Enable input propagation delay is measured from the 1.5V level on the HIGH to LOW transition of

the input voltage pulse to the 1.5V level on the LOW to HIGH transition of the output voltage pulse. *10. tEHL– Enable input propagation delay is measured from the 1.5V level on the LOW to HIGH transition of

the input voltage pulse to the 1.5V level on the HIGH to LOW transition of the output voltage pulse. *11 CMH– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in

the HIGH state (i.e., VOUT > 2.0V). *12 CML– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in

the LOW output state (i.e., VOUT < 0.8V).

Order Information

Part Number

6N137Y(Z)-V

Or

EL26XXY(Z)-V

Note

X = (01 or 11) for EL26 part no. Y = Lead form option (S, S1, M or none) Z = Tape and reel option (TA, TB or none). V = VDE (optional)

Option Description Packing quantity

None Standard DIP-8 45 units per tube

M Wide lead bend (0.4 inch spacing) 45 units per tube

S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel

S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel

S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel

S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel

Everlight Electronics Co., Ltd. 9 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

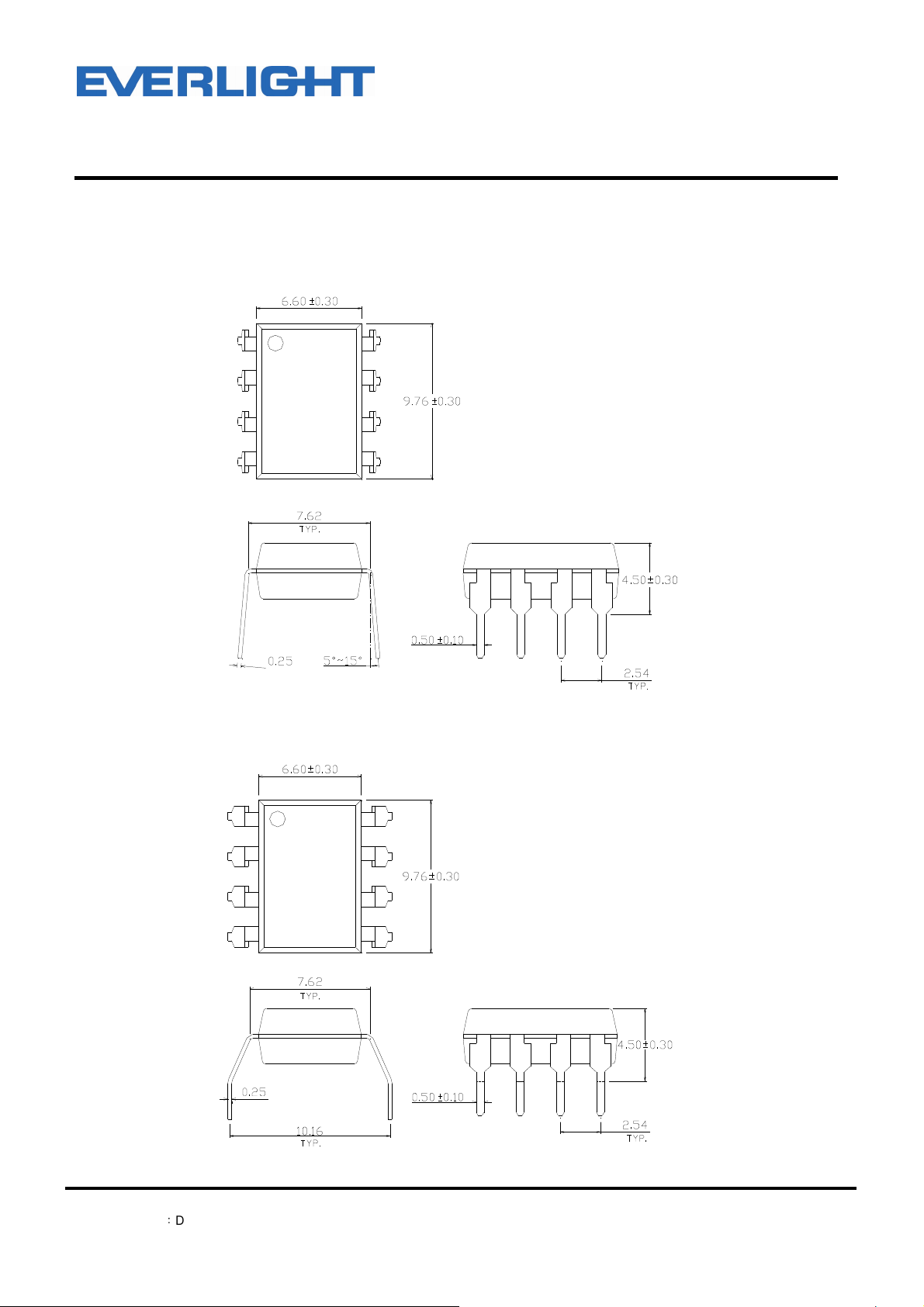

Package Drawing

(Dimensions in mm)

Standard DIP Type

Option M Type

Everlight Electronics Co., Ltd. 10 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

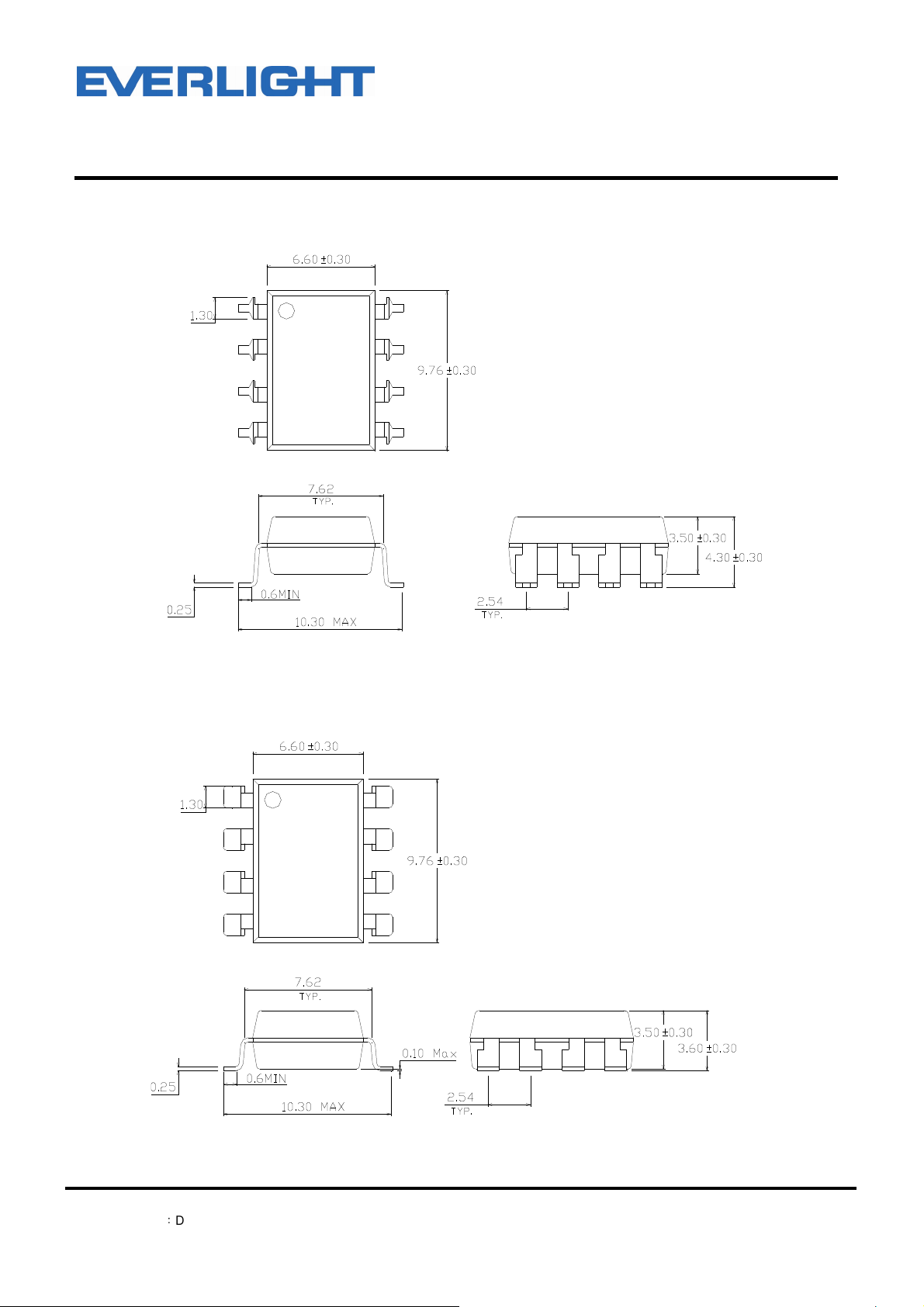

Option S Type

Option S1 Type

Everlight Electronics Co., Ltd. 11 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

6N137

YWW

V

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

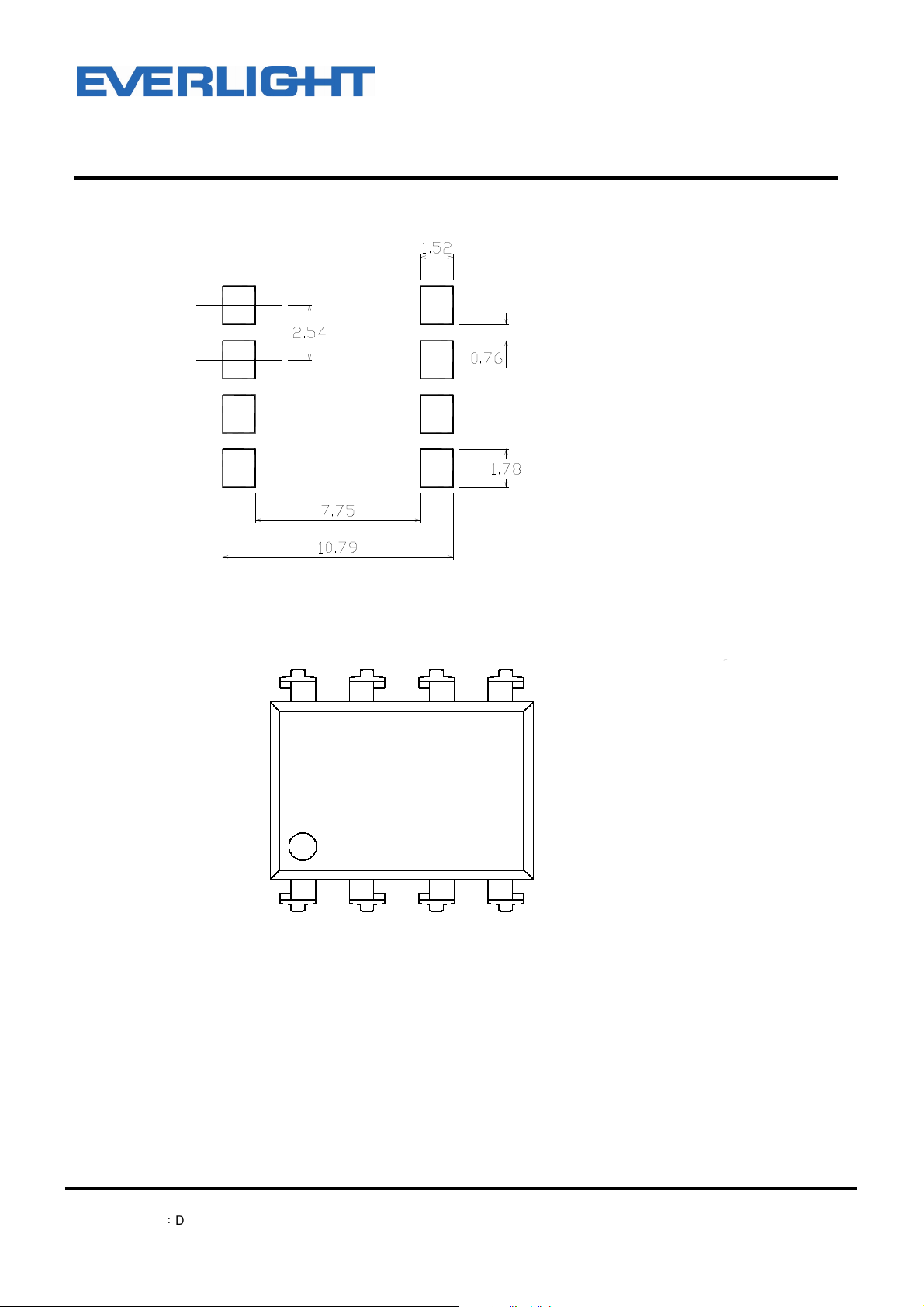

Recommended pad layout for surface mount leadform

Device Marking

Notes

6N137 denotes Device Number

Y denotes 1 digit Year code

WW denotes 2 digit Week code

V denotes VDE (optional)

EL

Everlight Electronics Co., Ltd. 12 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

Direction of feed from reel

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

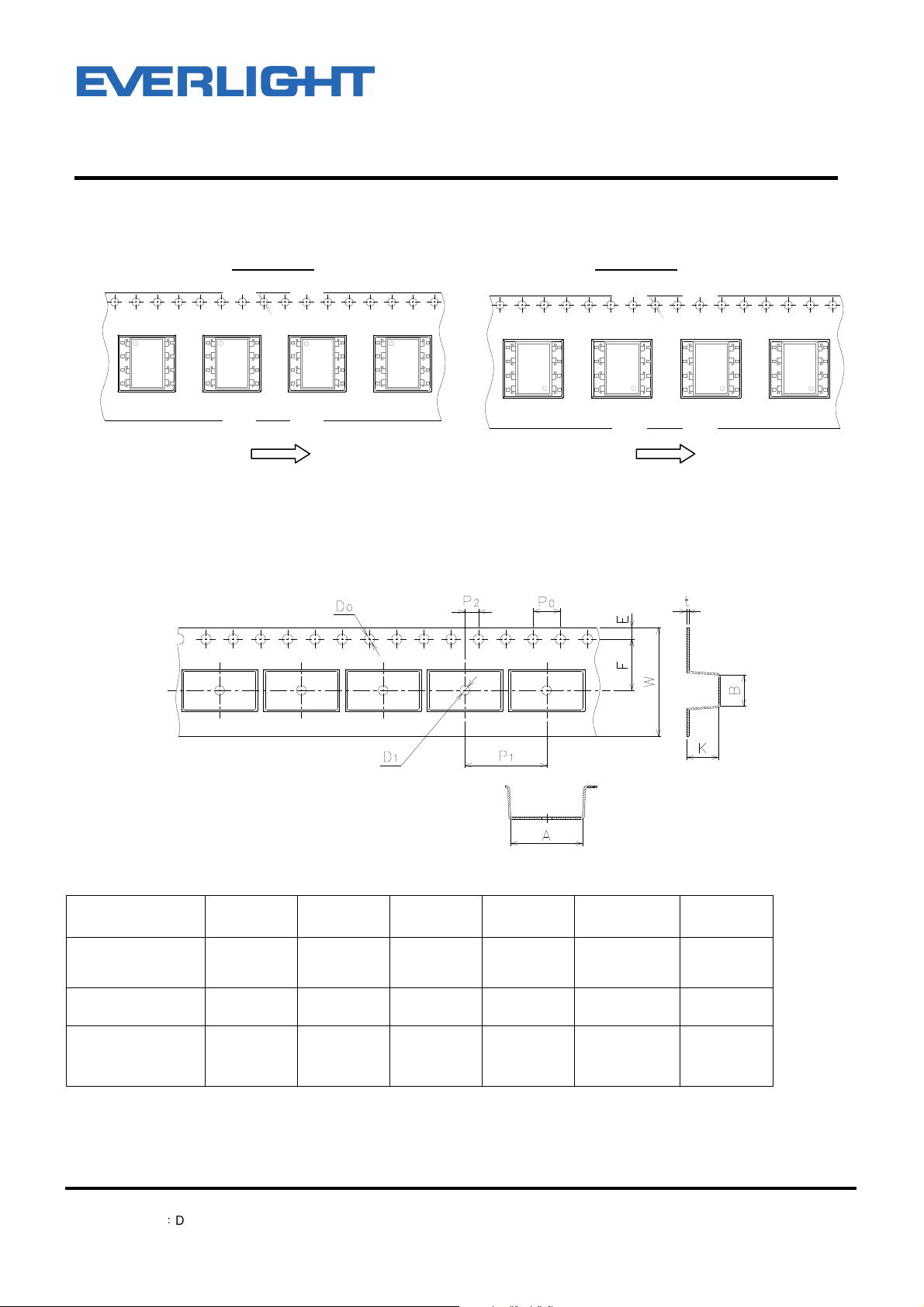

Tape & Reel Packing Specifications

Option TA Option TB

Tape dimensions

Dimension No.

Dimension(mm) 10.4±0.1 10.0±0.1 1.5±0.1 1.5±0.1 1.75±0.1 7.5±0.1

A B Do D1 E F

Dimension No.

Dimension(mm) 4.0±0.1 12.0±0.1 2.0±0.1 0.4±0.1

Everlight Electronics Co., Ltd. 13 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

Po P1 P2 t W K

16.0+0.3/

-0.1

4.5±0.1

EL26XX series

200

°°°°

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

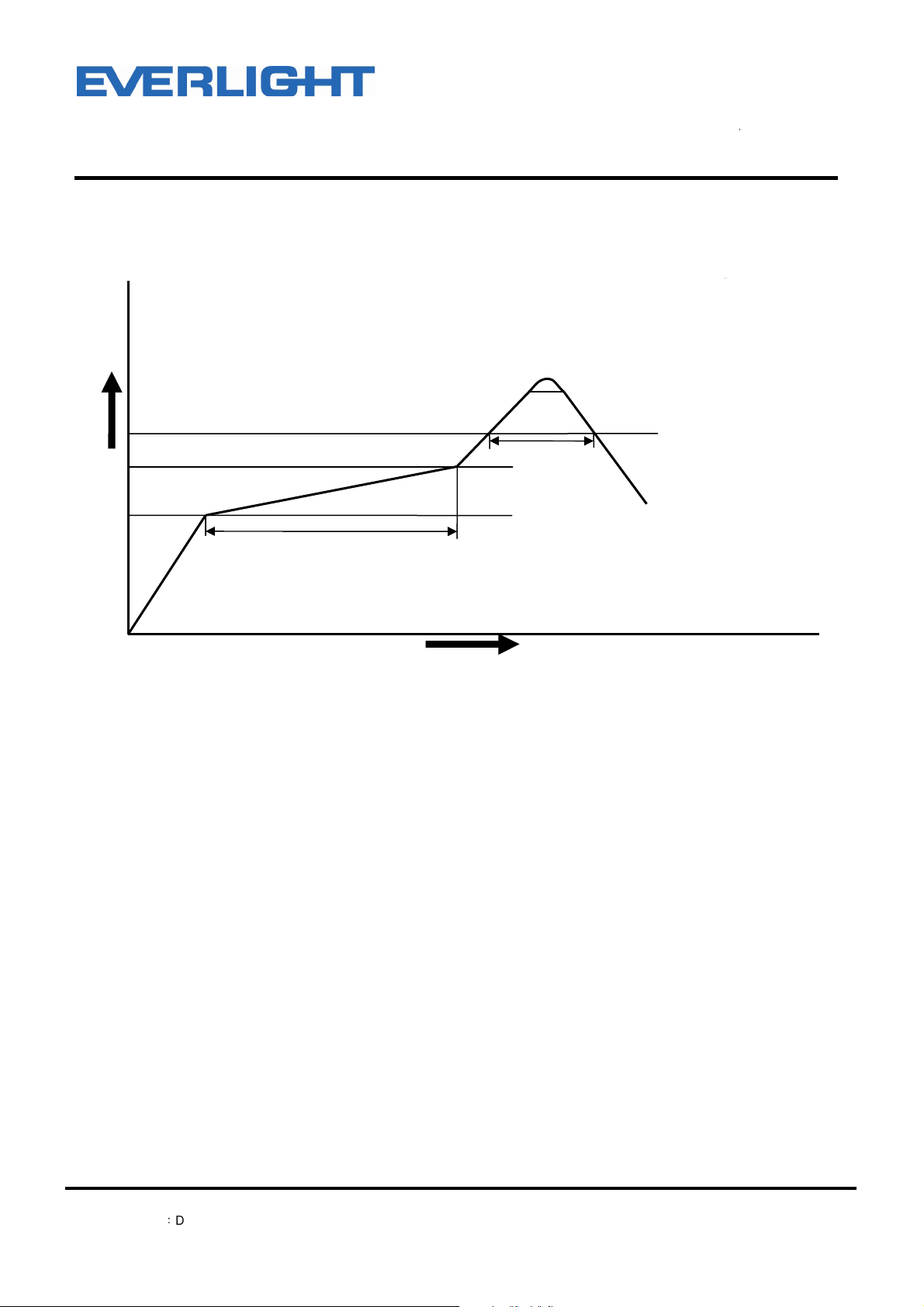

Solder Reflow Temperature Profile

260 °°°°C (peak,10 Sec)

217°°°°

150°°°°

1-3 °°°°C/Sec

60 – 120 Sec

TIME (S)

1-3 °°°°C/Sec

60 – 100 Sec

>255 °°°°C ( 30s Max )

Everlight Electronics Co., Ltd. 14 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011

EL26XX series

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE

6N137

PHOTOCOUPLER

DISCLAIMER

1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change

for above specification.

2. When using this product, please observe the absolute maximum ratings and the instructions for using

outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting

from use of the product which does not comply with the absolute maximum ratings and the instructions

included in these specification sheets.

3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please

don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent.

Everlight Electronics Co., Ltd. 15 http://www.everlight.com Document No：DPC-0000120 Rev. 2 November 2, 2011
