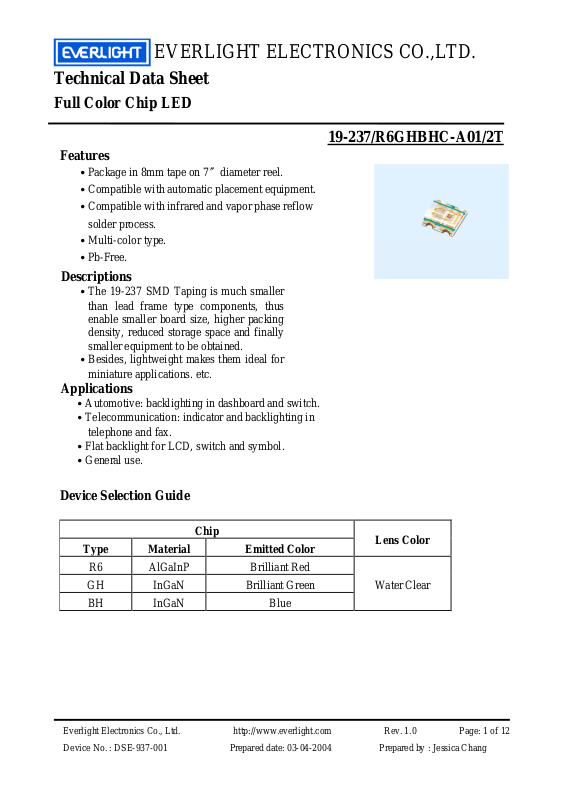

Everlight 19-237/R6GHBHC-A01/2T Technical Data Sheet

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

Full Color Chip LED

19-237/R6GHBHC-A01/2T

Features

․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow

solder process.

․Multi-color type.
․Pb-Free.

Descriptions

․The 19-237 SMD Taping is much smaller

than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive: backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.
․General use.

Device Selection Guide

Chip

Type Material Emitted Color

R6 AlGaInP Brilliant Red
GH InGaN Brilliant Green
BH InGaN Blue

Lens Color

Water Clear

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 1 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

Package Outline Dimensions

1.6

Green

1.6

1.1

1.0

Blue

32

41

Red

Anode mark

19-237/R6GHBHC-A01/2T

0.35

0.8

For reflow soldering (propose)

1

0.55

0.55
23

Note: The tolerances unless mentioned is ±0.1mm,Unit = mm

4

0.550.55

0.35

0.8

2.4

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 2 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V

R6:25

Forward Current IF

Operating Temperature Topr -40 ~ +85 ℃

Storage Temperature Tstg -40 ~ +90 ℃

Soldering Temperature Tsol

Power Dissipation Pd

Peak Forward Current

IFP

(Duty 1/10 @1KHz)

GH:25
BH:25

260 (for 5

seconds)

R6:60
GH:110
BH:110

R6:60
GH:100
BH:100

mA

℃

mW

mA

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 3 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

R6

Luminous Intensity

Viewing Angle 2θ1/2 ----- 120 ----- deg IF=20mA

Peak Wavelength

Dominant Wavelength

Spectrum Radiation

Bandwidth

Iv GH

BH

R6

λp GH

BH

R6

λd GH

BH

R6

△λ GH

BH

72

112

28.5

-----

-----

-----

100
180

50

632
518
468
624
525
470

20

35

35

----- mcd IF=20mA

----- nm IF=20mA

-----

-----

nm

nm

IF=20mA

IF=20mA

R6

Forward Voltage

Reverse Current

VF GH

BH

R6

IR GH

BH

-----

----- -----

Notes:

1.Tolerance of Luminous Intensity ±10%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

2.0

3.3

3.3

2.4

3.9

3.9
10

50
50

V IF=20mA

μA

VR=5V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 4 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Typical Electro-Optical Characteristics Curves

R6

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 5 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Typical Electro-Optical Characteristics Curves

GH

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 6 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Typical Electro-Optical Characteristics Curves

BH

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 7 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

19-237/R6GHBHC-A01/2T

Label explanation

CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

Reel Dimensions

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

19-237/R6GHBHC-A01/2T

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 8 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moistue-proof bag

LabelDesiccant

19-237/R6GHBHC-A01/2T

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 9 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

No. Items Test Condition

Test

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min. 5sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

4

High Temperature

Temp. : 100℃

1000 Hrs.

Storage

5

Low Temperature

Temp. : -40℃

1000 Hrs.

Storage

6 DC Operating Life IF = 20 mA

1000 Hrs.

Sample

Ac/Re

Size

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

7

High Temperature /

85℃/ 85%RH

1000 Hrs.

22 PCS. 0/1

High Humidity

19-237/R6GHBHC-A01/2T

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 10 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

Precautions For Use

1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do
soldering of each terminal. Be careful because the damage of the product is often started at the time of
the hand solder.

19-237/R6GHBHC-A01/2T

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.0 Page: 11 of 12
Device No. : DSE-937-001 Prepared date: 03-04-2004 Prepared by : Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

E

5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.

VERLIGHT ELECTRONICS CO., LTD. Tel: [phone]

Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
