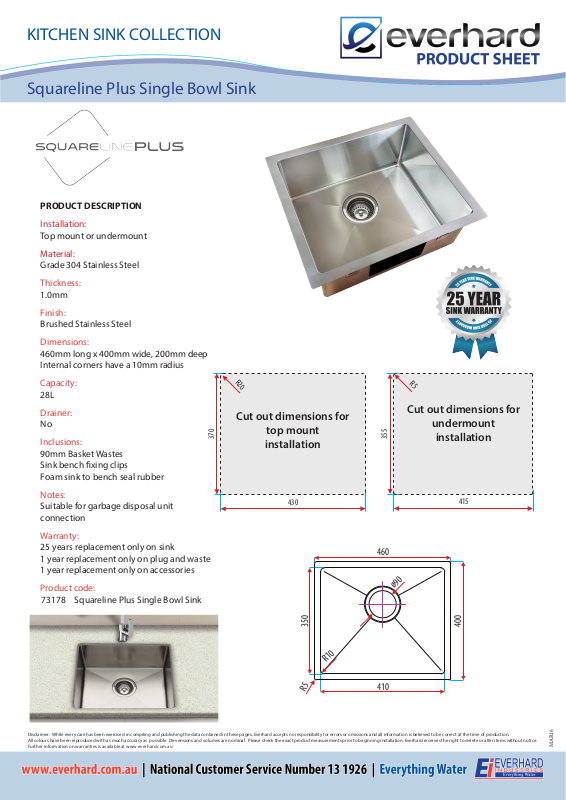

KITCHEN SINK COLLECTION
Squareline Plus Single Bowl Sink
PRODUCT DESCRIPTION
Installation:
Top mount or undermount
Material:
Grade 304 Stainless Steel
Thickness:
1.0mm
Finish:
Brushed Stainless Steel
Dimensions:
460mm long x 400mm wide, 200mm deep
Internal corners have a 10mm radius
Capacity:
28L
Drainer:
No
Inclusions:
90mm Basket Wastes
Sink bench xing clips
Foam sink to bench seal rubber
Notes:
Suitable for garbage disposal unit
connection
Warranty:
25 years replacement only on sink
1 year replacement only on plug and waste
1 year replacement only on accessories
Product code:
73178 Squareline Plus Single Bowl Sink
R20
Cut out dimensions for
370
top mount
installation
430
460
R5
Cut out dimensions for
undermount
355
ø90
installation
415
350
400
R10
R5
Disclaimer:
While every care has been exercised in compiling and publishing the data contained in these pages, Everhard accepts no responsibility for errors or omissions and all information is believed to be correct at the time of production.
All colours have been reproduced with as much accuracy as possible. Dimensions and volumes are nominal. Please check the exact product measurements prior to beginning installation. Everhard reserves the right to delete or alter items without notice.
Further information on warranties is available at www.everhard.com.au
410
MAR16
