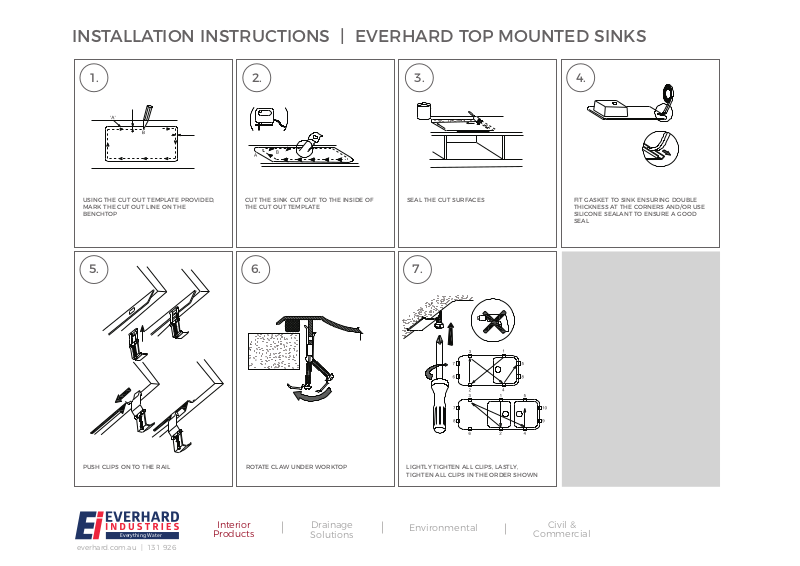

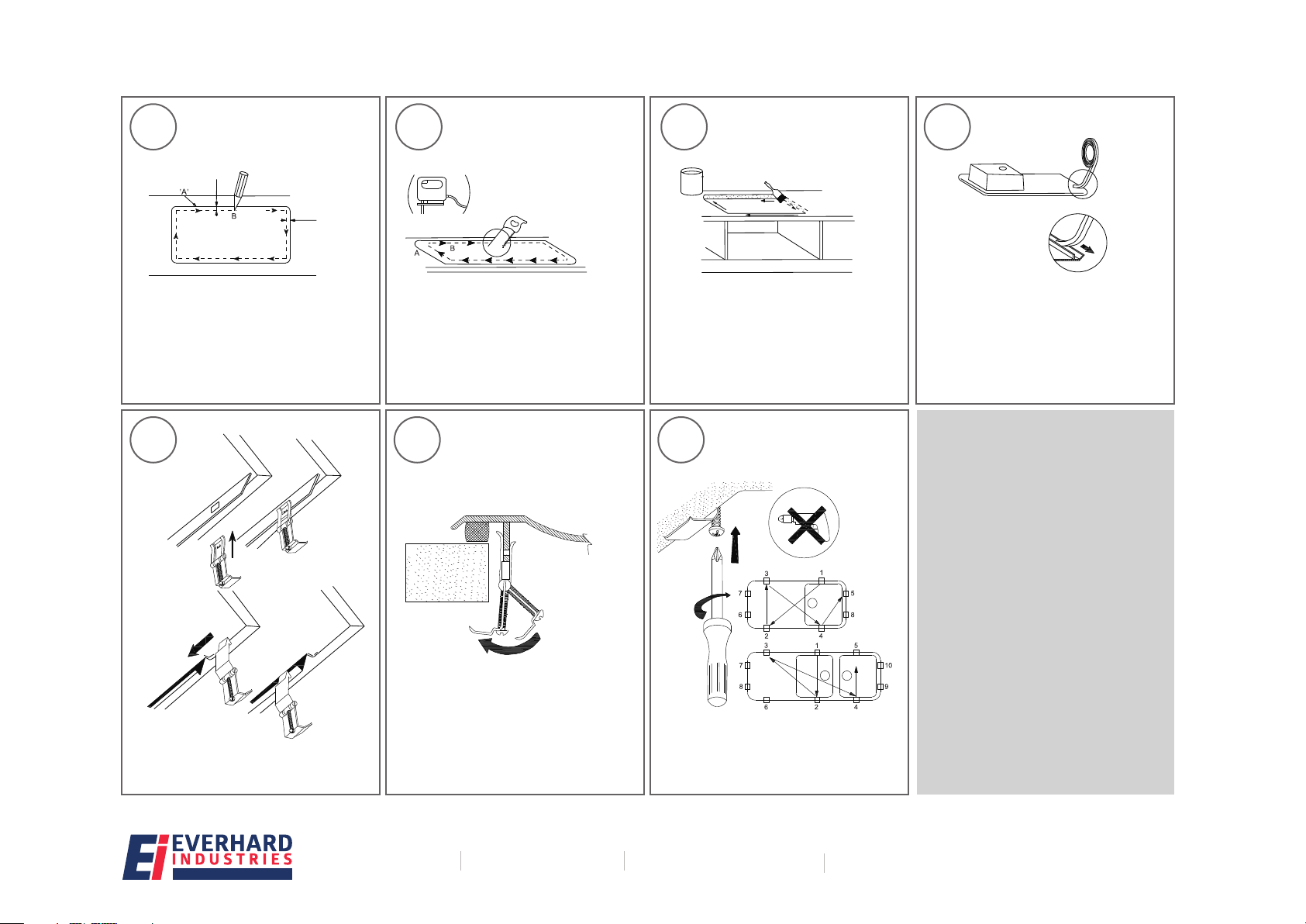

INSTALLATION INSTRUCTIONS | EVERHARD TOP MOUNTED SINKS
1.
USING THE CUT OUT TEMPLATE PROVIDED,
MARK THE CUT OUT LINE ON THE
BENCHTOP
2. 3. 4.
CUT THE SINK CUT OUT TO THE INSIDE OF
THE CUT OUT TEMPLATE
5. 6. 7.
SEAL THE CUT SURFACES FIT GASKET TO SINK ENSURING DOUBLE
THICKNESS AT THE CORNERS AND/OR USE
SILICONE SEALANT TO ENSURE A GOOD
SEAL
PUSH CLIPS ON TO THE RAIL ROTATE CLAW UNDER WORKTOP LIGHTLY TIGHTEN ALL CLIPS, LASTLY,
Everything Water
everhard.com.au | 131 926
Interior
Products
Drainage
Solutions
TIGHTEN ALL CLIPS IN THE ORDER SHOWN
Environmental
Civil &
Commercial
Page 2

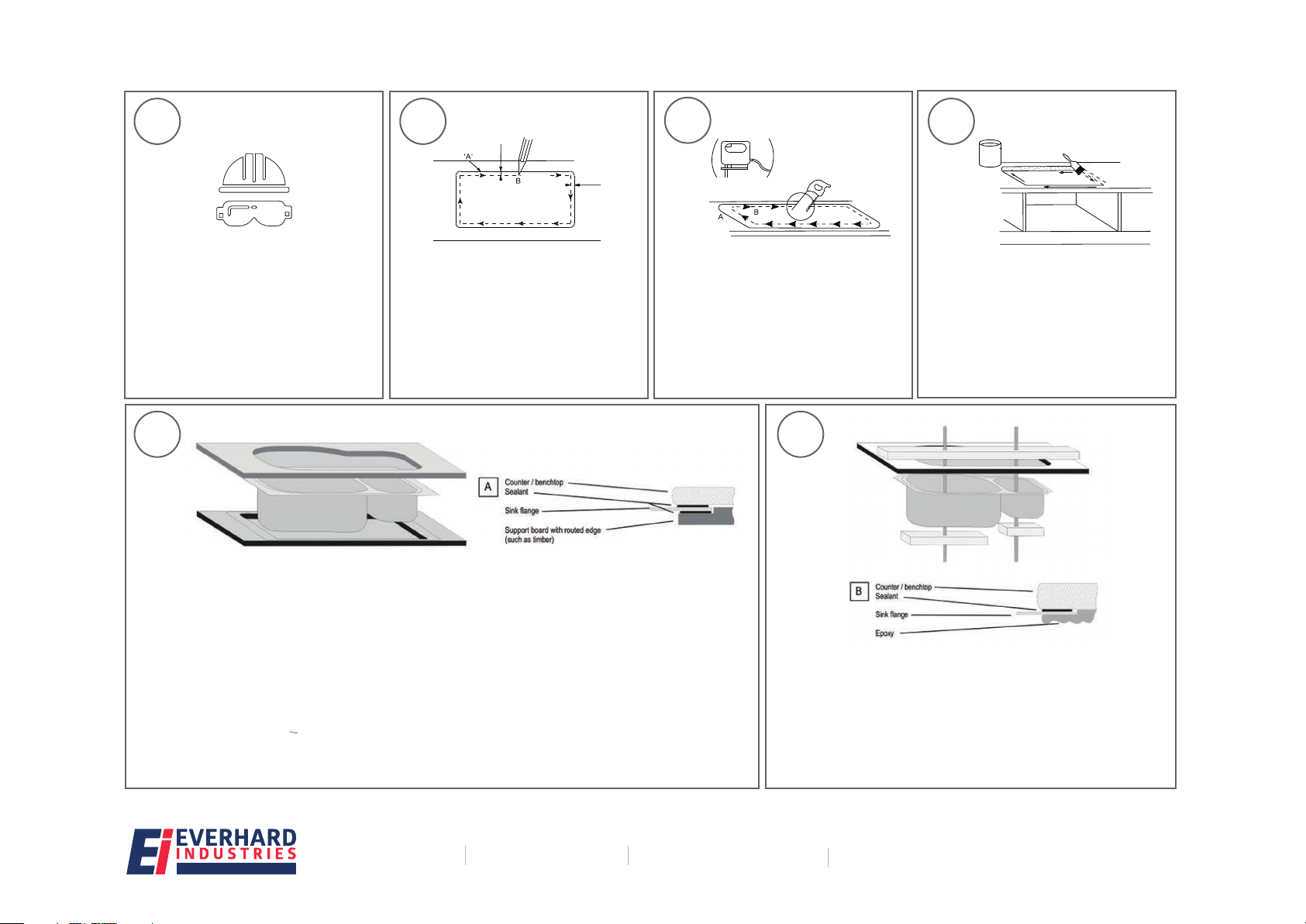

INSTALLATION INSTRUCTIONS | EVERHARD UNDERMOUNTED SINKS
1.
YOU CAN MOUNT THE PRODUCT ON YOUR
OWN. IT IS RECOMMENDED, HOWEVER,
THAT 2 PEOPLE PARTICIPATE IN THE
MEASURING AND ALIGNMENT WORKS
REQUIRING PRECISION. ALWAYS WEAR
PROTECTIVE GLASSES AND GLOVES
THROUGHOUT THE ASSEMBLY.
5.1
2. 4.
DRAW A CUTTING LINE WITH A PENCIL ON
THE WORKTOP BY THE HELP OF THE
DIMENSIONS SHOWN ON THE
INSTRUCTION PACK. THE RECOMMENDED
MINIMUM DISTANCE FROM THE EDGE OF
THE OPENING TO THE EDGE OF THE
WROKTOP IS 50MM.
3.
CUT THE SINKING OPENING WITH A
SUITABLE TOOL IN THE WORKTOP ALONG
THE DASHED LINE. DETERMINE LOCATION
FOR MOUNTING BRACKET, SPACE EVENLY
AROUND THE UNDERSIDE, MOUNTING
HOLES SHOULD BE 13MM OUT FROM EDGE
OF THE SINK LEDGE. KNOCK THE PLASTIC
EXPANSION SCREW INTO THE MOUNTING
HOLE.
5.2
APPLY A BEAD OF CAULK ABOUT 3-5MM
AWAY FROM THE EDGE OF THE COUNTER
CUTOUT AND THEN ALIGN SINK ON
COUNTER. CAULK NOT INCLUDED CONSULT YOUR PROFESSIONAL INSTALLER.
SANDWICH METHOD FOR THIN AND THICK BENCHTOPS:
1. CUT OUT THE SINK HOLE ACCORDING TO THE SUPPORT BOARD. TO MAKE THE SINK FLANGE SIT ABOVE THE EDGE OF
THE SUPPORT BOARD.
2. ROUTE OUT THE EDGE OF THE SUPPORT BOARD SLIGHTLY WITH A ROUTER, THEN THE EDGE OF THE SINK WILL SIT
FLUSH WITH THE TOP OF THE SUPPORT BOARD. NOTCH THE SUPPORT BOARD AROUND THE LOCATION OF ANY CLIP
BRACKETS WHERE APPLICABLE.
3. TEST THE SUPPORT BOARD BEFORE SEALING INTO PLACE.
4. INSTALL SINK AND SEAL BETWEEN FLANGE OF SINK AND SUPPORT BOARD.
5. SEAL THE UNDERSIDE OF THE BENCH TOP AND THE SUPPORT BOARD.
6. FASTEN THE SUPPORT BOARD TOP THE UNDERSIDE OF THE BENCH TOP USING HIGH STRENGTH EPOXY COMPOUND.
