Page 1
UTILITY SINK COLLECTION

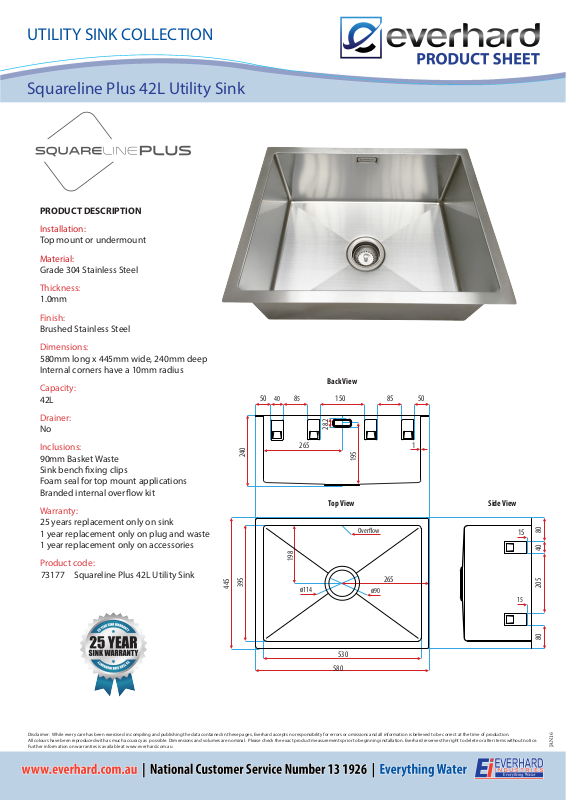

Squareline Plus 42L Utility Sink
PRODUCT DESCRIPTION
Installation:
Top mount or undermount
Material:
Grade 304 Stainless Steel
Thickness:
1.0mm
Finish:
Brushed Stainless Steel
Dimensions:
580mm long x 445mm wide, 240mm deep
Internal corners have a 10mm radius
Capacity:
42L
Drainer:
No
Inclusions:
90mm Basket Waste
Sink bench xing clips
Foam seal for top mount applications
Branded internal overow kit
Warranty:
25 years replacement only on sink
1 year replacement only on plug and waste
1 year replacement only on accessories
Product code:
73177 Squareline Plus 42L Utility Sink
445
50 85
240
395
Back View
40
265
198
ø114
150 85 50
28.2
195
Top View
Overow
265
ø90
1
Side View
804020580
15
15
530
580
Disclaimer:
While every care has been exercised in compiling and publishing the data contained in these pages, Everhard accepts no responsibility for errors or omissions and all information is believed to be correct at the time of production.
All colours have been reproduced with as much accuracy as possible. Dimensions and volumes are nominal. Please check the exact product measurements prior to beginning installation. Everhard reserves the right to delete or alter items without notice.
Further information on warranties is available at www.everhard.com.au
