UTILITY SINK COLLECTION

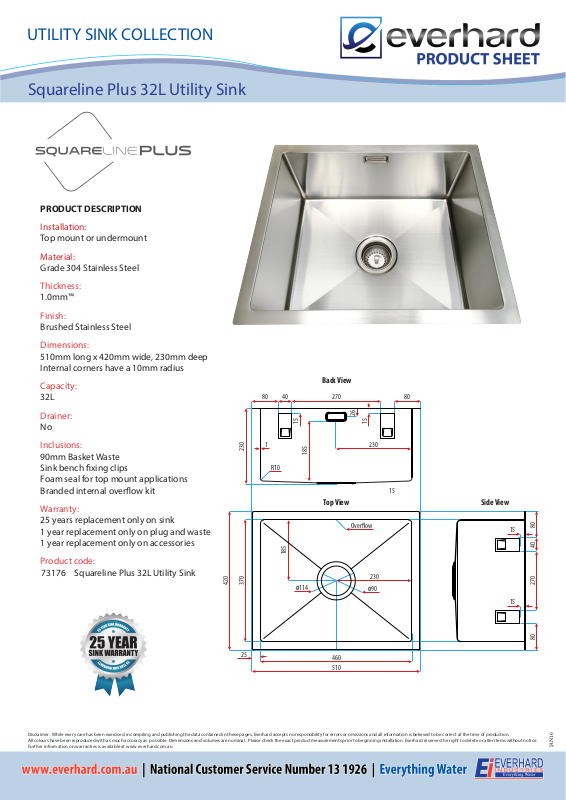

Squareline Plus 32L Utility Sink
PRODUCT DESCRIPTION
Installation:
Top mount or undermount
Material:
Grade 304 Stainless Steel
Thickness:
1.0mm™
Finish:
Brushed Stainless Steel
Dimensions:
510mm long x 420mm wide, 230mm deep
Internal corners have a 10mm radius
Capacity:
32L
Drainer:
No
Inclusions:
90mm Basket Waste
Sink bench xing clips
Foam seal for top mount applications
Branded internal overow kit
Warranty:
25 years replacement only on sink
1 year replacement only on plug and waste
1 year replacement only on accessories
Product code:
73176 Squareline Plus 32L Utility Sink
420
Back View
80 40 270 80
26
Overow
230
370
15
1
185
R10
Top View
185
ø114
15
ø90
230
230
15
Side View
8040270
15
15
25
Disclaimer:
While every care has been exercised in compiling and publishing the data contained in these pages, Everhard accepts no responsibility for errors or omissions and all information is believed to be correct at the time of production.
All colours have been reproduced with as much accuracy as possible. Dimensions and volumes are nominal. Please check the exact product measurements prior to beginning installation. Everhard reserves the right to delete or alter items without notice.
Further information on warranties is available at www.everhard.com.au
460
510
80
