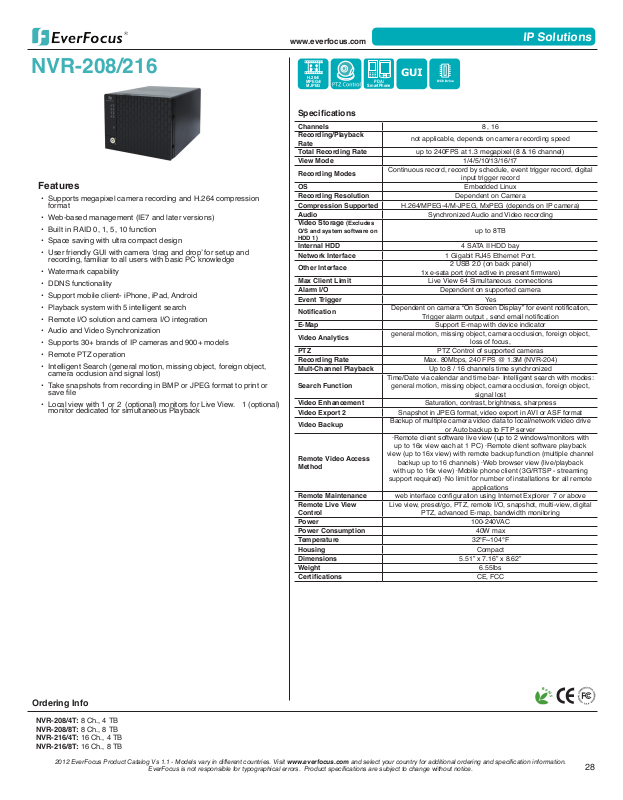

EverFocus NVR-216-2T Specsheet

www.everfocus.com

IP Solutions

NVR-208/216

Features

• Supports megapixel camera recording and H.264 compression
format

• Web-based management (IE7 and later versions)

• Built in RAID 0, 1, 5, 10 function

• Space saving with ultra compact design

• User friendly GUI with camera ‘drag and drop’ for setup and
recording, familiar to all users with basic PC knowledge

• Watermark capability

• DDNS functionality

• Support mobile client- iPhone, iPad, Android

• Playback system with 5 intelligent search

• Remote I/O solution and camera I/O integration

• Audio and Video Synchronization

• Supports 30+ brands of IP cameras and 900+ models

• Remote PTZ operation

• Intelligent Search (general motion, missing object, foreign object,
camera occlusion and signal lost)

• Take snapshots from recording in BMP or JPEG format to print or
save le

• Local view with 1 or 2 (optional) monitors for Live View. 1 (optional)
monitor dedicated for simultaneous Playback

H.264/
MPEG4/
MJPEG

SmartPhone

PDA/

GUI

Specications

Channels 8 , 16
Recording/Playback
Rate
Total Recording Rate up to 240FPS at 1.3 megapixel (8 & 16 channel)
View Mode 1/4/5/10/13/16/17

Recording Modes

OS Embedded Linux
Recording Resolution Dependent on Camera
Compression Supported H.264/MPEG-4/M-JPEG, MxPEG (depends on IP camera)
Audio Synchronized Audio and Video recording
Video Storage

O/S and system software on
HDD 1)

Internal HDD 4 SATA II HDD bay
Network Interface 1 Gigabit RJ45 Ethernet Port.

Other Interface

Max Client Limit Live View 64 Simultaneous connections
Alarm I/O Dependent on supported camera
Event Trigger Yes

Notication

E-Map Support E-map with device indicator

Video Analytics

PTZ PTZ Control of supported cameras
Recording Rate Max. 80Mbps, 240 FPS @ 1.3M (NVR-204)
Mult-Channel Playback Up to 8 / 16 channels time synchronized

Search Function

Video Enhancement Saturation, contrast, brightness, sharpness
Video Export 2 Snapshot in JPEG format, video export in AVI or ASF format

Video Backup

Remote Video Access
Method

Remote Maintenance web interface conguration using Internet Explorer 7 or above
Remote Live View
Control
Power 100-240VAC
Power Consumption 40W max
Temperature 32°F~104°F
Housing Compact
Dimensions 5.51” x 7.16” x 8.62”
Weight 6.55lbs

Certications CE, FCC

(Excludes

not applicable, depends on camera recording speed

Continuous record, record by schedule, event trigger record, digital

input trigger record

up to 8TB

2 USB 2.0 (on back panel)

1x e-sata port (not active in present rmware)

Dependent on camera “On Screen Display” for event notication,

Trigger alarm output , send email notication

general motion, missing object, camera occlusion, foreign object,

loss of focus,

Time/Date via calendar and time bar- Intelligent search with modes:

general motion, missing object, camera occlusion, foreign object,

signal lost

Backup of multiple camera video data to local/network video drive

or Auto backup to FTP server

·Remote client software live view (up to 2 windows/monitors with
up to 16x view each at 1 PC) ·Remote client software playback

view (up to 16x view) with remote backup function (multiple channel

backup up to 16 channels) ·Web browser view (live/playback

with up to 16x view) ·Mobile phone client (3G/RTSP - streaming

support required) ·No limit for number of installations for all remote

applications

Live view, preset/go, PTZ, remote I/O, snapshot, multi-view, digital

PTZ, advanced E-map, bandwidth monitoring

Ordering Info

NVR-208/4T: 8 Ch., 4 TB
NVR-208/8T: 8 Ch., 8 TB
NVR-216/4T: 16 Ch., 4 TB
NVR-216/8T: 16 Ch., 8 TB

2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.

EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
