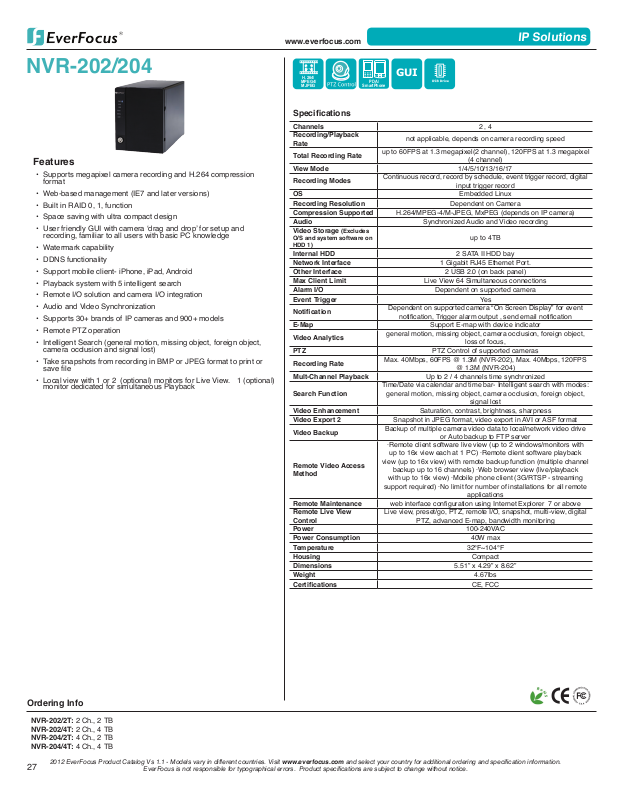

EverFocus NVR-204-2T Specsheet

www.everfocus.com

IP Solutions

NVR-202/204

Features

• Supports megapixel camera recording and H.264 compression
format

• Web-based management (IE7 and later versions)

• Built in RAID 0, 1, function

• Space saving with ultra compact design

• User friendly GUI with camera ‘drag and drop’ for setup and
recording, familiar to all users with basic PC knowledge

• Watermark capability

• DDNS functionality

• Support mobile client- iPhone, iPad, Android

• Playback system with 5 intelligent search

• Remote I/O solution and camera I/O integration

• Audio and Video Synchronization

• Supports 30+ brands of IP cameras and 900+ models

• Remote PTZ operation

• Intelligent Search (general motion, missing object, foreign object,
camera occlusion and signal lost)

• Take snapshots from recording in BMP or JPEG format to print or
save le

• Local view with 1 or 2 (optional) monitors for Live View. 1 (optional)
monitor dedicated for simultaneous Playback

H.264/
MPEG4/
MJPEG

SmartPhone

PDA/

GUI

Specications

Channels 2 , 4
Recording/Playback
Rate

Total Recording Rate

View Mode 1/4/5/10/13/16/17

Recording Modes

OS Embedded Linux
Recording Resolution Dependent on Camera
Compression Supported H.264/MPEG-4/M-JPEG, MxPEG (depends on IP camera)
Audio Synchronized Audio and Video recording
Video Storage

O/S and system software on
HDD 1)

Internal HDD 2 SATA II HDD bay
Network Interface 1 Gigabit RJ45 Ethernet Port.
Other Interface 2 USB 2.0 (on back panel)
Max Client Limit Live View 64 Simultaneous connections
Alarm I/O Dependent on supported camera
Event Trigger Yes

Notication

E-Map Support E-map with device indicator

Video Analytics

PTZ PTZ Control of supported cameras

Recording Rate

Mult-Channel Playback Up to 2 / 4 channels time synchronized

Search Function

Video Enhancement Saturation, contrast, brightness, sharpness
Video Export 2 Snapshot in JPEG format, video export in AVI or ASF format

Video Backup

Remote Video Access
Method

Remote Maintenance web interface conguration using Internet Explorer 7 or above
Remote Live View
Control
Power 100-240VAC
Power Consumption 40W max
Temperature 32°F~104°F
Housing Compact
Dimensions 5.51” x 4.29” x 8.62”
Weight 4.67lbs

Certications CE, FCC

(Excludes

not applicable, depends on camera recording speed

up to 60FPS at 1.3 megapixel(2 channel), 120FPS at 1.3 megapixel

(4 channel)

Continuous record, record by schedule, event trigger record, digital

input trigger record

up to 4TB

Dependent on supported camera “On Screen Display” for event

notication, Trigger alarm output , send email notication

general motion, missing object, camera occlusion, foreign object,

loss of focus,

Max. 40Mbps, 60FPS @ 1.3M (NVR-202), Max. 40Mbps, 120FPS

@ 1.3M (NVR-204)

Time/Date via calendar and time bar- Intelligent search with modes:

general motion, missing object, camera occlusion, foreign object,

signal lost

Backup of multiple camera video data to local/network video drive

or Auto backup to FTP server

·Remote client software live view (up to 2 windows/monitors with
up to 16x view each at 1 PC) ·Remote client software playback

view (up to 16x view) with remote backup function (multiple channel

backup up to 16 channels) ·Web browser view (live/playback

with up to 16x view) ·Mobile phone client (3G/RTSP - streaming

support required) ·No limit for number of installations for all remote

applications

Live view, preset/go, PTZ, remote I/O, snapshot, multi-view, digital

PTZ, advanced E-map, bandwidth monitoring

Ordering Info

NVR-202/2T: 2 Ch., 2 TB
NVR-202/4T: 2 Ch., 4 TB
NVR-204/2T: 4 Ch., 2 TB
NVR-204/4T: 4 Ch., 4 TB

2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.

27

EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
