EverFocus Networking, EDR 400, EDR 1600, EDR 1680, EDSR 110 Instruction Manual

Instruction Manual

Volume

1

N

N

e

e

t

t

w

w

o

o

r

r

kii

k

n

n

g

g

EVERFOCUS ELECTRONICS CORPORATION

Networking Instruction Guide

© 2004 Everfocus Electronics Corp

2445 Huntington Drive

Phone [phone] • Fax [phone]

All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any

form or by any means without written permission of the Everfocus Electronics Corporation.

]

QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark

of the Microsoft Corporation in the United States and other countries. Linksys is a registered

trademark of the Linksys Corporation. D-Link is a registered trademark of the D-Link Corporation.

DynDNS is a registered trademark of the DynDNS.org Corporation. Other product and company

names mentioned herein may be the trademarks of their respective owners.

Table of Contents

Introduction I

CHAPTER 1
Networking Overview 1
Introduction to TCP/IP 1
Subnet Masks 1
Gateway Address 2
Virtual Ports 2
Pre-Installation 3
What type of Network Connection 4
Simple One to One Connection 5
Direct High Speed Modem Connection 11
Router or LAN Connection 13

CHAPTER 2
Linksys Port Forwarding 16
Dynamic DNS 20

CHAPTER 3
D-Link Port Forwarding 22
Dynamic DNS 25

CHAPTER 4
DDNS 27
Creating a DDNS Account 27

CHAPTER 5
Viewing through Internet Explorer 30

Chapter

1

Networking Overview

This chapter will try to give you a detailed instruction on how to network
the DVR. Before we begin the process of networking your digital recorder we
should have a working knowledge of what a network is and how it works. This
will be a helpful in completing the networking process.

Introduction to TCP/IP

TCP/IP is the suite of protocols used by the Internet and most LANs
(Local Area Networks) throughout the world. In TCP/IP, every host (computer
or other communications device) that is connected to the network has a unique IP
address. By doing this you are giving your device a unique address similar to the
address of your house. An IP address is composed of four octets (numbers in the
range of 0 to 255) separated by decimal points. The IP address is used to uniquely
identify a host or computer on the LAN. For example, a computer with the
hostname Workstation could have an IP address of 192.168.1.127.

You should avoid giving two or more computers the same IP address by
using the range of IP addresses that are reserved for private, local area networks;
this range of IP addresses usually begins with the octets 192.168. The first three
octets of an IP address should be the same for all computers in the local area
network. For example, if a total of 253 computers exist in a single LAN, the IP
addresses could be assigned starting with 192.168.1.x, where x represents a
number in the range of 2 to 254.

Subnet Masks

Each host in a LAN has a subnet mask. The subnet mask is an octet that uses the
number 255 to represent the network address portion of the IP address and a zero to
identify the host portion of the address. For example, the subnet mask 255.255.255.0 is
used by each host to determine which LAN or class it belongs to. The zero at the end
of the subnet mask represents a unique host within that network. Basically the subnet
mask represents the city you live in for your home address, but in this case you are
stating the network you belong too.

1

Gateway Address

Each host in a LAN has a gateway. A gateway address is composed of four
octets (numbers in the range of 0 to 255) separated by decimal points. The
gateway address is used to uniquely identify a host or computer on the LAN
which assigns the IP addresses to your network. For example, a Linksys router has
an IP address of 192.168.1.1. If you were using this type of router within your
LAN, then your gateway would be the IP address of the Linksys router. The
reason this would be your gateway is because the Linksys is assigning the IP
addresses for your network therefore the Linksys would be the gateway to your
network. This is similar to the zip code of your address.

Virtual Ports

A port number represents an endpoint or "channel" for network
communications. Port numbers allow different applications on the same computer
to utilize network resources without interfering with each other. Port numbers
most commonly appear in network programming, particularly socket
programming. Sometimes, though, port numbers are made visible to the casual
user. For example, some Web sites a person visits on the Internet use a URL like
the following:

http://www.everfocus.com:8100/

In this example, the number 8100 refers to the port number used by the
Web browser to connect to the Web server. Normally, a Web site uses port
number 80 and this number need not be included with the URL (although it can
be). In IP networking, port numbers can theoretically range from 0 to 65535. Most
popular network applications, though, use port numbers at the low end of the
range (such as 80 for HTTP). This could be similar to the front door of your
house. Without the door to the house being open you could not enter it. This is
the same case with ports on a network. If the ports for a specific IP address are
not open then you could not gain access to that IP address or what it is
addressing.

Please Note: The term port also refers to several other aspects of network

technology. A port can refer to a physical connection point for peripheral

devices such as serial, parallel, and USB ports. The term port also refers to

certain Ethernet connection points, such as those on a hub, switch, or

router.

2

Pre-Installation

Before we begin with the installation we must ask ourselves a few
questions in order to figure out where to begin with networking our DVR’s.

Do you have Hi-speed Internet? ______________

There are many types of high speed Internet available. Three commonly

used ones are T1, Cable, and DSL (in order of speed).

 Please Note: Everfocus suggests having a minimum upload speed

of 256KBps. This can be addressed by the Internet Service
Provider.

Who is your Internet provider? ______________

 Please confirm that your internet service provider that our upload

speed is at least 256KBps.

What type of modem/router do you have? ______________
Modem/router model name/ #

The modem/router was either installed by your Internet service provider

or purchased by you to establish a connection to the Internet. A router is

installed to allow multiple computers to access the Internet through the

same external IP address. It in turn assigns different internal IP addresses

to local computers for this specific purpose.

Do you have a static IP address? ______________

A Static IP address means you use the same IP address every time you log

on to the Internet. With a static IP address, other Internet users always

know the identity of your computer and can easily connect with it. That

way, you can host a website, email server, or other type of server

connection. Everfocus suggest using a static IP address. If your Internet

provider does not offer a static IP address you have the option to use a

dynamic IP address. This will be explained in more detail later on in the

chapter.

Do you have a dynamic IP address? ______________

A Dynamic IP address means your IP address changes each time you make

a connection to the Internet. We recommend asking your Internet service

provider for a Static IP address. If this is not a possibility, you may

purchase a router (we suggest a Linksys or D-link router) which supports

3

DDNS. DDNS is a Dynamic Domain Name Server, a service that

provides a central (public) database where DNS information can be stored

and retrieved. It allows those using a dynamic IP address to be registered

centrally so users can connect to it by name.

What type of DVR are you installing? ______________

Everfocus EDR series: EDR 400, 1600 or 1680

Everfocus EDSR series: EDSR 110, 400H, 400M, 400, 900, or 1600

What Type of Network Connection do you have?

Everfocus DVR’s can operate using three distinct types of networking
connections.

1. Simple One to One Connection: A simple one to one connection is the

most simple network connection. Basically it is a connection between a

Computer and Another Computer or in this case a DVR using a cross-

over cable. (See page on how to install this type of connection)

2. Direct High Speed Modem Connection: A direct high speed modem

connection is a network connection from the modem directly to a

computer or in this case the DVR. (See page on how to install this type of

connection)

3. Router or LAN Connection – A local area network connection either

requires a router or a pre-existing LAN connection. Typically this type of

connection is the most commonly used application. A router allows

multiple computers and DVR’s to access each other as well as the Internet.

It assigns different internal IP addresses to the computers.

4

Simple One to One Connection

Cat 5

Cross-over-cable

Crossover Ethernet Cable Pin outs:

The Diagram below shows the pin configurations for a cross over cable.

Diagram 31

Connection Procedure:

¾ The First step is to purchase or make a cross over cable. We recommend

purchasing one if you have never made a cross over cable. Please

remember you can not use a straight through network cable for this

application

¾ Once you have a cross over cable plug one end into the LAN port on the

back of the recorder and the other into the network card on the back of

the computer.

¾ Now Log into the Everfocus DVR menu and using the jog dial from the

previous chapter go to the Network Setting Menu. (See page 28 for more

instructions)

5

¾ Assign an IP address of 192.168.001.003 to the DVR, a Subnet mask of

255.255.255.000, and a default gateway of 192.168.001.001.

¾ The next step is to get the computer onto the same network to do this you

will need administrator access to your windows machine.

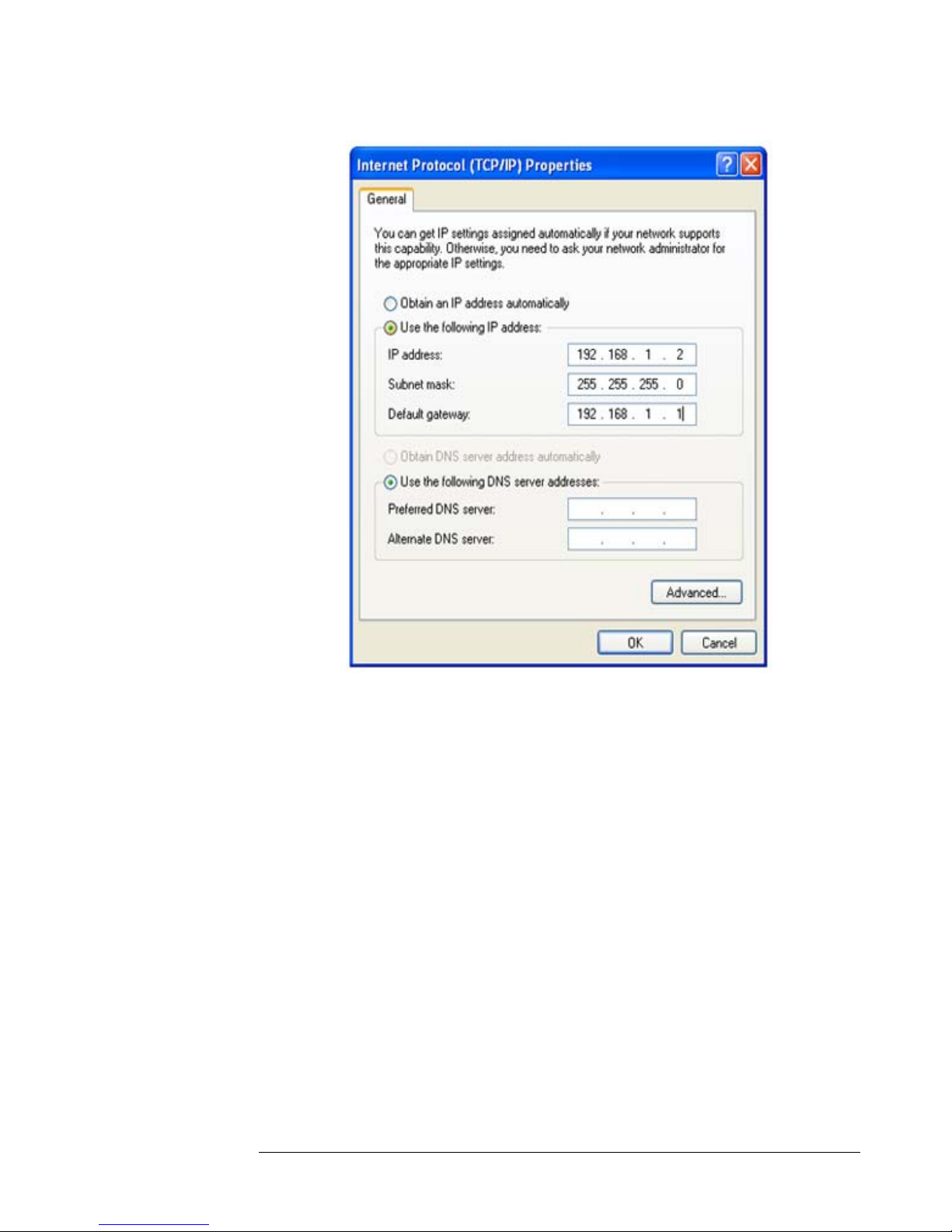

¾ To assign a static IP address in windows 2000/XP.
