EverFocus M107-N501-001 User Manual

M107-N501-001

HIGH PERFORMANCE

Super Night Vision Camera

OPERATION MANUAL

Thank you for choosing our high quality camera. Before attempting
to connect operate this unit,please read and follow these instructions.

CAUTION

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing o ther than
that contained in the operating instructions unless you are qualied to do so.

In USA and Canada, Use Class 2 Power Supply Only

2

CONTENTS

1. CAUTIONS

2. IMPORTANT SAFETY INSTRUCTIONS

3. FEATURES

4. COMPONENTS

5. NAME AND FUNCTION

6. INSTALLATION

7. DIMENSIONS

8. SPECIFICATION

9. OSD MENU STRUCTURE

3

1. CAUTIONS

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”

WARNING

This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Caution

Any changes or modications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority to
operate the equipment.

1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be
out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal componets.
Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may

cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

4

1. CAUTIONS

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

5

2 . IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specied by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualied service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

6

3. FEATURES

• 1/3 960H SONY EXview HAD CCD II

• High Resolution of 700TV Lines

• OSD Function

• Multi Language

(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)

• 2DNR

• Privacy Zone / Motion Detect

• Invisible IR

• DC12V / AC24V Dual Voltage

• ATR(Adaptive Tone-curve Reproduction / Digital WDR)

The function provides gradation compensation to improve the contrast of subjects both
low-luminance areas and high luminance areas exist in the same picture

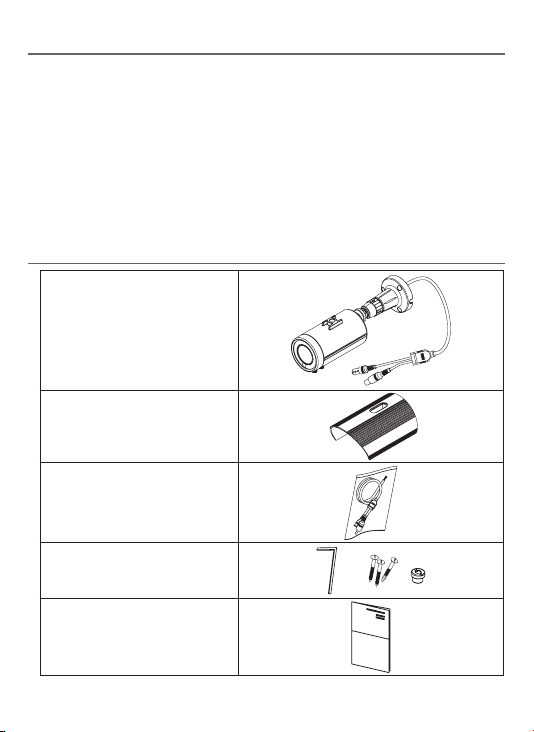

4. COMPONENTS

SUPER NIGHT VISION CAMERA

SUNSHIELD

VIDEO OUTPUT
TEST CABLE

L-WRENCH /

SCREW - 3ea /

SUNSHIELD FIXING BOLT

OPERATION MANUAL

7

5. NAME AND FUNCTION

①

②

①

③

④

⑤ ⑧

①

Sunshield Fixing Bolt

②

Sunshield

③

Mounting Bracket

④

LED : 20ea

⑤

Photo cell

⑥

Body

⑦

Body Fixing Ring

⑧

External Zoom and Focus adjustment

⑥

8

⑦

6. INSTALLATION

• MOUNTING POSITION

˚

360

Afte r adjus tin g zoom and focus ,
to prevent water infiltrat ion , firmly
tighten the zoom and focus lever.

360

90

˚

˚

9

6. INSTALLATION

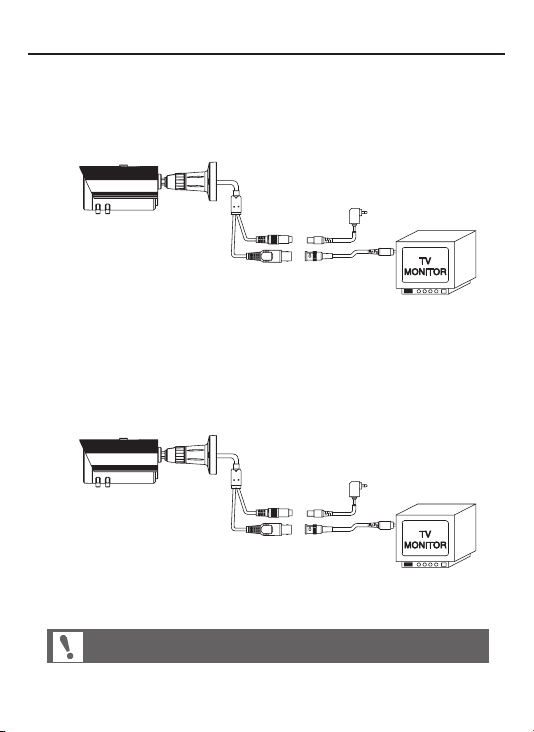

• MONITOR CONNECTION

(1) DC12V

DC12V POWER SUPPLY

DC12V

BNC FEMALE

VIDEO IN

(2) DUAL(DC12V/AC24V)

DC12V /AC24V POWER SUPPLY

DC12V/AC24V

BNC FEMALE

When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.

VIDEO IN

10

7. DIMENSIONS

87.8

145

120

82

224

M12 XP1.0

7

100

Ф

65

11

8. SPECIFICATION

Signal Format NTSC PAL
Image Device 1/3˝ 960H SONY EXview HAD CCD II
Scanning System 2 : 1 Interlace
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
H.Resolution 700TV Lines
S/N Ratio More than 50dB(AGC OFF)

Min.Illumination

Sync System Internal
Gamma r= 0.45
Video Output Level 1.0 Vp-p Composite(75Ω)
OSD Built in (Inner Key / Joystick)
BLC OFF/BLC/HLC
2DNR OFF/ON(Level adjustable)
ATR OFF/ON(Level adjustable)

Function ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK

White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night(ICR) AUTO

Language

IP Rating IP66 (Weatherproof)
IR LED 940nm, 20ea
IR LED Distance Up to 25M

Operating Temperature 14°F~122°F(-10°C~+50°C)

Storage Temperature -4°F~140°F(-20°C~+60°C)

Humidity Less than 80%
Power

Consumption
Lens Varifocal Lens
Dimension 82.0(W) x 79.3(H) x 145(D)
Weight Approx. 900g

Specications and designs are subject to change for improving the functionality of this product without notice.

LED Off : COLOR (0.05Lux / F1.2), BW (0.02 Lux / F1.2)

ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN /

Dual : DC12V (±10%) Max.360mA , AC24V (±10%) Max.4.9W

LED On : 0 Lux

PORTUGUESE / SPANISH / CHINESE

DC12V Only : DC12V (±10%), Max.270mA

12

9. OSD MENU STRUCTURE

MAIN

MENU

LENS

1st Sub

MENU

MANUAL

AUTO

AUTO

SHUTTER
/ AGC

MANUAL

ATW

PUSH

USER1

WHITE
BAL

USER2

ANTI CR

MANUAL

PUSH LOCK

BACK LIGHT OFF,BLC,HLC

MIRROR
BRIGHTNESS
CONTRAST

PIC

SHARPNESS

ADJUST

HUE
GAIN
RETURN

ON

ATR

OFF

*SHUT+IRIS:
*Auto Iris(Default): The Shutter stays at the manually selected value and only the Mechanical Iris adjusts to brightness.

Both the Shutter and the Mechanical Iris are automatically adjusted according to brightness.

2nd Sub

MENU

TYPE DC

MODE AUTO,OPEN,CLOSE
SPEED (000 ~ 255)

RETURN

HIGH LUMINANCE

LOW LUMINANCE

RETURN
MODE SHUT+AGC

SHUTTER

AGC 6,12,18,24,30,36,42,44.8
RETURN
SPEED (000 ~ 255)
DELAY CNT (000 ~ 255)
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR,OUTDOOR
RETURN

B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN

LEVEL 24 ~ 103
RETURN

OFF,ON

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

LUMINANCE LOW,MID,HIGH
CONTRAST LOW,MIDLOW,MID,MIDHIGH,HIGH
RETURN

3rd Sub

MENU

MODE SHUT,AUTO IRIS, SHUT+AUTO IRIS
BRIGHTNESS (000 ~ 255)
MODE AGC,OFF
BRIGHTNESS x0.25,x0.50,x0.75,x1.00

1/50(PAL),1/100(NTSC)
1/60(NTSC),1/120(PAL)
1/250,1/500,1/1000
1/2000,1/4000,1/10000

13

4th Sub

MENU

9. OSD MENU STRUCTURE

MAIN

MENU

MOTION
DET

NEXT
EXIT
SAVE ALL

PRIVACY

NR

CAMERA
ID

LANGUAGE ENGLISH, 日本語, DEUTSCH, FRANCAIS,
CAMERA

RESET
BACK
EXIT
SAVE ALL

*Important Note :

• Any changes made to the camera settings must be saved prior to

exiting the OSD menu. Else all changes will be discarded.

• By changing the lens option in the OSD from MANUAL to AUTO will automatically
change the SHUTTER/AGC setting from AUTO IRIS to SHUT+AUTO IRIS.
(Default:AUTO IRIS)

1st Sub

MENU

ON

OFF

ON

OFF
NR MODE OFF,Y,C,Y/C
C LEVEL (000 ~ 015)
Y LEVEL (000 ~ 015)
RETURN
ON EDIT MODE

OFF

2nd Sub

MENU

DETECT SENSE
BLOCK DISP
MONITOR AREA

AREA SEL

RETURN

AREA SEL

COLOR
TRANSP
MOSAIC
RETURN

RETURN

3rd Sub

MENU

(000 ~ 255)

OFF,ON,ENABLE (CONTROLER)

ON,OFF

1/4, 2/4, 3/4, 4/4

TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)

1/4, 2/4, 3/4, 4/4

TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)

BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)

LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)

RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)

(1 ~ 8)

0.00, 0.50, 0.75, 1.00

OFF,ON

Русский,

PORTUGUÊS, ESPAÑOL, 中文

4th Sub

MENU
