ECOR FHD 4F / 8F / 16F DVR
4 / 8 / 16 CH, H.264, 1080p Full HD
User’s Manual
Copyright © EverFocus Electronics Corp.
Release Date: November, 2015
The content is subject to change without notice
EVERFOCUS ELECTRONICS CORPORATION
ECOR FHD 4F / 8F / 16F
User’s Manual
1995-2015 EverFocus Electronics Corp.
www.everfocus.com.tw
All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form
or by any means without written permission of the EverFocus Electronics Corporation.
Release Date: November, 2015
QuickTime is a registered trademark of the Apple Computer, Inc.
Windows is a registered trademark of the Microsoft Corporation.
Linksys is a registered trademark of the Linksys Corporation.
D-Link is a registered trademark of the D-Link Corporation.
DynDNS is a registered trademark of the DynDNS.org Corporation.
Other product and company names mentioned herein may be the trademarks of their respective owners.
Safety Precautions
Refer all work related to the installation of this product to qualified service personnel or
system installers.
Do not block the ventilation openings or slots on the cover.
Do not drop metallic parts through slots. This could permanently damage the appliance.
Turn the power off immediately and contact qualified service personnel for service.
Do not attempt to disassemble the appliance. To prevent electric shock, do not remove
screws or covers. There are no user-serviceable parts inside. Contact qualified service
personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this
may damage the appliance.
Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do
take immediate action if the appliance becomes wet. Turn the power off and refer servicing
to qualified service personnel. Moisture may damage the appliance and also may cause
electric shock.
Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth
to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild
detergent and wipe gently.
Do not overload outlets and extension cords as this may result in a risk of fire or electric
shock.
Do not operate the appliance beyond its specified temperature, humidity or power source
ratings. Do not use the appliance in an extreme environment where high temperature or
high humidity exists. Use the DVR at temperatures within 0°C~40°C / 32°F~104°F (Storage).
The input power source is 12VDC 3A (ECOR FHD 4F), 12VDC 5A (ECOR FHD 8F) and 12VDC
6A (ECOR FHD 16F).
Read Instructions
All the safety and operating instructions should be read before the unit is operated.
Retain Instructions
The safety and operating instructions should be retained for future reference.
Heed Warnings
All warnings on the unit and in the operating instructions should be adhered to.
ii
Follow Instructions
All operating and use instructions should be followed.
Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners, abrasive or
aerosol cleaners. Use a damp cloth for cleaning
Attachments
Do not use attachments not recommended by the product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classified as a wet location.
Servicing
Do not attempt to service this unit by yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, playing particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the appliance.
Object and Liquid Entry
Never push objects of any kind into this unit through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the unit.
Battery
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
a. Use only two AAA dry cell batteries.
b. Do not dispose of the batteries in a fire as it may explode.
ATTENTION! This is a class A product which may cause radio interference in a
domestic environment; in this case, the user may be urged to take adequate measures.
iii
The information in this manual was current upon publication. The manufacturer reserves the right
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the users’ authority to operate this equipment.
This Product is RoHS compliant.
WEEE
Your EverFocus product is designed and manufactured with high quality materials and
components which can be recycled and reused. This symbol means that electrical and
electronic equipment, at their end-of-life, should be disposed of separately from your
household waste. Please, dispose of this equipment at your local community waste
collection/recycling centre. In the European Union there are separate collection systems
for used electrical and electronic product.
Please, help us to conserve the environment we live in!
This product complies with the High-Definition Multimedia Interface (HDMI)
Specification Adopter Agreement.
to revise and improve his products. Therefore, all specifications are subject to change without prior
notice. Manufacturer is not responsible for misprints or typographical errors.
Please read this manual carefully before installing and using this unit. Be sure to keep it handy for
later reference.
iv
TABLE OF CONTENTS
1. Introduction ................................................................................................................... 1
1.1 Features .......................................................................................................................... 3
1.2 Packing List ..................................................................................................................... 4
1.3 Optional Accessories ...................................................................................................... 4
1.4 Front Panel ..................................................................................................................... 5
1.5 Rear Panel ....................................................................................................................... 7
2. Installation..................................................................................................................... 9
2.1 Hard Disk installation ..................................................................................................... 9
2.1.1 Hard Disk Compatibility List.............................................................................. 12
2.2 Basic Connection .......................................................................................................... 13
2.2.1 Monitor Connection ......................................................................................... 14
2.2.2 Alarm I / O......................................................................................................... 15
2.2.3 RS-485 Port ....................................................................................................... 16
2.3 Turning On / Off the Power ........................................................................................ 16
2.4 Checking the Dynamic IP Address ................................................................................ 17
2.5 Connecting the DVR to the Network ............................................................................ 22
2.5.1 Router or LAN Connection ................................................................................ 22
2.5.2 Direct High-Speed Connection ......................................................................... 25
2.5.3 One-to-One Connection ................................................................................... 26
3. Mouse and Front Panel Button Operation .................................................................... 29
3.1 USB Mouse Operation .................................................................................................. 29
3.1.1 How to Select a Channel / Enable Audio .......................................................... 29

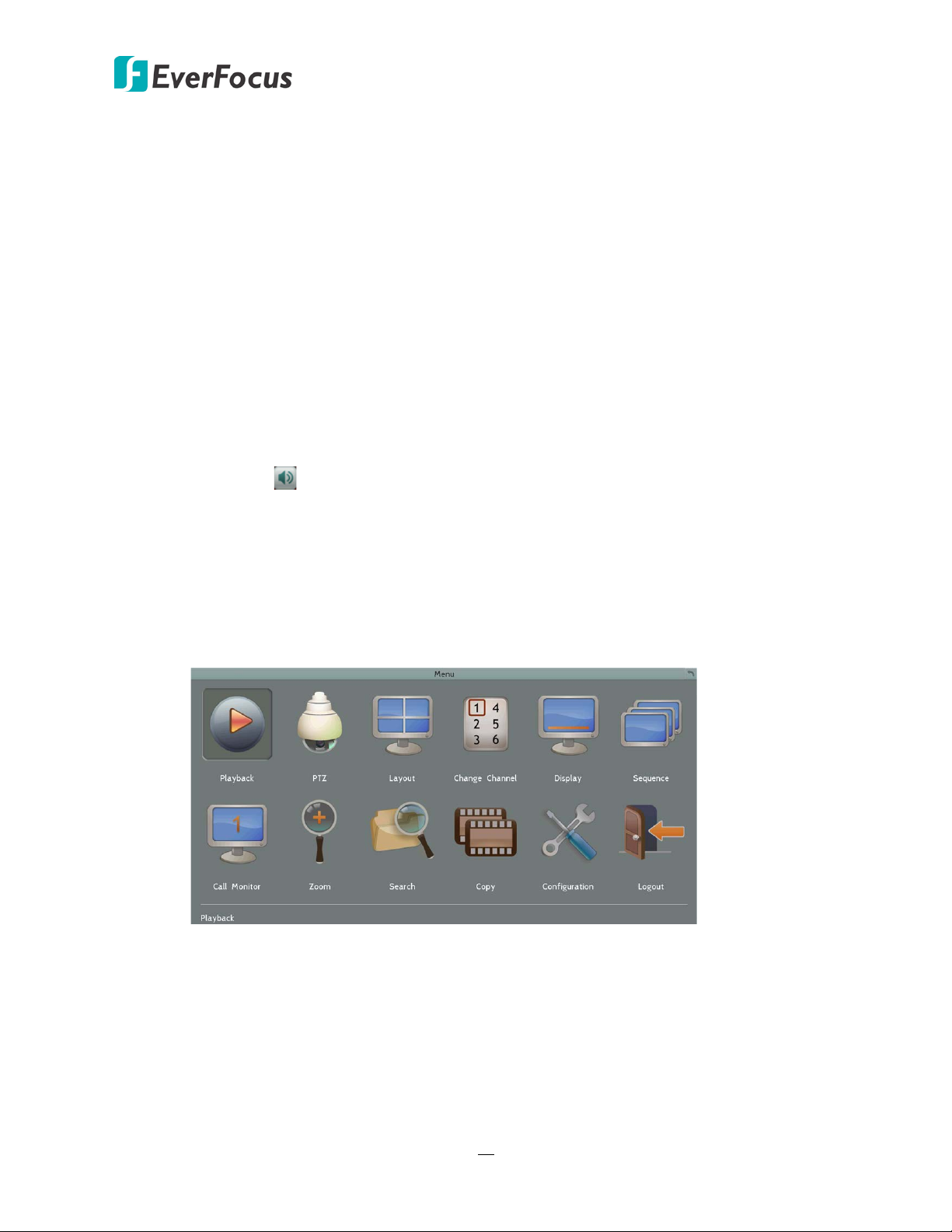

3.1.2 OSD Root Menu ................................................................................................ 29
3.1.3 Field Input Options ........................................................................................... 30
3.2 Front Panel Buttons Operation .................................................................................... 31
3.2.1 Front Panel Review ........................................................................................... 31
3.2.2 How to Select a Channel / Enable Audio .......................................................... 31
3.2.3 OSD Root Menu ................................................................................................ 31
3.2.4 Field Input Options ........................................................................................... 32
3.3 General Operation ........................................................................................................ 33
3.3.1 Login ................................................................................................................. 33
3.3.2 Forget Your Password ....................................................................................... 34
3.3.3 Camera Selection .............................................................................................. 34
3.3.4 Audio Selection ................................................................................................. 35
4. OSD Root Menu ........................................................................................................... 36
v
4.1 PTZ ................................................................................................................................ 38
4.1.1 Express Control of PTZ ...................................................................................... 40
4.2 Layout Switching .......................................................................................................... 41
4.3 Channel Switching ........................................................................................................ 41
4.4 Display .......................................................................................................................... 42
4.5 Sequence ...................................................................................................................... 42
4.6 Zoom ............................................................................................................................. 43
4.7 Archiving the Recordings or Log Data to the USB ........................................................ 44

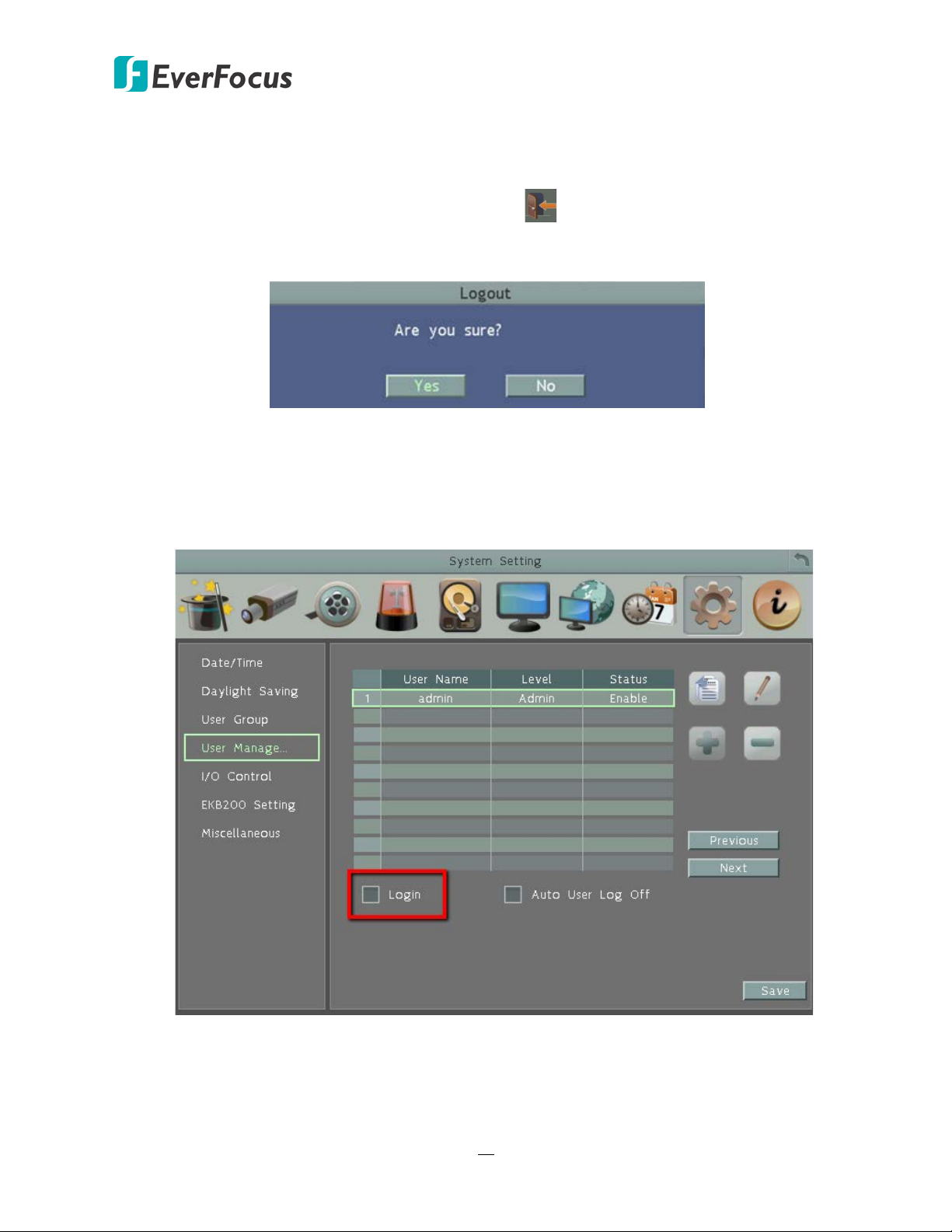

4.8 Logout ........................................................................................................................... 47
4.8.1 Temporarily Logout .......................................................................................... 48
5. Search and Playback..................................................................................................... 49
5.1 Quick Playback .............................................................................................................. 49
5.2 Playback Bar ................................................................................................................. 50
5.3 Searching the Recordings for Playing Back .................................................................. 52
5.3.1 Time Search ...................................................................................................... 52
5.3.2 Event Search ..................................................................................................... 53
5.3.3 Smart Search ..................................................................................................... 54
5.3.4 Snapshot Search ............................................................................................... 56
5.3.5 POS Search ........................................................................................................ 58
6. Configuration ............................................................................................................... 60
6.1 Express .......................................................................................................................... 62
6.2 Camera ......................................................................................................................... 64
6.2.1 Basic Setting ...................................................................................................... 64
6.2.1.1 Display Aspect Ratio .................................................................................. 66
6.2.2 Adjust Setting ................................................................................................... 67
6.2.2.1 eZ Controller (Control Camera OSD Setting from DVR End) ..................... 68
6.2.3 eZ Hopper ......................................................................................................... 69
6.3 Record........................................................................................................................... 72
6.4 Event ............................................................................................................................. 73
6.4.1 Alarm ................................................................................................................ 73
6.4.1.1 Connect a Radio Clock to the DVR ...................................................................... 75
6.4.2 Video Loss ......................................................................................................... 76
6.4.3 Motion .............................................................................................................. 78
6.4.4 Other ................................................................................................................. 81
6.5 Hard Disk ...................................................................................................................... 87
6.5.1 Disk. .................................................................................................................. 87
6.5.2 Lock/Format...................................................................................................... 88
6.6 Display Setting .............................................................................................................. 89
6.6.1 Monitor OSD ..................................................................................................... 89
6.6.2 M/T SEQ ............................................................................................................ 90
vi
6.7 Network Settings .......................................................................................................... 91
6.7.1 LAN 91
6.7.2 Email ................................................................................................................. 94
6.7.3 DDNS ................................................................................................................. 95
6.7.4 FTP 98
6.7.5 Alarm Server ..................................................................................................... 99
6.7.6 Remote / Mobile ............................................................................................. 100
6.7.7 Network Testing ............................................................................................. 101
6.8 Schedule Setting ......................................................................................................... 102
6.8.1 Express Setup .................................................................................................. 102
6.8.2 Holidays .......................................................................................................... 103
6.8.3 Schedule ......................................................................................................... 104
6.9 System Setting ............................................................................................................ 107
6.9.1 Date / Time ..................................................................................................... 107
6.9.2 Daylight Saving ............................................................................................... 109
6.9.3 User Group...................................................................................................... 110
6.9.4 User Management .......................................................................................... 112
6.9.5 I/O Control ...................................................................................................... 115
6.9.6 EKB200 Setting ................................................................................................ 116
6.9.7 Miscellaneous ................................................................................................. 118
6.10 Information ................................................................................................................. 120
6.10.1 System ............................................................................................................ 120
6.10.2 Log 121
7. Remote Access to the DVR ......................................................................................... 122
7.1 Accessing the DVR on the Network ............................................................................ 122
7.2 Remote Live View ....................................................................................................... 126
7.3 Menu Bar .................................................................................................................... 128
7.4 Remote Playback ........................................................................................................ 129
8. Specifications ............................................................................................................. 130
9. Troubleshooting ......................................................................................................... 132
Appendix A: Network Overview ......................................................................................... 133
Appendix B: Linksys & D-Link Port Forwarding ................................................................... 137
Appendix C: Timing of Alarm Modes .................................................................................. 141
Appendix D: Express Setup Recording Value Selection Rules .............................................. 144
Appendix E: IR Remote Control .......................................................................................... 146
Appendix F: RTSP URL Syntax............................................................................................1467
vii
ECOR FHD 4F / 8F / 16F Full HD DVR
1
1
Chapter
1. Introduction
EverFocus ECOR FHD 4F / 8F / 16F is our new eZ.HD series full HD DVR, which adopts the latest
Analog HD technology, permitting it to deliver excellent high quality images of up to 1080p full HD
resolution that is far superior to traditional analog CCTV. The eZ.HD series is easy to install and can
integrate with the existing CCTV systems without re-cabling, so this new eZ.HD video surveillance
system will definitely be your best cost-effective solution.
The ECOR FHD 4F / 8F / 16F DVR supports 4 / 8 / 16-channel analog video inputs with resolution
ranging from D1, 960H, 720p to 1080p full HD and also features triple streams for live view,
playback and recording. In addition, this new series full HD DVR supports both standard coaxial
and UTP (Unshielded Twisted Pair) cable, allowing for long-distance transmission of full HD images
with zero video latency.
This model is designed with a high-performance hardware which has multiple video outputs for
local monitoring, audio in/out, alarm in/out, RS-485 serial interface, 2 USB interfaces and 1 RJ45
(10/100) Base-T Ethernet interface. Other than that, the ECOR FHD 4F and 8F / 16F and can be
expanded up to 1 and 2 SATA devices respectively, ensuring large capacity of the eZ.HD video
recordings.
EverFocus also provides mobile apps for users to view the eZ.HD camera streams via their mobile
devices (iOS or Android platforms) and also supports web UI for users to remotely access to the
surveillance system. Moreover, it is integrated with our powerful CMS platform, Genie XMS, so it
can be applied in more surveillance scenarios and easily scaled up in the future.
EverFocus also has an innovative function, eZ Hopper, for our new series of DVRs / NVRs, allowing
users to control up to 16 connected DVRs / NVRs with just one single mouse. This breakthrough
feature brings great benefits to the traditional small and medium-sized surveillance system, not
only eliminating the expense of the central monitoring software, but also saving the setup cost
and time.
ECOR FHD 4F / 8F / 16F Full HD DVR
2
IR Remote Control
a
*Internal 3.5" HDDs (Optional)
*eZ.HD Camera
Line Level
Audio Out
Alarm In / Out 1~4
**Main Monitor
(HDMI)
Call Monitor
(BNC)
Web Remote
Client
CMS:
Genie XMS
Mouse / USB / EKB200
Line Level
Audio Out
**Main Monitor
(VGA)
Power
Supply
RS-485 Device:
EKB500 / PTZ Camera
Line Level
Audio In 1~4
Network
or Radio Clock
Mobile App:
MobileFocus
MobileFocusHD
Mouse / USB / EKB200
COM NO G G 4 3 G G 2 1
ECOR FHD 4F / 8F / 16F System Diagram
* This diagram uses ECOR FHD 8F as an example. ECOR FHD 16F has 16 Video Inputs; ECOR FHD 4F
only has 4 Video Inputs and supports only 1 hard disk drive.
**The HDMI and VGA port can be all used as the Main monitor outputs and share the identical
functionality.
ECOR FHD 4F / 8F / 16F Full HD DVR
3
1.1 Features
• Megapixel resolution over standard coaxial / UTP (Unshielded Twisted Pair) cable
• eZ upgrade to full HD resolution
• 1080p full HD, 720p, 960H or D1 simultaneous video inputs
• H.264 compression format for enhancing recording capacity and improving network image
transmission speed
• eZ.Controller function: Control camera OSD settings and PTZ operation directly from DVR
end
• Multiple Monitors: Separately configured HDMI and VGA Monitor outputs
• High bandwidth full HD recording with recordable reduced bandwidth stream for mobile or
multiplexed viewing applications.
• Supports live monitoring and playback of video from mobile devices via MobileFocus (Plus) /
MobileFocusHD (Plus) Apps
• Multiple Control Inputs: mouse / front panel / IR remote controller
• Remote configuration supports from built-in web interface
• Ethernet interface for remote network viewing and control
• eZ Hopper function: Only one mouse to control up to 16 connected EverFocus DVRs / NVRs
• Supports radio-controlled clock for time synchronization
• Integration with Genie XMS CMS
• Multi-language supported
ECOR FHD 4F / 8F / 16F Full HD DVR
4
•
•
1.2 Packing List
ECOR FHD 4F / 8F / 16F DVR x1
• HDD Mounting Screw Pack x 1 • Quick Installation Guide x 1
•
Remote Controller x 1 • SATA Cable x 1 (ECOR FHD 4F)
• Mouse x 1
• CD x 1 (contains the IP Utility software,
User Manual and Quick Installation Guide)
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information. Please also keep the shipping
carton for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
3. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
a. Use only two AAA dry cell batteries.
b. Do not dispose of the batteries in a fire as it may explode.
Power Cord and Adaptor x 1
x 2 (ECOR FHD 8F)
x 2 (ECOR FHD 16F)
1.3 Optional Accessories
• EKB200 (USB controller keyboard: connect to the PC or DVR to control the PTZ cameras
connected to the DVR). Please refer to 6.9.6 EKB200 Setting and the User Manual of
the EKB200 Keyboard.
• EKB500 (RS-485 keyboard: connect to the RS-485 port to control the PTZ cameras
connected to the DVR). Please refer to User Manual of the EKB500 Keyboard.
ECOR FHD 4F / 8F / 16F Full HD DVR
5
1
2
4
5
6
7
8
9
10
11
12
3
3
6
2
11
10
12
1
8 9
3
6
13
11 10
12
1
8 9
1.4 Front Panel
ECOR FHD 4F
ECOR FHD 8F
ECOR FHD 16F
ECOR FHD 4F / 8F / 16F Full HD DVR
6
No. Name Description
1 USB2.0 Port
The USB2.0 port for connecting to a mouse, external storage device or
EKB200 keyboard.
2 View Press the type of layout you want for displaying your channel feeds.
3 SEQ (Sequence)
4 Display
Press to enter the automatic sequence mode. This will show each
channel feed in sequence.
Press to cycle between the info display types (channel and status bar
info).
5 Search Press to enter the Search Setup menu.
6 Copy Press to enter the Copy Menu.
7 Zoom
Press repeatedly to toggle between 2x and 4x zoom. Press the Menu
button to switch zoom off.
8 Arrow Keys Use these arrow keys to change the Menu settings.
9 IR Receiver Receiver for IR Remote Control.
Power LED: Indicates the power is on.
10 Status LED
Record LED: Indicates the DVR is recording.
Alarm LED: Indicates the alarm input is triggered. (Note: ECOR FHD 16F
doesn’t have Alarm LED).
11 Menu Press to enter/exit the Main Setup Menu.
Channel 1~4 /
12
1~8 / 9~16
13 Channel Switch
Press to display the channel in full screen.
Press this button to switch the above channel button numbers between
1~8 and channel 9~16.
7
1.5 Rear Panel
2
31 4 5
6 8 9
10 11 12
7
COM NO G G 4 3 G G 2 1
2
3
1
4
5
6
8
9
10
11
12
7
COM NO G G 4 3 G G 2 1
3
1
4
5
6
8
9
10
11
12
7
2
COM NO G G 4 3 G G 2 1
ECOR FHD 4F
ECOR FHD 8F
ECOR FHD 4F / 8F / 16F Full HD DVR
ECOR FHD 16F
ECOR FHD 4F / 8F / 16F Full HD DVR
8
No. Name Description
Connect up to 4 / 8 / 16 analog HD or SD cameras to any
channels using the coaxial cables. (The eZ.HD series DVR
doesn’t support HD-TVI / HD-CVI / HD-SDI cameras.)
Note: The DVR can automatically configure itself as NTSC or
1 Video Input
PAL. To do this, connect a camera to any channel of the DVR.
The DVR will detect the first connected camera format (NTSC
or PAL) and then automatically configure itself to the
detected format from the first connected camera. For
example, if the format of the first connected camera is NTSC,
the DVR will configure itself to NTSC format.
2 Call Monitor Port (BNC) Connects to the Call monitor using a BNC cable.
Connects to the audio input devices such as microphones.
3 Audio Input 1~4 (RCA)
Note that the microphone with a (built-in) amplifier and
external power supply is required.
Connects to 4 alarm inputs, and to 1 alarm output device.
4 Alarm Input / Output
You can also connect to the radio-controlled clock for time
synchronization. Please refer to 2.2.2 Alarm I/O.
5 Power Switch Press to turn on or off the power.
6 Main Monitor Port (HDMI) Connects to the Main monitor using a HDMI cable.
Connects to the audio output devices, such as speakers.
7 Audio Output RCA
Note that the speaker with a (built-in) amplifier and external
power is required.
8 Main Monitor Port (VGA) Connects to the Main monitor using a VGA cable.
9 LAN Connects to the Network.
10 USB Interface
11 RS-485 Port
12 Power Port
The USB2.0 port for connecting to a mouse, external storage
device or EKB200 keyboard.
Connects to the RS-485 device, such as EverFocus’ EKB-500
keyboard.
Connects to the DC 12V power using the supplied Power
Cord.
ECOR FHD 4F / 8F / 16F Full HD DVR
9
COM NO G G 4 3 G G 2 1
2
2. Installation
2.1 Hard Disk installation
ECOR FHD 4F:
You can install one 3.5” HDD inside the ECOR FHD 4F DVR for recording videos.
1. Make sure the DVR is power-off.
Chapter
2. Unscrew the three housing screws on the rear panel of the DVR.
3. Push the housing to the back and open it.
ECOR FHD 4F / 8F / 16F Full HD DVR
10
4. Screw the HDD to the bottom of the DVR using supplied screws.
5. Connect the internal SATA cable to the SATA port of the HDD.
6. Connect the internal power cable to the HDD.
7. Screw back the hosing to the DVR.
8. Format the HDD after the installation is completed.
ECOR FHD 4F / 8F / 16F Full HD DVR
11
SATA Cable Power Cable
ECOR FHD 8F / 16F:
You can optionally install two 3.5” HDDs inside the ECOR FHD 8F / 16F DVR for recording videos.
1. Follow the first three steps above to open the DVR housing.
2. Please install the HDD firstly on the HDD Bracket and then install the second one onto the
DVR.
2
3. Screw a HDD onto the HDD Bracket using the supplied four short screws.
1
4. Connect the internal SATA cable to the SATA port of the HDD, and connect the internal
power cable to the HDD to complete the first HDD installation (You need to connect these
cables to the second HDD before installing).
ECOR FHD 4F / 8F / 16F Full HD DVR
12
5. Screw the second HDD on the DVR from the bottom side using the supplied four long
screws.
6. Screw back the housing to the DVR.
7. Format the HDD after the installation is completed.
2.1.1 Hard Disk Compatibility List
Please go to the ECOR FHD 4F / 8F / 16F Web page (Download tab) on our website
http://www.everfocus.com.tw to see the latest Hard Disk Compatibility List and it’s
recommended to use the hard disk models in that list to ensure your hard disks will be
compatible.
Note: If using two or more hard disks, please choose the hard disks with the same capacity.
ECOR FHD 4F / 8F / 16F Full HD DVR
13
eZ.HD Camera
Line Level
Audio Out
Main Monitor
(HDMI)
Web Remote
Client
CMS:
Genie XMS
Mouse
Line Level
Audio Out
Main Monitor
(VGA)
Power
Supply
Line Level
Audio In 1~4
Network
1
2
3
4
4
5
6
7
COM NO G G 4 3 G G 2 1
2.2 Basic Connection
The instructions below the figure describe the basic connection for the ECOR FHD 4F / 8F / 16F
DVR. (This figure uses ECOR FHD 8F DVR as an example).
1. Connect the cameras to the DVR using the coaxial cables. eZ.HD cameras are recommended.
2. Connect the line level audio input devices to the Audio-in 1 ~4 RCA sockets of the DVR. Note
that the audio input devices, such as microphones, are required to have a (built-in) amplifier
and external power supply. Please refer to 1.5 Rear Panel.
3. Using the supplied Power Cord, connect one end to the DC 12V port on the DVR and the
other end to the DC 12V power outlet.
Note: Please ensure to connect the internal power cables to the internal HDDs before
powering on the DVR.
4. To view videos and control OSD settings, connect a monitor to the HDMI or VGA port using
the HDMI or VGA cable supplied by the monitor manufacturer.
5. To listen to audio of video source, connect speakers to the Audio-out RCA port. Note that
speakers with a (built-in) amplifier and external power are required
.
6. Use a standard RJ-45 cable to connect the DVR to the network for remote viewing or using
EverFocus surveillance system (Genie XMS).
7. Optionally connect a mouse to the DVR to control the system. You can also control the
system using the supplied IR Remote Control or the control keys on the front panel.
ECOR FHD 4F / 8F / 16F Full HD DVR
14
Main Monitor
Call Monitor
Main Monitor
BNC Cable
VGA Cable
HDMI Cable
COM NO G G 4 3 G G 2 1
2.2.1 Monitor Connection
Connect the monitor to the HDMI, VGA or BNC port on the rear panel of the DVR. The ECOR FHD
4F / 8F / 16F DVR provides 2 main monitor outputs with identical functionality - VGA and HDMI.
Both outputs can be used simultaneously and deliver full HD output resolution (1920x1080,
progressive, 60 Hz. vert., 68 KHz hor.). Make sure that the connected monitor's specifications
comply with these resolution requirements (This figure uses ECOR FHD 8F DVR as an example).
Note:
1. The connected monitors’ specifications must comply with the resolution requirements.
2. Do not exceed the max. HDMI cable length of 15 meters. The standard HDMI cables can
support cable length up to 3 meters. For longer distances, such as 15 meters, it is highly
recommended to use high quality HDMI cables.
ECOR FHD 4F / 8F / 16F Full HD DVR
15
COM NO G G 4 3 G G 2 1
Alarm Out Alarm In
Alarm
Radio-controlled Clock
Description
ALMIN
GND
ALMIN
GND
Alarm Input with N.O. contact in idle state Alarm Input with N.C. contact in idle state
ALMOUT+
ALMOUT-
Alarm Output with N.O. contact
2.2.2 Alarm I / O
The DVR provides 4 alarm inputs and 1 alarm outputs. You can also connect the
radio-controlled clock to the alarm input of the DVR for the time synchronization. The DVR
supports the radio-controlled clock which will automatically synchronize to the time standard
so that you won’t need to reset the time manually. Please refer to the table below for PIN
assignment.
Alarm Input
No.
1-4
ALM_IN1 – ALM_IN4
G GND
Alarm Input Contacts
This DVR provides one alarm input per camera. All inputs are programmable N.O. (Normal
Open) or N.C. (Normal Closed). All settings are programmed in the ALARM / Event menu.
Alarm Output Contacts
The relay output provides Normally Open dry contacts.
ECOR FHD 4F / 8F / 16F Full HD DVR
16
Rear View
RS-485 Port
EKB500
RS-485
RJ-45 Cable
Connector Box
PTZ Camera 1~8
COM NO G
G 4 3 G G 2 1
2.2.3 RS-485 Port
The RS-485 port, located on the rear panel of the DVR, can be used to connect to an RS-485
keyboard, such as EverFocus’ EKB500, for controlling PTZ cameras or connect to a POS device. For
details on the RS-485 configurations on the DVR, please refer to 6.9.5 I/O Control. This figure uses
ECOR FHD 8F DVR as an example.
2.3 Turning On / Off the Power
Before powering on the DVR, please make sure the internal HDDs have been installed properly.
Once you have completed the basic cable connections, you are ready to turn on the DVR.
To turn on the power, connect the supplied Power Cord to the power outlet and turn on the
Power Switch. All of the LED indicators on the front panel will light up. The DVR will automatically
run an internal process, when the process is complete, the LED indicators will turn off, and the
POWER LED will remain light up in green. And then you can start operating the DVR.
To turn off the power, please go to OSD Root Menu > System Setting > Miscellaneous setting page,
and click Shutdown (refer to 6.9.7 Miscellaneous). After the message pops up as below, you can
now turn the Power Switch to the "Off" position.
ECOR FHD 4F / 8F / 16F Full HD DVR
17
2.4 Checking the Dynamic IP Address
You can look up the IP address and access the Web interface of the DVR using the IP Utility (IPU)
program, which is included in the software CD. The IP Utility can also be downloaded from
EverFocus’ Website: http://www.everfocus.com/HQ/Support/DownloadCenter_p1.aspx. Please
connect the DVR on the same LAN of your computer.
1. Save IP Utility Setup .exe in your computer. Double click the .exe file and follow the
on-screen instructions to install the IP Utility.
2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices
connected on the same LAN.
ECOR FHD 4F / 8F / 16F Full HD DVR
18
3. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the
IPU:
a. Log in the DVR by checking the desired model and then click the Log in icon. The
Log in dialog box appears.
b. Type the Username and Password. Click the OK button, the status of the selected camera
will display Login.
Note:
1. The default user ID is admin and the default password is 11111111.
2. If you select more than one DVRs that have the same user ID / password, you will
be able to log in several DVRs at once.
c. Right click the column to configure the setting. Click Apply Changes button to apply
and save the settings.
Note: Most networks uses DHCP to assign IP address, if you are unsure of your network
settings, please consult your network administrators for configuration details.
4. To access the Live View window, double click the IP address of the desired device, the login
window pops up. Type the user ID and password to log in. By default, the user ID is admin
and the password is 11111111.
ECOR FHD 4F / 8F / 16F Full HD DVR
19
5. If you log in for the first time, follow the instruction steps on the interface to update the
latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again.
Type the user ID and password to log in again. By default, the user ID is admin and the
password is 11111111.
Note for the first time login:
The “Download ePlayer Instruction” page will only be prompted for the first time login in
order to update the system to the latest plugin version.
When the Plug-in blocked appears on the browser, select Always allow plug-ins on xxx, click
Done and then reload the webpage.
6. Now you will be able to see the remote live page.
ECOR FHD 4F / 8F / 16F Full HD DVR
20
If you encounter the following problem or still can’t access the remote Web interface, please
see below:
If the Error window appears, please be sure to close ALL the Web browser windows first and
then click Retry. When the Completing the ePlayer Setup Wizard window shows up, click
Finish. Then, you can open a new browser again to access the DVR’s remote Web interface.
ECOR FHD 4F / 8F / 16F Full HD DVR
21
If your PC or laptop is running with Windows, it’s required to run the browser as
administrator when first entering the remote web page of the device. Go to C:\Program Files
(x86)\Internet Explorer, right-click the browser and then click Run as administrator.
You may need to turn User Account Control off if you still can’t see the Remote Live View. On
the computer, click Start > Control Panel > System and Security > Action Center (click
Change User Account Control Settings), the User Account Control Settings window appears.
Adjust the slide bar to Never Notify and then click OK. Restart your computer if requested.
ECOR FHD 4F / 8F / 16F Full HD DVR
22
High-speed modem
Internet
Straight-through LAN patch cable
Router
Cat 5 Straight Through Cable
Left: Pinout of a straight-through cable.
2.5 Connecting the DVR to the Network
There are three methods to connect the DVR to the network: Router or LAN Connection, Direct
High‐Speed Connection and One‐to‐One Connection. For more information of the network,
please refer to Appendix A. Network Overview.
2.5.1 Router or LAN Connection
This is the most common connection in which the DVR is connected to a router and allows
multiple users on and off site to see the DVR on a LAN/WAN (Internet). The DVR must be
assigned an IP address that is compatible with its LAN. By setting up port forwarding on the
router, you can remotely access the cameras from outside of the LAN via the Internet. To
remotely access the Web interface, please refer to 7. Remote Access to the DVR. To set up
port forwarding, please consult the manual of the router or refer to Appendix B: Linksys &
D-Link Port Forwarding.
Connection Procedure:
The First step is to purchase or make a straight through cable. We recommend
purchasing one if you have never made a straight through cable. Please remember you
can not use a cross-over network cable for this application.
Once you have a straight through cable, plug one end into the LAN port on the back of
the recorder and the other into the router.
Log into the EverFocus DVR menu and go to the Network Setting Menu.
To let the router automatically assign an address:
ECOR FHD 4F / 8F / 16F Full HD DVR
23
Set the Network Type to DHCP. Make sure to write down the IP address and the
Gateway.
Exit from the Menu to save settings.
To manually assign an address:
Go to a computer connected on the same network as the DVR.
Click on the Start button and choose Run.
If using Windows Vista, choose Search instead.
Type “command” and click on OK.
In Vista, you will need to double-click on the “Command Prompt” file to open it.
In the DOS prompt, type “ipconfig” and press Enter.
The network information will be displayed on a screen similar to the one below.
In Windows Vista, look for the information that says “IP v4”.
Take the values for Subnet Mask and Default Gateway and input them into the DVR;
these values should be exactly the same in both devices. However, you should
change the last number of the IP address. For example, if the IP address of the
computer is 192.168.2.101, the DVR’s IP address should be 192.168.2.50.
To access the DVR from a computer simply open Internet Explorer and in the address
bar type:
http:// (IP address of the DVR)
Note: The DVR’s IP address will only work at the location of the DVR. To connect
from a different location over the Internet, see below.
ECOR FHD 4F / 8F / 16F Full HD DVR
24
To set the DVR for Internet Connection through router:
The next step is to open ports within your router. Log into the router using a PC and
open the following ports.
Ports to open: 80
If your Internet service provider blocks port 80, you can change it to a different port
in the DVR’s Network Menu Setup; open/forward that port instead.
If you are using a Linksys or D-Link router, see Appendix B for basic support on
setting up ports. For any other router, you will need to contact the manufacturer
for support.
To access the DVR from a computer simply open Internet Explorer and in the address
bar type:
http:// (the IP address given by your internet service provider)
Note: If you changed to a different port other than 80, you will need to include this
at the end of the IP address:
http:// (the IP address given by your internet service provider):port number
If you have a WAN Dynamic IP address and have opened the ports, go to 6.7.3 DDNS
Setup to configure the DDNS settings.
ECOR FHD 4F / 8F / 16F Full HD DVR
25
Cat 5
Straight Through Cable
High-speed modem
Internet
2.5.2 Direct High-Speed Connection
In a Direct High-Speed Connection, the DVR connects directly to a modem without the need
for a router. You need to set the static or dynamic WAN IP address assigned by your ISP
(Internet Service Provider) in the DVR’s configuration web pages. To access the DVR, just type
“http://xxx”, where xxx is the IP address given by your ISP. If you have a dynamic IP address,
this connection may require that you use DDNS for a reliable connection.
Connection Procedure:
The first step is to purchase or make a straight through cable. We recommend
purchasing one if you have never made a straight through cable. Please remember you
can not use a cross-over network cable for this application
Once you have a straight through cable plug one end into the LAN port on the back of
the recorder and the other into the high speed modem.
Log into the EverFocus DVR menu and go to the Network Setting Menu.
Input the Static IP address, the Subnet Mask, and the Gateway that you obtained from
the internet service provider.
Note: If you have a dynamic IP address, you can set the DVR to DHCP to automatically
detect the network settings. Therefore, it can use a dynamic IP address.
Exit from the DVR’s Menu to save the settings.
To access the DVR from a computer, open Internet Explorer and in the address bar type:
http:// (IP address given by your internet service provider)
Note: When using this type of connection, only one device can be connected to the
modem at a time. You will need to use a computer at a different location to test the
connection s.
ECOR FHD 4F / 8F / 16F Full HD DVR
26
Cat 5
Right: Pinout of a crossed-over cable.
2.5.3 One-to-One Connection
You can connect directly without using a switch, router or modem. However, only the PC
connected to the DVR will be able to view the DVR. You will also have to manually assign a
compatible IP address to both the computer and the DVR. Unless the PC has another network
connection, the DVR will be the only network device visible to the PC. See the diagram below:
Connection Procedure:
The First step is to purchase or make a cross-over cable. We recommend purchasing one
if you have never made a cross-over cable. Please remember you can not use a straight
through network cable for this application.
Once you have a cross-over cable, plug one end into the LAN port on the back of the
DVR and the other into the network card on the back of the computer.
Log into the EverFocus DVR menu and go to the Network Setting Menu.
You must use the Static IP option for this type of connection.
Assign an IP of 192.168.001.003, a Subnet Mask of 255.255.255.000, and a Gateway of
192.168.001.001. You can ignore DNS Server.
The next step is to set the computer’s network settings to match those of the DVR. You
will need Administrator privileges on your Windows machine to do this.
To assign a fixed IP address in Windows 2000/XP, follow the instructions below:
Go to Start. Double-click on Control Panel.
ECOR FHD 4F / 8F / 16F Full HD DVR
27
Click Network and Sharing Center.
Click Local Area Connection.
Click Properties.
ECOR FHD 4F / 8F / 16F Full HD DVR
28
Click on Internet Protocol Version 4 (TCP/IPv4) and then click Properties.
Select Use the following IP address. Assign an IP address of 192.168.1.2, a Subnet
Mask of 255.255.255.0, and a Default Gateway of 192.168.1.1 and then click OK.
Restart both of the computer and the DVR.
To access the DVR from the computer, simply open Internet Explorer and in the address bar type:
http://192.168.1.3
ECOR FHD 4F / 8F / 16F Full HD DVR
29
3
Chapter
3. Mouse and Front Panel Button Operation
There are four ways to control the OSD menu of the ECOR FHD 4F / 8F / 16F DVR: with a Mouse,
the Front Panel Buttons, the supplied handheld IR Remote Control or the optional device EKB500
keyboard and EKB200 keyboard. For details on the IR remote control, please refer to Appendix E,
IR Remote Control. This chapter will discuss the basic operations using the mouse and the front
panel buttons.
3.1 USB Mouse Operation
3.1.1 How to Select a Channel / Enable Audio
1. In the Live View window, you can select a channel by clicking once on the desired
channel screen. The selected screen will be highlighted by a red frame.
2. Double clicking on a channel screen will display full screen for this channel.
3. To enable audio out, click the Audio Icon at lower-left side of the screen to switch
the Audio Output function to the desired channel or disable the Audio Output function.
3.1.2 OSD Root Menu
1. Right-click the mouse, the OSD Root Menu appears.
2. Click on any icon to enter to the setup menus.
3. Click the button on the top-right corner or right-click to close the OSD Root Menu.
ECOR FHD 4F / 8F / 16F Full HD DVR
30
←
3.1.3 Field Input Options
You may found the following fields in the Configuration menu. Follow the instructions below
to configure the settings.
Text Box: Click on the box and an on-screen keyboard will appear.
On-Screen Keyboard: Click on a button to input that character. The buttons on the right and
bottom have the following functions:
Caps Switch to capital letters
Delete the letter backwards
Confirm the selection
Move to left
Move to right
Space Enter a space
Drop-Down Box: Click on the down arrow to see all selections, then directly click on an option
to select it.
Check Box: Click on the box to enable it (checked) or disable it (unchecked).
Button: Click the button to execute the function.
Bar: Slide the bar to the left or right for adjusting the set point.
ECOR FHD 4F / 8F / 16F Full HD DVR
31
3.2 Front Panel Buttons Operation
3.2.1 Front Panel Review
The basic principle of front panel operation is to use the Arrow Keys (Up / Down / Right / Left)
to navigate among the menu items. Press the Enter button to confirm a selection or enter the
submenu. Press the Menu button to enter the OSD Root Menu or exit from the current
menu.
3.2.2 How to Select a Channel / Enable Audio
1. In the Live View window, you can select a channel by using the arrow keys to scroll
through each channel. The selected channel will be highlighted with a white frame.
2. After selecting a channel, press the Enter button to turn On / Off the Audio function. An
Audio icon will be displayed on the upper-left corner on the selected channel. To
display function icons on the Live View window, please refer to 4.4 Display.
3.2.3 OSD Root Menu
1. Press the Menu button, the OSD Root Menu Bar appears. Press the right and left arrows
keys to move through each icon. The title of the icon will be displayed at the top-left
corner.
2. Press the Enter button to enter to the setup menus.
3. Press the Menu button to close the OSD Root Menu Bar.
ECOR FHD 4F / 8F / 16F Full HD DVR
32
←
3.2.4 Field Input Options
You may found the following fields in the Configuration menu. Follow the instructions below
to configure the settings.
Text Box: Press the Enter button and an on-screen keyboard will appear.
Drop-Down Box: Press the Enter button to see all selections, press the up and down arrow
keys to highlight the desired option, and then press the Enter button again to select it.
Check Box: Press the Enter button to enable it (checked) or disable it (unchecked).
Button: Press the Enter button to execute the function.
Bar: Press the Enter button to activate the slider, press the right and left arrow keys to adjust
the setting, and then press the Enter button again to finalize the changes.
On-Screen Keyboard: Use the arrow keys to highlight each character and then press the Enter
button to input the selected characters. After inputting the characters, highlight Done on the
setup menu, and then press the Enter button to confirm.
Caps Switch to capital letters
Delete the letter backwards
Confirm the selection
Move to left
Move to right
Space Enter a space
ECOR FHD 4F / 8F / 16F Full HD DVR
33
3.3 General Operation
3.3.1 Login
In order to access ECOR FHD 4F / 8F / 16F again after logging out, you may be prompted to log
in for authority identification. To log in, follow the steps below.
1. Right-click on the screen, the Login window appears.
2. The default user name and password are:
User: admin
Password: 11111111
Note: For details on setting up multiple user accounts, please refer to 6.9.4 User
Management.
To input the User Name and Password by:
Using a mouse: Select a user name from the drop-down list. Click the Password field to
bring up the on-screen keyboard. Click the buttons and then click to confirm the
User Name / Password.
Using the front panel buttons: Use the arrow keys to select the password field and then
press the Enter button to bring up the on-screen keyboard. Use the arrow keys to
highlight each character and then press the Enter button to input the selected characters.
When finished, highlight Done and press the Enter button to confirm the password.
3. Click Login to log in the DVR.
ECOR FHD 4F / 8F / 16F Full HD DVR
34
3.3.2 Forget Your Password
1. If you forget your password, please email the Serial Number of the DVR to
techsupport@everfocus.com, and then EverFocus will send you a verification code.
2. Input this verification code in the Password field of the Login window within 24 hours,
and check the Verification Mode box.
3. Click Login to log in the DVR.
Note: This verification code is effective within 24 hours only, so please set up a new
password in the System Setting page (refer to 6.9.4 User Management).
3.3.3 Camera Selection
You can control each camera individually by selecting that camera. To select a camera, follow
the instructions below.
Using a mouse: Click a camera on the screen, and the selected camera will be highlighted with
a red frame. All cameras will be selected when you scrolling the mouse up / down between
the first and the last channel. You can also click the same layout type in the layout menu to
select all cameras. For example, if your screen is in 4-division, click the 4-division layout type
to select all cameras.
Using the front panel buttons: Use the arrow keys to select through the camera. The selected
camera will be highlighted with a red frame. All the cameras will be selected when pressing
the right or left arrow keys to select between the first / last camera.
ECOR FHD 4F / 8F / 16F Full HD DVR
35
3.3.4 Audio Selection
In order to utilize the audio function, please follow the instructions below before switching on
the audio function.
1. Connect the audio source and/or audio output amplifier to the DVR. Note that both of the
audio input and output devices require a (built-in) amplifier and external power supply.
2. Go to Camera setting menu (OSD Root Menu > System > Camera > Basic).
3. Select a camera in the drop down list.
4. Enable the Record Audio option and select an audio input device. You can select multiple
cameras to one single audio input device (there are four audio input devices).
Note that the DVR only provide one channel audio output. You can switch the Audio Output
function to either one from the cameras. To switch the Audio Output function to the desired
camera by:
Using a mouse: On the bottom of the screen, click the Audio icon to switch the Audio
Output function to the desired camera or disable the Audio Output function.
Using the front panel buttons:
1. Use the arrow keys to select Camera.
2. Press the Enter button. An Audio icon will be displayed on the upper-left corner on
the selected camera. To display function icons on the Live View window, please refer to 4.4
Display.
3. If you want to disable the Audio Output function on the selected camera, press the Enter
button again, the Audio icon will disappear.
ECOR FHD 4F / 8F / 16F Full HD DVR
36
1 2
3 4 5 6
7
8
9
10
11
12
4. OSD Root Menu
Chapter
4
No
Name Description
1 Playback
2 PTZ
3 Layout
4 Channel
Click to display the Playback Bar for viewing the recording videos. For
details, please refer to 5. Search and Playback.
Click to display the PTZ Control Panel for controlling the connected PTZ
cameras. For details, please refer to 4.1 PTZ.
Click to display the Layout Bar as shown below. Select a layout type for
the live view display on the Main Monitor. For details, please refer to 4.2
Layout Switching.
Click to display the Channel Changing Bar as show below. To switch the
selected camera to a specific channel, please refer to 4.3 Channel
Switching.
ECOR FHD 4F / 8F / 16F Full HD DVR
37
5 Display
6 Sequence
Click to display system information icons or status icons on the live view
screen. For details, please refer to 4.4 Display.
Click to enter the auto sequential switching mode. Click again to disable.
For setting up the sequencing order, please refer to 6.6.2 M/T SEQ.
Click to switch to the call monitor settings. On the OSD Root Menu, click
the Monitor button to switch to the Call monitor. On the OSD
Root Menu, the Playback, PTZ, Zoom, Search, Copy, System and Exit icons
will gray out. You can only configure the Layout, Channel, Display and
7 Monitor
Sequence settings for the Call Monitor. To switch to the Main Monitor,
click the button. Note that the Call Monitor can only be used to
display camera views. The functions including the layout, channel
switching, icon display, sequencing mode of the Call Monitor can only be
configured on the Main Monitor.
8 Zoom
Click to enter the Zoom mode. You can zoom in the camera view up to x4
and navigate the camera view. For details, please refer to 4.6 Zoom.
Click to display the Search menu for setting up the Search mode for
9 Search
playing back. For details, please refer to 5.3 Searching the Recordings for
Playback Back.
Click to display the Copy menu for archiving the recordings or log data to
10 Copy
the USB storage device or DVD. For details, please refer to 4.7 Archiving
the Recordings or Log Data to the USB or DVD.
11 Configuration Click to enter the Configuration menu. Please refer to 6. Configuration.
12 Logout
Click to bring up the Logout Confirmation window and then click Yes to
log out the system (see 4.8 Logout). To log in, please refer to 3.3.1 Login.
ECOR FHD 4F / 8F / 16F Full HD DVR
38
Note
ALL the FIGURES in the following chapters and sections are using the OSD of ECOR FHD 8F DVR as
examples; the only one difference among the two models of the ECOR HD DVR is the numbers of
channels which are 4, 8 and 16 respectively. Therefore, if there are settings relating to camera
channels on the OSD menu, the number of channels appeared on your OSD should be equal to the
4-channel, 8-channel, 16-channel DVR that you purchase.
4.1 PTZ
You can use the PTZ Control Panel to control the connected PTZ cameras. To bring up the PTZ
control panel, on the OSD Root Menu, click the PTZ button .
The following actions can be performed using the PTZ Control
Panel:
1. To move the camera to the desired direction and angle,
click the Direction buttons.
2. To zoom in / out the camera view, click the Zoom buttons.
3. To adjust the camera focus, click the Focus buttons.
4. To adjust the Iris open to increase / decrease the amount of
light in, click the Iris buttons.
5. To program a Preset Position (if supported by the camera):
a. Move the PTZ camera to the desired position.
b. Click the Preset button.
c. Set up a preset number for the current position by
clicking the number buttons. The number will be
displayed in the number box.
d. Click the Set button to save the settings.
6. To jump to a Preset Position:
a. Click the Preset button.
b. Click the desired Preset number.
c. Click the Go button.
7. Shortcut for Preset 1 ~ 9:
a. Click digit 1 ~ 9 button without clicking any other
buttons.
b. The camera will seek that Preset Position.
ECOR FHD 4F / 8F / 16F Full HD DVR
39
8. To delete a Preset Position (if supported by the camera):
a. Click the Preset button.
b. Click the desired Preset number.
c. Click the Delete button.
9. To operate the Auto Pan function, click the Auto Pan button.
10. To operate the Pattern function, click the Pattern button. The Pattern is the “0” Tour in
Everfocus and Pelco PTZ cameras.
11. To operate the Tour function:
a. Click the Tour button.
b. Click the desired Tour number.
c. Click the Go button.
12. To remove a pre-configured Tour (if supported by the camera):
a. Click the Tour button.
b. Click the desired Tour number.
c. Click the Delete button.
Click C to clear the entered number in the Number Box.
Click at the top-right corner to hide the PTZ Control Panel (see 4.1.1 Express Control of PTZ).
To display the PTZ Control Panel, right-click on the screen.
Click Logout to close the PTZ Control Panel and exit the PTZ mode.
Note: Before start using the Auto Pan, Pattern and Tour functions, you have to configure the
related settings for the connected PTZ cameras. Please refer to the User’s Manual of your PTZ
cameras.
ECOR FHD 4F / 8F / 16F Full HD DVR
40
4.1.1 Express Control of PTZ
If the PTZ Control Panel has first been opened and then hidden, the mouse can be used to
control basic PTZ functions. Move your mouse cursor on the screen, the mouse cursor will
turn into a control icon (direction, focus or zoom) in different areas of the screen. You can
control PTZ direction, focus and zoom by clicking directly on the screen.
Direction Controls: When your mouse cursor turns into a direction icon, click on the screen
will force the camera to turn in that direction.
Focus Controls: When your mouse cursor turns into , click on the screen will focus closer
the image. When your mouse cursor turns into , click on the screen will focus farther the
image.
Zoom Controls: When your mouse cursor turns into , click on the screen will zoom in the
image. When your mouse cursor turns into , click on the screen will zoom out the image.
ECOR FHD 4F / 8F / 16F Full HD DVR
41
4.2 Layout Switching
The DVR have different screen division types available. The layouts are shown as below:
To change layout, follow the steps below:
By mouse: Right-click to bring up the OSD Root Menu and click the Layout icon. Click on the
desired layout.
By front panel: Press the View button on the front panel of the DVR to switch to a desired
layout. To display a channel in full-screen, press the channel buttons on the front panel.
4.3 Channel Switching
You can switch the selected camera to a specific channel. Follow the steps below:
1. On the live view screen, select a camera, the selected camera will be highlighted with a red
frame.
2. Right-click to display the OSD Root Menu.
3. Click the Channel icon , the Channel Bar appears.
4. Select a channel, the selected camera will be switched to that channel.
ECOR FHD 4F / 8F / 16F Full HD DVR
42
4.4 Display
You can display system and camera status on the live view screen. Follow the steps below:
1. Click the Display button on the OSD Root Menu to display the system and camera
status. Click the button to choose the desired display mode:
2. The following icons will be displayed at the top-left side of each camera stream to show each
camera’s status.
Recording Playback Fast forward Fast backward Back pause
Alarm Motion Video loss Uninstall Audio On
3. The following icons will be displayed at the bottom of the monitor to show the system
status.
Audio On Audio Off Alarm Motion Video loss
No network 1 Sequence HDD failure HD temp. too high Event
4. There are four display modes, and you can click the Display button to change the display
mode: (1) Display both the camera and system status icons. (2) Display only the camera
status icons. (3) Display only the system status icons. (4) Hide both the camera and system
status icons.
4.5 Sequence
The sequence function is used to display each channel in sequence mode. To enable this
function:
By Mouse: Click the Sequence button to enter the sequential switching mode. The DVR
will display one channel at a time in full screen. The channels will be displayed in the sequence
and for the amount of time as configured in the System > Display Setting > M/T SEQ submenu.
The default setting is channels 1~16 / 1~8 / 1~4 with a dwell time of 3 seconds each – repeated.
Please refer to 6.6.2 M/T SEQ for detailed information.
By Front Panel: Press the “SEQ” button on the front panel to enter the sequential switching
mode.
ECOR FHD 4F / 8F / 16F Full HD DVR
43
4.6 Zoom
You can zoom in the camera view up to 4X and navigate the camera view using the mouse.
To enter the Zoom mode:
1. Select a camera and then click the Zoom button on the OSD Root Menu to zoom in
the camera view to 2X. The ZOOM 2X stamp will be displayed on the top screen.
2. Navigate the camera view to the desired position by moving your mouse cursor over the
camera view. The mouse cursor will turn into a direction icon when you move your mouse
cursor to different portion on the camera view. Click directly on the screen can move to that
direction.
3. Right-click the screen, the Zoom Bar appears in the middle of the screen.
4. Click to zoom in the camera view up to 4X.
5. Click the Logout button to log out the Zoom mode.
ECOR FHD 4F / 8F / 16F Full HD DVR
44
4.7 Archiving the Recordings or Log Data to the USB
You can archive the recordings or log data (event and motion) to the USB storage device. On the
OSD Root Menu, click the Copy icon , the following menu appears.
Note: To archive recordings to the USB, it’s recommended to connect the USB memory stick to
the USB port on the REAR panel.
Camera: Select the desired cameras.
Data Type: You can copy the recordings of selected cameras from main stream or sub stream.
Player: Check the box to include the EFPlayer program in the copy. You can use the
EFPlayer on a computer to play back the recordings.
Start Date / Time: Click to bring up the on-screen keyboard / clock to select the start date /
time.
End Date / Time: Click to bring up the on-screen keyboard / clock to select the end date / time.
Copy To: Select whether you want to copy to USB. The log data can only be archived to the USB
storage device.
Copy: Click to start archiving.
ECOR FHD 4F / 8F / 16F Full HD DVR
45
1
2
3
4
6 7 8 9 1210 11 13
5
Shows the recording information of the device, including
model of the recorder, recording start time / date, current
Click to archive the recording file of 1 channel and save as AVI
time to play back the
EFPlayer:
Unzip the EFPlayer file and double-click to open it as below. The EFPlayer can only display up to 16
channels at one time.
No. Name Function Description
1 Information
playback time, recording end time / date.
2 Load Click to select a recording file and open it.
3 Save as AVI
4 Time Search Click to search a recording from a selected time.
5 Channel Switch Click to switch channel bar between CH1~16 and CH17~32.
6 Time Bar
7 Playback Controls
format.
Move the time bar to a desired
recording from that time.
: Click to fast reverse / fast forward.
ECOR FHD 4F / 8F / 16F Full HD DVR
46
: Click to display the channels to fit the screen.
u can select the same
: Click to reverse play /play.
: Click to pause play backing.
8 Snapshot
Click to take a snapshot of the channels displayed on the UI.
You can save the snapshot file to a desired location.
9 Mute Click to mute; click again to turn off the mute function.
10 Volume Drag to increase or lower the volume.
11 Scale Out / In Click to adjust time scale.
12 Screen Division
: Click to select a desired screen division display mode
(1, 4, 9, 16 screen division display modes). If the channels are
more than the screen divisions, yo
screen division display mode to change the channels on the
screen.
13 Speed Shows the fast reverse / forward speed (up to 64X).
ECOR FHD 4F / 8F / 16F Full HD DVR
47
4.8 Logout
You can log out the DVR by clicking the Logout icon on the OSD Root Menu to bring up the
Logout Confirmation window as below Press “Yes” when you are ready to logout of the system.
You will need to login again before accessing the OSD Root Menu.
If you do not need the Login / Logout step before entering the Root Menu, please uncheck the
Login box in the User Management setting page. For more details, please refer to 6.9.4 User
Management.
ECOR FHD 4F / 8F / 16F Full HD DVR
48
4.8.1 Temporarily Logout
You can temporarily log out the DVR by clicking the Logout icon on the OSD Root Menu.
This function is designed for use in conjunction with the Covert Camera function. Once you
click the Logout icon, the camera streams will be hidden on the Live View / Sequence Mode.
However, the DVR will still record the videos and the recordings can be played back. To
enable the Temporarily Logout function, follow the steps below:
Ensure the User Login box is Unchecked as the figure above.
1. Select the cameras to be hidden once enabling the Temporarily Logout function and then
check the Covert box (Camera Setting > Basic Setting).
2. Click the Logout icon on the OSD Root Menu, the Logout menu appears.
3. Click the Yes button and the selected camera streams will be hidden on the Live View /
Sequence Mode.
4. To disable the Temporarily Logout function, simply right-click the screen to bring up the
OSD Root Menu, and then you can start controlling the DVR.
ECOR FHD 4F / 8F / 16F Full HD DVR
49
5
Chapter
5. Search and Playback
You can use the Quick Playback function to play back the recordings start from the pre-configured
time or use the Search functions to search for the desired recordings for playing back.
5.1 Quick Playback
To start using the Quick Playback function, follow the steps below:
1. To set up the start time of the playback recording, check the Quick Playback box in the
Express setting page (OSD Root Menu > System > Express) to enable the configured time in
the field below.
2. Enter the desired time for playing back the recording. Take 60 seconds for example, if the
current system clock time is 17:35:00, the start time for the playback recording will start
from 17:34:00 (60 seconds ago from 17:35:00).
3. On the Live View Window, select a desired camera, right-click to bring up the OSD Root
Menu and then click the Playback button .
4. The recording has been playing back and the Playback Bar appears on the bottom of the
screen.
ECOR FHD 4F / 8F / 16F Full HD DVR
50
2
6
8 9
1
7
11
12
2013/01/01 00:00:00 2013/01/01 00:15:00 2013/01/01 00:30:00
3
4
5
10
13 14
15 16
17
5.2 Playback Bar
The playback bar is the fastest way to show video from the exact time which users want to see.
The playback bar allows users to see both a timeline and the current playback indicator. Users can
then click the timeline to move the indicator to the desired position.
No. Name Description
1 Date/Time Click to set up the start time of playback recording.
Move the slider to the left / right on the Time Bar to select the
2 Time Bar
3 Playback Speed Indicates the current Playback Speed (up to 8X).
4 Express Copy
5 Close
6 Main /Sub Stream Click to select the recorded data from main or sub stream
7 Fast Reverse Click to play the recorded data in fast reverse.
8 Reverse Play/Pause
9 Stop
time for playing back. The status of each camera is presented by
different colors on the Time Bar. GreenNormal,
OrangeMotion, BlueVideo Loss, RedAlarm Event.
Click to bring up the Copy menu for archiving the recordings / log
data to the USB storage device. For details, please refer to 4.7
Archiving the Recordings or Log Data to the USB.
Click to hide the Playback Bar. To bring up the Playback Bar
again, move your cursor to the lower side of the screen.
Click to play the recorded data in reverse at normal speed. Click
this button again to Pause the reverse playback. Click the Stop
button to stop all playback actions and exit the playback area.
Click to stop either the Reverse, Fast Reverse, Play, and Fast
Forward functions, if that function is active. This button stops all
Play functions, but no Recording functions.
ECOR FHD 4F / 8F / 16F Full HD DVR
51
Use the + and - buttons to adjust the time scale range for the
No. Name Description
Click to play the recorded data forward. Click this button again to
10 Play/Pause
Pause the playback. Click the Stop button to stop all playback
actions and exit the playback area.
11 Fast Forward Click to play the recorded data in fast forward.
L1: Entire Time Bar scale is 30 days.
L2: Entire Time Bar scale is 2 weeks.
12 Time Scale
L3: Entire Time Bar scale is 1 week.
L4: Entire Time Bar scale is 1 day.
L5: Entire Time Bar scale is 1 hour.
L6: entire Time Bar scale is 30 minutes.
13
Time Bar Scale
14
bar. The scale range includes 6 options (levels). When changing
the level, the Start Time and End Time will change.
15 Start Time Indicates the playback start time.
16 Current Playback Time Indicates the current playback time.
17 End time Indicates the playback end time.
ECOR FHD 4F / 8F / 16F Full HD DVR
52
5.3 Searching the Recordings for Playing Back
You can search the recordings for playing back by using the Search menu. On the left side of the
Search menu, select Time Search, Event Search, Smart Search, Snapshot Search or POS Search
to enter to the setup menu.
To bring up the Search menu:
By Mouse: Right-click to bring up the OSD Root Menu, and then click the Search button .
By Front Panel: Press the Search button (ECOR FHD 4F).
5.3.1 Time Search
Start Date: Click to bring up the on-screen keyboard to select the date.
Start Time: Click to bring up the on-screen clock to select the time.
Play: Click to start playing back.
ECOR FHD 4F / 8F / 16F Full HD DVR
53
5.3.2 Event Search
Start Date / End Date: Click to bring up the on-screen keyboard to select the start / end date.
Start Time / End Time: Click to bring up the on-screen clock to select the start / end time.
Camera: Select the desired cameras to be searched.
Event: Select an event type to be searched.
Search: Click to start searching. The search results will be listed in the Event List menu as
shown below.
Player: Check the box to include the EFPlayer program in the copy. You can use the
EFPlayer on a computer to play back the recordings. To use the program, please refer to 4.7
Archiving the Recordings or Log Data to the USB.
Copy: Check to select the event s and click Copy to copy the event recording files to the USB.
Previous / Next: Click to go to the previous / next page.
Play: Click to playback the selected items.
ECOR FHD 4F / 8F / 16F Full HD DVR
54
5.3.3 Smart Search
The Smart Search function allows users to search for the motion event recordings. You can
set up the motion areas in this setup menu and then search for the motion events within the
specified time.
Start Date / End Date: Click to bring up the on-screen keyboard to select the start / end date.
Start Time / End Time: Click to bring up the on-screen clock to select the start / end time.
Camera: Select a desired camera to be searched.
Grid Setting: Click to set up the motion areas. The Motion Grid Setup menu appears.
Search: Click to start searching. The search results will be listed in the Event List menu.
To set up the Motion Grid:
1. Click on the image and the grid will be displayed.
2. To set up a motion area, drag a rectangle with your mouse (from top to bottom /
upper-left to lower-right). The selected areas will be highlighted in green (see image
below).
3. To delete a motion area, drag a rectangle with your mouse (from bottom to top /
lower-right to upper-left).
4. Follow Step 2 to set up multiple motion areas if necessary.
5. Click the Save & Back button to save the settings and then return to the Smart Search
menu.
ECOR FHD 4F / 8F / 16F Full HD DVR
55
Set All: Click to select the entire area.
Clear All: Click to clear all the selected areas.
Save and Back: Click to save the configured motion areas and return to the Smart
Search menu.
Cancel: Click to cancel all changes and return to the Smart Search menu.
ECOR FHD 4F / 8F / 16F Full HD DVR
56
5.3.4 Snapshot Search
You can display video frames in snapshot and resume a video from where the snapshot has
been set up (Snapshot Search only supported by local site).
Search Date: Click to bring up the on-screen keyboard to select the date.
Search Time: Click to bring up the on-screen clock to select time.
Search Direction: Click to search forward / backward based on the setup time above.
Search Camera: Select a desired camera to be searched.
Result Interval: Click to set up the interval for the snapshots of the video frame. For example,
if you select 5 minutes, the video frame will be snapshotted with 5-minute interval (see image
below).
Search: Click to start searching. The search results will be displayed in 16 screen division (see
image below).
ECOR FHD 4F / 8F / 16F Full HD DVR
57
Previous Play Close Next
To resume the video:
1. Click the Search button, the search results are displayed in 16 screen division. In this
picture, you can see the time layouts on the upper-left corner of each snapshot, which are
set up with 5-minute interval.
2. Right-click on the screen, the Resume Playback Bar appears in the middle of the screen.
3. Click the Previous or Next buttons to display the previous / next snapshots.
4. Select a snapshot by clicking on the snapshot, the selected snapshot will be highlighted
with a white frame.
5. Click the Play button to resume the video.
6. Click the Close button to close the Resume Playback Bar and then return to the Snapshot
Search menu.
ECOR FHD 4F / 8F / 16F Full HD DVR
58
5.3.5 POS Search
The POS Search function allows users to search and play back the recordings with the POS
transaction data within a specific time.
Start Date / End Date: Click to bring up the on-screen keyboard to select the start / end date.
Start Time / End Time: Click to bring up the on-screen clock to select the start / end time.
POS String: Click to bring up the on-screen keyboard. Type any desired keyword to search the
specific transaction data.
Search: Click to start searching. The search results will be listed in the Event List menu as
shown below.
Previous / Next: Click to go to the previous / next page.
Play: Click to playback the selected items.
ECOR FHD 4F / 8F / 16F Full HD DVR
59
You need to set up the POS settings before searching the video with POS transaction data.
Please follow the steps below:
1. Connect the POS system to the RS-485 port at the rear panel of the DVR.
2. Make sure the RS-485 settings of the DVR are the same as those of the POS system.
Select the Text Insert in the Type drop-down list. (OSD Root Menu > System > System
Setting > I/O control).
3. Check the Text Insert box in the Monitor OSD setting page to display the transaction
data on the screen (OSD Root Menu > System > Display > Monitor OSD).
4. The transaction data, such as date, time, item, price and any customized information,
synchronized with the surveillance video will be displayed on the screen, shown as the
image below.
ECOR FHD 4F / 8F / 16F Full HD DVR
60
6
Chapter
6. Configuration
The DVR can be configured through a series of menus on screen by using a Mouse, front panel
buttons, the supplied IR Remote Control, or the optional device EKB500 keyboard and EKB200
keyboard. The following operations are examples of using a Mouse. This chapter describes the
functions and options of the Configuration Setting in the on-screen display (OSD) menus.
Right-click the mouse, the OSD Root Menu appears. Click the System button , the following
Configuration Menu displayed with 10 setup options appears.
ECOR FHD 4F / 8F / 16F Full HD DVR
61
List of Configuration Options:
Please find the topic of interest by referring to the section prefixed to each option.
6.1 Express
6.2.1 Basic
6.2 Camera
6.2.2 Adjust
6.2.3 eZ Hopper
6.3 Record
6.4.1 Alarm
6.4.2 Video Loss
6.4 Event
6.4.3 Motion
6.4.4 Other
6.5 Hard Disk
6.6 Display Setting
6.7 Network
6.8 Schedule
6.9 System Setting
6.5.1 Disk
6.5.2 Lock/Format
6.6.1 Monitor OSD
6.6.2 M/T SEQ
6.7.1 LAN
6.7.2 Email
6.7.3 DDNS
6.7.4 FTP
6.7.5 Alarm Server
6.7.6 Remote/Mobile
6.7.7 Network Test
6.8.1 Express Setup
6.8.2 Holidays
6.8.3 Schedule
6.9.1 Date / Time
6.9.2 Daylight Saving Time
6.9.3 User Group
6.9.4 User Management
6.9.5 I/O Control
6.9.6 EKB200 Setting
6.9.7 Miscellaneous
6.10 System Information
6.10.1 System
6.10.2 Log
ECOR FHD 4F / 8F / 16F Full HD DVR
62
6.1 Express
This menu is used to configure global express settings for all cameras.
Date: Click to bring up the on-screen keyboard to set up the system date.
Time: Click to bring up the on-screen clock to set up the system clock.
Record Dual Stream: Click to enable / disable the dual streams recording function.
Record Mode: Select a recording mode from the drop-down list.
Blank:
without any changes. Please refer to 6.8.1 Express Setup for more details.
Normal+Event:
estimated number of hours per day for event recording.
Event Only: Set all cameras to the Event only recording mode. Set up the estimated
number of hours per day for event recording.
Schedule Record: Set all cameras to the Schedule recording mode.
Select this option for all cameras to keep the current individual record settings
Set all cameras to the Continuous and Event recording mode. Set up the
ECOR FHD 4F / 8F / 16F Full HD DVR
63
Main / Sub Resolution: Select the most suitable resolution for the Main Stream and Sub Stream.
If you connect eZ.HD cameras (1080p) to the DVR, the main stream resolution option will display
1920x1080 only. If you connect eZ.HD cameras (720p) to the DVR, the main stream resolution
option will display 1280x720 only. The Sub Stream is designed for remote operation, such as
remote live view and remote playback. Please refer to 7.4 Remote Live View for more details.
Main Stream Sub Stream
eZ.HD Camera (1080p): 1920x1080
eZ.HD Camera (720p): 1280x720
WD1 or D1 Camera: 960x480 / 704x480 / 352x240
Record With: Select a record method.
Blank: Select this option for all cameras to keep the current individual record method
without any changes.
Preset Settings: Select this option and further set up the recording quality. For details,
please refer to Appendix D. Express Setup Recording Value Selection Rules.
Recording Days: This option is not available for Schedule Record. Set up the maximum
recording days. For details, please refer to Appendix D. Express Setup Recording Value
Selection Rules.
352x240 / 176x120
Miscellaneous:
Quick Playback: Check the box to enable the Quick Playback function as described below.
Playback From X Seconds ago: When the DVR is put into playback mode, it will begin playing
from the selected time. Choose from 60 to 3600 seconds prior to the present time.
Apply: Click to save and apply the settings to the DVR. The system will automatically adjust the
recording frame rate according to your settings.
ECOR FHD 4F / 8F / 16F Full HD DVR
64
6.2 Camera
You can configure the settings for individual camera. The setting options include Basic, Adjust
Settings and eZ Hopper.
6.2.1 Basic Setting
Camera: Select a camera to be configured.
Title: Click to bring up the on-screen keyboard for assigning a title for the selected camera.
Each title supports up to 16 characters.
Install: Check the box to enable the selected camera.
Covert: Check the box to hide the camera stream in Live View and Sequence modes. However,
the DVR will still record the videos and the recordings can be played back by users who have
the privilege to playback. For details on enabling the Covert function, please refer to 4.8.1
Temporarily Logout.
Record Mode: Select a record mode from the drop-down list.
Normal+Event: Continuous and Event recordings.
Event Only: Event recordings only.
ECOR FHD 4F / 8F / 16F Full HD DVR
65
Main / Sub Resolution: Select the most suitable resolution for the Main Stream and Sub
Stream. If you connect eZ.HD cameras (1080p) to the DVR, the main stream resolution option
will display 1920x1080 only. If you connect eZ.HD cameras (720p) to the DVR, the main
stream resolution option will display 1280x720 only. The Sub Stream is designed for remote
operation, such as remote live view and remote playback. Please refer to 7.4 Remote Live
View for more details.
Main Stream Sub Stream
eZ.HD Camera (1080p): 1920x1080
eZ.HD Camera (720p): 1280x720
352x240 / 176x120
WD1 or D1 Camera: 960x480 / 704x480 / 352x240
Record Quality: Select a recording quality for the Main Stream and Sub Stream. The options
include Low, Basic, Standard, High and Superior. The higher the quality, the more the HDD
space is used.
Normal Speed: Select a frame rate per second (FPS) for continuous recording. The speed is
limited by the maximum total recording capacity of the DVR as allocated across all the
installed cameras, with upper limit of 30 FPS (NTSC) / 25 FPS (PAL) per individual camera
respectively (real time recording).
Event Speed: Select a frame rate per second (FPS) for event recording.
Ratio: Select 4:3 or 16:9 display aspect ratio of a camera, and its video will be displayed in 4:3
or 16:9 format on that channel screen. Please refer to 6.2.1.1 Display Aspect Ratio.
Record Audio: Check the box to enable audio recording on the DVR, and then select an audio
input device.
PTZ ID: To allow the DVR to recognize and then control the connected PTZ camera, you have
to set up an ID for the PTZ camera. Select On and then enter an ID for the camera. This ID
must match the ID address set up on the PTZ camera. For setting up the ID address on the PTZ
camera, please refer to the User’s Manual of your PTZ camera.
PTZ Speed: Select a PTZ speed from the PTZ Speed drop-down list for the camera to move to
the directions when you use the direction buttons during the configuration period.
Apply To: Click the button to apply the same settings to the desired cameras.
ECOR FHD 4F / 8F / 16F Full HD DVR
66
Screen Mode: 1920x1080 (16:9)
Camera Ratio: 16:9
Camera Ratio: 4:3
Screen Mode: 800x600 / 1024x768 /1280x1024 (4:3)
Camera Ratio: 16:9
Camera Ratio: 4:3
6.2.1.1 Display Aspect Ratio
It is recommended to select the same ratio of the screen resolution and the camera live view
display to avoid black bars showing on the live view screen as the images below.
If you select 1920x1080 (16:9) screen resolution in the Screen Mode drop-down list (see 6.6.1
Monitor OSD), it is recommended to also change the camera live view display to 16:9 aspect
ratio in the Ratio drop-down list (see 6.2.1 Basic Setting).
If selecting 800x600, 1024x768 or 1280x1024 (4:3) screen resolution in the Screen Mode
drop-down list (see 6.6.1 Monitor OSD), it is recommended to also change the camera live
view display to 4:3 aspect ratio in the Ratio drop-down list (see 6.2.1 Basic Setting).
ECOR FHD 4F / 8F / 16F Full HD DVR
67
6.2.2 Adjust Setting
You can adjust the Brightness, Contrast and Color of the selected camera.
Camera: Select a camera to adjust the following settings.
Brightness: Move the bar to adjust the brightness.
Contrast: Move the bar to adjust the contrast.
Color: Move the bar to adjust the color.
Advanced: Click to enter the camera’s OSD menu for controlling and adjusting the camera’s
setting. Please see the figure and instructions the next page.
Apply To: Click the button to apply the same settings to the desired cameras.
ECOR FHD 4F / 8F / 16F Full HD DVR
68
Traditional Way to Control Camera OSD
Control Camera OSD at Camera End
A
Camera End
DVR End
Use eZ.Controller to Control Camera OSD
B
Camera OSD Control Directly at DVR End
DVR End
Camera End
6.2.2.1 eZ Controller (Control Camera OSD Setting from DVR End)
Traditionally, the CCTV installer needs to take a portable monitor to connect to the camera
for controlling the camera OSD at the camera installation site as the Diagram A below. It will
take extra effort, time and people to adjust the camera.
Now, EverFocus’ eZ.Controller allows users to control the camera OSD simply on the monitor
at the DVR end as illustrated in Diagram B.
1. On the Adjust setting page. Select the camera you want to adjust.
2. Click the Advanced button, and the camera live view with its OSD menu will display as
the figure below.
3. You can easily use the direction buttons on the Coaxial Panel to control the camera’s
OSD setting menu.
4. To exit the setting, click the Exit button to return to the Adjust setting page.
ECOR FHD 4F / 8F / 16F Full HD DVR
69
Main Server
Sub Server 1
Sub Server 15
One Mouse Control All DVRs and NVRs
Applies for 960 series / ENVR8304 series / EPHD08+ / eZ.HD series
Monitor 1
Monitor 2
Monitor 16
6.2.3 eZ Hopper
You can just use one mouse to control up to 16 DVRs/NVRs in the same LAN network by
enabling the eZ Hopper function.
Note: Before using this function, you need to set up all the monitors to be the same
resolution, please refer to 6.6.1 Monitor OSD.
Set up one DVR or NVR to be the Main Server, and the rest to be the Sub Servers. Then, you
just need to connect a mouse to the Main Server, and you will be able to move its cursor
across all the connected monitors of the Main and Sub Servers and to control their OSD
menus respectively.
Follow the steps below to set up the eZ Hopper function:
For the Main Server:
1. Select Main Server in the Mode drop-down list, and check the Enable box.
ECOR FHD 4F / 8F / 16F Full HD DVR
70
Main Server
Monitor
Sub Server
Monitor
2. The position of each device on the OSD layout represents the physical positions of your
monitors which you should arrange and place in the setup environment.
3. Click an IP address field to enter the IP address of a Sub Server and the first Sub Server
must be adjacent to Main Server on the OSD layout (DVR 2 or DVR 5), or it won’t work.
4. Set up the rest of the Sub Servers by entering their IP addresses, and please note that the
Sub Servers must be adjacent to one another on the layout, or it won’t work.
5. Click Save to save the setting.
ECOR FHD 4F / 8F / 16F Full HD DVR
71
For the Sub Server:
1. Select Sub Server in the Mode drop-down list, and check the Enable box.
2. Enter the IP address of the Main Server, and click Save.
3. When the message pops up as below, the eZ Hopper function is enabled. So, you can now
use the mouse connected to the Main Server to control this Sub Server’s OSD.
4. Follow the above 3 steps to set up the rest Sub Servers.
ECOR FHD 4F / 8F / 16F Full HD DVR
72
6.3 Record
You can configure the basic recording settings on the hard disk.
Record Overwrite: Check the box to overwrite the hard disk when it is full. Note that unless this
box is checked, or the DVR will stop recording when the hard disk is full. The use of record
overwrite is strongly recommended. If you do not use this feature, please be sure to enable the
Event setting for Disk Full for notification (see 6.4.4 Other).
Schedule Record: Check the box to record by the schedule. Please see 6.8 Schedule Setting for
more details.
Time Stamp: Select Bottom or Top to record the system date and time on the bottom / top of the
image. Select off will not record the system date and time in the recordings.
Record Status Relay Output: Select a number to monitor the recording status of the selected
alarm relay. The recording status of the selected alarm relay will be transmitted to the alarm
output device.
Auto Erase Video: The hard disk will automatically erase video after it has been on the hard drive
for the selected number of days. To use the maximum hard drive space, choose “OFF”. (See
Record Overwrite and notes above.) This feature is useful if local rules and regulations require
recorded video to be discarded after a specific number of days, or to limit the retention of older
recorded video to clear space in anticipation of event recording.
Estimation Result: Shows the remaining storage space.
ECOR FHD 4F / 8F / 16F Full HD DVR
73
6.4 Event
You can configure the Alarm, Video Loss, Motion and Other settings in this menu.
6.4.1 Alarm
Alarm: Select an Alarm input number from 1 to 16.
Enable: Check the box to enable the Alarm trigger function for the selected alarm input.
Log: Check the box to record alarm events to log data.
Pre-alarm Record: Check the box to start copying the recordings to the hard disk from 5
seconds before the alarm event occurs. Note that the pre-alarm recording rate will follow the
Normal Speed configured in the earlier section (see 6.2.1 Basic Setting).
Buzzer: Check the box to enable the buzzer when an alarm event is triggered.
Email Notify: Check the box to send email notification with a snapshot file when an alarm
event is detected. Email operation requires valid email entered in the Email setup menu (see
6.7.2 Email).
ECOR FHD 4F / 8F / 16F Full HD DVR
74
Network Alarm: Check the box to send out a network alarm to a client PC when an alarm
event occurs. This feature works with EverFocus’ CMS software. You will need to configure
the Alarm Server for the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Auto Lock: Check the box and the events will be recorded in a write protected segment of the
hard disk (will not be overwritten). The DVR will lock a period of time when the alarm occurs.
The length of the time depends on DVR setting (see 6.5.2 Lock / Format).
FTP Upload: Check the box to enable uploading recordings to the FTP server function. To
setup the FTP server, please refer to 6.7.4 FTP.
FTP Upload File Type: Select MP4 file type to upload videos to FTP server; select JPEG file
type to upload snapshots to the FTP server.
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Select an output type when an alarm is triggered.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent: Alarm output remains as long as the alarm input is active.
Trans + Timeout:
Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the motion event. The
alarm output will last for the setup duration time between 1 and 150 seconds.
Main Monitor: Select Full Screen to force the camera associated with the selected alarm
number to display full screen on the Main Monitor. The full screen camera view will last
according to the Output Type selected in the field above.
Call Monitor: Select Full Screen to force the camera associated with the selected alarm
number to display full screen on the Call Monitor. The full screen camera view will last
according to the Output Type selected in the field above.
Record: Select a camera to start recording when the associated alarm number is triggered.
Input Type: Select an input type when the selected alarm number is triggered. The options
include N.O. and N.C.
Active Camera: This function is for associating an alarm trigger with a specific camera. For
example, if you set up an external motion detector near Camera 2, you can select Camera 2 in
this field. The alarm will be associated with this camera for full screen display, event logging
and PTZ actions.
PTZ: If the Active Camera selected above is a PTZ camera, you can further set up the PTZ
actions in this field.
ECOR FHD 4F / 8F / 16F Full HD DVR
75
COM NC G G 4 3 G G 2 1
Alarm Out Alarm In
Radio Clock
Alarm I/O of DVR
+
-
1~4
G
The following time synchronization function must work with the radio-controller clock.
Time Sync Enable: Check to enable the time synchronization with the connected
radio-controlled clock.
Time Sync Interval: Select a time sync interval time (by hour) for the DVR to synchronize the
time with the radio-controlled clock.
Time Sync Range: The time sync range means the allowed time difference between the DVR
and the radio clock. If the time difference exceeds the entered time sync range (by second),
the DVR cannot be synchronized unless you manually set up the exact same time as the clock
or within the time sync range.
For example, if the radio-controlled clock time is 12:00:00 and you enter 30 seconds for the
time sync interval, the allowed time difference between the DVR and the clock should be
within 30 seconds which means the DVR time can be 11:59:30 ~ 12:00:30.
Time Sync Range 30 Seconds 60 Seconds
Radio-controlled Clock time 12:00:00 12:00:00
DVR time 11:59:30~12:00:30 11:59:00~12:01:00
First Sync of: Enter a first sync start time.
Apply To: Click the button to apply the same settings to the desired cameras.
6.4.1.1 Connect a Radio Clock to the DVR
To use a Radio Clock, you need to connect it to the alarm inputs of the DVR.
Connection Diagram:
Connect the positive (+) /negative (-) wires to the alarm inputs (1~4) /(G) of the DVR.
ECOR FHD 4F / 8F / 16F Full HD DVR
76
6.4.2 Video Loss
You can enable the Video Loss Event function and configured the video loss event
notifications in this menu.
Camera: Select a camera to be configured.
Enable: Check the box to enable the Video Loss event settings for the selected camera.
Log: Check the box to record video loss events to log data.
Pre-alarm Record: Check the box to start copying the recordings to the hard disk from 5
seconds before the video loss event occurs. Note that the pre-alarm recording rate will follow
the Normal Speed configured in the above section (see 6.2.1 Basic Setting).
Buzzer: Check the box to enable the buzzer when a video loss event is triggered.
Email Notify: Check the box to send email notification when a video loss event is detected.
Email operation requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when video loss
event occurs. This feature works with EverFocus’ CMS software. You will need to configure
the Alarm Server for the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the alarm output relay.
ECOR FHD 4F / 8F / 16F Full HD DVR
77
Output Type: Select an output type when an alarm is triggered.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent: Alarm output remains as long as the alarm input is active.
Trans + Timeout: Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the motion event. The
alarm output will last for the setup duration time between 10 and 150 seconds.
Apply To: Click the button to apply the same settings to the desired cameras.
ECOR FHD 4F / 8F / 16F Full HD DVR
78
6.4.3 Motion
You can enable the Motion Event function and configured the related settings including
motion event notifications and motion areas in this menu.
Camera: Select a camera to be configured.
Enable: Check the box to enable the Motion Event settings for the selected camera.
Log: Check the box to record motion events to log data.
Pre-alarm Record: Check the box to start copying the recordings to the hard disk from 5
seconds before the motion event occurs. Note that the pre-alarm recording rate will follow
the Normal Speed configured in the above section (see 6.2.1 Basic Setting).
Buzzer: Check the box to enable the buzzer when a motion event is triggered.
Email Notify: Check the box to send email notification when a motion event is detected. Email
operation requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when motion
occurs. This feature works with EverFocus’ CMS software. You will need to configure the
Alarm Server for the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Auto Lock: Check the box and the events will be recorded in a write protected segment of the
hard disk (will not be overwritten). The DVR will lock a period of time when the alarm occurs.
The length of the time depends on DVR setting (see 6.5.2 Lock / Format).
ECOR FHD 4F / 8F / 16F Full HD DVR
79
FTP Upload: Check the box to enable uploading recordings to the FTP server function. To
setup the FTP server, please refer to 6.7.4 FTP.
FTP Upload File Type: Select MP4 file type to upload videos to FTP server; select JPEG file
type to upload snapshots to the FTP server.
Alarm Output: Select an alarm output relay. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Select an output type when an alarm is triggered.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent: Alarm output remains as long as the alarm input is active.
Trans + Timeout: Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the motion event. The
alarm output will last for the setup duration time between 10 and 150 seconds.
Main Monitor: Select Full Screen to force the camera which detects motion to display full
screen on the Main Monitor. The full screen camera view will last according to the Output
Type selected in the field above.
Call Monitor: Select Full Screen to force the camera which detects motion to display full
screen on the Call Monitor. The full screen camera view will last according to the Output Type
selected in the field above.
Edit Motion Grid: Press the button to bring up the Motion Setting menu. To edit the motion
grids, please refer to the instructions later in this section.
Apply To: Click the button to apply the same settings to the desired cameras.
ECOR FHD 4F / 8F / 16F Full HD DVR
80
To Edit the Motion Grids:
1. Click the Edit Motion Grid button, the Motion Setting menu appears.
2. Click on the image and the grid will be displayed.
3. To set up a motion area, drag a rectangle with your mouse (from top to bottom / upper-
left to lower-right). The selected areas will be highlighted in green (see image below).
4. To delete a motion area, drag a rectangle with your mouse (from bottom to top /
lower-right to upper-left).
5. Follow Step 3 to set up multiple motion areas if necessary.
6. Sets up the Sensitivity, Min Area and Motion Delay for the motion grids.
Sensitivity: Sets up the motion sensitivity for the grids. The larger the number, the higher
the sensitivity.
Min Area:
This function is designed to prevent false detections caused by small objects. If
you select 2, only the object size larger than 4-grid size can be detected.
7. Click the Save & Back button to save the settings and then return to the Motion menu.
ECOR FHD 4F / 8F / 16F Full HD DVR
81
6.4.4 Other
You can configure the event settings and enable the Buzzer or Email alert for notifications.
The event options include: Disk Temperature, Disk Failure, Disk Full, Disk Off, Power Loss
and Network Loss.
6.4.4.1 Disk Temperature.
Log: Check the box to record alarm events to log data.
Buzzer: Check the box to enable buzzer when System / Hard Disk’s (HD) temperature is over
the “Temp. Warning Limit”.
Email Notify: Check the box to send email notification when system / Hard Disk’s (HD)
temperature is over the “Temp. Warning Limit”. Email operation requires valid email entered
in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC. This feature works
with EverFocus’ CMS software. You will need to configure the Alarm Server for the DVR to
send network alarms to the client PC (see 6.7.5 Alarm Server).
Stop Recording: Check box to stop recording when System / HD’s temperature is over the
“Temp. Warning Limit”.
Temp. Warning Limit: Sets the trigger temperature for System / HD Temperature event
actions. Choose between 45°C /113°F and 70°C /158°F.
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Output action will be Transparent and cannot be changed (alarm output
remains as long as the alarm condition is active).
ECOR FHD 4F / 8F / 16F Full HD DVR
82
6.4.4.2 Disk Failure
Log: Check the box to record alarm events to log data.
Buzzer: Check the box to enable buzzer when Hard Disk (HD) fails.
Email Notify: Check the box to send email notification when HD fails. Email operation
requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when HD fails. This
feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for
the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Output action will be Transparent and cannot be changed (alarm output
remains as long as the alarm condition is active).
ECOR FHD 4F / 8F / 16F Full HD DVR
83
6.4.4.3 Disk Full
Log: Check the box to record alarm events to log data.
Buzzer: Check the box to enable buzzer when HD is full.
Email Notify: Check the box to send email notification when HD is full. Email operation
requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when HD is full.
This feature works with EverFocus’ CMS software, including PowerCom and PowerVideo Plus.
You will need to configure the Alarm Server for the DVR to send network alarms to the client
PC (see 6.7.5 Alarm Server).
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Select an output type when HD is full.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent: Alarm output remains as long as the alarm input is active.
Trans + Timeout: Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the event. The alarm
output will last for the setup duration time between 10 and 150 seconds.
84
6.4.4.4 Disk Off
ECOR FHD 4F / 8F / 16F Full HD DVR
Buzzer: The buzzer will activate when fan is not working.
Email Notify: Check the box to send email notification when Hard Disk (HD) is off. Email
operation requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when HD is off. This
feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for
the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Select an output type when HD is off.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent: Alarm output remains as long as the alarm input is active.
Trans + Timeout: Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the event. The alarm
output will last for the setup duration time between 10 and 150 seconds.
ECOR FHD 4F / 8F / 16F Full HD DVR
85
6.4.4.5 Power Loss
Log: Check the box to record alarm events to log data.
Email Notify: Check the box to send email notification when power has been restored. Email
operation requires valid email entered in the Email setup menu (see 6.7.2 Email).
Network Alarm: Check the box to send out a network alarm to a client PC when power has
been restored. This feature works with EverFocus’ CMS software. You will need to configure
the Alarm Server for the DVR to send network alarms to the client PC (see 6.7.5 Alarm Server).
Note: As alarms and emails cannot be transmitted without power, the log entry is made when
power is restored, and any notifications cannot be made until that time.
ECOR FHD 4F / 8F / 16F Full HD DVR
86
6.4.4.6 Network Loss
Log: Check the box to record alarm events to log data.
Buzzer: Check the box to enable buzzer when network is lost.
Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be
transmitted through the selected alarm output relay.
Output Type: Select an output type when the network is lost.
Timeout: Select this option and then set up the Timeout Duration in the field below, the
alarm output will last for the setup duration time (10 ~ 150 seconds).
Permanent: Alarm will remain active until the user presses the “Enter” key on the IR
Remote Control or resets the alarm remotely.
Transparent:
Trans + Timeout:
Alarm output remains as long as the alarm input is active.
Alarm output continues until event ends, then continues for the setup
duration time (10 ~ 150 seconds).
Timeout Duration: This function only appears when you select Timeout or Trans + Timeout
options in the Output Type drop-down list. Select a duration time for the event. The alarm
output will last for the setup duration time between 10 and 150 seconds.
Note: This function only checks the physical connection (link) to the network. Any network
behavior that blocks data connectivity (blocked ports, IP addressing errors, etc.) is not
detected by this function.
ECOR FHD 4F / 8F / 16F Full HD DVR
87
6.5 Hard Disk
The Disk menu is used to review the DVR’s hard drive settings and status. No value in this menu
can be configured by the operator.
6.5.1 Disk
Record Time (Start): Shows the earliest recording time of the DVR.
Record Time (End): Shows the latest or most current time on the DVR.
Disk: Select a disk number.
Health Status: Displays the current status of the selected disk.
Disk Temperature: Displays the current temperature of the selected disk.
Disk Size (Total): Shows the total space of the selected disk.
Disk Size (Usage): Shows the used space of the selected disk.
ECOR FHD 4F / 8F / 16F Full HD DVR
88
6.5.2 Lock/Format
You can control the percentage of the hard disk space reserved for Locked Event Recordings.
You can also format the hard disk if necessary.
Maximum Lock (%): Sets the maximum percentage of the hard disk space reserved for Locked
Event Recordings. To set up the Locked Event Recordings, please select the Auto Lock item in
6.4.3 Motion or 6.4.1 Alarm.
Current Lock (%): Displays the current percentage of the locked event recordings in the hard
disk. If the amount of locked event recordings has reached the maximum lock percentage, the
DVR will be unable to lock new event recordings.
Unlock All: Click this button to unlock the locked part of hard disk.
Delete All: Click this button to delete all the unlocked data in the hard disk. WARNING: This
will effectively ERASE the hard disk’s contents, except for the locked portion.
Format Disk: Click this button to format the whole HDD. WARNING: This will effectively ERASE
the ENTIRE hard disk!!
ECOR FHD 4F / 8F / 16F Full HD DVR
89
6.6 Display Setting
You can configure the settings for displaying the camera / DVR information on the live view
image. You can also set up the sequencing order for the Main monitor.
6.6.1 Monitor OSD
Check the boxes under the Main Monitor field. The selected items will be displayed on the
live view image.
Main Monitor / Call Monitor
Title: Check the box to display camera titles.
Date/Time: Check the box to display current date/time.
Event Status: Check the box to display event status.
HDD Status: Check the box to display hard drive status (only for main monitor).
Playback Date/Time: Check the box to display playback date/time (only for main monitor).
Playback Status: Check the box to display playback status (only for main monitor).
Screen Mode: Select the suitable screen mode. Selections are: 1920x1080; 1280x1024;
1024x768; 800x600 (only for main monitor). Please see to 6.2.1.1 Display Aspect Ratio for
more details.
POS OSD
Use Codepage: Select the suitable encoding type that matches with your POS system.
Text Insert: Check the box to display text inserted.
Clean Text Time_Second(s): Enter a time for the text to display on the monitor.
REC Text: Check to record the text file.
ECOR FHD 4F / 8F / 16F Full HD DVR
90
6.6.2 M/T SEQ
You can configure up to 20 steps of the sequencing order for the Main monitor. The
Sequence will repeat continuously from step 1 to step 20 until interrupted.
Main Monitor/ Call Monitor: Select Main or Call Monitor for the following settings.
Step: The sequencing order.
Camera: Select a camera for the specific step.
Dwell (sec): Sets up the dwell time between 0 and 60 seconds for each step.
ECOR FHD 4F / 8F / 16F Full HD DVR
91
6.7 Network Settings
The DVR allows you to use a Web browser to remotely view and manage the system. You can
also receive live video streaming from the DVR using your smartphone.
Note: Since every Network Configuration is different, please check with your Network
Administrator or ISP to see if your DVR should use specific IP addresses and/or port
numbers.
6.7.1 LAN
According to your network environment, select Static IP, DHCP or PPPoE to configure an IP
address to the DVR.
Network Type: Three options are selectable: Static IP, DHCP and PPPoE.
Static IP: User can set a fixed IP for network connection.
DHCP: DHCP server in LAN will automatically assign an IP configuration for the network
connection.
PPPoE: For direct connection to the DSL only. Verify with your ISP if they use PPPoE.
IP address: Displays the DVR’s current IP Address. A static IP address must be set manually. If
DHCP is selected, this value will be assigned automatically.
ECOR FHD 4F / 8F / 16F Full HD DVR
92
Subnet Mask: Displays the subnet mask for your network so the DVR will be recognized
within the network. If DHCP is selected, this value will be assigned automatically.
Gateway: Displays the gateway on your network for the DVR to use when communicating
with any devices not on the local network. If DHCP is selected, this value will be assigned
automatically.
DNS Server 1: Displays the primary DNS server for your network. If DHCP is selected and an
internet connection is available, this value should be assigned automatically. This field must
have a valid DNS address in order to use the DDNS feature (see 6.7.3 DDNS).
DNS Server 2: This field shows the secondary DNS server for your network.
HTTP Port: Port number for HTTP/WEB communication.
Bandwidth Limit (Kbps): Specify, disabled / 128 K/ 256 K / 512 K / 768K / 1M / 3M bps. This is
the maximum bandwidth that the DVR is allowed to use on the network. This is a useful
function when connecting the DVR to busy or heavily loaded networks, or when accessing the
DVR(s) over a WAN.
Additional information:
1. Set up the DVR Network Menu according to the instructions detailed in the Networking
chapter of this DVR’s manual.
a. If using DHCP, all settings will be detected automatically. While DHCP is a useful tool
for determining the network settings, if you set up your DVR in this manner its IP
address may change at different times for different reasons, particularly after a power
failure. If the IP address of the DVR changes, you may have difficulties accessing your
DVR locally and/or remotely. It is strongly recommended that you assign a fixed (static)
IP address to your DVR, and that in order to avoid address conflicts the IP address
assigned be outside of the DHCP range of addresses your router issues to DHCP clients.
Please do not set the DHCP address issued to the DVR by the router as its static IP
address unless you take specific steps that program your router to prevent such
address conflicts.
b. If using a Fixed IP (recommended), you will need to input the information manually. In
order for DDNS to work, you must enter valid data, compatible with your network, for
all four of the network setting fields: IP address, subnet mask, default gateway and the
DNS Address (depending on your network hardware and IP configuration this may be
the IP address of your router/gateway, or it may be the actual IP address of the local
DNS server). The DNS server IP is required because your DNS server provides critical
information necessary for the DVR to communicate with the DDNS server.
You can obtain the actual DNS IP from your Internet Service Provider (ISP); or, from a PC
located on the same LAN as the DVR, go to http://www.dnsserverlist.org/ to obtain a list of
the IP addresses of their recommendation of the best servers to use for your location.
