EverFocus EZ-VF325NH User Manual
EVERFOCUS
1/3” 550 TVL High Resolution
DSP Color Mini Bullet Camera
Operation Instructions
Model No.
Please read this manual first for correct installation and opera tion. This manual should be retain ed
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
EZ-VF325NH
PRECAUTIONS
1. Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2. Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3. Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4. Keep the power cord away from water and fluid.
Touching the wet power cord may result in electric shock.
5. Do not operate the camera beyond the specified temperature, humidity or
power source ratings.
Use the camera at temperatures within -10ºC ~ 50ºC (14ºF to 122ºF) and humidity between
20%~ 80%. The input power source is 12VDC.
PREFACE
The stylish appearance can be applied as per installer's ideal locations on the ceiling or wall.
The mini bullet camera designed with advanced digital processing circuitry for high resolution
1/3" color interline transfer CCD sensor. Very low power consumption of 150mA or less.
FEATURES
z 1/3” Sony Super HAD CCD image sensor with approximately 410,000 pixels.
z 550 TVL of horizontal resolution.
z Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images
and excellent picture quality.
z Low light sensitivity 1.0 Lux/F=1.2.
z Wide-range automatic electronic shutter: up to 1/100,000.
PACKAGE CONTENTS
z Camera Unit x 1
z Mounting bracket x 1
z Screws x 3
z Manual x 1
1
SPECIFICATIONS
Video Format NTSC
Image Sensor 1/3" Sony ICX638 Super HAD CCD
Scanning System 2:1 Inter lace
Scanning Frequency H: 15734 KHZ, V:59.94 Hz
Sensitivity 0.2 Lux/F=2.0
Total Pixels 811 (H) x 508 (V), 401k
Effective Pixels 768 (H) x 494 (V), 380K
Horizontal Resolution 550 TVL
S/N Ratio Over 45B
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type f=3.6, Fixed Iris
Option Mirror, Digital Day/Night
Auto Gain Control Yes
Auto White Balance Yes
Gamma Correction 0.45

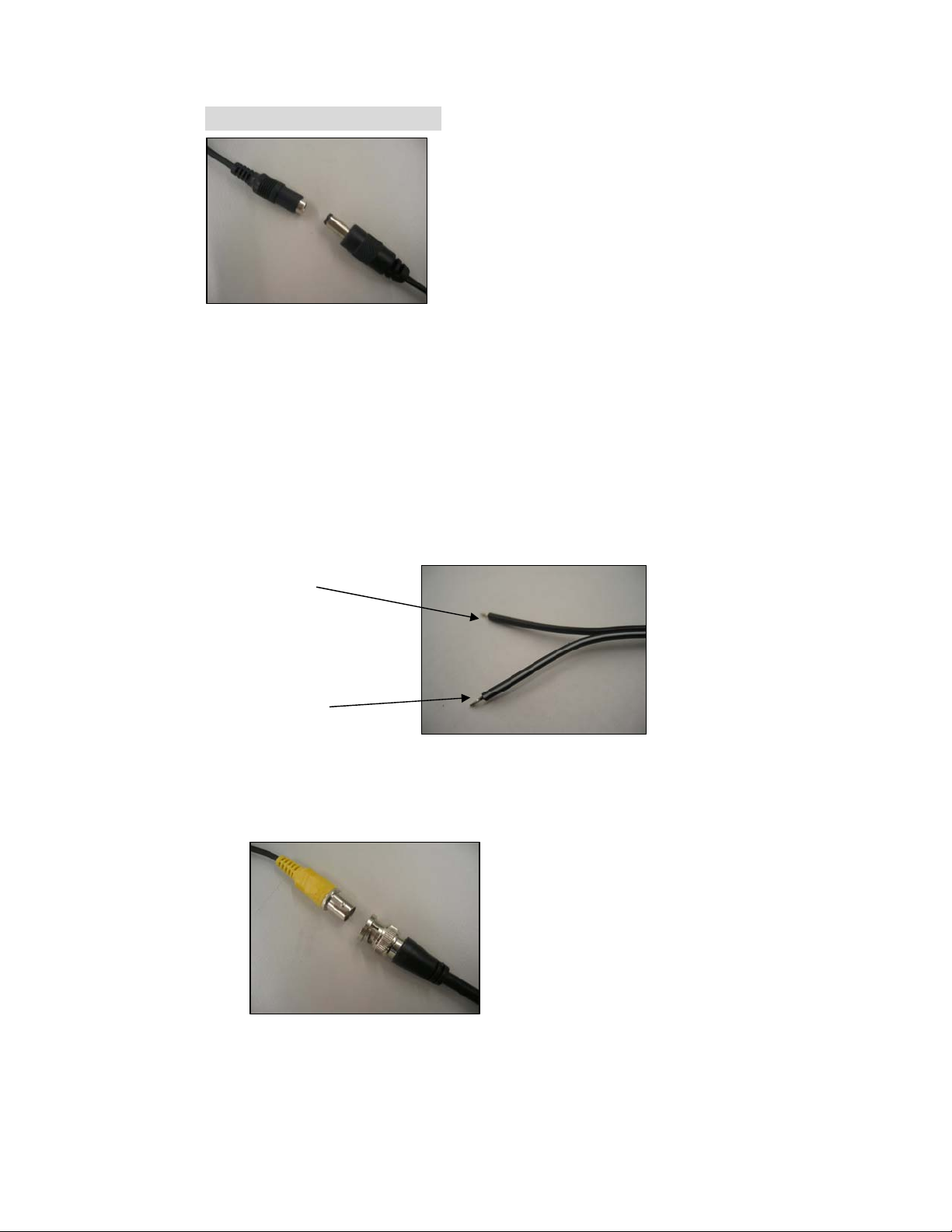

Video Output BNC 1.0Vp-p, 75ohm
Sync. Mode Internal Sync
Power Source 12VDC + 10%
Power Consumption 90mA max
Dimensions 66 (L) x 19 (W) x 19 (H) mm / 2.6" (L) x 0.75" (W) x 0.75" (H)
Weight 0.3 kg ; 0.7lbs
Operating Temperature -10°C~50°C ; 14°F~122°F (20%~80% Humidity)
