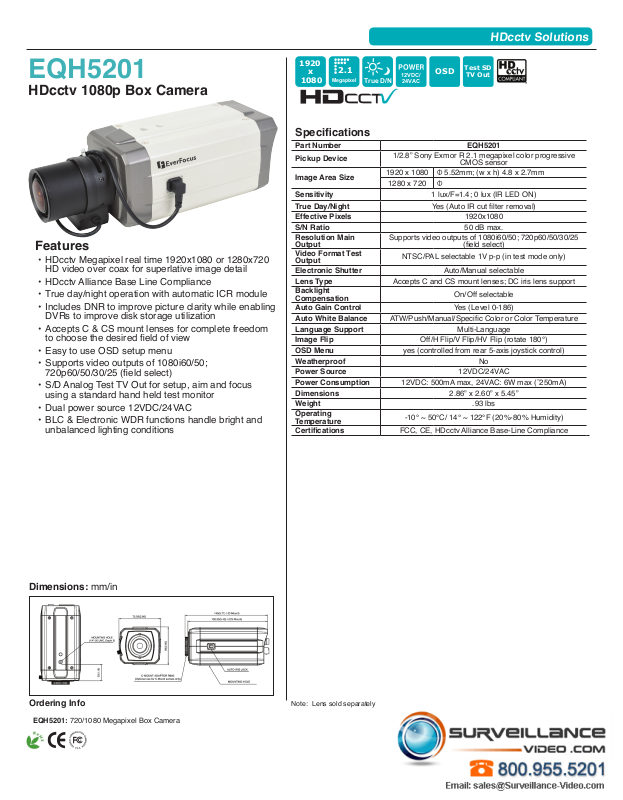

EverFocus EQH5201 Specsheet

HDcctv Solutions

EQH5201

HDcctv 1080p Box Camera

Features

• HDcctv Megapixel real time 1920x1080 or 1280x720
HD video over coax for superlative image detail

• HDcctv Alliance Base Line Compliance

• True day/night operation with automatic ICR module

• Includes DNR to improve picture clarity while enabling
DVRs to improve disk storage utilization

• Accepts C & CS mount lenses for complete freedom
to choose the desired eld of view

• Easy to use OSD setup menu

• Supports video outputs of 1080i60/50;
720p60/50/30/25 (eld select)

• S/D Analog Test TV Out for setup, aim and focus

using a standard hand held test monitor

• Dual power source 12VDC/24VAC

• BLC & Electronic WDR functions handle bright and

unbalanced lighting conditions

1920

x

1080

2.1

Megapixel

True D/N

12VDC/

24VAC

OSD

Test SD

TV Out

Specications

Part Number EQH5201

Pickup Device

Image Area Size

Sensitivity 1 lux/F=1.4; 0 lux (IR LED ON)

True Day/Night Yes (Auto IR cut lter removal)
Effective Pixels 1920x1080
S/N Ratio 50 dB max.

Resolution Main
Output
Video Format Test
Output

Electronic Shutter Auto/Manual selectable
Lens Type Accepts C and CS mount lenses; DC iris lens support

Backlight
Compensation

Auto Gain Control Yes (Level 0-186)
Auto White Balance ATW/Push/Manual/Specic Color or Color Temperature
Language Support Multi-Language
Image Flip Off/H Flip/V Flip/HV Flip (rotate 180°)
OSD Menu yes (controlled from rear 5-axis joystick control)
Weatherproof No
Power Source 12VDC/24VAC
Power Consumption 12VDC: 500mA max, 24VAC: 6W max (˜250mA)
Dimensions 2.86” x 2.60” x 5.45”
Weight .93 lbs

Operating
Temperature

Certications FCC, CE, HDcctv Alliance Base-Line Compliance

1/2.8” Sony Exmor R 2.1 megapixel color progressive

1920 x 1080 Ф 5.52mm; (w x h) 4.8 x 2.7mm

1280 x 720 Ф

Supports video outputs of 1080i60/50; 720p60/50/30/25

NTSC/PAL selectable 1V p-p (in test mode only)

-10° ~ 50°C/ 14° ~ 122°F (20%-80% Humidity)

CMOS sensor

(eld select)

On/Off selectable

Dimensions: mm/in

Ordering Info

EQH5201: 720/1080 Megapixel Box Camera

Note: Lens sold separately
