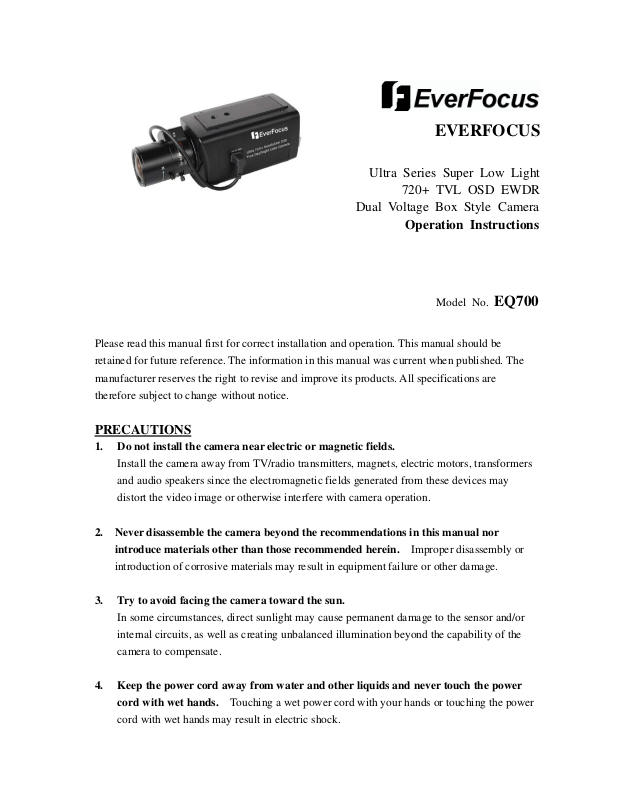

EverFocus EQ700 User Manual

EVERFOCUS

Ultra Series Super Low Light

720+ TVL OSD EWDR

Dual Voltage Box Style Camera

Operation Instructions

Model No.

Please read this manual first for correct installation and operation. This manual should be

retained for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are

therefore subject to change without notice.

EQ700

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV/radio transmitters, magnets, electric motors, transformers

and audio speakers since the electromagnetic fields generated from these devices may

distort the video image or otherwise interfere with camera operation.

2. Never disassemble the camera beyond the recommendations in this manual nor

introduce materials other than those recommended herein. Improper disassembly or

introduction of corrosive materials may result in equipment failure or other damage.

3. Try to avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor and/or

internal circuits, as well as creating unbalanced illumination beyond the capability of the

camera to compensate.

4. Keep the power cord away from water and other liquids and never touch the power

cord with wet hands. Touching a wet power cord with your hands or touching the power

cord with wet hands may result in electric shock.

1

5. Never install the camera in areas exposed to oil, gas or solvents.

Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.

6. Cleaning

For cameras with interchangeable lenses, do not touch the surface of the sensor directly

with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor

and the camera lens. Use a damp soft cloth to remove any dirt from the camera body. Please

do not use complex solvents, corrosive or abrasive agents for cleaning of any part of the

camera.

7. Do not operate the camera beyond the specified temperature, humidity or power

source ratings. This camera is suitable for indoor operation only. Use the camera at

temperatures within -10ºC ~ +50 ºC (14℉~122℉) and humidity between 20% and 80%.

This device is not rated as submersible. The input power source is 12VDC / 24VAC.

8. Mounting

Use care in selecting a solid mounting surface which will support the weight of the camera

plus any wind, snow, ice or other loading, and securely attach the camera to the mounting

surface using screws and anchors which will properly support the camera. If necessary (e.g.

when mounting to drop ceilings) use a safety wire to provide additional support for the

camera.

Table of Contents

Product Overview……………………………………………….....……………..1

Main Features……………………………..……………..…….…………………2

Content List……………………………………………………………………… 2

Specifications………………………………………………………….…………. 3

Dimensions…………………………………………………………………….…. 4

Installation……………………………………………………….………………...4

OSD Menu…………………………………………………………………………5

Product Overview

Get incredible low light sensitivity and the resolution listed in the specs from the actual camera

you install. The EverFocus Ultra Series EQ700 uses the Sony Exview HAD II 960H CCD to

produce in excess of 720 horizontal TV lines of resolution from each and every Ultra Series

720+ camera we deliver (megapixel lenses are recommended to take full advantage of the

amazing resolution available from this advanced imaging technology). Combine this with an

almost unbelievable useable native Ultra low light sensitivity of 0.0001 lux without using digital

2

slow shutter this camera truly provides color without compromise: over 720TVL resolution,

plus your choice of full motion color or true day/night images in ultra low light with guaranteed

ZERO ghosting and Digital Wide Dynamic Range to handle the most challenging of bright or

unbalanced scene lighting conditions. The EQ700 offers complete flexibility for selection of lens

field of view, electronic or DC iris, wide choices for housing styles and mounting configurations,

dual voltage operation and a full suite of OSD Menu and DSP functions controllable at the

camera (DNR to save DVR HDD space, privacy masking, mirroring, and much more) This is the

camera that you have been waiting for to create analog CCTV systems that produce astounding

image clarity in the widest range of applications and in almost any light level.

FEATURES

• Ultra resolution of over 720 horizontal TV lines for astounding image quality

• Exview HAD II sensor delivers amazing ultra high sensitivity of .0001 lux - 500X better

native light sensitivity without DSS low light boost - Zero Ghosting guaranteed

• Color without compromise: your choice of full motion color or true day/night images in low

light without ghosting

• True Day/Night with ICR module

• Adaptive Tone Curve Reproduction (ATR)/Digital Wide Dynamic Range expansion to deliver

properly exposed images despite unbalanced lighting in the scene

• Provides 2D-Noise Reduction to improve picture clarity while enabling DVRs to improve disk

storage utilization

• Accepts C/CS mount manual or DC iris lenses

• Easy to use OSD setup menu

• Motion detection for 4 configurable zones

• Privacy mask function for 4 configurable zones

• Dual voltage (12VDC/24VAC) with Anti-Crawl for stability even without line lock

Box Contents

Camera

This User Guide

C-mount lens adapter ring

AI lens plug (for connecting lenses not already equipped with a plug)
