EverFocus EPTZ3100, EPTZ3100I User Manual

Download
Speed Dome
EPTZ3100/EPTZ3100I
USER MANUAL
Date: Jan. 2009
1. EPTZ3100/EPTZ3100I OVERVIEW........................................................5
1.1. Introduction ................................................................................................5
1.2. Specifications.............................................................................................7
1.3. Feature ........................................................................................................9
1.3.1. Profile of EPTZ3100/EPTZ3100I...........................................................9
1.3.2. EPTZ3100/EPTZ3100I Base Board ....................................................10
1.4. EPTZ3100/EPTZ3100I Quick Operation Guide (Work with EKB500) ....12
2. EPTZ3100/EPTZ3100I INSTALLATION...............................................13
2.1. Packing List..............................................................................................13
2.2. Cable Needed............................................................................................15
2.3. Initial Setup...............................................................................................15
2.3.1. Address Setting...................................................................................16
2.3.2. Communication Protocol Setting.........................................................20
2.3.3. Transmission Speed Setting (Baud Rate Setting) ...............................20
2.4. Bracket and Speed Dome Installation ....................................................21
2.4.1. Installation Requirements....................................................................21

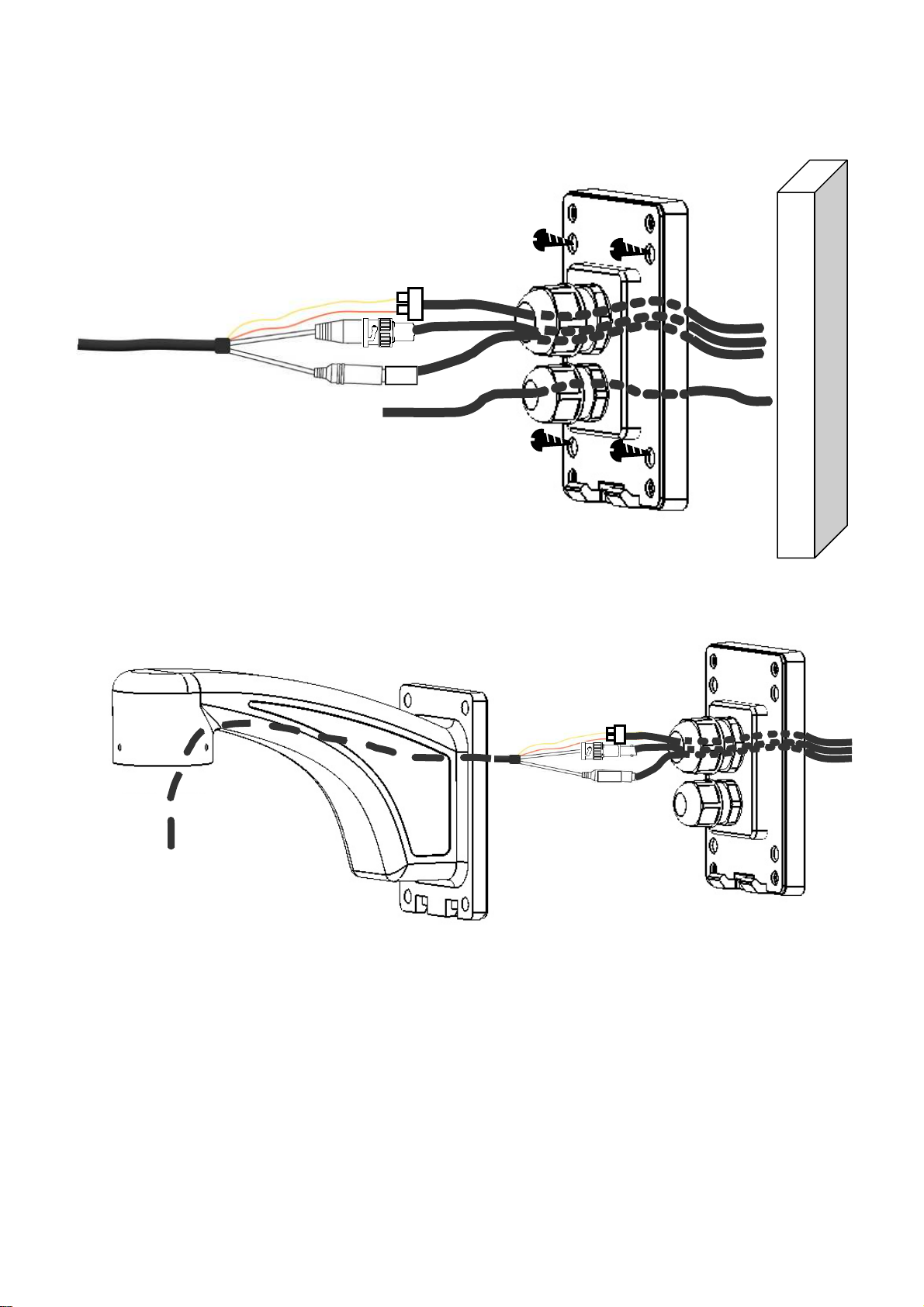

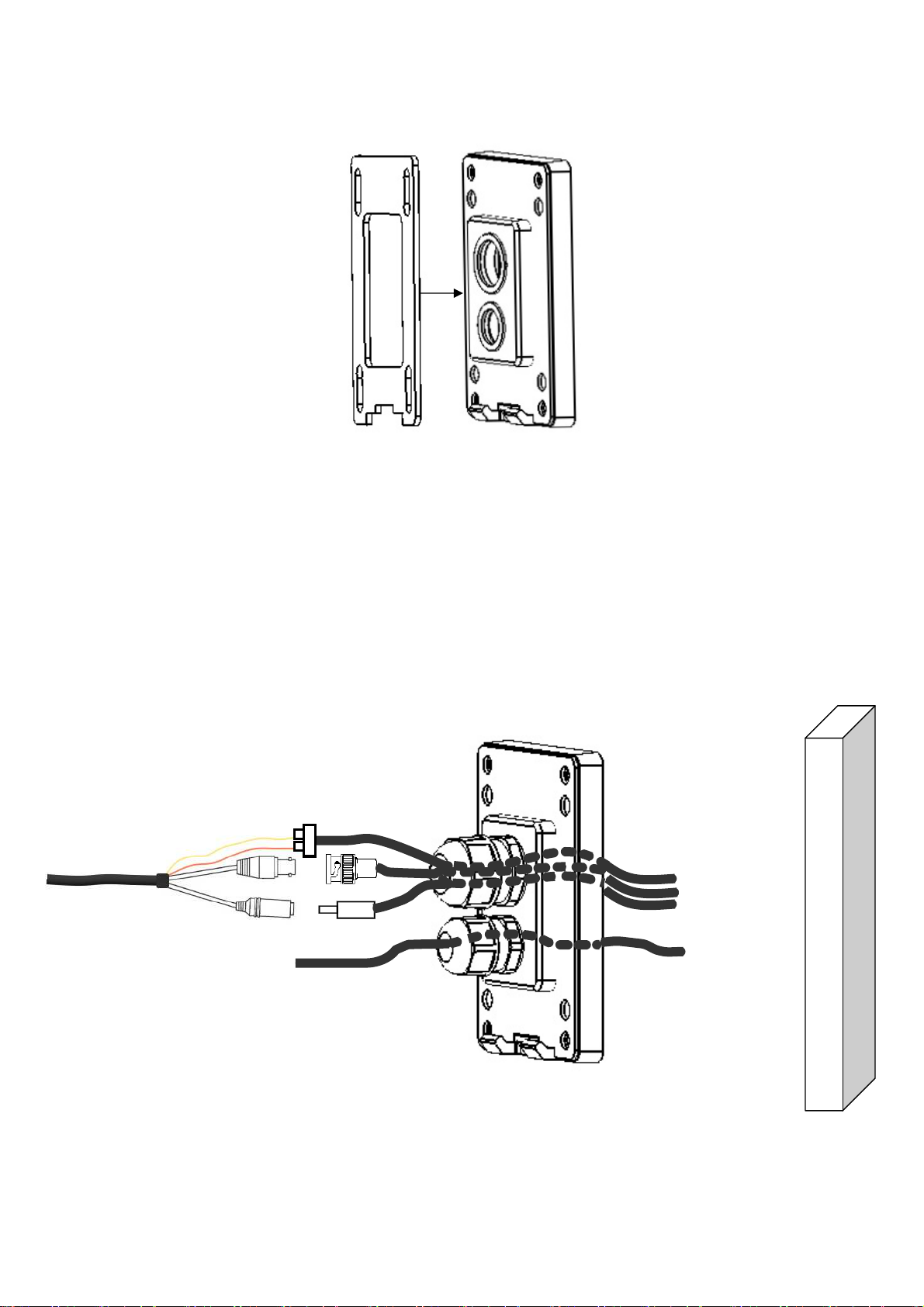

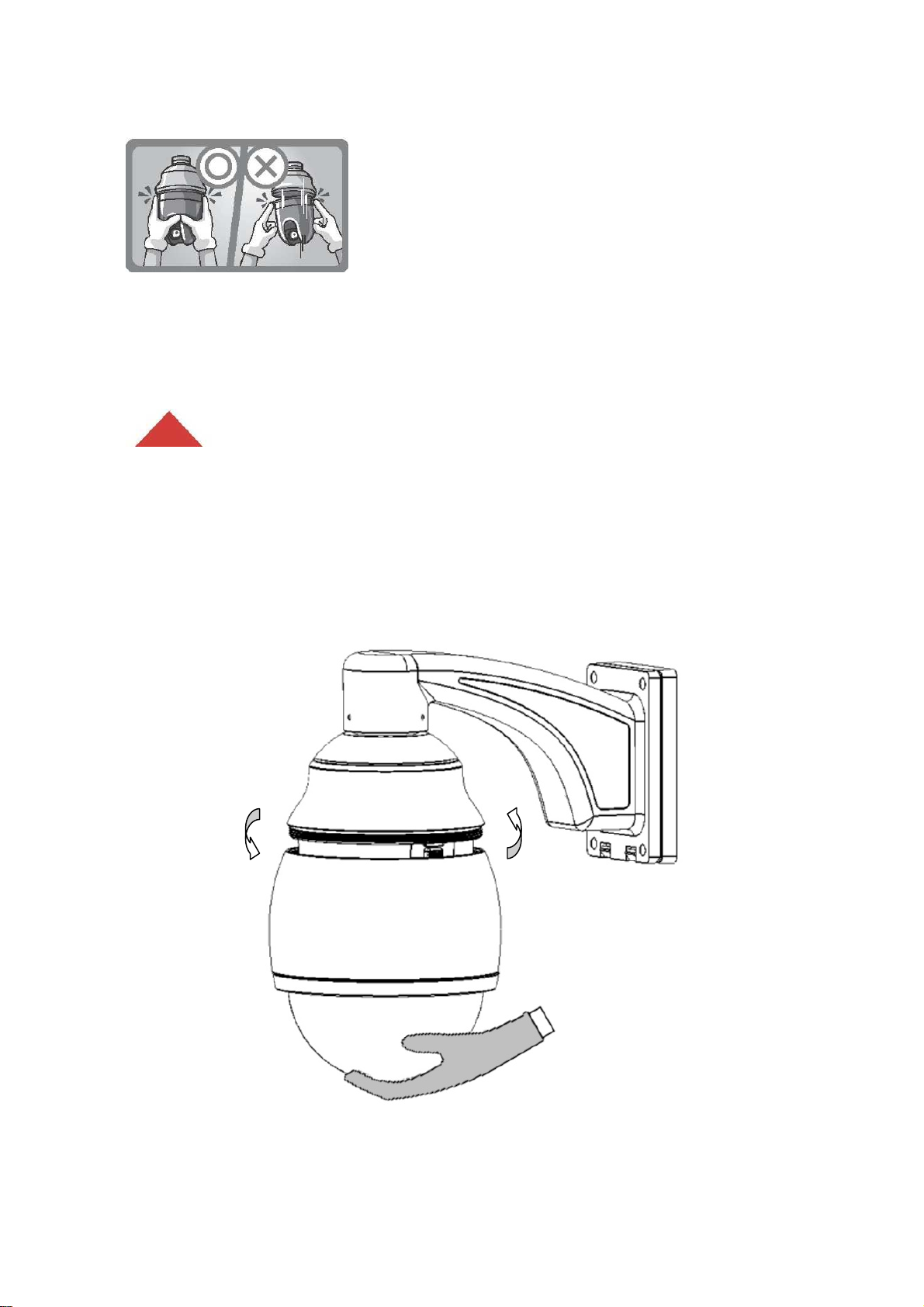

2.4.2. EPTZ3100 Dome Camera Wall Mount Simple Installation..................22
2.4.3. EPTZ3100 Dome Camera Wall Mount Installation..............................25

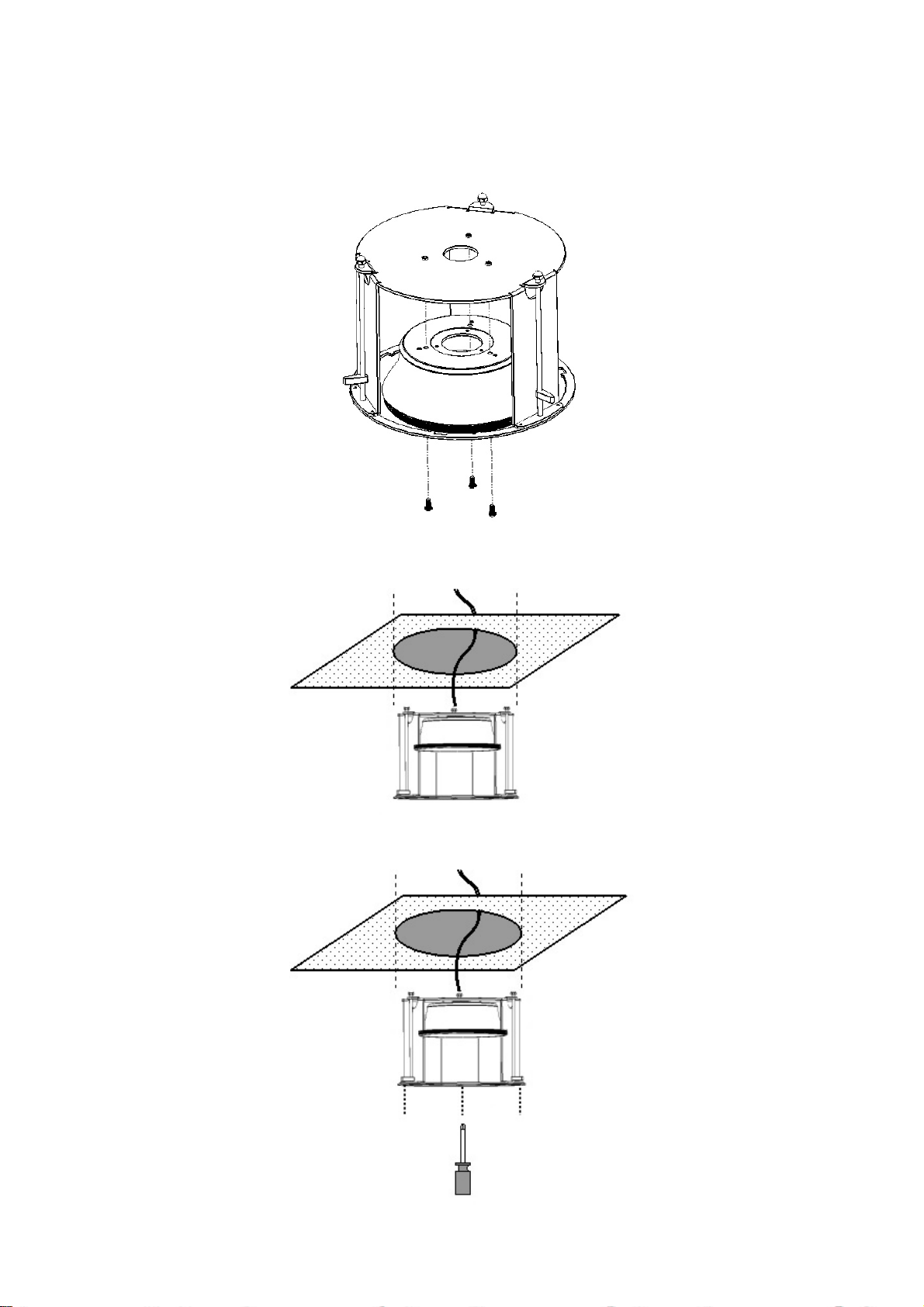

2.4.4. EPTZ3100 Dome Camera Ceiling Mount Installation..........................32
2.5. Bracket and Adapter ................................................................................36

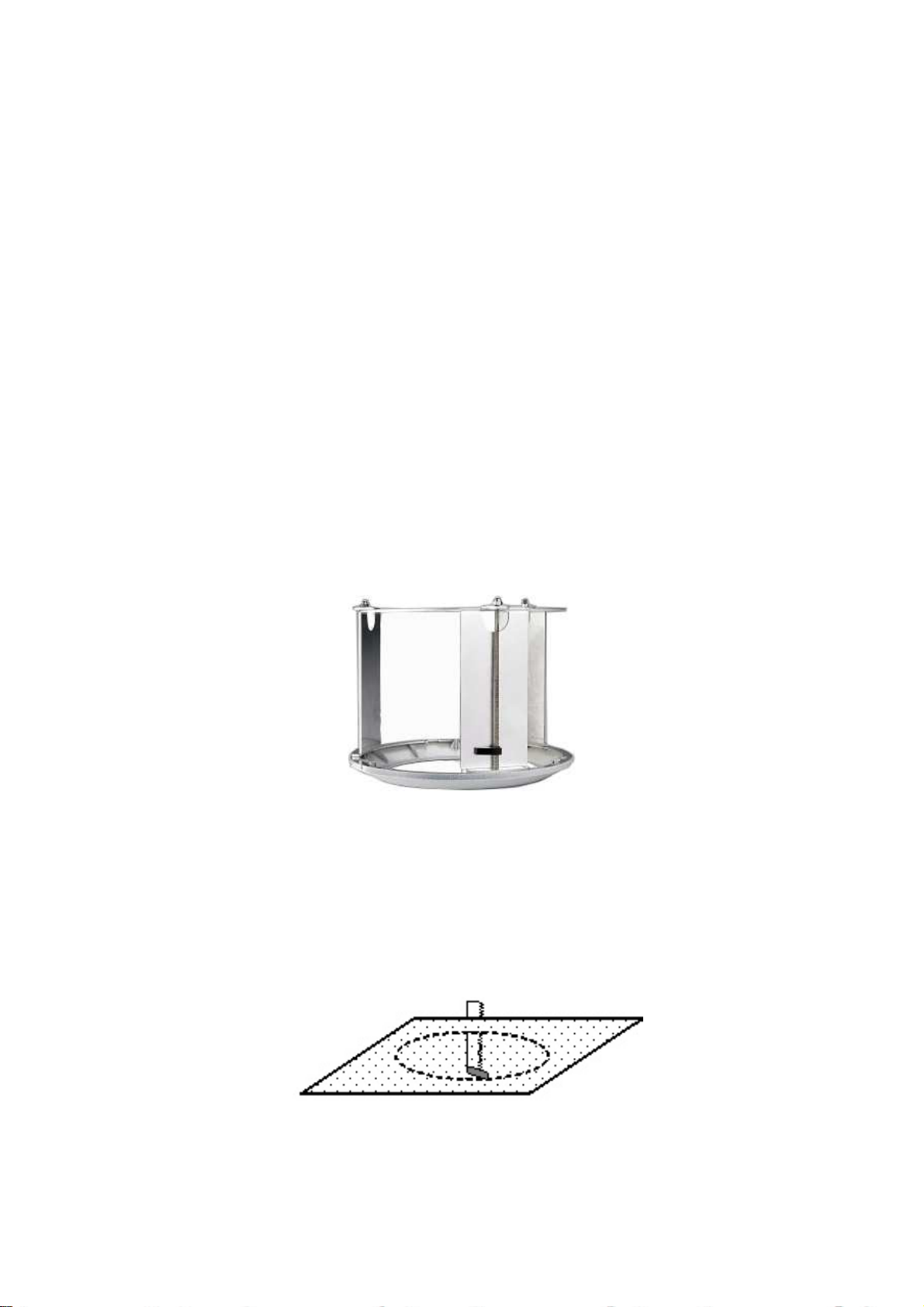

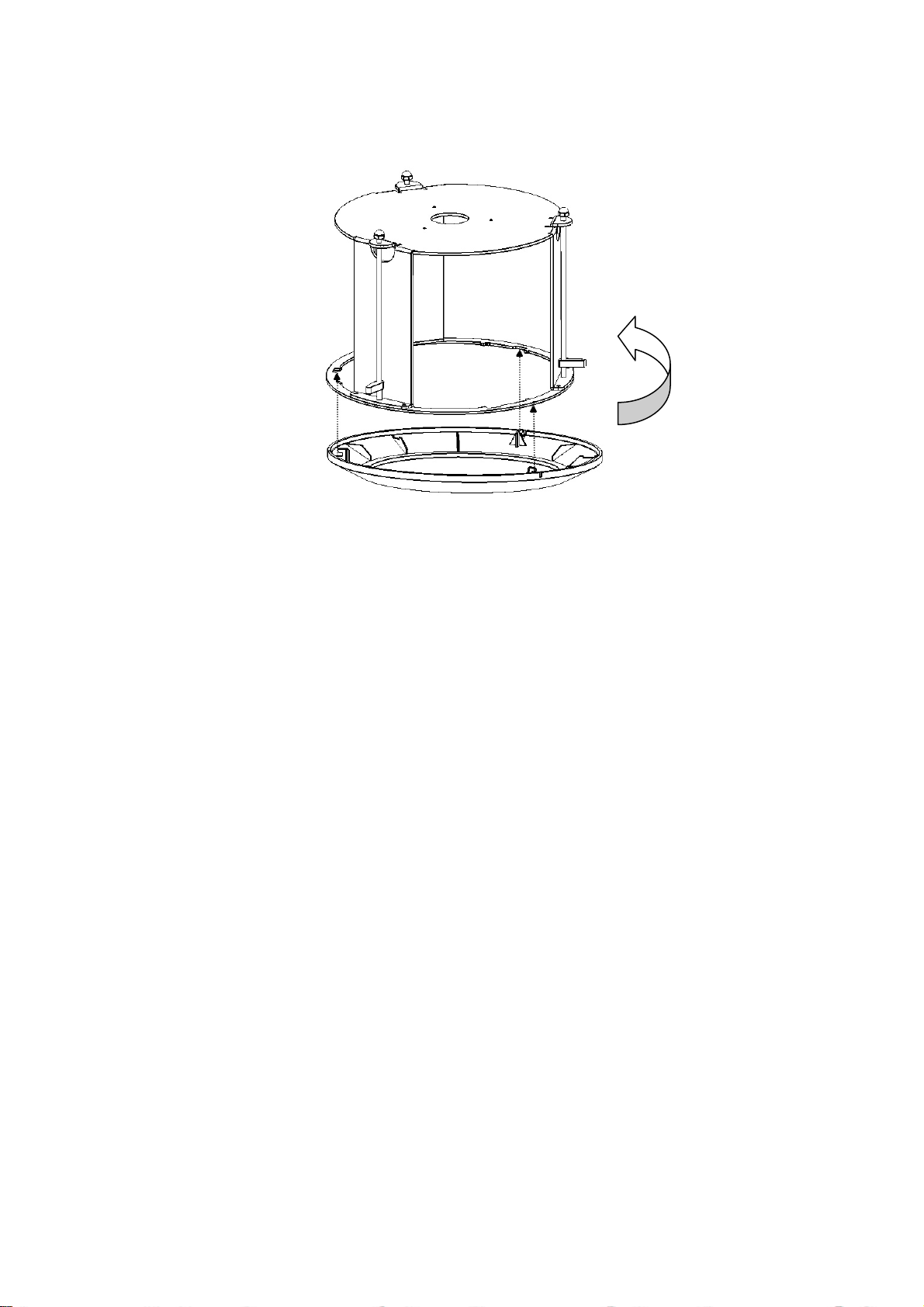

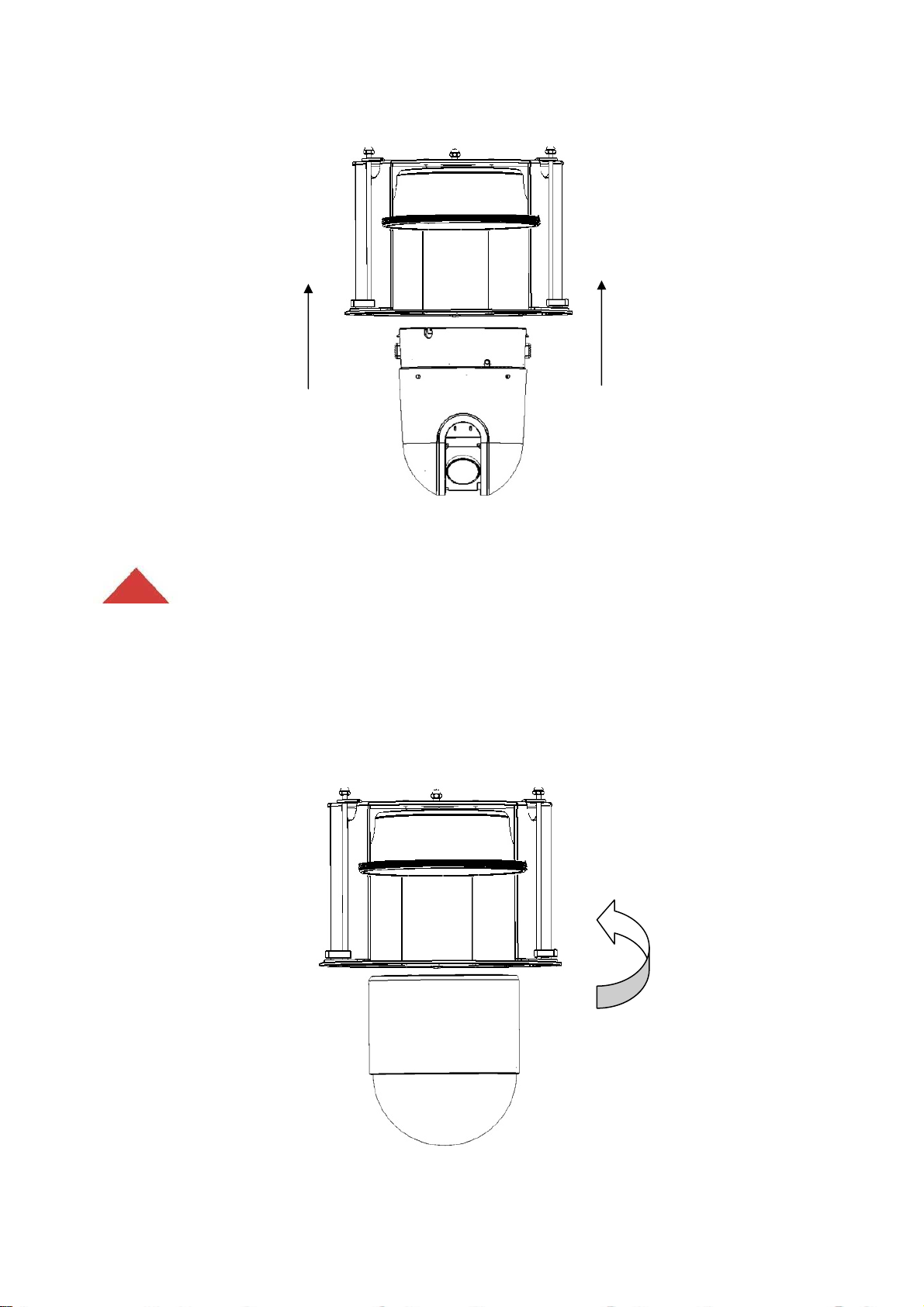

2.5.1. Indoor Ceiling Pendent Mount Bracket................................................36
2.5.2. Pole Mount Adapter.............................................................................36
2.5.3. Corner Mount Adapter.........................................................................37
2.5.4. Indoor Concrete Ceiling Mount Adapter..............................................37
2
3. EPTZ3100/EPTZ3100I CAMERA SETUP MENU.................................38
3.1. Structure of the Setup Menu ...................................................................38
3.2. VIDEO SETTINGS .....................................................................................39
3.2.1. EXPOSURE........................................................................................39
3.2.2. FOCUS MODE....................................................................................41
3.2.3. DIGITAL ZOOM...................................................................................42
3.2.4. WHITE BALANCE...............................................................................42
3.2.5. DAY/NIGHT.........................................................................................42
3.2.6. DIG. NOISE REDUCE.........................................................................43
3.2.7. WIDE DYNAMIC RANGE....................................................................43
3.2.8. EXIT....................................................................................................44
3.3. POSITIONS................................................................................................45
3.4. OSD/AREAS..............................................................................................48
3.4.1. CAM. TITLE.........................................................................................48
3.4.2. AREAS................................................................................................48
3.4.3. DIRECTIONS......................................................................................50
3.4.4. DISPLAY .............................................................................................52
3.4.5. EXIT....................................................................................................54
3.5. AUTO MODES...........................................................................................54
3.5.1. AUTOPAN...........................................................................................54
3.5.2. PRESET TOURS ................................................................................57
3.5.3. PATTERN............................................................................................58
3.5.4. AUTO RESUME..................................................................................59
3.5.5. RESUME TO.......................................................................................59
3.5.6. POWER UP FUNC..............................................................................60
3.5.7. AUTO FLIP..........................................................................................60
3
3.5.8. EXIT....................................................................................................60
3.6. ALARM ......................................................................................................60
3.6.1. ALARM INPUTS..................................................................................60
3.6.2. ALARM OUTPUTS..............................................................................63
3.6.3. MOTION DETECT...............................................................................64
3.6.4. EXIT....................................................................................................64
3.7. PRIVATE ZONES.......................................................................................65
3.8. SYSTEM.....................................................................................................67
3.9. INFO...........................................................................................................68
3.10. EXIT ...........................................................................................................69
4. EPTZ3100/3100I FUNCTION SETUP AND OPERATION ....................70
4.1. Manual Control Mode...............................................................................70
4.2. Auto Pan Mode .........................................................................................70
4.3. Position Setting........................................................................................71
4.4. Tour Mode .................................................................................................72
4.5. Alarm Link to a Position/Tour..................................................................73
4.6. Other Operations......................................................................................74
4
1. EPTZ3100/EPTZ3100I OVERVIEW
1.1. Introduction
EPTZ3100 series has 2 types, EPTZ3100 is outdoor type whereas EPTZ3100I is indoor type, using high sensitivity and high resolution CCD to display high quality image. The design of ICR (IR cut filter removable) can provide real color even under strong sunlight in day time. Under slight light in night time, a clear image can still be displayed. WDR design allows the camera to be installed in any environment. Fast moving function can reach to 360°/1sec. No matter high speed scanning or low speed scanning, the solid base can avoid vibration. This full-functioned speed dome can perform best quality images!
EPTZ3100 for outdoor model; EPTZ3100I for indoor model Built in 30x Optical Zoom Lens Super High Resolution 520TV Lines True Day/Night function (IR Cut Filter Removable) Wide Dynamic Range Digital Slow Shutter Privacy Zone Masking Motion Detection Auto detection of protocols
Tilt rotation range: 192 preset positions are available
16 cruise tours can be set, and each tour contains up to 16 positions 4 Alarm Inputs / 2 Alarm Outputs Running to position speed, 0.01º/s to 360º/s RS485 Communication IP66 (for EPTZ3100)
180°
Furthermore, the micro control unit enables camera a nimble and exact movement from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1 second. It also has other advantages such as:
5
192 preset positions are available.  16 cruise tours can be set, and each tour contains up to 16 positions.  Up to 256 speed domes can be supported on a RS-485 bus when all speed
domes are controlled by keyboard EKB500.
Built-in fan to enhance heat dissipation at high temperature and circulate
heat to keep system operation at low temperature.
Built-in 4 alarm inputs and 2 alarm outputs.
All of the features make the intelligent high-speed dome camera works for a wide range and demanding application such as banks, airports, stations, casinos, streets of cities, intelligent buildings, etc.
6
1.2. Specifications
Product Model EPTZ3100 (outdoor) EPTZ3100I (indoor) Pickup Device 1/4” CCD Video Format NTSC or PAL Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec.
Picture Elements 768 x 494 (NTSC)
752 x 582 (PAL) Horizontal Resolution 520 TV Lines Sensitivity 0.4 Lux/ F1.6 (ICR OFF)
0.08 Lux/ F1.6 (ICR ON)
S/N Ratio 50 dB (Weight ON) Electronic Shutter 128x~1/60~1/120,000(s) (NTSC)
128x~1/50~1/120,000(s) (PAL) Digital Slow Shutter 128x Shutter Selection AUTO; A.FLK; Manual 128x~1/60 (1/50)~1/120,000 selectable Lens Type 30x optical zoom, f=3.3 mm (wide) to 99.0mm (tele),
F1.6 to F3.2 Zoom Ratio 240x max. (30x Optical and 8x Digital zoom) True Day & Night Yes (Auto/DAY/NIGHT) Backlight Comp. Yes (OFF/LOW/MIDDLE/HIGH) Wide Dynamic Range Yes (OFF/ON/AUTO) White Balance Indoor / Outdoor/MAN5100K/MAN3200K/MAN2000K/ONE
PUSH Motion Detection Yes (ON/OFF) Privacy Zone Masking Yes (8 zones) Video Output 1Vp-p / 75 ohm Sync. Mode Internal Power Source 24VAC Power Consumption 21W Max Operating Temperature
﹣40 ~+50 ≤95%℃ ℃
-10 ~+50 ≤85%℃ ℃
Focus Control One push/Auto/Manual
7
Horizontal Rotation Speed
0.01°/s －360°/s (1-255 grade shift gears)
Horizontal Rotation Range
360° unlimited rotation Tilt Rotation Range 180° pendulum motion Auto Zoom Speed Control
Control speed auto-adjusted according to zoom length
changing
Auto Pan, 2 points
Can set freely
scanning Auto Pan Speed Dwell Time (2 points)
1－255 grade available
1－99 second available
Preset Positions 192 positions Running to position speed
1－255 grade available,0.01º/s - 360º/s
Dwell time at preset
1－99 available
position Tour 16 groups Tour point per group 16 preset positions Pattern 4 patterns with 90 sec long each Fan Fan auto starts Position Accuracy ±0.1° Alarm 4 in 2 out with tour/position auto triggering Built-in Menu for Functions
Yes Communication RS-485 Communication Speed 1200/2400/4800/9600bps
EVF-1; EVF-2; Pelco-P ;Pelco-D; A-Type; Plus-D; AUTO;
Built-in Protocols
Panasonic
(Plus-D supports all other brands, it is equivalent to Pelco-D) Address Editable Yes (through DIP switch) Speed Dome Address 0-255 Manual Pan/Tilt Speed Pan: 0.01º ~ 360º/s ; Tilt: 0.01º ~ 180º/s Safety CE, FCC Dimensions 180mm(W) x 270mm(H) ; 70.9”x106.3” Weight 3.0kg
8
1.3. Feature
Sun shield (optional)
EPTZ3100
I
Bubble
Camera
EPTZ3100
1.3.1. Profile of EPTZ3100/EPTZ3100I
Wall Mount Bracket
Top housing
Outer housing
Camera main body
Camera module
Top housing
Camera main body
Bubble
Outer housing
9
Module
VIDEO
RS485
24VAC

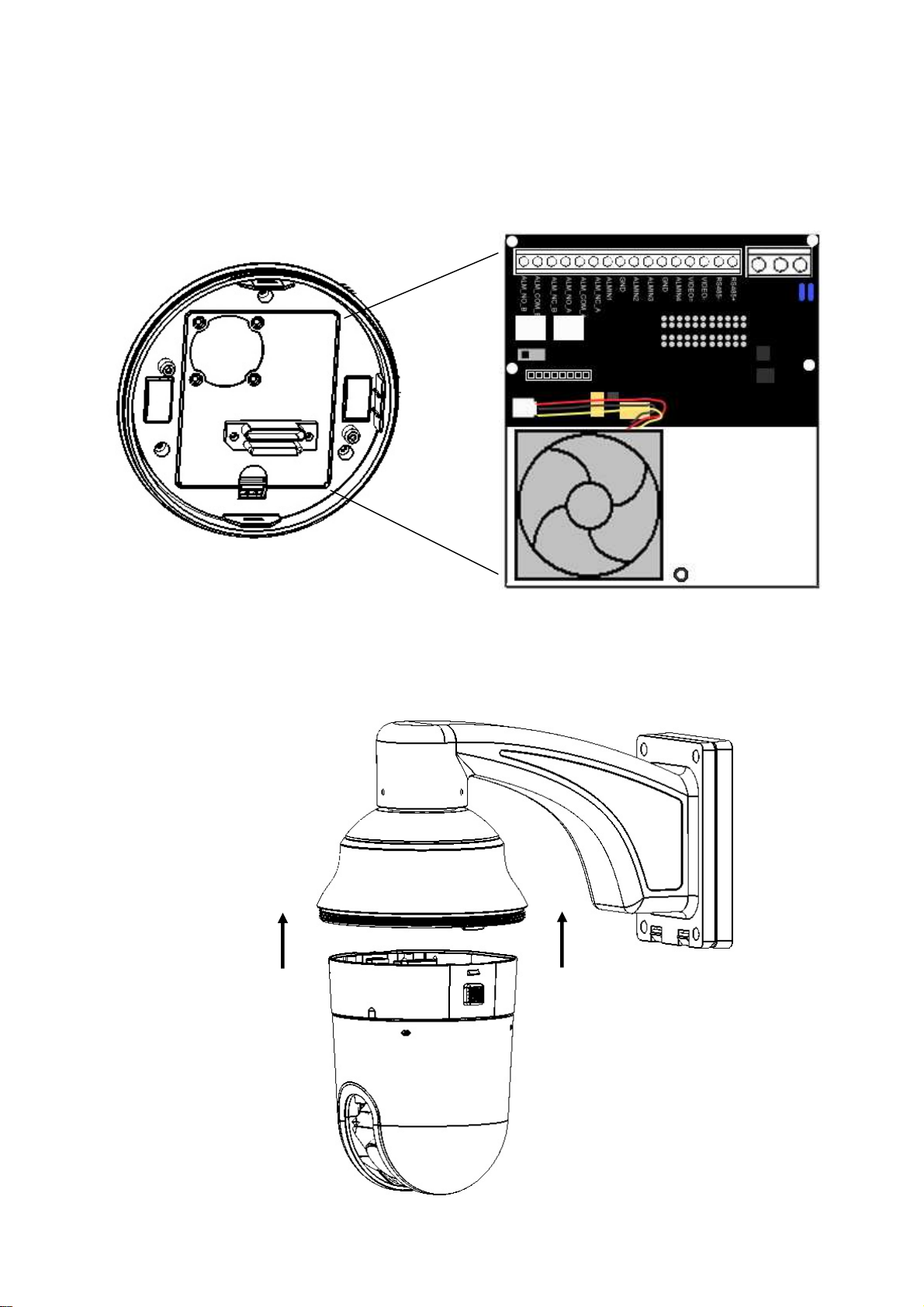

1.3.2. EPTZ3100/EPTZ3100I Base Board
The base board that is inside the top housing connects to power cable, video cable, control cable, alarm cable and fan. In order to connect to cables, the board needs to be taken off, and put back after finishing connecting to all cables. The connectors of cable names are marked on the board in white text. The details of the alarm connector are shown on the APPENDIX. There are 4 alarm inputs and 2 alarm outputs available, represented by Pin 1~12. Pin 13 and 14 are video pins for connecting to video cable. Pin15~16 are RS485 pin for connecting to keyboard. Pin 17 and 18 are power pin for connecting to 24VAC power.
1~12 ALARM
13~14
15~16
17~18
EPTZ3100 Base board
10
Pin # Function
1 ALM_NO_B (Alarm Output Normal Open B) 2 ALM_COM_B (Alarm Output Common B) 3 ALM_NC_B (Alarm Output Normal Close B) 4 ALM_NO_A (Alarm Output Normal Open A) 5 ALM_COM_A (Alarm Output Common A) 6 ALM_NC_A (Alarm Output Normal Close A) 7 ALMIN1 (Alarm Input 1) 8 GND (Ground)
9 ALMIN2 (Alarm Input 2) 10 ALMIN3 (Alarm Input 3) 11 GND (Ground) 12 ALMIN4 (Alarm Input 4) 13 VIDEO+ 14 VIDEO­15 RS485­16 RS485+ 17 AC24A+ 18 AC24B-
11
1.4. EPTZ3100/EPTZ3100I Quick Operation Guide (Work with EKB500)
EPTZ3100/EPTZ3100I and EKB500 (Keyboard) can work together by using factory default setting. You just need to connect cables by the following steps:
1. Connect the RS-485 cable to EPTZ3100/EPTZ3100I and a keyboard (EKB500).
2. Connect a video cable from EPTZ3100/EPTZ3100I to a monitor.
3. Connect the power to the EPTZ3100/EPTZ3100I and a keyboard (EKB500). After the EPTZ3100/EPTZ3100I finishes the self-test mode, you can start to operate the EPTZ3100/EPTZ3100I via the keyboard.
To operate the EPTZ3100/EPTZ3100I:
UP
IRIS+FocusF.Zoom
In
- N. Out
1. Shift the Joystick up/down or right/left to view from camera.
2. Turn the top of the Joystick to zoom in/out.
3. Press Zoom In/Out, Focus F. /N. and IRIS +/- function keys to operate the EPTZ3100/EPTZ3100I.
Zoom INZoom OUT
LEFT RIGHT
DOWN
12
2. EPTZ3100/EPTZ3100I INSTALLATION
2.1. Packing List
There are 3 boxes that are camera main body with a camera module, top housing with a base board & pin connector and outer housing with bubble, plus one tool packet in the package. The detail accessories are listed below: Standard
Camera Main Body x 1  Top Housing x1  Outer Housing with Bubble x1  Tool packet
Glove x 1 pair RS485 Terminal Block 3 desiccant packs
Optional Accessories * EPTZ-PBOX (External Power Connection Box)
* Pole Mount Adapter
* Corner Mount Adapter
* Indoor Ceiling Pendent Mount Bracket
* Outdoor Sunshield
* Wall Mount Bracket
13
* Indoor Recessed Mount Bracket
* Indoor Concrete Ceiling Mount Adapter
* EKB500 (Keyboard) * EKB200 (USB Controller
Keyboard)
14
2.2. Cable Needed
VIDEO
Yellow RS485+
Orange RS485-
24VAC
Power Cable
An adapter with 24VAC/3.5A output provides the power to the EPTZ3100/EPTZ3100I. An extension power line may be needed.
Note: The input AC voltage range of an adapter depends on different area. Please make sure the voltage range before installing.
Video Cable
A BNC cable is used for connecting an EPTZ3100/EPTZ3100I to a DVR or a monitor. An amplifier may be needed if the video cable is too long.
RS485 Cable
Yellow wire represents RS485+, orange wire represents RS485-. Connect RS485 to EKB500 and you will be able to control the speed dome by a keyboard. If you are unable to control the speed dome with EKB500, it is probably due to a mis-connection. Please try to switch RS485 wires and connect again.
2.3. Initial Setup
Initial setup includes dome address, communication protocol, transmission speed, and
15
terminal resistance settings. All of the settings should be confirmed before the dome is installed. The control-related setting that is address, communication protocol and transmission speed have to be set consistently with the control device such as a keyboard or a DVR.
Notice: Please make sure the power is off before setting, and restart the
EPTZ3100/EPTZ3100I to enable a new value after changing.
2.3.1. Address Setting
The address code of the EPTZ3100/EPTZ3100I should be set to correspond properly with a control device to control multiple dome cameras. The address codes are made up by the dip switch on the camera main body. The 8 bits dip switch indicates the binary coded of the address, and there are 256 addresses can be selected (0 ~ 255). It also means that there are up to 256 dome cameras that can cascade on the RS-485 bus. The dip switch setting and the indicated address are represented in the following diagram.
Note: The factory default address is 1.
Notice: Please make sure the power is off before setting, and restart the
EPTZ3100/EPTZ3100I to enable a new value after changing.
16
ON
ON
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
ID address Protocol/Baud rate
Note: You will see the label of Protocol & Baud Rate as well as RS-485 ID address show on the speed dome. White part represents the switch key. For example: for EVF protocol, white keys are all switched downward; for ID Address 0, white keys are all switched downward.
17
Switch Address
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
Switch Address
Switch Address
Switch Address
Switch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
0 1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
18
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
96 97 98
99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191
19
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223
Switch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255
2.3.2. Communication Protocol Setting
The 1st, 2nd and 3rd bits are used to set communication protocol. The factory default protocol is EVF.
Notice: Please make sure the power is off before setting, and restart the EPTZ3100/EPTZ3100I to enable a new value after changing. Set all of protocol switches to ON; the speed dome EPTZ3100/EPTZ3100I will
enter a self-test mode.
2.3.3. Transmission Speed Setting (Baud Rate Setting)
The 4th and 5
th
bits on the PCB board are used to set the Baud Rate. The default baud rate
setting is 9600.
9600 BPS 4800 BPS 2400 BPS
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
Protocol
Baud Rate
Terminal Resistance
SW2
1 2 3 4 5 6 7 8
ON
Notice: Please make sure the power is off before setting, and restart the
1200 BPS
ON
1 2 3 4 5 6 7 8
EPTZ3100/EPTZ3100I to enable a new value after changing.
20
2.4. Bracket and Speed Dome Installation
2.4.1. Installation Requirements
1. Installation should be handled by a qualified service agent and should comply with all local regulations. Service personnel should expect potential problems such as surface strength, surface material, falling objects, outer breaches, building vibration or other similar conditions.
2. Check for all necessary materials, and ensure if the selected installation location is suitable for the EPTZ3100/EPTZ3100I.
Top housing
Main body
Bracket
Bracket base
ETPZ3100 overview
21
2.4.2. EPTZ3100 Dome Camera Wall Mount Simple Installation
1. Screw the top housing to bracket by using a hexagon wrench.
2. Put the waterproof silicon pad on top of the bracket base for waterproof purpose.
Waterproof silicon pad
Bracket base
22
3. Connect the cable you detached from base board to the RS485 cable, Power cable and
Video cable
Alarm cable
video cable you thread from the wall or ceiling. RS485 cable has to be connected via a terminal block. If you need to connect alarm cable, thread the alarm cable through the second hole. Note: Since video cable and power cable are bare wires, installers have to prepare their own BNC connector and power cord connector.
RS485 cable Power cable
4. Screw in 4 screws for mounting the bracket base.
23
5. Screw in 4 long screws to fix the bracket to bracket base.
24
2.4.3. EPTZ3100 Dome Camera Wall Mount Installation
Note: Installation location that is a wall, a pole or a ceiling needs to support above five
times the total weight of the camera assembly (about 16 kg) to avoid shaken images, and dropping.
1. Pull the hole of the base board to open it. Detach the power and RS485 wires first by using a screw driver.
Pull here to open
25
2. Apply the adhesive stripe at back of desiccant pack to the inner side of the top housing. There are totally 3 desiccant packs to be applied.
3. When all the desiccant packs are pasted and alarm cables are connected properly, put the base board back to its original place, you will need to pull open the switch in order to have the base board fitted to the top housing.
Pull open this switch
Note:
To close the base board, please push the base board twice consequently to lock it up.
26
4. Put the waterproof silicon pad on top of the base board for waterproof purpose.
Video cable
Alarm cable
Waterproof silicon pad
Base board
5. Connect the cable you detached from base board to the RS485 cable, Power cable and video cable you thread from the wall or ceiling. RS485 cable has to be connected via a terminal block. If you need to connect alarm cable, thread the alarm cable through the second hole. Note: Since video cable and power cable are bare wires, installers have to prepare their own BNC connector and power cord connector.
RS485 cable Power cable
27
6. Screw in 4 screws for mounting the bracket base.
7. Thread the cable through the bracket.
28
8. Screw the top housing to bracket by using a hexagon wrench.
9. Screw in 4 long screws to fix the bracket to bracket base.
29
10. Pull the hole of base board to open it again. Connect the power and RS485 wires back to power pin and RS485 pin. If you need to connect alarm, connect alarm cable to alarm pin.
11. Hold and push the main body toward the bracket until it is firmly fixed to the bracket. To release it, press orange buttons at both sides of the body.
30
Note 1:
When you push the orange buttons to detach the main body from bracket, please hold the main body carefully, otherwise it may fall down.
Note 2:
Aim the Arrow label of the main body to the same Arrow label of the bracket when you need to push the main body toward bracket.
12. Twist the cover of main body to top housing clockwise until it is firmly fixed to top housing.
31
Note 1: In order to protect the bubble from dirt and scrape, please put on the gloves
before installing the bubble.
Note 2: The camera module on the mechanical part is very sensitive. Please be careful
when installing this part.
13. Turn on the power, and start to operate the EPTZ3100.
Note: When turning on the power, EPTZ3100 will enter self-inspection mode, and carry out
a self-testing program. After finishing self-inspection, you can start to operate the EPTZ3100.
2.4.4. EPTZ3100 Dome Camera Ceiling Mount Installation
(Indoor Recessed Mount Bracket & Surface Ring) The indoor recessed mount bracket and surface ring are used for ceiling mount installation. Installation steps are described below:
1. Use the ceiling template provided to cut the ceiling.
Cut the ceiling
32
2. Screw the 3 screws of EPTZ top housing to the 3 holes of indoor recessed mount
bracket.
3. Put the indoor recessed mount bracket to the hole that you just made on ceiling.
4. Use a screwdriver to turn the rotation clips (x 3) until they firmly fix to the ceiling.
← rotation clip rotation clip →
33
5. Snap main body to the indoor recessed mount bracket.
NOTE:
Aim the Arrow label of the main body to the same Arrow label of the bracket when you need to push the main body toward bracket.
6. Turn the housing of speed dome until it fixes to the top housing.
34
7. Aim bracket’s fillister to surface ring’s fillister, turn it until it is firmly fixed.
35
2.5. Bracket and Adapter
2.5.1. Indoor Ceiling Pendent Mount Bracket
The indoor ceiling pendent mount bracket is used for installing a speed dome on the ceiling.
2.5.2. Pole Mount Adapter
The pole adapter is used for installing a wall mount bracket to a pole indoors or outdoors.
36
2.5.3. Corner Mount Adapter
The corner mount is used for installing a wall mount bracket to a 270° corner of walls indoors or outdoors.
2.5.4. Indoor Concrete Ceiling Mount Adapter
Indoor Concrete Ceiling Mount Adapter is used for indoor installation to concrete ceiling.
37
3. EPTZ3100/EPTZ3100I CAMERA SETUP MENU
In this section, setup and operation guide of EPTZ3100/EPTZ3100I will be introduced. There are 9 items of the setting menu.
3.1. Structure of the Setup Menu
Press MENU to enter camera setup menu. Turn the Joystick up/down to change subentries, and right/left to change the setting. If there is an arrow at the end of selection, it means that selection has a sub-menu, please press Enter key of keyboard to enter sub-menu.
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
(diagram 3.1)
38
3.2. VIDEO SETTINGS
In main menu, turn joystick Up / Down to select VIDEO SETTINGS. Turn joystick Left / Right to enter VIDEO SETTINGS sub-menu (see diagram 3.2).
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
EXPOSURE FOCUS MODE ONE PUSH
<┘
(diagram 3.2)
EXPOSURE FOCUS MODE ONE PUSH DIGITAL ZOOM OFF WHITE BALANCE OUTDOOR DAY/NIGHT AUTO DIG. NOISE REDUCE MIDDLE WIDE DYNAMIC RANGE OFF EXIT
<┘
DIGITAL ZOOM OFF WHITE BALANCE OUTDOOR DAY/NIGHT AUTO DIG. NOISE REDUCE MIDDLE WIDE DYNAMIC RANGE OFF EXIT
EL. SHUTTER AUTO SLOW SHUTTER AUTO X4 IRIS MODE AUTO AUTO GAIN CTRL MIDDLE EXIT
(diagram 3.3)
3.2.1. EXPOSURE
In Exposure menu, there is a sub-menu. Press Enter key or turn joystick Left / Right to enter Exposure sub-menu. There are 4 options in Exposure: EL. SHUTTER, SLOW SHUTTER, IRIS MODE, and AUTO GAIN CTRL.
39
EL.SHUTTER: Select electronic shutter mode from the options of the menu. There are
AUTO, A.FLK , 1/50, 1/160 , 1/250 , 1/1000 , 1/2500, 1/10000, 1/120,000, X2, X4, X6 and X8. AUTO: The AUTO electronic shutter mode is enabled. The shutter speed is controlled
automatically according to the brightness of the screen
A.FLK: Anti-Flicker. Camera will auto adjust the shutter to reduce the flicker caused by
fluorescent light. 1/60 (NTSC) and 1/50 (PAL): default auto shutter. 1/160: 1/160 sec shutter for NTSC and PAL 1/250: 1/250 sec shutter for NTSC and PAL 1/1000: 1/1000 sec shutter for NTSC and PAL 1/2500: 1/2500 sec shutter for NTSC and PAL 1/10000: 1/10000 sec shutter for NTSC and PAL 1/120000: 1/120000 sec shutter for NTSC and PAL
X2: Two times of the standard shutter. The standard shutter is 1/60 sec for NTSC and
1/50 sec for PAL X4: Four times of the standard shutter. X6: Six times of the standard shutter. X8: Eight times of the standard shutter.
SLOW SHUTTER: Slow electronic shutter. In order to enhance the view in the low lux
environment, slow shutter allows more light go through the shutter. Select from OFF, AUTO X4, AUTO X8, AUTO X12, AUTO X16, AUTO X32, AUTO X64, and AUTO X128. OFF: Disable Slow Shutter function. AUTO X4: The slow shutter is automatically adjusted by the camera and limited up to four times of the standard shutter. The standard shutter is 1/60 sec for NTSC and 1/50
40
sec for PAL. AUTO X8, AUTO X12, AUTO X16, AUTO X32, AUTO X64, and AUTO X128 work the same as AUTO X4 with different times of shutter speeds.
NOTE: If EL. SHUTTER is selected, SLOW SHUTTER will be disabled.
IRIS MODE: AUTO mode or MANUAL mode can be selected.
MANUAL: The brightness of the image can be adjusted. AUTO: The brightness of the image signal can be adjusted automatically depending on
the amount of light.
AUTO GAIN CTRL (AGC): When the brightness of the image taken under dark light is
under a certain level, the AGC functions to define whether to control the Gain automatically or not. Select one mode from OFF, LOW, MIDDLE, HIGH.
EXIT: Select Exit to save settings and exit from current page.
3.2.2. FOCUS MODE
In Focus mode, we define focus type from ONE PUSH, AUTO and Manual.
ONE PUSH: Enable the one push trigger focus mode. The focus lens holds the same
position until the next trigger command is received. This function prevents the wrong focus in dark.
AUTO: Auto focus is enabled. It automatically adjusts the focus position to maximize
the high frequency content of the picture in a center measurement area, taking into consideration the high luminance and strong contrast components.
41
MANUAL: Enable the manual focus mode.
3.2.3. DIGITAL ZOOM
Magnification of the digital zoom can be selected among OFF, 2X, 4X and 8X.
OFF: Disable the digital zoom function.
3.2.4. WHITE BALANCE
The white balance function corrects the abnormal white color into the normal white color under any color temperature lighting. White Balance has the following modes:
OUTDOOR: This mode is an automatic mode. It is recommended to use this mode in
an area under a broad color temperature.
INDOOR: This mode is an automatic mode. The camera balances the color
automatically depending on the source of the light from 1800 to 10500K. It is recommended to use this mode in an area under the limited color
temperature. ONE PUSH: One Push Auto White Balance Mode. MAN2000K: This mode is a manual mode. The color temperature will be fixed at
2000K. MAN3200K: This mode is a manual mode. The color temperature will be fixed at
3200K. MAN5100K: This mode is a manual mode. The color temperature will be fixed at
5100K.
3.2.5. DAY/NIGHT
In Day/Night, we define the ICR (IR Cut-Removable) mode settings. The camera is built-in an infrared (IR) Cut-Filter which can be disengaged from the image path for
42
increased sensitivity in low light environments. Select from AUTO, DAY and NIGHT
NIGHT: IR cut filter is always removed (ICR ON). DAY: IR cut filter is always attached (ICR OFF). AUTO: Auto Day/Night mode switch. The camera will automatically switch the settings needed for attaching or removing the IR cut filter. With a set level of darkness, the IR cut filter is automatically disabled (ICR ON), and the infrared sensitivity is increased. With a set level of brightness, the IR cut filter is automatically enabled (ICR OFF).
3.2.6. DIG. NOISE REDUCE
DIGITAL NOISE REDUCE (DNR) function reduces background noise under low light conditions differently in different modes. The noise reduction effect grows in OFF, LOW, MIDDLE and HIGH modes in order.
OFF: No noise reduction effect. LOW: Noise reduction effect is small but there is little afterimage. MIDDLE: Noise reduction effect is generally effective in this mode. Noise can be
reduced properly and the afterimage is not strong.
HIGH: Noise reduction effect is excellent but afterimage is also strong.
3.2.7. WIDE DYNAMIC RANGE
This function is effective when shooting images against the sun, or when shooting a very bright subject. When both, bright and dark areas exist, the objects of the two areas can be seen clearly. In Wide Dynamic Range, we define wide dynamic range from LOW, MIDDLE, HIGH and OFF. OFF: Disable wide dynamic range.
43
Notice: When the wide dynamic range is ON, some part of the image may appear solarized. This is normal for the wide dynamic range, and is not a camera malfunction.
3.2.8. EXIT
Select Exit to save settings and exit from current page.
44
3.3. POSITIONS
In main menu, turn joystick Up or Down to select POSITION option. Press Enter key or turn joystick Left / Right to enter POSITION sub-menu (see diagram 3.4).
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
SET POSITIONS <┘ FREEZE PICTURE OFF EXIT
(diagram 3.4)
Press Enter key of keyboard to enter SET POSITIONS sub-menu. Turn the joystick Left / Right to select preset position. There are totally 36 preset positions can be set in one page. Once the preset position is selected, there will be a star (*) sign beside preset number, then go to RETURN and turn the joystick Left / Right to exit from current page.
SET POSITIONS <┘ FREEZE PICTURE OFF EXIT
(diagram 3.5)
45
PRESET POSITION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
PREV PAGE/NEXT PAGE
RETURN
PRESET NO. 1 POSITION SET SPEED 100 DWELL TIME (S) 4 FOCUS MODE MANUAL WHITE BALANCE AUTO TITLE 1 DEFAULT ON RETURN
<┘
MOVE TO POSITION IRIS+: SAVE AND RETURN
(diagram 3.6)
POSITION: Select from SET and CLEAR.
SET: Select SET and press Enter key of keyboard, you will be entered to a sub-menu.
Turn the joystick to your desired position. Once the position is confirmed, press IRIS+ key of keyboard to save setting and return to previous menu. If position is set, there will be a star sign (*) beside position number.
Clear: Select Clear and press Enter key of keyboard, and the POSITION will be cleared.
You will automatically go back to the sub-menu of PRESET POSITION. Please see diagram 3.7.
PRESET POSITION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
PREV PAGE/NEXT PAGE
RETURN
(diagram 3.7)
46
SPEED: Select the speed for the preset position. The value is from 1 to 255 and 255 is
the highest speed.
DWELL TIME (S): Select the dwell time (in second) for the preset position from 1 to 99.
FOCUS MODE: Select focus mode for the preset position from MANUAL, ONE PUSH and
AUTO.
WHITE BALANCE: Select the white balance for the preset position from Auto, Indoor and outdoor.
TITLE: Enter title name for the preset position. Turn the joystick Up or Down to select the character. Turn the joystick Left or Right to select the character position. Once the title is inputted, turn the joystick to the last character and keep turning right again to return to previous mode.
DEFAULT: Select ON to set the preset position to default value.
FREEZE PICTURE: Speed dome will stop at the previous position until the next position is
reached.
ON: freeze picture OFF: disable freeze picture function.
EXIT: Select Exit to save settings and exit from current page.
47
3.4. OSD/AREAS
In main menu, turn joystick Up or Down to select OSD/AREAS. Turn joystick Left or Right to enter OSD/AREAS sub-menu (see diagram 3.8)
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
CAM. TITLE EPTZ3100__ AREAS
<┘
DIRECTIONS DISPLAY EXIT
<┘
<┘
(diagram 3.8)
3.4.1. CAM. TITLE
Enter title name for the camera. Turn the joystick Up or Down to select the character. Maximum 10 digits of character can be inputted. Turn the joystick Left or Right to select the character position. Once the title is inputted, turn the joystick to the last character and keep turning right again to return to previous mode.
3.4.2. AREAS
Press Enter key of keyboard or turn joystick Left/Right to enter AREAS sub-menu.
ZONE
CAM. TITLE EPTZ3100__ AREAS
<┘
DIRECTIONS DISPLAY EXIT
<┘
<┘
TITLE RANGE CLR
1. ---------------------------- --------<┘ [<┘]
2. ---------------------------- --------<┘ [<┘]
3. ---------------------------- --------<┘ [<┘]
4. ---------------------------- --------<┘ [<┘]
5. ---------------------------- --------<┘ [<┘]
6. ---------------------------- --------<┘ [<┘]
7. ---------------------------- --------<┘ [<┘]
8. ---------------------------- --------<┘ [<┘]
RETURN
(diagram 3.9)
48
In zone menu, you can set a zone and name it, when the speed dome turns to the zone you set, it will display zone name on the screen (only if “OSD/AREAS->Display -> Zone” is set as “YES”). Turn the joystick to Up/Down to select the character. Turn the joystick Left or Right to select the character position. Once the title is inputted, turn the joystick Left/Right to go “Range” section, and press Enter key to enter Range sub-menu. Use the joystick to move speed dome to its left position. Press IRIS+ key to save left position setting and go to next step or press IRIS- to cancel.
ZONE TITLE RANGE CLR
1. ---------------------------- --------<┘ [<┘]
2. ---------------------------- --------<┘ [<┘]
3. ---------------------------- --------<┘ [<┘]
4. ---------------------------- --------<┘ [<┘]
5. ---------------------------- --------<┘ [<┘]
6. ---------------------------- --------<┘ [<┘]
7. ---------------------------- --------<┘ [<┘]
8. ---------------------------- --------<┘ [<┘]
RETURN
ZONE1
MOVE TO LEFT POSITION IRIS+: SAVE AND NEXT STEP IRIS-: CANCEL
(diagram 3.10)
Use the joystick to move speed dome to its right position. Press IRIS+ or IRIS- key to save and return.
ZONE1
MOVE TO LEFT POSITION IRIS+: SAVE AND NEXT STEP IRIS-: CANCEL
ZONE1
MOVE TO RIGHT POSITION IRIS+/IRIS-: SAVE AND RETURN
(diagram 3.11)
49
Turn joystick Right/Left to highlight the zone you have set and turn the joystick Up/Down to select another zone number. If you wish to clear the zone you have set, go to “CLR” and press Enter key.
3.4.3. DIRECTIONS
Press Enter key of keyboard or turn joystick Left/Right to enter DIRECTIONS sub-menu (see diagram 3.12)
DIRECTIONS NORTH
CAM. TITLE EPTZ3100__ AREAS
<┘
DIRECTIONS DISPLAY EXIT
<┘
<┘
SET NORTH DEFAULT NORTH [PUSH ENT]
RETURN
<┘
(diagram 3.12)
Press Enter key of keyboard or turn joystick Left/Right to enter DIRECTIONS sub-menu (see diagram 3.13)
DIRECTIONS NORTH SET NORTH DEFAULT NORTH [PUSH ENT]
RETURN
<┘
MOVE TO POSITION IRIS+: SAVE AND RETURN
(diagram 3.13)
1. Press Enter key of keyboard or turn joystick Left/Right to enter Set North position menu.
2. Move the joystick to North position.
50
3. Press IRIS+ key of keyboard to save and return.
DIRECTIONS NORTH SET NORTH DEFAULT NORTH [PUSH ENT]
RETURN
(diagram 3.14)
<┘
4. Go to “DEFAULT NORTH” and press Enter key to set the north position as default north position.
5. Go to Return and turn joystick Left/Right to return to previous menu.
51
3.4.4. DISPLAY
Press Enter key of keyboard or turn joystick Left/Right to enter DISPLAY sub-menu (see diagram 3.15)
SHOW OSD ON CAMERA TITLE NO
CAM. TITLE EPTZ3100__ AREAS
<┘
DIRECTIONS DISPLAY EXIT
<┘
<┘
DIRECTIONS NO ZONES NO PRESET TITLE YES ZOOM NO FAN NO
(diagram 3.15)
MOTION NO CAMERA STATUS NO RETURN
1. SHOW OSD: ON: show OSD of Camera Title, Directions, Zones, Preset Title, Motion, Zoom, Fan and Camera Status. OFF: do not show OSD. 2 SEC: show OSD for 2 seconds. 5 SEC: show OSD for 5 seconds. 10 SEC: show OSD for 10 seconds.
2. CAMERA TITLE YES: show camera title NO: do not show camera title
3. DIRECTIONS
show directions
YES: NO: do not show directions
52
4. ZONES YES: show zones NO: do not show zones
5. PRESET TITLE YES: show preset title NO: do not show preset title
6. ZOOM YES: show zoom multiple when zoom in or zoom out. NO: do not show zoom multiple.
7. FAN YES: show fan indication when fan is enabled. NO: do not show fan indication.
8. MOTION YES: show motion message when a motion occurs. NO: do not show motion message when a motion occurs.
9. CAMERA STATUS YES: shows camera status NO: do not show camera status
10. RETURN Turn joystick Left/Right to return to previous menu
53
3.4.5. EXIT
Select Exit to save settings and exit from current page.
3.5. AUTO MODES
In main menu, turn joystick Up/Down to select AUTO MODES. Turn joystick Left/Right to enter AUTO MODES sub-menu (See diagram 3.16)
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
AUTOPAN PRESET TOURS PATTERN AUTO RESUME OFF RESUME TO POS.1(H) POWER UP FUNC PREV MODE AUTO FLIP ON EXIT
<┘
<┘
<┘
(diagram 3.16)
3.5.1. AUTOPAN
Press Enter key of keyboard or turn joystick Left/Right to enter AUTOPAN sub-menu (see diagram 3.17)
AUTOPAN PRESET TOURS PATTERN AUTO RESUME OFF RESUME TO POS.1(H) POWER UP FUNC PREV MODE AUTO FLIP ON EXIT
<┘
<┘
<┘
AUTOPAN ENDLESS MODE ON SPEED 32 DWELL TIME L (S) 4 DWELL TIME R (S) 4 SET LEFT POS. <┘ [EMPTY] SET RIGHT POS. DEFAULT ON RETURN
<┘
[EMPTY]
(diagram 3.17)
54
a. ENDLESS MODE
ON: enable endless mode. The speed dome will perform 360 degree endless
auto-pan.
OFF: disable endless mode. The speed dome will perform auto-pan between position
left and position right.
b. SPEED
Select speed from 1~255 and 255 is the highest speed.
c. DWELL TIME L (S) Select dwell time of the left position from 1~99 seconds.
d. DWELL TIME R (S) Select dwell time of the right position from 1~99 seconds
e. SET LEFT POS. Press Enter key or turn the joystick Left/Right to enter SET LEFT POS. menu. Turn the joystick to the position where you wish to set Left position. Press IRIS+ key of keyboard to save setting and return to previous menu. (see diagram 3.18)
55
AUTOPAN ENDLESS MODE ON SPEED 32 DWELL TIME L (S) 4 DWELL TIME R (S) 4 SET LEFT POS. <┘ SET RIGHT POS. DEFAULT ON IRIS-: RETURN
<┘
MOVE TO POSITION IRIS+: SAVE AND RETURN
(diagram 3.18)
f. SET RIGHT POS. Press Enter key or turn the joystick Left/Right to enter SET RIGHT POS. menu. Turn the joystick to the position where you wish to set RIGHT position. Press IRIS+ key of keyboard to save setting and return to previous menu. (see diagram 3.19)
Note: When Left/Right Position are set, the speed dome will patrol from left position to right position clockwise.
AUTOPAN ENDLESS MODE ON SPEED 32 DWELL TIME L (S) 4 DWELL TIME R (S) 4 SET LEFT POS. <┘ SET RIGHT POS. DEFAULT ON IRIS-: RETURN
<┘
(diagram 3.19)
MOVE TO POSITION IRIS+: SAVE AND RETURN
56
g. DEFAULT
ON: all settings in AUTOPAN menu will be returned to default values. OFF: the setting in AUTOPAN menu is not default value.
h. RETURN Turn joystick Left/Right to return to previous menu
3.5.2. PRESET TOURS
Press Enter key or turn the joystick Left/Right to enter PRESET TOURS sub-menu (see diagram 3.20)
TOUR NO. 1
AUTOPAN PRESET TOURS PATTERN AUTO RESUME OFF RESUME TO POS.1(H) POWER UP FUNC PREV MODE AUTO FLIP ON EXIT
<┘
<┘
<┘
POS DWELL SPEED 1 PRE1<┘ DEFAULT DEFAULT 2 PRE2<┘ DEFAULT DEFAULT 3 PRE3<┘ DEFAULT DEFAULT 4 PRE4<┘ DEFAULT DEFAULT 5 PRE5<┘ DEFAULT DEFAULT 6 PRE6<┘ DEFAULT DEFAULT 7 PRE7<┘ DEFAULT DEFAULT PREV PAGE/NEXT PAGE RETURN
(diagram 3.20)
a. Tour NO.: Turn the joystick Left/Right to select tour number first b. PRE: Turn the joystick Left/Right to select preset position. Press Enter key of
keyboard to go next setting. Max. 16 positions can be set for a tour.
c. DWELL: Turn the joystick Up/Down to set dwell time of the tour from 1~99 sec or
default.
d. SPEED: Turn the joystick Right after setting dwell time. Turn the joystick Up or Down
to select tour speed from 1 ~255 or default. Press Enter key when you finish Tour
57
setting of preset position.
e. PREV PAGE/NEXT PAGE: Turn the joystick Left to go previous page or turn joystick
Right to go next page.
f. RETURN: Turn joystick Left/Right to return to previous menu.
3.5.3. PATTERN
Press Enter key of keyboard to enter PATTERN sub-menu (see diagram 3.21)
AUTOPAN PRESET TOURS PATTERN AUTO RESUME OFF RESUME TO POS.1(H) POWER UP FUNC PREV MODE AUTO FLIP ON EXIT
<┘
<┘
<┘
(
diagram 3.21)
PATTERN SETUP PATTERN DURATION ACTION
PAT1 --- PLAY PAT2 --- PLAY PAT3 --- PLAY PAT4 --- PLAY
RETURN
<┘
<┘
<┘
<┘
a. Turn the joystick Up or Down to select pattern number. b. Turn the joystick Left or Right to select action mode, either PLAY, SET or CLEAR. c. Select SET and press Enter key of keyboard.
PATTERN SETUP PATTERN DURATION ACTION
PATTERN 1 RECORD MODE 90s REMAIN
PAT1 --- SET PAT2 --- PLAY PAT3 --- PLAY PAT4 --- PLAY
IRIS+: RETURN
IRIS+: SAVE AND RETURN IRIS-: CANCEL
(diagram 3.22)
58
d. Turn the joystick to record the tour you wish to set. Press IRIS+ when you finish
setting pattern tour. Press IRIS- if you wish to cancel this action. At duration column of PATTERN SETUP menu, you will see the duration time of pattern you set.
e. When you return to PATTERN SETUP menu, turn the joystick Left/Right to PLAY.
Press Enter key of keyboard. The camera starts to run the pattern tour you set. The camera keeps playing the pattern until you press IRIS- to cancel playing and it will return to PATTERN SETUP menu.
PATTERN SETUP PATTERN DURATION ACTION
PAT1 --- PLAY PAT2 --- PLAY PAT3 --- PLAY PAT4 --- PLAY
IRIS+: RETURN
PATTERN 1 PLAY MODE 1 90s REMAIN
IRIS-: CANCEL
(diagram 3.23)
f. RETURN: Turn joystick Left/Right to return to previous menu.
3.5.4. AUTO RESUME
Return to previous mode, if no action for a period. Turn the joystick Left/Right to set AUTO RESUME. Auto Resume is selectable from OFF, After 30 sec, After 1 min, after 5 min, After 10 min, After 30 min and After 60 min. After this period of time, speed dome will resume to the mode you set in “RESUME TO”. By selecting OFF, this function will be disabled.
3.5.5. RESUME TO
Turn the joystick Left/Right to select the mode to resume to. It is selectable from PREV
59
MODE, POS.1 (H), TOUR1, PAT.1 and AUTOPAN.
3.5.6. POWER UP FUNC
Turn the joystick Left or Right to select the mode to return to when power failure occurs.
It is selectable from PREV MODE, POS.1 (H), TOUR1, PAT.1, AUTOPAN and OFF
3.5.7. AUTO FLIP
Select ON to enable Auto Flip function or select OFF to disable Auto Flip.
3.5.8. EXIT
Exit from the current menu.
3.6. ALARM
In main menu, turn joystick Up or Down to select ALARM. Turn joystick Left or Right to enter ALARM sub-menu (see diagram 3.24)
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
ALARM INPUTS ALARM OUTPUTS MOTION DETECT EXIT
<┘
<┘
<┘
(diagram 3.24)
3.6.1. ALARM INPUTS
Press Enter key of keyboard to enter ALARM INPUTS sub-menu. (see diagram 3.25)
60
a. Go to INPUT NO. selection and turn the joystick Left/Right to select alarm input
number from 1 ~4.
b. Type: Select Normal Close (NC), Normal Open (NO), NIGHT NC, NIGHT NO, or OFF
for alarm type. NC: Enable a normal close alarm input. NO: Enable a normal open alarm input.
NIGHT NC: Set camera at night mode with normal close alarm input. When there is
event triggered, the camera will be changed to day mode.
NIGHT NO: Set camera at night mode with normal open alarm input. When there is
event triggered, the camera will be changed to day mode.
OFF: Disable alarm input.
ALARM INPUTS ALARM OUTPUTS MOTION DETECT EXIT
<┘
<┘
<┘
ALARM INPUTS
INPUT NO. 1 TYPE NO REACTION POSITION<┘ 1 DURATION TIMEOUT<┘ 5 PRIORITY 1234
RETURN
(diagram 3.25)
c. REACTION: The action will be taken when alarm is triggered. OFF: No reaction will be taken when alarm is triggered. POSITION: When the alarm is triggered, speed dome will go to the preset position. Turn the joystick Left or Right to select on Position and press Enter key to select position number. Turn joystick Left/Right to make selection. It is selectable from 1~192. Press Enter key again to confirm selection.
61
PATTERN: When the alarm is triggered, speed dome will run the pattern. Turn the joystick Left/Right to select on Pattern and press Enter key to select pattern number. Turn joystick Left/Right to make selection. It is selectable from1~4. Press Enter key again to confirm selection. TOUR: When the alarm is triggered, speed dome will run the tour. Turn the joystick Left or Right to select on Tour and press Enter key to select tour number. Turn joystick Left or Right to make selection. It is selectable from1~16. Press Enter key again to confirm selection.
d. DURATION: Duration of alarm input. TIMEOUT: Turn the joystick Left or Right to select on TIMEOUT and press Enter key to select time-out. Time-out is selectable from 1~99. Press Enter key again to confirm selection. LATCHED: Turn the joystick Left or Right to select on LATCHED. The alarm output will not stop until there is any operation on keyboard
.
TRANSPARENT: Turn the joystick Left or Right to select on TRANSPARENT. The alarm output will not stop until the alarm is stopped.
e. PRIORITY: Turn the joystick Left or Right to select alarm input priority, it is selectable from 1234/2341/3412/4123.
f. RETURN: Turn joystick Left/Right to return to previous menu.
62
3.6.2. ALARM OUTPUTS
Press Enter key of keyboard to enter ALARM OUTPUTS sub-menu. (see diagram 3.26)
ALARM INPUTS ALARM OUTPUTS MOTION DETECT EXIT
<┘
<┘
<┘
(diagram 3.26)
a. OUTPUT NUM: Select Output number from 1~2.
ALARM OUTPUT TRIGGER
OUTPUT NO 1 INPUT1 YES INPUT2 YES INPUT3 YES INPUT4 YES MOTION NO SYSTEM ERROR NO REMOTE NO RETURN
b. INPUT1: Select YES to enable Alarm input 1 for the alarm output selected. Select NO
to disable Alarm input 1.
c. INPUT2: Select YES to enable Alarm input 2 for the alarm output selected. Select NO
to disable Alarm input 2.
d. INPUT3: Select YES to enable Alarm input 3 for the alarm output selected. Select NO
to disable Alarm input 3.
e. INPUT4: Select YES to enable Alarm input 4 for the alarm output selected. Select NO
to disable Alarm input 4.
f. MOTION: Select YES to have alarm output triggered when a motion event is detected.
Select NO to disable this function.
g. SYSTEM ERROR: Select YES to have alarm output triggered when system error
occurs. Select NO to disable this function.
h. REMOTE: Select YES to have alarm output triggered when RS485 failure occurs.
63
Select NO to disable this function.
i. RETURN: RETURN to the previous menu.
3.6.3. MOTION DETECT
Press Enter key of keyboard to enter MOTION DETECT sub-menu. (see diagram 3.27)
ALARM INPUTS ALARM OUTPUTS MOTION DETECT EXIT
<┘
<┘
<┘
MOTION DETECT 1 OFF SENSITIVITY 50 EXIT
(diagram 3.27)
a. Turn the joystick Left or Right to select ON for motion detection. A window as below pops up.
MOTION DETECT INFO M1: 67 M2: 87
(diagram 3.28)
b. SENSITIVITY: select motion detection sensitivity level from 1~100.
3.6.4. EXIT
Exit from the current menu.
64
3.7. PRIVATE ZONES
In main menu, turn joystick Up/Down to select PRIVATE ZONES masking. Turn joystick Left/Right to enter PRIVATE ZONE sub-menu (see diagram 3.29)
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
(
diagram 3.29)
PRIVATE ZONE 1 ON PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF ZONE COLOR BLACK EXIT
<┘
a. ON: Turn joystick Left/Right to select ON/OFF. For private zone ON, press Enter key to
enter private zone position.
b. Turn the joystick and move to position (azimuth) of private zone. Press IRIS+ or IRIS-
key to set private zone size.
PRIVATE ZONE 1 SIZE
SET ZONE SIZE IRIS-: JOYSTICK FOR PTZ IRIS+: SAVE AND RETURN
PRIVATE ZONE 1 POSITION
MOVE TO POSITION IRIS+/IRIS-: JOYSTICK FOR SET SIZE
(diagram 3.30)
65
c. Select the area to be covered first. Turn joystick Left/Right to adjust width of the private
zone area. Turn joystick Up or Down to adjust height of the private zone area. Press IRIS- key to set private zone position. Press IRIS+ to save and return to previous menu.
PRIVATE ZONE 1 ON PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF PRIVATE ZONE 1 OFF ZONE COLOR BLACK EXIT
<┘
(diagram 3.31)
d. Zone color: select private zone area color.
PRIVATE ZONE 1 SIZE
SET ZONE SIZE IRIS-: JOYSTICK FOR PTZ IRIS+: SAVE AND RETURN
e. Exit: exit from current menu.
66
3.8. SYSTEM
In main menu, turn joystick Up/Down to select SYSTEM. Turn joystick Left/Right to enter SYSTEM sub-menu (see diagram 3.32)
VIDEO SETTINGS POSITIONS OSD/AREAS AUTO MODES ALARM PRIVATE ZONES SYSTEM INFO EXIT
AUTO INIT OFF LANGUAGE ENGLISH PASSWORD LOAD DEFAULT [PUSH ENT] RESTART [PUSH ENT] EXIT
<┘
(diagram 3.32)
a. AUTO INIT: Select auto initiation time from OFF, DAILY, WEEKLY. Speed dome will
automatically initiate and return to the previous position by maintaining all the settings
you have done. b. LANGUAGE: Select language. The current version only supports English version. c. PASSWORD: Press Enter key or turn joystick Left/Right to enter password sub-menu.
AUTO INIT OFF LANGUAGE ENGLISH PASSWORD LOAD DEFAULT [PUSH ENT] RESTART [PUSH ENT] EXIT
<┘
(diagram 3.33)
PASSWORD PASSWORD ACTIVE NO ENTER PASSWORD XXXX VERIFY PASSWORD XXXX
SAVE AND RETURN
RETURN
67
PASSWORD ACTIVE: Select YES to activate password mode. Select NO to disable password mode. ENTER PASSWORD: Enter the password VERIFY PASSWORD: Enter the password again to confirm your input. Press IRIS+ key to save and return to previous menu. Press IRIS- key to cancel. SAVE AND RETURN: Turn joystick Left/Right to save the changes and return to previous menu. RETURN: Turn joystick Left/Right to return to previous menu without saving changes. d. LOAD DEFAULT: Press Enter key to load default values, all values will return to factory
default value. e. Restart: Press Enter key to restart the speed dome. f. EXIT: Exit from current menu.
3.9. INFO
In main menu, turn joystick Up or Down to select INFO. Turn joystick Left or Right to enter INFO sub-menu (see diagram 3.34)
EPTZ31 series VERSION: V1.0.0 PROTOCOL: AUTO BAUDRATE: 9600 RS-485-ID: 001
PRESET-CNT: 0000000000 X-CONT: 0000000001 Y-CONT: 0000000004 IRIS+: RETURN
(diagram 3.34)
a. VERSION: shows firmware version of this speed dome b. PROTOCOL: shows protocol of this speed dome
68
c. BAUDRATE: shows baud rate of this speed dome d. RS-485-ID: shows RS-485 ID of this speed dome e. PRESET-CNT: Preset counter. This counter counts the preset movement, and 1 is
counted when the speed dome runs to preset position. f. X-CONT: X-axis counter. This counter counts the x axis movement, and 1 is counted
when the speed dome pans 360°. g. Y-CONT: Y-axis counter. This counter counts the y axis movement, and 1 is counted
when the speed dome tilts 180°. h. Press IRIS+ key to return to previous menu.
3.10. EXIT
Exit from the current menu.
69
4. EPTZ3100/3100I FUNCTION SETUP AND OPERATION
4.1. Manual Control Mode
Manual control: Shift Joystick Up/Down/Left/Right, and turn it
Clockwise/Counterclockwise to control speed dome. Use the control keys which are Zoom, Focus and IRIS function keys on the keyboard to Zoom In/Out, focus N (near)/F (Far), or IRIS +/-. Note: Zoom In/Out control keys will be disabled when entering to OSD menu mode.
HOME Mode: The camera view will go back to the home position when there is no
keyboard operation in a specific time. The home position and the specific time can be set by pressing Set + Home. If you set the time to 0 minute, then the camera will go back to home if there is no keyboard operation in 5 seconds. This is the minimum no action time for HOME mode. Note: If "HOME" function is enabled, dome will go to home immediately after powering on.
4.2. Auto Pan Mode
Two point auto pan: Press A.Pan to enter the auto pan mode, and then the system
will ask you to enter the auto pan speed (1~239). Press Enter to start auto pan.
In order to set the two points, press Set + A.Pan, and then enter the dwell time
(1~127 seconds) of each point. EPTZ3100 begins to pan from point A to point B clockwise.
360° auto pan: Press Shift + A.Pan to enter the 360° auto pan. System will ask you
to enter 360° auto pan speed (1~239). The camera will turn 360° automatically, but not tilt.
70
4.3. Position Setting
Focus on a preset position: Press the number key, and then press Position to
focus on the number of preset position; or you can press Position, then enter the preset position number, and then press Enter to focus on the number of preset position.
Preset a position: Shift the Joystick to the position you would like to preset, and
then press Shift + Position. The system will ask you to enter the preset position number (1~192), and then press Enter to save the position. There are up to 192 positions can be preset. Three specific preset positions can be set as follows: 92 => Set Left Limit Stop (A position) 93 => Set Right Limit Stop (B position) 95 => Enter Menu mode (Use keyboard control keys to control OSD items; Focus F. to go downward, Focus N. to go upward. IRIS + go to previous setting and IRIS – to exit). You can directly go to the following specific preset positions: 33 => Rotation of 180 degree 34 => Go to Home position (if Home Position is set by EVF Keyboard) 90 => Run tour (one-way) 91 => Run Pattern 94 => Initial 96 => Stop Scan 97 => Start running tour 1 98 => Frame scan (60 degree / step) Default speed is 32. It can be changed by EVF Keyboard (Shift + A.Pan setting
71
speed. Dwell time: default is 2 sec; It can be changed by EVF Keyboard Set + A.Pan setting dwell time of A pos or B pos. 99 => Auto scan (360 degree) Default speed is 32. It can be changed by EVF Keyboard (Shift + A.Pan setting speed).
We can even set camera’s ICR Day/Night function with RS-485 command via keyboard. How to do this? Press Position + 88 to link to Day mode or Position + 89 to link to Night mode, “ICR AUTO” message will be shown on the right-bottom part of the screen. If OSD Day/Night ICR mode is “AUTO”, it cannot be controlled by preset position setting.
Set the parameter of a preset position: Press Set + Position to set the parameter
of a preset position. You can set the going-to speed (1~239), dwell time (1~239 seconds), and the title of the position. Shift the joystick Right/Left to change bits, and shift the Joystick Up/Down to change the alphanumeric characteristic. The available alphanumeric characteristics are 0~9, A~Z, &, ?, !, :, ‘, ., ,, /, -, and a space.
Delete a preset position: Press Clr + Position to delete a preset position. The
system will ask you to enter the position number that you would like to delete, and then press Enter.
4.4. Tour Mode
In the tour mode, you can set a tour for viewing. There are 16 tours can be set, and 16 preset positions in a tour.
72
One-way tour Mode: Press Tour to enter the tour mode. The system will ask you to
enter the tour number you would like to run, and starts the tour after pressing Enter. To preset a tour before running is necessary. Preset a one-way tour: Press Set + Tour to preset a one-way tour. The system will ask you to enter preset position numbers (The positions need to be preset). After finish entering all positions, press Stop to quit, and then press Enter to save the tour.
To-and-fro tour mode: Press Shift + Tour to run a to-and-fro tour. The system will
ask you to enter the tour number you would like to run, and starts the tour after pressing Enter. To preset a tour before running it is necessary.
Note 1: The difference between the One-way tour mode and To-and-fro tour mode is that the return modes are different. For example: There is a tour with 3 preset positions 1, 2 and 3. The camera runs 1→2→3→1→2→3 in the One-way tour mode, and 1→2→3→2→1 in the To-and-fro tour mode. Note 2: You could set a pattern tour. Press Set + Tour, and input 0, press Enter. Sway the joystick to record the entire tour. Press Stop to stop recording tour. To view this pattern tour, simply press Tour, and input tour number 0.
4.5. Alarm Link to a Position/Tour
EPTZ3100/EPTZ3100I have 4 alarm inputs that can be set to link to a position or a tour when an alarm is triggered.
Set an alarm link:
Press F1 to set an alarm link. Enter the alarm number, and then press Enter. Switch the Joystick up/down to select a position or a tour, enter a position or tour number, and then press Enter to confirm the alarm link setting.
73
If you set the position number to 99, the dome will do a 360 degree auto scan or AB two point pan if limit is ON. If you set the position number to 98, the dome will do a frame scan.
Delete an alarm link:
Press Clr + F1 to delete a link of alarm to position/tour.
Note 1: After alarm output signal is terminated, the speed dome will resume action or return to its original position.
Note 2: After powering on the speed dome, it will detect alarm status automatically.
4.6. Other Operations
The EPTZ3100/EPTZ3100I can work with a DVR that has PTZ control functions, and a matching protocol. The available control functions depend on different DVRs. The EPTZ3100/EPTZ3100I can work with a keyboard that has PTZ control functions, and a matching protocol. The available control functions depend on different keyboards.
74
Your EverFocus produc
t is designed and
Ihr Ever
Focus Produkt wurde entwickelt und
EverFocus Electronics Corp.
Head Office:
12F, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chih, Taipei, Taiwan TEL: +886-2-26982334 FAX: +886-2-26982380 www.everfocus.com.tw
USA L.A. Office:
1801 Highland Ave. Unit A Duarte, CA 91010, U.S.A. TEL: +1-626-844-8888 FAX: +1-626-844-8838 www.everfocus.com
Europe Office:
Albert-Einstein-Strasse 1 D-46446 Emmerich, Germany TEL: +49 FAX: +49(0)-2822-9394-95 www.everfocus.de
China Office: Room B-05D-1, KESHI PLAZA,
Shangdi Information Industry Base, Haidian District, Beijing China
100085 TEL: +86-10-62973336/37/38/39
FAX: +86-10-62971423 www.everfocus.com.cn
(0)-2822-9394-0
USA N.Y. Office:
415 Oser Avenue Unit S Hauppauge, NY 11788 TEL: +1-631-436-5070 FAX: +1-631-436-5027 www.everfocus.com
manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!
Japan Office: 1809 WBG MARIBU East 18F,
2-6 Nakase.Mihama-ku. Chiba city 261-7118, Japan TEL: +81-43-212-8188 FAX: +81-43-297-0081 www.everfocus.co.jp
hergestellt mit qualitativ hochwertigen Materialien und Komponenten, die recycelt und wieder verwendet werden können. Dieses Symbol bedeutet, dass elektrische und elektronische Geräte am Ende ihrer Nutzungsdauer vom Hausmüll getrennt entsorgt werden sollen. Bitte entsorgen Sie dieses Gerät bei Ihrer örtlichen kommunalen Sammelstelle oder im Recycling Centre. Helfen Sie uns bitte, die Umwelt zu erhalten, in der wir leben
!
75
P/N: MW01G02400_Ver.A
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
