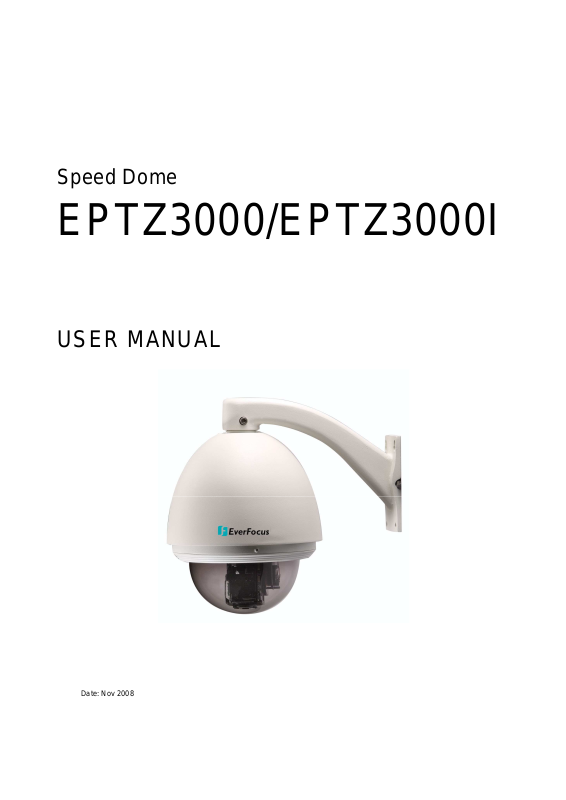

Page 1
Speed Dome
EPTZ3000/EPTZ3000I
USER MANUAL
Date: Nov 2008
Page 2
Table of Contents
1. EPTZ3000/EPTZ3000I OVERVIEW.................................................... 1-3
1.1. Introduction .............................................................................................1-3
1.2. Specifications..........................................................................................1-5
1.3. Feature .....................................................................................................1-7
1.3.1. Profile of EPTZ3000/EPTZ3000I........................................................1-7
1.3.2. EPTZ3000/EPTZ3000I Base Board ...................................................1-8
1.3.3. EPTZ3000/EPTZ3000I Control Board................................................1-9
1.4. EPTZ3000/EPTZ3000I Connection .......................................................1-10
1.5. EPTZ3000/EPTZ3000I Quick Operation Guide (Work with EKB500) .1-11
2. EPTZ3000/EPTZ3000I INSTALLATION........................................... 2-12
2.1. Packing List...........................................................................................2-12
2.2. Cable Needed.........................................................................................2-12
2.3. Initial Setup............................................................................................2-13
2.3.1. Address Setting................................................................................2-14
2.3.2. Communication Protocol Setting......................................................2-17
2.3.3. Transmission Speed Setting (Baud Rate Setting) ............................2-17
2.4. Rack and Speed Dome Installation......................................................2-19
2.4.1. Installation Requirements.................................................................2-19
2.4.2. EPTZ3000 Dome Camera Wall Mount Installation...........................2-19
2.4.3. EPTZ3000I Dome Camera Installation.............................................2-22
2.5. Accessories...........................................................................................2-25
2.5.1. EPTZ-CPMA: Ceiling Pendant Mount Adapter.................................2-25
2.5.2. EPTZ-PMA: Pole Mount Adapter......................................................2-25
2.5.3. EPTZ- CMA: Corner Mount Adapter.................................................2-25
1-1
Page 3
3. EPTZ3000/EPTZ3000I CAMERA SETUP MENU............................. 3-27
3.1. Structure of the Setup Menu ................................................................3-27
3.1.1. Camera Setup Menu........................................................................3-28
4. EPTZ3000/3000I FUNCTION SETUP AND OPERATION ................ 4-36
4.1. Manual Control Mode............................................................................4-36
4.2. Auto Pan Mode ......................................................................................4-36
4.3. Position Setting.....................................................................................4-37
4.4. Tour Mode ..............................................................................................4-38
4.5. Alarm Link to a Position/Tour...............................................................4-39
4.6. Other operations ...................................................................................4-40
APPENDIX : The Alarm I/O Connection............................................... 4-41
1-2
Page 4
1. EPTZ3000/EPTZ3000I OVERVIEW
1.1. Introduction
EPTZ3000/EPTZ3000I, an intelligent high-speed dome camera is ready to secure
your property with its omni-directional and exact monitoring. A 30X optical and 8X
digital zoom combining with a high-performance chip makes captured images clear
and vivid. The other powerful camera functions EPTZ3000/EPTZ3000I equips with:
Wide Dynamic makes objects clear in a high illumination background.
Vertical double density interline CCD with a slower shutter and true
Day/Night function.
Electronics flip, no mechanical flip is necessary.
520 color/570 B&W TVL; PAL/NTSC image formats support.
Auto and fast focus increases the searching speed and precision.
Auto Iris adjusts the monitoring image to the best brightness.
White Balance function makes the shades of color more natural in different
light conditions.
Color / B&W images auto switching to enhance the sensitivity in a low light
condition or at night.
Private zone protects your privacy.
1-3
Page 5
Furthermore, the micro control unit enables camera a nimble and exact movement
from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1
second. It also has other advantages such as:
192 preset positions are available.
16 cruise tours can be set, and each tour contains up to 16 positions.
Up to 256 speed domes can be supported on a RS-485 bus when all speed
domes are controlled by keyboard EKB500.
Auto heater and fan to fit all kinds of temperature (outdoor models).
Built-in 4 alarm inputs and 1 alarm output.
All of the features make the intelligent high-speed dome camera works for a wide
range and demanding application such as banks, airports, stations, casinos, streets
of cities, intelligent buildings, and etc.
1-4
Page 6
1.2. Specifications
Model EPTZ3000 (outdoor) EPTZ3000I (indoor)
Pickup Device 1/4'' Vertical double density interline CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec
Picture Elements 768 x 494 ( NTSC ) , 752 x 582 ( PAL )
Horizontal Resolution 520 TVL:Color ; 570TVL:B/W
Sensitivity 0.3 Lux/F=1.6 Color ; 0.05 Lux/F=1.6 B/W
S/N Ratio Over 52dB
Electronic Shutter 128x (Slow Shutter ON)~1/60~1/120,000 sec (NTSC)
128x (Slow Shutter ON)~1/50~1/120,000 sec (PAL)
Digital Slow Shutter OFF/4x/8x/12x/16x/32x/64x/128x selectable
Shutter Selection AUTO/A.FLK/Manual (x8~1/120000) selectable
Lens Type 30x optical zoom , f=3.3 mm (wide) to 99mm (tele) , F1.6 to F3.2
Zoom Ratio 240x max ( 30x Optical and 8x Digital Zoom )
True Day/Night Auto/Manual ICR
Black Light Comp. No
Auto Gain Control Auto/Manual
White Balance Auto Indoor/Auto Outdoor/One push/Man 2000K,3200K,5100K
selectable
Video Output BNC 1.0Vp-p , 75ohm
Sync. Mode Line Lock/Internal Sync
Power Source 24VAC
Power Consumption 24VAC 18W Max. ( without
24VAC 18W Max.
heater ) 18W
24VAC 66W Max. ( with heater )
70W
Operating Temperature -40°C~50°C ; -40°F~122°F 0°C~ 50°C ; 32°F~122°F
Focus Control One push/Auto/Manual
Horizontal Rotation Speed
Horizontal Rotation Range
0.1°/s~360°/s (1-239 grade shift gears)
360° unlimited rotation
Tilt Rotation Range 180° pendulum motion
Auto Zoom Speed Control Control speed auto-adjusted according to zoom length changing
Auto Pan, 2 Points
Can set freely
Scanning
Auto Pan Speed 1~239 grades available
1-5
Page 7
Dwell Time (2 points) 1~127 seconds available
Preset Positions 128 positions
Running to Position Speed
Dwell Time at Preset
1~239 grades available
1~239 seconds available
Position
Tour 16 groups
Tour Point per Group 16 preset positions
Fan & Heater Fan & Heater auto starts No
Position Accuracy
±0.1°
Alarm 4 in 1 out with tour/position auto triggering
Built-in Menu for
Yes
Functions
Communication RS-485
Communication Speed 1200/2400/4800/9600 bps
Built-in Protocols EVF-1 ; Pelco-P ; Pelco-D ; A –type ; Plus-D
Address Editable Yes (through DIP switch)
Speed Dome Address 0-255
Manual Pan/Tilt Speed Pan: 0.01º ~ 360º/s ; Tilt: 0.01º ~ 360º/s
Weatherproof Ratings IP66 Indoor
Safety CE ; FCC
Dimensions 330mm(W) x 365mm(H) x
220mm(O.D) /
13"(W) x 14.4" (H) x 8.7"(O.D)
208mm(W) x 215mm(H) x
208mm(O.D) /
8.7"(W) x 12.2" (H) x 8.7"(O.D)
Weight 4.2kg/9.25lbs 2.15kg/4.8lbs
1-6
Page 8
1.3. Feature
EPTZ3000I
EPTZ3000
1.3.1. Profile of EPTZ3000/EPTZ3000I
M5 Bolt (Hex) x3
Base PCB board
Control board
Wall Mount Bracket
Housing
Inner Housing
M3 Bolt x3
Bulb
Base PCB board
Control board
Connection Bus
Power Cable
BNC Cable
RS485 Cable
Mechanical Part
Camera Module
Power Cable
BNC Cable
RS485 Cable
Housing
Clip
Ceiling
Button
Bulb
Connection Bus
Mechanical Part
Camera Module
1-7
Page 9
1.3.2. EPTZ3000/EPTZ3000I Base Board
The base board that is on the bottom of the housing connects to power cable, video cable,
control cable, alarm cable, fan and heater. In order to connect to cables, the board needs
to be taken off, and put back after finishing connecting to all cables. The connectors of
cable names are marked on the board in white text. The details of the alarm connector
(JP5) are shown on the APPENDIX A.
For EPTZ3000 outdoor model, JP1, JP3 and JP6 that are two-pin connectors need to be
taken off during installing. JP1 and JP3 are connectors for heater, and they can be
switched. JP6 is a fan controller connector that turns on/off of the fan. The 3 cables are too
short to be connected to a wrong connector when putting them back.
RELAY
JP5
Video +
Video RS485 +
RS485 -
AC24
AC24
JP3 JP1
EPTZ3000 Baseboard
RELAY
Video +
JP5
JP4
JP6
Video -
RS485 +
RS485 -
AC24
AC24
EPTZ3000I Baseboard
1-8
Page 10
1.3.3. EPTZ3000/EPTZ3000I Control Board
The PCB board with two dipswitches is the control board of EPTZ3000/EPTZ3000I. The
two switches are used to set address, protocol, Baud Rate, video format and terminal
resistance.
CPU
ON
1 2 3 4 5 6 7 8
SW1
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
SW2
1 2 3 4 5 6 7 8
ON
Protocol
BAUD
1-9
Page 11
1.4. EPTZ3000/EPTZ3000I Connection
Ω
Video Out
RS485 Tx(+)
RS485 Tx(-)
Adapter
Alarm 1
Alarm 2
Alarm 3
Alarm 4
24V AC110V AC
POWER
24V AC / 3.5 A
BNC
1.0Vpp ± 0.2V, 75
RS485 Control Line
EPTZ3000/
EPTZ3000I
4 ALARM INPUTS
GROUND
ALARM OUTPUTS
N.C.
N.O.
COM
1-10
Page 12
1.5. EPTZ3000/EPTZ3000I Quick Operation Guide (Work with EKB500)
EPTZ3000/EPTZ3000I and EKB500 (Keyboard) can work together by using factory
default setting. You just need to connect cables by the following steps:
1. Connect the RS-485 cable to EPTZ3000/EPTZ3000I and a keyboard (EKB500).
2. Connect a video cable from EPTZ3000/EPTZ3000I to a monitor.
3. Connect the power to the EPTZ3000/EPTZ3000I and a keyboard (EKB500).
After the EPTZ3000/EPTZ3000I finishes the self-test mode, you can start to operate
the EPTZ3000/EPTZ3000I via the keyboard.
To operate the EPTZ3000/EPTZ3000I:
UP
IRIS+FocusF.Zoom
In
- N. Out
1. Shift the Joystick up/down or right/left to view from camera.
2. Turn the top of the Joystick to zoom in/out.
3. Press Zoom In/Out, Focus F. /N. and IRIS +/- function keys to operate the
EPTZ3000/EPTZ3000I.
Zoom INZoom OUT
LEFT RIGHT
DOWN
1-11
Page 13
2. EPTZ3000/EPTZ3000I INSTALLATION
2.1. Packing List
There are 3 boxes that are housing, bulb and mechanical part with a camera module, one
wall mount bracket, one power adapter and one tool packet in the package. The detail
accessories list below:
Housing x1
Bulb x1
Mechanical part with a camera module x1
Wall mount bracket x1
Adapter x1
Tool packet
Glove x2
M5 Hex Allen wrench x1
Pin connector x1
M5 screw (Hex) x3 for wall mount bracket fixing
M3 screw x3 for bulb fixing
2.2. Cable Needed
Power Cable
An adapter with 24V AC/3.5A output provides the power to the EPTZ3000/EPTZ3000I. An
extension power line may be needed.
Note: The input AC voltage range of an adapter depends on different area.
Please make sure the voltage range before installing.
2-12
Page 14
Video Cable
A BNC cable is used for connecting an EPTZ3000/EPTZ3000I to a DVR or a monitor. An
amplifier may be needed if the video cable is too long.
Control Cable
Basically, EPTZ3000/EPTZ3000I uses a differential pair to connect to other devices by
cascading. A cable that has low signal decline can be used as a control cable.
Alarm Cable
An alarm cable is not included in the packing list. A suitable wire that has low signal
decline can be used as an alarm cable.
2.3. Initial Setup
Initial setup includes dome address, communication protocol, transmission speed, video
format, and terminal resistance settings. All of the settings should be confirmed before the
dome is installed. The control-related setting that is address, communication protocol and
transmission speed have to be set consistently with the control device such as a keyboard
or a DVR.
Notice: Please make sure the power is off before setting, and restart the
EPTZ3000/EPTZ3000I to enable a new value after changing.
2-13
Page 15
2.3.1. Address Setting
The address code of the EPTZ3000/EPTZ3000I should be set to correspond properly
with a control device to control multiple dome cameras. The address codes are made
up by the dipswitch SW1 (8 bits) on the PCB board. The 8 bits dipswitch indicates the
binary coded of the address, and there are 256 addresses can be selected (0 ~ 255, 28
= 256). It also means that there are up to 256 dome cameras that can cascade on the
RS-485 bus. The dipswitch setting and the indicated address are represented in the
following chart.
Note: The factory default address is 1.
Notice: Please make sure the power is off before setting, and restart the
EPTZ3000/EPTZ3000I to enable a new value after changing.
CPU
ON
1 2 3 4 5 6 7 8
SW1
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
SW2
1 2 3 4 5 6 7 8
ON
Protocol
BAUD
2-14
Page 16
Switch Address
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
Switch Address
Switch Address
Switch Address
Switch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
1
2
3
4
5
6
7
8
9
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
2-15
Page 17
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
Switch Address
Switch Address
Switch Address
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
2-16
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
Page 18
2.3.2. Communication Protocol Setting
The 1st, 2nd and 3rd bits of the SW2 are used to set communication protocol. The factory
default protocol is EVF.
Protocol
Baud Rate
Terminal
Resistance
SW2
1 2 3 4 5 6 7 8
EVF
ON
ON
1 2 3 4 5 6 7 8
AUTO
1 2 3 4 5 6 7 8
ON
PELCO-D
PLUS-D
ON
1 2 3 4 5 6 7 8
PELCO-P
ON
1 2 3 4 5 6 7 8
A-TYPE
1 2 3 4 5 6 7 8
Notice: Please make sure the power is off before setting, and restart the
EPTZ3000/EPTZ3000I to enable a new value after changing.
Set all of protocol switches to ON; the speed EPTZ3000/EPTZ3000I will enter a
self-test mode.
ON
2.3.3. Transmission Speed Setting (Baud Rate Setting)
The 4th and 5
th
bits of the SW2 on the PCB board are used to set the Baud Rate. The
default baud rate setting is 9600.
9600 BPS 4800 BPS 2400 BPS
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
Protocol
Baud Rate
Terminal
Resistance
SW2
1 2 3 4 5 6 7 8
ON
1200 BPS
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
2-17
Page 19
Notice: Please make sure the power is off before setting, and restart the
EPTZ3000/EPTZ3000I to enable a new value after changing.
2-18
Page 20
2.4. Rack and Speed Dome Installation
2.4.1. Installation Requirements
1. Installation should be handled by a qualified service agent and should comply with
all local regulations. Service personnel should expect potential problems such as
surface strength, surface material, falling objects, outer breaches, building vibration
or other similar conditions.
2. Check for all necessary materials, and ensure if the selected installation location is
suitable for the EPTZ3000/EPTZ3000I.
2.4.2. EPTZ3000 Dome Camera Wall Mount Installation
Note: Installation location that is a wall, a pole or a ceiling needs to support above five
times the total weight of the camera assembly (about 16 kg) to avoid shaken images, and
dropping.
1. Set wall mount bracket on the wall. Mark the center of the holes on the wall against
the bracket holes. Use a drill to make 4 holes that can be nailed 4 0.25” X 1.25”
screws at the marks.
Note: The length of the screws depends on the surface material. The mentioned screws
are used in the normal concrete surface.
2-19
Page 21
2. Thread the cable through the hole in the wall mount bracket, and screw in 4 M8
nuts for mounting the bracket.
3. Take off the housing from the packing, and take off the PCB board (4 bolts on it.)
inside the housing. Thread the cable through the top of the housing. Fix the
housing on the wall mount bracket, and screw in 3 M5 bolts (Hex) on the top of the
bracket with the attached Hex Allen wrench to fix the housing.
M5 Bolt
Hex Allen wrench
RELAY
JP5
Video +
Video RS485 +
RS485 -
AC24
AC24
JP4
JP6
JP3 JP1
4. Connect the cable connectors to the nodes on the PCB board, and then fix the
PCB board in the housing by screwing 4 bolts on it.
Note: Please notice the polarity of control line. The EPTZ3000 will not work if the polarity
of control line is mis-connected.
2-20
Page 22
5. Align the two screw holes on the bottom of mechanical part to the two bolts on the
base of the housing, and twist the mechanical part clockwise a little bit in order to
engage it with the base. Screw the two bolts on the base, and then connect and fix
the connection bus to the PCB board on the mechanical part.
Note: The camera module on the mechanical part is very sensitive. Please be careful
when installing this part.
6. Remove the lens protection cover before installing the bulb. Align the 3 bolt holes
into the 3 housing bolt holes, and screw three M3 bolts with the attached small
screw driver to fix the bulb.
M3 Blot
M3 Blot
GLOVE
2-21
Page 23
Note: In order to protect the bulb from dirt and scrape, please put on the gloves before
installing the bulb.
7. Turn on the power, and start to operate the EPTZ3000.
Note: When turning on the power, EPTZ3000 will enter self-inspection mode, and carry out
a self-testing program. After finishing self-inspection, you can start to operate the
EPTZ3000.
2.4.3. EPTZ3000I Dome Camera Installation
1. Take off the housing from the packing, and take off the PCB board (4 bolts on it) inside
the housing.
2. Cut the ceiling against the housing’s shape with a saw.
The exact diameter for cutting circle is 202 mm. It cannot exceed 213 mm, because
speed dome housing may across the ceiling without any support. Please leave a
profound space of 144.5 mm, so that the housing can be perfectly inserted to the
ceiling.
3. Thread the cable through the screw and the hole on the top of the housing, and tighten
up the screw to fix the cable
4. Place the housing into the hole that you just made. Fix the housing on the ceiling with
two clips, adjust the screws of clips to make the housing perfectly fit to the ceiling.
5. Connect the cable connectors to the nodes on the base board, and then fix the base
board in the housing by screwing 4 bolts on it.
2-22
Page 24
Cut the ceiling
202 mm
Video +
Video -
RS485 +
RS485 -
AC24
AC24
RELAY
JP5
Note: Please notice the polarity of control line. The EPTZ3000I will not work if the polarity
of control line is mis-connected.
6. Align the two screw holes on the bottom of mechanical part to the two bolts on the
base of the housing, and twist the mechanical part clockwise a little bit in order to
engage it with the base. Screw the two bolts on the base, and then connect and fix the
connection bus to the PCB board on the mechanical part.
2-23
Page 25
Note: The camera module on the mechanical part is very sensitive. Please be
careful when installing this part.
7. Remove the lens protection cover before installing the bulb. Screw the connection
wire to the housing in order to prevent the bulb from being drop down. Align the 2
buttons on the bulb base with the 2 buttons on the housing, and push bulb base to clip
the housing.
Connection wire Button
Button
GLOVE
Note: In order to protect the bulb from dirt and scrape, please put on the gloves before
installing the bulb.
8. Turn on the power, and start to operate the EPTZ3000I.
2-24
Page 26
2.5. Accessories
2.5.1. EPTZ-CPMA: Ceiling Pendant Mount Adapter
The pole mount is used for installing a speed dome on the ceiling indoors or outdoors.
The extension poles are available for the pole mount.
2.5.2. EPTZ-PMA: Pole Mount Adapter
The pole adapter is used for installing a wall mount bracket to a pole indoors or outdoors.
2.5.3. EPTZ- CMA: Corner Mount Adapter
2-25
Page 27
The corner mount are used for installing a wall mount bracket to a 270° corner of walls
indoors or outdoors.
2-26
Page 28
3. EPTZ3000/EPTZ3000I CAMERA SETUP MENU
Option
In this section, setup and operation guide of EPTZ3000/EPTZ3000I will be introduced.
There are 25 items of the setting menu. However, there is only one line on the line
display, so using some combination keys to operate is necessary.
3.1. Structure of the Setup Menu
Press MENU to enter camera setup menu.
Press Shift + Joystick up/down to change subentries, and right/left to change the setting.
Items
1. CAM ID
2. DZOOM
3. FOCUS
4. IRIS
5. DAY/NIGHT AUTO / DAY / NIGHT
-----------------
OFF / ON
ONE PUSH / AUTO / MAN
AUTO / MAN
6. S.SHUTTER x 4 / x8 / x12 / x16 / x32 / x64 / x128 / OFF
7. DISPLAY
8. WBC MODE
9. TITLE DISP
10. ALM-IN1
11. ALM-IN2
12. ALM-IN3
13. ALM-IN4
14. ALM-IN PRIO
15. ALM-OUT
16. WDR
17. SHUTTER
18. AGC
19. DNR
20. PRIVATE ZONE
21. AUTO REGRESS
22. MOTION OFF / LIMIT
23. TOUR
24. X CNT
25. Y CNT
26. PO CNT
27. LOAD DEFAULT
28. EXIT MENU
OFF / ON
AUTO OUTDOOR / AUTO INDOOR / ONE PUSH / MAN 2000K / MAN 3200K /
MAN 5100K
OFF / ON
OFF / N.C. / N.O. / NIGHT N.O. / NIGHT N.C.
OFF / N.C. / N.O.
OFF / N.C. / N.O.
OFF / N.C. / N.O.
1234 / 2341 / 3412 / 4123
OFF / LATCH / 3 / 5 / 10 / 20 / 30 / 60 SEC
LOW / MIDDLE / HIGH / OFF
AUTO / A.FLK/ 1/60 / 1/160 / 1/250 / 1/1000 / 1/2500 / 1/10000 / 1/120000 /
X2 / X4 / X6 / X8
OFF / LOW / MIDDLE / HIGH
OFF / LOW / MIDDLE / HIGH
OFF / ON
OFF / ON
ENT
0000000001
0000000006
0000000000
3-27
Page 29
3.1.1. Camera Setup Menu
Press Menu to enter camera setup menu.
Press Shift + Joystick up/down to change subentries, and right/left to change the setting.
1. CAM ID：：：： The name assigned to the camera.
2. DZOOM：：：： Digital zoom enable or disable.
ON: Enable a digital zoom.
OFF: Disable a digital zoom.
3. FOCUS：：：： Focus type, auto focus, manual focus and one push focus are available.
AUTO: Auto focus is enabled.
MAN: Manual focus is enabled.
ONE PUSH: Enable the one push trigger focus mode. The focus lens holds the same
position until the next trigger command is received. This function prevents the wrong
focus in dark. This option is the default value.
4. IRIS：：：： Iris type, auto iris and manual iris are available.
AUTO: Auto iris is enabled.
MAN: Manual iris is enabled.
5. Day/Night: IR cut setting.
AUTO: Auto ICR mode is enabled. IR cut filter will open automatically in low lux.
NIGHT: IR cut filter is always open (No IR cut). (for true day/night model only)
DAY: IR cut filter is always close.
3-28
Page 30
6. S.SHUTTER：：：： Slow electrical shutter. In order to enhance the view in the low lux
environment, slow shutter allows more light go through the shutter.
X4: 4-time slow shutter.
X8: 8-time slow shutter.
X12: 12-time slow shutter.
X16: 16-time slow shutter.
X32: 32-time slow shutter.
X64: 64-time slow shutter.
X128: 128-time slow shutter.
OFF: Disable auto slow shutter.
7. DISPLAY : Display the zoom multiple.
ON: Display the zoom multiple.
OFF: Disable the zoom multiple display.
8. WBC MODE : White balance control mode.
AUTO OUTDOOR: Auto white balance compensation with wider range (Default value).
AUTO INDOOR: Auto white balance compensation.
ONE PUSH: One Push Auto White Balance Mode.
MAN 2000K: Manual white balance compensation in 2000K color temperature.
MAN 3200K: Manual white balance compensation in 3200K color temperature.
MAN 5100K: Manual white balance compensation in 5100K color temperature.
Note: WBC setting will affect the wide dynamic range, or other image performance. To
adjust a proper value is important.
3-29
Page 31
9. TITLE DISP: Display the title.
ON: Display the title.
OFF: Disable the title display.
10. ALM-IN1：：：： The status of input alarm 1.
N.O.: Enable a normal open alarm input.
N.C.: Enable a normal close alarm input.
NIGHT N.O.: Dome turns to “Night mode” if external contact open. Dome turns to “Day
mode” if external contact closed.
NIGHT N.C.: Dome turns to “Night mode” if external contact closed. Dome turns to “Day
mode” if external contact open.
OFF: Disable alarm input.
11. ALM-IN2：：：： The status of input alarm 2.
N.O.: Enable a normal open alarm input.
N.C.: Enable a normal close alarm input.
OFF: Disable alarm input.
12. ALM-IN3：：：： The status of input alarm 3.
N.O.: Enable a normal open alarm input.
N.C.: Enable a normal close alarm input.
OFF: Disable alarm input.
13. ALM-IN4：：：： The status of input alarm 4.
N.O.: Enable a normal open alarm input.
N.C.: Enable a normal close alarm input.
3-30
Page 32
OFF: Disable alarm input.
14. ALM-IN PRIO：：：： The priority of alarms.
1234: The alarm priority is 1>2>3>4.
2341: The alarm priority is 2>3>4>1.
3412: The alarm priority is 3>4>1>2.
4123: The alarm priority is 4>1>2>3.
15. ALM-OUT：：：： Duration time of the alarm output.
OFF: Disable alarm output.
3 / 5 / 10 / 20 / 30 / 60 SEC: select alarm output’s duration time.
LATCH: The alarm output will not stop until there is any operation on keyboard
.
16. WDR : Wide Dynamic Range.
LOW: Low wide dynamic range.
MIDDLE: Middle wide dynamic range.
HIGH: High wide dynamic range.
OFF: Disable wide dynamic range.
17. SHUTTER : Electrical shutter mode.
AUTO: Auto electrical shutter
A.FLK: Anti-Flicker. Camera will auto adjust the shutter to reduce the flicker caused by
fluorescent light.
1/60 (NTSC) and 1/50 (PAL): default manual shutter.
1/160: 1/160 sec shutter for both NTSC and PAL
1/250: 1/250 sec
shutter for both NTSC and PAL
3-31
Page 33
1/1000: 1/1000 sec shutter for both NTSC and PAL
1/2500: 1/2500 sec shutter for both NTSC and PAL
1/10000: 1/10000 sec shutter for both NTSC and PAL
1/120000: 1/120000 sec shutter for both NTSC and PAL
x2: two-time default manual shutter
x4: four-time default manual shutter
x6: six-time default manual shutter
x8: eight-time default manual shutter
18. AGC : Auto Gain Control
OFF: Auto Gain Control Off
LOW: Low Auto Gain Control
MIDDLE: Middle Auto Gain Control
HIGH: High Auto Gain Control
Note: AGC setting will affect the wide dynamic range, or other image performance. To
adjust a proper value is important.
19. DNR: Dynamic Noise Reduction
OFF: Dynamic Noise Reduction Off
LOW: Low Dynamic Noise Reduction
MIDDLE: Middle Dynamic Noise Reduction
HIGH: High Dynamic Noise Reduction
20. PRIVATE ZONE：：：： Private zone masking.
ON: Enable the private zone masking.
3-32
Page 34
OFF: Disable the private zone masking.
Press “Enter” to enter private zone setup mode, and the masking will turn into red. You
can set the masking size and position in the private zone setup mode.
In this mode, you can press
“Shift” + “6” to increase masking horizontal size;
“Shift” + “4” to decrease masking horizontal size;
“Shift” + “2” to increase masking vertical size;
“Shift” + “8” to decrease masking vertical size;
Shift Joystick to select the position where the masking is located.
“Enter” to confirm the size and position, and then the masking will turn into green again.
If you use Pelco protocol keyboard, command of private zone setting will be different.
Press “IRIS +” to enter private zone setup mode, and the masking will turn into red. You
can set the masking size and position in the private zone setup mode.
In this mode, you can press
“Focus F.” to decrease masking size;
“Focus N.” to increase masking size;
“IRIS -.” to switch the mask horizontal or vertical direction;
Shift Joystick to select the position where the masking is located.
“IRIS +” to confirm the size and position, and then the masking will turn into green
again.
3-33
Page 35
21. AUTO REGRESS：：：：Auto regress to the shortest path during set a position. It can
shorten the response delay, and increase the response performance and speed dome
lifetime.
ON: Enable the auto regress function.
OFF: Disable the auto regress function.
22. MOTION: This is used to set a limitation for Auto Pan function. When Motion is ON,
you can use Auto Pan function simply by pressing “Shift“+ “A.Pan “of the keyboard
(according to A. Pan position you have set).
OFF: Motion limitation function is disabled.
LIMIT: Press “Enter” first.
The message NOW LIMIT OFF shows up, press “Enter” again.
The message CHANGE ON shows up, press “Enter” to change.
To change the value back to OFF, simply follow the same steps again.
If you need to reset, press “IRIS –“ of the keyboard to exit.
23. TOUR：：：：Tour setting or tour run option. Press “Enter” first to enter tour mode.
Shift joystick to right and left (< >), shift SET or RUN option. (Shift the joystick up for
returning to previous setting). Press “Enter” to confirm.
For Tour setting: Shift joystick to right and left (< >) for changing Set Numeral
(T01A~T16A), then press “Enter” to confirm.
Shift joystick to right and left for selecting PRE Numeral (position) from 01~99, then press
“Enter” to confirm.
Shift joystick up and down to adjust DWL (dwell) time from 0~99 sec, then press “Enter” to
confirm.
Shift joystick to right and left for adjusting speed (5~235, with an interval of 5), then press
3-34
Page 36
“Enter” to confirm.
For Tour Run:
Shift joystick to right and left for selecting RUN NUM (T01A~T16A) of the tour that you
previously set. Press “Enter” to start running the tour.
Alternatively, you could run the tour without entering MENU. Press “Position + 97” to run
the tour that you have previously set, please be informed that this function is only valid for
T01A.
If you need to reset, press “IRIS –“ of the keyboard to exit.
24. X CNT：：：： X-axis counter. This counter counts the x axis movement, and 1 is counted
when the speed dome pans 360°.
25. Y CNT：：：： Y-axis counter. This counter counts the y axis movement, and 1 is counted
when the speed dome tilts 180°.
26. PO CNT：：：： Position counter. This counter counts the go-position times, 1 is counted
when speed dome goes to a position once.
27. LOAD DEFAULT：：：： Load default setting.
Select this item, and then press “Enter” to load default setting.
Press “Clr” + “Menu” whenever you want to quit menu setting.
28. EXIT : To exit.
Select this item, and then press “Enter” to quit setting.
Press “Clr” + “Menu” whenever you want to quit menu setting.
3-35
Page 37
4. EPTZ3000/3000I FUNCTION SETUP AND OPERATION
4.1. Manual Control Mode
Manual control: Shift Joystick Up/Down/Left/Right, and turn it
Clockwise/Counterclockwise to control speed dome.
Use the control keys which are Zoom, Focus and IRIS function keys on the
keyboard to Zoom In/Out, focus N (near)/F (Far), or IRIS +/-.
Note: Zoom In/Out control keys will be disabled when entering to OSD menu
mode.
HOME Mode: The camera view will go back to the home position when there is no
keyboard operation in a specific time. The home position and the specific time can
be set by pressing Set + Home.
If you set the time to 0 minute, then the camera will go back to home if there is no
keyboard operation in 5 seconds. This is the minimum no action time for HOME
mode.
Note: If "HOME" function is enabled, dome will go to home immediately after
powering on.
4.2. Auto Pan Mode
Two point auto pan: Press A.Pan to enter the auto pan mode, and then the
system will ask you to enter the auto pan speed (1~239). Press Enter to start auto
pan.
In order to set the two points, press Set + A.Pan, and then enter the dwell time
(1~127 seconds) of each point. EPTZ3000 begins to pan from point A to point B
clockwise.
360° auto pan: Press Shift + A.Pan to enter the 360° auto pan. System will ask you
to enter 360° auto pan speed (1~239). The camera will turn 360° automatically, but
4-36
Page 38
not tilt.
4.3. Position Setting
Focus on a preset position: Press the number key, and then press Position to
focus on the number of preset position; or you can press Position, then enter the
preset position number, and then press Enter to focus on the number of preset
position.
Preset a position: Shift the Joystick to the position you would like to preset, and
then press Shift + Position. The system will ask you to enter the preset position
number (1~192), and then press Enter to save the position. There are up to 192
positions can be preset.
Three specific preset positions can be set as follows:
92 => Set Left Limit Stop (A position)
93 => Set Right Limit Stop (B position)
95 => Enter Menu mode (Use keyboard control keys to control OSD items; Focus F.
to go downward, Focus N. to go upward. IRIS + go to previous setting and IRIS –
to exit).
You can directly go to the following specific preset positions:
33 => Rotation of 180 degree
34 => Go to Home position (if Home Position is set by EVF Keyboard)
96 => Stop Scan
97 => Start running tour
98 => Frame scan (60 degree / step)
Default speed is 32. It can be changed by EVF Keyboard (Shift + A.Pan setting
speed.
4-37
Page 39
Dwell time: default is 2 sec; It can be changed by EVF Keyboard Set + A.Pan
setting dwell time of A pos or B pos.
99 => Auto scan (360 degree)
Default speed is 32. It can be changed by EVF Keyboard (Shift + A.Pan setting
speed).
We can even set camera’s ICR Day/Night function with RS-485 command via
keyboard. How to do this? Press Position + 88 to link to Day mode or Position + 89
to link to Night mode, “ICR AUTO” message will be shown on the right-bottom part
of the screen. If OSD Day/Night ICR mode is “AUTO”, it cannot be controlled by
preset position setting.
Set the parameter of a preset position: Press Set + Position to set the parameter
of a preset position. You can set the going-to speed (1~239), dwell time (1~239
seconds), and the title of the position. Shift the joystick Right/Left to change bits,
and shift the Joystick Up/Down to change the alphanumeric characteristic. The
available alphanumeric characteristics are 0~9, A~Z, &, ?, !, :, ‘, ., ,, /, -, and a
space.
Delete a preset position: Press Clr + Position to delete a preset position. The
system will ask you to enter the position number that you would like to delete, and
then press Enter.
4.4. Tour Mode
In the tour mode, you can set a tour for viewing. There are 16 tours can be set, and 16
preset positions in a tour.
One-way tour Mode: Press Tour to enter the tour mode. The system will ask you
4-38
Page 40
to enter the tour number you would like to run, and starts the tour after pressing
Enter. To preset a tour before running is necessary.
Preset a one-way tour: Press Set + Tour to preset a one-way tour. The system will
ask you to enter preset position numbers (The positions need to be preset). After
finish entering all positions, press Stop to quit, and then press Enter to save the
tour.
To-and-fro tour mode: Press Shift + Tour to run a to-and-fro tour. The system will
ask you to enter the tour number you would like to run, and starts the tour after
pressing Enter. To preset a tour before running it is necessary.
Note 1: The difference between the One-way tour mode and To-and-fro tour mode is that
the return modes are different. For example: There is a tour with 3 preset positions 1, 2
and 3. The camera runs 1→2→3→1→2→3 in the One-way tour mode, and 1→2→3→2→
1 in the To-and-fro tour mode.
Note 2: You could set a pattern tour. Press Set + Tour, and input 0, press Enter. Sway the
joystick to record the entire tour. Press Stop to stop recording tour. To view this pattern
tour, simply press Tour, and input tour number 0.
4.5. Alarm Link to a Position/Tour
EPTZ3000/EPTZ3000I have 4 alarm inputs that can be set to link to a position or a tour
when an alarm is triggered.
Set an alarm link:
Press F1 to set an alarm link. Enter the alarm number, and then press Enter.
Switch the Joystick up/down to select a position or a tour, enter a position or tour
number, and then press Enter to confirm the alarm link setting.
If you set the position number to 99, the dome will do a 360 degree auto scan or
4-39
Page 41
AB two point pan if limit is ON. If you set the position number to 98, the dome will do
a frame scan.
Delete an alarm link:
Press Clr + F1 to delete a link of alarm to position/tour.
Note 1: After alarm output signal is terminated, the speed dome will resume action
or return to its original position.
Note 2: After powering on the speed dome, it will detect alarm status automatically.
4.6. Other Operations
The EPTZ3000/EPTZ3000I can work with a DVR that has PTZ control functions, and
a matching protocol. The available control functions depend on different DVRs.
The EPTZ3000/EPTZ3000I can work with a keyboard that has PTZ control functions,
and a matching protocol. The available control functions depend on different
keyboards.
4-40
Page 42
APPENDIX : The Alarm I/O Connection
There are 4 alarm inputs and 1 alarm output available. The alarm I/O connector that is
marked as JP5 is a nine-pin connector. It is located on the PCB board of the housing.
JP5
Pin # Function
RELAY
Video +
Video RS485 +
RS485 -
AC24
AC24
JP3 JP1
1 ~ 9
JP5
JP6
JP4
1 Alarm Input 3
2 Ground
3 Alarm Input 2
4 Alarm Input 1
5 Ground
6 Alarm Input 0
7 Normal Open (N.O.)
8 Common (COM)
9 Normal Close (N.C.)
4-41
Page 43
Your EverFocus product is designed and
Ihr
EverFocus Produkt wurde entwickelt und
EverFocus Electronics Corp.
Head Office:
12F, No.79 Sec. 1 Shin-Tai Wu Road,
Hsi-Chih, Taipei, Taiwan
TEL: +886-2-26982334
FAX: +886-2-26982380
www.everfocus.com.tw
USA L.A. Office:
1801 Highland Ave. Unit A
Duarte, CA 91010, U.S.A.
TEL: +1-626-844-8888
FAX: +1-626-844-8838
www.everfocus.com
USA N.Y. Office:
415 Oser Avenue Unit S
Hauppauge, NY 11788
Tel: 631-436-5070
Fax: 631-436-5027
Europe Office:
Albert-Einstein-Strasse 1
D-46446 Emmerich, Germany
TEL: 49-2822-9394-0
www.everfocus.de
China Beijing Office:
Room B-05D-1, KESHI PLAZA ,
Shangdi Information Industry Base,
Haidian District, Beijing China
100085
TEL: +86-10-62973336/37/38/39
FAX: +86-10-62971423
www.everfocus.com.cn
Japan Office:
1809 WBG MARIBU East 18F,
2-6 Nakase.Mihama-ku.
Chiba city 261-7118, Japan
TEL : +81-43-212-8188
www.everfocus.com
manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be
disposed of separately from your household
waste.
Please, dispose of this equipment at your local
community waste collection/recycling centre.
In the European Union there are separate
collection systems for used electrical and
electronic product.
Please, help us to conserve the environment we
live in!
FAX : +81-43-297-0081
www.everfocus.com
hergestellt mit qualitativ hochwertigen Materialien
und Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass elektrische und
elektronische Geräte am Ende ihrer Nutzungsdauer
vom Hausmüll getrennt entsorgt werden sollen.
Bitte entsorgen Sie dieses Gerät bei Ihrer örtlichen
kommunalen Sammelstelle oder im Recycling
Centre.
Helfen Sie uns bitte, die Umwelt zu erhalten, in der
wir leben
!
P/N: MW01G0070C Ver. F
4-42
Loading...
