EverFocus EPTZ1000 User Manual

Speed Dome
EPTZ1000
USER MANUAL
Date: Mar 2009
Table of Contents
1. EPTZ1000OVERVIEW ...................................................... 1-3
1.1. Introduction .....................................................................................................1-3
1.2. Specifications ..................................................................................................1-5
1.3. Feature .............................................................................................................1-7
1.3.1. Hardware Overview ..........................................................................1-7
1.3.2. Base Board .......................................................................................1-8
1.3.3. EPTZ1000Control Board ..................................................................1-8
1.4. EPTZ1000Connection ......................................................................................1-9
1.5. EPTZ1000 Quick Operation Guide ............................................................... 1-10
2. EPTZ1000 INSTALLATION ............................................ 2-11
2.1. Packing List ................................................................................................... 2-11
2.2. Cable Needed ................................................................................................. 2-11
2.3. Initial Setup .................................................................................................... 2-12

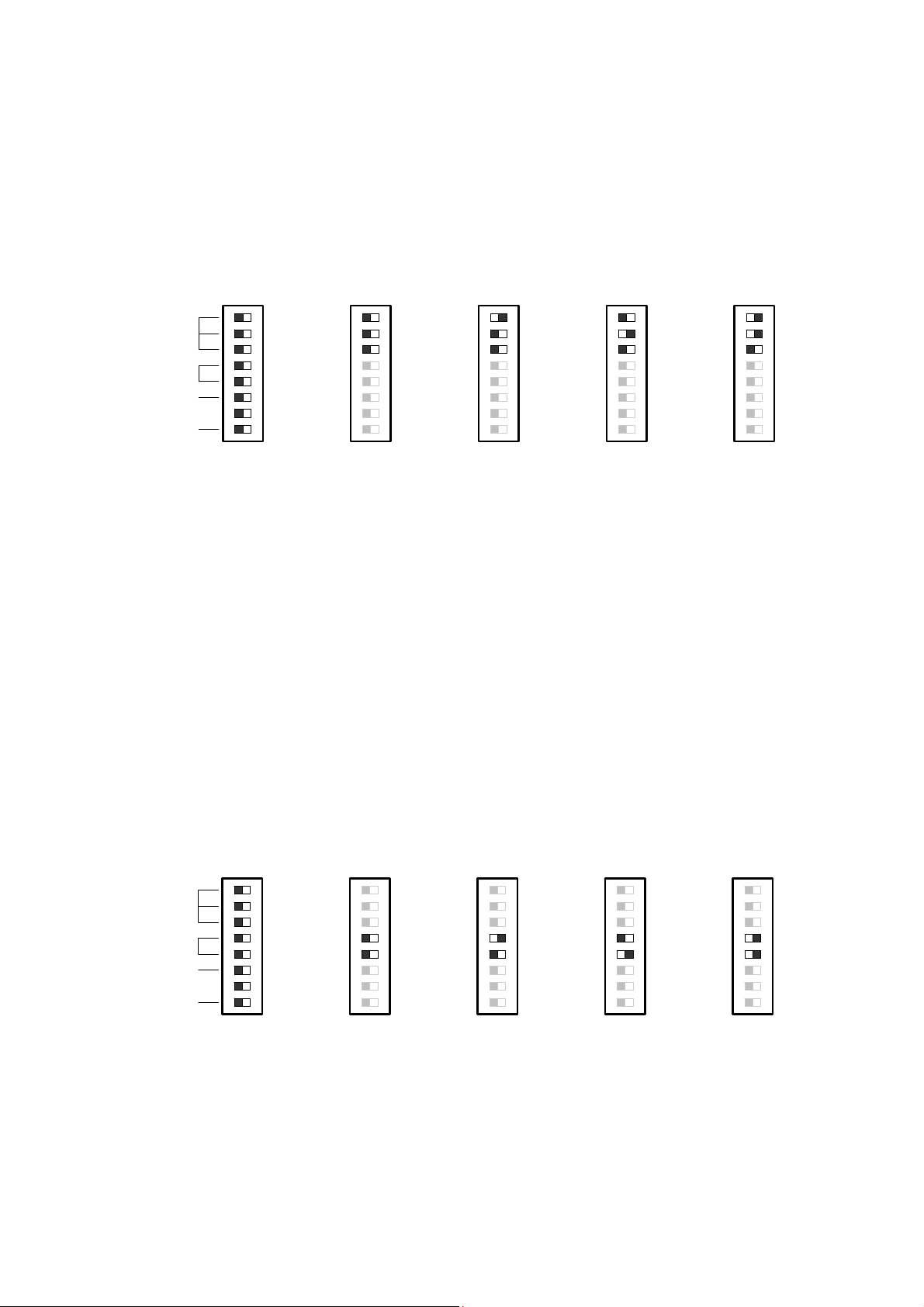

2.3.1. Address Setting .............................................................................. 2-13
2.3.2. Communication Protocol Setting .................................................. 2-16
2.3.3. Transmission Speed Setting (Baud Rate Setting) ....................... 2-16
2.3.4. Video Format Setting ..................................................................... 2-17
2.4. Rack and Speed Dome Installation .............................................................. 2-18
2.4.1. Installation Requirements .............................................................. 2-18
2.4.2. EPTZ1000 Dome Camera Wall Mount Installation ....................... 2-18
2.5. Separately Sold Accessories ........................................................................ 2-22
2.5.1. Pole mount ...................................................................................... 2-22
2.5.2. Pole adapter .................................................................................... 2-22
2.5.3. Corner mount ................................................................................. 2-22
2.5.4. Multi-Function Keyboard Controller ........................................... 2-22
3. EPTZ1000CAMERA SETUP MENU ............................... 3-23
3.1. Structure of the Setup Menu......................................................................... 3-23
3.1.1. Camera Setup Menu ....................................................................... 3-24
4. EPTZ1000FUNCTION SETUP AND OPERATION ......... 4-30
4.1. Manual Control Mode .................................................................................... 4-30
4.2. Auto Pan Mode .............................................................................................. 4-30
4.3. Position Setting ............................................................................................. 4-31
4.4. Tour Mode ...................................................................................................... 4-32
4.5. Alarm Link to a Position/Tour ....................................................................... 4-33
4.6. Other operations ........................................................................................... 4-34
1. EPTZ1000OVERVIEW
1.1. Introduction
EPTZ1000, an intelligent high-speed dome camera is ready to secure your property with its omni-directional and exact monitoring. An 18X optical and 12X digital zoom combining with a high-performance chip makes captured images clear and vivid. The other powerful camera functions this type of speed dome equips with:
¾ PAL / NTSC image format suppose. ¾ Auto and fast focus increases the searching speed and precision. ¾ Auto Iris adjusts the monitoring image to the best brightness. ¾ White Balance function makes the shades of color more natural in different
light conditions.
¾ BLC (Backlight Compensation) function makes objects clear in a high
illumination background.
¾ Color / B&W images auto switching to enhance the sensitivity in a low light
condition or at night.
Furthermore, the micro control unit enables camera a nimble and exact movement from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1
second. It also has other advantages such as:
¾ 192 preset positions are available. ¾ 16 cruise tours can be set, and each tour contains up to 16 positions. ¾ Up to256 speed domes can be supported on a RS485 bus when all speed
domes are controlled by multi-function keyboard controller.
¾ Auto heater and fan to fit all kinds of temperature. ¾ Provide 4 alarm inputs and 1 alarm output.
All of the features make the intelligent high-speed dome camera works for a wide range and demanding application such as banks, airports, stations, casinos, streets of cities, intelligent buildings, and etc.
1.2. Specifications
Pickup Device 1/4'' SONY Type EXview HAD CCD Video Format NTSC or PAL Scanning System NTSC: 525 TV lines, 60 fields/sec PAL: 625 TV lines, 50 fields/sec Picture Elements 768 x 494 ( NTSC ) , 752 x 582 ( PAL ) Horizontal Resolution 480 TVL Sensitivity 0.7 Lux/F=1.4 S/N Ratio (AGC OFF) Over 50dB Electronic Shutter 1~1/10,000 (s) Digital Slow Shutter Yes Shutter Selection Yes Lens Type 18x optical zoom , f=4.1 mm (wide) to 73.8mm (tele) , F1.4 to
F3.0 Zoom Ratio 216x max (18x Optical and 12x Digital Zoom ) Day/Night Yes Black Light Comp. ON/OFF Auto Gain Control Auto White Balance Auto/Indoor/Outdoor Video Output BNC 1.0Vp-p , 75ohm Sync. Mode Line Lock/Internal Sync Power Source 24VAC Power Consumption 18W; 70W with heater Operating Temperature -40°C~50°C ; -40°F~122°F Focus Control One push/Auto/Manual Horizontal Rotation
0.1°/s~360°/s (1-239 grade shift gears) Speed Horizontal Rotation
360° unlimited rotation Range Tilt Rotation Range 90° pendulum motion Auto Flip Rotates 180° when camera tilts to the vertical position Auto Zoom Speed
Control speed auto-adjusted according to zoom length changing Control Auto Pan, 2 Points
Can set freely Scanning Auto Pan Speed 1~239 grades available Dwell Time (2 points) 1~239 second available
Preset Positions 192 positions Running to Position
1－239 grade available,0.1º/s - 360º/s Speed Dwell Time at Preset
1~239 second available Position Tour 16 groups Tour Point per Group 16 preset positions Fan & Heater Fan & Heater auto starts Position Accuracy ±0.1° Alarm 4 in 1 out with tour/position auto triggering Built-in Menu for
Yes Functions Communication RS-485 Communication Speed 1200/2400/4800/9600 bps Built-in Protocols Auto, EVF, Plus-D, A-Type, Pelco-D, Pelco-P Address Editable Yes (through DIP switch) Speed Dome Address 0-255 Manual Pan/tilt speed Pan: 0.1º ~ 180º/s Tilt: 0.1º ~ 180º/s Weatherproof Ratings IP66 Dimensions 218.5mm (W) x 267.5mm (H) /
8.6" (W) x 10.5" (H) Weight 4.2kg/9.25lbs Certifications CE ; FCC
1.3. Feature
1.3.1. Hardware Overview
M5 Bolt (Hex) x3
Base PCB board
Control board
EPTZ1000
Wall Mount Bracket
Housing
Inner Housing
M3 Bolt x3
Bulb
Connection Bus
Power Cable BNC Cable RS485 Cable
Mechanical Part
Camera Module
1.3.2. Base Board
The base board that is on the bottom of the housing connects to power cable, video cable, control cable, alarm cable, fan and heater (fan and heater are for EPTZ1000 only). In order to connect to cables, the board needs to be taken off, and put back after finishing connecting to all cables. The connectors of cable names are marked on the board in white text. The details of the alarm connector (JP5) are shown on the APPENDIX A. For EPTZ1000, JP1, JP3 and JP6 that are two-pin connectors on the base board need to be taken off during installation. JP1 and JP3 are connectors for heater, and they can be switched. JP6 is a fan controller connector that turns on/off of the fan. The 3 cables are too short to be connected to a wrong connector when putting them back.
RELAY
JP5
Video + Video ­RS485 + RS485 -
AC24 AC24
JP4
JP6
JP3 JP1
EPTZ1000 Baseboard

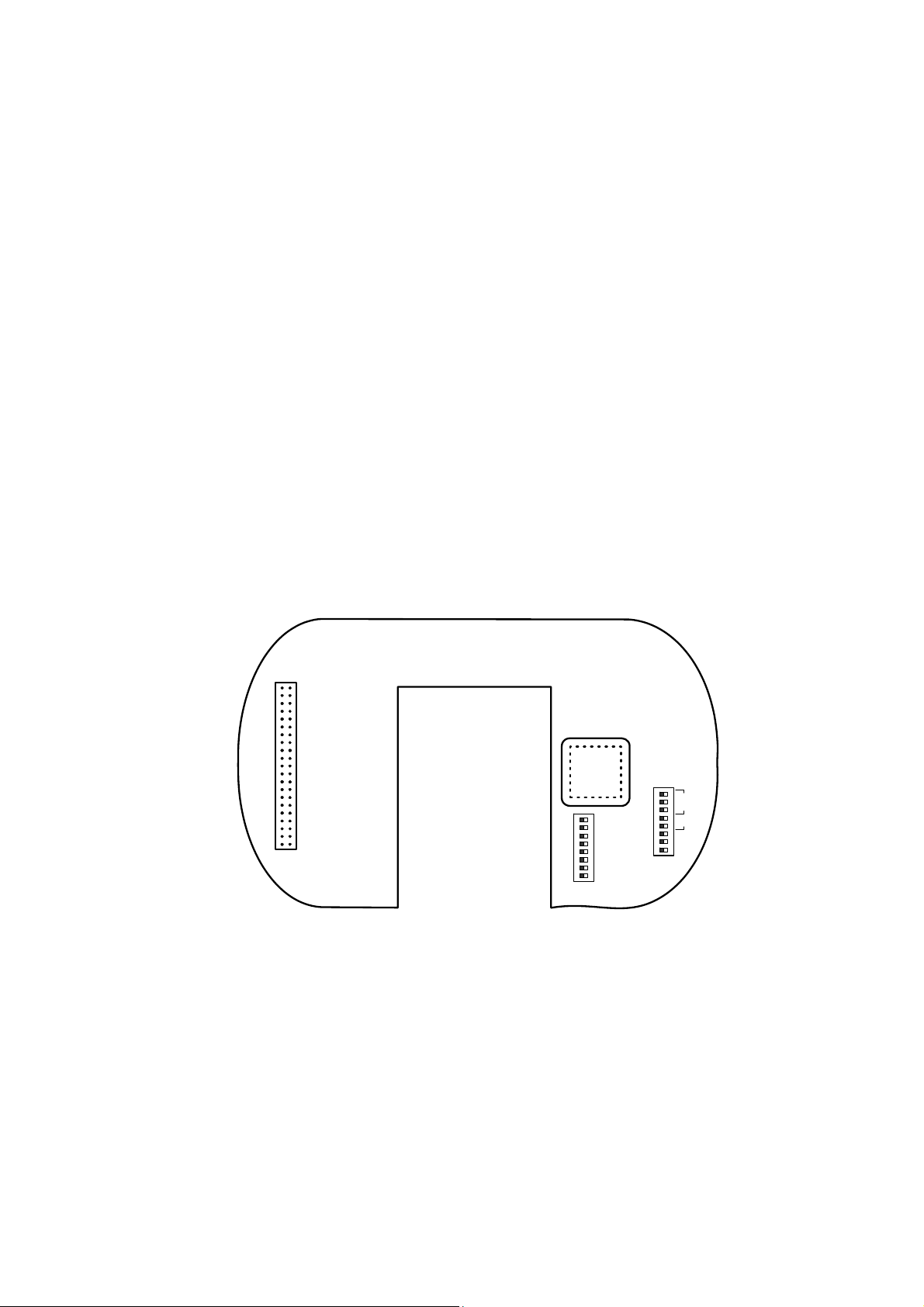

1.3.3. EPTZ1000Control Board
The PCB board with two dipswitches is the control board of speed dome. The two switches are used to set address, protocol, Baud Rate, video format and terminator resistance.
Ω
1.4. EPTZ1000Connection
CPU
ON
12345678
SW1
SW2
ON
12345678
ID1 ID2 ID3 ID4 ID5 ID6 ID7 ID8
Protocol
BAUD
Video Out
RS485 Tx(+)
RS485 Tx(-)
N.C.
Adapter
Alarm 1
Alarm 2
Alarm 3
Alarm 4
GROUND
24V AC110V AC
POWER 24V AC / 3.5 A
BNC
1.0Vpp ± 0.2V, 75
RS485 Control Line
EPTZ1000DN/
EPTZ500DN
4 ALARM INPUTS
ALARM OUTPUTS
N.O.
COM
1.5. EPTZ1000 Quick Operation Guide
EPTZ1000and EKB500 (Keyboard) can work together by using factory default setting. You just need to connect cables by following the steps:
1. Connect the RS485 cable to EPTZ1000and a Keyboard (EKB500).
2. Connect a video cable from EPTZ1000to a monitor.
3. Connect the power to the EPTZ1000and a Keyboard (EKB500) . After the speed dome finishes the self-test mode, you can start to operate the speed dome via the keyboard.
To operate the EPTZ1000:
UP
IRIS+FocusF.Zoom
In
-N.Out
1. Shift the Joystick up/down or right/left to view from camera.
2. Turn the top of the Joystick to zoom in/out.
3. Press Zoom In/Out, Focus F. /N. and IRIS +/- function keys to operate the
EPTZ1000.
Zoom INZoom OUT
LEFT RIGHT
DOWN
1-10
2. EPTZ1000INSTALLATION
2.1. Packing List
There are 3 boxes that are housing, bulb and mechanical part with a camera module, one wall mount bracket, one power adapter and one accessory packet in the package. The detail accessories list below:
¾ Housing x1 ¾ Bulb x1 ¾ Mechanical part with a camera module x1 ¾ Wall mount bracket x1 ¾ Adapter x1 ¾ Accessory packet
Glove x2 M5 Hex Allen wrench x1 Pin connector x1 M5 screw (Hex) x3 for wall mount bracket fixing M3 screw x3 for bulb fixing Anchor nut and wall mount screw x4
2.2. Cable Needed
- Power Cable
An adapter with 24V AC/3.5A output provides the power to the speed dome. An extension power line may be needed.
Note: The input AC voltage range of an adapter depends on different area. Please make sure the voltage range before installing.
2-11
