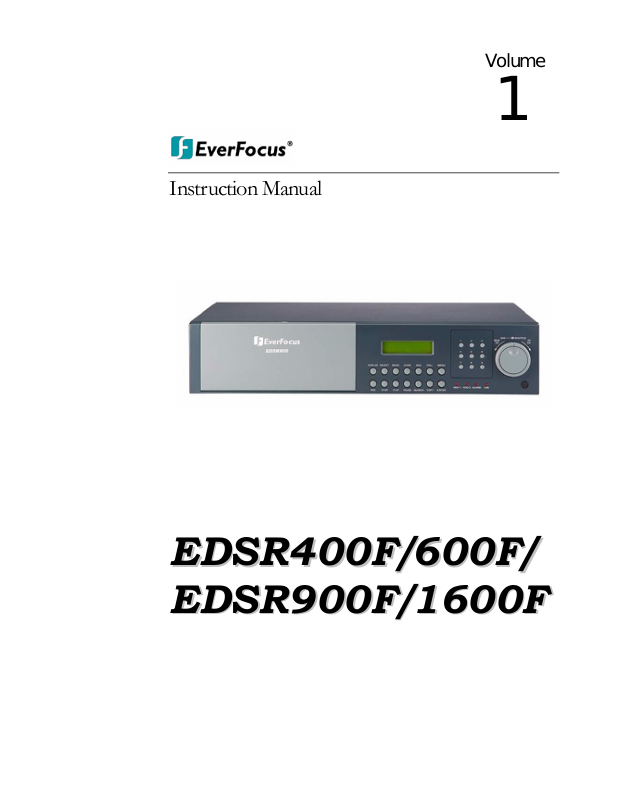

EverFocus EDSR1600F, EDSR 400F, EDSR600F User Manual

Instruction Manual

Volume

1

E

E

E

E

D

D

D

D

S

S

S

S

R

R

R

R

4

4

9

9

0

0

0

0

0

0

0

0

F//

F

F//

F

6

6

1

1

0

0

6

6

0

0

0

0

F//

F

0

F

0

F

EVERFOCUS ELECTRONICS CORPORATION

EDSR 400F / EDSR600F

EDSR 900F / EDSR1600F

Instruction Guide

© 2004 Everfocus Electronics Corp

2445 Huntington Drive

Phone [phone] • Fax [phone]

All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any

form or by any means without written permission of the Everfocus Electronics Corporation.

QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark

of the Microsoft Corporation in the United States and other countries. Linksys is a registered

trademark of the Linksys Corporation. D-Link is a registered trademark of the D-Link Corporation.

DynDNS is a registered trademark of the DynDNS.org Corporation. Other product and company

names mentioned herein may be the trademarks of their respective owners.

Table of Contents

Introduction I

CHAPTER 1
Product Overview 1
Features 1
Specifications 2
Front Panel Keys 3
Back Panel Keys 5

CHAPTER 2
Installation 7
Basic Wiring Instructions 8
Hard Disk Drive Installation 9
Final Install Process 9

CHAPTER 3
DVR Menu Setup 10
Clock/Language Setting Menu 11
Timer Setting Menu 13
Sequence Setting Menu 15
Title Setting Menu 17
Daylight Setting Menu 15
Covert Setting Menu 18
Alarm Record Setting Menu 19
Motion Setting Menu 21
Normal Record Setting Menu 24
Network Setting Menu 27
Control Setting Menu 29
Buzzer Setting Menu 32
Archive Setting Menu 34
Matrix Setting Menu 36
Disk Setting Menu 38

System Setting Menu 39

CHAPTER 4
Recording Overview 42
Basic Recording Setup 42
Timer Recording Setup 43
Motion Recording Setup 44
Alarm Recording Setup 45

CHAPTER 5
Playback Overview 47
Basic Playback 47
Search Playback 47
Segment List Playback 47
Alarm List Playback 49
Date/Time Playback 50

CHAPTER 6
Copying Video 51
Still Image Copy 51
Copy as a MOV File 52
Other Archiving Methods 53
Viewing Copied Files 54

CHAPTER 7
Audio Overview 55

CHAPTER 8
How to Upgrade Firmware? 56

CHAPTER 9
Networking Overview 58
Introduction to TCP/IP 58

Subnet Masks 58
Gateway Address 59
Virtual Ports 59
Pre-Installation 60
What type of Network Connection 61
Simple One to One Connection 62
Direct High Speed Modem Connection 68
Router or LAN Connection 70

CHAPTER 10
Linksys Port Forwarding 73
Dynamic DNS 77

CHAPTER 11
D-Link Port Forwarding 79
Dynamic DNS 82

CHAPTER 12
DDNS 84
Creating a DDNS Account 84

APPENDIX D
RJ45 (RS485) Pin Assignment 99

TROUBLESHOOTING
Troubleshooting 100

CHAPTER 13
Viewing through Internet Explorer 87

CHAPTER 14
Interface Specifications 91
Transmission Setting 92
Remote Control Protocol 92

APPENDIX A
Remote Control 95

APPENDIX B
Time Lapse Recording Time 96

APPENDIX C
Alarm Board Configuration 98

Currently, some Internet Service Providers (ISPs) may be blocking certain internet ports,
disabling remote access to your EDSR unit over the internet. Due to certain security risks,
your ISP may refuse to unblock these specific ports.

EverFocus now offers a firmware update specifically for the EDSR line of digital recorders which
directly addresses this issue: firmware version 1.09 allows you to change the default HTTP and Data
ports used by the DVR. This will provide a work around if your ISP refuses to unblock the ports on your
internet connection. This feature is found in the NETWORK SETTINGS menu of your EDSR unit. This
work-around allows you to customize your unit to connect using other various unblocked ports.

NOTE: For this work around, you will need to update to the latest firmware version,
which can be found at:

http://www.everfocus.com/servicebulletins.htm

HOW TO CHANGE PORTS ON AN EDSR 400-1600F:

1.) Access the Main Menu, by pressing [menu] on the front panel

2.) Use the JOG wheel to select NETWORK and press [ENTER]

3.) In the NETWORK SETTING MENU press [ENTER] until the Port Settings are reached.

4.) Use the JOG WHEEL to change the Ports as needed. (Only the CTRL port cannot be

changed)

5.) Once the Ports are changed, press [MENU] twice to exit the menus and reboot the system.

Note: Once the Ports have been changed,
these will be the ports that will need to be
Forwarded if a NAT router (Linksys,
Netgear, Dlink, etc.) is in use.

Due to all internet Browsers
(Internet Explorer, Netscape Navigator,
etc.) defaulting to use port 80 as the HTTP
port; if the HTTP port number is changed
from 80 to something else, the HTTP port
must be specified when connecting to the
DVR.

Example: IP address of the DVR is

146.82.96.172. ISP is blocking port 80, so
HTTP port on DVR was changed to 1080,
then the address that needs to be typed is
HTTP://146.82.96.172:1080. The :1080
entered at the end of the IP address specifies
the port that the HTTP connection will be
made.

PTZ control for EDSR Units.

The EDSR series Digital Recorders now offer PTZ control functions when using the web interface.
You now have the same basic controls used with the VKB series keyboards over the web interface.
This allows you to control the camera pan, tilt and zoom
functions while away.

Connections:

The Data Control cables connect to the back of the EDSR using the
RS 485 Port. Depending on how your connections ar e setup and the number
of cameras you are using, you will need to connect the data cables to Pins 3
and 6 on any of the 2 RS-485 ports. Pin 3 being Positive (+) and pin 6 being
negative (-).

An Ethernet cable can be used in the RS485 port, as long as the
wires for pin 3 and 6 are used. Looking at the top of an Ethernet cable, (flat
edge) the wires that are used will be White-Green (3) and Green (6).

RJ-45 View from top– Locking clip is
on reverse side.

EDSR PTZ setup.

Once the data cables are connected, the EDSR recorder is configured to communicate with PTZ camera or cameras.

Please Note: you need to determine what Protocol and Baud Rate is used for the cameras. (Note: All cameras connecting to the
same DVR MUST be on the same Protocol and Baud Rate.)

SETTINGS:

1.) Access the Setup menu by pressing [MENU]

on the front of the unit.

2.) Use the Jog Wheel to highlight the PTZ menu.

Press[ENTER]

3.) In PTZ SETTINGS sub-menu, use [ENTER]

to navigate between the options and the JOG

WHEEL to change the settings.

4.) Set PTZ ENABLE: to ON,

5.) Set the PTZ port to RS485

6.) *Set the PROTOCOL to that of the Cameras

(Pelco-D, Pelco-P, Everfocus, or VProtect)

7.) *Set the BAUD RATE to match that of the

cameras

8.) Under PTZ ADDRESS, enter the Address for

that camera on that specific channel. (Example:

Channel 2 has a camera with Address 1, then

for CH2: the value is change to 001, so it reads

[CH2: 001].)

9.) Press [ENTER] twice to exit out of the setup menus. Restart the system.

*Note: These settings MUST match all the cameras connected on the same circuit.

VIEWING

Once you access the unit via the
web-page. The option for the PTZ
controls will be on the Right Panel.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

1

Product Overview

DVRs are the industry’s first full-featured digital video recorder designed specifically
for use within the security industry. The Digital Video Recorder incorporates all the
benefits of digital video recording, is simple to install, and operates just like a VCR.
Highly efficient compression technology and superior resolution of recorded images
make the Digital Video Recorder stand out from the competition as the best choice for
security surveillance.

Fea tures

¾ Easy-to-use control panel with common VCR and Multiplexer functions.
¾ Shuttle/Jog dial for picture-by-picture or fast/slow viewing.
¾ No tapes to manage, clean, or replace.
¾ Instant retrieval of stored video.
¾ On-screen setup menu and system timer.
¾ Ethernet TCP/IP connectivity for remote viewing.
¾ Pre-Alarm and Post-Alarm process.
¾ Built-in M-JPEG compression/decompression with configurable quality.
¾ Programmed with various time-lapse speeds.
¾ 3.5” IDE Type Hard Disks for storage with Hot-Swap tray.
¾ RS232 and RS485 for Remote Control.
¾ Real-Time Live Display for all Cameras.
¾ Variable recording speeds up to 60/50 fps for NTSC/PAL.
¾ Alarm-activated recording.
¾ Data can be stored in a Compact Flash Card.
¾ 2 Channel real time audio recording capabilities.

1

EVERFOCUS ELECTRONICS CORPORATION

Specifications

EVERFOCUS ELECTRONICS CORPORATION

Front Panel K eypads

Keys:

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

Back Panel Connections

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

Chapter

2

Installation

The installations described below should be made by qualified service personnel or system installers.

Please refer to the following diagram for the basic wiring connections.

¾ Please Note: Monitors and Cameras must be purchased separately.

EDSR400: Camera 1~4 / EDSR600: Camera 1~6

EDSR900: Camera 1~9 / EDSR1600: Camera 1~16

Diagram 1

EVERFOCUS ELECTRONICS CORPORATION

Basic Wiring Instructions

Please refer to diagram 1 on page 9 to assist you with this portion of the installation.

¾ Power: Connect the power source or adapter into the power socket shown in

diagram 1.

 Please Note: Do not plug the digital video recorder into the same

power source as the cameras.

¾ Cameras: Connect each cameras video output to the video input on the digital

video recorder shown in diagram 1.

 Please Note: At least one camera must be connected before the system

is running for the auto detection of video standard to take effect.

¾ Audio Input: The camera audio output or Microphone is connected to the

audio input terminal at the rear panel.

¾ Audio Output: Connect the speaker or other audio listening devices to the

audio output terminal on the back of the digital video recorder.

¾ Ethernet: The digital video recorder may be viewed from a PC via the LAN

connector using a RJ45 Ethernet cable.

¾ RS232/RS485: The digital video recorder may be controlled from a PC via

RS232/RS485.

 Please Note: This can be done using a serial cable.

¾ Main Monitor: Connect the main monitor output connector to a main

monitor. The main monitor displays selected live or recorded cameras in any
available format.

 Please Note: The main monitor must be connected in order to make

configuration changes, enter the main menu, or do a playback at the
machine.

¾ Call and Matrix Monitors: Connect the call and matrix monitor output

connectors to a call or matrix monitor. The call and matrix monitors display
selected live cameras in full screen format.

 Please Note: The call monitor will only display one full screen camera

at a time.

EVERFOCUS ELECTRONICS CORPORATION

Hard Disk Drive Installation

The first step in installing the hard drive is to insert the hard drive sleeve into
the machine. The hard disk drive default setting is initially set to master. The second
step is to insert the key provided and turn the tray key to the lock position. If this
process is ignored the hard disk drive will not be detected. Follow the previous steps
for the second hard drive or second empty sleeve.

 Please Note: If the Hard Disk Drive is not locked in with the key a system

loading screen will keep flashing and the DVR will not go into record
mode. This is because the Hard Drive is not being recognized.

Final Install Process

Once you have completed the basic wiring installation and the hard disk drive
installation you are read to turn on the DVR. Simply plug the power source you
installed earlier. The POWER LED lights will light up if power is normal. The next
step is to set up the menu options for the DVR.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

3

DVR Menu Setup

Assuming you have completed the first two chapters of this manual. You are
now ready to begin setting up the digital video recorder menu. To begin this process,
press the MENU key. Once inside the main menu you will find there are 15 setup
option pages as follows.

Diagram 2

Turning the jog dial clockwise or counter clockwise will allow you to
scroll through the different menu setup option pages.

EVERFOCUS ELECTRONICS CORPORATION

Clock Setting Menu

Diagram 3

Diagram three is a screen shot of the Clock/Language Setting Menu. In the
Clock/Language Setting Menu the following fields are defined as follows:

¾ Date: This field represents the current date on the DVR. To change this,

simply use the Jog Dial on the DVR. Press the Enter key to make your
selection.

The date is represented as follows:

Year: 2000~2099 / Month: 01~12 / Date: 01~31 (Day of Week)

¾ Time: This field represents the current time on the DVR which is in

military time. To change this, simply use the Jog Dial on the DVR. Press
the Enter key to make your selection.

The date is represented as follows:

Hour: 00~23 : Minute: 00~59 : Second: 00~59

EVERFOCUS ELECTRONICS CORPORATION

¾ Menu Language: This field is set to English from factory and can not be

changed.

¾ Video System: This field is set to NTSC from factory which is the North

American Video Standard and can not be changed. The European and
Asian Video Standards are PAL.

¾ Version: This field represents the firmware version the digital video

recorder is using.

 Please Note: New firmware versions are available for download from

our ftp site. ftp://64.210.7.210 (see page for firmware
upgrade instructions)

¾ Release Date: This field represents the date the firmware was released.

EVERFOCUS ELECTRONICS CORPORATION

Timer Setting Menu

Diagram 4

Diagram four is a screen shot of the Timer Setting Menu. In this menu you can set a
unique timer any day of the week to start recording from a specified start time to an
end time. In the Timer Setting Menu the following fields are defined as:

¾ Week: This field represents the day of the week you wish to set the timer

record for. Initially it is set to Sun as default. You may choose from Mon­Sun as well as DLY. If you wish to create a daily timer for every day of the
week you may choose the DLY option. To change this, simply use the Jog
Dial on the DVR. Press the Enter key to make your selection.

¾ Start: This field is used to set the time you wish to start the timer recording.

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Stop: This field is used to set the time you wish to stop the timer

recording. To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

¾ Speed: This field is used to set the speed at which you would like the timer

record to be recording at. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

 Please Note: See Appendix B to find the appropriate speed to fit your

recording needs.

¾ Set: This field is used to turn the timer recording on or off. To change this,

simply use the Jog Dial on the DVR. Press the Enter key to make your
selection.

 Please Note:

If you wish to do any form of playback this feature must

be turned off before attempting to playback.

EVERFOCUS ELECTRONICS CORPORATION

Sequence Setting Menu

Diagram 5

Diagram five is a screen shot of the Sequence Setting Menu. This menu is for setting
up the way in which video is sequenced through the main monitor and call monitor
outputs. In the Sequence Setting Menu the following fields are defined as follows:

¾ Main Monitor: This field is to set the sequence for the main monitor

output.

 Channel: This field represents the channel you are setting to sequence.

 Operation: This field is to turn on or off the camera for the sequence

screen. The default is set to on. To change this, simply use the Jog Dial
on the DVR. Press the Enter key to make your selection.

o Please Note: If an alarm occurs call monitor will display that

particular camera automatically.

 Dwell Time: This field represents the rate at which the cameras will

sequence on the main monitor. The dwell time for the auto sequence

EVERFOCUS ELECTRONICS CORPORATION

can be set from 0 to 99 seconds. To change this, simply use the Jog
Dial on the DVR. Press the Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Title Setting Menu

Diagram 6

Diagram six is a screen shot of the Title Setting Menu. In this menu you can set a
unique title for each of your cameras. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

¾ Example:

CH1 : FrontDoor
CH2 : BackDoor
CH3 : Hallway
CH4 : Closet

EVERFOCUS ELECTRONICS CORPORATION

Cov ert Setting Menu

Diagram 7

Diagram seven is a screen shot of the Covert Setting Menu. In this menu you can set
which cameras to be covert or hidden on the main monitor.

 Channel: This field represents the channel you are setting to sequence.

 Operation: This field is to turn on or off the camera for the sequence

screen. The default is set to on. To change this, simply use the Jog Dial
on the DVR. Press the Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Alarm Setting Menu

Diagram 8

Diagram eight is a screen shot of the Alarm Record Setting Menu. This menu contains
all the alarm operations and options needed to successfully complete an alarm
recording. In the Alarm Record Setting Menu the following fields are defined as:

¾ Operations: This field is to turn alarm recording on or off. The Default

from the factory is set to on. To change this, simply use the Jog Dial on
the DVR. Press the Enter key to make your selection.

¾ Alarm Types: These fields represent what to do when a signal is received

from the alarm board connector. There are two types of alarm signals. The
first is N.O. which stands for Normally Open circuit. The Second is N.C.
which stands for Normally Closed circuit. The default setting is N.O. This
option would be set according to the type of alarm input connected to the
alarm board. For example if you connected a door sensor which was a
Normally Open circuit you would set the alarm type to N.O. To change
this, simply use the Jog Dial on the DVR. Press the Enter key to make
your selection.

EVERFOCUS ELECTRONICS CORPORATION

 Please Note: Refer to Appendix C for more information about setting

up the alarm board.

¾ Duration: When any sensor alarm connected to the device is activated, the

device will immediately react with an alarm and display the warning
message. This entry is used to set the alarm duration from 1 to 99 seconds.
To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Motion Setting Menu

Diagram 9

Diagram nine is a screen shot of the Motion Setting Menu. This menu is for setting up
the digital recorder for motion recording. In the Motion Setting Menu the following
fields are defined as follows:

¾ CH: This field represents the camera channels.

¾ OP: This field is to set the option of turning motion on or off. If OP is

turned on the DVR will respond by recording when motion occurs. If OP
is turned off the DVR will not record when motion occurs. To change
this, simply use the Jog Dial on the DVR. Press the Enter key to make
your selection.

¾ SEN: This entry signifies the sensitivity to pick up motion for each camera.

There are four different sensitivity levels that can be used, High, Standard,
Basic, Low. The default setting is standard. To change this, simply use the
Jog Dial on the DVR. Press the Enter key to make your selection.

¾ Duration: When any sensor alarm connected to the device is activated, the

device will immediately react with an alarm and display the warning
message. This entry is used to set the alarm duration from 1 to 99 seconds.

EVERFOCUS ELECTRONICS CORPORATION

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Manual Edit: This field represents manual editing of each camera for

motion. To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection. Use the jog dial to make your selection.
Once you have chosen the channel you would like to manually edit, press
the ENTER button. This will bring you to a new screen.

Diagram 10

¾ Diagram 10 shows a screen shot of the manually edit screen. Use the

arrow buttons to move through the squares. Initially all the squares are
pink in color signifying that these squares are set up to pick up motion. To
deselect a square simply move over the square and press the ENTER
button. Diagram 11 shows another screen shot of a manually edited screen
after editing has been accomplished.

EVERFOCUS ELECTRONICS CORPORATION

Diagram 11

 To exit this screen after you have finished editing simply press the

MENU button.

EVERFOCUS ELECTRONICS CORPORATION

Record Setting Menu

Diagram 12

Diagram twelve is a screen shot of the Record Setting Menu. This menu contains the
speed and quality for recording all the time. In the Record Setting Menu the following
fields are defined as:

¾ Normal Record:

o Speed: This field represents the speed at which the recorder will be

recording all the time. To change this, simply use the Jog Dial on
the DVR. Press the Enter key to make your selection.

 Please Note: See Appendix B to find the appropriate

speed to fit your recording needs.

o Quality: This field is for setting up video recording quality, this

item lets you set the quality of the video picture by selecting a
compression rate.

There are six quality levels for recording:

 Lower : 15KB

EVERFOCUS ELECTRONICS CORPORATION

 Low : 19KB
 Basic : 23KB
 Standard : 27KB
 High : 31KB
 Superior : 35KB

To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection.

o Disk Full: This field represents what to do when the Hard Disk

Drive gets full. In this case the default is set to rewrite. The other
option if you wish to do so is to set the disk full option to Stop.
This will stop all recording once the drive has been filled up. You
would then have to go to System Setting Menu and do a Disk
Renew in order to format the drive and start recording again. To
change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

¾ Alarm Record:

o Operation: This field is to set the option of turning alarm

recording on or off. If Operation is turned on the DVR will
respond by recording when an alarm occurs. If Operation is
turned off the DVR will not record when an alarm occurs. Please
remember motion is an alarm. To change this, simply use the Jog
Dial on the DVR. Press the Enter key to make your selection.

o Speed: This field represents the speed at which the recorder will be

recording during an alarm. To change this, simply use the Jog Dial
on the DVR. Press the Enter key to make your selection.

 Please Note: See Appendix B to find the appropriate

speed to fit your recording needs.

o Quality: This field is for setting up video recording quality, this

item lets you set the quality of the video picture by selecting a
compression rate.

There are six quality levels for recording:

 Lower : 15KB
 Low : 19KB
 Basic : 23KB
 Standard : 27KB
 High : 31KB

EVERFOCUS ELECTRONICS CORPORATION

 Superior : 35KB

To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection.

¾ Pre-Alarm Record:

o Operation: This field is to set the option of turning pre-alarm

recording on or off. If Operation is turned on the DVR will
respond by recording 5 seconds before an alarm occurs. If
Operation is turned off the DVR will not record the pre-alarm
when an alarm occurs. To change this, simply use the Jog Dial on
the DVR. Press the Enter key to make your selection.

¾ Permanent Record:

o Operation: This field is to set the option of turning permanent

recording on or off. If Operation is turned on the DVR will
respond by recording at 0.1 ips all the time. This option is to be set
to on if you are going to be recording using motion. To change
this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Network Setting Menu

Diagram 13

Diagram thirteen is a screen shot of the Network Setting Menu. This menu is for
setting up the configuration for networking to the DVR. Please refer to the
Networking Chapter of this manual to fully understand how to setup your network for
this DVR. In the Network Setting Menu the following fields are defined as follows:

¾ IP Address: This field is to set a static IP Address for the DVR. A static IP

address is an IP address whose value does not change. Everfocus suggest
using a static IP address. If your Internet provider does not offer a static IP
address you have the option to use a dynamic IP address. For Example: A
Test IP address given to the machine by our engineers is 192.168.010.010.

 Please Note: The Addresses in the machine are for our own testing

you must apply your own addresses to comply with your network.
Refer to Networking Chapter for more details.

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Net mask: This field is to set the subnet mask for your network so as the

DVR will be recognized within the network. Example: 255.255.255.000.

EVERFOCUS ELECTRONICS CORPORATION

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Gateway: This field is to set the gateway for your network so the DVR will

be recognized within the network. An example of this is provided within
the DVR we use to test the machine within our own network. To change
this, simply use the Jog Dial on the DVR. Press the Enter key to make
your selection.

¾ Mac Address: This field is for those Internet service providers or Network

administrators who require a MAC address of the network card of our
DVR. This option can not be changed.

¾ User-Name Password Level: This category is to set up the users that

will log into the network. Please remember that this portion of the
Network setting menu is set up in column format.

 To change this, simply use the Jog Dial on the DVR. Press the Enter

key to make your selection.

 Example: USER-NAME Password Level

admin admin super

Changed to Adam Everfocus super

 Please remember there are only three different levels guest, general,

and super.

o “Admin” and “General” – can view live/playback video
o “Guest” – can only view live.

EVERFOCUS ELECTRONICS CORPORATION

Control Setting Menu

Diagram 14

Diagram fourteen is a screen shot of the Control Setting Menu. This menu is for
setting up a connection from the digital recorder to a computer to transfer instructions
or information using the HyperTerminal program in Windows. In the Control Setting
Menu the following fields are defined as follows:

RS232:

¾ RS232 Baud Rate: This field is to set the speed at which is used to transmit

instruction or information through the RS232 port on the DVR. There are
six different speeds, 1200 BPS, 2400 BPS, 4800 BPS, 9600 BPS, 19200
BPS, and 3840 BPS. The default setting from the factory is 9600 BPS. To
change this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

¾ RS232 Stop Bit: This field is to set the stop bit for the RS232 connection.

There are two different stop bits, 1 or 2. The default in the DVR is set to

1. To change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

¾ RS232 Parity: This field is to select the parity level at which you will be

connected. You can choose between None, Odd, or Even parity levels.
Default is set to none. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

¾ RS232 Data Bit: This field is the data bit at which you will be transferring.

There are two settings for this option: 8 or 7. The default is set to 8. To
change this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

RS485:

¾ RS485 Baud Rate: This field is to set the speed at which is used to transmit

instruction or information through the RS485 port on the DVR. There are
six different speeds, 1200 BPS, 2400 BPS, 4800 BPS, 9600 BPS, 19200
BPS, and 3840 BPS. The default setting from the factory is 9600 BPS. To
change this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

¾ RS485 Stop Bit: This field is to set the stop bit for the RS485 connection.

There are two different stop bits, 1 or 2. The default in the DVR is set to

1. To change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

¾ RS485 Parity: This field is to select the parity level at which you will be

connected. You can choose between None, Odd, or Even parity levels.
Default is set to none. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

¾ RS485 Data Bit: This field is the data bit at which you will be transferring.

There are two settings for this option: 8 or 7. The default is set to 8. To
change this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

¾ RS232/RS485 ID: This entry is used to assign each device its own ID code

if more than one unit is used through the RS232/RS485 connection.
There are two ID codes for the DVR: 001 or 002. The default is set to

001. To change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

¾ Please Note: Settings for remote keyboards KS-KBK and KS-KBJ:

 RS-485 baud rate: 9600, Stop bit: 1, Parity: none, ID range: 1~32.

EVERFOCUS ELECTRONICS CORPORATION

Buzzer Setting Menu

Diagram 15

Diagram fifteen is a screen shot of the Buzzer Setting Menu. This menu is to set the
internal buzzer. In the Buzzer Setting Menu the following fields are defined as:

¾ Buzzer: This field is to turn the internal buzzer enable or disable the

internal buzzer. The default is set to enable. To change this, simply use the
Jog Dial on the DVR. Press the Enter key to make your selection.

¾ Record-In: This option is to turn the buzzer on or off when the DVR is in

record mode. To change this, simply use the Jog Dial on the DVR. Press
the Enter key to make your selection.

¾ Alarm-In: This field is to turn the buzzer on or off when alarm recording

is enabled. To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection.

¾ Motion-In: This option is to turn the buzzer on or off when motion

recording is enabled. To change this, simply use the Jog Dial on the DVR.
Press the Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

¾ Disk Full: This field is to turn the buzzer on or off when the Hard Disk

Drive is full. To change this, simply use the Jog Dial on the DVR. Press
the Enter key to make your selection.

¾ Video Loss: This option is to turn the buzzer on or off when the DVR

experiences video loss. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

¾ Timer: This field is to turn the buzzer on or off when timer recording is

activated. To change this, simply use the Jog Dial on the DVR. Press the
Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Archive Setting Menu

Diagram 16

Diagram sixteen is a screen shot of the Archive Setting Menu. This menu is for setting
up the way in which video is archived within the machine. In the Archive Setting Menu
the following fields are defined as follows:

¾ Picture Size: This field is to set the picture size for copying an image to a

Compact Flash card or through the network. Initial default is set to the
larger size 720 x 480 for NTSC or 720 x 576 for PAL. The smaller size is
352 x 240 for NTSC or 352 x 288 for PAL.

 Please Note: To speed up refresh rate through the network set picture

size to 352 x 240 for NTSC or 352 x 288 for PAL.

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Time Stamp: This option is to turn the time stamp on or off when the

DVR is in record mode. The time stamp will appear when archiving
through the network or to a Compact Flash card. To change this, simply
use the Jog Dial on the DVR. Press the Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

¾ Time Stamp Position: This field is to set the position of the time stamp.

You can set the time position either on top or bottom. The default is set to
top. To change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

¾ Water Mark: This option is to turn water mark on or off when copying to

a Compact Flash card. By default this option is turned on. To change this,
simply use the Jog Dial on the DVR. Press the Enter key to make your
selection.

¾ Water Mark Pos: This field is set the water mark position. You can set the

water mark to either the top or the bottom. The factory default is set to
top. To change this, simply use the Jog Dial on the DVR. Press the Enter
key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Matrix Setting Menu

Diagram 17

Diagram 18 Diagram 19

Diagrams seventeen through nineteen are screen shots of the Matrix Setting Menu.
This menu is for setting up the way in which video is sequenced through the matrix
monitor and call monitor outputs. In the Matrix Setting Menu the following fields are
defined as follows:

¾ Call or Matrix Monitor: This field is to set the sequence for the call or

matrix monitor output.

 Channel: Represents the channels you want to be displayed in full

screen on this output. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

 Dwell Time: This field represents the rate at which the cameras will

sequence on the call monitor. The dwell time for the auto sequence
can be set from 0 to 99 seconds. To change this, simply use the Jog
Dial on the DVR. Press the Enter key to make your selection.

 Event: This field is to select what to do if an alarm or motion occurs.

The default is set to none. If you set this to motion then if motion is
detected the camera will be displayed. After the alarm record duration
has passed the monitor will switch back to standard sequence. To
change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

EVERFOCUS ELECTRONICS CORPORATION

Disk Setting Menu

Diagram 20

Diagram twenty is a screen shot of the Disk Setting Menu. This menu is for viewing
Disk information and formatting the disks. In the Disk Setting Menu the following
fields are defined as follows:

¾ Disk Usage: This field signifies the number of Hard Drives the machine

can store too.

¾ Size: This entry signifies the physical size of the Hard Drive.

¾ Record Position: This field lets you know what position on the Hard Drive

you have recorded up too.

¾ Playback Position: This entry lets you know what position on the Hard

Drive you are playing back.

¾ Disk Renew: This field is to format the Hard Drive. Initially it is set to No.

To format the Hard Drive simply use the jog dial to change this option to
yes. This will bring up a second dialog which asks you if you want to do a
disk renew again. Use the jog dial to select yes and press the enter button.

 Please Note: See Disk Renew Chapter for more details and diagrams.

EVERFOCUS ELECTRONICS CORPORATION

System Setting Menu

Diagram 16

Diagram sixteen is a screen shot of the System Setting Menu. This menu is for setting
up any additional options and restoring defaults to the digital recorder. In the System
Setting Menu the following fields are defined as follows:

¾ Play with Audio 1 and 2: These fields are to turn on audio while playing

video which contains prerecorded audio. This option can be turned on or
off. The default is set to on. To change this, simply use the Jog Dial on the
DVR. Press the Enter key to make your selection.

¾ Play Speed: This entry is to select the speed at which you wish to play

recorded video back. Initially it is set to 60 Ips. To change this, simply use
the Jog Dial on the DVR. Press the Enter key to make your selection.

¾ Password Enable: This field is to turn the password function on or off.

The default is set to disable. If you would like to enable the password
change this option to enable. To change this, simply use the Jog Dial on
the DVR. Press the Enter key to make your selection.

¾ Password Level 2: This field is the password for the system when the

password is enabled. The Level 2 Password let you playback but will not

EVERFOCUS ELECTRONICS CORPORATION

let you into the menu options. The password supports up to 6 characters.
The available alphanumeric characters are:

 0 to 9, A to Z, and /( ) . - * & @ : ”

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

¾ Password Level 3: This field is the password for the system when the

password is enabled. The Level 3 Password gives you all the functionality
of the recorder including the menu options. The password supports up to
6 characters. The available alphanumeric characters are:

 0 to 9, A to Z, and /( ) . - * & @ : ”

To change this, simply use the Jog Dial on the DVR. Press the Enter key
to make your selection.

 Please Note: If you wish to log out of any Level hold the select key for

2 seconds.

 Please Note:

Do not use the same password for level 2 and 3. If you

do so this will only allow you level 2 access.

¾ Multi Event Dwell: This field represents the rate at which the cameras will

sequence on the call monitor in the event of an alarm or motion. The
dwell time for the auto sequence can be set from 0 to 99 seconds. To
change this, simply use the Jog Dial on the DVR. Press the Enter key to
make your selection.

¾ System Update: This field is to update the firmware in the system. Initially

it is set to No. To update the system simply use the arrow buttons to
change this option to yes. This will bring up a second dialog which asks
you if you want to do a system update again. To change this, simply use
the Jog Dial on the DVR. Press the Enter key to make your selection.

 Please Note: See System Update Chapter for more details and

diagrams. Also after the system has updated successfully, be sure to
cycle the power to the digital recorder by turning the power off and
then back on.

¾ Load Default: This entry is to set the DVR back to factory settings. Please

remember if you are having difficulties with your DVR we suggest
restoring the defaults before calling Tech support. Initially Load defaults is

EVERFOCUS ELECTRONICS CORPORATION

set to No. To Load the defaults simply use the arrow buttons to change
this option to yes. This will bring up a second dialog which asks you if you
want to do a load defaults again. To change this, simply use the Jog Dial
on the DVR. Press the Enter key to make your selection.

 Please Note: See Load Defaults Chapter for more details and

diagrams. Also after the system has loaded the defaults successfully, be
sure to cycle the power to the digital recorder by turning the power off
and then back on.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

4

Recording Overview

Before continuing please be sure to have reviewed DVR Menu Setup (Chapter 3). You
are now ready to begin setting up the machine for normal recording. This chapter will
show you how to setup the recorder for basic recording.

Basic Recording Setup

¾ Assuming you have completed the setup options in Chapter 1 and 2. Log into

the DVR menu by pressing the Menu button.

Turning the jog dial clockwise or counter clockwise will allow
you to scroll through the different menu setup option pages.

¾ Once You Reach the Record Setting Menu (See Page 24) change the

Recording speed and quality that best fits your application.

 Please Note: See Appendix B to find the appropriate speed to fit your

recording needs.

¾ Once you have completed the previous step log out of the menu and hit the

record button.

¾ To view the operating display (diagram 17), press the Display button.

Diagram 17

EVERFOCUS ELECTRONICS CORPORATION

¾ To stop recording simply press the Stop button.

 Please Note: When the Hard Drive is full, the DVR will either stop

recording automatically or overwrite from the beginning of the hard drive.
This is all dependent on what was set in the record setting (see page 24).

Timer Recording Setup

¾ Assuming you have completed the setup options in Chapter 1 and 2. Log into

the DVR menu by pressing the Menu button.

Turning the jog dial clockwise or counter clockwise will allow
you to scroll through the different menu setup option pages.

¾ Once You Reach the Record Setting Menu (See Page 24) change the

Recording speed and quality that best fits your application.

 Please Note: See Appendix B to find the appropriate speed to fit your

recording needs.

¾ Use the jog dial after completing the previous step and go to Timer Record

Setting menu (See Page 13). Setup a timer for your application and exit the

menu by pressing the Menu button. Once you have exited the menu the DVR

will go into record mode.

¾ To view the operating display (diagram 18), press the Display button.

Diagram 18

¾ To stop recording simply press the Stop button.

EVERFOCUS ELECTRONICS CORPORATION

 Please Note: When the Hard Drive is full, the DVR will either stop

recording automatically or overwrite from the beginning of the hard drive.
This is all dependent on what was set in the record setting (see page 24).

Motion Recording Setup

¾ Assuming you have completed the setup options in Chapter 1 and 2. Log into

the DVR menu by pressing the Menu button. This method is highly

suggested for Motion Recording.

Turning the jog dial clockwise or counter clockwise will allow
you to scroll through the different menu setup option pages.

¾ Once You Reach the Record Setting Menu (See Page 24) change the

Permanent Record option to the on position.

¾ Use the jog dial after completing the previous step and go to Motion Record

Setting menu (See Page 21). Change the Alarm Recording speed and quality

that best fits your application.

 Please Note: See Appendix B to find the appropriate speed to fit your

recording needs.

¾ Exit the menu by pressing the Menu button.

 Please Note: Our recorders are developed for segment recording. One

segment or motion event can record to one sector on the hard drive.
Hard drives contain on average 256 sectors. Therefore recording on
motion only you will see the Record Light going on and off you are
not recording properly in motion. This will eat up your hard drive
space. To remedy this problem simply turn permanent recording to
the on position to stay in record mode continuously.

¾ To view the operating display (diagram 19), press the Display button.

EVERFOCUS ELECTRONICS CORPORATION

Diagram 19

¾ To stop recording simply press the Stop button.

 Please Note: When the Hard Drive is full, the DVR will either stop

recording automatically or overwrite from the beginning of the hard drive.
This is all dependent on what was set in the record setting (see page 24).

Alarm Recording Setup

¾ Assuming you have completed the setup options in Chapter 1 and 2. Log into

the DVR menu by pressing the Menu button.

Turning the jog dial clockwise or counter clockwise will allow
you to scroll through the different menu setup option pages.

¾ Once You Reach the Record Setting Menu (See Page 24) change the

Recording speed and quality that best fits your application.

 Please Note: See Appendix B to find the appropriate speed to fit your

recording needs.

¾ Exit the menu by pressing the Menu button. Once you have exited the menu if

an alarm occurs the DVR will go into record mode.

¾ To view the operating display (diagram 20), press the Display button.

EVERFOCUS ELECTRONICS CORPORATION

Diagram 20

¾ To stop recording simply press the Stop button.

 Please Note: When the Hard Drive is full, the DVR will either stop

recording automatically or overwrite from the beginning of the hard drive.
This is all dependent on what was set in the record setting (see page 24).

EVERFOCUS ELECTRONICS CORPORATION

Chapter

5

Playback Overview

Before continuing please be sure to have reviewed DVR Menu Setup (Chapter 3). You
are now ready to begin setting up the machine for playback. This chapter will show you
how to setup the recorder for basic playback.

Basic Playback

¾ Assuming you have completed the setup options in Chapter 1 through 4. Press

the play button to set the recorder into playback mode and play the last

segment recorded.

¾ If you Press the Rev play button it will play the last known segment in reverse

mode.

¾ At any point if you wish to fast forward or rewind while playing back simply

use the shuttle dial to do so. The speed will be shown on the corner of the

screen. << Or >> 2, 4, 6, 8, 16, 32, 600X.

¾ If you want to do a slow playback press the pause button anytime during

playback. Then simply turn the shuttle clockwise or counter clockwise

depending if you want to do a slow forward or slow rewind. The speed will be

shown on the corner of the screen. << Or >> 1/2, 1/4, 1/6, 1/8, 1/16, 1/32.

¾ If you want to go frame by frame while playing something back. Press the

pause button and use the jog dial to advance to the next image. Turning the jog

dial counter clockwise will go to the previous still image.

Search Playback

1. Segment List Playback

¾ Assuming you have completed the setup options in Chapter 1 through 4.

¾ Press the search button to enter the search menu. (See Diagram 21)

EVERFOCUS ELECTRONICS CORPORATION

Diagram 21

¾ Use the up and down arrow keys to select segment list and press the enter

key.

¾ Diagram 22 illustrates what the segment list may look like. Use the up and

down arrow keys to choose a segment you want to playback and press the
enter key. This in turn will start playing the segment you chose.

Diagram 22

¾ To stop playing back press the stop key.

EVERFOCUS ELECTRONICS CORPORATION

2. Alarm List Playback

¾ Assuming you have completed the setup options in Chapter 1 through 4.

¾ Press the search button to enter the search menu. (See Diagram 23)

Diagram 23

¾ Use the up and down arrow keys to select alarm list and press the enter

key.

 Please Note: If the alarm list is empty you will not be able to enter the

alarm list because there are no alarms or motion being recorded.

¾ Diagram 24 illustrates what the alarm list may look like. Use the up and

down arrow keys to choose a segment you want to playback and press the
enter key. This in turn will start playing the segment you chose.

Diagram 24

¾ To stop playing back press the stop key.

EVERFOCUS ELECTRONICS CORPORATION

3. Date/Time Playback

¾ Assuming you have completed the setup options in Chapter 1 through 4.

¾ Press the search button to enter the search menu. (See Diagram 25)

Diagram 25

¾ Use the up and down arrow keys to select Date/Time and press the enter

key.

¾ Diagram 26 illustrates what the Date/Time field may look like. Use the up

and down arrow keys to enter a date and time you want to playback,
highlight search, and press the enter key. This in turn will start playing the
segment you chose.

Diagram 26

¾ To stop playing back press the stop key.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

6

Copying Video

Before continuing please be sure to have reviewed the preceding chapters. You are
now ready to copy an image or video from the DVR. This chapter will show you how
to copy a still image or movie from the recorder.

¾ Please Note: Lexar Compact Flash Cards are not compatible with Everfocus digital

recorders. Everfocus suggests using Sandisk or Kingston Compact Flash Cards.

¾ Insert the Sandisk or Kingston Compact Flash Cards into the Compact Flash

card slot on the front panel of the DVR. When inserting the Compact Flash card,
make sure the direction of insertion is correct.

Still Image Copy

¾ The First step is if you are in Record mode to hit the stop button to stop

recording.

¾ If the menu pops up when you press the stop button. This usually means you

have either the DVR is in Timer record or Motion record. Log into the DVR

menu by pressing the Menu button. Go to Either Timer Setting Menu or

Motion Record Setting menu and turn them off.

¾ Once you have stopped any type of recording on the DVR you are ready to do

archive.

EVERFOCUS ELECTRONICS CORPORATION

¾ The Second Step is to play the video you want to archive. Please refer to

chapter 5 to for playing back video.

¾ Once you are in playback mode press the pause button. You may use the jog

dial to go back or forward to select the image you wish to copy.

¾ Once you have the image you want copied on the screen press the copy

button.

¾ You will then see “Copying …” on the screen while it is copying to the flash

card. When it has finished copying will disappear from the screen.

Diagram 27 Diagram 28

¾ The image on the Compact flash card will be stored as a jpeg file.

Copy as a MO V File

¾ The First step is if you are in Record mode to hit the stop button to stop

recording.

¾ If the menu pops up when you press the stop button. This usually means you

have either the DVR is in Timer record or Motion record. Log into the DVR

menu by pressing the Menu button. Go to Either Timer Setting Menu or

Motion Record Setting menu and turn them off.

¾ Once you have stopped any type of recording on the DVR you are ready to do

archive.

¾ The Second Step is to play the video you want to archive. Please refer to

chapter 5 to for playing back video.

¾ Once you are in playback mode, select the camera and have the portion of the

video you wish to copy. Then press the copy button.

EVERFOCUS ELECTRONICS CORPORATION

Diagram 29

¾ You will see a screen similar to diagram 29 when you have pressed the copy

button. This on screen menu will help you finish the copying process. At this

point to continue recording you would press the copy button again. Once you

have the video you want to stop copying just press the pause button.

¾ To exit press the stop button.
¾ The video is now stored on the Compact flash card as a MOV file. This type

of file can be played using QuickTime video player. You can download this

program for free from www.quicktime.com.

Other Archiving Methods

¾ Other methods of archiving may include Powercon software which can be

found on our ftp site (

reader (model number: EPR100) which you can hook to the usb port of a

computer. The third option to archive would be to use our DVD recorder

(model number: VPDVD100).

ftp://64.210.7.210 ). You may also use our Hard Drive

Viewing a Copied File

¾ First step is to play the video or image you have stored on the Compact Flash

card is to take the Compact Flash card and insert it into the Compact Flash

Reader which came with your digital recorder. Insert the other end of the Flash

card reader into the USB port of your computer.

EVERFOCUS ELECTRONICS CORPORATION

¾ Open up My computer in windows and you will notice a new drive has been

added to the computer. This is the Compact flash card. To view the files

simply click on the drive to open it and you will see the files you archived.

¾ The video stored on the Compact flash card is a MOV file. This type of file

can be played using QuickTime video player. You can download this program

for free from www.quicktime.com.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

7

Audio Overview

This chapter will try to give you details on how to setup audio on the DVR.
Before we begin the process of connecting audio to your digital recorder we
should have the following items. A Line level microphone (RCA input) and
speakers for playback output (RCA).

You will not be able to hear audio live unless an audio processor is looped
through or placed between the mic and the DVR.

 You will not hear audio through the TCP/IP connection.
 You can not archive any audio recording.
 You can not record using motion or an alarm with audio recording.
 You must set the normal record speed between 60 ips to 1 ips.

Recommended audio processor:

Louroe Base Station ATR-1.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

8

How to Upgrade Firmware on the
DVR?

This chapter will try to give you a detailed instruction on how to upgrade
the DVR. This will be a helpful in completing the upgrading process.

¾ Please go to ftp://64.210.7.210 and go to DVR Firmware upgrade

folder. Then click on the folder that represents you’re the model number
of your DVR.

¾ Copy the .HEX to CF card using the Compact Flash reader that came

with your DVR (from a computer).

¾ Please Note: Lexar Compact Flash Cards are not compatible with Everfocus

digital recorders. Everfocus suggests using Sandisk or Kingston Compact
Flash Cards.

¾ Insert the Sandisk or Kingston Compact Flash Cards into the Compact

Flash card slot on the front panel of the DVR. When inserting the Compact
Flash card, make sure the direction of insertion is correct.

¾ If you are in Record mode hit the stop button to stop recording.
¾ If the menu pops up when you press the stop button. This usually means

you have either the DVR is in Timer record or Motion record. Log into the
DVR menu by pressing the Menu button. Go to Either Timer Setting Menu
or Motion Record Setting menu and turn them off.

¾ Once you have stopped any type of recording on the DVR you are ready to

upgrade.

¾ Press the menu button and use the Jog Dial to go to System menu (See

page 39).

¾ Using the enter button to navigate in the menu. Highlight System

Upgrade turn NO to YES (use jog wheel to select).

EVERFOCUS ELECTRONICS CORPORATION

¾ Highlight YES again and press enter (use jog wheel to select).

¾ Next to System Upgrade you will notice it say "Reading....then

Programming...then Success..."

¾ Once you have read success log out of the menu by pressing the menu

button twice. Then turn the power on the DVR off and turn it back on.

.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

9

Networking Overview

This chapter will try to give you a detailed instruction on how to network
the DVR. Before we begin the process of networking your digital recorder we
should have a working knowledge of what a network is and how it works. This
will be a helpful in completing the networking process.

Introduction to TCP/IP

TCP/IP is the suite of protocols used by the Internet and most LANs
(Local Area Networks) throughout the world. In TCP/IP, every host (computer
or other communications device) that is connected to the network has a unique IP
address. By doing this you are giving your device a unique address similar to the
address of your house. An IP address is composed of four octets (numbers in the
range of 0 to 255) separated by decimal points. The IP address is used to uniquely
identify a host or computer on the LAN. For example, a computer with the
hostname Workstation could have an IP address of 192.168.1.127.

You should avoid giving two or more computers the same IP address by
using the range of IP addresses that are reserved for private, local area networks;
this range of IP addresses usually begins with the octets 192.168. The first three
octets of an IP address should be the same for all computers in the local area
network. For example, if a total of 253 computers exist in a single LAN, the IP
addresses could be assigned starting with 192.168.1.x, where x represents a
number in the range of 2 to 254.

Subnet Masks

Each host in a LAN has a subnet mask. The subnet mask is an octet that uses the
number 255 to represent the network address portion of the IP address and a zero to
identify the host portion of the address. For example, the subnet mask 255.255.255.0 is
used by each host to determine which LAN or class it belongs to. The zero at the end
of the subnet mask represents a unique host within that network. Basically the subnet
mask represents the city you live in for your home address, but in this case you are
stating the network you belong too.

EVERFOCUS ELECTRONICS CORPORATION

Gateway Address

Each host in a LAN has a gateway. A gateway address is composed of four
octets (numbers in the range of 0 to 255) separated by decimal points. The
gateway address is used to uniquely identify a host or computer on the LAN
which assigns the IP addresses to your network. For example, a Linksys router has
an IP address of 192.168.1.1. If you were using this type of router within your
LAN, then your gateway would be the IP address of the Linksys router. The
reason this would be your gateway is because the Linksys is assigning the IP
addresses for your network therefore the Linksys would be the gateway to your
network. This is similar to the zip code of your address.

Virtual Ports

A port number represents an endpoint or "channel" for network
communications. Port numbers allow different applications on the same computer
to utilize network resources without interfering with each other. Port numbers
most commonly appear in network programming, particularly socket
programming. Sometimes, though, port numbers are made visible to the casual
user. For example, some Web sites a person visits on the Internet use a URL like
the following:

http://www.everfocus.com:8100/

In this example, the number 8100 refers to the port number used by the
Web browser to connect to the Web server. Normally, a Web site uses port
number 80 and this number need not be included with the URL (although it can
be). In IP networking, port numbers can theoretically range from 0 to 65535. Most
popular network applications, though, use port numbers at the low end of the
range (such as 80 for HTTP). This could be similar to the front door of your
house. Without the door to the house being open you could not enter it. This is
the same case with ports on a network. If the ports for a specific IP address are
not open then you could not gain access to that IP address or what it is
addressing.

Please Note: The term port also refers to several other aspects of network

technology. A port can refer to a physical connection point for peripheral

devices such as serial, parallel, and USB ports. The term port also refers to

certain Ethernet connection points, such as those on a hub, switch, or

router.

EVERFOCUS ELECTRONICS CORPORATION

Pre-Installation

Before we begin with the installation we must ask ourselves a few
questions in order to figure out where to begin with networking our DVR’s.

Do you have Hi-speed Internet? ______________

There are many types of high speed Internet available. Three commonly

used ones are T1, Cable, and DSL (in order of speed).

 Please Note: Everfocus suggests having a minimum upload speed

of 256KBps. This can be addressed by the Internet Service
Provider.

Who is your Internet provider? ______________

 Please confirm that your internet service provider that our upload

speed is at least 256KBps.

What type of modem/router do you have? ______________
Modem/router model name/ #

The modem/router was either installed by your Internet service provider

or purchased by you to establish a connection to the Internet. A router is

installed to allow multiple computers to access the Internet through the

same external IP address. It in turn assigns different internal IP addresses

to local computers for this specific purpose.

Do you have a static IP address? ______________

A Static IP address means you use the same IP address every time you log

on to the Internet. With a static IP address, other Internet users always

know the identity of your computer and can easily connect with it. That

way, you can host a website, email server, or other type of server

connection. Everfocus suggest using a static IP address. If your Internet

provider does not offer a static IP address you have the option to use a

dynamic IP address. This will be explained in more detail later on in the

chapter.

Do you have a dynamic IP address? ______________

A Dynamic IP address means your IP address changes each time you make

a connection to the Internet. We recommend asking your Internet service

provider for a Static IP address. If this is not a possibility, you may

purchase a router (we suggest a Linksys or D-link router) which supports

EVERFOCUS ELECTRONICS CORPORATION

DDNS. DDNS is a Dynamic Domain Name Server, a service that

provides a central (public) database where DNS information can be stored

and retrieved. It allows those using a dynamic IP address to be registered

centrally so users can connect to it by name.

What type of DVR are you installing? ______________

Everfocus EDR series: EDR 400, 1600 or 1680

Everfocus EDSR series: EDSR 110, 400H, 400M, 400, 900, or 1600

What Type of Network Connection do you have?

Everfocus DVR’s can operate using three distinct types of networking
connections.

1. Simple One to One Connection: A simple one to one connection is the

most simple network connection. Basically it is a connection between a

Computer and Another Computer or in this case a DVR using a cross-

over cable. (See page on how to install this type of connection)

2. Direct High Speed Modem Connection: A direct high speed modem

connection is a network connection from the modem directly to a

computer or in this case the DVR. (See page on how to install this type of

connection)

3. Router or LAN Connection – A local area network connection either

requires a router or a pre-existing LAN connection. Typically this type of

connection is the most commonly used application. A router allows

multiple computers and DVR’s to access each other as well as the Internet.

It assigns different internal IP addresses to the computers.

EVERFOCUS ELECTRONICS CORPORATION

Simple One to One Connection

Cat 5

Cross-over-cable

Crossover Ethernet Cable Pin outs:

The Diagram below shows the pin configurations for a cross over cable.

Diagram 31

Connection Procedure:

¾ The First step is to purchase or make a cross over cable. We recommend

purchasing one if you have never made a cross over cable. Please

remember you can not use a straight through network cable for this

application

¾ Once you have a cross over cable plug one end into the LAN port on the

back of the recorder and the other into the network card on the back of

the computer.

¾ Now Log into the Everfocus DVR menu and using the jog dial from the

previous chapter go to the Network Setting Menu. (See page 28 for more

instructions)

EVERFOCUS ELECTRONICS CORPORATION

¾ Assign an IP address of 192.168.001.003 to the DVR, a Subnet mask of

255.255.255.000, and a default gateway of 192.168.001.001.

¾ The next step is to get the computer onto the same network to do this you

will need administrator access to your windows machine.

¾ To assign a static IP address in windows 2000/XP.

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

¾ Once you have reached this point click ok and restart both the computer

and the digital recorder.

¾ To access the DVR from the computer simply open Internet Explorer and

in the address bar type:

http://192.168.1.3

EVERFOCUS ELECTRONICS CORPORATION

Direct High Speed Modem Connection

Hi-speed modem

Internet

Straight Through Cable

Cat 5

DVR

Straight Through Ethernet Cable Pin outs:

The Diagram below shows the pin configurations for a straight cable.

Diagram 32

Connection Procedure:

¾ The First step is to purchase or make a straight through cable. We

recommend purchasing one if you have never made a straight through

cable. Please remember you can not use a cross over network cable for this

application

¾ Once you have a straight through cable plug one end into the LAN port

on the back of the recorder and the other into the high speed modem.

EVERFOCUS ELECTRONICS CORPORATION

¾ Now Log into the Everfocus DVR menu and using the jog dial from the

previous chapter go to the Network Setting Menu. (See page 28 for more

instructions)

¾ Assign the Static IP address which you obtained from the internet service

provider to the DVR, the Subnet mask from the internet service provider

to the DVR, and the default gateway of the internet service provider.

 Please Note: If you have a dynamic IP address this type of connection

will not work for you. You will need to purchase a router or ask your
internet service provider for a static IP address. (Please refer to local
area network connection checklist)

¾ Once you have reached this point click ok and restart both the computer

and the digital recorder.

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// and the IP address of your internet service provider.

EVERFOCUS ELECTRONICS CORPORATION

Router or LAN Connection

Internet

Hi-speed modem

Straight Through Cable

Cat 5

DVR

Router

Straight Through Ethernet Cable Pin outs:

The Diagram below shows the pin configurations for a straight cable.

Diagram 33

Connection Procedure:

¾ The First step is to purchase or make a straight through cable. We

recommend purchasing one if you have never made a straight through

cable. Please remember you can not use a cross over network cable for this

application

EVERFOCUS ELECTRONICS CORPORATION

¾ Once you have a straight through cable plug one end into the LAN port

on the back of the recorder and the other into the router.

¾ Now Log into the Everfocus DVR menu and using the jog dial from the

previous chapter go to the Network Setting Menu. (See page 28 for more

instructions)

¾ If you have a Linksys Router:

 Assign an IP address of 192.168.001.050 to the DVR, a Subnet mask

of 255.255.255.000, and a default gateway of 192.168.001.001.

If you have a D-Link Router:

 Assign an IP address of 192.168.000.050 to the DVR, a Subnet mask

of 255.255.255.000, and a default gateway of 192.168.000.001.

If you have a pre-existing LAN:

 Go to a Computer on the pre-existing network and do the following:

o Go to Start, then Run and type cmd and click on OK.

 Then hit enter, type ipconfig and press enter this will give you the

information you will need.

 Use the prior step to assign an IP address. For example, if you got the

IP address from the computer of 192.168.002.101. Assign the DVR’s
IP address as 192.168.002.050. Now Copy the subnet mask and default
gateway information you got from the prior step off the computer to
the DVR.

EVERFOCUS ELECTRONICS CORPORATION

¾ Please Note: Make sure the modem is in bridge mode. If your Internet

Service Provider is BellSouth you will have a modem/router. BellSouth

provides a Westell modem that includes a built-in router. You will need to

disable the router functionality.

¾ The next step is to open ports within your router. Open virtual ports in

the router (Log into the router using a PC)

o EDR Ports to open: 80, 1111, 1600
o EDSR Ports to open: 80, 1111, 2222, 3333, 4444, 6666

 Please Note: If your Internet service provider blocks port 80 you

may use a different port to access the DVR through the routers
UPNP forwarding (Linksys feature) or Virtual Server (D-Link
feature). This will be addressed in the next two chapters.

¾ If you have a Dynamic IP address and have open the ports simply go to

Chapter 9 to Configure DDNS.

¾ Once you have reached this point and you have restarted the digital

recorder.

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// and the IP address of your internet service provider.

 Please Note: If your Internet service provider blocks port 80 you

may use a different port to access the DVR through the routers
UPNP forwarding (Linksys feature) or Virtual Server (D-Link
feature). This will be addressed in the next two chapters.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

10

Linksys Port Forwarding

This chapter will cover a few simple configurations for the Linksys router.
Please understand we do not support this product and will not give tech support
on it. If you need Technical support on this router you must call Linksys. This
Chapter is to offer some help to the installer and end user nothing more.

To access the Web-based Utility, launch Internet Explorer or Netscape
Navigator, and enter the Router’s default IP address, 192.168.1.1, in the Address
field. Then, press Enter. A password request page will appear. (Non-Windows XP
users will see a similar screen.) Leave the User Name field blank. The first time you
open the Web-based Utility, use the default password admin. (You can set a new
password from the Administration tab’s Management screen.) Click the OK button
to continue.

EVERFOCUS ELECTRONICS CORPORATION

The first screen that appears displays the Setup tab. This allows you to change
the Router's general settings. Change these settings as described here and click the
Save Settings button to apply your changes or Cancel Changes to cancel your
changes.

The Applications and Gaming Tab allows you to set up public services on
your network, such as web servers, ftp servers, e-mail servers, or other specialized
Internet applications. (Specialized Internet applications are any applications that
use Internet access to perform functions such as videoconferencing or online
gaming. Some Internet applications may not require any forwarding.)

To forward a port, enter the information on each line for the criteria

required. Descriptions of each criteria are described here.

EVERFOCUS ELECTRONICS CORPORATION

Application - In this field, enter the name you wish to give the application.
Each name can be up to 12 characters.

Start/End - This is the port range. Enter the number that starts the port
range under Start and the number that ends the range under End.

Protocol - Enter the protocol used for this application, either TCP or UDP,
or Both.

IP Address - For each application, enter the IP Address of the PC running
the specific application.

Enable - Click the Enable checkbox to enable port forwarding for the
relevant application.

Change these settings as described here and click the Save Settings button to
apply your changes or Cancel Changes to cancel your changes.

Example:

DVR 80 to 80 Both 192.168.1.50 Enable

DVR 1111 to 1111 Both 192.168.1.50 Enable
DVR 2222 to 2222 Both 192.168.1.50 Enable

EVERFOCUS ELECTRONICS CORPORATION

DVR 3333 to 3333 Both 192.168.1.50 Enable
DVR 4444 to 4444 Both 192.168.1.50 Enable
DVR 6666 to 6666 Both 192.168.1.50 Enable
DVR 1600 to 1600 Both 192.168.1.50 Enable

¾ The next step is to open ports within your router. Open virtual ports in

the router.

o EDR Ports to open: 80, 1111, 1600
o EDSR Ports to open: 80, 1111, 2222, 3333, 4444, 6666

¾ If your Internet Service Provider Blocks port 80. Simply do the following:

Clicking the UPnP Forwarding button on the Port Range Forwarding tab
will display the UPnP Forwarding tab. The UPnP Forwarding tab displays
preset application settings as well as options for customization of port services
for other applications.

To add a server using UPnP Forwarding:

EVERFOCUS ELECTRONICS CORPORATION

1. Enter the name of the application in the appropriate Application Name
field.

2. Next to the name of the application, enter the number of the external port
used by the server in the Ext. Port column. Check with the Internet
application software documentation for more information.

3. On the same line, select the protocol UDP or TCP.

4. Enter the number of the internal port used by the server in the Int. Port
column. Check with the Internet application software documentation for more
information.

5. Enter the IP address of the server that you want the Internet users to be
able to access.

6. Check the Enable box to enable the services you have defined. UPnP
Forwarding will not function if the Enable button is left unchecked. This is
disabled (unchecked) by default.

Example:

DVR 8100 TCP 80 192.168.1.50 Enable

DVR 8100 UDP 80 192.168.1.50 Enable

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// IP address of your internet service provider: 8100

Dynamic DNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS

lets you assign a fixed host and domain name to a dynamic Internet IP address. It is
useful when you are hosting your own website, FTP server, or other server behind the
Router. Before you can use this feature, you need to sign up for DDNS service at
www.dyndns.org, DDNS service providers.

EVERFOCUS ELECTRONICS CORPORATION

DDNS Service - From this pull-down menu, enter the DDNS service with

which you have membership.

User Name - Enter the User Name for your DDNS account.

Password - Enter the Password for your DDNS account.

Host Name - The is the DDNS URL assigned by the DDNS service.

Internet IP Address - This is the Router’s current IP Address as seen on the

Internet.

Status - This displays the status of the DDNS connection.

Change these settings as described here and click the Save Settings button

to apply your changes or Cancel Changes to cancel your changes.

EVERFOCUS ELECTRONICS CORPORATION

Chapter

11

D-Link Port Forwarding

This chapter will cover a few simple configurations for the D-Link router.

Please understand we do not support this product and will not give tech support
on it. If you need Technical support on this router you must call D-Link. This
Chapter is to offer some help to the installer and end user nothing more.

EVERFOCUS ELECTRONICS CORPORATION

¾ The next step is to open ports within your router. Go to Virtual Server in

the router.

Example1:

Protocol Type ­Public Port -

used to access the virtual service.

Private Port ­Schedule - The schedule of time when the virtual service will be enabled.

The schedule may be set to Always, which will allow the particular service to

always be enabled. If it is set to Time, select the time frame for the service to

be enabled. If the system time is outside of the scheduled time, the service will

be disabled.

Virtual Server -

The protocol used for the virtual service.

The port number on the WAN (Wide Area Network) side that will be

The port number of the service used by the Private IP computer.

Select Enabled or Disabled

EVERFOCUS ELECTRONICS CORPORATION

Name - Enter the name referencing the virtual service
Private IP - The server computer in the LAN (Local Area Network) that will be

providing the virtual services. If you have a Web server that you wanted Internet

users to access at all times, you would need to enable it. Web (HTTP) server is on
LAN (Local Area Network) computer

192.168.0.50 HTTP uses port 80, TCP and UDP.
Name: DVR

Private IP: 192.168.0.50
Protocol Type: Both
Private Port: 80
Public Port: 80
Schedule: always

¾ The next step is to open ports within your router. Open virtual ports in

the router.

o EDR Ports to open: 80, 1111, 1600
o EDSR Ports to open: 80, 1111, 2222, 3333, 4444, 6666

¾ If your Internet Service Provider Blocks port 80. Simply do the following:

192.168.0.50 HTTP uses port 80, TCP and UDP.
Name: DVR

Private IP: 192.168.0.50
Protocol Type: Both
Private Port: 80
Public Port: 8100
Schedule: always

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// IP address of your internet service provider: 8100

EVERFOCUS ELECTRONICS CORPORATION

Dynamic DNS

Dynamic Domain Name System is a method of keeping a domain name

linked to a changing IP Address. This is a useful feature since many computers do
not use a static IP address.

¾ To setup Dynamic DNS simple go to Tools and the Misc. At the bottom

of the screen you will be able to enable DynDNS.

¾ Once you have enabled it enter the server address of DynDNS.org:

members.dyndns.org

¾ Then enter the hostname you created with DynDNS.org

Example: Everfocus.homeip.net

¾ Then enter the username and password you use to log into DynDNS.org

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

Chapter

12

DDNS

This chapter will cover a few simple configurations for setting up DDNS.

Please understand we do not support this product and will not give tech support
on it. If you need Technical support on DDNS you must call Linksys or D-Link.
This Chapter is to offer some help to the installer and end user nothing more.

Creating a DDNS Account

¾ The first step is to open Internet Explorer and in the address bar type:

http://www.dyndns.org

¾ The next step is to register with dyndns.org by clicking on sign up now.

EVERFOCUS ELECTRONICS CORPORATION

¾ This is where you file out the information DynDNS requires. You will

then receive an email to confirm your account once you confirm you will

login into DynDNS.org.

¾ After you have logged in click on click on the account tab and the click on

Add Host link right next to Dynamic DNS.

¾ The next step is to add a host name with an extension.

Example: Everfocus.homeip.net

¾ The IP address should already be entered for you. All you have to do is

click add host and you are done registering DDNS.

¾ You may refer to the previous two chapters to set up DDNS within your

router.

EVERFOCUS ELECTRONICS CORPORATION

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// The DDNS you created example everfocu.homeip.net

EVERFOCUS ELECTRONICS CORPORATION

Chapter

13

Viewing through Internet Explorer

¾ To access the DVR from a computer simply open Internet Explorer and

in the address bar type:

http:// (LAN or IP address of your internet service provider)

¾ The digital video login page will appear on the screen similar to the one

shown above.

¾ User must enter a user name and password to access the recorder. You can

find your user name and password in the Network setting menu of your

DVR.

¾ The Default user name and password are admin and admin.

EVERFOCUS ELECTRONICS CORPORATION

¾ Then click on the submit button and you will be logged into your recorder.

EVERFOCUS ELECTRONICS CORPORATION

EVERFOCUS ELECTRONICS CORPORATION

¾ Please Note: If any icon is grayed, it means that particular function is not

accessible.

EVERFOCUS ELECTRONICS CORPORATION

Interface Specifications

This Digital Video Recorder may be controlled by a computer or a
terminal via the standard D-SUB 9-pin RS-232 connector.

 D-SUB 9-pin connector specifications:

Chapter

14

 The pin assignment of the 9-pin D-SUB connector

EVERFOCUS ELECTRONICS CORPORATION

T ransmission Setting

There are 6 different speeds that can be used to transmit instruction or
information through the RS232/RS485 port on the device, 1200 baud, 2400
baud, 4800 baud, 9600 baud, 19200 baud, and 3840 baud. The default setting
from the factory is 9600 baud. Please refer to RS232/RS485 Setting Menu on
page 32 for details.

Remote Control Protocol

A computer can be used to control the DVR by sending the packet as follows.
