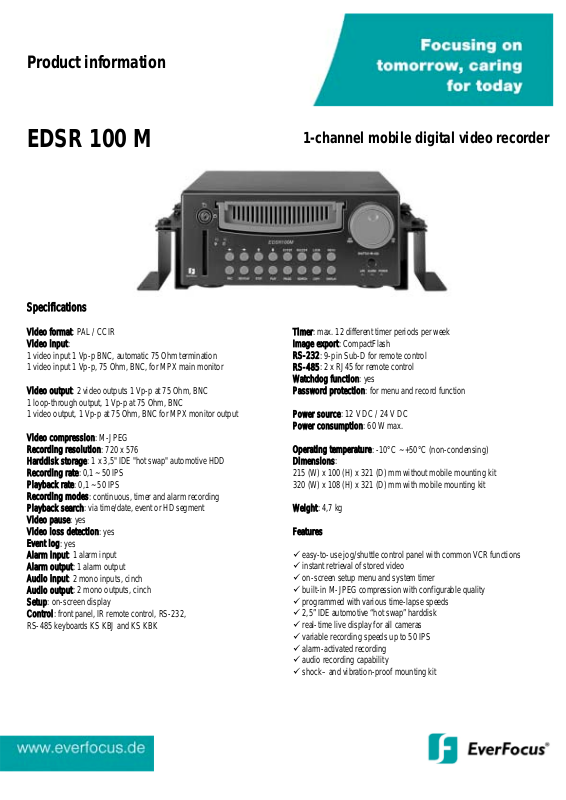

EverFocus EDSR100M-R Specsheet

Product information

EDSR 100 M

Specifications

Video format: PAL / CCIR
Video input:
1 video input 1 Vp-p BNC, automatic 75 Ohm termination
1 video input 1 Vp-p, 75 Ohm, BNC, for MPX main monitor

Video output: 2 video outputs 1 Vp-p at 75 Ohm, BNC
1 loop-through output, 1 Vp-p at 75 Ohm, BNC
1 video output, 1 Vp-p at 75 Ohm, BNC for MPX monitor output

Video compression: M-JPEG
Recording resolution: 720 x 576
Harddisk storage: 1 x 3,5" IDE "hot swap" automotive HDD
Recording rate: 0,1 ~ 50 IPS
Playback rate: 0,1 ~ 50 IPS
Recording modes: continuous, timer and alarm recording
Playback search: via time/date, event or HD segment
Video pause: yes
Video loss detection: yes
Event log: yes
Alarm input: 1 alarm input
Alarm output: 1 alarm output
Audio input: 2 mono inputs, cinch
Audio output: 2 mono outputs, cinch
Setup: on-screen display
Control: front panel, IR remote control, RS-232,
RS-485 keyboards KS KBJ and KS KBK

1-channel mobile digital video recorder

Timer: max. 12 different timer periods per week
Image export: CompactFlash
RS-232: 9-pin Sub-D for remote control
RS-485: 2 x RJ45 for remote control
Watchdog function: yes
Password protection: for menu and record function

Power source: 12 V DC / 24 V DC
Power consumption: 60 W max.

Operating temperature: -10°C ~ +50°C (non-condensing)
Dimensions:
215 (W) x 100 (H) x 321 (D) mm without mobile mounting kit
320 (W) x 108 (H) x 321 (D) mm with mobile mounting kit

Weight: 4,7 kg

Features

! easy-to-use jog/shuttle control panel with common VCR functions
! instant retrieval of stored video
! on-screen setup menu and system timer
! built-in M-JPEG compression with configurable quality
! programmed with various time-lapse speeds
! 2,5” IDE automotive “hot swap” harddisk
! real-time live display for all cameras
! variable recording speeds up to 50 IPS
! alarm-activated recording
! audio recording capability
! shock– and vibration-proof mounting kit
