EverFocus ED705, EHD705 User Manual

OPERATION INSTRUCTION

ED/EHD705-004

EHD705

OUTDOOR / VANDAL DOME

ED705

INDOOR DOME

HIGH PERFORMANCE

TRUE WDR LOW PROFILE DOME

EHD705

ED705

EVERFOCUS ELECTRONICS CORPORATION

Operation Instruction

2013 EverFocus Electronics Corp

Please read this manual  rst for correct installation and operation. This manual
should be retained for future reference. The information in this manual was current
when published. The manufacturer reserves the right to revise and improve its

products. All speci cations are therefore subject to change without notice.

All rights reserved. No part of the contents of this manual may be reproduced or
transmitted in any form or by any means without written permission of the EverFocus
Electronics Corporation.

2

Precautions

1.

2.

3.

4.

5.

Do not install the camera near electric or magnetic fi elds.

Install the camera away from TV/radio transmitters, magnets, electric motors,
transformers and audio speakers since the electromagnetic fi elds generated from these
devices may distort the video image or otherwise interfere with camera operation.

Never disassemble the camera beyond the recommendations in this manual nor
introduce materials other than those recommended herein.

or introduction of corrosive materials may result in equipment failure or other damage.

Try to avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor
and/or internal circuits, as well as creating unbalanced illumination beyond the capability
of the camera to compensate.

Keep the power cord away from water and other liquids and never touch the
power cord with wet hands.

the power cord with wet hands may result in electric shock.

Never install the camera in areas exposed to oil, gas or solvents.

Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases,
fi re.

Touching a wet power cord with your hands or touching

Improper disassembly

6.

7.

8.

Cleaning

For cameras with interchangeable lenses, do not touch the surface of the sensor directly
with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the
sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera
body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of
any part of the camera.

Do not operate the camera beyond the specifi ed temperature, humidity or power
source ratings. This camera is suitable for indoor and outdoor operation.

camera at temperatures within -10°C~50°C (14°F~122°F) and in an IP66 compliant
environment; this device is not rated as submersible. The input power source is 12VDC.

The use of properly fused or Class 2 power limited type supplies are highly
recommended.

Mounting

Use care in selecting a solid mounting surface which will support the weight of the
camera plus any wind, snow, ice or other loading, and securely attach the camera to the
mounting surface using screws and anchors which will properly support the camera. If
necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional

support for the camera.

Use the

3

ATTENTION!

environment; in this case, the user may be urged to take adequate measures.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures :

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This is a class A product which may cause radio interference in a domestic

FCC Caution: Any changes or modifi cations not expressly approved by the party
responsible for compliance could void the users’ authority to operate this equipment.

4

Table of Contents

1. CAUTIONS

2. IMPORTANT SAFETY INSTRUCTION

3. EQUIPMENT AND ACCESSORIES

4. CAMERA COMPONENT DESCRIPTIONS

• Indoor Dome / Outdoor-Vandal Dome Type

5. INSTALLATION

• Indoor Dome / Outdoor-Vandal Dome Type

6. DIMENSIONS

• Indoor Dome / Outdoor-Vandal Dome Type

7. SPECIFICATION

8. OSD MANUAL

• Menu structure

• Function Description

5

1. Product Overview

Chapter

1

Get incredible bright light
specs from the actual cameras you install. To take full advantage of the amazing images
produced by this advanced imaging technology, the EverFocus Ultra Series ED705 uses
a Sony Double Scan 960H_WD sensor together with a megapixel lens to produce

Wide Dynamic Range (WDR)

this unique Ultra Series 720+ camera. Combine a
with fi eld programmable digital slow shutter and this camera truly provides

compromise

images in ultra low light (no ghosting when using
Scan True Wide Dynamic Range for clear color images in the most challenging of bright or
unbalanced scene lighting conditions. The ED705 offers a unique low profi le housing with
3 axis positioning for wall or ceiling surface mounting fl exibility; 3.7mm
covers a
DSP functions controllable at the camera (3D-DNR to save DVR HDD space, digital image
stabilization, privacy masking, mirroring, and much more). This is the camera that you have
been waiting for to create analog CCTV systems that produce
the widest range of indoor applications

: over 720TVL resolution, plus your choice of full motion color or day/night

65° wide fi eld of view; dual voltage operation and a full suite of OSD Menu and

and

low light performance plus the resolution listed in the

performance with 720 horizontal TV lines of resolution from

native low light sensitivity of 0.05 lux

color without

practical

under almost any lighting conditions

DSS setting of ~4X) and Double

megapixel

astounding image clarity

True

lens that

in

.

1.1 Features

True Wide Dynamic Range expansion from double scan sensor plus electronic ATR-EX to

•

deliver properly exposed images despite bright or unbalanced lighting in the scene

Ultra resolution of over 720 horizontal TV lines for astounding image quality

•

Unique low profi le housing design with 3-Axis positioning for convenient wall or ceiling

•

mounting

Fixed 3.7mm megapixel lens captures a 67° wide fi eld of view

•

Video test output point for convenient aim and focus during installation, and ease of

•

service

Exview HAD II sensor delivers amazing ultra high sensitivity of .05 lux - low light sensitivity

•

before DSS low light boost

Adjustable low light enhancement for superlative performance without ghosting

•

Color without compromise: your choice of full motion color or day/night images in low light

•

without ghosting

Easy to use OSD setup menu control includes a wide range of image control options

•

Back light compensation (BLC) and Highlight Compensation (HLC)

•

Adjustable 3D-Noise Reduction increases picture clarity while improving DVR disk

•

storage utilization

Privacy mask function for 15 confi gurable zones

•

Dual voltage (12VDC/24VAC) with Anti Color Roll for stability even without line lock

•

6

3. EQUIPMENT AND ACCESSORIES

Indoor Dome Type Mount Guide (Indoor Dome Type)

Outdoor Vandal Dome Type Mount Guide (Outdoor Vandal Dome Type)

Manual

Screws(3ea) / L-Wrench Service Video Output Test Cable

7

4. CAMERA COMPONENT DESCRIPTIONS

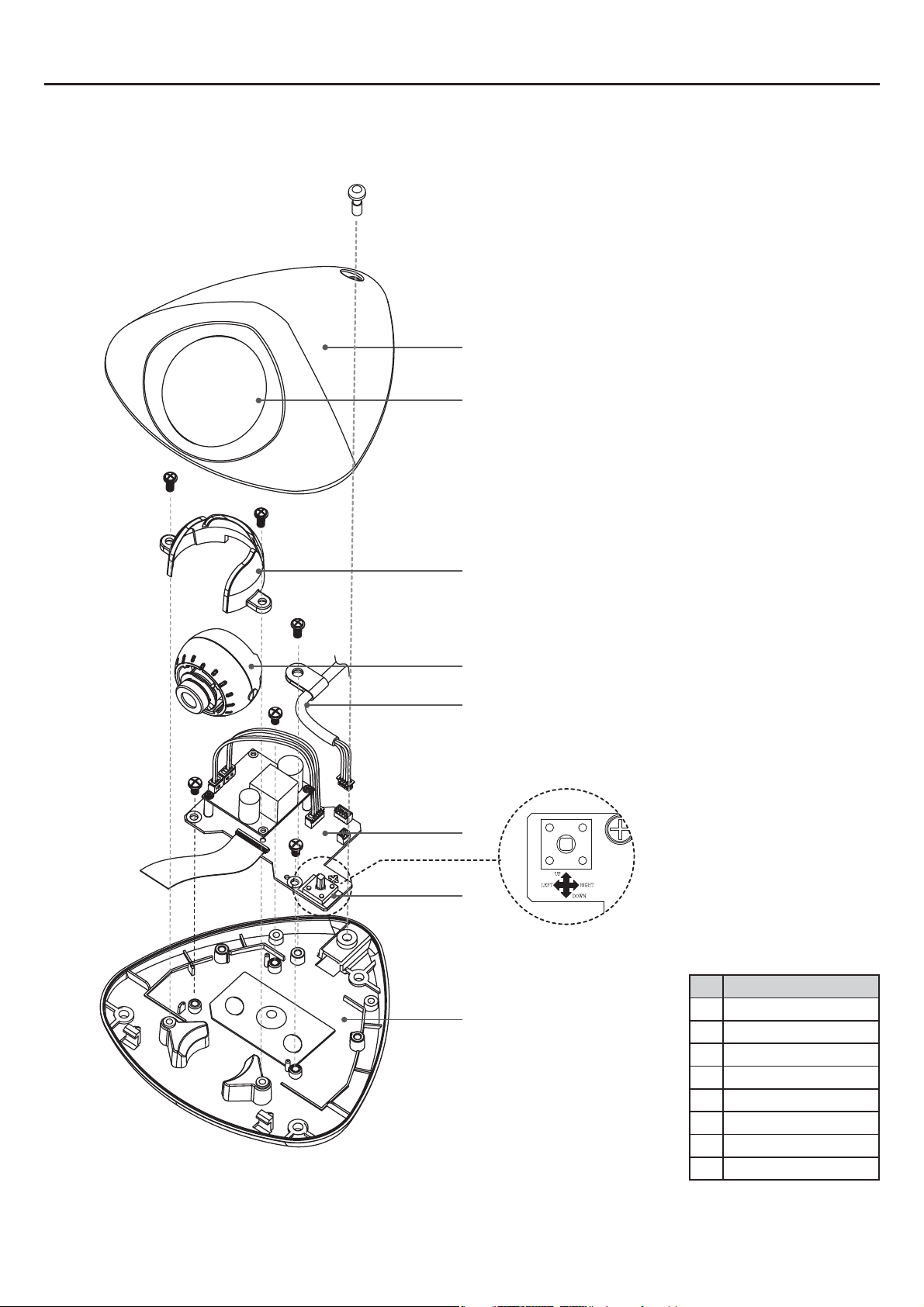

• Indoor Dome Type

1

2

3

4

5

6

7

NO PART NAME

8

1 Top Case
2 Lens Cover
3 Camera Module Bracket
4 Camera Module Ass'y
5 Cable
6 Main PCB
7 OSD Controller
8 Base

8

4. CAMERA COMPONENT DESCRIPTIONS

• Vandal Dome Type

1

2

3

4

5

6

7

8

NO PART NAME

1 Top Case
2 Lens Cover
3 Case Rubber

9

4 Camera Module Bracket
5 Camera Module Ass'y
6 Main PCB
7 Safety Wire
8 OSD Controller
9 Base

9

5. INSTALLATION

(Plastic Dome)

1. Attach the Low Pro le Dome on the ceiling using the screws provided. Considering the camera
angle required for the viewing angle.

2. Adjust the Lens Angle to the desired location.

TAPPING SCREW (4 x 20L) - 3EA

3. Connect the Service Video Output Cable and check the video image. Change the Settings accordingly
using the OSD Controller.

OSD CONTROLLER

SERVICE VIDEO TEST CABLE

<TILT ANGLE : 20~90°>

TILT: +90°

4. After adjusting the Lens, install the Top Cover.

ASSEMBLY HOOK

(2 point)

TOP HOUSING

(Direction of Separation)

<PAN ANGLE : ±10°>

TILT: 0°

TILT: +20°

PAN: ±10°

PAN: 0°

TOP HOUSING

(Assembly direction)

M4 STAR SCREW

L-WRENCH(T-20)

10

5. INSTALLATION

(Vandal Dome)

1. Attach the Low Pro le Dome on the ceiling using the screws provided. Considering the camera
angle required for the viewing angle

2. Adjust the Lens Angle to the desired location.

TAPPING SCREW (4 x 20L) - 3EA

3. Connect the Service Video Output Cable and check the video image. Change the Settings accordingly
using the OSD Controller.

OSD CONTROLLER

SERVICE VIDEO TEST CABLE

<TILT ANGLE : 20~90°>

TILT: +90°

4. After adjusting the Lens, install the Top Cover.

<PAN ANGLE : ±10°>

TILT: 0°

TILT: +20°

PAN: ±10°

PAN: 0°

*RUBBER GASKET:

Before assembling the top housing,

Be sure the Rubber Gasket is positionedcorrectly.

M4 STAR SCREW

11

L-WRENCH(T-20)

5. INSTALLATION

• MONITOR CONNECTION

- DC12V/AC24V

DC12V/AC24V
(TERMINAL BLOCK)

DC12V/AC24V
POWER SUPPLY

CAMERA

BNC FEMALE

VIDEO IN

DVR

When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.

12

6. DIMENSIONS

• Indoor Dome Type • Outdoor Vandal Dome Type

4.68"

5.27"

4.68"

1.65"

5.47"

1.93"

Unit(Inches)

13

7. SPECIFICATION

NTSC PAL
Image Sensor 1/3” 960H SONY Double Scan Super HAD CCD II
Scanning System 2 : 1 Interlace
H Resolution. 700TV Lines
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15 .625KHz(H), 50Hz(V)
Total Pixels No. 1028(H) X 508(V) 1028(H) X 596(V)
E ective Pixels No. 976(H) X 494(V) 976(H) X 582(V)

S/N Ratio More than 50dB(AGC OFF, 3DNR ON)

Min. Illumination Color:0.1Lux, BW:0.1Lux (30IRE@F2.0, AGC 36dB) 0.000001Lux (DSS x256)

Sync System Internal
Gamma r= 0.45

Video Output 1.0 Vp-p Composite(75Ω)

Lens Board Lens
Digital Zoom Ratio 3x

Electronic Shutter 1/60 ~1/100,000sec 1/50 ~1/100,000sec

Digital Slow Shutter OFF, 2 ~ 256 Field
Flickerless ON / OFF

Dynamic Range 52dB (WDR OFF) / 116.4dB (WDR ON)
WDR ON / OFF (Level adjustable)

BLC ON / OFF (Level adjustment, Area selection)
HLC ON / AUTO / OFF (Level adjustable)
AGC OFF, 6 ~ 36dB

DNR(2D/3D) ON / OFF (Level adjustable)

Image Function Image Flip, Freeze, Contrast, Sharpness

Day & Night COLOR / BW / AUTO(DIGITAL D/N)

Motion Detection 4 Zones (Level adjustable, Area adjustment)

Privacy Masking 15 Zones (Area adjustment)

White Balance

OSD Built in (Joystick)

Language

Operating Temperature 14°F~122°F(-10°C~+50°C)

ATW / PUSH / USER1 / USER2 / ANTI CR /

MANUAL / PUSH-LOCK

ENGLISH / JAPANESE / GERMAN / FRENCH /

RUSSIAN / PORTUGUESE / SPANISH / CHINESE

Storage Temperature -4°F~140°F(-20°C~+60°C)
Humidity Less than 80%

Power Consumotion

Dimension (mm)

Indoor Dome Type: 119mm x 119mm x 42mm

Outdoor Vandal Dome Type: 139mm x 134mm x 49mm

DC12V (±10%), Max. 190mA

AC24V (±10%), Max. 2.5W

Speci cations and designs are subject to change for improving the

functionality of this product without notice.

14

8. OSD MANUAL

• Menu structure

Main MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU 5th Sub MENU

FLICKERLESS OFF / ON
BRIGHTNESS 0 ~ 255

MODE

AGC MAX 6, 12, 18, 24, 30, 36
DSS MAX 2, 4, 8, 16, 32, 64, 128, 256
BRIGHTNESS x0.25, x0.5, x0.75, x1.0

MODE (SHUT) ONLY
1/50(PAL), 1/60(NTSC), 1/100(NTSC), 1/120(PAL),
1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
MODE (SLOW) ONLY 2, 4, 8, 16, 32, 64, 128, 256

AGC, SLOW, AGC > SLOW, SLOW >
AGC, OFF

EXPOSURE

WHITE
BALANCE

DAY&NIGHT

AUTO

MANUAL

AT W

PUSH

USER1

USER2

ANTI CR

MANUAL

PUSH LOCK
COLOR

AUTO

BW

HIGH LUMINANCE

LOW LUMINANCE

RETURN
MODE SHUT, SLOW

SHUT

AGC 6, 12, 18, 24, 30, 36, 42, 44.8
RETURN
SPEED 0 ~ 255
DELAY CNT 0 ~ 255
ATW FRAME x0.5, x1.0, x1.5, x2.0
ENVIRONMENT INDOOR, OUTDOOR
RETURN

B-GAIN 0 ~ 255
R-GAIN 0 ~ 255
RETURN
B-GAIN 0 ~ 255
R-GAIN 0 ~ 255
RETURN

LEVEL UP PUSH ENTER
LEVEL DOWN PUSH ENTER
PRESET
RETURN

BURST OFF, ON
DELAY CNT 0 ~ 255
DAY > NIGHT 0 ~ 255
NIGHT > DAY 0 ~ 255
RETURN
BURST OFF, ON
RETURN

15

8. OSD MANUAL

Main MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU 5th Sub MENU

LEVEL 0 ~ 15
CONTRAST1 0 ~ 7
CONTRAST2 0 ~ 4
RETURN

ZONE

LEVEL 0 ~ 15
RETURN
CLIP LEVEL 0 ~ 255
SCALE 0 ~ 15
RETURN

RETURN

Р у с с к и й

日本語

"WHITE, BLACK, RED, GREEN, BLUE,
YELLOW, CYAN, MAGENTA"

DETECT SENSE 0 ~ 127
BLOCK DISP OFF, ON

MONITOR AREA

/ ESPAÑOL / DEUTSCH / FRANCAIS /

CENTER, TOP, BOTTOM,
LEFT, RIGHT

AREA SEL 1/4 ~ 4/4
MODE OFF, ON
TOP 0 ~ 15
BOTTOM 0 ~ 15
LEFT 0 ~ 23
RIGHT 0 ~ 23
RETURN

WDR/BLC

DNR


SPECIAL

FACTORY
DEFAULT

EXIT
SAVE&EXIT

WDR MODE OFF, ON

BLC MODE OFF, ON

HLC MODE OFF, ON, AUTO

2DNR MODE OFF, ON
2DNR LEVEL 0 ~ 15
3DNR MODE OFF, ON
3DNR LEVEL 0 ~ 63
RETURN
HV-FLIP OFF, ON
FREEZE OFF, ON

EZOOM

CONTRAST 0 ~ 63
SHARPNESS 0 ~ 15
RETURN
CAMERA TITLE OFF, ON DISPLAY THE TITLE EDITING MENU

LANGUAGE

PRIVACY

MOTION DET OFF, ON

1.0x, 1.5x, 2.0x,

2.5x, 3.0x

ENGLISH / 中文 /
PORTUGUÊS /

AREA SEL 1/15 ~ 15/15
MODE OFF, ON
POSITION NEXT: PUSH ENTER

COLOR

TRANSP 0.00, 0.50, 0.75, 1.00
MOSAIC OFF, ON
RETURN

16

EverFocus Electronics Corp.

EverFocus Taiwan:
12F, No.79, Sec. 1, Shin-Tai Wu Road,
Hsi-Chih, Taipei, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
[e-mail]

EverFocus China - Beijing:
Room 609, Technology Trade Building,
Shangdi Information Industry Base,
Haidian District, Beijing 100085, China
TEL: [phone]~39
FAX: [phone]
www.everfocus.com.cn
[e-mail]

EverFocus USA - California:
1801 Highland Avenue, Unit A, Duarte, CA 91010, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]

EverFocus Japan:
5F, Kinshicho City Building, 2-13-4 Koto-Bashi,Sumida-Ku, Tokyo, 130­0022, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[e-mail]

EverFocus India:
Suite 803, House n Bhavan, C-21,
Bandra Kurla Complex, Bandra (East),
Mumbai 400051, India
TEL: [phone]
FAX: [phone]
www.everfocus.in
[e-mail]

EverFocus Europe - Germany:
Albert-Einstein-Strasse 1, D-46446
Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
[e-mail]

EverFocus China - Shenzhen:
4F, No. 2, D4 Building, Wan Yelong
Industrial Park, Tangtou Road, Shiyan,
Baoan, Shenzhen, Guangdong 518101, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
[e-mail]

EverFocus USA - New York:
415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]

EverFocus Europe - UK:
Unit 12, Spitfire Business Park,
Hawker Road, Croydon Surrey, CR0 4WD, UK
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]

Your EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their end-of­life, should be disposed of separately
from your household waste.
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!

Ihr EverFocus Produkt wurde
entwickelt und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte
am Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
