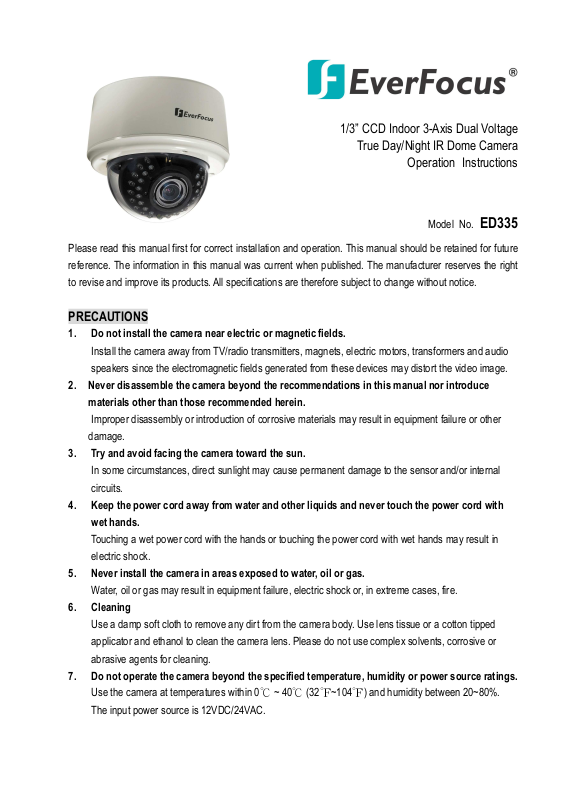

EverFocus ED335 User Manual

1/3” CCD Indoor 3-Axis Dual Voltage

True Day/Night IR Dome Camera

Operation Instructions

Model No.

Please read this manual first for correct installation and operation. This manual should be retained for future

reference. The information in this manual was current when published. The manufacturer reserves the right

to revise and improve its products. All specifications are therefore subject to change without notice.

ED335

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio

speakers since the electromagnetic fields generated from these devices may distort the video image.

2. Never disassemble the camera beyond the recommendations in this manual nor introduce

materials other than those recommended herein.

Improper disassembly or introduction of corrosive materials may result in equipment failure or other

damage.

3. Try and avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal

circuits.

4. Keep the power cord away from water and other liquids and never touch the power cord with

wet hands.

Touching a wet power cord with the hands or touching the power cord with wet hands may result in

electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in equipment failure, electric shock or, in extreme cases, fire.

6. Cleaning

Use a damp soft cloth to remove any dirt from the camera body. Use lens tissue or a cotton tipped

applicator and ethanol to clean the camera lens. Please do not use complex solvents, corrosive or

abrasive agents for cleaning.

7. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

Use the camera at temperatures within 0℃ ~ 40℃ (32℉~104℉) and humidity between 20~80%.

The input power source is 12VDC/24VAC.

PRODUCT OVERVIEW

ED335 is a new design IR Dome camera from Everfocus. It incorporates breakthrough DSP technology to

provide brilliant color images in well lit environments. Using a SONY Super HAD CCD image sensor, the

ED335 also delivers excellent true day/night low light performance, and equipped with 34 long lifespan/high

illumination IR LEDs the ED335 is able to deliver bright, detailed monochrome images even in low light or no

light situations out to a range of over 66 feet.

In addition, because the ED335 is easily surface or flush mounted, it can be installed in almost any indoor

environment. The 3-axis gimbal enables installers to easily mount the camera on a wall or ceiling and then

using the built in tilt and dual axis 180° twist, adjust the viewing angle and varifocal lens to frame the desired

field of view. With this unique 3-axis positioning system, installers can capture images from virtually any

angle, without compromising performance.

FEATURES

 Designed with advanced digital signal processing circuitry for high image quality
 520 TV lines of superior high resolution technology
 True Day/night with ICR module
 Equipped with 34 IR LEDs for day and night environments
 IR distance up to 66 feet (20M; depending on surface reflectivity)
 May be attached to wall or ceiling; flush or surface mounted
 3-Axis adjustment for almost any viewing angle
 Built-in vari-focal type, auto Iris lens
 12VDC/24VAC Dual Voltage support
 High Output IR LEDs, with a lifespan exceeding 20,000 hours

PACKAGE CONTENTS

ED335 camera, including dome/cover, camera unit and outer (surface mount) base as an assembly.

This user guide.

Accessory pack #1 containing:

 4 long mounting screws
 4 washers
 4 plastic anchors
 Hex key for cover screws
 4 short screws to attach flush-mounting clips
 Rubber plug for side hole in outer base.

Mounting template



1

 Power supply pigtail
 Video test cable

Accessory pack #2 containing two flush mounting clips

DIMENSIONS

2

SPECIFICATIONS

Pickup Device 1/3” SONY Super HAD CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec; PAL: 625 TV lines, 50 fields/sec.
Picture Element

Horizontal Resolution 520 TV Lines
Sensitivity

Day/Night Type

S/N Ratio Over 48 dB (AGC off)
Electronic Shutter 1/50 (1/60) ~ 1/100,000

768 x 494 (NTSC); 752 x 582 (PAL)

0 Lux (IR LED on)

0.4 Lux/F=1.2 (AGC ON)

True Day/night with ICR module

Lens Type

Vari-focal lens, DC Auto Iris

f=2.8~10mm/f=9~22mm

Iris Level

Auto Gain Control

Adjustable

ON

Back Light Comp. ON
Auto White Balance ON
Gamma Correction 0.45
Video Output 1. BNC 1.0Vp-p, 75 ohm

2. Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal Sync.
Power Source 12VDC/24VAC
Power Consumption 12VDC: 6W max.; 24VAC: 6.5W max.
Dimensions 141 mm (O.D.) x 128? mm (H)/ 5.6” (O.D.) x 5.1 “(H)
Weight 0.66 kg, 1.45 lbs
Operating Temperature 0°C~40°C ; 32°F~104°F (20%~80% Humidity)
IR Distance 20M/66 feet
IR Wavelength 850nm
IR LED Lifespan 20,000 hours
Certifications CE/FCC

3

MAJOR PARTS: NAMES AND FUNCTIONS

Front View

1. Outer Base

2. IR LEDs

Side View

3. Lens

4. Light sensor

5. Cover

6. Focus Adjust

4

7. Zoom Adjust

8. Video Output

9. Power Input

Back View

Video Test Output

Iris level adjust

1. Base

The camera unit sets in the dome base, when it is shipped from the factory. This base is used

for surface mounting, and is discarded for flush mounting.

2. IR LEDs

3. Lens
The included vari-focal, DC iris lens allows manual adjustment of the field of view (zoom & focus). The

choices for focal length range are:

1) 2.8-10mm

2) 9-22mm

4. Light Sensor

Light sensor is used to detect the lighting level the environment. (The light sensor is “down”

when the internal camera module is properly positioned).

5. Camera Cover

This cover will protect the camera from dust and damage.

6. Focus Ring

To set the focus, and loosen the focus ring knob, and turn the ring toward <F> or <N> as

necessary, and re-tighten when the adjustment is complete.

5

7. Zoom Ring

To adjust the viewing angle, loosen the zoom ring knob. Turn the ring toward <W> to Zoom out

or <T> to Zoom in as necessary, and re-tighten when the adjustment is complete.

8. Video Output
Please connect to the BNC connector of the cable from the DVR or monitor.

9. Power Input
Please connect this connector to a 12VDC or 24VAC power source.

6

3-AXIS GIMBAL BRACKET

The 3-axis gimbal enables installers to easily mount the camera on a wall or ceiling and then using the built

in tilt and dual axis 180° twist, to adjust the viewing angle to the desired direction. With this unique 3-axis

positioning system, installers can capture images from virtually any angle, without compromising

performance.

Loosen this screw manually to

rotate the camera 180°

Use a screw driver to loosen this

screw. Tilt the camera 180°

Hold the bracket at both sides of the

camera. Rotate the entire camera

180°

7

INSTALLATION

An ED335 camera may be mounted in two ways: surface mount and flush mount. Select the one that meets

your needs.

Installation - Surface Mount

1. Paste the drilling template on the ceiling or wall. Please refer to the drilling template below.

2. Use the appropriate tool to drill the INNER holes, and a clearance hole for the power and video wires.

Note: The minimum recommended material thickness is 1 cm.

3. Use the plastic anchors and push them into the 4 small holes, to fix the outer ring into ceiling or wall.

8

4. Remove dome cover (4 captive hex head screws); remove inner base from outer base (4 Phillips head

screws – retain these for later re-assembly).

5. Pull the cables to be connected to power and video cables into the outer base from the ceiling or wall.

Attach power supply pigtail adapter to power wire if needed.

6. Take a long Phillips pan head screw with a washer and tighten it into a plastic anchor. Repeat the same

step until all the 4 screws are fixed to the wall.

9

7. Attach power and video cables from source to cables from camera and push excess wire back into

hole.

8. Insert inner base into outer base and secure using the 4 Phillips removed in the earlier step. Preposition

camera so it is facing approximately in the desired direction.

9. Attach video test cable to test point on rear of camera module. Aim and focus the camera. Remove test

cable.

10

10. Once the camera view is as desired, attach the cover to outer base with the captive hex head screws.

11

Installation - Flush Mount

1. Paste the drilling template on the ceiling or wall. Please refer to the drilling template below.

2. Use the appropriate tool to drill the OUTER holes; carefully cut along the dashed circle to create a

clearance hole for the inner base unit.

Note: The minimum recommended material thickness is 1 cm.

3. Pull the cables to be connected to power and video cables from ceiling. Attach the power pigtail

adapter if necessary.

4. Remove dome cover (hex, captive screws)

12

5. Unscrew the 4 Philips screws (retain for future use) to detach the inner base from the outer base. Set

aside the outer base.

6. Screw the 2 spring tabs in the orientation shown to the slots at both sides of the inner base using the 4

Philips head screws provided. Attach the screws to the places marked “Fix”.

13

7. Attach power and video cables from source to cables from camera and push excess wire back into hole.

Fold the spring tabs up.

8. Preposition camera so it is facing approximately in the desired direction.

9. Push the entire inner base into ceiling while holding the spring tabs with both hands.

14

10. The spring tabs will open automatically to support the camera against the ceiling.

11. Use the long Phillips pan head screws (x4) provided to screw the base to the ceiling. Do NOT use

washers.

15

12. Attach video test cable to test point on rear of camera module. Aim and focus the camera. Remove test

cable.

13. Screw the cover back to the base with captive hex head screws.

16
