EverFocus DR1600MA Operating Instructions

Download

Administrator’s Guide and Operating Instructions

WARNING

CAUTION

WARNING: This equipment has been tested and found to comply with the

responsible for compliance could void the user’s authority to operate the

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

limits for a Class “A” digital device, pursuant to part 15 of the FCC Rule These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the users will be required to correct the interference at their own expense.

Changes or modifications not expressly approved by the party equipment. This Class A digital apparatus meets all requirements of the Canadian

Interference Causing Eq uipment Regulations.

Notice:

The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to

change without notice.

Administrator’s Guide and Operating Instructions

PRECAUTIONS

n Refer all work related to the installation of this product to qualified

service personnel or system installers.

n Do not block the ventilation opening or slots on the cover. n Do not drop metallic parts through slots.

This could permanently damage the appliance. Turn the power off immediately and contact qualified service personnel for service.

n Do not attempt to disassemble the appliance.

To prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Contact qualified service personnel

for maintenance.

n Handle the appliance with care.

Do not strike or shake, as this may damage the appliance.

n Do not expose the appliance to water or moisture, nor try to operate it

in wet areas. Do take immediate action if the appliance becomes wet. Turn the power off and refer servicing to qualified service personnel. Moisture may damage the appliance and also cause electric shock.

n Do not use strong or abrasive detergents when cleaning the appliance

body. Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently.

n Do not overload outlets and extension cords as this may result in a risk

of fire or electric shock.

n Do not operate the appliance beyond its specified temperature,

humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within 0oC ~ +45oC and a humidity below 90%. The input power source for this appliance is 115V AC or

230V AC, 50Hz – 60Hz.

Administrator’s Guide and Operating Instructions

6.17 Set Call Monitor………………………………………………….

Table of Contents

1. Product Overview ………………….……………………….……...

1.1 Features…………………..……….…………..…………………...

1.2 Technical Overview…….….…….………………………….……..

2. Front & Rear Panels ….…….……………………………….…….

3. System Installation…….…….……………………………….……

3.1 Before Installation…….……….…………………………….…….

3.2 Basic Connections…………….…………………………….……..

3.3 Optional Connections…………..…………………………….……

4. Main Screen …………………………………………..……….…...

4.1 View Display & Print Image………………………………………

5. Basic Operations & Log Display ……………………..………..….

5.1 Version Display……………………………..…………….…….…

5.2 Alarm Message Display……………………...……………………

6. Setup (Administrator) ………………..….………………………...

6.1 Time Type Setup…………………..…….………………………...

6.2 Day Type Setup……………………………………………………

6.3 Calendar Setup…………………..…………………….…………..

6.4 Alarm Action Setup………………………………………………..

6.5 Motion Action Setup……………..…………………….………….

6.6 Video Loss Action Setup…………………………………………..

6.7 Hard Disks Full Action Setup ……………………………………..

6.8 Camera Setup…………...…………………………………………

6.9 Alarm In Set up…………..……………………………….………..

6.10 Alarm Out Setup……………..…………………………………..

6.11 Display Sequence Setup……………………..………….………..

6.12 Display Page Setup……………………………………………….

6.13 Motion Setup……………………………………………………..

6.14 Password Setup…………………………………..……….……...

6.15 System Configurations………...………...…………….…………

6.16 Audio Setup………………………………………………………

7. PTZ Control Functions ……………………………………………

8. Day/Time Setup (Administrator) …………………………………

9. Image Playback and Archive (Administrator, Supervisor) ……

9.1 Select HDD & Range Dialog Box…………………………………

10. Remote Control. . …………………………………..……….……...

10.1 Connecting the Remote PC and Server……………………………

10.2 Remote View………………………………………………………

11. Remote View from i-mode …………………………………………

12. Note For “2x/fps” and Some Limitations ………………………...

Appendix A – Specifications Appendix B – Time Lapse Mode Recording Time Appendix C – Simulated Keyboard Appendix D – Q & A

1 1

2 5 8 8 9 9 11 13 14 15 15 16 17 18 19 20 23 24 25 27 30 32 33 34 36 38 39 44 45 46 48 49 52 55 55 56 59 60 62 64 66 66

iii

Administrator’s Guide and Operating Instructions

1. Product Overview

The PowerPlex EDR1600 is a state-of-the-art digital video recorder that brings unparalleled video surveillance, recording and playback to the CCTV systems. With parallel processing architecture, high performance video engine, and intelligent recording algorithms, triplex operation can be easily achieved without sacrificing the increasing demands of performance, reliability, and availability in the

1.1 Features

CCTV industry.

n Connects up to 16 color or B/W cameras n Real triplex operation: Simultaneous recording, live & playback n Built-in MPEG-1 and JPEG compression/decompression with

configurable video quality

n Intelligent motion detection with programmable area and sensitivity

for each camera

n Powerful alarm processor with configurable triggering conditions and

reactions

n Event recording, time-lapse recording or both n Pre alarm / post alarm recording for alarm, motion, and video loss

with adjustable frame rate for different time modes and cameras

n Up to two internal Hard Disks n Connect up to two external Hard Disk Arrays (Max. 8 Hard Disks per

set) to enhance the storage capacity

n Hot swappable hard disks for highest surveillance availability n Non-editable video data with data loss at 1-second level (caused by

bad sectors in Hard Disks after recording)

n Unique digital watermark n Video storage (in .MPG or .MOV format) to floppy disks, ZIP drives,

CD-RW, DVD RAM etc.

n Versatile display formats: full-screen, 4, 7, 9, 10, 13, and 16 video

windows

n Alarm history log for video loss, motion, & alarm input n Multi-level password to ensure high degree of security n Recording rate: up to 60 fps for NTSC, 50 fps for PAL n Playback rate: up to 30 fps for NTSC, 25 fps for PAL n Independent record & playback. n Built-in flash memory, power o n and off data protection n Built-in 16x8 video matrix n Built-in Watch Dog Timer n Graphics user interface with built -in real-time kernel, Windows OS

not required

n Multi-Lingual support (English, Chinese, German, Japanese, Spanish,

Italian, Finnish, Swedish, French, Dutch and Portuguese.)

n Remote surveillance and playback through WEB browser (such as IE

or Netscape) or i-mode mobile phone

n Remote alarm notification n Time Stamp function for recording image n Printer supported

Administrator’s Guide and Operating Instructions

1.2 Technical Overview

1.2.1 Video Input and Output

The digital video recorder is designed to support either NTSC/EIA or

PAL/CCIR standard. To make the auto detection of video standard work, at least one camera must be connected to the video input. The product features video camera inputs with a passive looping output for each. Camera input impedance termination is set independently for each camera automatically. Synchronizing or phasing cameras

is not required to achieve the frame rate of 30 fps for NTSC/EIA or 25 fps for PAL/CCIR.

Video surveillance and playback is supported by a VGA monitor

connection and optional main monitor connections for composite formats. The main monitor displays the selected cameras in any

available display format. Another composite video output is provided for call monitor that displays any alarm images or the live

images of all the installed cameras sequentially.

1.2.2 Video Processing

The video processor controls the switching of the built-in video

matrix according to the s ystem configurations. The video encoder analyzes the video signal from the cameras, and encodes the incoming pictures in a JPEG format or MPEG-1 format that is digitized and smaller in size at 30 fps for NTSC/EIA or 25 fps for PAL/CCIR. During video playb ack, the video decoder decodes the digitized format, and displays the decoded pictures on the VGA monitor screen or TV monitor screen.

1.2.3 Video Storage and Retrieval

The encoded pictures are stored in the hard disks, with the stored

frame rate for each camera set by the administrator. If any event (Alarm, Motion, or Video Loss) occurs , all the encoded pictures for the correspondent camera for the preset pre-record duration will be saved to the hard disk, and the recording rate for that camera will be changed to its alarm recording rate afterwards for the preset

post-record duration. When the recording reaches the end of the recording hard disk, the system will automatically switch to the next

available hard disk and record from the beginning of that hard disk.

Administrator’s Guide and Operating Instructions

During video playback, the selected pictures can be saved to floppy

disk, ZIP disk, CD-RW, DVD RAM etc. in .MPG format for MPEG-1 encoded video or .MOV format for JPEG encoded video.

For Time-Lapse Mode Recording Time, please refer to Appendix B.

1.2.4 Motion Detection

The digital video recorder continuously monitors all camera inputs

for motion. When motion is detected, the system reacts according to the motion action set by the administrator, which includes: increasing the recording frame rate, sounding the buzzer, triggering the alarm output, logging the event, etc. Motion detection options for different time types can be set for each camera input using a 16

(width) by 12 (height) target overlay. You can also enable or disable motion alarms for different time types. However, the recording

frame rate is NOT influenced by motion detection for the digital video recorder.

1.2.5 Video Display

The VGA monitor and main TV monitor display either live camera

pictures or pictures from hard disks. The display resolution is 640x480 for NTSC or 800x600 for PAL. As many as 16 million colors can be displayed in the following screen formats: full screen, 4, 7, 9, 10, 13 and 16 windows. All the main displays are window based look and feel for ease of user operations.

The call monitor displays full screen images of cameras associated

with alarms or images from the installed cameras sequentially. It is based on switched analog camera input.

1.2.6 Video Playback

The user can select a previously recorded hard disk to review the

recorded video. Displaying of the recorded video is composed of decoding the JPEG or MPEG-1 encoded video automatically and multiplexing each camera video to its designated video window. With the coded data that was inserted into each recorded picture, the digital video recorder can reconstruct each camera’s tag name, status, date, and time information automatically. The image can be displayed in any mult i-window format on the VGA monitor and/or TV monitor, just like in live video mode.

Administrator’s Guide and Operating Instructions

1.2.7 Expandable IDE Hard Disk Architecture

All the other HDD-based digital video recorders support only 1-4

hard disks. If those recorders do support more hard disks, they usually use RAID (Redundant Arrays of Independent Disks) or SCSI disks, which are very expensive. With the Expandable IDE Hard Disk Architecture, the EDR1600 can support up to 18 pieces of IDE hard disks that are hot swappable. With 80 GB of storage per hard disk, the system storage is more than 1400 GB and virtually

unlimited – no more redundant backup required.

1.2.8 Non-editable Recorded Images

The retrieved images are saved as .MPG files or .MOV files, which

can be played by Windows Media Player or QuickTime. Therefore, the video editing packages can be edited, just like the recorded images in the other digital video recorders. However, the recorded images in the hard disks can not editable. Therefore, the recorded images are guaranteed to be the original images.

Administrator’s Guide and Operating Instructions

1 23

4 5 67 8

13 1617

2. Front & Rear Panels

The following is a brief overview of the front panel and rear panel of EDR1600.

Rear Panel

1. Power Switch from Rear Panel

2. Power Selector Switch: 115V AC or 230V AC selector switch.

Warning: To avoid damaging the system, set this switch before plugging in the power plug.

Use a screwdriver to set the switch to the correct position so that the number shown is the same as the local AC voltage.

3. Power Socket: Accepts 115V AC or 230V AC power source. (Power Selector at AC 115V: 100 -120V AC) (Power Selector at AC 230V: 200 -260V AC)

4. Mouse Connector: Connects to the PS2 mouse. The mouse must be

connected at system startup.

5. Keyboard Connector: Connects to the keyboard (optional).

Administrator’s Guide and Operating Instructions

6. 2 USB Connectors: Connect to USB port devices, e.g. CD-RW, DVD

RAM, printer, ZIP.

7. RS-232 Connector: Com 1, connects to modem.

8. Printer Port Connector: Connects to printer port devices (e.g.

ZIP/printer port).

9. RS-232 Connector: Com 2, connects to PTZ camera.

10. Audio Out: Connect to speakers or other audio out devices.

11. Audio In: Connect to microphone or other audio in devices.

12. VGA Monitor Output.

13. Camera 16 Video Input: BNC connector for Camera 16.

14. Main Monitor Output: BNC connector for Main TV monitor

15. Call Monitor Output: BNC connector for Call TV monitor.

16. Camera 16 Video Output: BNC connector for looping camera video

from the corresponding camera input.

17. LAN Connector Outlet: Ethernet 10/10 0 Mb base-T.

18. External Hard Disk Connector: Connects to External Hard Disk

Array EDA800.

19. Cooling Fan: Cooling fan of internal Switching Power Supply.

20. Camera 1 Video Input: BNC connector for Camera 1.

21. Alarm In 1-8: Connects to alarm inputs 1-8 & 1 common ground.

22. Camera 1 Video Output: BNC connector for looping camera video from the corresponding camera input.

23. Alarm In 9-16: Connects to alarm inputs 9-16 & 1 common ground.

24. Alarm In 17-24: Connects to alarm inputs 17-24 & 1 common

ground.

25. Alarm Out: Connects to 4 Normally Closed alarm outputs (1-4), 4 Normally Open alarm outputs (5-8) & 1 common ground.

Administrator’s Guide and Operating Instructions

Front Panel

26. Hard Disk Trays: Hard disk holders for HDD#1 (upper tray) and HDD#2 (lower tray). (Note1.2)

Please make sure to set HDD#1 as master and HDD#2 as slave. The settings should be described on the hard disk itself or in the manual that comes with the hard disk.

27. Floppy Drive: 3.5”, 1.44MB.

28. LEDs, Reset Button and Power Switch: LEDs for power and HDD indication, Reset Button to reset the system, and Power Switch to power on/off the system.

29. Dust Filter for Front Cooling Fan.

Note 1: For HDD#2 to be accessible, make sure HDD#2 exists at system power up

or HDD#1 power up. Afterwards, you may swap HDD#2 anytime except when it's recording. For the other hard disks, there are no limitations for hot -swap. If it happens that HDD#2 is not accessible, please power off both HDD#1 and HDD#2, and then power on both of them immediately.

Note 2 : We strongly recommend that you use IBM’s hard disks as HDD#1

(master) because they are consistent and stable for hot-swapping.

Administrator’s Guide and Operating Instructions

Call Monitor

VGA Monitor

Main TV Monitor

Alarm In

Keyboard

Printer

External Hard Disk Array

CD-RW Audio In

Audio Out

3. System Installation

The installations described below should be made by qualified service personnel or system installers.

3.1 Before Installation

Please make sure to set the Power Selector Switch before plugging in the power plug to avoid damaging the EDR1600. Use a

screwdriver to set the switch to the correct position so that the number shown is the same as the local AC voltage.

Please refer to the following diagram for the system connections.

Camera 1-16

Alarm Out

EDA800

Ethernet

Mouse

DVD RAM

PTZ Camera

Administrator’s Guide and Operating Instructions

3.2 Bas ic Connections

n Cameras

Connect each of the camera video input connector to the video output from a camera or other composite video source. At least

one camera must be connected before the system is running for the auto detection of video standard to take effect.

n VGA Monitor

Connect the VGA monitor output connector to a VGA monitor. The VGA monitor displays selected live or recorded cameras in any

available format.

n Mouse

Connect a PS2 mouse to the mouse connector.

n Hard Disk(s)

Make sure that at least one hard disk is inside the hard disk trays. Set HDD#1 as master and HDD#2 as slave. The settings should

be described on the hard disk itself or in the manual come with the hard disk.

n Power

Plug the 115V AC or 230V AC power source into the power socket.

Be sure to set the Power Selector Switch before plugging in the power plug.

3.3 Optional Connections

n Call Monitor

Connect the Call Monitor Output Connector to a TV monitor. This monitor displays the full screen images of cameras associated with alarms or images from the installed cameras sequentially according to user defined.

Alarm In Connect Alarm In 1-24 to NC or NO type of alarm signals. Please make sure to setup the software configurations of Alarm In accordingly.

n Alarm Out

Connect Alarm Out 1-4 to NC type of alarm signals, Alarm Out 5-8 NO type.

n Keyboard

Connect the Keyboard Connector to a standard AT keyboard.

Main TV Monitor Connect the Main Monitor Output Connector to a TV monitor. This monitor displays selected live or recorded cameras in any available format.

Administrator’s Guide and Operating Instructions

n EDA800

Connect the External Hard Disk Connector to EDA800 if the user has purchased EDA800. If EDR1600 is running, please power on

EDA800 first, and then make the connection.

n PTZ Camera

Connect the PTZ camera to the RS-232(Com #2) connector at system start up. The system supports 4 models of PTZ camera: EverFocus ED2200, Pelco D protocol Dome, SamSung SCC -641P and Kalatel Cyber Dome.

n CD-RW, DVD RAM, (USB port)

If the user wants to use CD-RW or DVD RAM to retrieve important recorded images, connect it to the USB port connector at system

startup.

n Printer (USB port)

Connect the printer to the USB port connector at system startup. The system supports 5 models of printer: HP Photo Smart P1000, HP Desk Jet 940C/930C/5550 and EPSON Stylus Color 980.

n ZIP (Printer Port, USB Port)

If the user wants to use ZIP (Printer Port or USB Port) to retrieve important recorded images, it must be connected to the Printer Port Connector or USB port connector at system startup.

n Ethernet

The system is enabled control from the PC via Ethernet. Connect the LAN connector to a standard RJ45 connector Ethernet cable. Shown

in below is an example of the connection.

EDR1600

n Modem

The system is enabled control from the PC via modem. Connect the RS 232 connector to a modem. Shown in below is an example of the

connection.

EDR1600

n ISDN

The system is enabled control from the PC via ISDN. Connect the ISDN connector into the ISDN card.

Administrator’s Guide and Operating Instructions

4. Main Screen

Camera 1 Live

Camera 3 Live

The diagram above is the main screen display. The icons on the lower corner of the screen are mainly for control and configuration,

those on the right corner for status indication. If any icon is grayed, it means that the specific function is not accessible in the current

mode or login right. The followings are a brief description for each of the icons.

System time in military hour format. Move the cursor on it, and the system date will be shown in YYYY/MM/DD format.

Shutdown - To shutdown the system.

Playback Controls – Changes the control icons to those for playback functions.

Alarm Reset – Resets the Alarm Outputs to their normal states and

silence the Buzzer. Alarm Event Log – Views the event log.

Config – Configures (setup) the behaviors of the system.

Camera 2 Live

Camera 4 Live

36%

Administrator’s Guide and Operating Instructions

TV Overscan/Underscan – Changes the display size of the Main TV Monitor.

Sequence Mode / Static Page Mode – Toggles between Sequence Mode and Static Page Mode. In Sequence Mode, each page in the

designated sequence will be shown for its preset dwelling time sequentially. To select the Sequence, click on the Up/Down buttons beside the displayed sequence number. In Static Page Mode, the selected multi-window display will always be shown on the screen.

Full Screen Display (Static Page Mode) 4-window Display (Static Page Mode)

7-window Display (Static Page Mode)

9-window Display (Static Page Mode) 10-window Display (Static Page Mode) 13-window Display (Static Page Mode)

16-window Display (Static Page Mode)

Pause/Circulate – Toggles between Pause Mode and Circulate Mode for status indication.

Next Device – Changes the status indication to next device while it’s in Pause Mode.

Hard Disk Storage Indicator – Indicates the storage status and the

36%

recording percentage of the current recording hard disk. There are three different colors of the indicator:

GREEN – Normal, the remaining storage is more than 10% of the

total capacity.

YELLOW – Warning, the remaining storage is below 10% of the

total capacity.

RED – Alarm, the remaining storage is below 5% of the total

capacity.

Administrator’s Guide and Operating Instructions

There are 4 kinds of devices in the status indication. The displaying order is Camera, Alarm Output, Hard Disk, Alarm Input,

and then back to Camera. Each status bar stands for the status of one device, the bottommost for ID#1. There are 5 different colors:

GRAY/BLACK – Not existent or not installed, GREEN – Normal,

YELLOW – Video Loss detected for Camera, Alarm for Alarm

Input/Output, and Recording for Hard Disk

RED – Motion detected for Camera.

4.1 View Display & Print Image

Each display view window can be individually configured by Administrator and Supervisor, including the display camera setup,

live/playback mode and print image etc.

Operations:

Click on the desired view window, the following dialog box will be shown on the screen.

The following is a brief description for each item shown above. n Camera – Use the down arrow button to select the camera to display

on this view window.

n Live/Playback – Selects show live or playback image on this view

window. (Please refer to Chapter 8 for the details of Image Playback and Archive)

n Print – Prints the image shown this view window. n Switch To F ull Screen – While the system is under playback mode,

check on this item can switch the view window to full screen.

Administrator’s Guide and Operating Instructions

5. Basic Operations & Log Display

If the user does not login the system, he will be treated as a guest and can only view the live video display and device status. To login as an Operator or Supervisor, please click on the Login icon, and enter the appropriate Operator’s Login name and Password (For Operator, the factory default value for both of them is operator, for Supervisor, the factory default value for both of them is supervisor).

The system allows up to 5 user accounts for each login level. The administrator can set up login name and password for each individual user. (refer to Chapter 6.14 for detail setting) The Operator can operate all the icons related to live video display; the Supervisor can operate all the icons related to live video display, image playback and archive (please refer to Chapter 4).

Administrator’s Guide and Operating Instructions

There are 6 kinds of event logs: User Login (Local/Remote), Alarm, Motion, Video Loss, Hard Disks Full and Power On/Off. To view

the event Log display, please click on the Log icon. The screen will be shown as below:

If you logged in as Administrator, the Delete button and Delete All button will be enabled. Click on the Delete button to delete the

highlighted event log, and click on the Delete All button to delete all the event logs.

5.1 Version Display

Click on the logo icon on the upper-right corner, the software version of the system and a serial number will be shown on the screen. The

serial number is reserved for the backdoor login; please refer to Appendix D – Q & A for more information.

5.2 Alarm Message Display

The alarm message will be displayed on the screen if the alarm happened and the alarm message for the corresponding action is on.

Please click on the leftmost icon in the alarm message window to clear the alarm message.

Administrator’s Guide and Operating Instructions

6. Setup (Administrator)

To login as an Administrator, please click on the Login icon, and enter the appropriate Administrator’s Login name and Password (the factory default value for both is admin).

To setup the behaviors of the system, please click on the Config icon. The configuration menu will pop up as below.

Click on the menu item for the respective configuration. For the details of each item, please refer to the following paragraphs. Click on the Exit menu item to exit the setup. If the configurations related to Time Type are changed, you may be asked to restart the system for those new settings to take effect.

Note: If the system is in Sequence Mode display (please refer to Chapter 4), the

Display Seqs menu item will be grayed and not accessible.

Administrator’s Guide and Operating Instructions

6.1 Time Type Setup

The behavior for the system is the same when it’s in the same time Type (or Time Mode). Please refer to Camera Setup and Motion

Setup for how they depend on Time Type. There are 2 default Time Types, On duty and Off duty, in the system. However, you may

configure up to 16 Time Types to suit your needs. Use easy to remember names such as: Day, Night, Overtime, Code 1, Normal, Alert, etc.

Operations:

After the Time Type menu item is selected, the Time Type dialog box will be shown on the screen.

Please click on the item in the Time Type List, then click on the Time Type Tag, and then enter the new tag name for the selected Time Type by using the mouse or the keyboard.

Administrator’s Guide and Operating Instructions

6.2 Day Type Setup

The daily behaviors for the system are the same for those days configured as of the same Day Type. There are 2 default Day

Types, WORK DAY (Monday through Friday) and HOLIDAY (Saturday and Sunday), in the system. However, you may

configure up to 16 Day Types to suit your needs. For each Day Type, you may configure up to 16 time segments and their corresponding Time Types, beginning time and end time.

Operations:

After the Day Type menu item is selected, the Day Type Setup dialog box will be shown on the screen.

Please click on the item in the Day Type List, then click on the Day Type Tag, and then enter the new tag name for the selected Day Type by using the mouse or the keyboard. The Detail box corresponds to the selected Day Type shown in the Day Type Tag. Please click on the Up/Dn buttons to scroll the 16 time segments, click on the respective Down Arrow buttons to change the settings for the Time Type, beginning time (column From), and end time (column To) of the designated time segment.

Note: Any time not in the intervals of all the time segments will be set as of Time Type #1 in the Time Type List (refer to Chapter 6.1).

Administrator’s Guide and Operating Instructions

01 0203

08 0910

29 3028

6.3 Calendar Setup

The Calendar setup is provided for the administrator to set the Day Type of each calendar day. It’s designed to be a Perpetual Calendar.

However, up to 10 years of calendar days can be configured at any specific time.

Operations:

After the Calendar menu item is selected, the Calendar Setup dialog box will be shown on the screen.

2002

April

17 18 19 20 14

25 26 27 21

The active month is shown on the upper corner of the screen. The selectable Day Types are shown on the left corner of the screen. Please click on the Day Type button to select the active Day Type (the button will be on the DOWN position). Click on the Calendar Day button to change its Day Type to the active Day Type, or click on the weekday button to change the corresponding weekdays to the active Day Type (ex. Click on Tue button to change all Tuesdays of the coming months to the active Day Type). Click on the “<<” button to display the calendar days of previous month, the “>>” button views the next active month.

Administrator’s Guide and Operating Instructions

6.4 Alarm Action Setup

The Alarm Actions allow the administrator to define how the digital video recorder responds to the triggered alarm from the Alarm Inputs.

There are up to 16 Alarm Actions that correspond to 16 (Focus) Cameras for most applications. For each Alarm Action, you may

configure its behaviors as shown on the screen and described below.

Operations:

After the Alarm Action menu item is selected, the Alarm Action Setup dialog box will be shown on the screen.

Please click on the item in the Action List, then click on the Action Tag, and then enter the new tag name for the selected Action by using the mouse or the keyboard. All the other settings correspond to the selected Action shown in the Action Tag. The following is a brief description for each item shown above.

n Duration – Response duration defines how long (in seconds) the

Alarm Out relay and the Buzzer will activate after the Alarm Action is triggered (Note 1). Use the Up/Down arrow buttons to adjust the value (0-60 seconds).

n Focus Camera – Defines the camera that will respond to this Alarm

Action. The default settings are Camera 1 for Alarm Action 1, Camera 2 fo r Alarm Action 2, and so on.

Administrator’s Guide and Operating Instructions

n Go to Preset- The option will be available while the focus camera is

a PTZ camera. Check the box and enter the desired preset location. The corresponding PTZ camera will automatically go to the preset

location while the alarm action is triggered. For more details of the preset location settings, please refer to Chapter 7 PTZ Control

Functions.

n Pre-record – Pre-record time defines how long (in seconds) before

the Alarm Action is triggered the Focus Camera shall be intensively recorded (Note 2). Use the Up/Down arrow buttons to adjust the value (0-10 seconds).

n Post-record - Post-record time defines how long after the Alarm

Action is triggered the Focus Camera shall be recorded at Alarm Recording Rate. Please refer to Camera Setup for Alarm Recording Rate of Camera. Use the Up/Down arrow buttons to adjust the value (0 seconds-60minutes ).

Enable – Enables the Alarm Output when the Alarm Action is triggered.

n Alarm Out – Defines which Alarm Output will be triggered when the

Alarm Action is triggered. NC and NO signals are available; please refer to Alarm Out Setup. Click on the Down arrow button to

select one of the Alarm Outputs (AO 1-8).

n Output – Alarm Out output state when the Alarm Action is triggered.

For NC signal, it’s always open, for NO signal close. The Normal State above shows whether the selected Alarm Out is NC signal or

NO signal.

n Buzzer On – Activates the internal buzzer when the Alarm Action is

triggered.

n Log – Activates the event log list. Please refer to Log Display for

the details.

n Show Message – Displays the alarm message when the Alarm Action

is triggered.

n Any Key To Stop – When the Alarm Action is triggered, the internal

buzzer and Alarm Out relay may be activated. If you want to deactivate those actions by pressing any key or moving/clicking the mouse, please check this item.

Administrator’s Guide and Operating Instructions

n Record Audio – Enables audio recording function while the alarm

action is triggered.

n Call Display – If it is checked, the Call Monitor will switch to the

Focus Camera when t he Alarm Action is triggered. Otherwise, the Call Monitor will switch among the cameras according to setting. Please refer to 6.15 Set Call Monitor for the setup details.

n Send Mail - Activates the e-mail notification function when the

Alarm Action is triggered. The e-mail will be sent to the defined receivers with an attached file, which contains the video graphic file of the alarm triggered moment. For the general user, the attached video graphic file will be in QCIF GIF file format (176x120 for NTSC, 176x144 for PAL). Please refer to Chapter 6.15 for e-mail notification setting. (Note 3)

n Network Alarm – Reserved for the Power Com (Optional) users.

Please refer to the Power Com user manual for the detail information.

Note 1: When the Alarm Input that triggered the Alarm Action returns to normal,

the internal buzzer and the corresponding Alarm Output will return to normal immediately.

Note 2: The processing power for the system is 25/50 FPS for PAL and 30/60 FPS

for NTSC(1xFPS/2xFPS model). So, if the total configured recording rate for all the cameras is 5 FPS, intensive recording means that the actual

FPS for the Pre-record time for the Focus Camera is 5/10 times (for PAL) or 6/12 times (for NTSC) the configured normal recording rate for the Focus Camera. The formula is:

Fp = Fn x 25(50) / Ft for PAL, Fp = Fn x 30(60) / Ft for NTSC

Fp: Pre-record FPS, Fn: normal FPS for Camera n, Ft: Total configured FPS.

Note 3: If the alarm action happens during the post record time from the previous

triggered alarm, there will be no notification sending for the corresponding action.

Administrator’s Guide and Operating Instructions

6.5 Motion Action Setup

The Motion Actions allow the administrator to define how the digital video recorder responds to the detected motion for the cameras.

There are up to 8 Motion Actions that correspond to 8 Alarm Outputs for most applications. The Focus Camera is always the

camera with the detected motion. For each Motion Action, you may configure its behaviors as shown on the screen and described below.

Opera tions:

After the Motion Action menu item is selected, the Motion Action Setup dialog box will be shown on the screen.

Please click on the item in the Action List, then click on the Action Tag, and then enter the new tag name for the selected Action by using the mouse or the keyboard. All the other settings correspond to the selected Action shown in the Action Tag. Please refer to the Alarm Action Setup for the descriptions and operations, except the followings:

n The response duration and post-record time are as long as the period

when the motion is on. So, they are not listed above.

n The Focus Camera is always the camera with the detected motion.

Administrator’s Guide and Operating Instructions

6.6 Video Loss Action Setup

The Video Loss Actions allow the administrator to define how the digital video recorder responds to the detected video loss for the

cameras. There are up to 8 Video Loss Actions that correspond to 8 Alarm Outputs for most applications. The Focus Camera is always

the camera with the detected video Loss. For each Video Loss Action, you may configure its behaviors as shown on the screen and described below.

Operations:

After the VLoss Action menu item is selected, the Video Loss

Action Setup dialog box will be shown on the screen.

Please click on the item in the Action List, then click on the Action Tag, and then enter the new tag name for the selected Action by using the mouse or the keyboard. All the other settings correspond to the selected Action shown in the Action Tag. Please refer to the Alarm Action Setup for the descriptions and operations, except the followings:

n There is no post-record time or call display because the video is lost. n The Focus Camera is always the camera with the detected video loss.

Administrator’s Guide and Operating Instructions

6.7 Hard Disks Full Action Setup

The Hard Disks Full Actions allow the administrator to define how the digital video recorder responds when the hard disk drives reach

the maximum storage capacity.

Operations:

After the HDDs Full Action menu item is selected, the HDDs Full

Action Setup dialog box will be shown on the screen.

n Auto Overwrite – Check this item to enable automatically overwrite

the recorded data from HDD#1 when the hard disk drive capacity reaches the end. While Auto Overwrite is not enabled, the system

will not overwrite the recorded data until the Administrator or Supervisor click on the Alarm Reset button. The default setting is

Auto Overwrite enabled. (Note)

n Duration – Response duration to define how long (in seconds) the

Alarm Out relay and the Buzzer will keep after the full hard disk capacity is detected . Use the Up/Down arrow buttons to adjust the value (0-60 seconds).

n Enable – Check to enable the Alarm Output when the full hard disk

capacity is detected .

n Alarm Out – Defines which Alarm Output will be triggered when the

hard disk capacity is full. NC and NO signals are available, please refer to Alarm Out Setup. Click on the Down arrow button to select one of the Alarm Outputs (AO 1-8).

Administrator’s Guide and Operating Instructions

n Output – Alarm Out output state when the hard disk capacity is full.

For NC signal, it’s always open, for NO signal close. The Normal State above shows whether the selected Alarm Out is NC signal or

NO signal.

n Buzzer On – To activate the internal buzzer or not when the full hard

dis k capacity is detected.

n Log – Activates the event log list. Please refer to Log Display for

the details.

n Show Message – Displays the alarm message when the full hard disk

capacity is detected.

n Send Mail – Check to activate the e-mail notification function. There

will be an e-mail notification sent to the defined receivers while the hard disk capacity is less than 10%. Please refer to Chapter 6.15 for e-mail notification setting.

Note. If the hard disk capacity reaches the end with the Auto Overwrite function not

enabled while the user login in as an Operator, the system will show a message to ask the user to login as an Administrator or Supervisor for the further procedures.

Administrator’s Guide and Operating Instructions

6.8 Camera Setup

The Camera Setup allows the administrator to define the behaviors for each Camera at each Time Type. There are up to 16 Cameras connected to the system. For each Camera and each Time Type, you may configure the behaviors as shown on the screen and described below.

Operations:

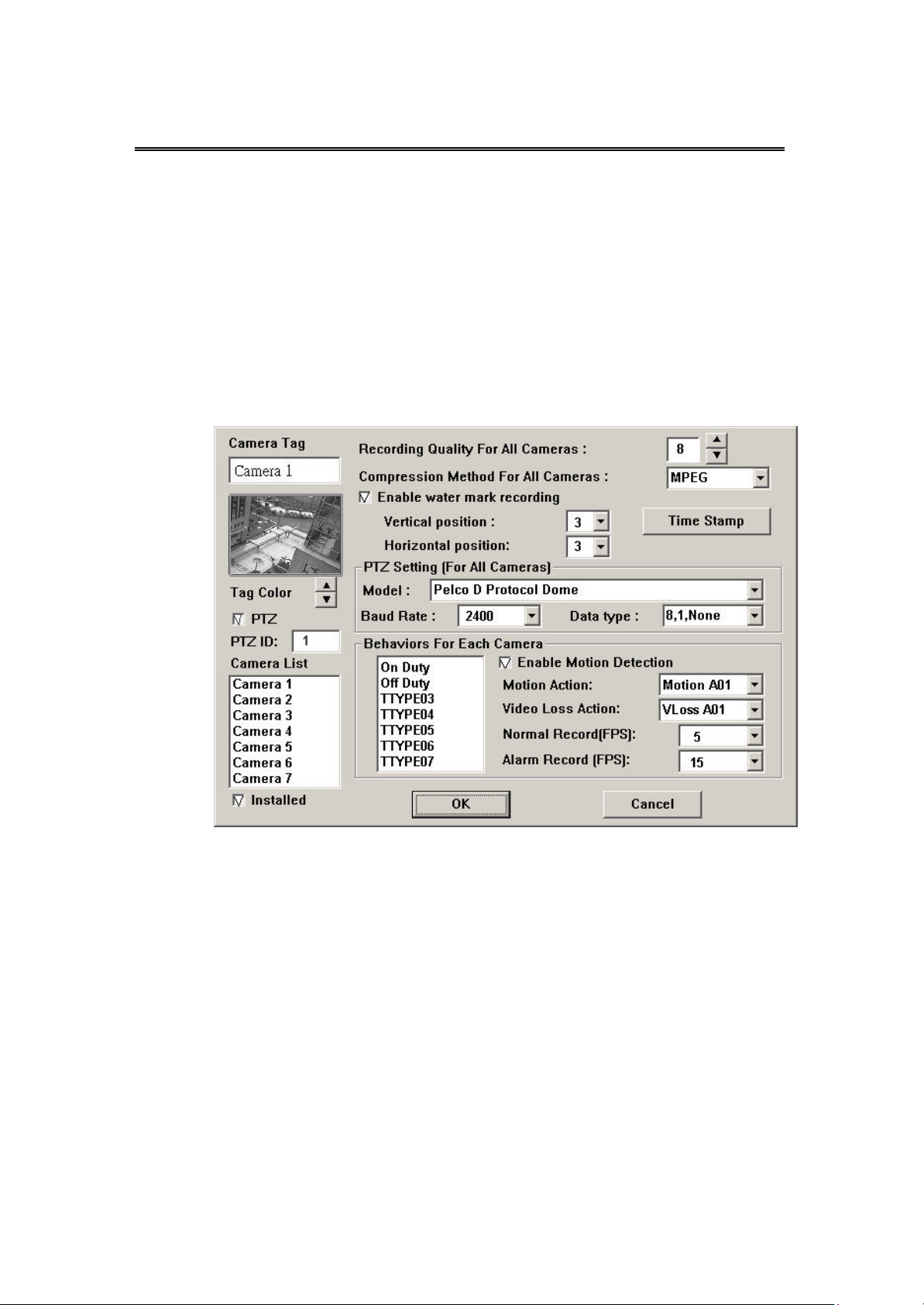

After the Camera menu item is selected, the Camera Setup dialog box will be shown on the screen.

Camera 01

Please click on the item in the Camera List, then click on the Camera Tag, and then enter the new tag name for the selected Camera by using the mouse or the keyboard. The Recording Quality and the Compression Method applies to all cameras. For the “Behaviors For Each Camera,” please click on the item in the Time Type list to select the Time Type. All the other settings correspond to the selected Camera shown in the Camera Tag and the highlighted Time Type in the Time Type list.

The following is a brief description for each item shown above.

Administrator’s Guide and Operating Instructions

n Tag Color – Selects the text color of the corresponding camera tag

name. Use the Up/Down arrow buttons to select, the color will be shown on the screen above.

n Installed – Check this item if the selected Camera is installed. If the

selected Camera is installed, all the items in the “Behaviors For Each Camera” are settable. The default setting is installed.

n PTZ / PTZ ID – Check the PTZ item and enter the PTZ ID number if

the selected camera is a PTZ camera. The ID number has to be consistent with the camera setting. Please refer to the operating manual of the camera for the IDsetting.

n PTZ Setting(For all camera) – To define the Model Type, Baud Rate

and Data Type of all the installed PTZ camera. Use the Down Arrow button to select the proper items. Please refer to the specification of the camera for the setting.

Recording Quality For All Cameras – The range is 0-10, with 0 the lowest (rough) quality, 10 the highest (fine) quality. The default value is 8 . Use the Up/Down arrow buttons to adjust the value.

n Compression Method For All Cameras – MPEG (MPEG-1) or

JPEG-CIF (JPEG), resolution – 352x240 for NTSC, 352x288 for PAL.

n Enable Digital Watermark – Check to enable digital watermark. The

system provides up to 64 positions to locate the digital watermark.

Click on the Vertical Position and Horizontal Position items to select

the desired location. For the vertical position, the number 0 ~ 7 is from up to down, for the horizontal position, the number 0 ~ 7 is

from left to right.

n Time Stamp – Click on the button for the Time Stamp setting menu.

The system provides user options to enable/disable Time Stamp function, select the font size, position and color of the time stamp on the playback image.

n Enable Motion Detection – Check to enable motion detection for the

selected Camera at the selected Time Type.

n Motion Action – The corresponding Motion Action if motion

detection enabled.

Administrator’s Guide and Operating Instructions

n Video Loss Action – The corresponding Video Loss Action (always

enabled).

n Normal Record (FPS) – The normal recording rate for the selected Camera at the selected Time Type. Use the Up/Down arrow buttons

to adjust the value (0-30). The default value is 0.1 Frame Per Second (or 6 Frame Per Minute). (Note)

n Alarm Record (FPS) – The alarm-recording rate for the selected

Camera at the selected Time Type. Use the Up/Down arrow buttons to adjust the value (0-30). The default value is 5 Frame Per Second (or 300 Frame Per Minute).

Note 1 : The maximum recording rate for the system is 25 FPS for PAL, 30 FPS for

NTSC. If the total recording rate for all cameras is greater than 25/30 FPS, the system will decrease the recording rate for each camera averagely to make the total 25/30 FPS.

Note 2 : The remote end will not be able to view all the camera windows if there’s any

camera is set as 0 FPS for the normal recording rate; unless all the cameras are set as 0 FPS.

Administrator’s Guide and Operating Instructions

6.9 Alarm In Setup

The Alarm In Setup allows the administrator to define the behaviors for each Alarm Input at each Time Type. There are up to 24 Alarm

Inputs connected to the system. For each Alarm Input and each Time Type, you may enable/disable and select its corresponding

Alarm Action. For most applications, 16 Alarm Inputs are enough to correspond to 16 Alarm Actions and hence 16 (Focus) Cameras. 8 more Alarm Inputs are reserved for users’ convenience.

Operations:

After the Alarm In menu item is selected, the Alarm In Setup dialog box will be shown on the screen.

Please click on the item in the Alarm Input List, then click on the Alarm Input Tag, and then enter the new tag name for the selected Alarm Input by using the mouse or the keyboard. For the Alarm Action for each Alarm Input, please click on the item in the Time Type list to select the Time Type. All the other settings correspond to the selected Alarm Input shown in the Alarm Input Tag and the highlighted Time Type in the Time Type list.

The following is a brief description for each item shown above.

n Installed – Check this item if the selected Alarm Input is installed.

If the selected Alarm Input is installed, all the items on the right side are settable. The default setting is NOT installed.

Administrator’s Guide and Operating Instructions

n Normal State – NC or NO, please check the signal types connected

to the Alarm Input Terminal on the rear panel of the system. Use the Down arrow button to select the signal type.

n Enable Alarm Action – Check to enable Alarm Action for the

selected Alarm Input at the selected Time Type.

n Alarm Action – The corresponding Alarm Action if the Alarm Input

changes its state from normal to alarm. Up to 16 Alarm Actions are selectable.

Administrator’s Guide and Operating Instructions

6.10 Alarm Out Setup

The Alarm Out Setup allows the administrator to define the tag name for each Alarm Output. There are up to 4 Normally Closed (NC)

signals (AO 1-4) and 4 Normally Open (NO) signals (AO 5-8) for the system.

Operations:

After the Alarm Out menu item is selected, the Alarm Out Setup dialog box will be shown on the screen.

Please click on the item in the Alarm Out List, then click on the Alarm Out Tag, and then enter the new tag name for the selected Alarm Output by using the mouse or the keyboard.

Administrator’s Guide and Operating Instructions

6.11 Display Sequence Setup

The Display Sequence Setup allows the administrator to define the Sequence Mode display. Please refer to Chapter 4 for Sequence

Mode display. For the definition o f the Display Pages in each Display Sequence, please refer to Display Page Setup.

Operations:

After the Display Seqs menu item is selected, the Display Sequence Setup dialog box will be shown on the screen.

The following is a brief description for each item shown above.

n Number of Sequences – Up to 8 sequences can be defined. Use the

Down arrow button to select the number. The default number is 7.

n Sequence Number – To select the Sequence you want to modify for

the following 2 items.

n Number of Pages – Number of Pages for the Sequence shown in

Sequence Number. Different Display Types have different maximum number of pages.

n Display Type – The image Display Type for the selected Sequence

shown in Sequence Number. 7 image Display Types are available, including full screen, 4-window, 7-window, 9-window, 10-window, 13-window, and 16-window.

Administrator’s Guide and Operating Instructions

1 1 5

6.12 Display Page Setup

The Display Page Setup allows the administrator to define the Display Pages in Sequence Mode display and Static Page Mode

display (please refer to Chapter 4).

Operations:

After the Display Pages menu item is selected, the Display Page Setup dialog box will be shown on the screen.

Please select Sequence Mode or Static Page Mode first. For Sequence Mode, you may select the Sequence No, then set the Page

Dwell Time, Cameras, and Text Colors for each Page; for Static Page Mode, you may set the Cameras and Text Colors for each Display Type. To Select Camera or Select Text Color for a specific video window, please click on Select Camera button or Select Text Color button first, then click on the video window, the Camera number or

Text Color will change accordingly. The following is a brief description for each item shown above.

n Sequence Mode – Sets the Display Pages for Sequence Mode

display.

Camera 01

Administrator’s Guide and Operating Instructions

n Static Page Mode – Sets the Display Pages for Static Page Mode

display.

n Sequence No – Selects the Sequence Number in Sequence Mode

display. Use the Down arrow button to select the number.

n Page No - Selects the Page Number for the selected Sequence

Number in Sequence Mode display. Use the Down arrow button to select the number.

n Page Dwell Time – The Dwell Time (in seconds) for the selected

Page shown in Page No. Use the Down arrow button to select the number. The default value is 5.

n Display Type – Selects the Display Type in Static Page Mode

display. Use the Down arrow button to select the Display Type. The available types are 1-window (Full screen), 4-window, 7-window, 9-window, 10-window, 13-window, and 16-window.

Administrator’s Guide and Operating Instructions

6.13 Motion Setup

The Motion Setup allows the administrator to configure how motion detection works for each Camera at each Time Type. For each

Camera and each Time Type, you may configure the Detection Area (16x12 grids) and Sensitivity as shown on the screen and described

below.

Operations:

After the Motion menu item is selected, the Motion Setup dialog box will be shown on the screen.

Please select the Camera and the Time Type first. All the other settings correspond to the selected Camera and the selected Time

Type shown in their respective fields. For the Detection Area, please click on the Set (Clear) button, then click in the video window

and drag the mouse to set (clear) the detection area. To set the sensiti vity, please click on the slider and drag the mouse. The value is shown above – larger value means more sensitive. On the right

side is the trend curve showing the continuous snapshots of the detected motion.

The following is a brief description for each item shown above.

Administrator’s Guide and Operating Instructions

n Camera – Use the Down arrow button to select the camera.

n Time Type - Use the Down arrow button to select the Time Type.

n Set – Sets the Detection Area – active at down position.

Clear – To clear the Detection Area – active at down position.

n Video Window – Shows the images for the selected Camera.

Dragging the mouse inside to set (clear) the Detection Area. The motion detection is enabled for the area with net on it. The default setting is 16x12 grids all enabled.

n Sensitivity Value and Its Slider – Shows the sensitivity for the

selected Camera and Time Type. Dragging the mouse on the slider to change the value. The default value is 50.

n Trend Curve Window - Trend curve showing the continuous

snapshots of the detected motion, with the bar higher than the horizontal line in the middle as motion detected, lower as no motion detected.

n Reset All button – Resets all the settings to their defaults for all the

Cameras and all the Time Types.

n Reset button – Resets the settings to their d efaults for the selected

Camera and the selected Time Type.

Note 1: The default settings are selected to meet the requirements of most of the

applications. Please try the default settings first before change the settings.

Administrator’s Guide and Operating Instructions

6.14 Password Set up

The Password Setup allows the administrator to set the new Login names and passwords for the Administrator, Supervisor and Operator.

The system allows up to 5 user accounts for each login level. The default (Login, Password) for the Administrator is (admin, admin),

the Supervisor (Supervisor, Supervisor), the Operator (operator, operator).

Operations:

After the “Set Password” menu item is selected, the Password Setup dialog box will be shown on the screen.

Please click on the item in the User Account list; the information shown in Detail corresponds to the selected item.

To modify the user information, simply click on each item and enter the desired login name and password, enter the password again in the confirm field, then click on Modify button to confirm the changes.

To setup a new user account, select the proper user level, enter the desired login name and password, enter the password again in the confirm field, then click on Add button to setup the new user account to the system.

Administrator’s Guide and Operating Instructions

015

6.15 System Configurations

The System Configurations Setup allows the administrator to set up the communication, main monitor sharpness-adjusting, daylight

savings time, TV system and backup the configurations to floppy diskette or restore the configurations from the backup floppy

diskette.

Operations:

After the System menu item is selected, the System Configurations dialog box will be shown on the screen.

061 018

014

255

061 018 014 001 168 095 192 001

255 255 001

The following is the brief description for each item shown above.

■ Communication

- LAN Card Configuration

n IP address – Enter the desired IP address of the device in the

columns. To obtain the IP address, please contact your

Internet Server Provider.

n Subnet Mask – Enter the corresponding Subnet Mask. n Enable Gateway – For local network setting, leave the box

blank to disable gateway. For Internet connection setting, check the box to enable gateway.

n Gateway IP address – Enter the corresponding IP address while

the gateway is enabled.

Administrator’s Guide and Operating Instructions

Dom ain Name Server IP Address – Enter the correct Domain Name Server for mapping Domain Names to IP addresses. The default setting is 168.095.001.001. The user can also define their local Domain Name Sever for name-to address translation, however, please make sure to define a correct

- Dial Up Configurations After the Dial up item is selected, the Dial up Configurations dialog box will be shown on the screen.

Dialout Method – The system supports the dialout function,

which the system can automatically dial out and connect to ISP

if there’s an event that needs to be delivered. Click on the

Modem, ISDN or None to setup the Dialout method.

n Dialout Detail – Enter the number to ISP, user name, and

password.

n Dialin Method – The system support users to dial in to the

system via Modem or ISDN. Click on the Modem, ISDN or None to setup the Dial-in method.

Administrator’s Guide and Operating Instructions

Dia-lin detail – If ISDN is selected as the dialup method, please define EAZ/MSN number and ISDN Channels. The default value of Local IP address is 192.168.0.1, Remote IP address is 192.168.0.2, and the default User Name and Password are both admin. The IP addresses, User Name and Password are all configurable by the users .

- Mail Setup Defines the setting of the E-mail notification function. The following dialog box will be shown on the screen after the Mail item is selected.

n SMTP server – Normally, it doesn’t require to enter SMTP

server address and port number(default value is 25) as the

system can be a server itself. However, the user may enter their

own SMTP server address and port number under the special

needed. If the SMTP server requires authentication, check the

item box and enter the effective name and password below.

n Sender(From) – Enter the sender’s e-mail address which you

would like to show on the outgoing notification.

URL – Enter the URL link to the system. The URL link will be shown in the outgoing e -mail.

Administrator’s Guide and Operating Instructions

n E-mail receiver – The system can send e-mail notification to up

to 8 receivers for each action. Enter the e-mail addresses in #1 ~ #8 columns. For WAP messages, check the box on the right of the e-mail address.

- Network Alarm – Reserved for the Power Com (Optional) user. Please refer to the Power Com user manual for the detail

information.



■

Printer Model – Select the proper printer model which connected to the system. The system now supports 5 models of printer: HP Photo Smart P1000, HP Desk Jet 940C/930C/5550 and EPSON Stylus

Color 980.



■

Language – The system supports multi-lingual interfaces, English, Chinese, German, Japanese, Spanish, Italian, Finnish, Swedish, French, Dutch and Portuguese. Click to select the desired language interface, the interface will switch to the selected language after you restart the system.

  ■ Configuration Files – The system allows the administrator to backup the configurations to floppy diskette or restore the configurations from the backup floppy diskette. Please insert the floppy diskette, and then select one of the options from Download to floppy or

Upload from floppy.



■

Daylight Savings Time Check the Enable box to enable Daylight Savings Time. The system provides two versions of Daylight Savings Time as

described in below; select the proper one while the Daylight Savings

Time function is enabled. North America – Clocks are turned forward an hour begins at 2 a.m. on the first Sunday in April, time reverts

to standard time at 2 a.m. on the last Sunday in

October. European Union – Clocks are turned forward an hour begins at 1 a.m. on the last Sunday in March, time reverts to standard time at 1 a.m. on the last Sunday in October.

Administrator’s Guide and Operating Instructions

 

■

TV System – NTSC or PAL, selects the proper system by checking the box in front. Basically, the system can detect it automatically, it doesn’t require user to define it. However, the system might sometimes misjudge due to the ambiguous signal, which mainly caused be over-length or bad quality cable. In this case, the user can define it manually to meet the local system.

■ Main Monitor Sharpness – The slider bar is for adjusting the sharpness of the images shown on the main monitor screen. To set the sharpness, click on the slider and drag the mouse, to left is for sharper images, to right is for less sharp ones.

 

■

Software Upgrade –Click on the button, the system will

automatically detect and show the message to inform the user if there’s a newer version software available for downloading. To upgrade the software, just click on Yes to confirm the downloading. The system will automatically reboot and upgrade while the downloading is completed. As the processes have to be done over internet, please make sure that the system is well connected to the internet and the communication setting is correct.

■ Factory Setting – Click on the button to revert all the configuration

setting to the default value.

Note : The V 2.0(and later version) software can support Networking for either

30 FPS(NTSC) /25FPS(PAL) or 60FPS(NTSC) /50FPS(PAL) recording rate models. However, the system requires 128 MB DRAM and LAN card, please contact the local distributor for system upgrade .

Administrator’s Guide and Operating Instructions

6.16 Audio Setup

The Audio Setup allows the administrator to define the behavior of the Audio Mode at each Time Type. There is 1 Audio Input connected to the system.

Operations:

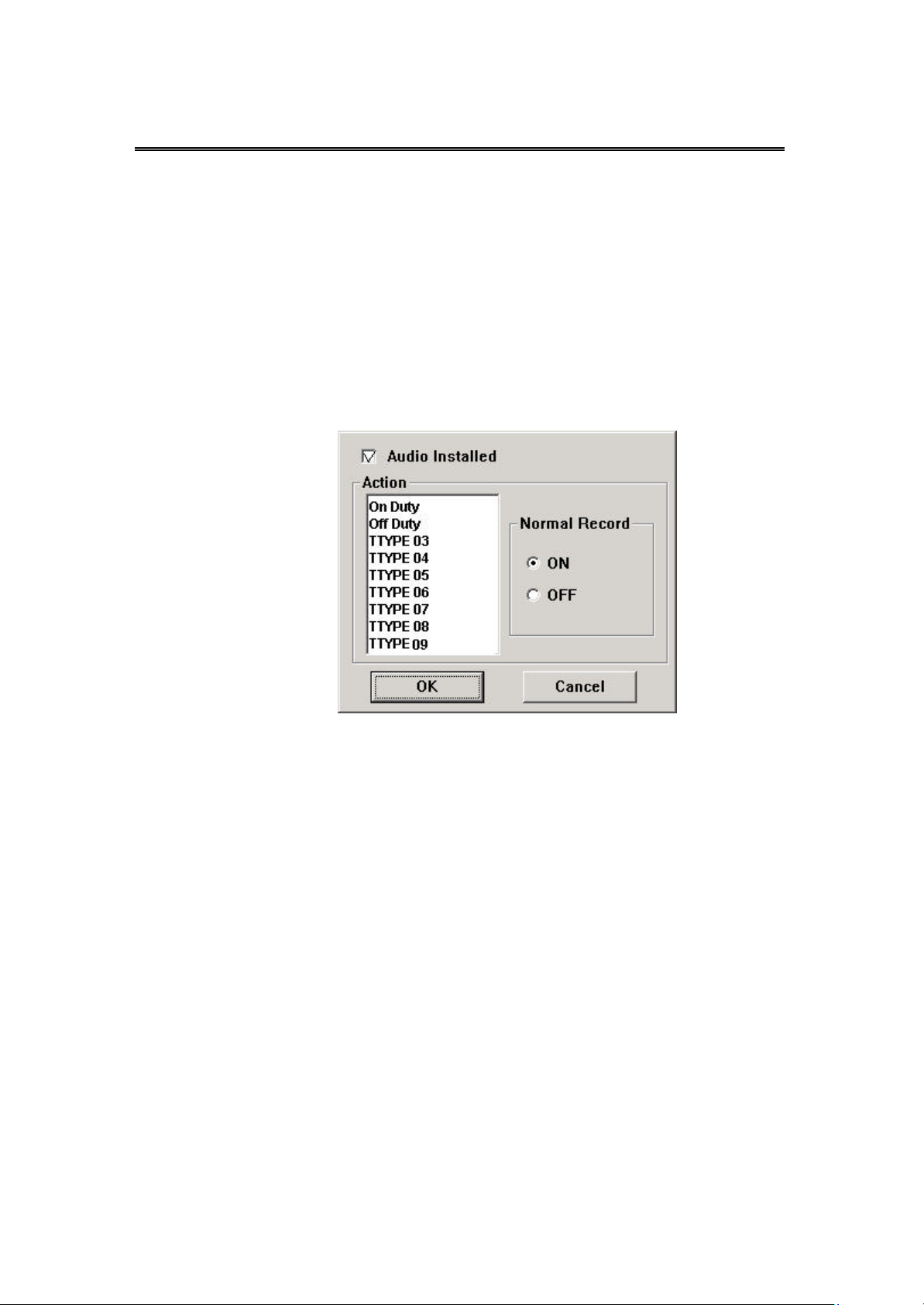

After the Audio item is selected, the Audio Setup dialog box will be shown on the screen.

Please check the box on Audio Installed item if it is installed to the system. Click on the item in the action list, the Normal Record option is corresponding to the selected item. Click on ON to enable Normal Record at this selected time type, Click on OFF to disable Normal Record.

Administrator’s Guide and Operating Instructions

6.17 Set Call Monitor

The Call Monitor Setup function allows the administrator to define the regular behavior of the call monitor.

Operations:

After the Set Call Monitor item is selected, the Call Monitor Setup dialog box will be shown on the screen.

Click on the item on the Camera List, then select the dwelling time (1-60seconds) for the corresponding camera by using the down arrow button. Click on the “Select” button to save the setting and it will be shown on the sequence table on the righ t. Click on “Delete” to remove the selected item from the Sequence Table, click on “Delete All” to remove all settings from the Sequence Table. Click on “Default” to revert the setting to default value.

Administrator’s Guide and Operating Instructions

7. PTZ Control Functions

The system supports certain models of PTZ camera, which the user can easily operate the control functions through the user interface. Please refer to Chapter 6.8 for detail settings of the PTZ camera.

Operations:

While the installed camera is a PTZ camera, there will be an indication icon showing on the upper right corner of the

corresponding view window. Click on the icon by mouse, the control panel of the PTZ camera will be shown on the screen.

The following is the brief description for each item shown above.

If any item is grayed, it means the specific function is currently not accessible or the PTZ camera does not support the function.

■ Preset – Defines the preset position, adjust the camera to the

desired position, select the preset number (1~10) by the down arrow button then click Set button to confirm the setting. To

direct the camera to the preset position, select the desired preset number by the down arrow button, then click on Goto button.

■ Focus – Select Auto to enable automatic focusing or click on

Near or Far to adjust it accordingly.

■ Auto Pan Position – Defines the Start and End position for auto

pan function. Adjust the camera to the desired Start/End position, then click on Set Start/Set End button. Use Up/Down/Right/Left button to adjust the camera position, +/ - to zoom in/out.

Low 5 sec

Administrator’s Guide and Operating Instructions

■ Auto Pan – Enables the Auto Pan function. Select the speed

(high, Medium or Low) from the above column by using the down arrow button, then click on Auto Pan button to start. The

camera will run between the defined start and end position. Click on Auto Pan button again to stop running.

■ Sequence – Enables the Sequence Mode. In sequence Mode,

the camera will go to each preset position sequentially by the preset dwelling time. Select the dwelling time (3-60sec) from the above column by using the down arrow button, then click on Seq button to start the Sequence Mode. Click on Seq button again to stop.

■ Iris – Adjusts the brightness level of the PTZ camera. Click on

Inc. to get brighter picture. Click on Dec. to get darker picture.

■ Menu – For EverFocus ED2200 and SamSung SCC -641P

models use only. Please refer to the user manuals of the above PTZ cameras for the detail information.

■ Enter –For EverFocus ED2200 and SamSung SCC-641P

models use only. Please refer to the user manuals of the above PTZ cameras for the detail information.

Administrator’s Guide and Operating Instructions

8. Date/Time Setup (Administrator)

If you are an Administrator, please click on the Time displaying on the Main Screen to enter the Date/Time Setup for the system. The date is in YYYY/MM/DD format, whilst the time in military hour format (HH:MM:SS). The built-in real time clock will be updated accordingly.

Administrator’s Guide and Operating Instructions

9. Image Playback and Archive (Administrator, Super visor)

On the Main Screen, please click on the Playback Panel icon, the

Camera 1 Play

Camera 3 Play

screen will be shown as below:

Camera 2 Play

Camera 4 Play

36%

The icons on the lower corner of the screen are changed to the icons for video playback and archive, those on the right corner not changed

(for status indication). The icons remain the same as in the Main Screen provide the same functions as described in Chapter 4. If any

icon is grayed, it means that the specific function is not accessible in the current mode. If you want to playback the recorded video,

please click on the Select HDD & Range icon first to select the range of the recorded video for playback.

The following is a brief description for each of the icons not described in Chapter 4.

Camera Display Controls – Changes the control icons to those for camera display functions as described in Chapter 4.

Select HDD & Range – Selects the playback Hard Disk and the playback range in that Hard Disk. Click on it, and the Select HDD

& Range dialog box will be shown on the screen as described in the next paragraph.

Administrator’s Guide and Operating Instructions

Play Saved Video – Previews the retrieved images in the floppy disk, ZIP disk (PC format), etc.

Stop – Stops playing the video. If the user plays the video again, it will start from the beginning.

Play – Plays the selected video.

Step Forward – The next single image corresponds to one of the selected playback cameras will be played and displayed on its corresponding video window.

Reverse Play – Reverse plays the selected video. (Note.1)

Step Backward – The previous single image corresponding to one

of the selected playback cameras will be played on its corresponding video window.

Pause – Pauses the video. Click on Play icon to resume p laying.

Archive Video – Toggle button to enable/disable retrieving playback

video to floppy disk, ZIP disk, CD-RW, DVD RAM etc. When the video is playing back and Archive is enabled (button at DOWN position), the Retrieval Device and Camera dialog box will be shown, define the retrieval device, image resource and the size limit for retrieval images as needed. (Note.2,3)

Replay – Repeats the selected video over and over again

when the button is at DOWN position.

Playback/Live Switch – Switches all the view windows between live and playback mode.

Audio – Enables or disables the audio during the video playback. The recorded can only be played under x1 playback speed. There will be no sound if it was set as other types of playback speed.

Speed – The playing speed, ranging from 1/6 (slowest) through 5 (fastest). For speed 1/6 – 2, each image for the selected playback cameras will be displayed in its respective video window. For speed 3/4/5/6, each image out of 2/3/4/5 images will be displayed. Click on the button to select the desired playback speed. The default value is 1.

Administrator’s Guide and Operating Instructions

Slider Bar – Showing the current playing position in the selected range. Click on it and drag the mouse to play the video from

anywhere in the selected range when it’s playing. The date and time will be shown on the screen and the playback will be

temporarily stopped when you drag the slider.

To change the playback video window to full screen, please click on the video window, then select the appropriate option in the dialog box shown. To return from the full screen playback, please click on the full-screen video window, then follow the instructions in the dialog box.

Note 1: The Reverse Play function is only effective for the HDD data which is recorded after the system is upgraded to V2.1 (or later version). The image data recorded before

V2.1 cannot be reversed play even if the system has been upgraded to V2.1 or later

Note 2: To archive the video images to CD-RW or DVD RAM, you must format the medium on

Note 3: For MPEG encoded picture, the retrieved images are saved as .MPG files, which are

version.

a PC at the beginning. Normally, the software “Nero Burning” and “In CD” come with CD-RW or DVD RAM in the package, please install them in a normal PC, then you may format the medium by “In CD”. To format the medium, insert the medium to the CD-RW or DVD RAM and run the “In CD” software, follow the step as directed to complete the formatting. As not all the CD-RW/DVD RAM is compatible with the system, please contact your local distributor for the model list. If an IDE port CD-RW/DVD RAM device is used, an USB-BOX will be required to connect the device to the system.

playable in MS-Windows. For JPEG, the retrieved images are saved as .MOV files, which are playable by QuickTime. You may download QuickTime at www.apple.com. The filename of the retrieved file is cam##_YYYYMMDDHHmmSS(.MPG or .MOV): ##: Camera ID. (1-16) YYYY: Year. (2001, 2002…) MM: Month. (1-12) DD: Date in month. (01-31) HH: Hour. (0-23) mm: Minute. (0-59) SS: Second. (0-59)

Administrator’s Guide and Operating Instructions

Search by location

01-01-01 N Y N N N Y Y N N N Y Y N N N N

9.1 Select HDD & Range Dialog Box

When the user clicks on the Select HDD & Range icon on the Playback Panel, the Select HDD & Range dialog box will be shown

on the screen. The system provides user to search the image either by HDD location or by time. Use the Down arrow of the upper left

column in the diagram box to select the desired searching way.

To search by location, the diagram will be shown as below.

01 01

N Y N N N Y Y N N N Y Y N N N N

N Y N N N Y Y N

The following is a brief description for each item shown above.

n HDD No – The recorded Hard Disk to playback. Up to 18 Hard

Disks can be mounted in the system. Use the Down arrow button to select the Hard Disk number (1-18).

n Start/End Block No – 1 GB/Block or 32 Sections/Block for the

system. The maximum End Block No. represents the Block number for the last recorded video or the maximum block number for the Hard Disk. Use the Down arrow button to select the Start/End Block No.

2001/8/13 Mon, 18:46:50

Administrator’s Guide and Operating Instructions

n Start/End Section No – 32 MB/Section or 32 Slices/Section for the

system. Use the Down arrow button to select the Start/End Section No.

n Start/End Slice No – 1 MB/Slice for the system. Use the Down

arrow button to select the Start/End Slice No.

n Options to Play – Playbacks all recorded video images, or to

playback only motion or alarm detected video images of the assigned location.

n Slider Bar (and the messages above it) – The Slider Bar displays in

different colors the status for the recorded video from the Start Block/Section/Slice No. through the End Block/Section/Slice No. The colors are

Blue – Video Loss, Green – Motion,

Red – Alarm, The messages above displays Block-Section-Slice in BB-SS-ss

format, date in YYYY/MM/DD format, and military hour in HH:MM:SS format for the video corresponding to the Slider Bar

position. If Block-Section-Slice is shown as nn-XX -XX, the messages are at the Block level, nn-nn-XX Section level, and

nn-nn-nn Slice level.

■ Set Start button – Drag the Slider Bar to the start position you want,

then click on the Set Start button to change the Start Block/Section/Slice No.

■ Set End button – Drag the Slider Bar to the end position you want,

then click on the Set End button to change the End Block/Section/Slice No.

n Video Loss Status – Video loss status for the Block-Section-Slice

shown above for Camera 1 through 16 – Y for video loss, N for No video loss.

Motion Status – Motion status for the Block-Section-Slice shown above for Camera 1 through 16 – Y for motion, N for No motion.

n Alarm Status – Alarm status for the Block-Section-Slice shown

above for Alarm In 1 through 24 – Y for alarm, N for No alarm.

Administrator’s Guide and Operating Instructions

Search by Time

01-01-01

Search by Event

1-26-7x

To search by time, the diagram will be shown as below.

2002/6/05 Wed, 14:45:05

N Y N N N Y Y N N N Y Y N N N N

N Y N N N Y Y N

Use the Down arrow to select the desired start/end date and time, click on

the Submit button to start searching. Or you may select the Use Duration Time item, there will be a column shown in below to allow the users select the desired duration time instead of entering the End Time. The other items are the same as the above description.

To search by event, the diagram will be shown as below.

2002/6/05 Wed, 14:30:00

N Y N N N Y Y N N N Y Y N N N N

N Y N N N Y Y N

Select the desired event from the event list. The other items are the same

as the above description.

Administrator’s Guide and Operating Instructions

10. Remote Control

Through Local Network, Intranet, Internet or dial-in functions , users are able to view the live video, image playback and upload/download the configuration file of EDR 1600 from any PC in anywhere. The remote computer does not need to have the EDR1600 software or any special hardware and software installed.

10.1 Connecting the Remote PC and Server

Before you start, please verify the connection between EDR1600 and the ISDN, modem or network. The procedure for configuring a remote PC depends on the desired type of connection. The user can either dial directly into the server through ISDN, modem, or connect over a network. You must obtain IP addresses for the remote PC and EDR1600, please refer to Chapter 6.15 System Configurations for the details.

Administrator’s Guide and Operating Instructions

http://61.218.36.254

Camera 1

Camera 2

10.2 Remote View

After the Remote PC and EDR1600 are connected, s tart your Web browser

Example:

The following is the brief description of each item above.

and enter the system IP address in the Location/Address field. (Note.1)

The main page will be shown on the screen, enter the appropriate Login name and password, then click on the Submit button. (Note. 2)

The main control page will be shown as below.

The video image can be displayed in full or quad screen mode, and the time shown on each window refers to the time on EDR1600 system clock.

Upgrade – Remotely upgrades the system. Click on the button and follow

Download – Downloads the configuration files from the system. Upload – Uploads the configuration files to the system. After the

Guide – Views the introduction of how to operate the remote browser. About – Views the information about the system.

 ■ Upper Panel

the procedures shown on the screen for remote upgrading. (Note.3)

configuration file is uploaded, you must reboot the system. Click on the

button at the lower panel to reboot the system from the remote

PC.

Administrator’s Guide and Operating Instructions

■ Right Panel

W1 ~ W4 Camera / Type – Select the display cameras for Window 1 ~

Window 4. Click on the down arrow button to select the desired

camera for each window, and then select Live or Play from the options below for Live Video or Image Playback for each window. Click on the Submit button while the setting is completed.

PTZ - Click on the PTZ button, a PTZ control panel will be shown on

the screen as below.

Select the camera number which with the PTZ camera installed. There are 2 reaction methods in adjusting the camera directions and zoom focus – Continuous (Default) and Step. Click on the Step button if the user wants to adjust it step by step. The other control functions are the same as on the system. Please refer to Chapter 7 for PTZ Control Functions. Click on the Playback button to return to the Playback control panel.

Playback Date/Time – Sets the searching date/time for Image Playback. Enter the desired date and time in the proper columns, click on the Submit button to change the setting. The Playback Date/Time searching is based on the system clock

please enter the local date/time for searching if there’s time difference between local and remote end.

Alarm Out – Enables/disables the alarm out remotely.

■ Lower Panel

– Reboots the system remotely. – Views the log file of the system. / – Switches between quad screen and full screen mode.

Administrator’s Guide and Operating Instructions

While the camera and date/time settings for image playback have been submitted, operate the following buttons for video playback .

– Stops the playback image. The playback image will

starts from beginning if the user click on the Play button again.

/ – Click on forward/backward play button to start

playing /reverse playing video on its corresponding window. (Note.4)

/ – The next/previous single image corresponds to the

selected playback cameras will be played and displayed on its corresponding video window.

– Pauses the playback image. Slider Bar – Shows the current playing position for image playback. Click on it and drag the mouse to play the video from anywhere in the selected range.

Note. 1 The best viewer’s environment is Internet Explorer 5.0 or above, 1024 x 768

If the PC is protected by the Firewall, please make sure Port 1600 is enabled before accessed.

Note. 2 The Login Name and Password are the same as used in the system, the Administrator can operate all the functions on remote end, the Supervisor can view the live video and playback image, and the Operator can only view

the live video.

Note. 3 You must have the upgrading software in your remote PC in order to remote upgrade the system. To obtain the software, you may contact your local distributor or to download from FTP server directly. The IP address is ftp://www.everfocus.com.tw, the login name is“edr1600” and password is “focus1600”. Select the software version you would like to download, the file name of the upgrade software will be “edr1600-X.X-tar.gz”, X.X stands for the software version number.

Note 4 The remote end will not be able to view all the camera windows if there’s any

camera set as 0 FPS for the normal recording rate; unless all the cameras are set as 0 FPS.

Administrator’s Guide and Operating Instructions

http://61.218.36.254/iwapindex.htm

11. Remote View from i-mode

The system supports remote surveillance function from mobile phone via i -mode system. The users (with all login levels) can view the live images

by using the i-mode mobile phones while the system is connected to the Internet.

Operations:

To connect to the system, enter the system IP address in the

location/address field of the i-mode system, follow with “/iwapindex.htm”.

Example:

The welcome page will be shown on the screen, enter the proper login name and password, click on “OK” to login to the system and enter the

main menu page. Select the desired camera by clicking on the button on the main menu, a

live image for the corresponding camera will be showing on the screen. The image will be in Sub -QCIF format, 88x60 for NTSC and 88x72 for PAL. Click on to proceed to the next image. Click on to back to the main menu.

Administrator’s Guide and Operating Instructions

12. Note For “2x/fps” and Some Limitations

New model for 60FPS(NTSC) / 50FPS(PAL) recording rate

The V1.20 (and later version) software can support 60FPS(NTSC) / 50FPS(PAL) recording rate on a high-end EDR1600 model. The new model has a “2x/fps” label on its front panel. Please contact your supplier for the new model.

Note 1: For the new model, 30FPS(NTSC)/25FPS(PAL) is allocated to odd-numbered (1, 3, 5, .., 15) cameras, and the other 30/25FPS to even -numbered (2, 4, 6, .., 16) cameras. That makes a total of 60FPS(NTSC)/50FPS(PAL) for the new model.

Note 2: If the machine is V1.10 or older, please Setup CMOS before make the necessary hardware upgrade to make it the new model. For the Setup of CMOS data, please refer to the following paragraph. However, you don’t have to press F1 because it’s just for abnormal booting of the system.

Note 3: For the new model to reach 60FPS(NTSC)/50FPS(PAL), the recording quality may have to be configured as two or less than two. However, that depends on the cameras connected to the system and some other factors. Please do some tests for the trade -off between recording quality and recording rate.

CMOS data recovery

If after booting the EDR1600, the system halts and the LED for the floppy drive is always OFF, the CMOS data of the system may be lost. Please Insert the V1.20 (or later version) installation diskette into the floppy drive, and then press F1(about 15 seconds after power on).

Press 2 “Setup CMOS only” when the installation menu is shown.

If the system is running well after you recover its CMOS data, please login as Administrator and update the DATE/TIME of the system.

Limitations for hot-swapping hard disks

For HDD#2 to be accessible, make sure HDD#2 exists at system power up or HDD#1 power up. Afterwards, you may hot-swap HDD#2 anytime except when it's recording. For the other hard disks, there are no limitations for hot-swap.

Administrator’s Guide and Operating Instructions

Note 1: HDD#2 being not accessible is caused by the misbehavior of HDD#1 at hot-swap. (HDD#1 responds to all command s sent to HDD#2 if the former “thinks” the later is absent!) We strongly recommend that you use IBM’s hard disks as HDD#1 (master) because they are very consistent and stable for hot-swap.

Note 2: If it happens that HDD#2 is not accessible, please power off both HDD#1 and HDD#2, and then power on both of them immediately.

Hard disks in EDA800

If you are using EDA800, please choose IBM’s hard disks for your recording purposes. EDA800 and IBM’s hard disks have the best compatibility.

No limitation for motion setup

There are only 50 sets of motion configuration settings for V1.20 or earlier version. Now , there is no limitation for V1.21 (or later version).

Administrator’s Guide and Operating Instructions

Appendix A – Specifications

Video Format NTSC/EIA or PAL/CCIR, auto-sensing Video Input 16 camera inputs with loop through (BNC), 1Vp-p/75ohm

Video Output Main Monitor 1 D-SUB 15-pin computer monitor output

1 BNC composite video output, 1Vp-p/75ohm (option) Call Monitor 1 BNC composite video output, 1Vp-p/75ohm Video Compression JPEG and MPEG-1 I Frame Video Resolution 352x240 (NTSC) or 352x288 (PAL)

Video Display 1/4/7/9/10/13/16 video windows, 16 million colors Display Resolution 640x480 for NTSC, 800x600 for PAL Video Freeze Yes Sequential Switch Programmable, with adjustable dwell time (5 -100 seconds)

Alarm Input 24 inputs, Contact or TTL/CMOS signal, polarity selectable Alarm Output 4 Normally Open, 4 Normally Closed relay outputs

Hard Disk Storage Up to 2 sets of Hard Disks, hot swappable Hard Disk Extension Up to 16 sets of Hard Disks, hot swappable

Hard Disk Type IDE Type, 3.5” half height

Recording Rate Recording Mode Time-lapse recording, Event recording

Playback Rate Up to 30 fps for NTSC, 25 fps for PAL Playback Search Radar search, Thumbnail search, Time search

Motion Detection Yes, with configurable detection area (16x12) & sensitivity Video Loss Detection Yes

Event Log Yes User Interface Windows look and feel Setup On screen setup User Input Device Mouse (Keyboard: optional) Buzzer Yes Timer Built-in real time clock Watch Dog Timer Yes

Title Flash Memory 24 MB

Security Multi-level password protection System Recovery Auto power on after power loss recovery

Up to 60 fps for NTSC, 50 fps for PAL, independent of camera types

10-character title generator for each camera, alarm input, and alarm output

Administrator’s Guide and Operating Instructions

Power Source 110V/220V AC, selectable Power Consumption

Dimension 426(Width) x 480(Depth) x 176(Height)mm Weight 20KG

Operating Temperature 0oC ~ +45oC

150W Max.

Administrator’s Guide and Operating Instructions

Appendix B – Time Lapse Mode Recording Time

Time Lapse Mode Recording Time (system storage: 60GB)

(Estimated with typical image – low noise level)

NTSC / JPEG

Total Capture Rate

(FPS)

30 1 2 58 2 14 38 5 1 21 15 2 5 56 5 5 16 10 2 43 10 3 8 54 7 19 55 15 4 5

6 5 14 50 13 1 11 25 6 48 3 11 5 41 26 2 23 50 13 37 2 16 20 32 39 3 35 75 20 26

1.2 28 2 14 65 5 58 126 10 4

0.6 56 4 28 130 11 56 252 20 8

0.3 112 8 57 260 23 53 505 16 17

0.2

0.12 280 22 23 652 11 44 1264 4 44

0.1 337 2 51 782 23 41 1517 0 53

Total Capture Rate

(FPS)

30 1 12 24 3 23 29 6 1 38 15 3 0 49 7 22 59 12 3 16

10 4 13 13 11 22 29 18 4 54

6 7 14 2 19 21 29 30 8 10 3 15 4 5 39 18 59 60 16 21 2 22 18 8 59 16 28 91 0 32

1.2 37 22 13 99 11 28 151 16 53 1 45 12 16 119 8 57 182 1 4

0.6 75 20 26 198 22 56 303 9 46

0.3 151 16 53 397 21 52 606 19 33

0.2 227 13 20 596 20 48 910 5 20

0.12

0.1 455 2 40 1193 17 37 1820 10 40

Fine(10) Normal(5) Rough(0)

day hour min day hour min day hour min

168

25 391

NTSC / MPEG-1

151

758

Fine(10) Normal(5) Rough(0)

day hour min day hour min day hour min

379

994

40 1517

Administrator’s Guide and Operating Instructions

Total Capture Rate

(FPS)

25 1 2 59 2 14 58 5 2 38

12.5 2 5 58 5 5 57 10 5 16

8.3 3 9 17 7 21 41 15 9 23 5 5 14 57 13 2 53 25 13 12

2.5 11 5 54 26 5 46 51 2 24

1.7 16 12 55 38 14 8 75 3 32 1 28 2 45 65 14 26 127 18 0

0.83 33 20 57 79 0 54 153 21 59

0.5

0.25 112 11 2 262 9 45 511 0 2

0.17 165 9 10 385 21 24 751 11 21

0.1

PAL / JPEG

Fine(10) Normal(5) Rough(0)

day hour min day hour min day hour min

281

31 131

35 656

PAL / MPEG-1

255

23 1277

Total Capture Rate

(FPS)

Fine(10) Normal(5) Rough(0)

day hour min day hour min day hour min

25 1 12 35 4 1 5 6 1 38

12.5 3 1 11 8 2 10 12 3 16

8.3 4 14 14 12 4 26 18 6 39 5 7 14 59 20 5 27 30 8 10

2.5 15 5 59 40 10 54 60 16 21

1.7 22 10 13 59 11 47 89 5 41 1 38 2 59 101 3 15 151 16 53

0.83 45 22 23 121 20 24 182 18 36

0.5 76 5 58 202 6 31 303 9 46

0.25 152 11 57 404 13 2 606 19 33

0.17 224 6 16 594 21 59 892 8 59

0.1 381 5 52 1011 8 35 1517 0 53

Note 1: EDR1600 can be mounted with 2 hot-swappable, internal HDDs. Note 2: With EDA800, EDR1600 can be mounted with up to 18 hot-swappable HDDs.

Note 3: The listed system storage & capture rates are just taken for example.

Administrator’s Guide and Operating Instructions

Appendix C – Simulated Keyboard

There are situations that the user will be asked to enter a numeric or alphanumeric string. So, a simulated keyboard is designed for the user to use the mouse for all the operations. Please refer to the following diagram for the details.

Appendix D – Q & A

Q: The mouse doesn’t work. A: The mouse must be connected to the system at system startup.

Q: The system is running well, but there are no recorded images in the hard disks. A: HDD#1 (in upper tray) must be set as master, and HDD#2 (in lower tray) as slave.

The settings should be described on the hard disk itself or in the manual come with the hard disk. The default settings for the hard disk should be master.

Q: The playback images cannot be retrieved to the ZIP disk. A: The system supports IOMEGA’s ZIP drives. The ZIP drive must be connected to the

system at system startup. Please remember that the ZIP disk must be PC formatted.

Q: How do I get better video quality? A: The quality of JPEG is better than MPEG, and the higher the recording quality, the

better the quality. Please login a s administrator, click on the Config icon, and then click on the Camera Setup menu item. Select the Recording Quality and the Compression Method as appropriate. After exiting the Config menu, you’ll be asked to restart the system for the new settings to take effect.

Administrator’s Guide and Operating Instructions

Q: How do I setup time-lapse recording? A: Please setup the Normal Recording rates for the Cameras at different Time Types.

The normal recording rates are also time -lapse recording rates.

Q: How do I setup event recording? A: Please setup the Alarm Recording rates for the Cameras at different Time Types, the

different Actions, and the enable/disable items for the Cameras and the Alarm Inputs. The alarm recording rates are also event-recording rates.

Q: How do I black out the live images fo r the cameras? A: To black out the live images for the cameras, login as Administrator and set those

cameras as playback in the Sequence Mode display & Static Page Mode display. There are 7 static display pages and at most 8 display sequences. Later on, the Operator/Guest will not be able to see the live images for those cameras.

Q: Are there no pre-recorded images for the camera? A: There must be at least one Action corresponding to that camera, and the pre-record

time of those Actions must be non-zero. The normal recording rate for that camera must also be non-zero. (Exception: If the normal recording rates for all the installed cameras are all zero, the pre-record will still be effective.) Please refer to Chapter 6 for the detailed setup.

Q: The displayed date and time on the lower-left corner are not correct. A: Please login as administrator, click on the displayed time, then the Date & Time Setup

dialog box will be shown. Enter your local time, and then click on the OK button to update the system’s date & time.

Q: How do I play the retrieved files on a PC? A: Double click on the filename of the .MPG file, the Media Player in MS Windows will

be run to play the .MPG file. Download QuickTime from www.apple.com to play the .MOV files. The playback version of QuickTime is free.

Q: Why does the system have the confused images in some channel? A: We suggest you to check if there’s any camera with Line Lock function on.

The camera frequency is according to AC power if line lock function is set as ON, the instable frequency of power supply will cause the variant frequency to camera. When V-sync frequency is unstable, it affects the next captured camera images. Please set this camera to line lock OFF if you have the problem, the camera frequency will be consistent according to itself if line lock off.

Administrator’s Guide and Operating Instructions

Q: How do I login to the system if the administrator’s login name and password are lost? A: For the security reason, it’s impossible to retrieve the login name and password once

they’re lost. Once the administrator’s login name and password are lost, the only way to re-login to the system is through the backdoor program. Please click the logo icon

on the upper right corner of the main screen, there will be a serial number shown on the screen. Contact our worldwide branch offices or your local distributor to give them the serial number you have, you will be given a new set of login name and password

once your identification is verified. Make sure you setup your own login name and password after you re-login to the system. Each serial number can be used only once, there will be a new serial number given to the system once you re-login.

Q: There are unrecognizable characters on the screen after switching the language mode. A: Due to the incompatibles of the language systems, switching between languages might

caused the error codes on the camera tag names or the items related to the Time/Date type if the *.ini files have been changed on the previous language mode. In other words, if the camera tag names and Time/Date Types were already configured under the certain language mode, the other language may not be able to recognize them. If the situation happens, the user may either reconfigure these items or revert the whole configuration files back to the Factory setting under the desired language mode.

Beijing Office:

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chi, Taipei, Taiwan TEL: 886-2-26982334

FAX: 886-2-26982380 http:// www.everfocus.com.tw

USA Office:

2445 Huntington Drive, San Marino, CA, 91108 U.S.A. TEL: 1-626-844-8888 FAX: 1-626-844-8838 Toll free: 1-888-383-6287 or 1-888-EV -FOCUS

http://www.everfocus.com

European Office:

Albert -Einstein-Strasse 1 D-46446 Emmerich, Germany TEL: 49-2822-9394-0 FAX: 49-2822-939495

http://www.everfocus.de

Room 609, Technology Trade Build ing, Shandgdi Information Industry Base,

Haidian District, Beijing,China TEL: 86-10-62971096 FAX: 86-10-62971432

Japan Office: WBG Marive East 18F, 1809 2-6 Nakase, Mihama-ku, Chiba city 261-7113, Japan Tel: 81-43-212-8188 Fax: 81-43-297-0081

EverFocus

P/N:MDR1G0010H

EverFocus DR1600MA Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
