Everdure CBEE61 User Manual

& MAINTENANCE INSTRUCTIONS

Models Included:

INSTALLATION, OPERATION

FOR EVERDURE VITROCERAMIC ELECTRIC COOKTOPS

CBEE61

OBES61 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS

FOR EVERDURE BUILT-IN ELECTRIC OVEN RANGE

OBES61, OBES62 & OBES63 BUILT-IN ELECTRIC OVENS

DESIGNED TO PERFECTION

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS

FOR EVERDURE BUILT-IN ELECTRIC COOKTOP RANGE

CBEE61 VITROCERAMIC ELECTRIC COOKTOP

CONTENTS

SECTION PAGE NO.

Important Safety Instructions ………….. 3
Appliance Details ………………………… 4
Electrical Connections ………………..…. 5
Installation ………………………………… 6-7
Operating Instructions …………………… 8-11
Cleaning ………………………………….. 11

It is important that you retain these instructions, proof of purchase as well as

other important documents about this product for future reference.

2

DESIGNED TO PERFECTION

3

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully

before removing the contents of this carton.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety. Children should be supervised to insure that they do not play with the appliance.

2. After removing the packaging, make sure to check if there is any damage to the appliance. If there is any damage, never

attempt to use the appliance and immediately contact your Authorized Service Centre, as packaging materials need to be
collected immediately and put out of reach.

3. In certain circumstances electrical appliances may be a danger hazard. Check the conformity of voltage and power settings,

which are specified on the information plate attached to the appliance and/or packaging, with the usage conditions available.

4. Do not place heavy objects in or on these appliances, use for storage or as a cutting surface. This appliance is designed for

cooking food only. Use flat based, stable cooking pots only.

5. This appliance is designed for domestic household use only and for the cooking of domestic food products. Use as a commercial

appliance will void the warranty. It should not to be used in a marine environment or outdoors and must be fully built in. Do not
use the appliances until fully installed.

6. A means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

7. The electrical connection must be accessible after installation. The appliance must be electrically isolated before any maintenance

can be performed.

8. The appliance is not intended to be operated by means of an external timer or separate remote control system.

9. Electrical connection must be made as per local wiring rules and regulations. Do not disconnect the appliance with wet hands or

bare feet, and do not disconnect the power cord with extreme force.

10. Ensure that the kitchen is well ventilated or mechanical ventilation is in use while cooking on this appliance.

11. Do not store or use flammable materials or aerosols near the cooktop. Items made from aluminium, plastic or plastic film should

also be kept away from the appliance, as they may fuse to the surface.

12. WARNING – The surface temperature of this appliance exceeds 95°C. To avoid a hazard, under bench access must be restricted.

A board must be installed underneath the cooktop.

13. WARNING - The cooktop will become hot during and directly after use. Do not touch the surface during this time, as it may be hot

and can cause burns. To avoid burns, children should be kept away.

14. Cleaning may only be commenced on the appliance once it has cooled down and is turned off. Do not use a steam jet or any

other high pressure cleaning equipment to clean the appliance.

15. When the appliance is not being used, turn the appliance off.

16. Where this appliance is installed in a caravan, it shall NOT be used as a space heater.

17. Do not modify this appliance.

18. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass surface as they can scratch the surface, which may

result in the glass shattering. Clean the glass using a warm damp cloth (e.g. dishcloth) and dry it with a soft dry tea towel.
All cabinetry and materials used in the installation must be able to withstand a minimum temperature of 50°C above the ambient

19.

temperature of the room it is located in, whilst in use. Certain types of vinyl or laminate kitchen furniture are particularly prone to
heat damage or discolouration at temperatures below the guidelines given above. Any damage caused by the appliance being
installed without adhering to the temperature limits set out above will be the liability of the owner. To avoid any hazards, limit
access to the under-bench section of the cooktop.

20. The appliance must be installed and put into operation by an authorised technician under the conditions provided by the

manufacturer in this manual. The manufacturer cannot be held responsible for any damage that might occur due to faulty
installation.

21. Damage can occur to bench tops if pots and pans are allowed to overlap the bench top. This can result in heat being transferred

to the bench top. Ensure that correct sized pots & pans are used. Cast iron and cast aluminium cookware with damaged bases
may scratch the cooktop surface if they are dragged across it. Pans should be lifted on and off the cooktop surface and not
dragged. Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty for any
length of time.

22. If any cracking is noticed on the vitroceramic cooktop, turn the appliance off immediately and call your Authorised Service Centre.

23. Do not leave the cooktop while cooking with solid or liquid oils. There may be flaming up in conditions of extreme heating. Never

pour water onto the flames occurring from oil. Immediately turn the cooktop off and cover the pan with a lid or fire blanket in
order to smother the flame.

3

DESIGNED TO PERFECTION

APPLIANCE DETAILS

ELECTRICAL DETAILS:

COOKTOPS:

Rated Voltage: 220-240Vac 50Hz

CBEE61 - 5900W

COOKTOP – Directly wired to mains supply
This information can be found on the rating plate (identification plate) affixed to the underside of the

appliance.

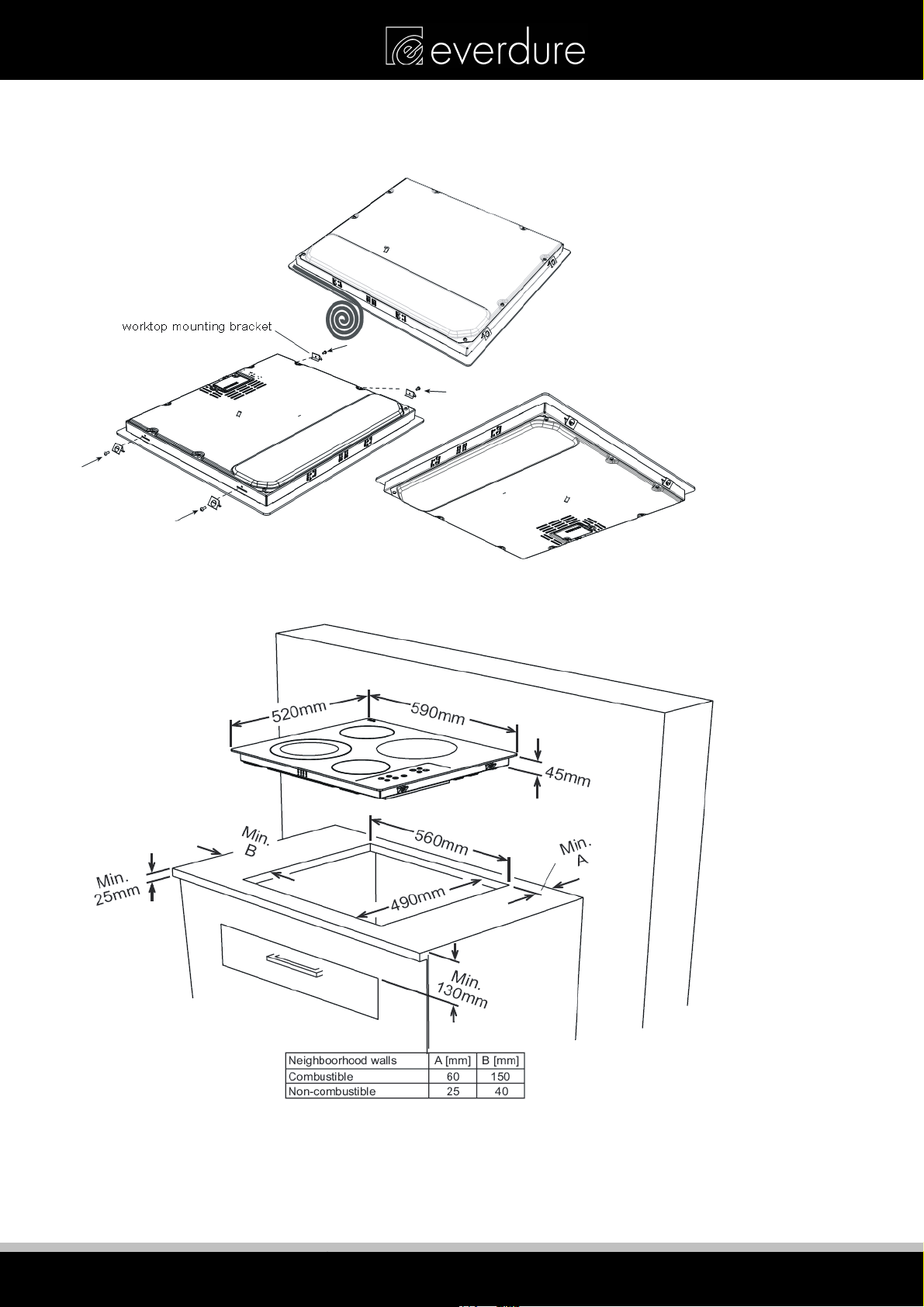

SIZES:

Relevant Sizes: LENGTH (mm) WIDTH (mm) HEIGHT (mm)

Cooktop Size 590 520 45

Cut-out Size 560 490 -
