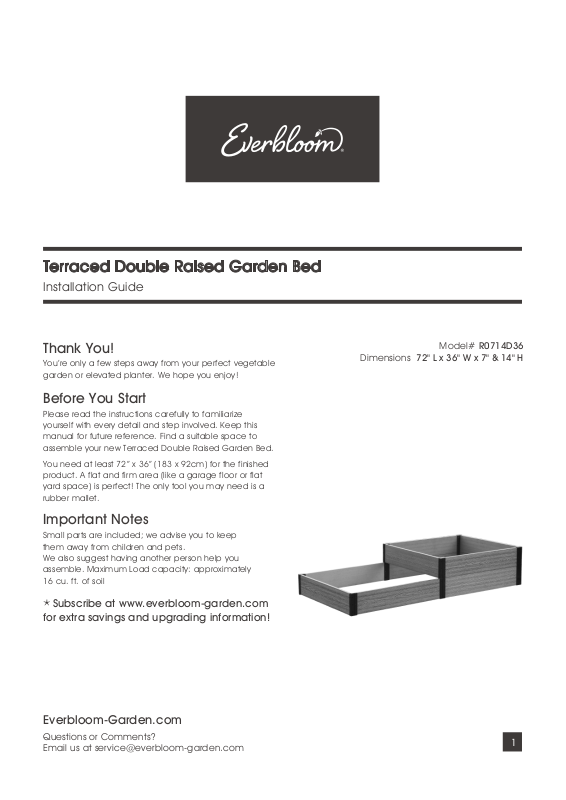

Page 1
Terraced Double Raised Garden Bed
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Terraced Double Raised Garden Bed.
You need at least 72” x 36” (183 x 92cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
16 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# R0714D36
Dimensions 72" L x 36" W x 7" & 14" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2
Parts List
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
Left Corner
Post
(360mm) X 1
Top
Right Corner
Post
(360mm) X 1
Top
Long Board
X 10
Left Joiner
Corner
X 1
Top
Right Joiner
Corner
X 1
Top
Bottom
Left Corner
Post
(180mm) X 1
Top
Bottom Bottom
Right Corner
(180mm) X 1
Bottom
Post
Top
900mm
Bottom
Post Cap
X 6
Bottom
2
Page 3
Assembly
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
Start by making sure each corner post is oriented correctly. Reference Image 1. Fix the left joiner corner
and left corner post (180mm) on one long board from above, as shown in Image 2.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2).
IMAGE 1
Left Corner
Post
(180mm)
Left Joiner
Corner
Right Corner
Post
(180mm)
Left Corner
Post
(360mm)
Right Corner
Post
(360mm)
Right Joiner
Corner
Left
Joiner
Corner
IMAGE 2
Left Corner
Post
(180mm)
Long
Board
3
Page 4
Assembly
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
Fix the right joiner corner and right corner post on a long board from above, as shown in Image 3.
IMAGE 3
Left Joiner
Corner
Right Joiner
Corner
Long
Board
Left Corner
Post
(180mm)
Long
Board
Right Corner
Post
(180mm)
4
Page 5
Assembly
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
Slide the rest eight boards to form the bed, as shown in Image 4.
IMAGE 4
Long
Board
Left
Corner
Post
(360mm)
Long
Board
Left Corner
Post
(180mm)
Long
Board
Left Joiner
Corner
Right
Corner
Post
(360mm)
Right Joiner
Corner
Right Corner
Post
(180mm)
5
Page 6
Assembly
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the
6 end caps, as shown in Image 5.
IMAGE 5
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
Post Cap
X 1
Post Cap
X 1
X 1
Note: Store the additional
caps for future use.
6
Page 7
Notes
Terraced Double Raised Garden Bed - 72" L x 36" W x 7" & 14" H
Sometimes there might be a misalignment of the Corner Posts as shown in Image 6 and Image 7, which
may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that
they are parallel to each other, and perpendicular to the ground.
IMAGE 6
Assembling Problem 1
X
X
IMAGE 7
Assembling Problem 2
7
Page 8
Bloom On.
Everbloom-Garden.com
US Patent Pending
Subscribe at www.everbloom-garden.com for
extra savings and upgrading information!
Distributed by:
Dynaforge Trading LLC
St. Paul, MN55101
Email: [email protected]
