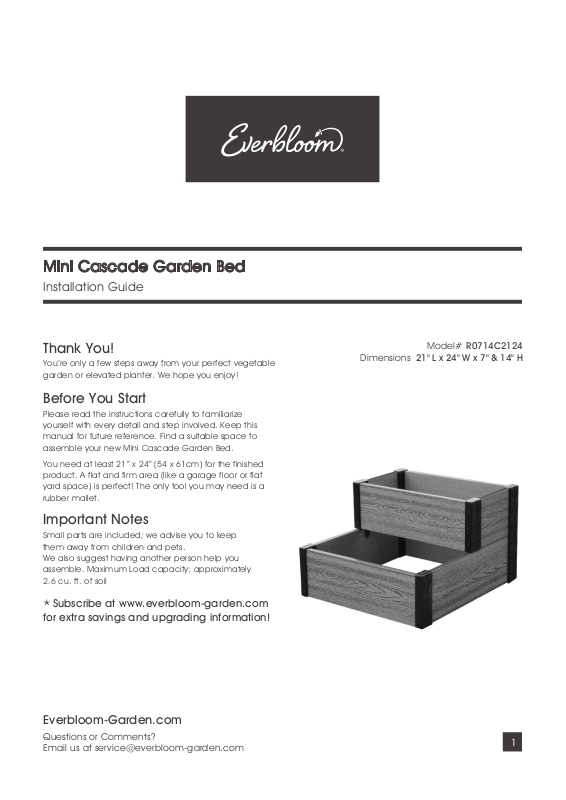

Page 1
Mini Cascade Garden Bed
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Mini Cascade Garden Bed.
You need at least 21” x 24” (54 x 61cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
2.6 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# R0714C2124
Dimensions 21" L x 24" W x 7" & 14" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2
Parts List
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H
Left Corner
Post
(180mm) X 2
Top
Bottom
Right Corner
Post
(180mm) X 2
Top
Bottom
Left Corner
Post
(360mm) X 1
Top
Bottom
Right Corner
Post
(360mm) X 1
Top
Bottom
Short Board A
X 6
Short Board B
X 2
240mm
Securing Plate
X 2
Bolt
X 2
Nut
X 2
Nut Driver
X 1
540mm
Hex Key
X 1
Post Cap
X 6
2
Page 3
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H
Start by making sure each corner post is oriented correctly. Reference Image 1. Fix the right corner post
(360mm) and left corner post (180mm) on one short board A from above, as shown in Image 2.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2).
Right Corner
Post
360mm x 1
Left Corner
Post
360mm x 1
Left Corner
Post
180mm x 1
IMAGE 1
Right Corner
Post
180mm x 1
IMAGE 2
Right Corner
Post
360mm x 1
Left Corner
Post
180mm x 1
Short
Board A
3
Page 4
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

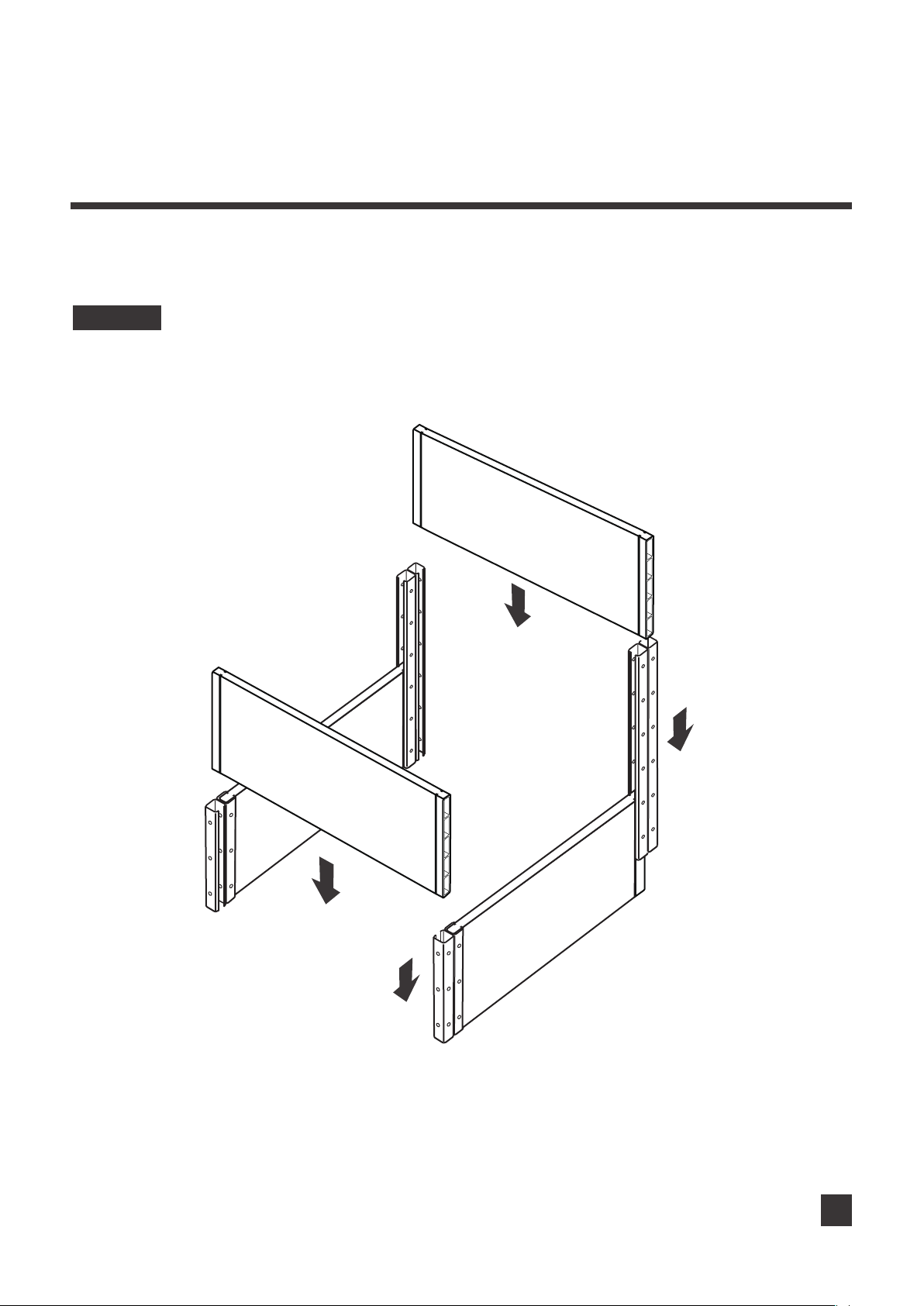

Fix the other right corner post (360mm) and the left corner post (180mm) on another short board A from
above, and slide two short boards A into the corner posts from above, as shown in Image 3.
IMAGE 3
Short
Board A
Right Corner
Post
360mm x 1
Left Corner
Post
180mm x 1
Short
Board A
Right Corner
Post
180mm x 1
Short
Board A
Right Corner
Post
360mm x 1
4
Page 5
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

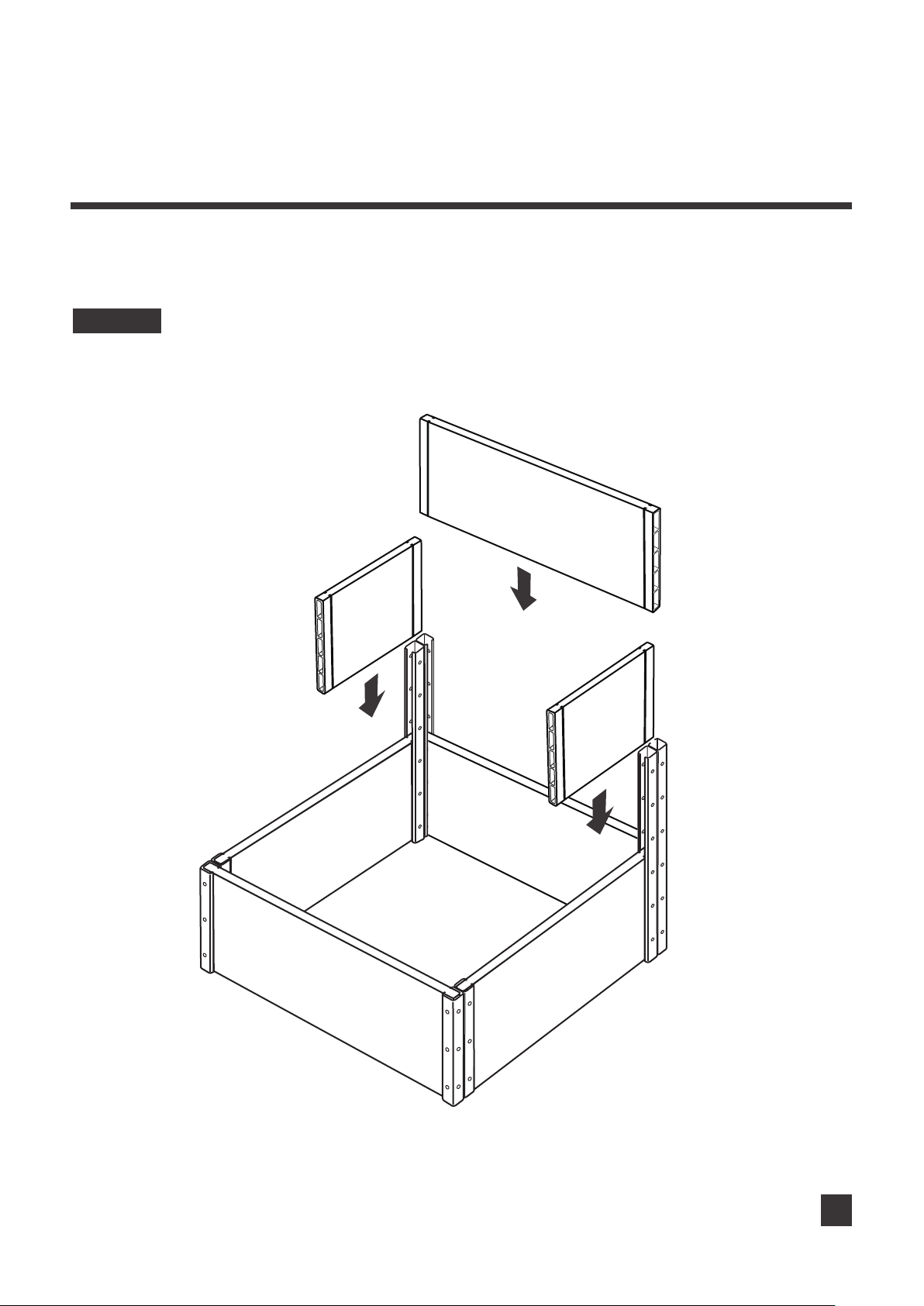

Slide one short board A and two short boards B from above to form the second layer, as shown in Image 4.
Note：Don’t swivel the short boards on long sides to prevent them splite from the steel posts .
IMAGE 4
Short
Board A
Short
Board B
Short
Board B
5
Page 6
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

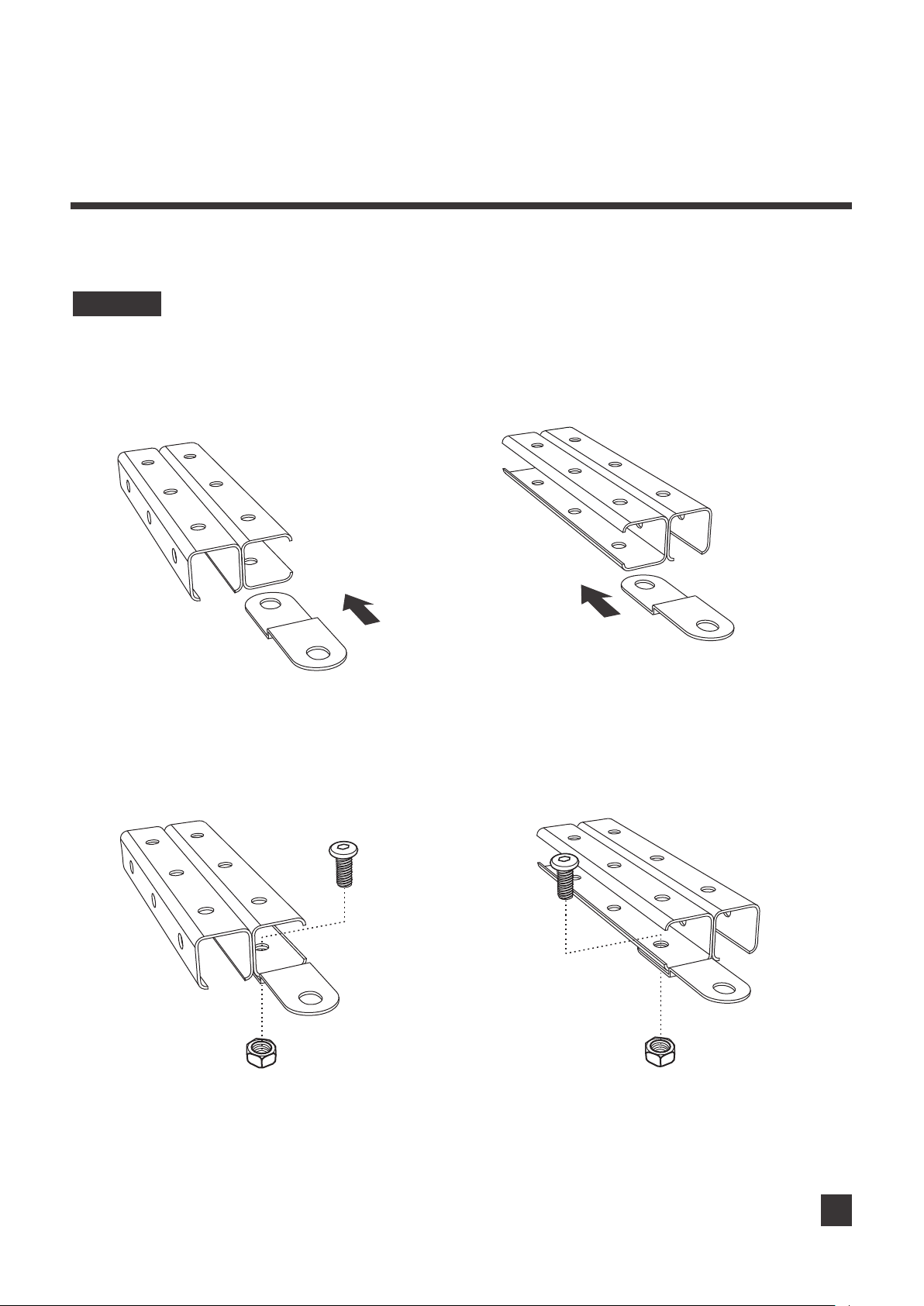

Fix the securing plates on corner posts (180mm) with bolts and nuts, as shown in Image 5.
IMAGE 5
Left Corner
Post
180mm x 1
Left Corner
Post
180mm x 1
Securing
Plate
Bolt
Right Corner
Post
180mm x 1
Securing
Plate
Right Corner
Post
180mm x 1
Bolt
Securing
Plate
Nut Nut
Securing
Plate
6
Page 7
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

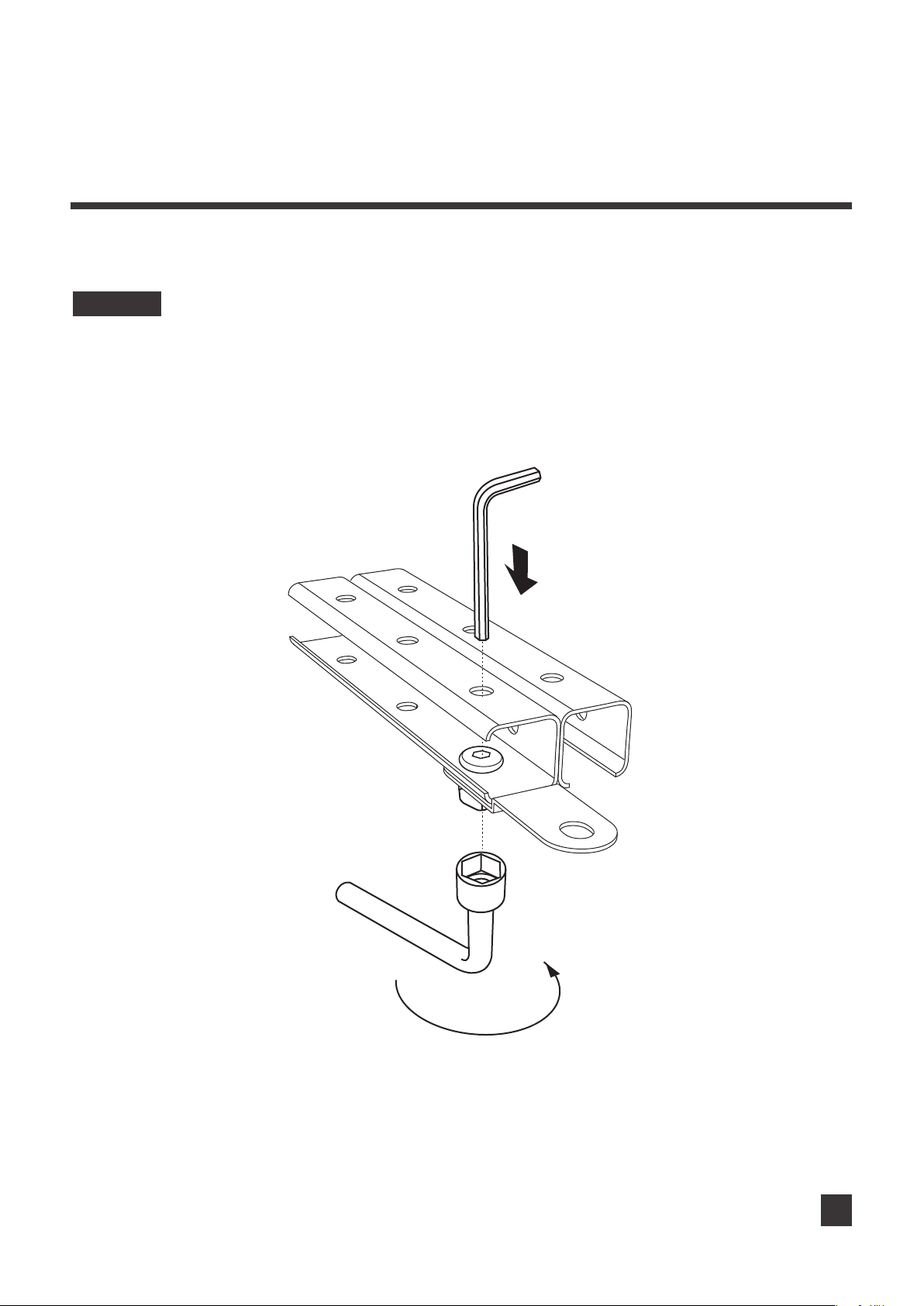

Fasten the bolts and nuts with hex key and nut driver, as shown in Image 6.
IMAGE 6
7
Page 8
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

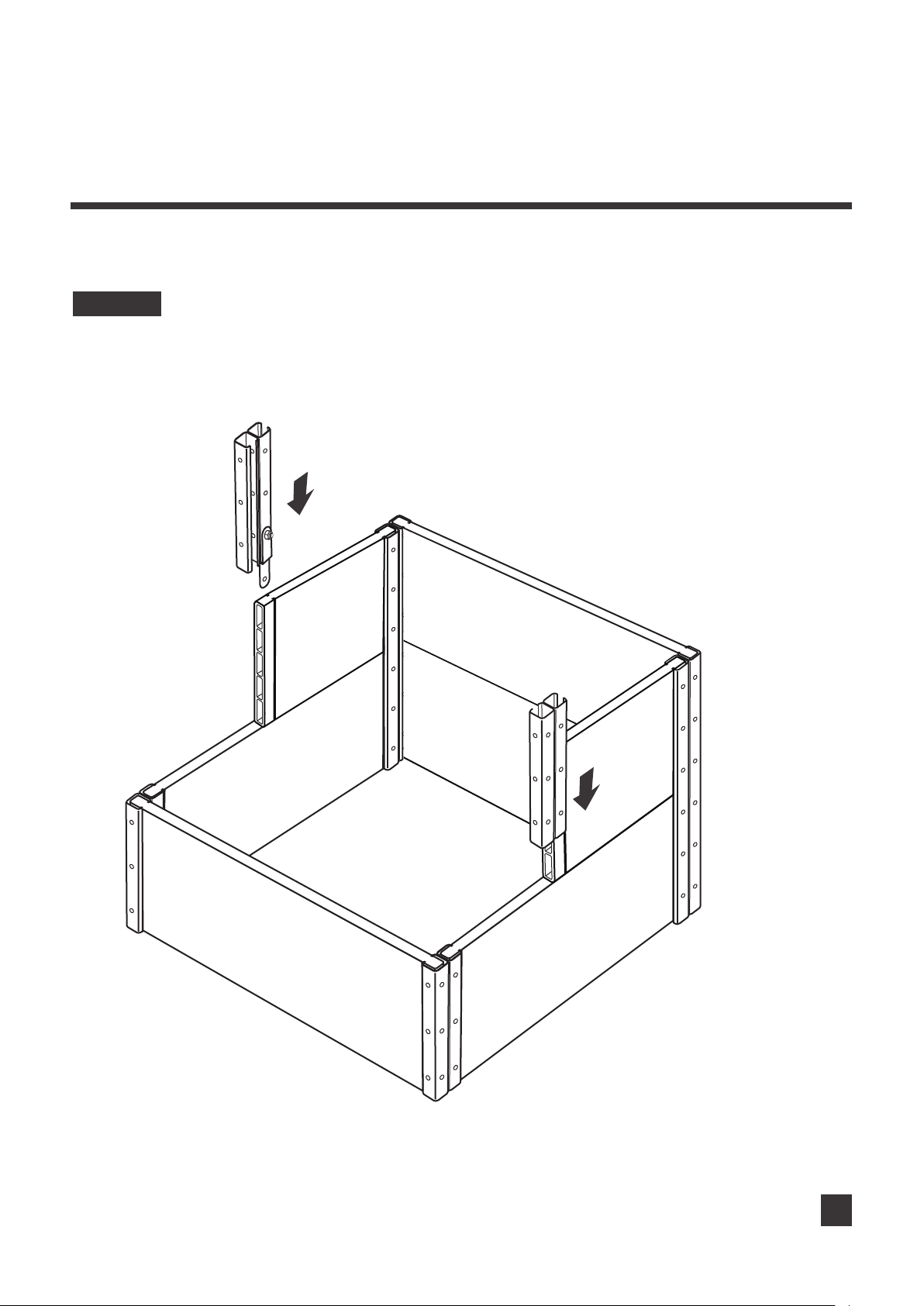

Slide these two post brackets with securing plates onto the short boards B from above, as shown in Image 7.
IMAGE 7
Right Corner
Post
180mm
with
Securing Plate
Short
Board B
Short
Board B
Left Corner
Post
180mm
with
Securing Plate
8
Page 9
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

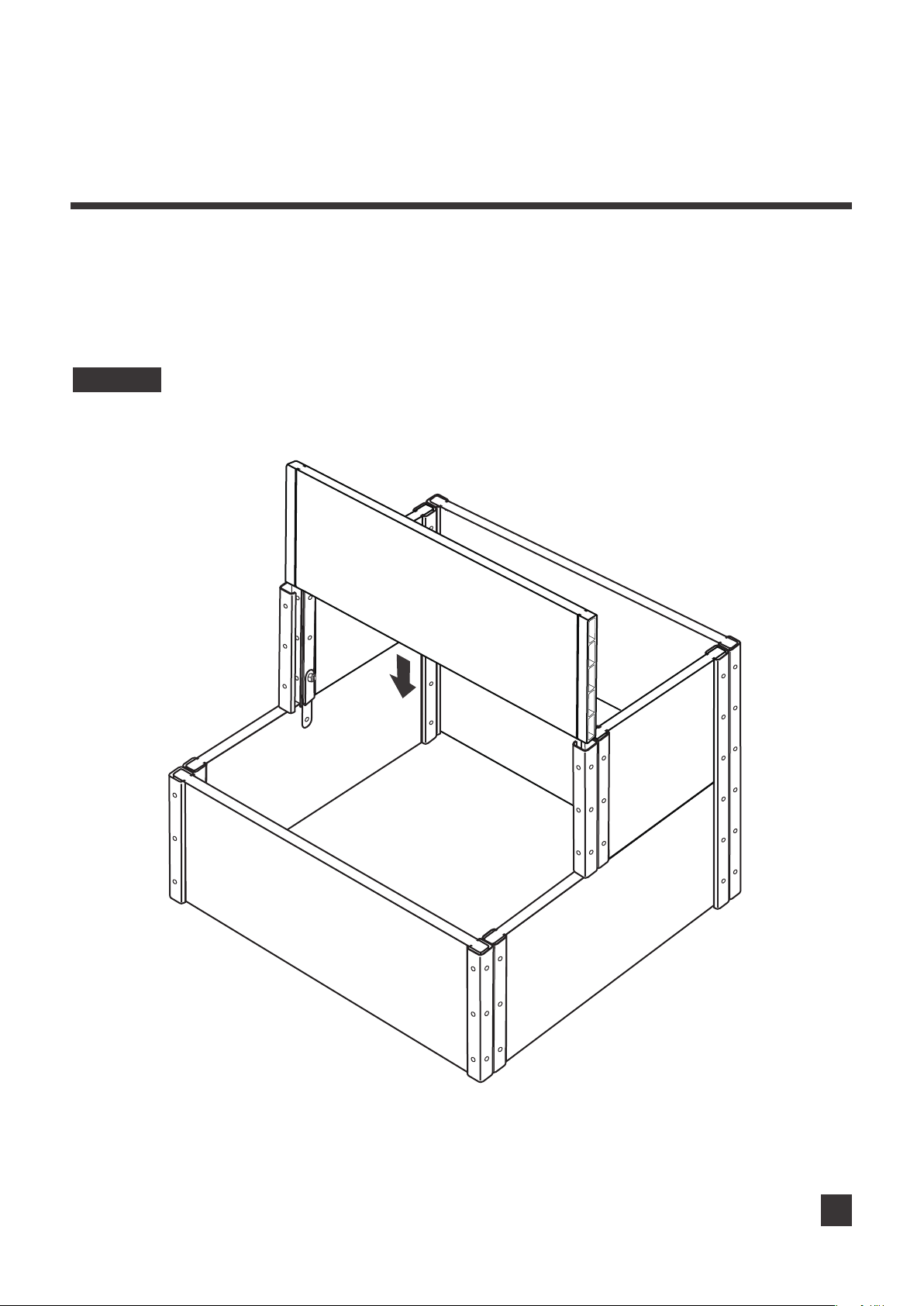

Slide the last short board A from above, as shown in Image 8.
Note: It is not necessary to screw the securing plates onto the boards. The securing plates will prevent the
short boards B from moving sidewards after the last short board A is inserted. But if you want to secure them
with screws (not included), please make sure not to overdrive. The WPC boards might be fragile when screws
are overdriven, and not capable of holding the screws in place.
IMAGE 8
Short
Board A
9
Page 10
Assembly
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

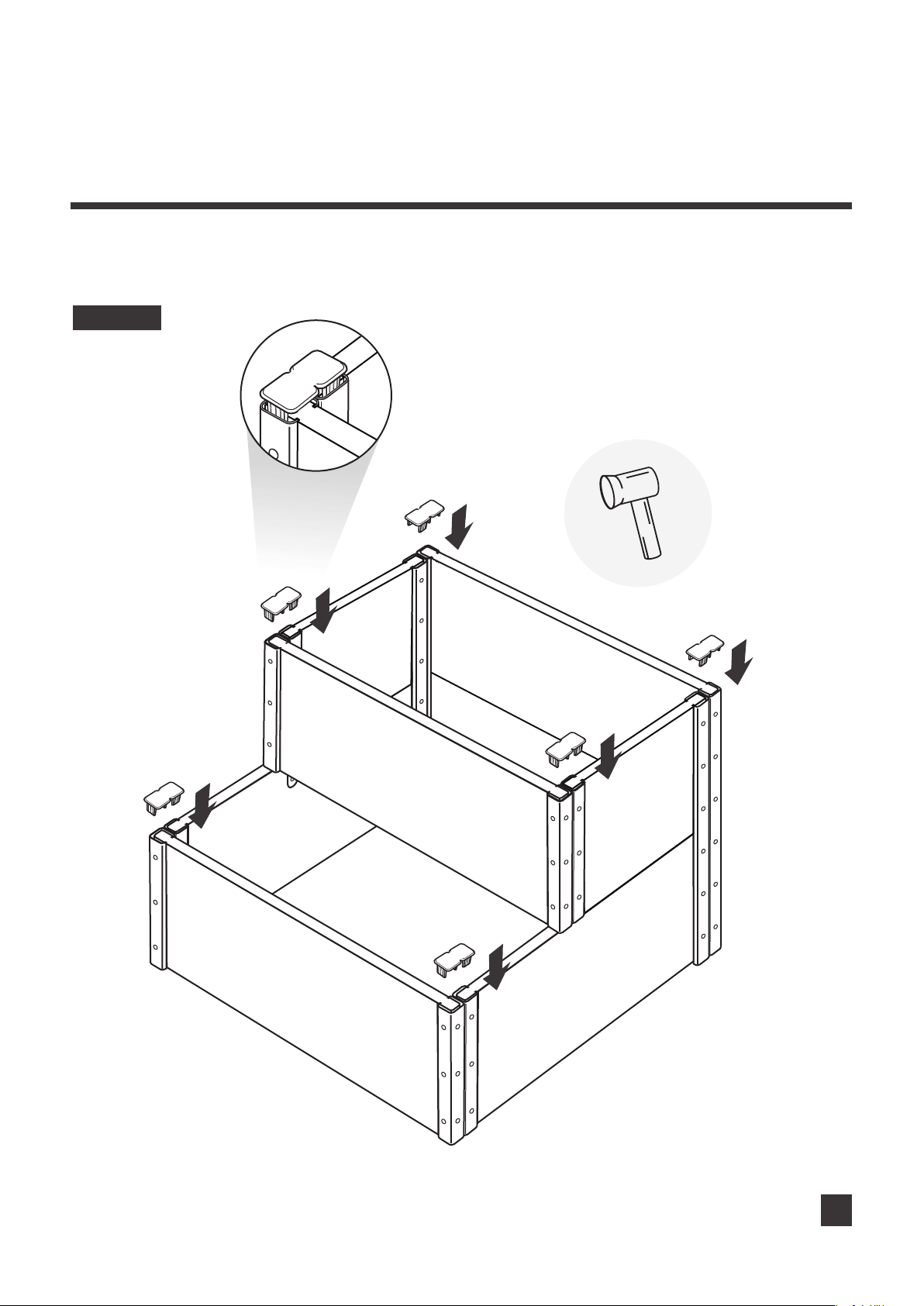

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the
6 end caps, as shown in Image 9. Then, you get an Everbloom Mini Cascade Garden Bed.
IMAGE 9
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
10
Page 11
Notes
Mini Cascade Garden Bed - 21" L x 24" W x 7" & 14" H

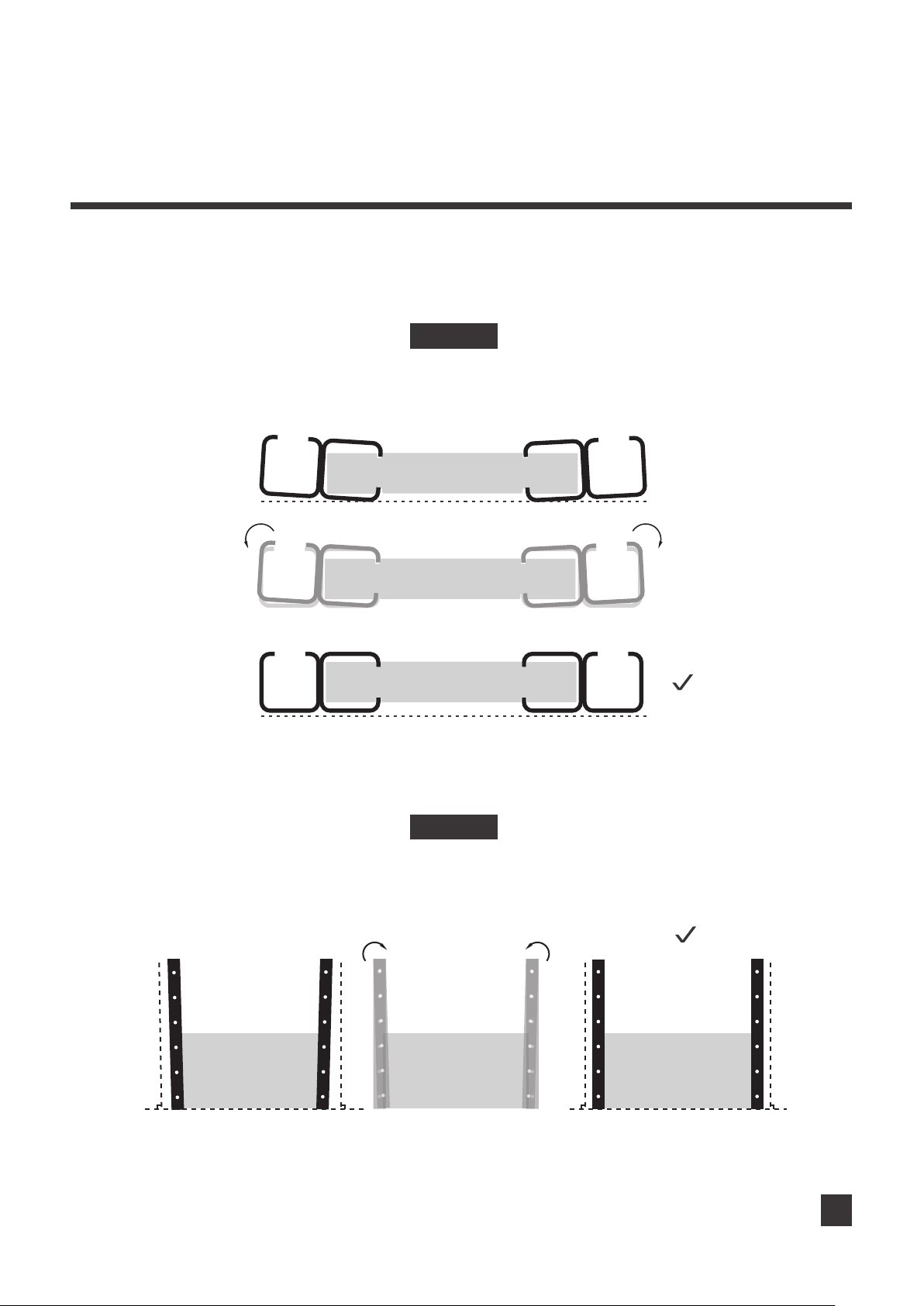

Sometimes there might be a misalignment of the Corner Posts as shown in Image 10 and Image 11,
which may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so
that they are parallel to each other, and perpendicular to the ground.
IMAGE 10
Assembling Problem 1
X
X
IMAGE 11
Assembling Problem 2
11
Page 12
Bloom On.
Everbloom-Garden.com
US Patent Pending
Subscribe at www.everbloom-garden.com for
extra savings and upgrading information!
Distributed by:
Dynaforge Trading LLC
St. Paul, MN55101
Email: [email protected]
