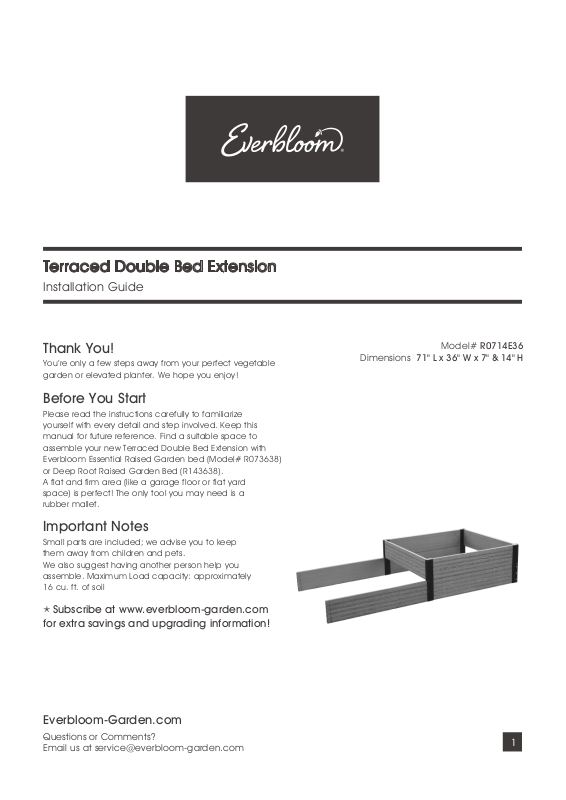

Terraced Double Bed Extension
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Terraced Double Bed Extension with
Everbloom Essential Raised Garden bed (Model# R073638)
or Deep Root Raised Garden Bed (R143638).
A flat and firm area (like a garage floor or flat yard
space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
16 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# R0714E36
Dimensions 71" L x 36" W x 7" & 14" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2

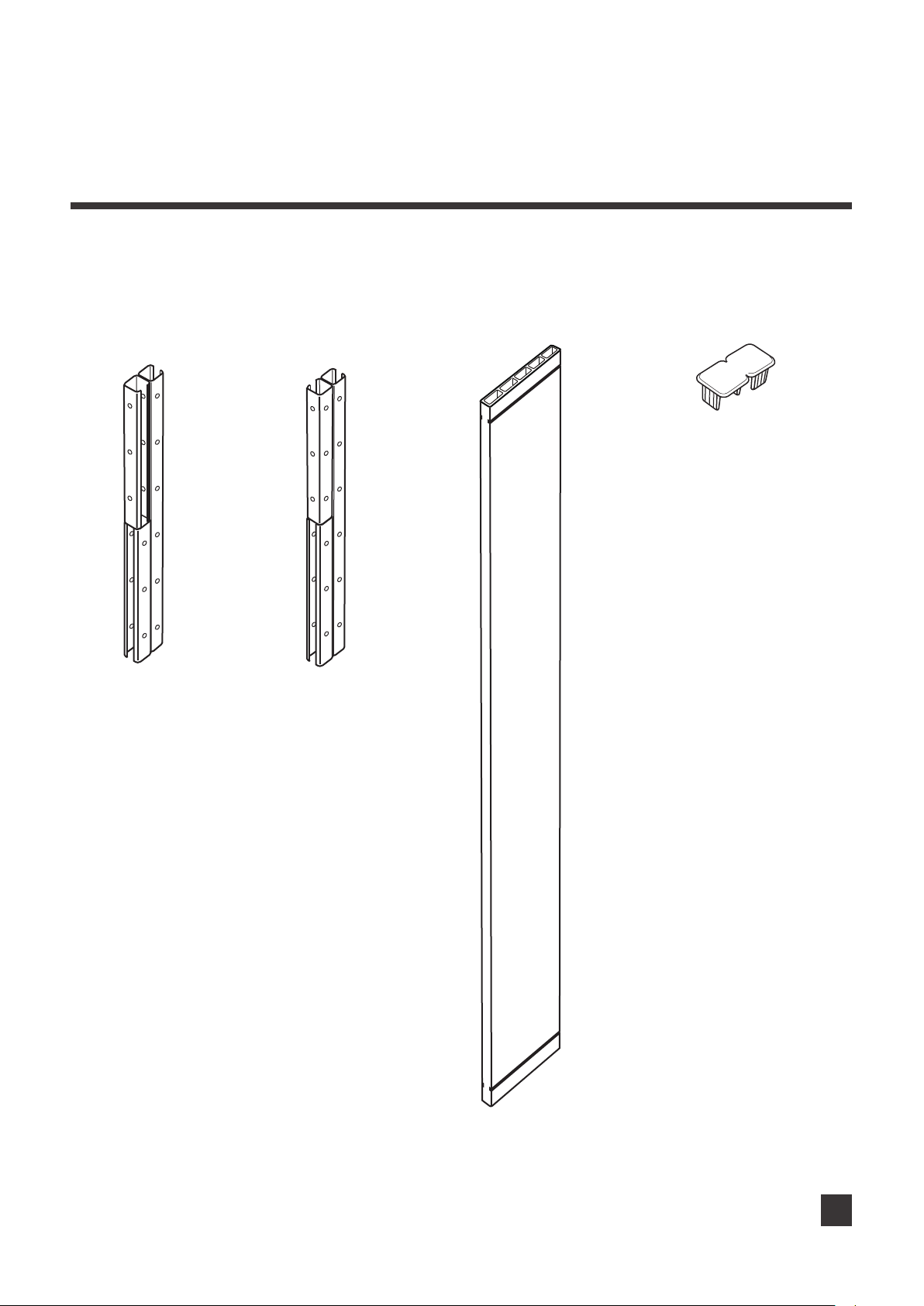

Parts List
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
Left Joiner
Corner
X 2
Top
Right Joiner
Corner
X 2
Top
Long Board
X 8
Post Cap
X 4
+ 2pc
replacement
Bottom
Bottom
900mm
2
Page 3
Assembly
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
This kit can be assembled with Everbloom Essential Raised Garden Bed (R073638) to create a Low-Hi-Low
triple bed. And it also can be assembled with Everbloom Deep Root Raised Garden Bed (143638) to create
a Hi-Low-Hi triple bed. Assembling it with Everbloom Terraced Double Raised Garden Bed (R0714D36), you
can get a Hi-Low-Hi-Low quadruple bed.
With more of this extensions, you can build 5 beds, 6 beds or more continuous beds in this Hi-Lo version.
Every extension can add a pair of Hi-Lo beds additionally, to an unlimited length, as long as your land can
take.
* For Low-Hi-Low Triple bed, please follow steps of Assembly 1 from this page.
* For Hi-Low-Hi Triple bed, please follow steps of Assembly 2 from page 8.
* For Hi-Low-Hi-Low Quadruple bed, please follow steps of Assembly 3 from page 13.
Assembly 1

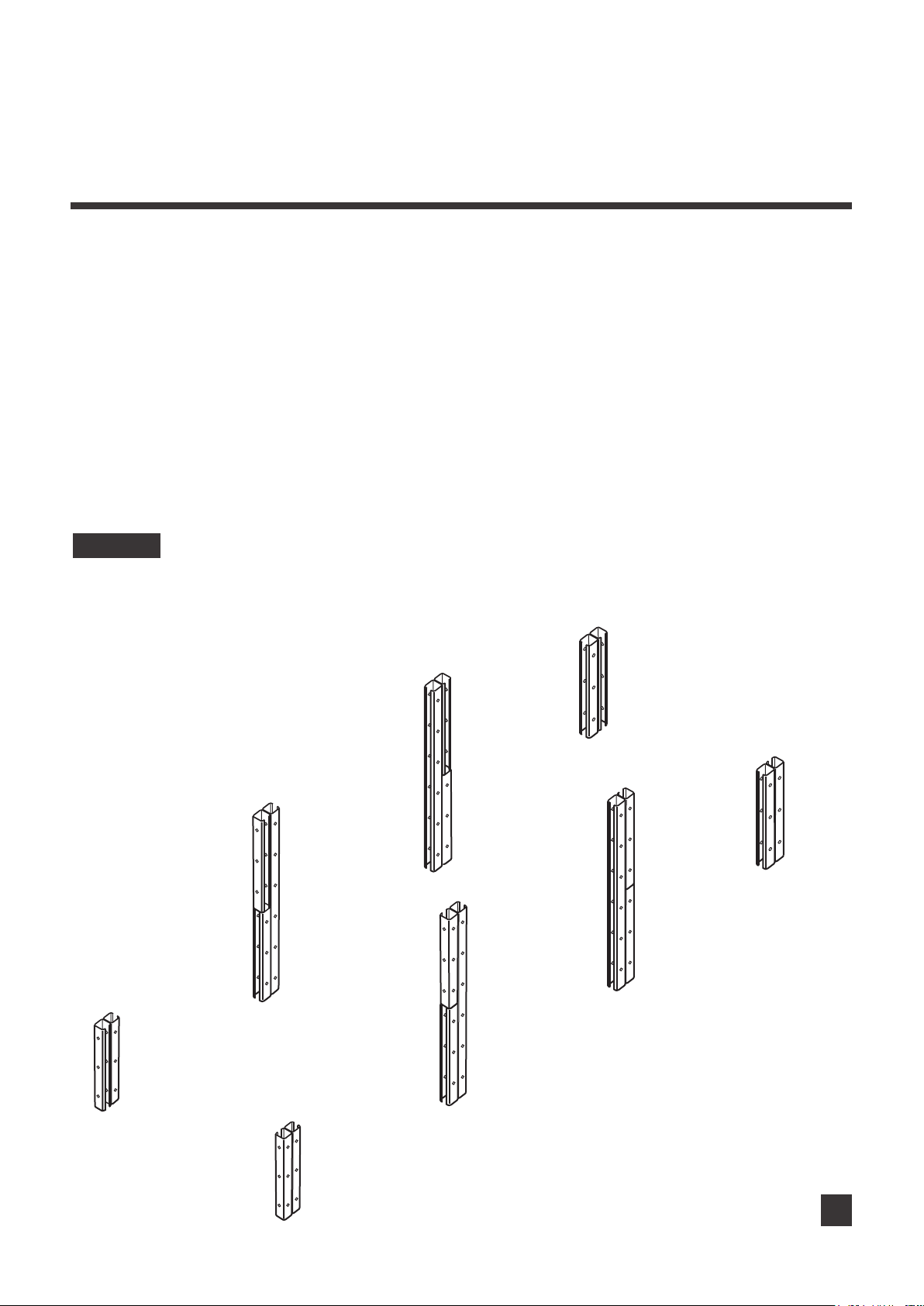

Start by making sure each corner post is oriented correctly. Reference image 1.
IMAGE 1
Right Corner
Post
(180mm)
From R073638
Right Joiner
Corner
Left Corner
Post
(180mm)
From R073638
Left Joiner
Left Joiner
Corner
Corner
Left Corner
Post
(180mm)
From R073638
Right Joiner
Corner
Right Corner
Post
(180mm)
From R073638
3
Page 4
Assembly 1
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

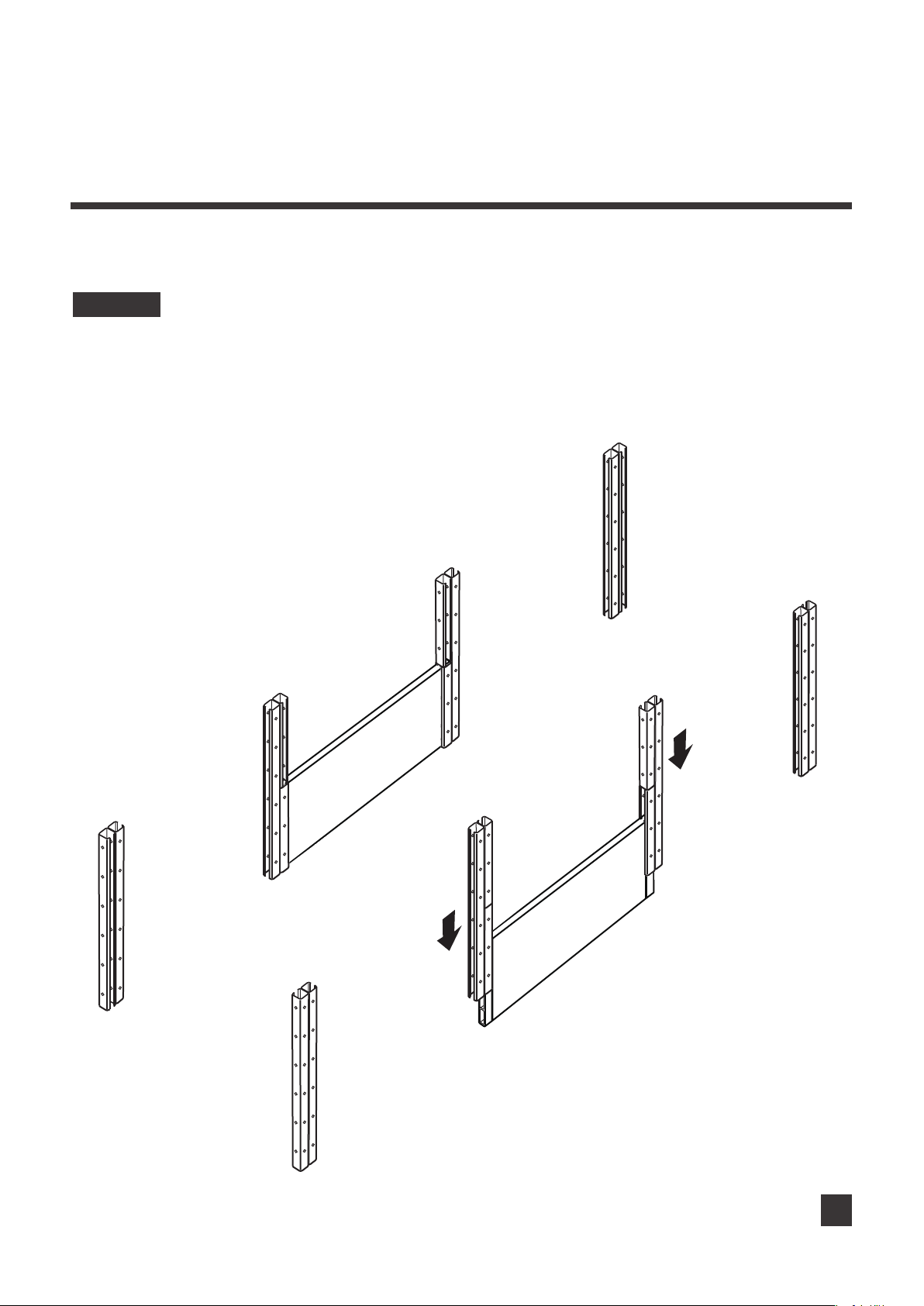

Fix the left joiner corner and left corner post (180mm) on one long board from above, as shown in Image 2.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2).
IMAGE 2
Left Joiner
Corner
Left Corner
Post
(180mm)
From R073638
Left Corner
Post
(180mm)
Left
Joiner
Corner
Long
Board
4
Page 5
Assembly 1
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

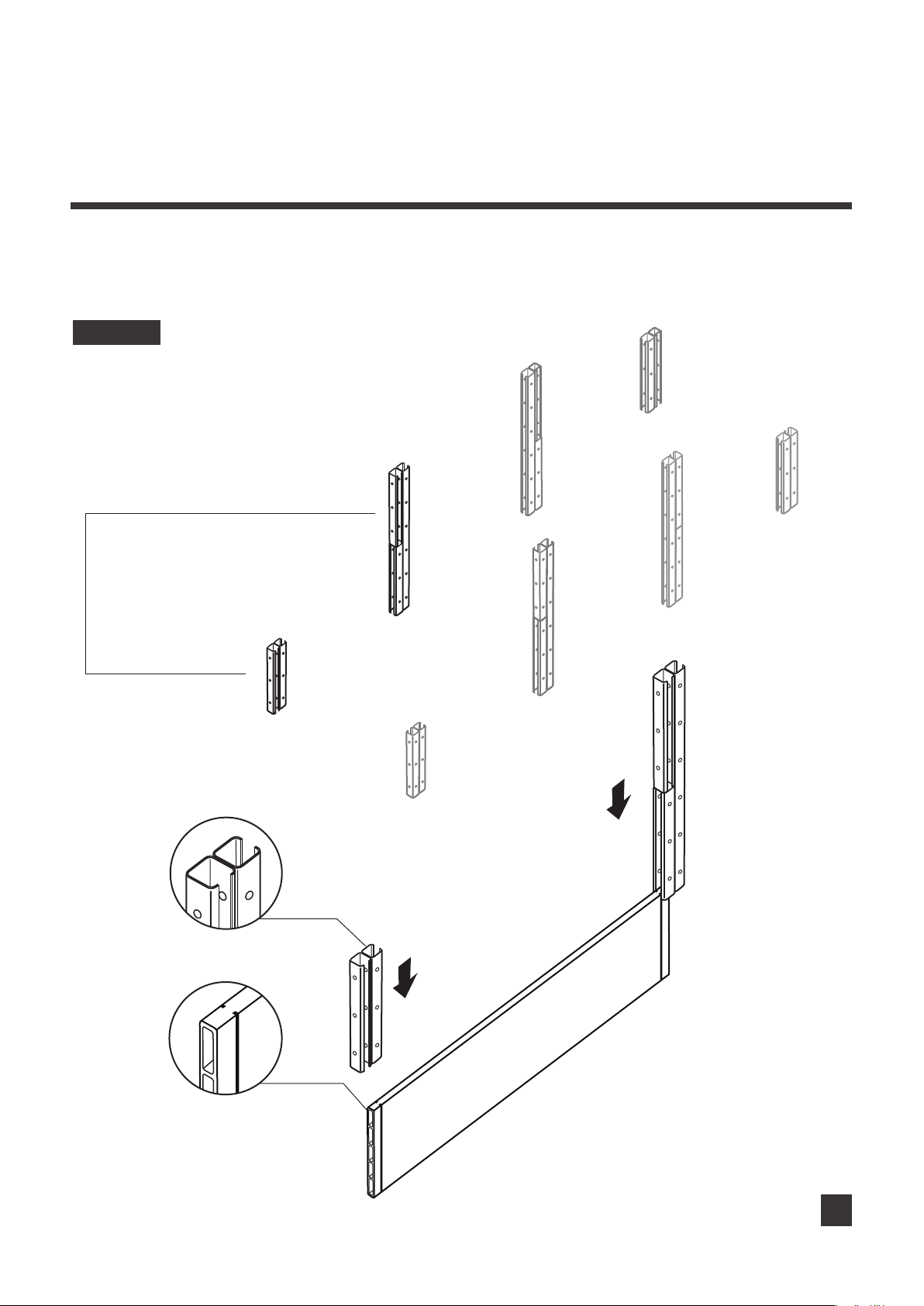

Fix other joiner corners and corner posts (180mm) on long boards from above, as shown in Image 3.
IMAGE 3
Right Corner
Post
(180mm)
From R073638
Right Joiner
Corner
Left Corner
Post
(180mm)
From R073638
Right Corner
Post
(180mm)
Left Joiner
Corner
Long
Board
Right Joiner
Corner
Long
Board
Long
Board
5
Page 6
Assembly 1
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

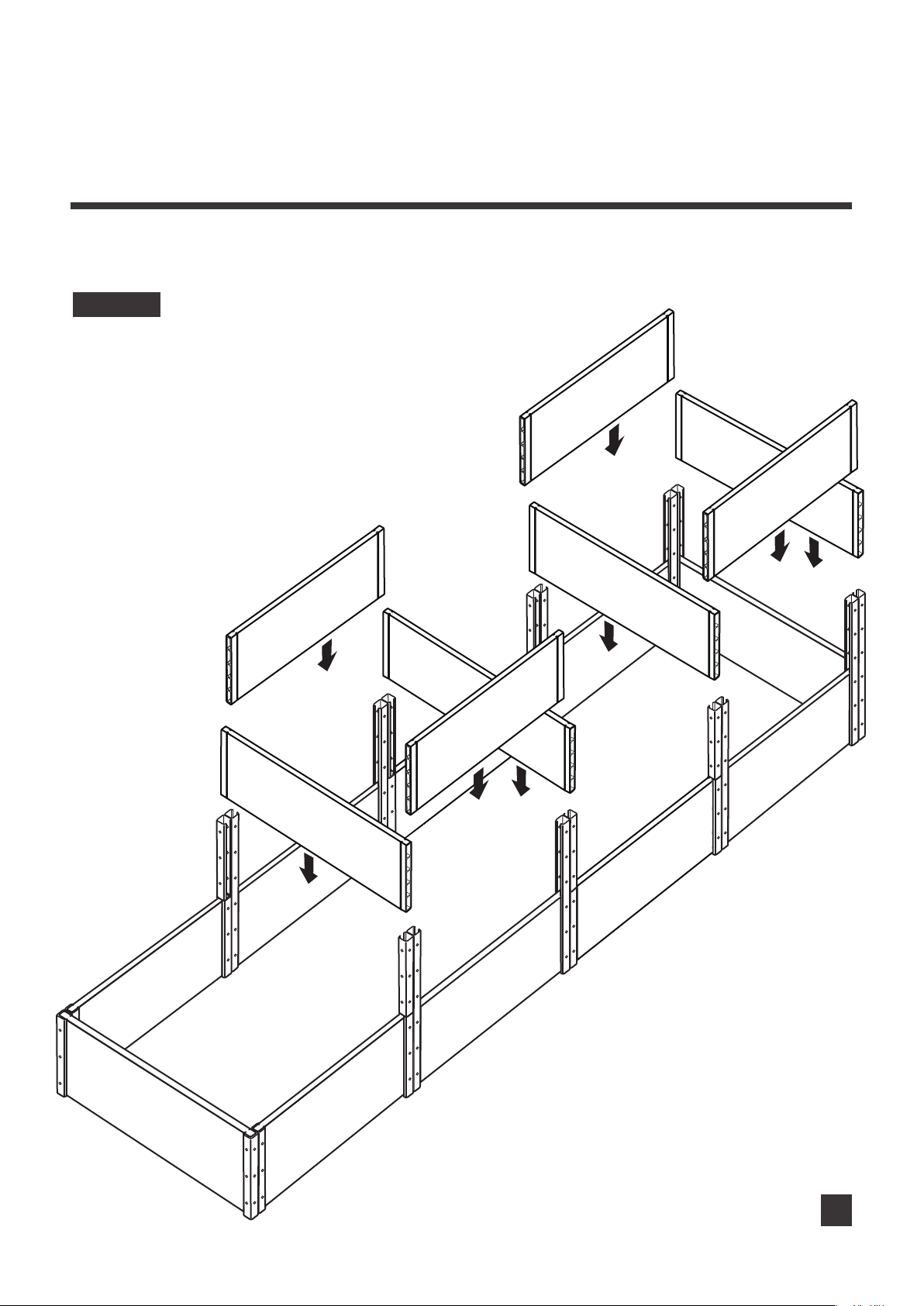

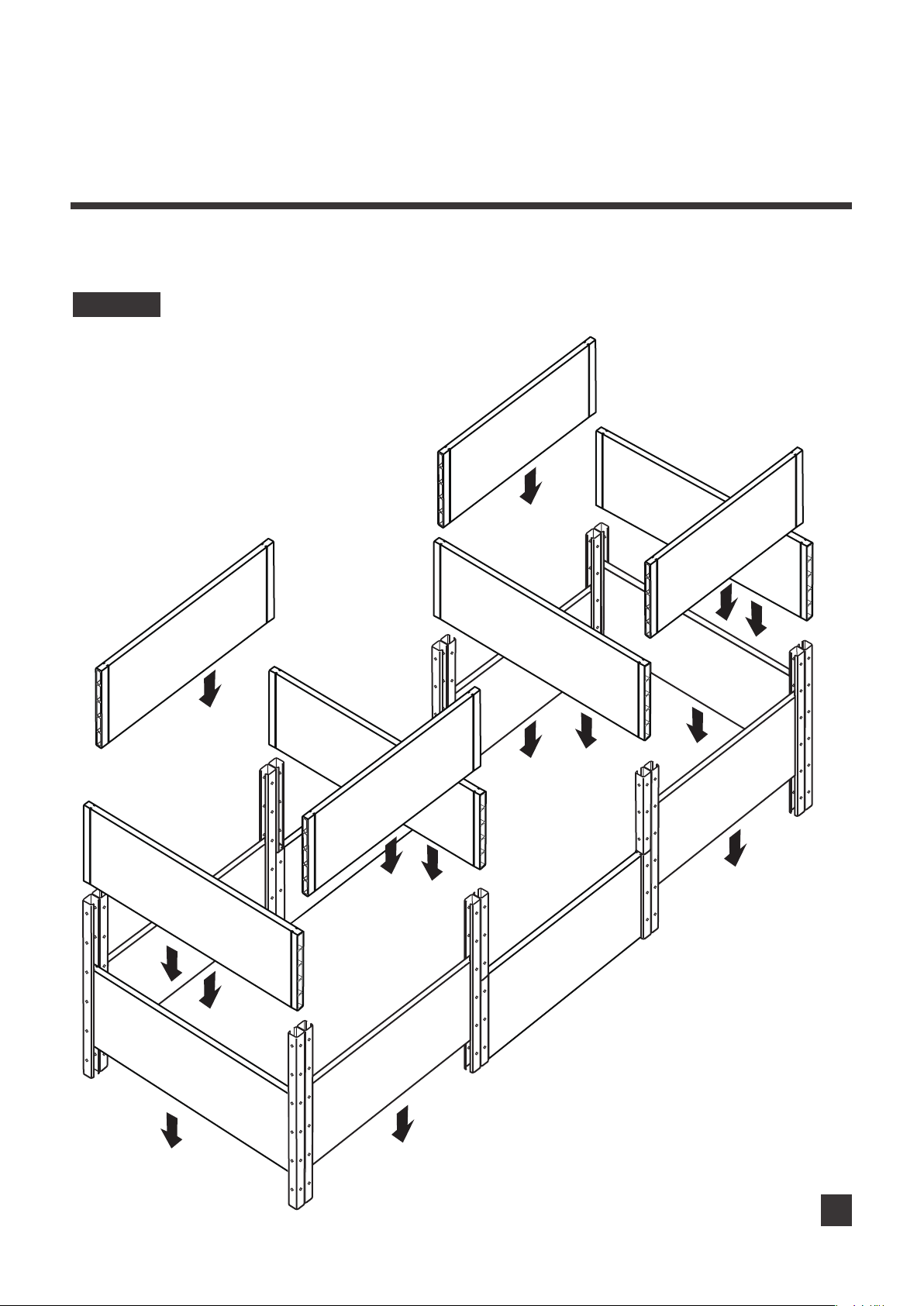

Slide the rest eight boards to form the bed, as shown in Image 4.
IMAGE 4
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
6
Page 7
Assembly 1
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

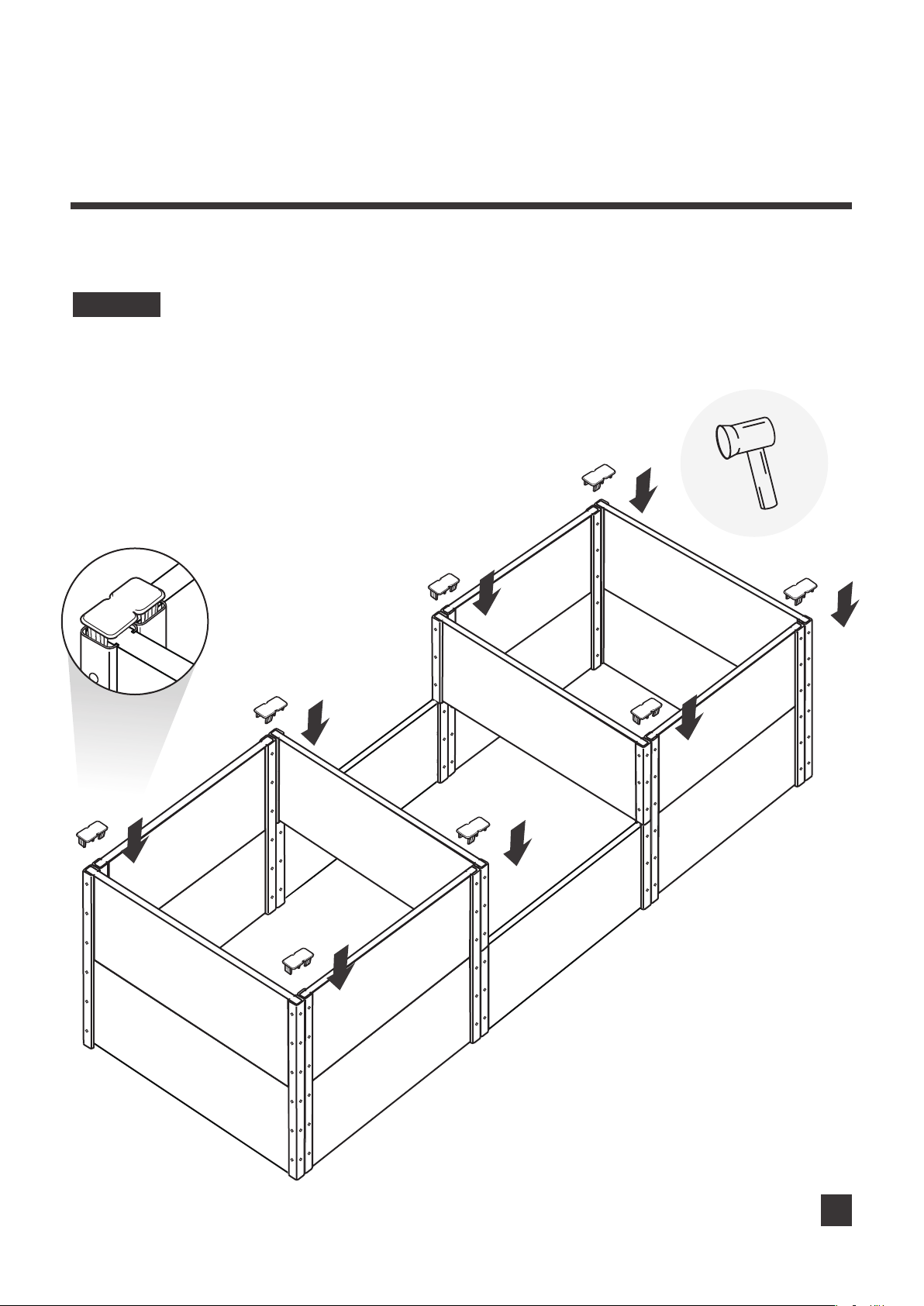

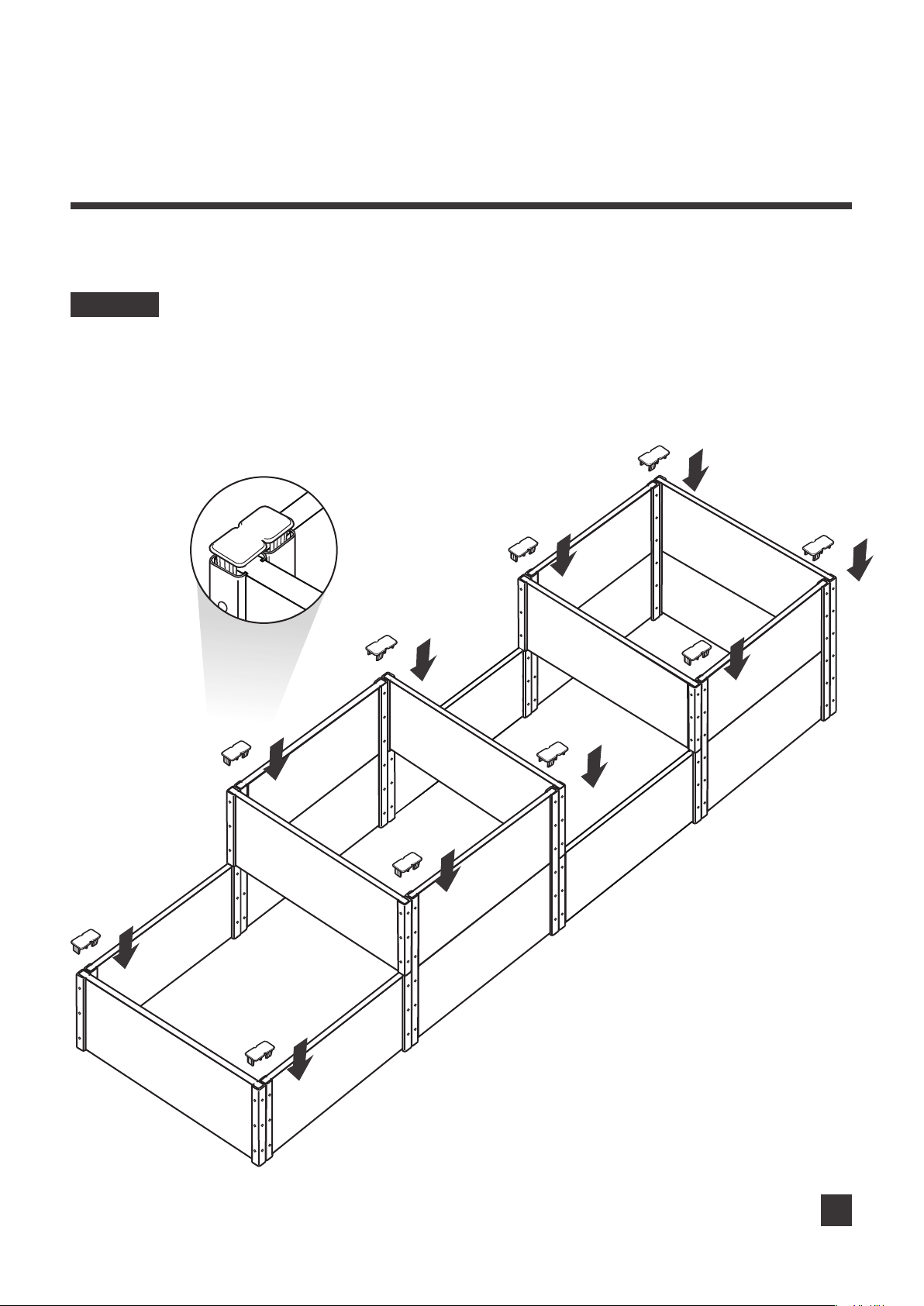

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the
8 end caps, as shown in Image 5. Now you get a Low-Hi-Low triple garden bed.
IMAGE 5
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
Post Cap
X 1
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
7
Page 8
Assembly 2
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

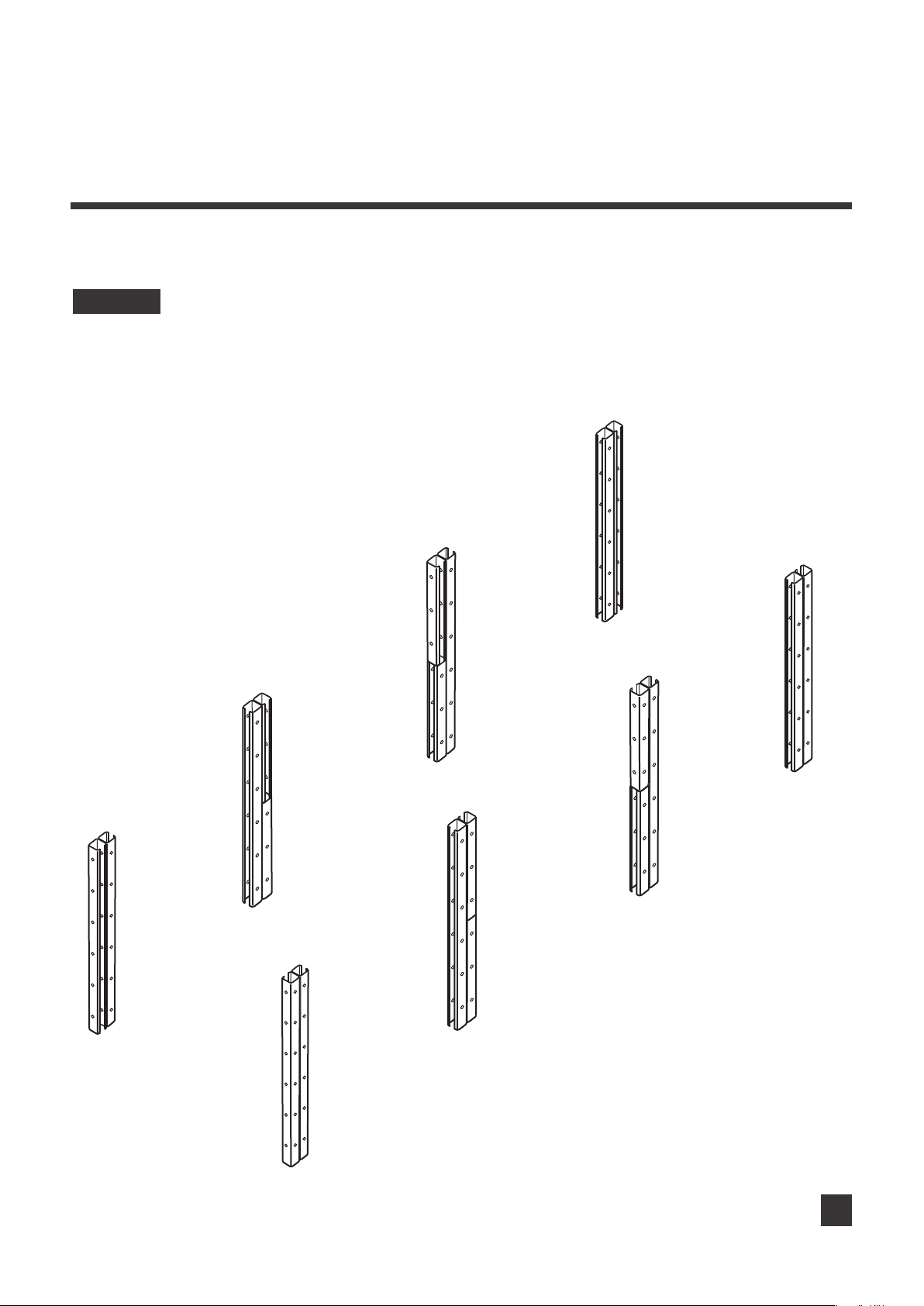

Start by making sure each corner post is oriented correctly. Reference image 1.
IMAGE 6
Right Corner
Post
(360mm)
From R143638
Left Joiner
Corner
Left Corner
Post
(360mm)
From R143638
Left Corner
Post
(360mm)
From R143638
Right Joiner
Corner
Right Corner
From R143638
Right Joiner
Corner
Left Joiner
Corner
Post
(360mm)
8
Page 9
Assembly 2
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

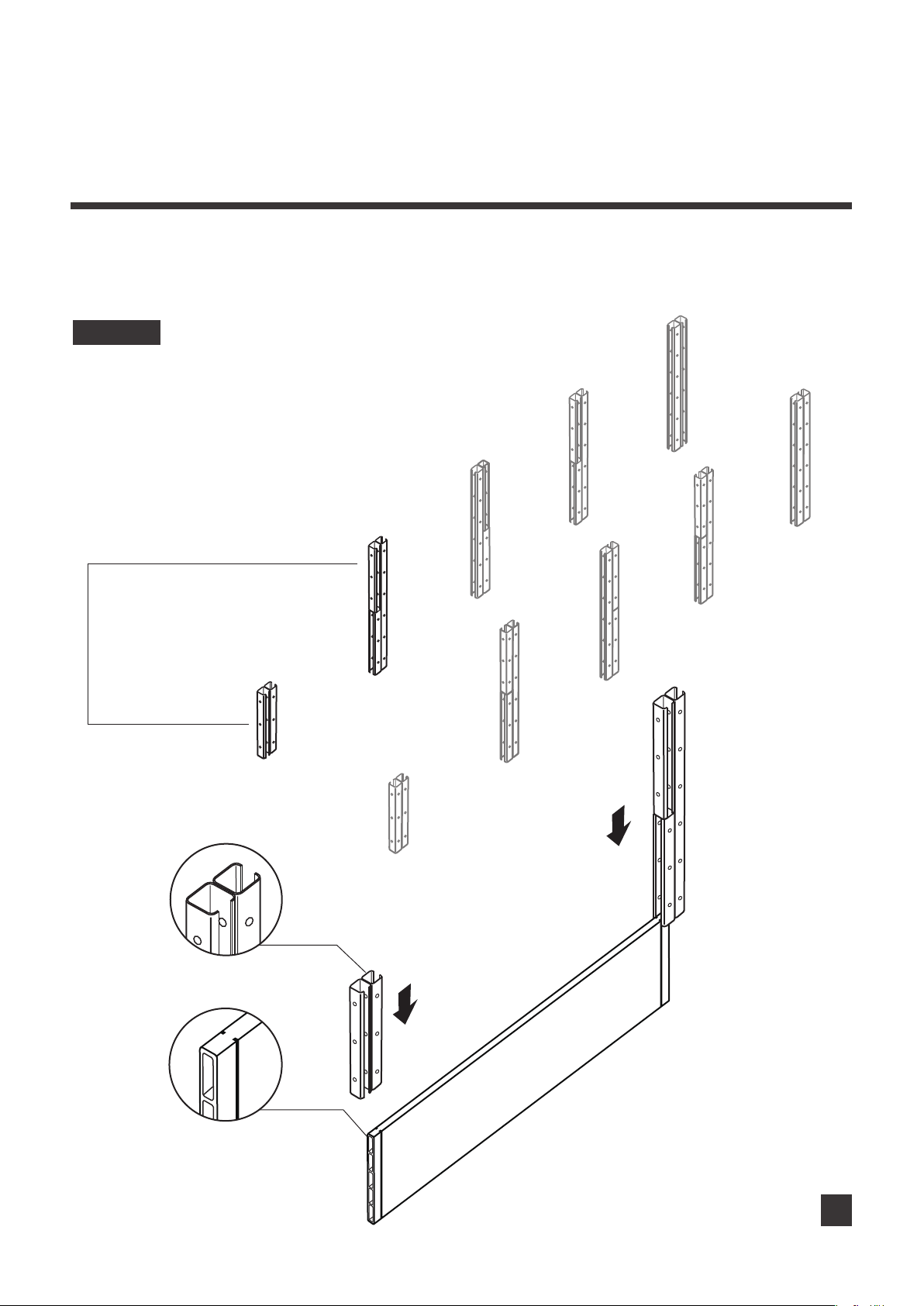

Fix the right joiner corner and left joiner corner on one long board from above, as shown in Image 7.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 7).
IMAGE 7
Left Joiner
Corner
Right Joiner
Corner
Right
Joiner
Corner
Left
Joiner
Corner
Long
Board
9
Page 10
Assembly 2
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

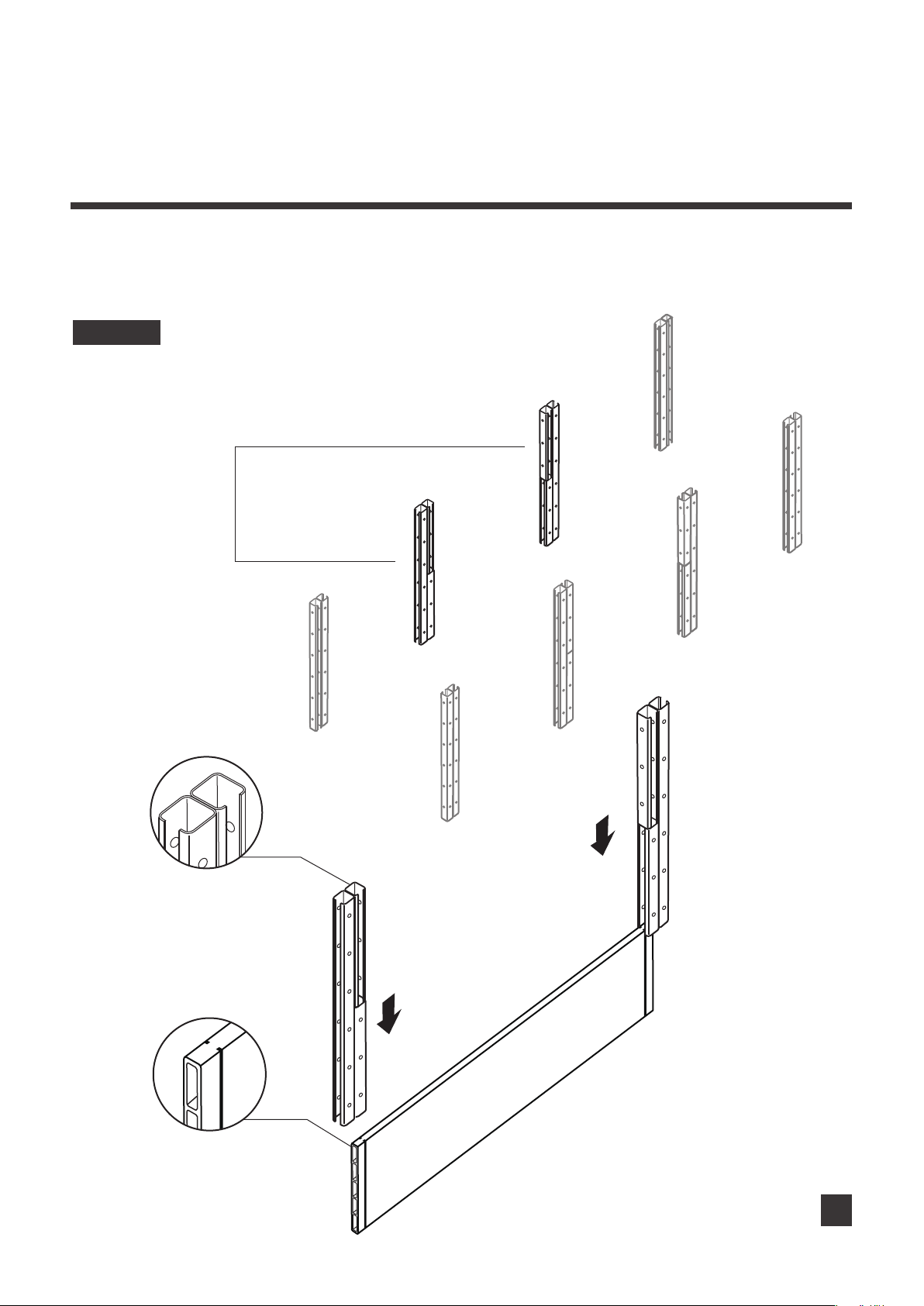

Fix another two joiner corners on a long board from above, as shown in Image 8.
IMAGE 8
Right Corner
Post
(360mm)
From R143638
Left Corner
Post
(360mm)
From R143638
Right Joiner
Corner
Right Corner
(360mm)
From R143638
Post
Long
Board
Left Joiner
Corner
Left Joiner
Corner
Left Corner
Post
(360mm)
From R143638
Right Joiner
Corner
Long
Board
10
Page 11
Assembly 2
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

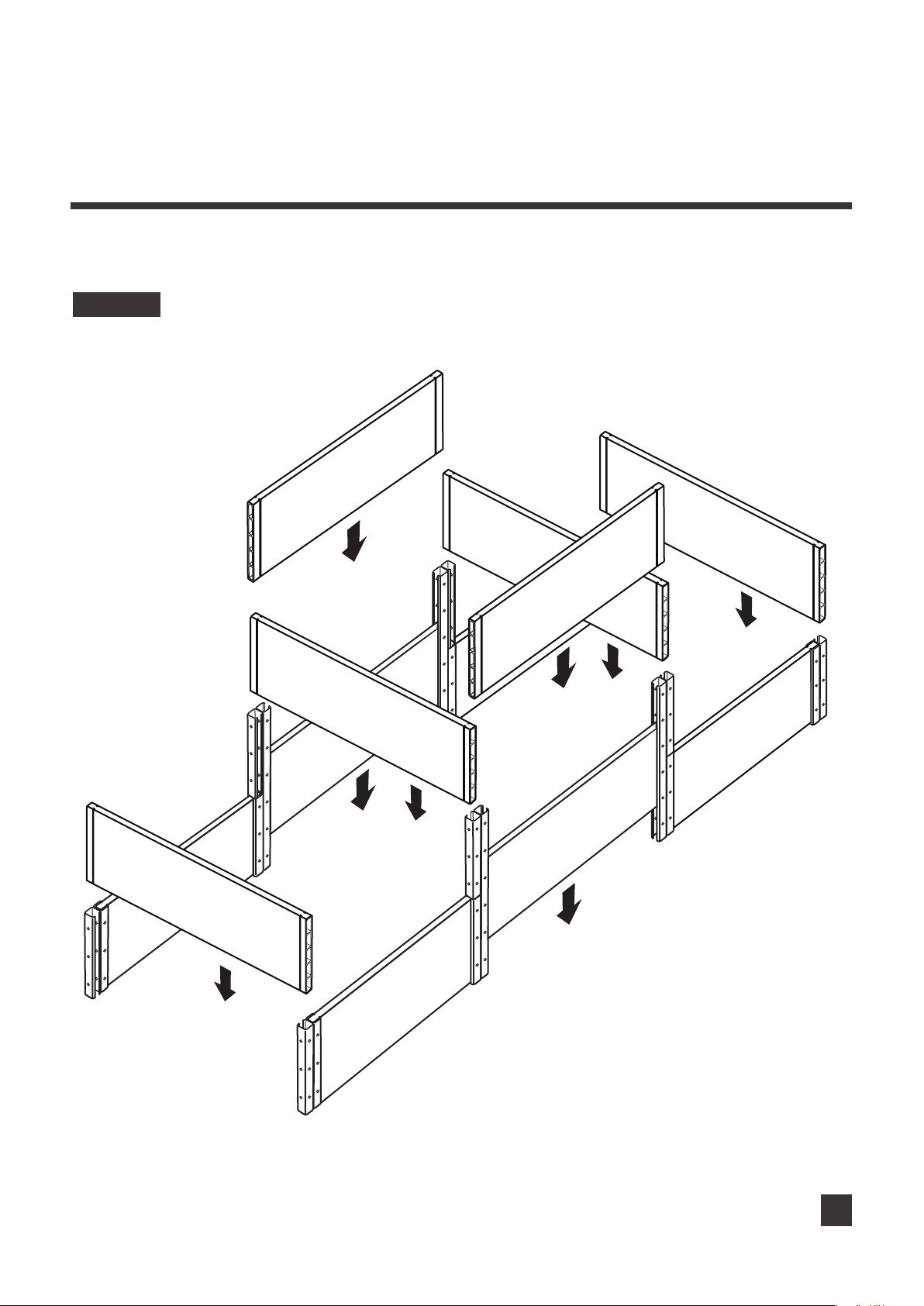

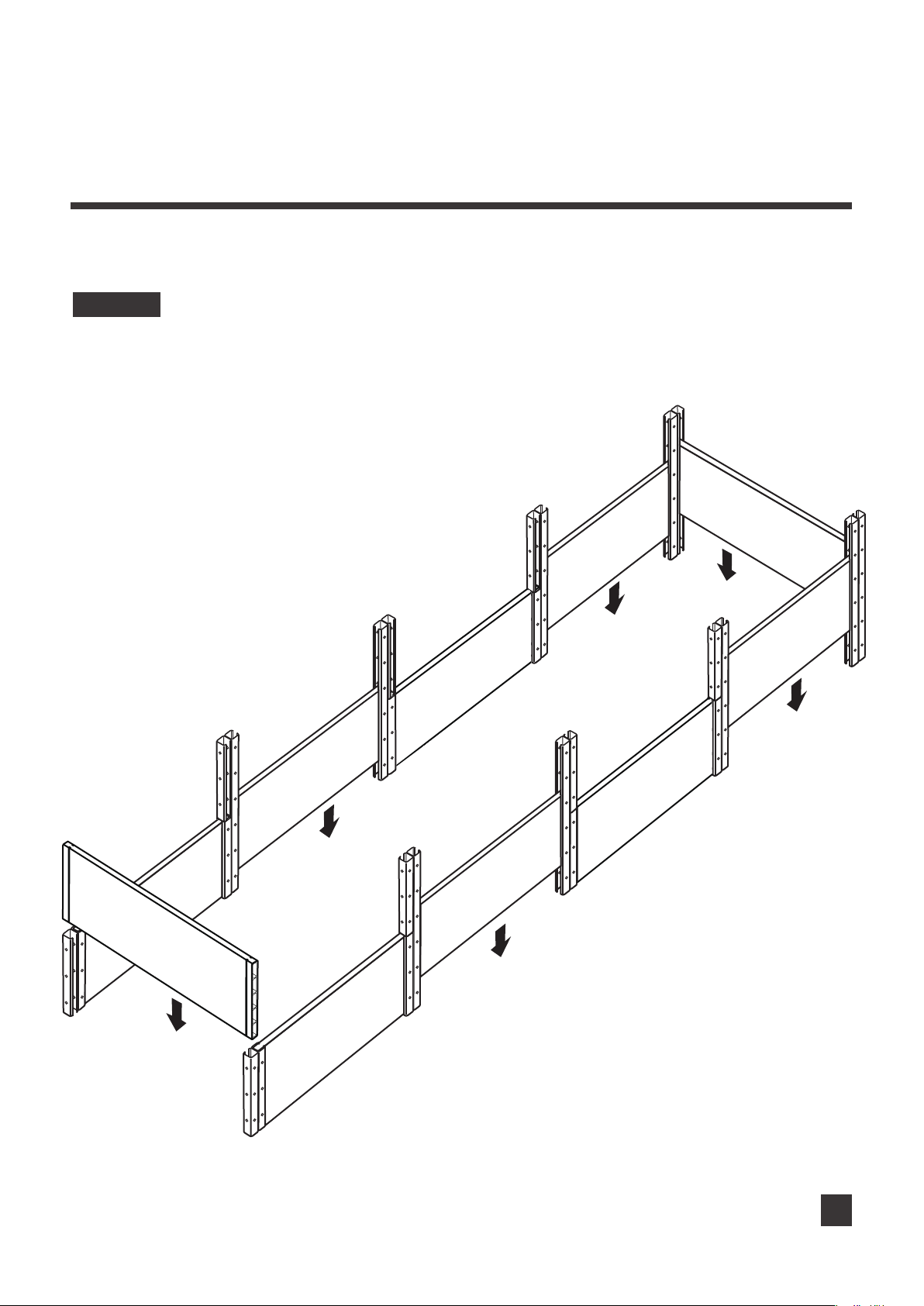

Slide the rest 14pc boards to form the bed, as shown in Image 9.
IMAGE 9
Long
Board x 14
11
Page 12
Assembly 2
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

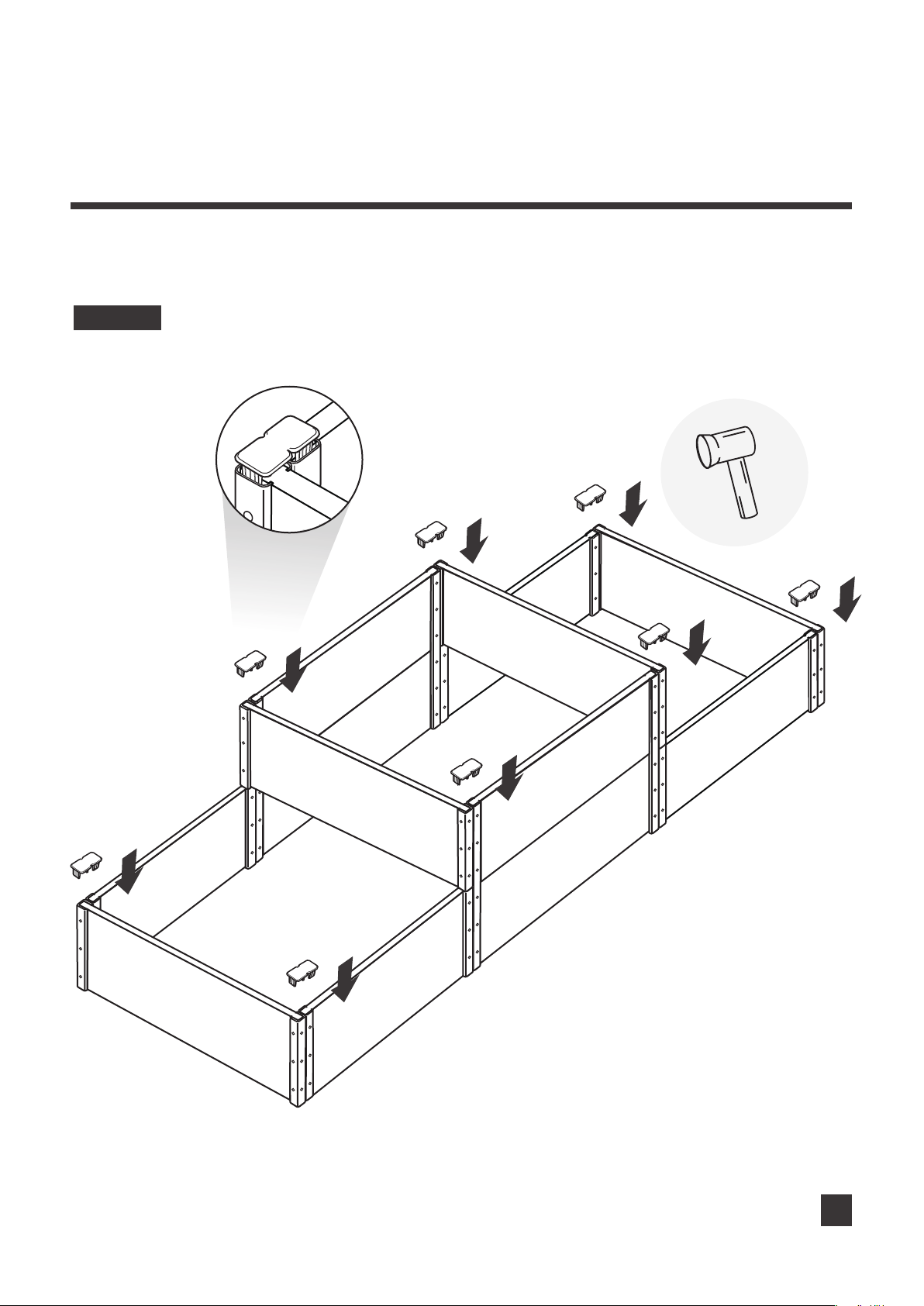

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 8
end caps, as shown in Image 10. Now you get a Hi-Low-Hi triple garden bed.
IMAGE 10
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
12
Page 13
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

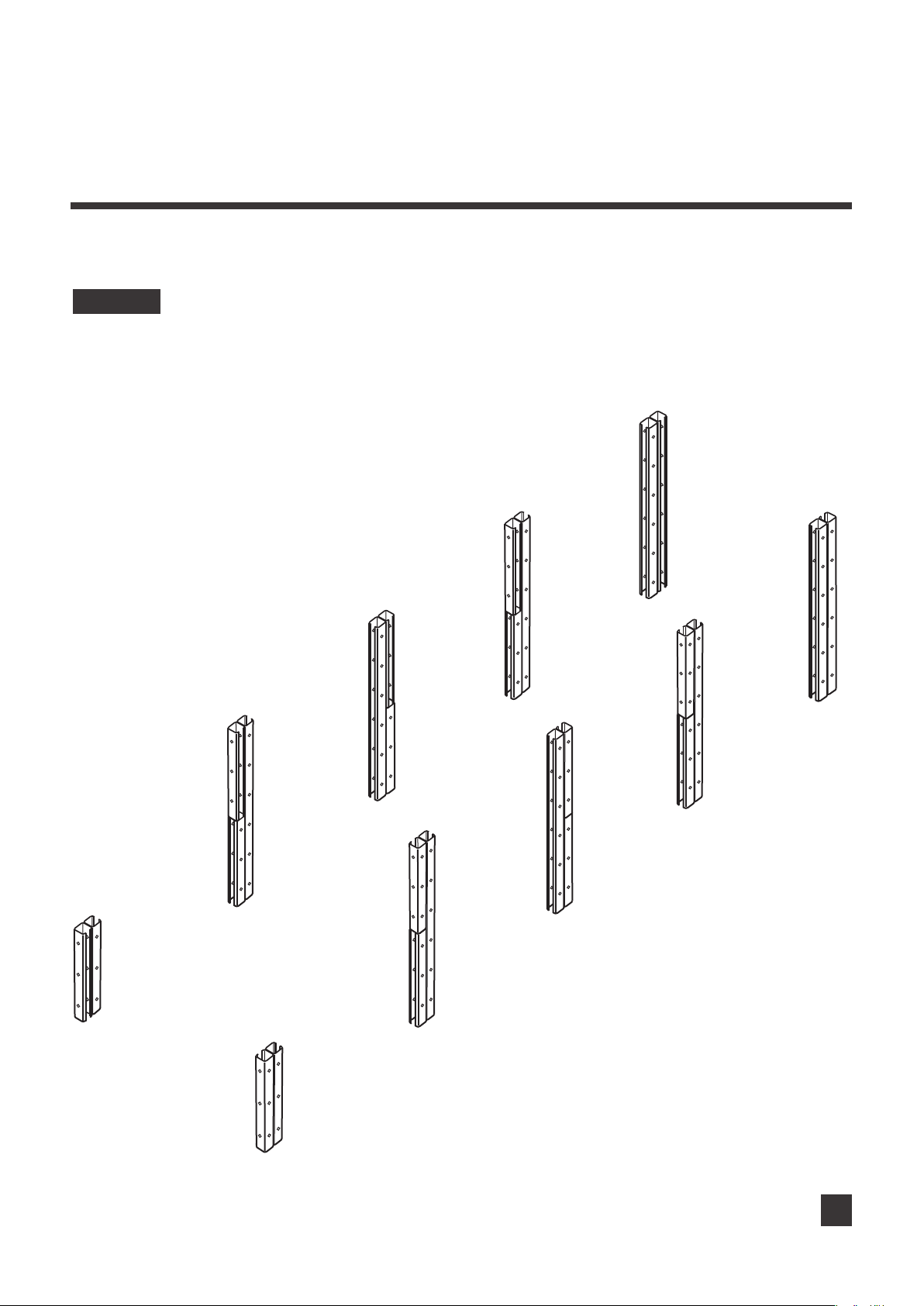

Start by making sure each corner post is oriented correctly. Reference image 11.
IMAGE 11
Right Corner
Post
(360mm)
From R0714D36
Left Joiner
Corner
Right Joiner
Corner
Left Corner
Post
(360mm)
From R0714D36
Right Joiner
Corner
Left Corner
Post
(180mm)
From R0714D36
Left Joiner
Corner
From R0714D36
Right Corner
Post
(180mm)
From R0714D36
Left Joiner
Corner
Right Joiner
Corner
From R0714D36
13
Page 14
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
Fix the left joiner corner and left corner post (180mm) on one long board from above, as shown in Image 12.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 12).
IMAGE 12
Left Joiner
Corner
From R0714D36
Left Corner
Post
(180mm)
From R0714D36
Left Corner
Post
(180mm)
Left
Joiner
Corner
Long
Board
14
Page 15
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

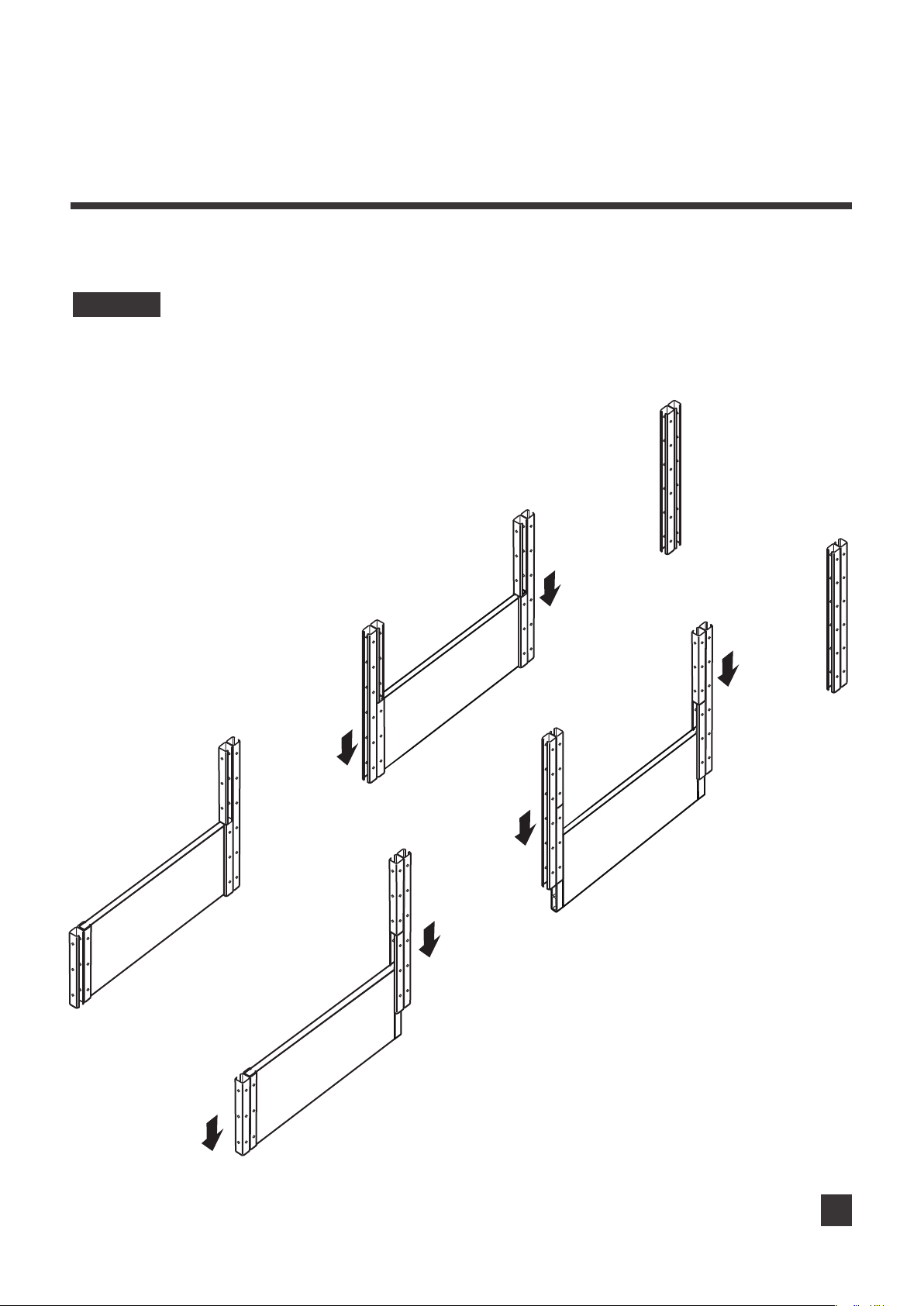

Fix other joiner corners and corner posts on long boards from above, as shown in Image 13.
IMAGE 13
Left Joiner
Corner
Right Corner
Post
(180mm)
From R0714D36
Right Joiner
Corner
Right Joiner
From R0714D36
Long
Board
Corner
Right Joiner
Corner
Left Joiner
Corner
Long
Board
Long
Board
15
Page 16
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
Slide 6pc boards to form the first layer of the bed, as shown in Image 14.
IMAGE 14
Long
Board x 6
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
Long
Board
16
Page 17
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
Slide 8pc boards to form the second layer of the bed, as shown in Image 15.
IMAGE 15
Long
Board x 8
17
Page 18
Assembly 3
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H
If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 10
end caps, as shown in Image 10. Now you get a Hi-Low-Hi-Low quadruple garden bed.
IMAGE 16
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
Post Cap
X 1
Post Cap
X 1
X 1
Post Cap
X 1
18
Page 19
Notes
Terraced Double Bed Extension - 71" L x 36" W x 7" & 14" H

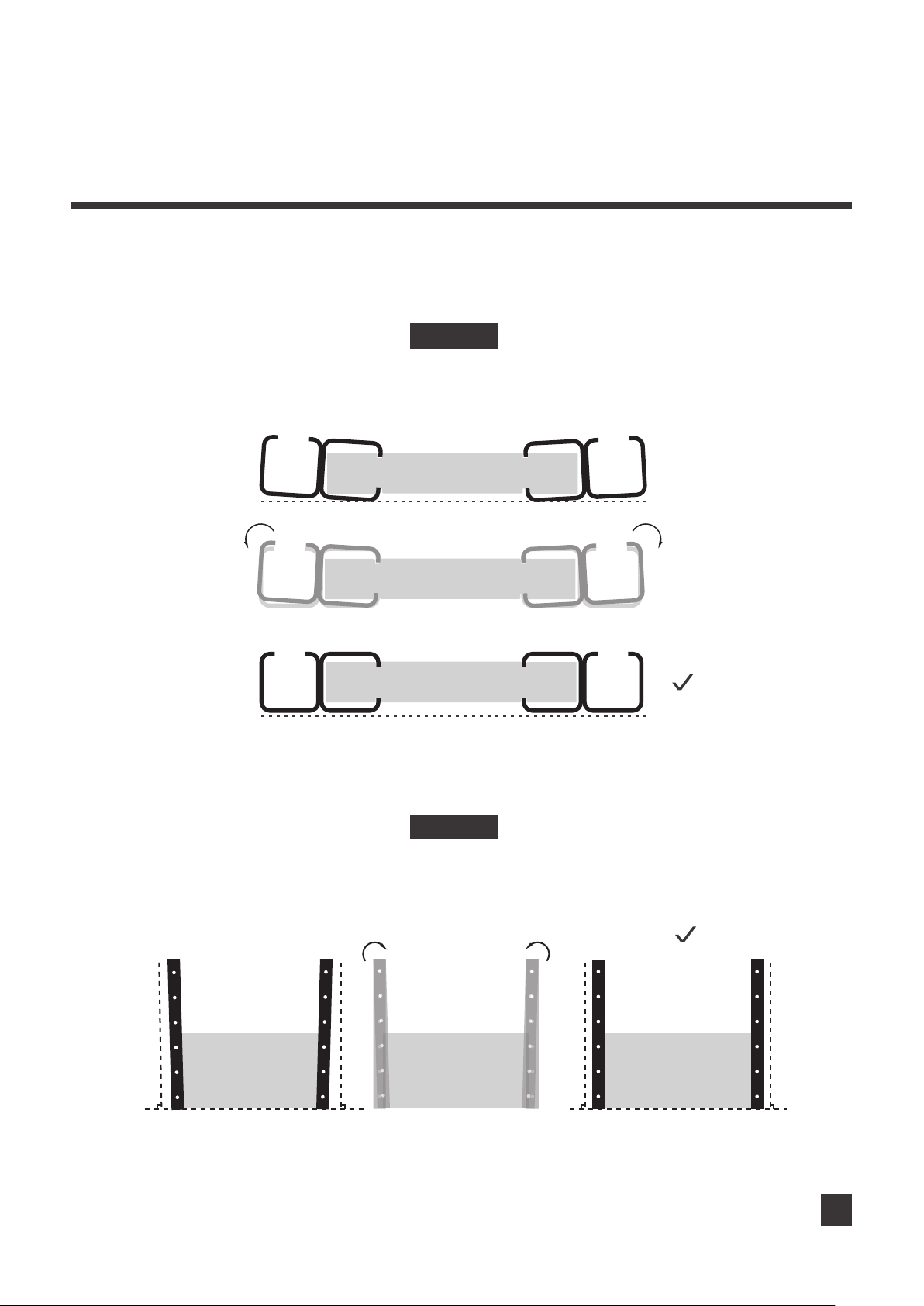

Sometimes there might be a misalignment of the Corner Posts as shown in Image 17 and Image 18, which
may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that
they are parallel to each other, and perpendicular to the ground.
IMAGE 17
Assembling Problem 1
X
X
IMAGE 18
Assembling Problem 2
19
Page 20
