Urban Mobile Garden
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Elevated Garden Bed.
You need at least 46” x 20” (117 x 51cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tools you may need are
a rubber mallet and a #2 Phillips screwdriver.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
4 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# E334519W / E334519WG
Dimensions 45" L x 19" W x 36" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2

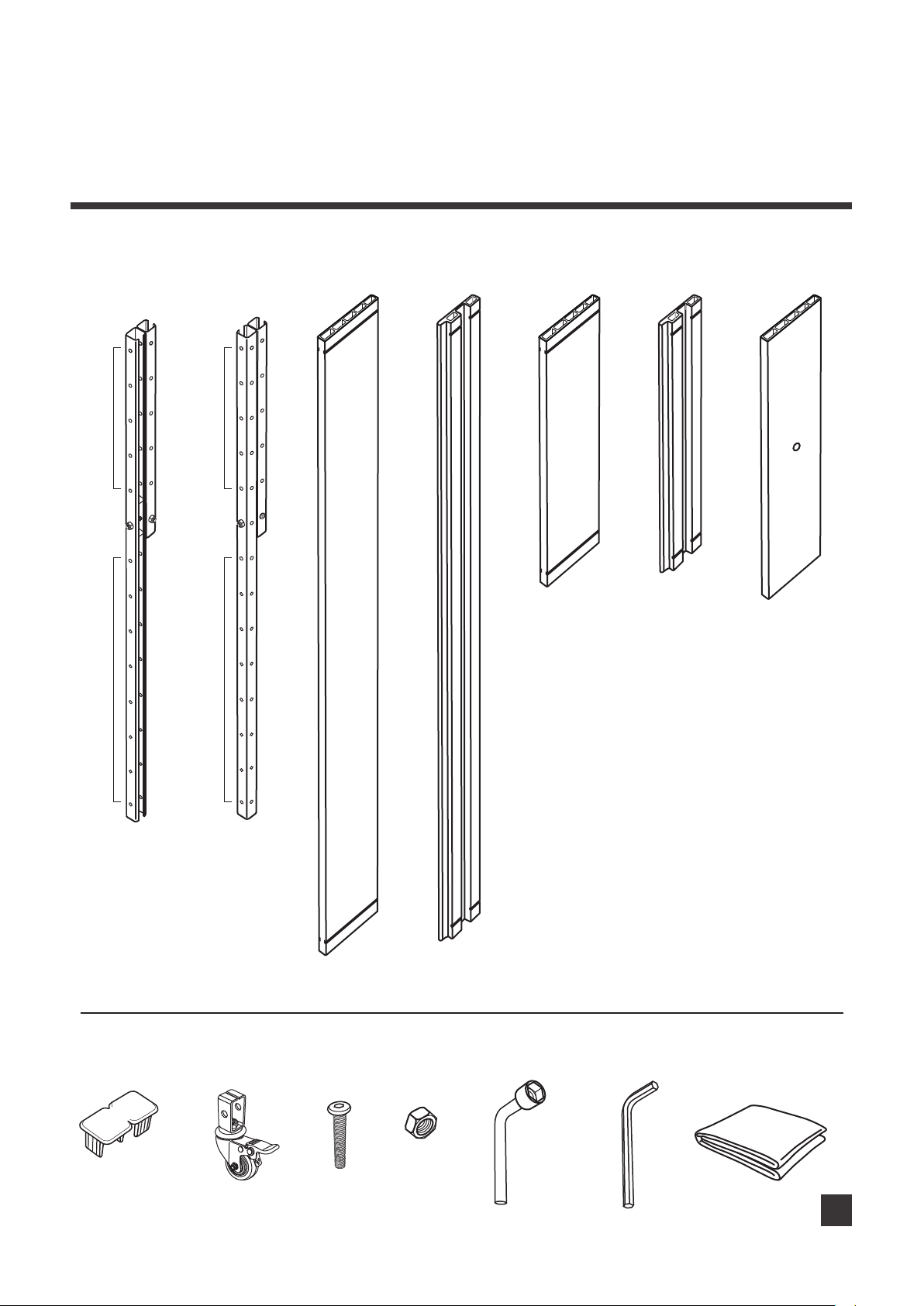

Parts List
Urban Mobile Garden - 45" L x 19" W x 36" H
Left Corner
Post
X 2
Top
5 holes8 holes
Right Corner
Post
X 2
Top
5 holes8 holes
Long
Board
X 2
Long Support
Board
X 2
Short
Board A
X 2
420mm
Short
Board B
X 2
420mm
Bottom
Board
X 6
460mm
Bottom
Post Cap
X 4
+ 2pc
replacement
Bottom
Caster Wheel
X 4
1140mm
Bolt
X 4
1140mm
Nut
X 4
Nut Driver
X 1
Hex Key
X 1
Garden Bed
Liner
X 1
2
Page 3
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

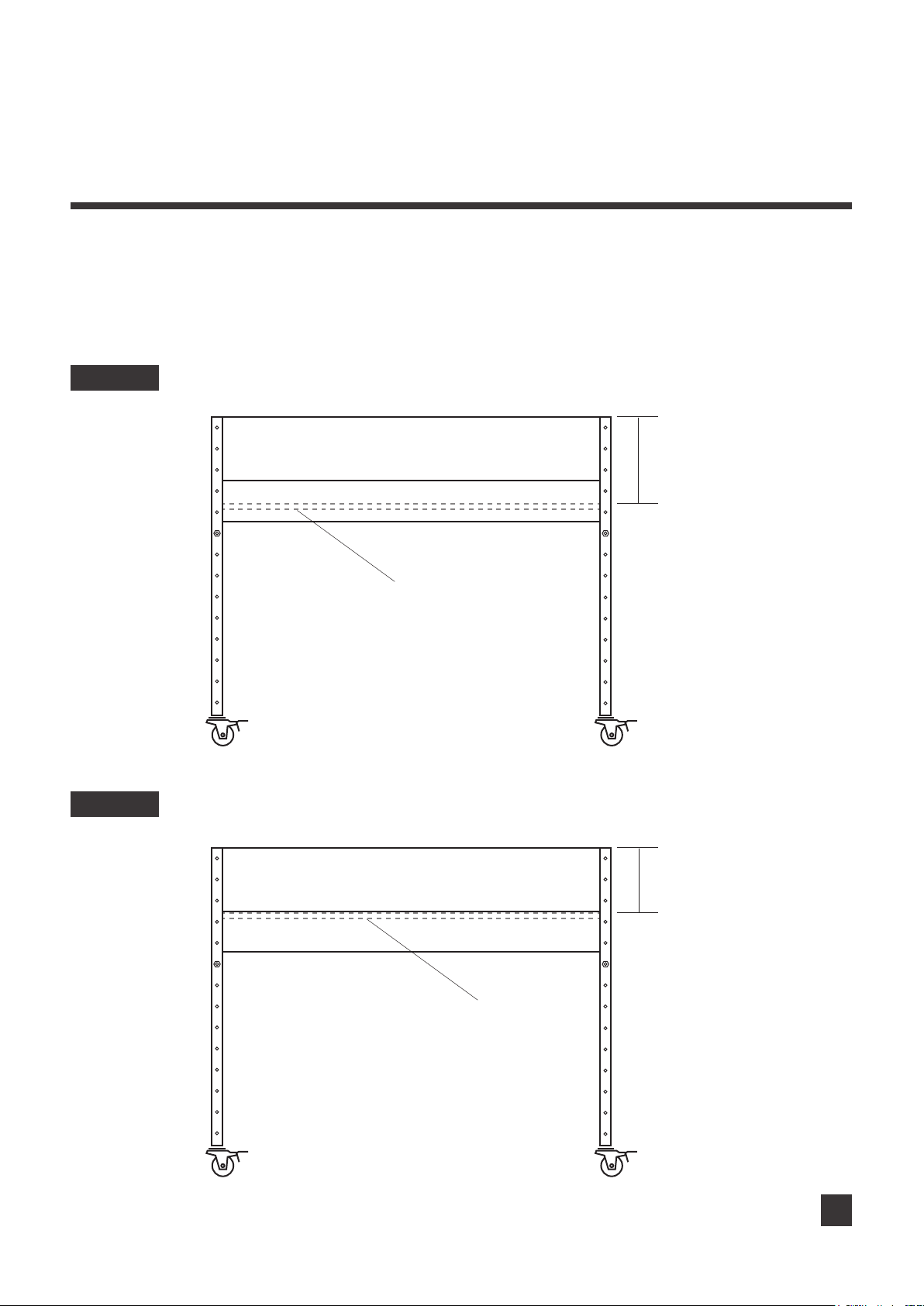

There are 2 different assembly methods providing 2 different planting depths: 10” (as shown in
Image 1) and 7.5” (as shown in Image 2).
* For deeper planting depth of 10”, please follow steps from page 4.
* For easier but shallower planting depth of 7.5”, please go to page 10.
IMAGE 1
IMAGE 2
Depth 1 - 10” from page 4
Long Board
10”
(25cm)
Long Support Board
Bottom Boards
Depth 2 - 7.5” from page 10
Long Board
Long Support Board
7.5”
(19cm)
Bottom Boards
3
Page 4
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

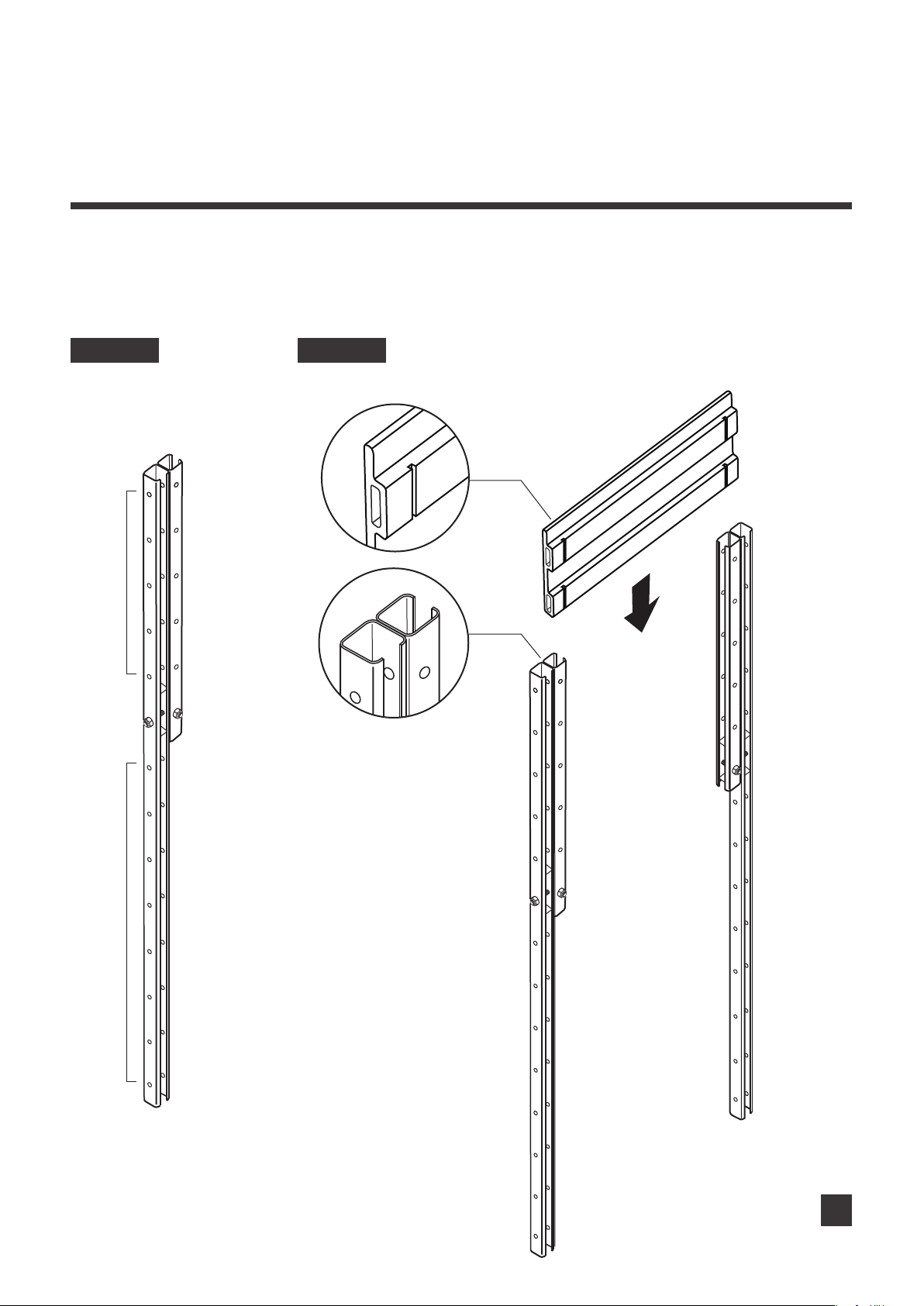

Start by making sure each corner post is oriented correctly, as shown in Image 3. Slide one short board B
into the corner brackets from above.
Note: The short boards need to be placed in the inward “U” shape of the brackets, as shown in Image 4.
IMAGE 3 IMAGE 4
Short
Top
5 holes8 holes
Board B
Right
Corner
Post
Bottom
Left
Corner
Post
4
Page 5
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

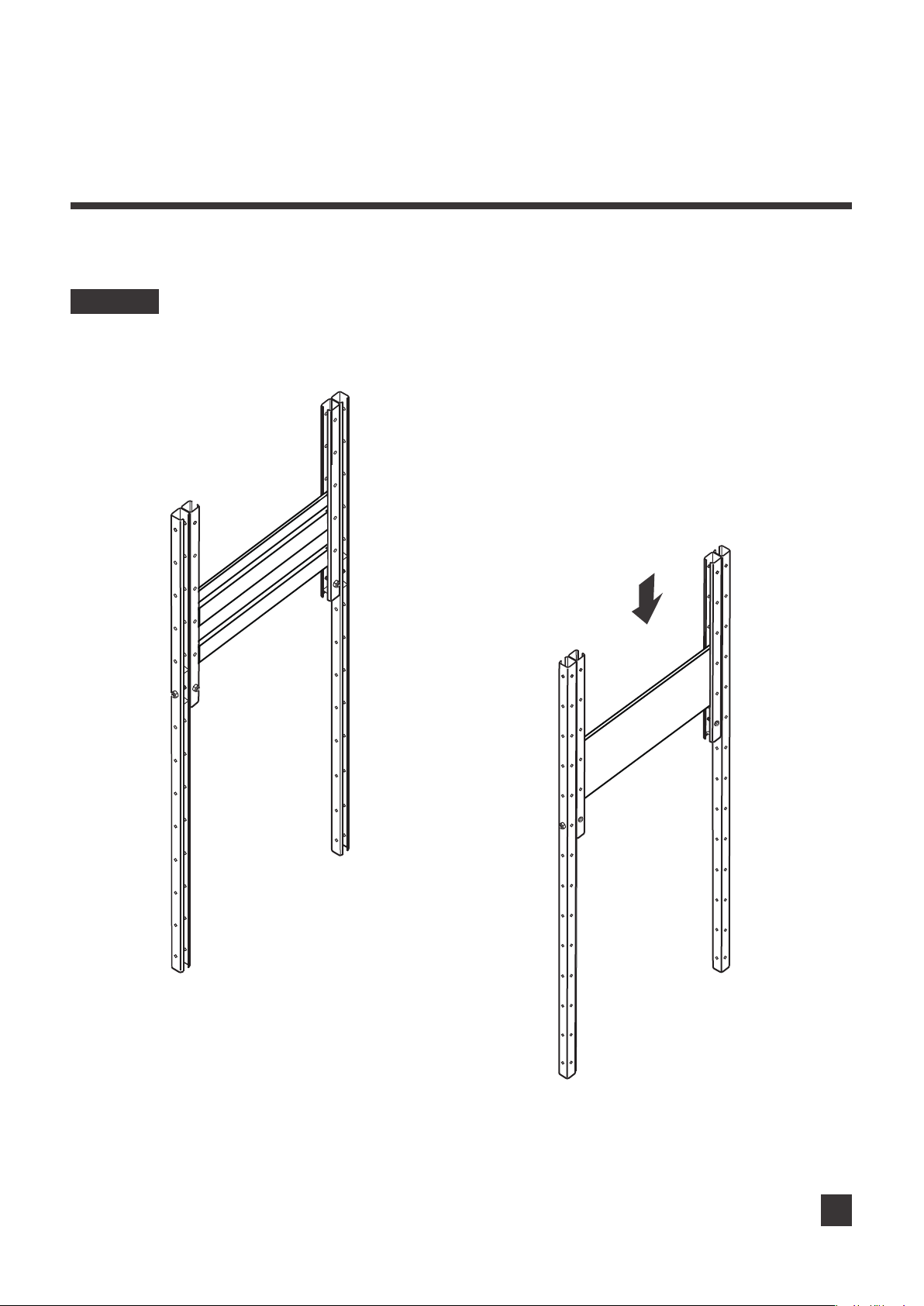

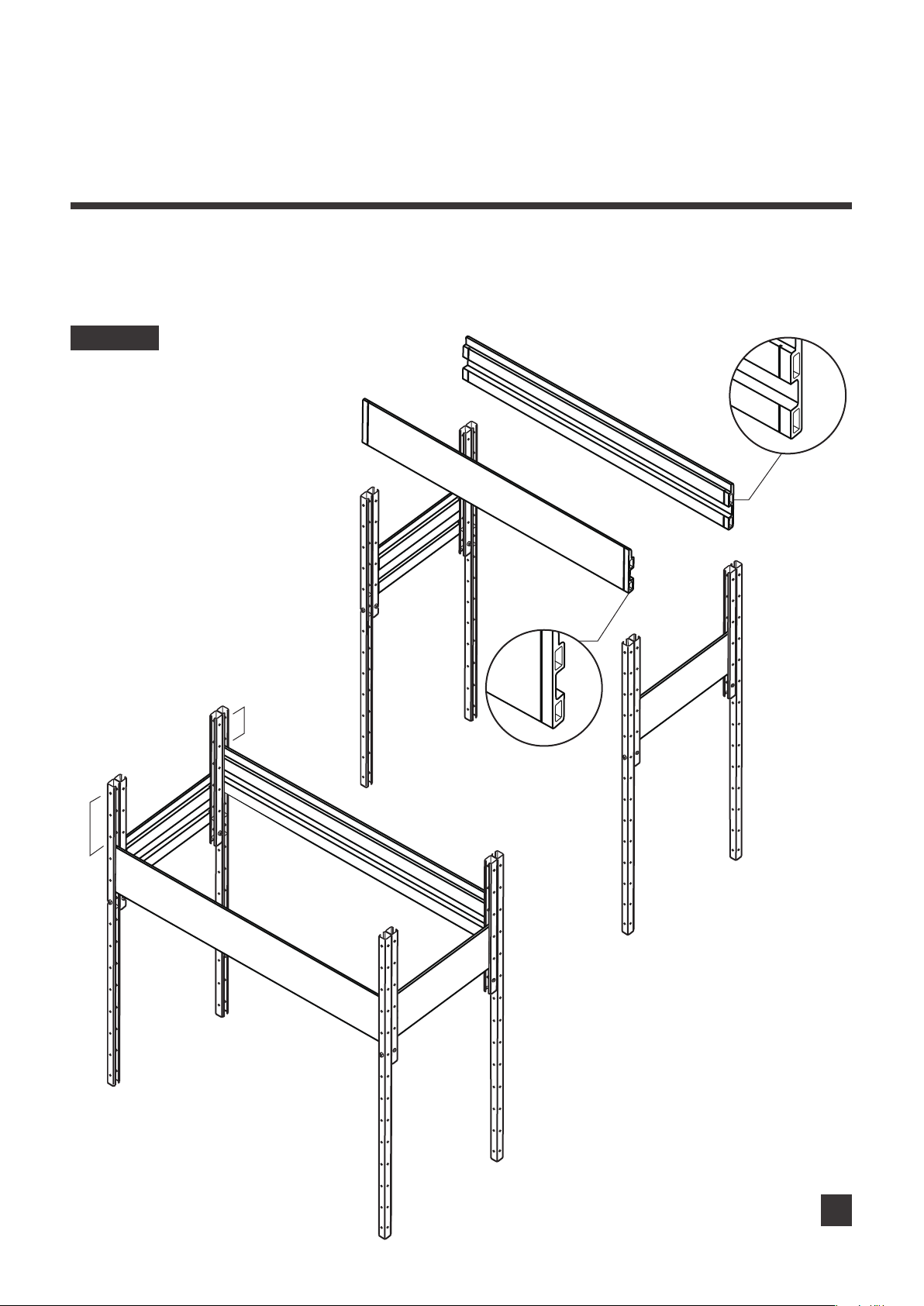

Slide another short board B into the other two corner brackets from above, as shown in Image 5.
IMAGE 5
Right Corner
Post
Left Corner
Post
Left Corner
Post
Short
Board B
Right Corner
Post
Short
Board B
5
Page 6
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

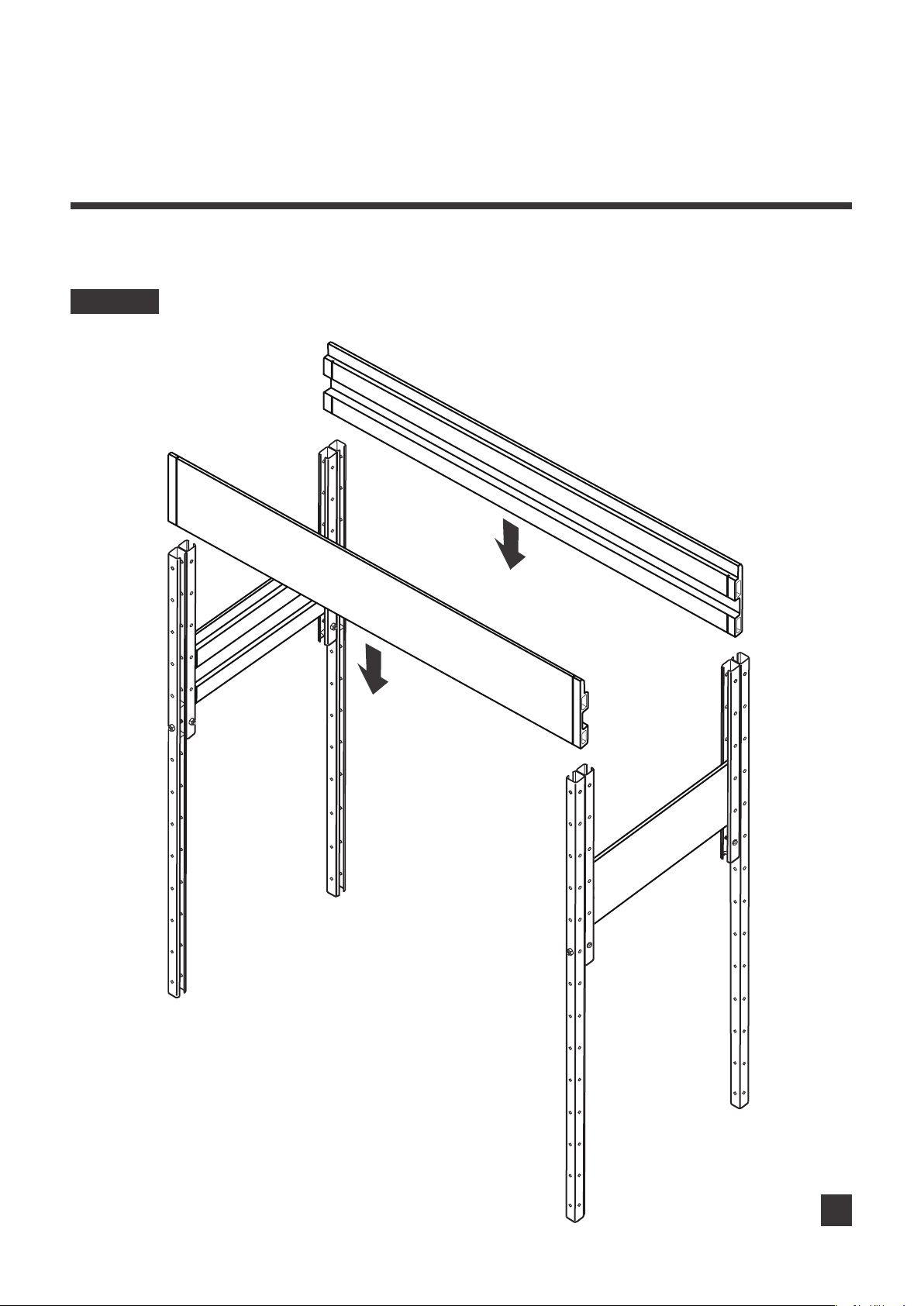

With the help of another person holding the 2 assembled parts, slide the 2 long supporting boards into the
brackets from above. Make sure that one support board goes straight to the bottom, while the other one
stays in the middle of the way (don’t push to the bottom), with the top edge between the 2nd and 3rd holes
of the post.
IMAGE 6
Long
Support
Board
Long
Support
Board
to the
bottom
in the
middle of
the way
6
Page 7
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Put the bottom boards on lower slots of long support boards. Make sure the 2 ends of these bottom boards
go into the lower slots and rest in them with enough contact as shown in Image 7. Adjust the height of the
higher long support board slightly to hold these bottom boards if necessary.
IMAGE 7
lower slot
Bottom
Board x 6
Long
Support
Board
Long
Support
Board
7
Page 8
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Push down the higher long support board to the bottom, as shown in Image 8.
IMAGE 8
Long
Support
Board
Long
Support
Board
8
Page 9
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

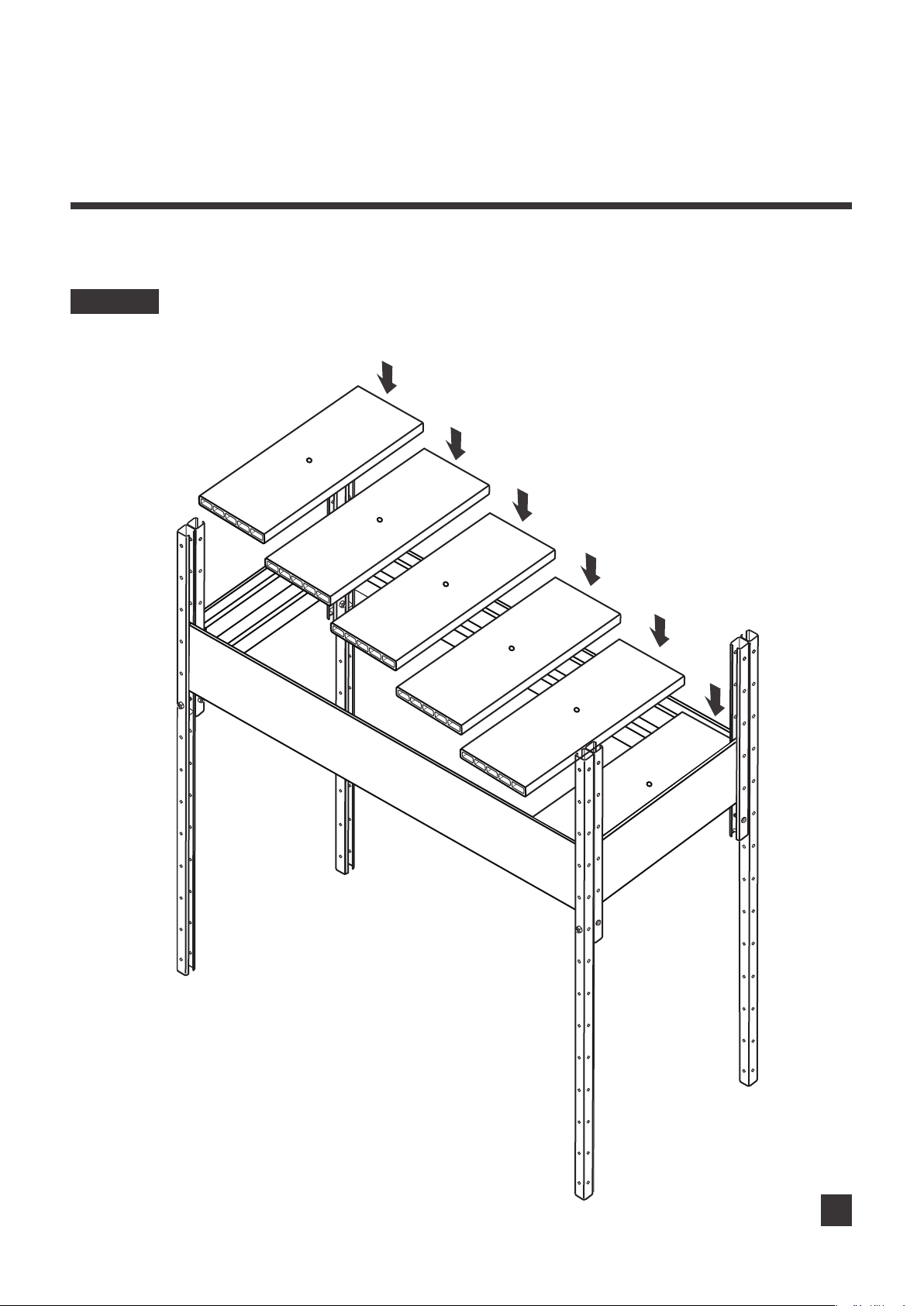

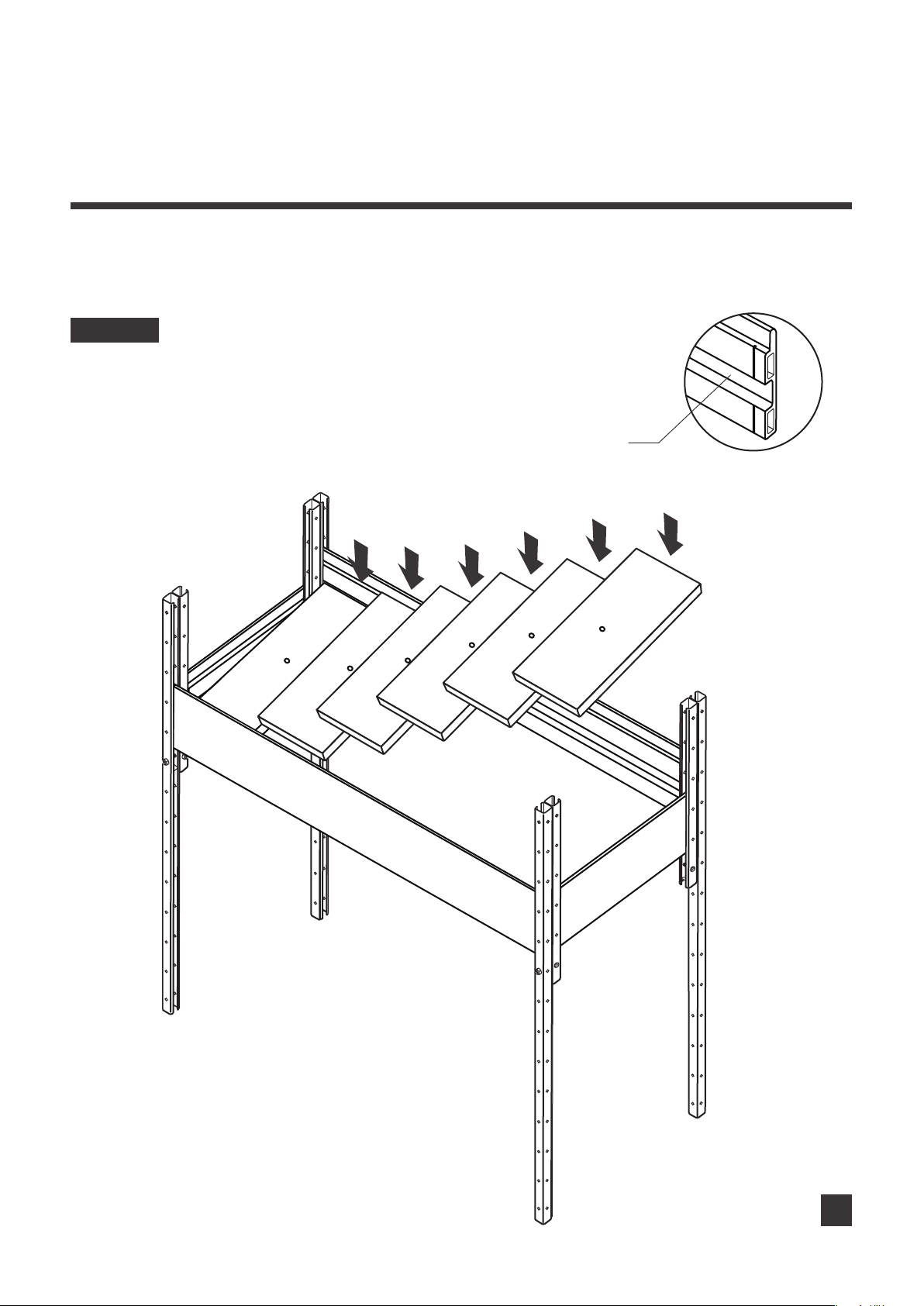

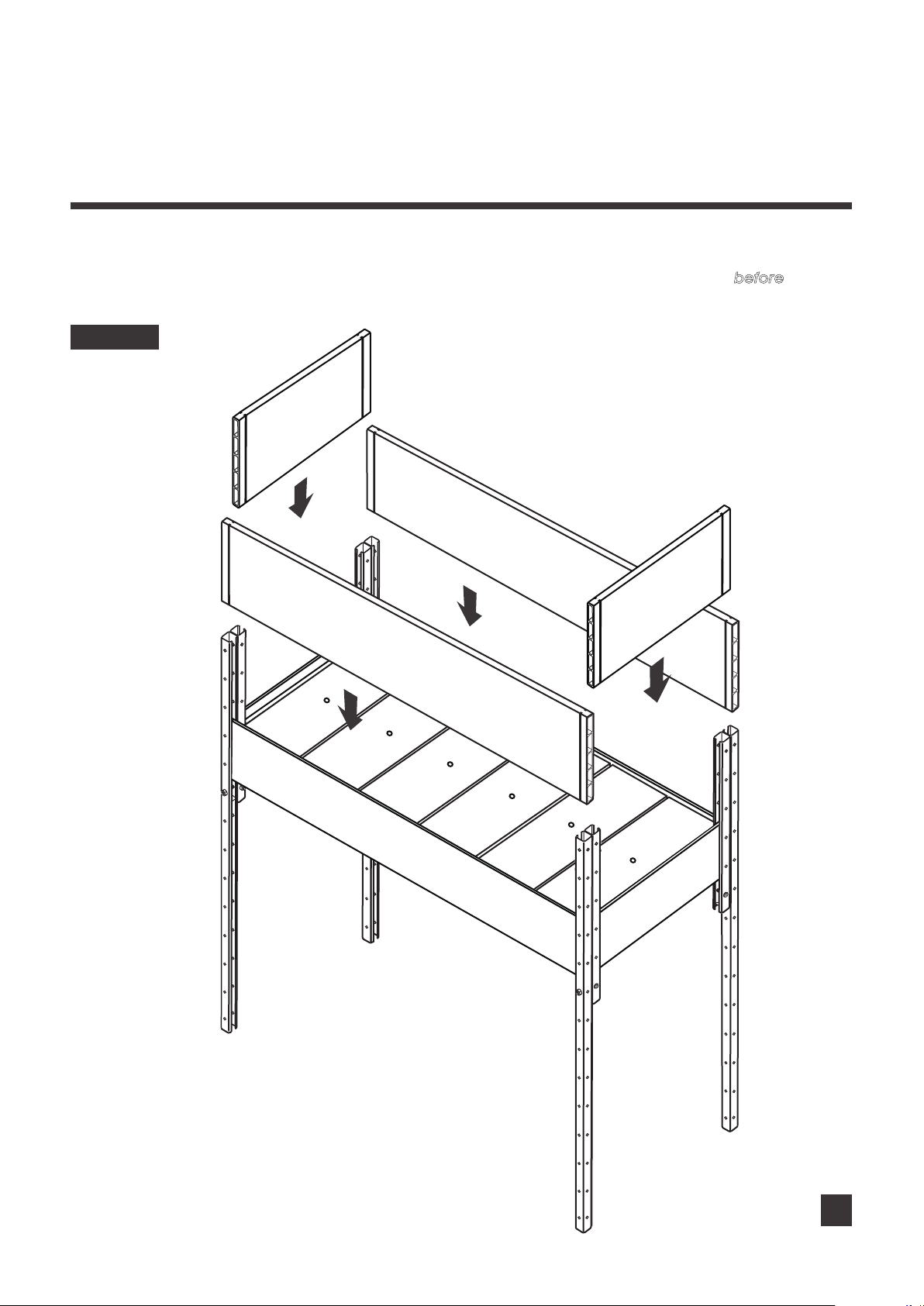

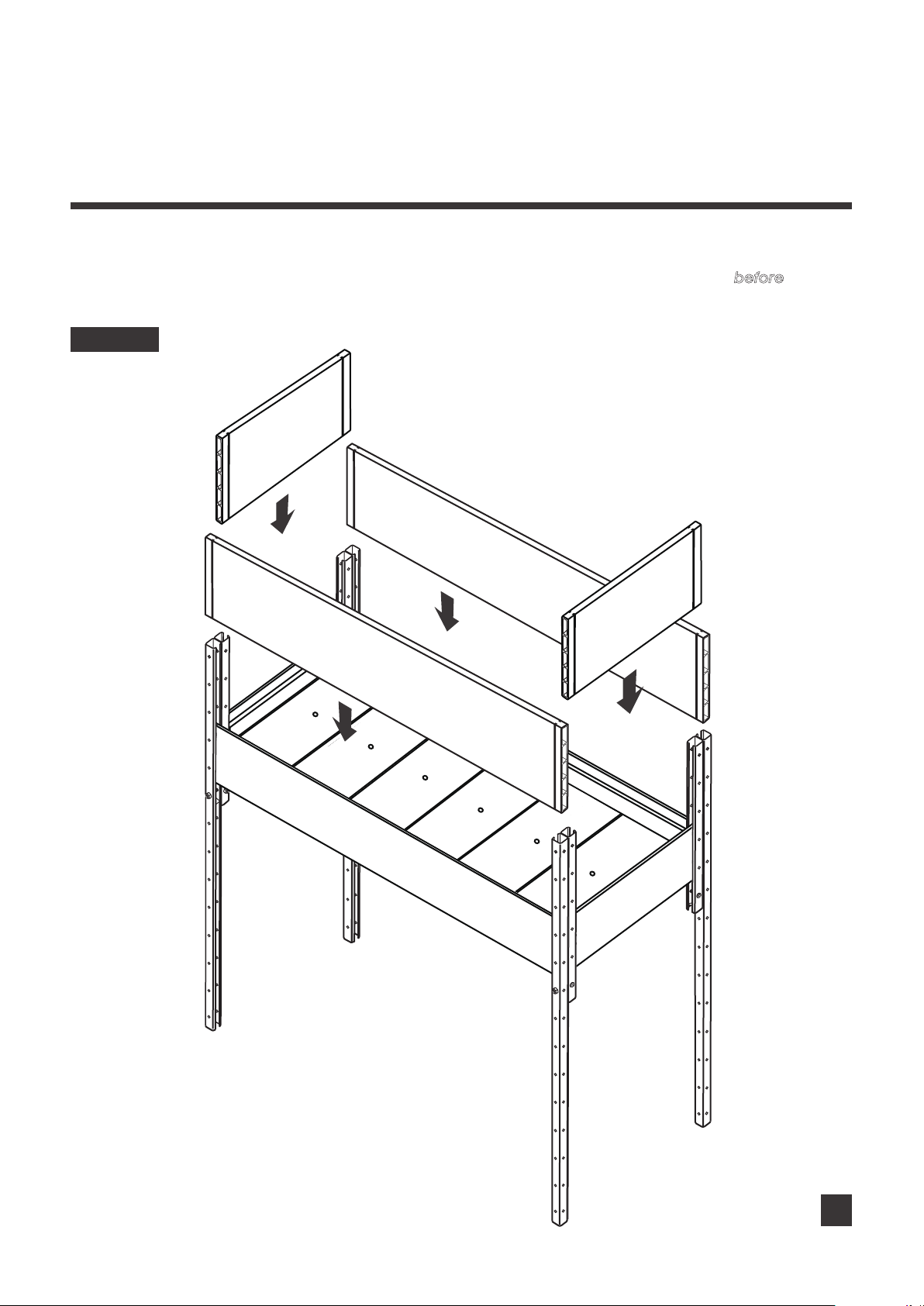

Slide the remaining boards into place, as shown in Image 9. Now you get an elevated garden bed with 10”
planting depth. Then, go to page 15, and follow the steps afterwards.
Note: If you want to add trellis kit onto this bed, please assemble the extension connectors before this step,
to avoid disassembling the boards later.
IMAGE 9
Short
Board A
Long
Board
Short
Board A
Long
Board
9
Page 10
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Start by making sure each corner post is oriented correctly, as shown in Image 3a. Slide one short board B
into the corner brackets from above.
Note: The short boards need to be placed in the inward “U” shape of the brackets, as shown in Image 4a.
IMAGE 3a IMAGE 4a
Short
Top
5 holes8 holes
Board B
Right
Corner
Post
Bottom
Left
Corner
Post
10
Page 11
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Slide another short board B into the other two corner brackets from above, as shown in Image 5a.
IMAGE 5a
Right Corner
Post
Left Corner
Post
Left Corner
Post
Short
Board B
Right Corner
Post
Short
Board B
11
Page 12
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
With the help of another person holding the 2 assembled parts, slide the 2 long support boards into the brackets
from above, as shown in Image 6a.
IMAGE 6a
Long Support
Board
Long Support
Board
12
Page 13
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Put the bottom boards on the long support boards, as shown in Image 7a.
IMAGE 7a
Bottom
Board
X 6
Long Support
Board
13
Page 14
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

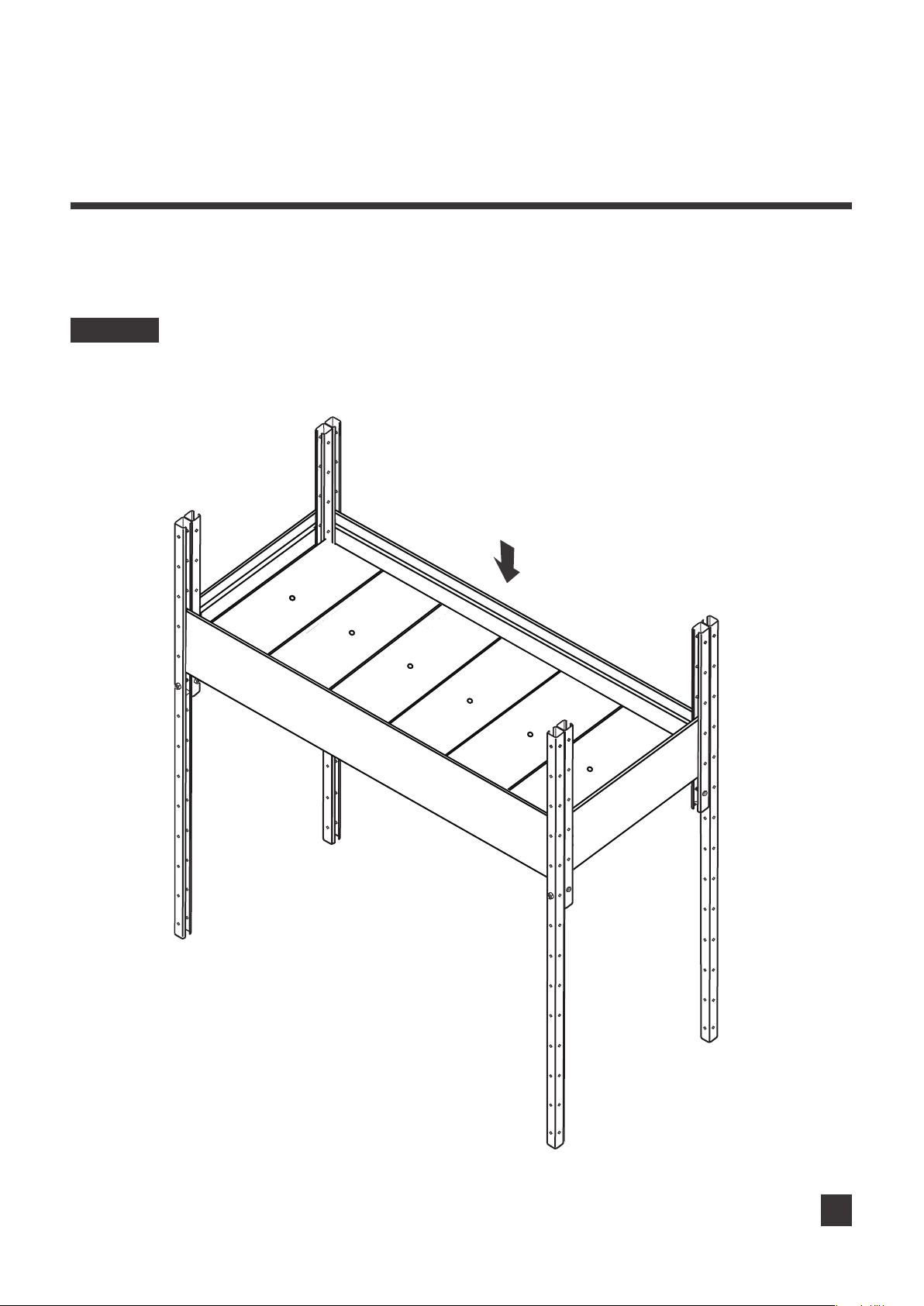

Slide the remaining boards into place, as shown in Image 8a. Now you get an elevated garden bed with
7.5” planting depth.
Note: If you want to add trellis kit onto this bed, please assemble the extension connectors before this step,
to avoid disassembling the boards later.
IMAGE 8a
Long
Board
Short
Board A
Short
Board A
Long
Board
Long Support
Board
14
Page 15
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

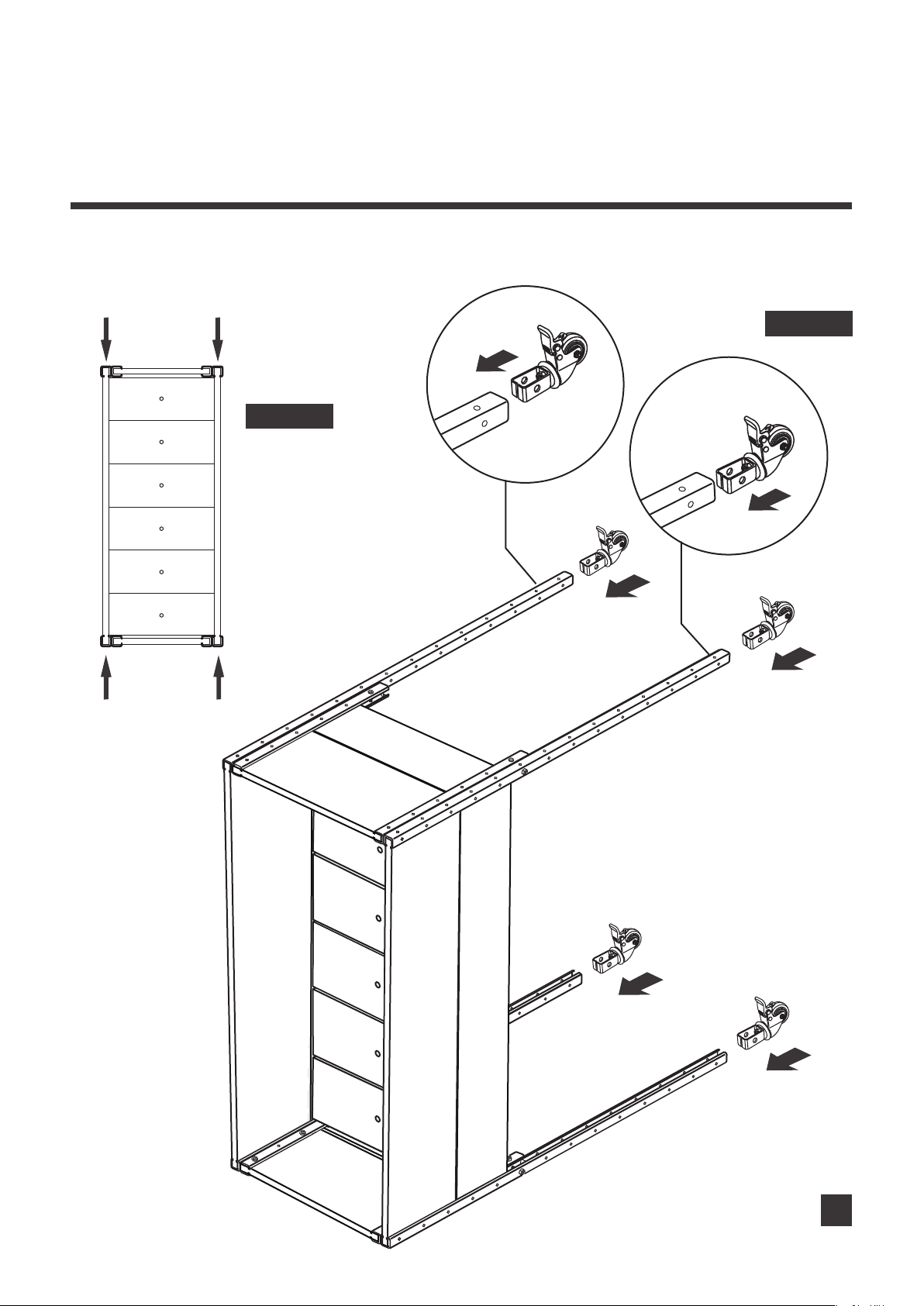

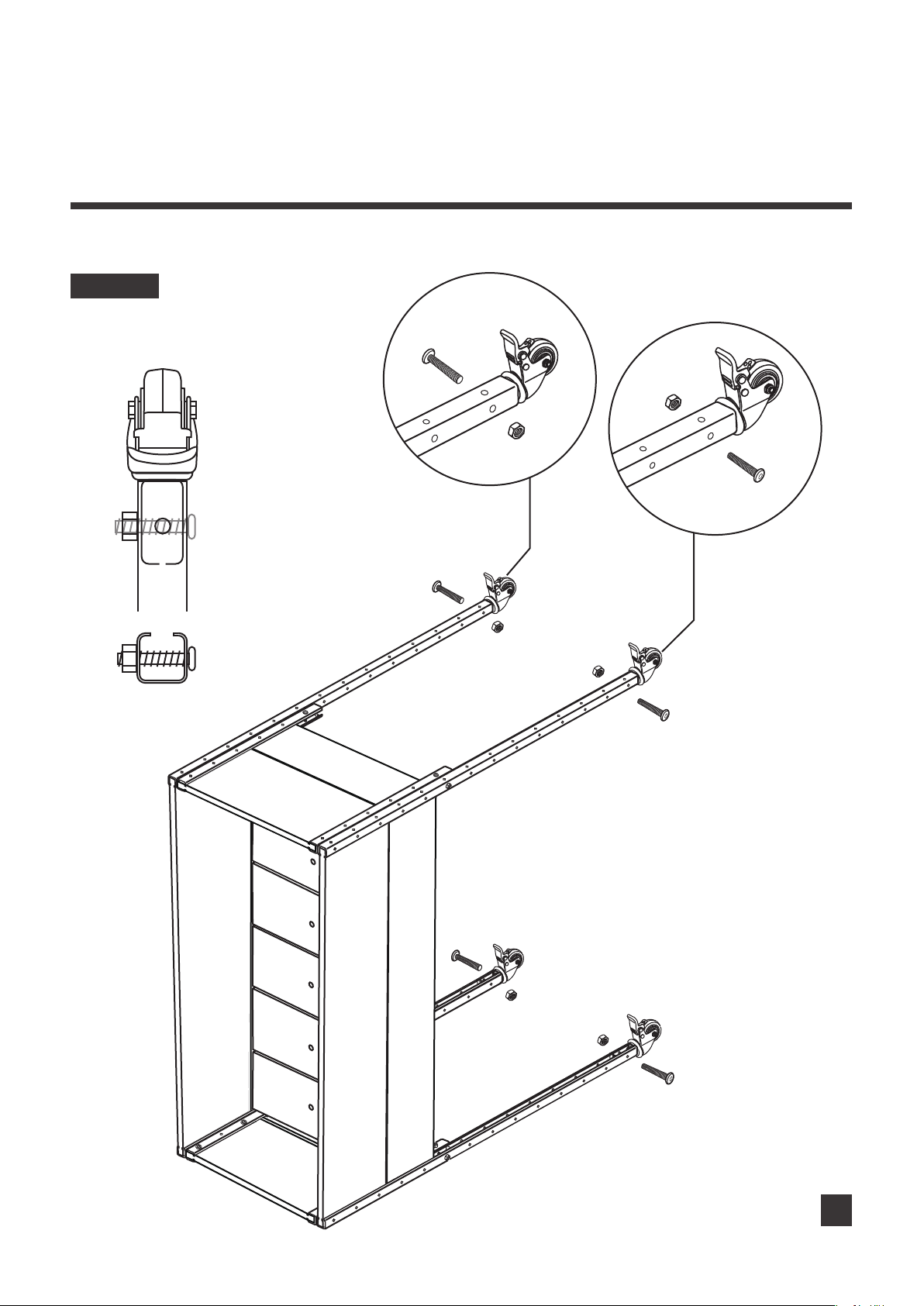

Carefully flip over the garden bed again so that it lays flat with the long support boards pointing towards the
sky. Insert caster wheels into corner brackets, as shown in Image 10 and Image 11.
IMAGE 11
IMAGE 10
15
Page 16
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Fix the wheels with bollts and nuts, as shown in Image 12.
IMAGE 12
16
Page 17
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

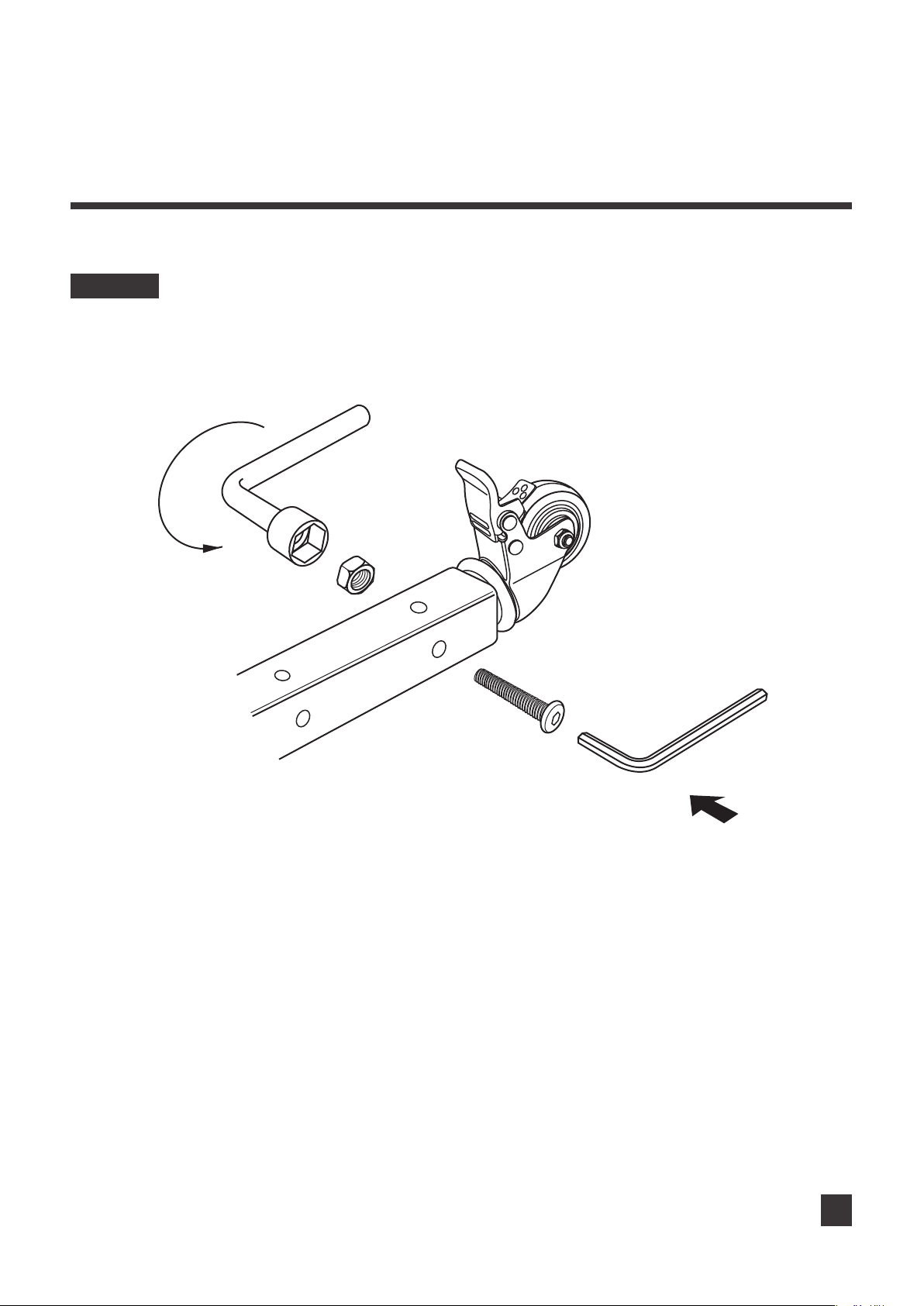

Fasten bolts and nuts with nut driver and hex key which are included in pack , as shown in Image 13.
IMAGE 13
nut driver
Hex key
17
Page 18
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H
Flip over the bed again so it stands upright, as shown in Image 14.
IMAGE 14
18
Page 19
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

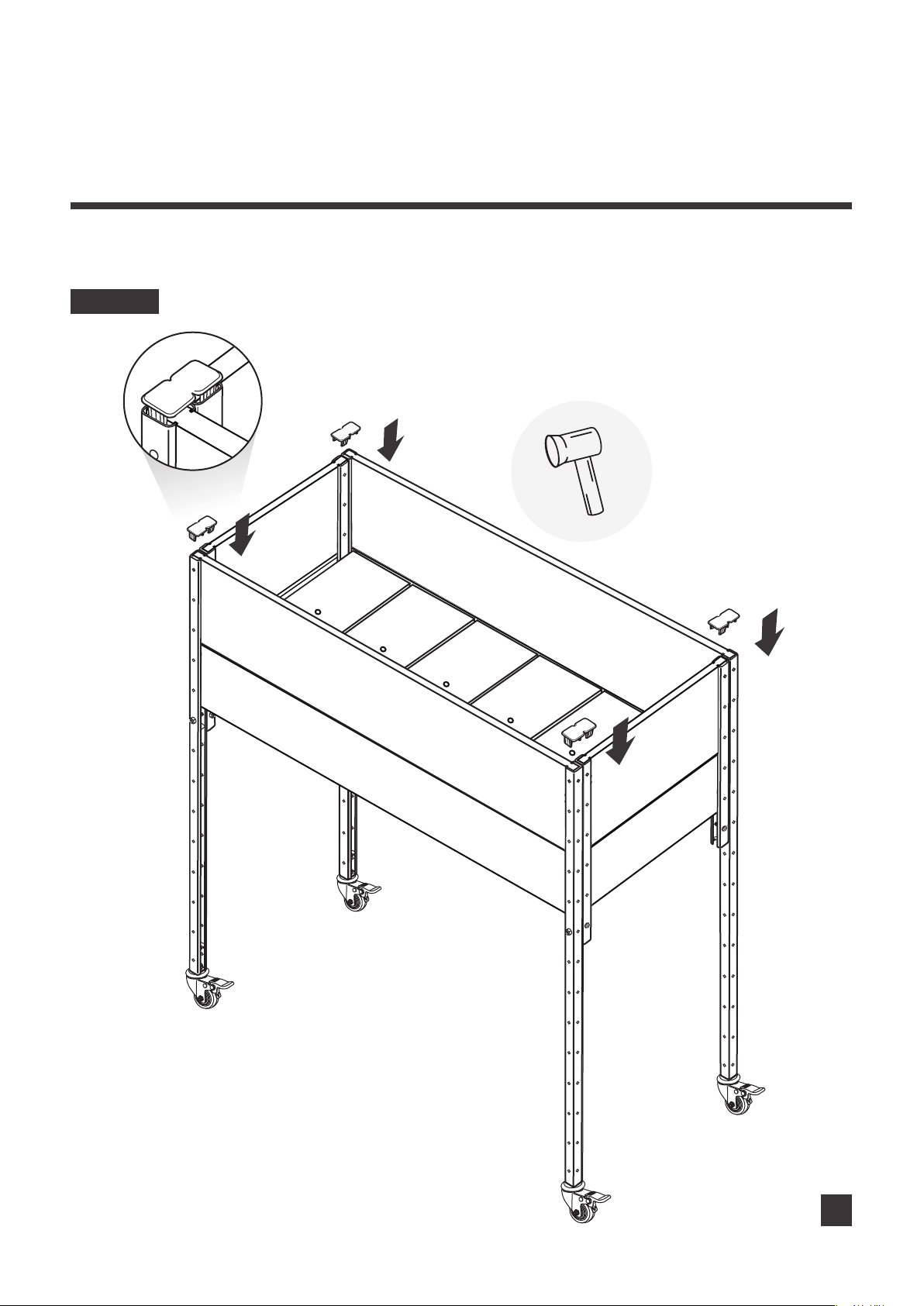

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 4
end caps, as shown in Image 15.
IMAGE 15
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
19
Page 20
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

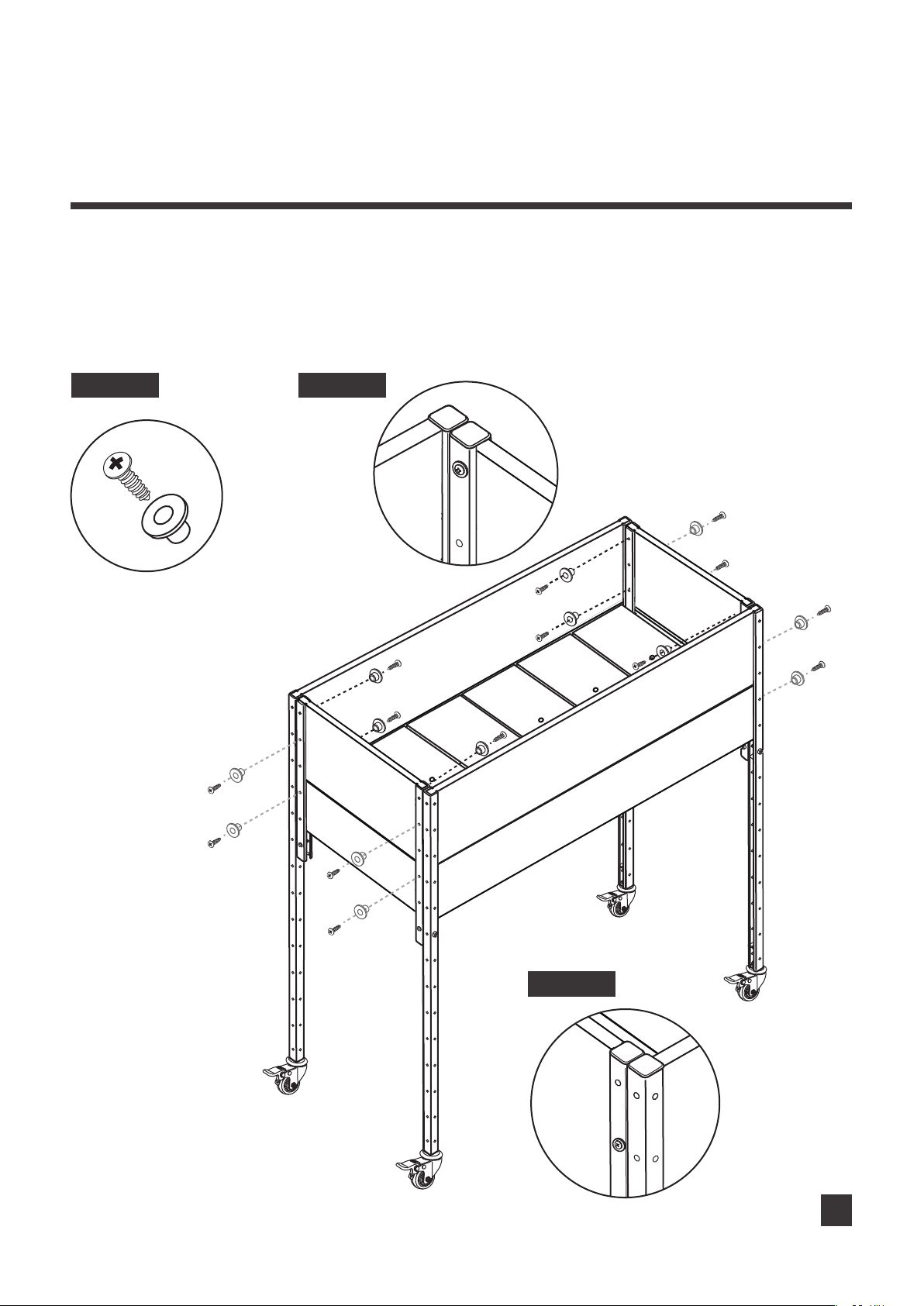

For additional stability when mobile, we highly suggest using the included 8 self-tapping screws with washers
(Image 16). Fasten 2 screws into each side of the inward facing corner posts using a #2 Phillips screwdriver
(not included), as shown in Image 17.
Screws also can be fastened from outside, as shown in Image 18.
Do not fasten the screws into the same height holes facing to each other on the same post.
IMAGE 16
IMAGE 17
x 8
IMAGE 18
20
Page 21
Assembly
Urban Mobile Garden - 45" L x 19" W x 36" H

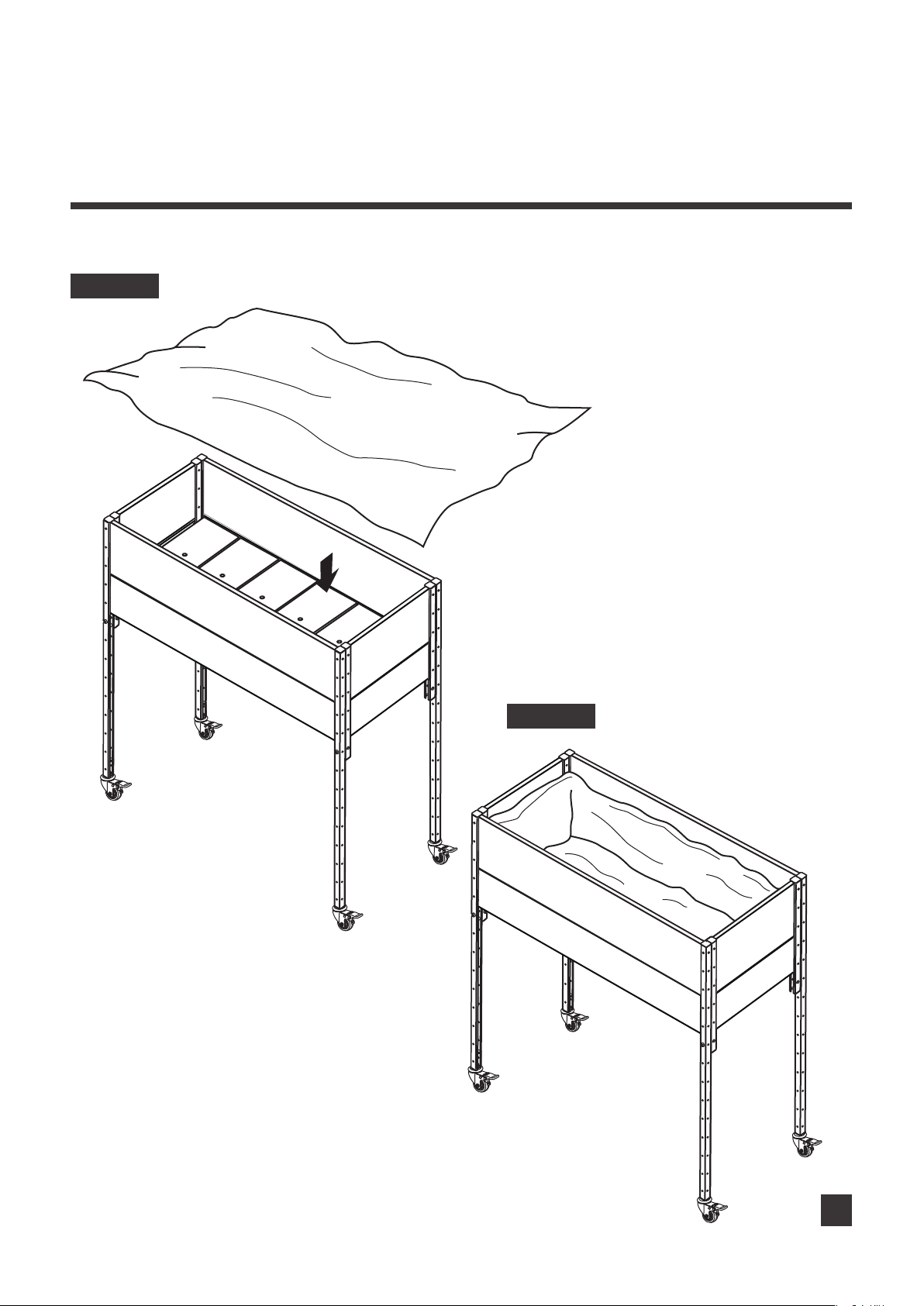

Unfold the liner and cover the bottom of the garden bed, as shown in Image 19 and Image 20.
IMAGE 19
Garden Bed
Liner
IMAGE 20
21
Page 22
Note
Urban Mobile Garden - 45" L x 19" W x 36" H

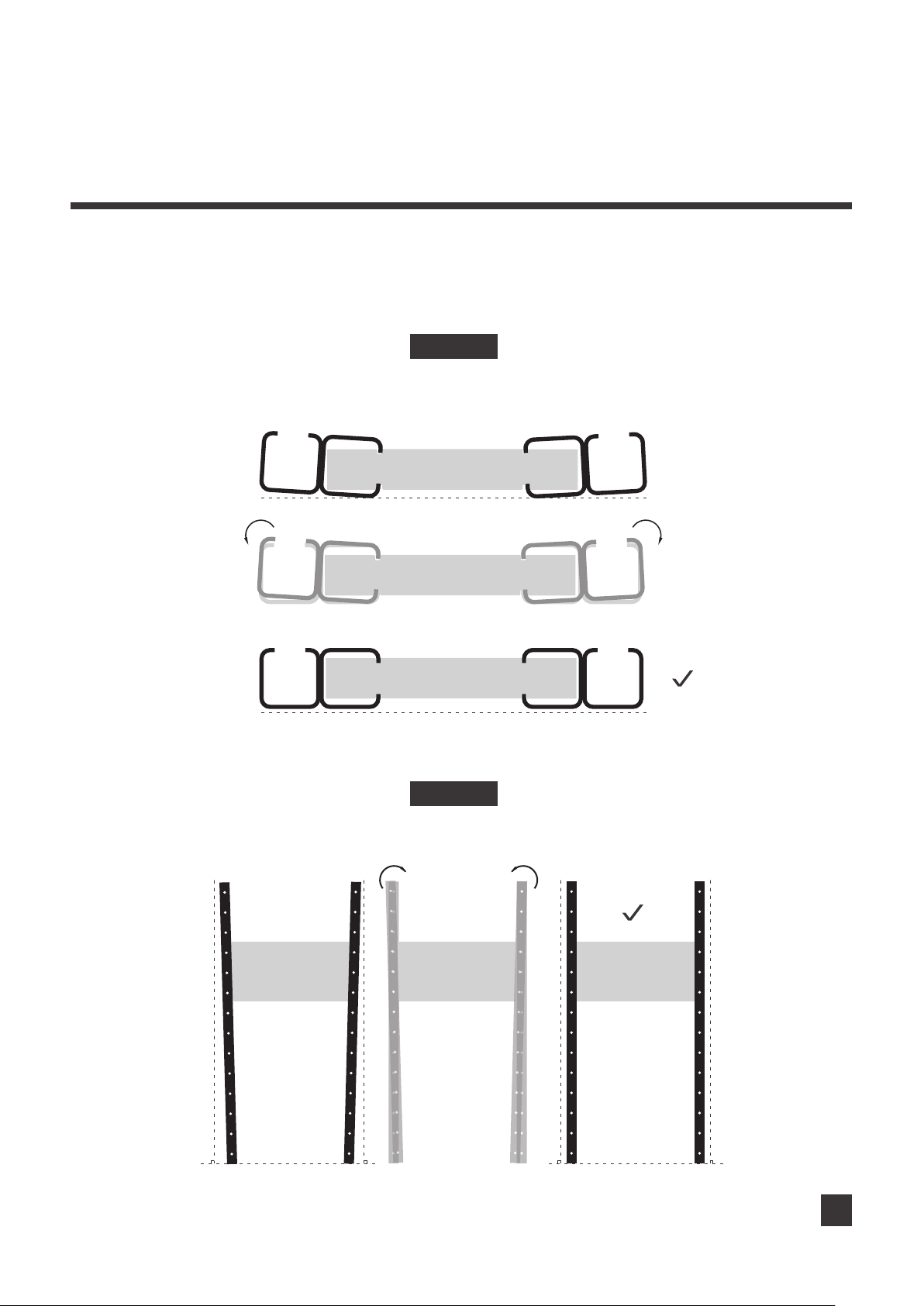

Sometimes there might be a misalignment of the Corner Posts as shown in Image 21 and Image 22, which
may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that they
are parallel to each other, and perpendicular to the ground.
IMAGE 21
Assembling Problem 1
X
X
IMAGE 22
Assembling Problem 2
22
Page 23
Bloom On.
Everbloom-Garden.com
US Patent Pending
Subscribe at www.everbloom-garden.com for
extra savings and upgrading information!
Distributed by:
Dynaforge Trading LLC
St. Paul, MN55101
Email: [email protected]
