Page 1

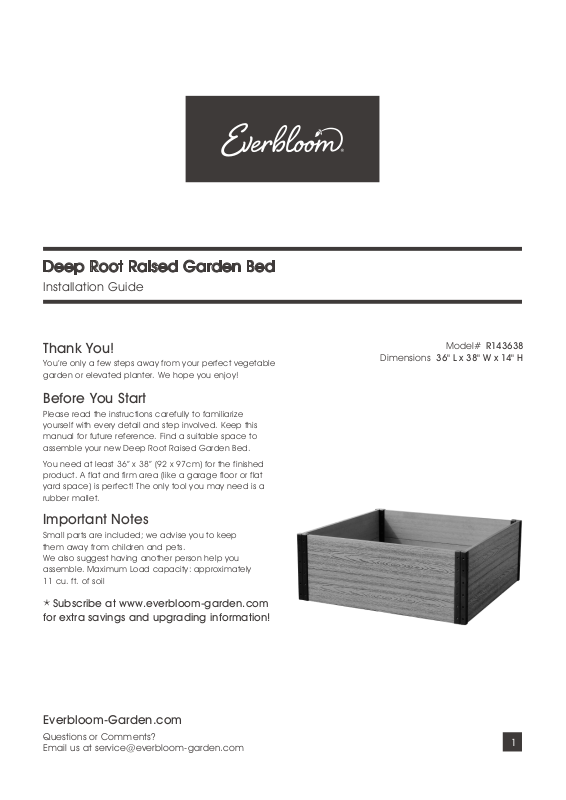

Deep Root Raised Garden Bed
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Deep Root Raised Garden Bed.
You need at least 36” x 38” (92 x 97cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
11 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# R143638
Dimensions 36" L x 38" W x 14" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2
Parts List
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H
Left Corner
Post
X 2
Top
Right Corner
Post
X 2
Top
Long Board
X 4
Post Cap
X 4
+ 2pc
replacement
Bottom
Bottom
900mm
2
Page 3
Assembly
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H
Start by making sure each corner post is oriented correctly. Reference Image 1. Slide one long board into
the corner posts from above.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2).
Right Corner
Post
Left Corner
Post
Left Corner
Post
IMAGE 2
IMAGE 1
Right Corner
Post
Long
Board
Right
Corner
Post
Left Corner
Post
3
Page 4
Assembly
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H

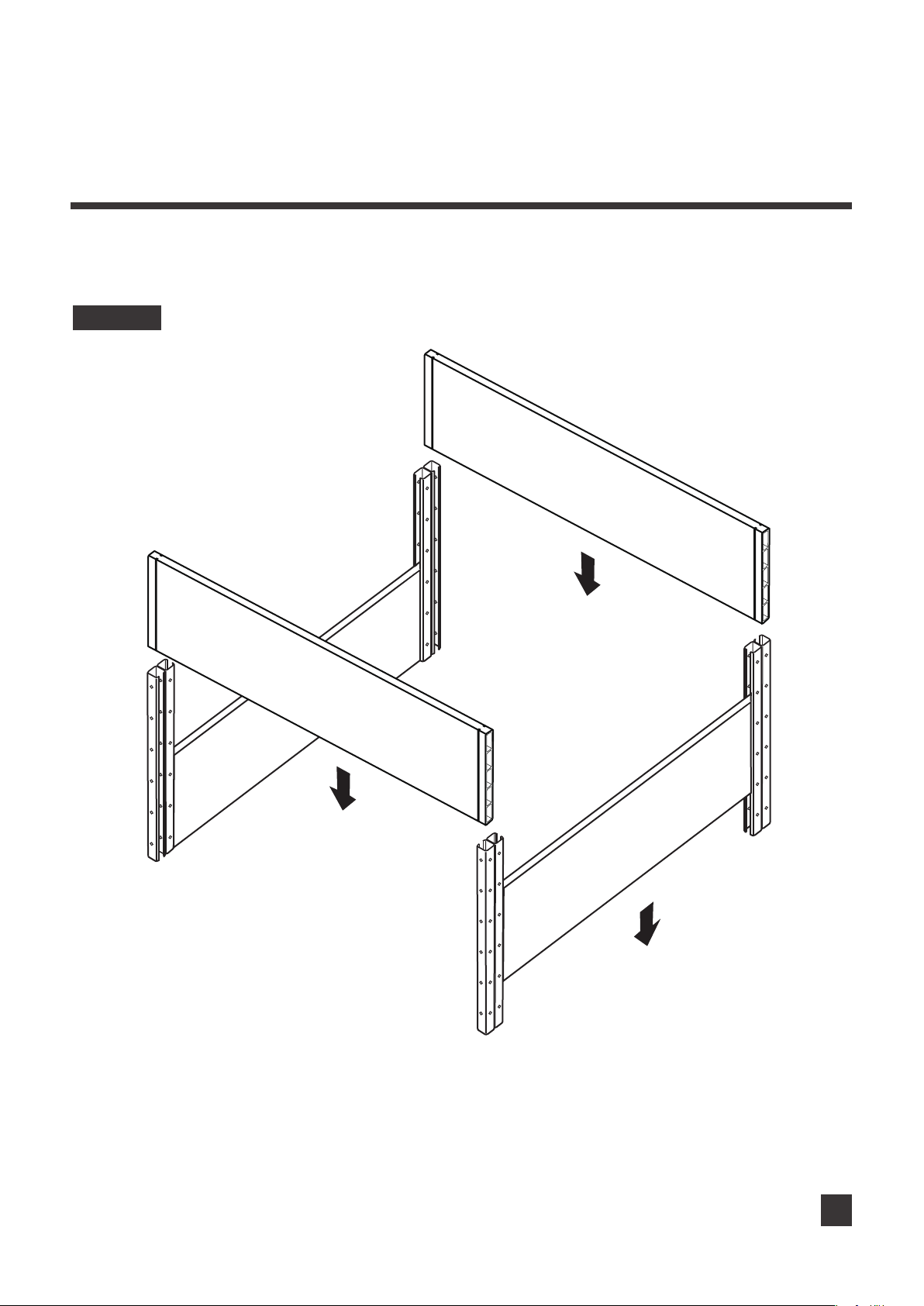

Slide the other three long boards into the corner posts from above, as shown in Image 3.
IMAGE 3
Long
Board
Right Corner
Post
Long
Board
Left
Corner
Post
Long
Board
Left
Corner
Post
Right
Corner
Post
4
Page 5
Assembly
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H

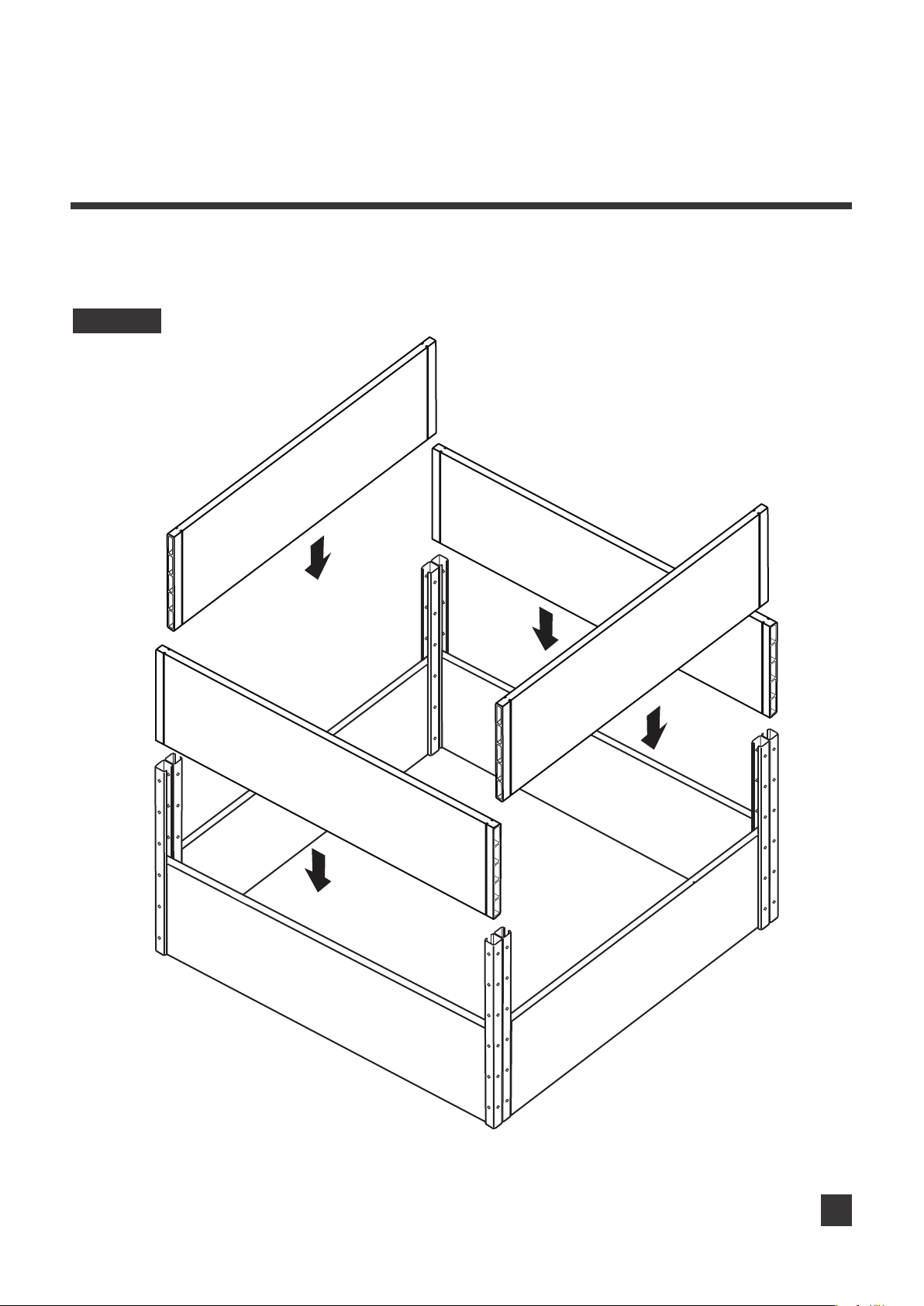

Slide the rest four boards to form the second layer of the bed, as shown in Image 4.
IMAGE 4
Long
Board
Long
Board
Right
Corner
Post
Long
Board
Left
Corner
Post
Long
Board
Left
Corner
Post
Right
Corner
Post
5
Page 6
Assembly
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H

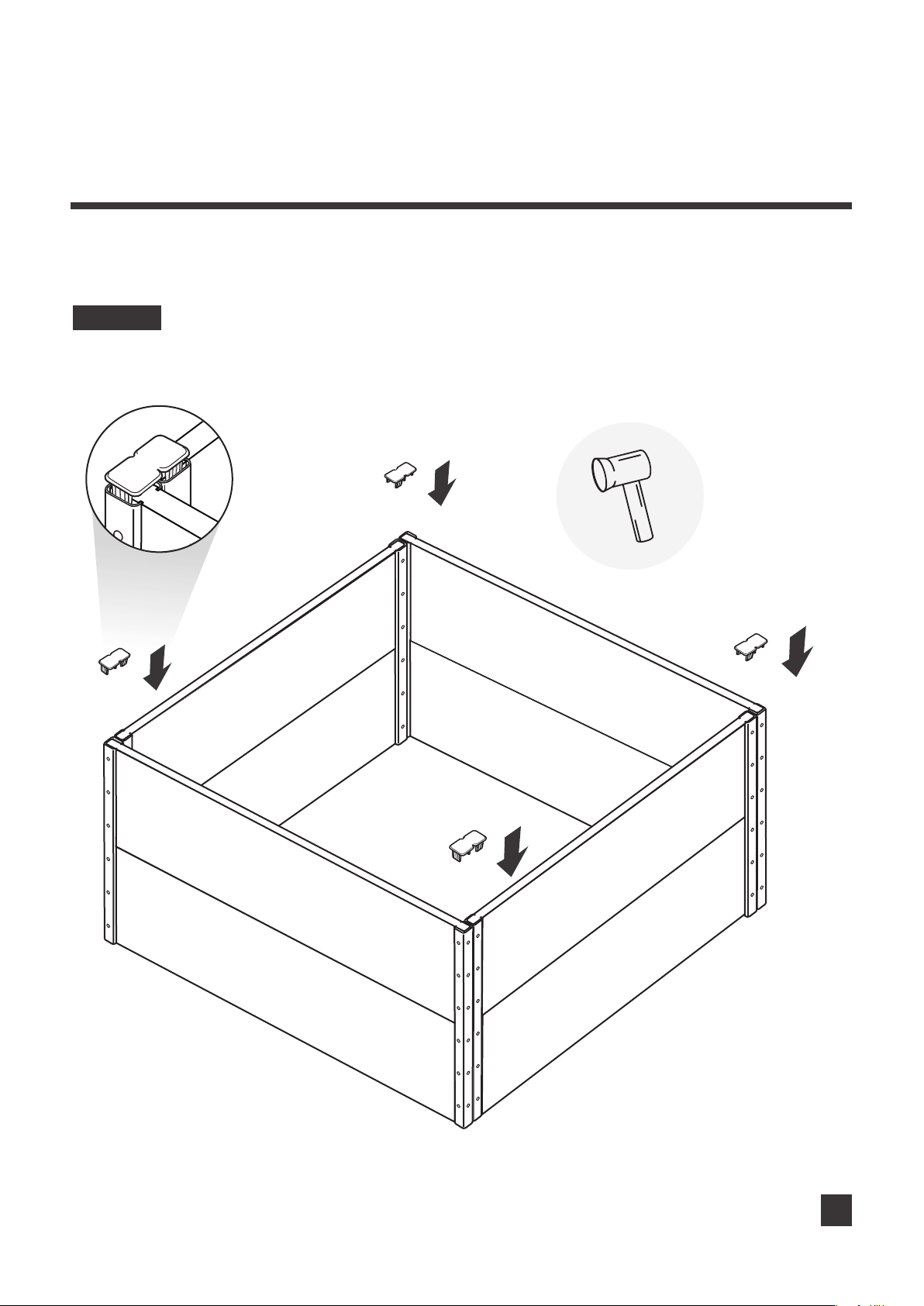

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the
4 end caps, as shown in Image 5.
IMAGE 5
Rubber
Mallet
Post Cap
X 1
Post Cap
Post Cap
X 1
X 1
Note: Store the additional
caps for future use.
Post Cap
X 1
6
Page 7
Notes
Deep Root Raised Garden Bed - 36" L x 38" W x 14" H

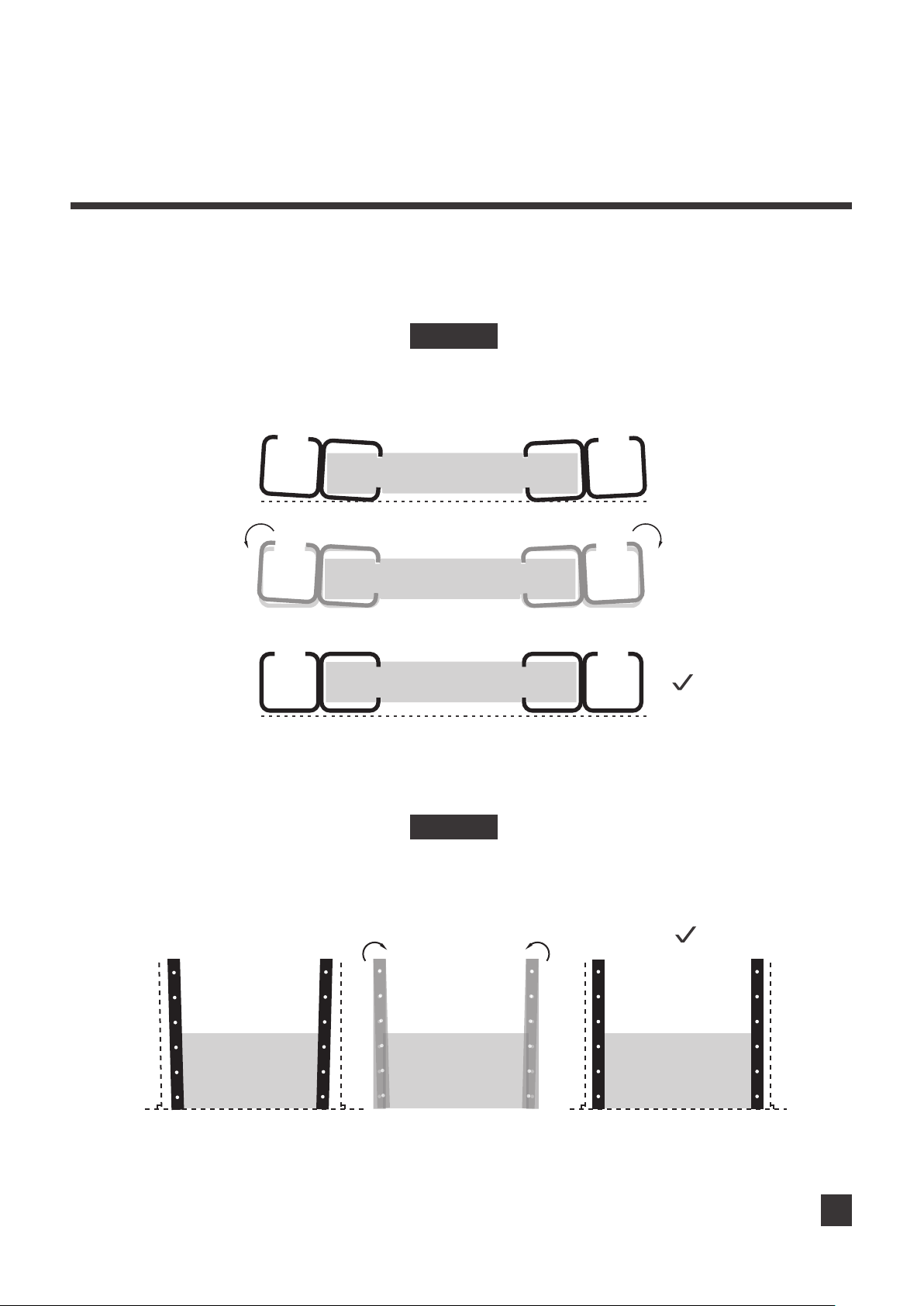

Sometimes there might be a misalignment of the Corner Posts as shown in Image 6 and Image 7, which
may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that
they are parallel to each other, and perpendicular to the ground.
IMAGE 6
Assembling Problem 1
X
X
IMAGE 7
Assembling Problem 2
7
Page 8
Bloom On.
Everbloom-Garden.com
US Patent Pending
Subscribe at www.everbloom-garden.com for
extra savings and upgrading information!
