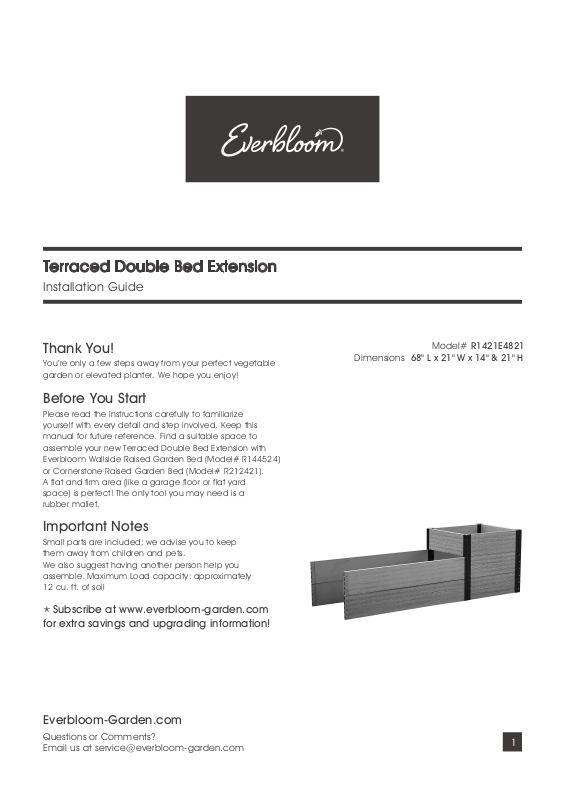

Terraced Double Bed Extension
Installation Guide
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Terraced Double Bed Extension with
Everbloom Wallside Raised Garden Bed (Model# R144524)
or Cornerstone Raised Garden Bed (Model# R212421).
A flat and firm area (like a garage floor or flat yard
space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
12 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Model# R1421E4821
Dimensions 68" L x 21" W x 14" & 21" H
Everbloom-Garden.com
Questions or Comments?
Email us at [email protected]
1
Page 2

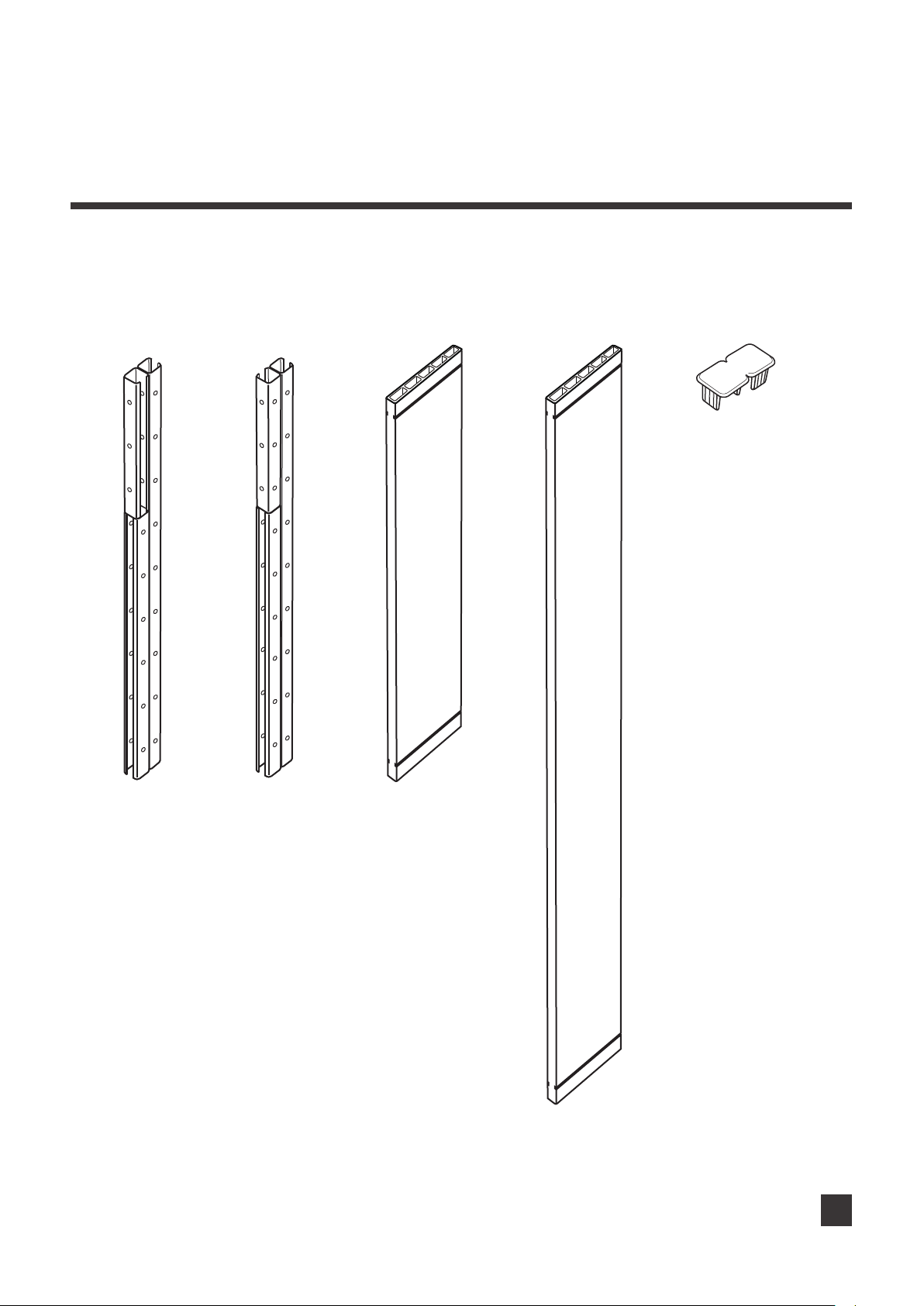

Parts List
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H
Left Joiner
Corner
X 2
Top
Right Joiner
Corner
X 2
Top
Short Board
X 8
Long Board
X 4
Post Cap
X 4
+ 2pc
replacement
Bottom
Bottom
540mm
1140mm
2
Page 3
Assembly
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H
This kit can be assembled with Everbloom Wallside Raised Garden Bed (R144524) to create a Low-Hi-Low
triple bed. And it also can be assembled with Everbloom Cornerstone Raised Garden Bed (R212421) to
create a Hi-Low-Hi triple bed.
With more of this extensions, you can build 5 beds, 7 beds or more continuous beds in this Hi-Lo version.
Every extension can add a pair of Hi-Lo beds additionally, to an unlimited length, as long as your land can
take.
* For Low-Hi-Low Triple bed, please follow steps of Assembly 1 from this page.
* For Hi-Low-Hi Triple bed, please follow steps of Assembly 2 from page 9.
Assembly 1

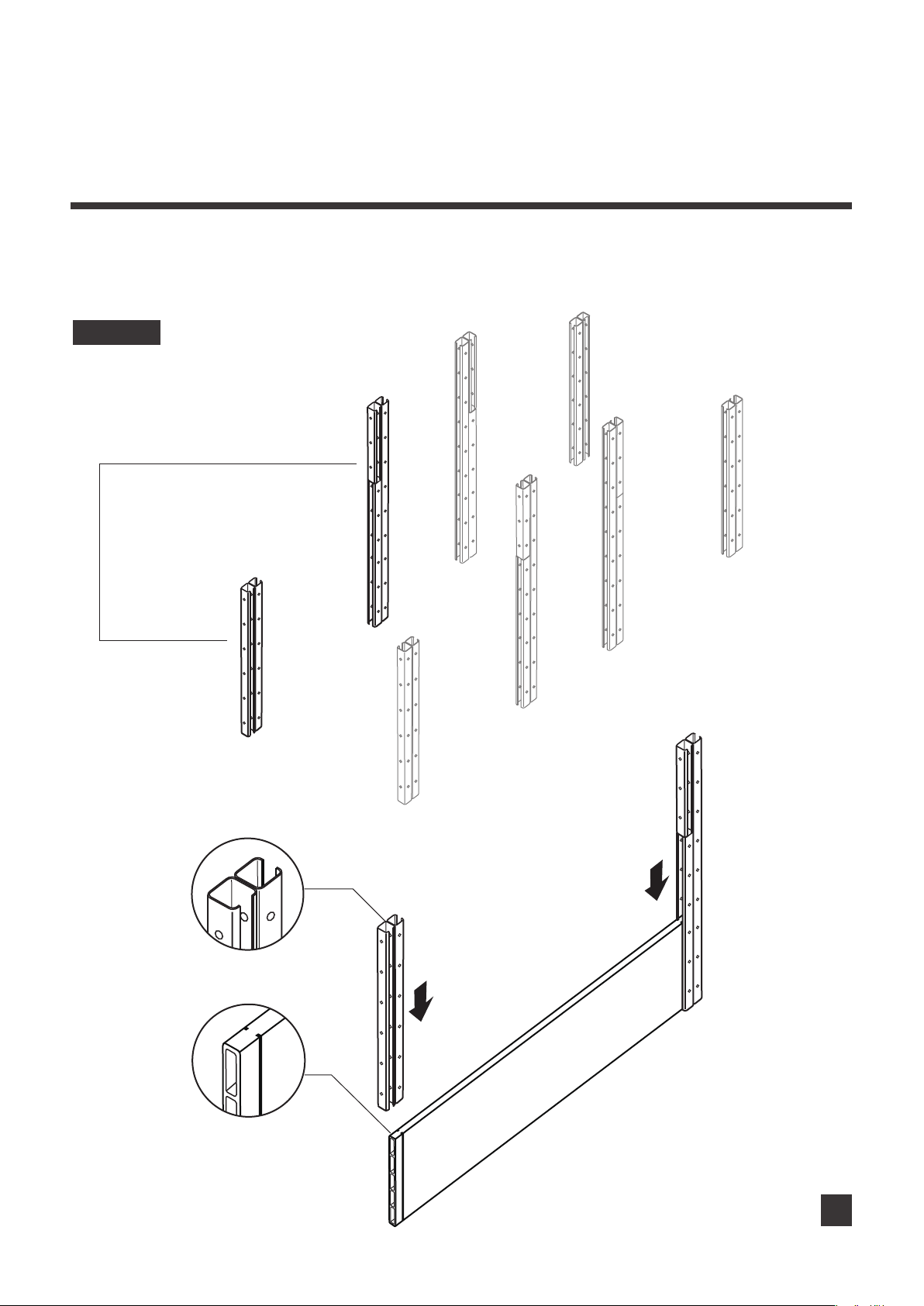

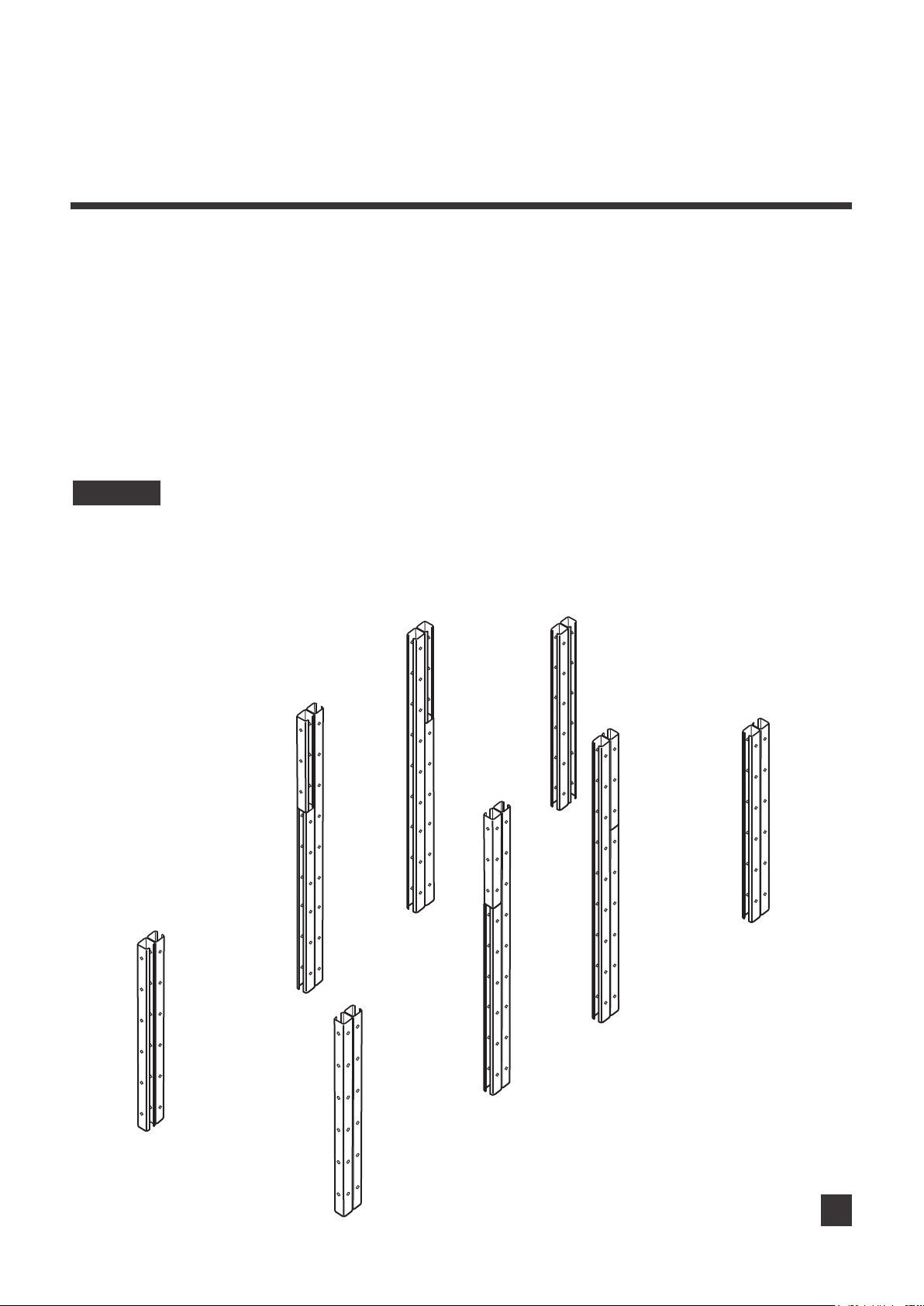

Start by making sure each corner post is oriented correctly. Reference image 1.
IMAGE 1
Right Corner
Post
(360mm)
Right Joiner
Corner
From R144524
Left Corner
Post
(360mm)
From R144524
Left Joiner
Corner
Left Corner
Post
(360mm)
From R144524
Left Joiner
Corner
Right Joiner
Corner
Right Corner
Post
(36mm)
From R144524
3
Page 4
Assembly 1
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H
Fix the left joiner corner and left corner post (360mm) on one long board from above, as shown in Image 2.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2).
IMAGE 2
Left Joiner
Corner
Left Corner
Post
(360mm)
From R144524
Left Corner
Post
(360mm)
Left
Joiner
Corner
Long
Board
4
Page 5
Assembly 1
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

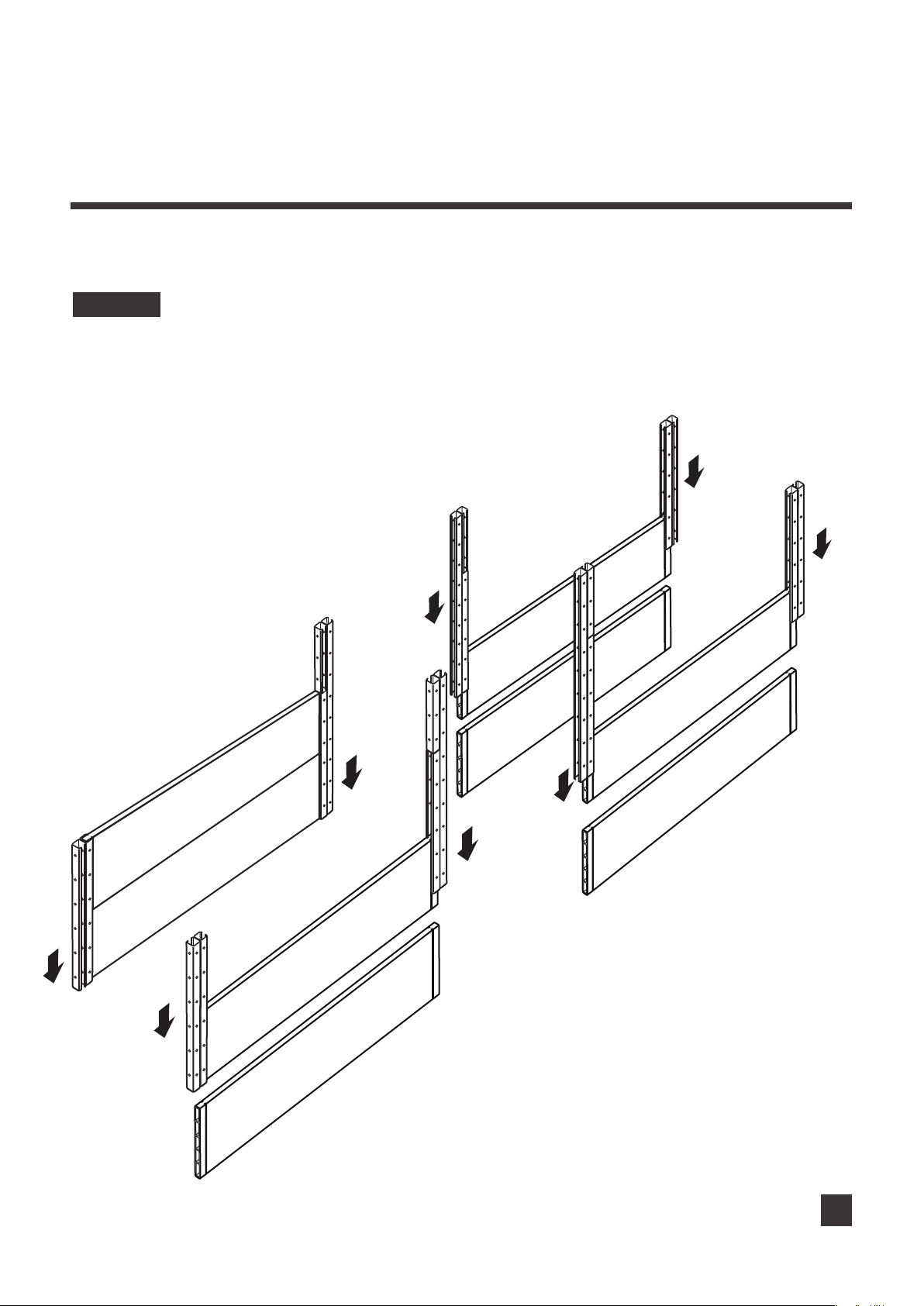

Fix other joiner corners and corner posts (360mm) on long boards from above, as shown in Image 3.
IMAGE 3
Right Corner
Post
(360mm)
From R144524
Right Joiner
Corner
Left Joiner
Corner
Long
Board x 2
Right Joiner
Corner
Left Corner
Post
(360mm)
From R144524
Long
Board x 2
Long
Board x 2
Right Corner
Post
(360mm)
From R144524
Long
Board x 2
5
Page 6
Assembly 1
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

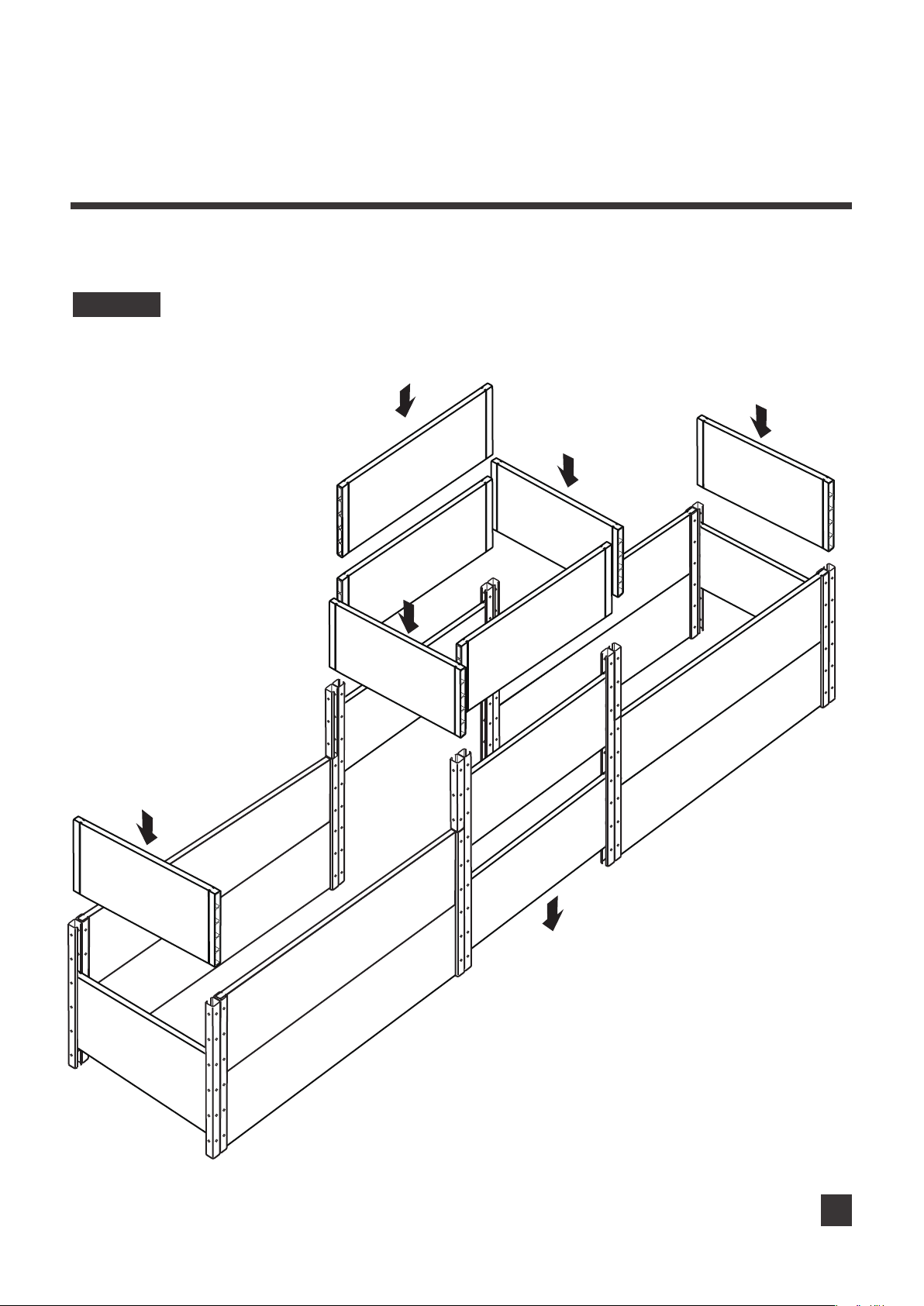

Slide all the short boards to form the bed, as shown in Image 4.
IMAGE 4
Short
Board x 3
Short
Board
Short
Board
Short
Board x 2
Short
Board x 2
Short
Board x 3
6
Page 7
Assembly 1
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

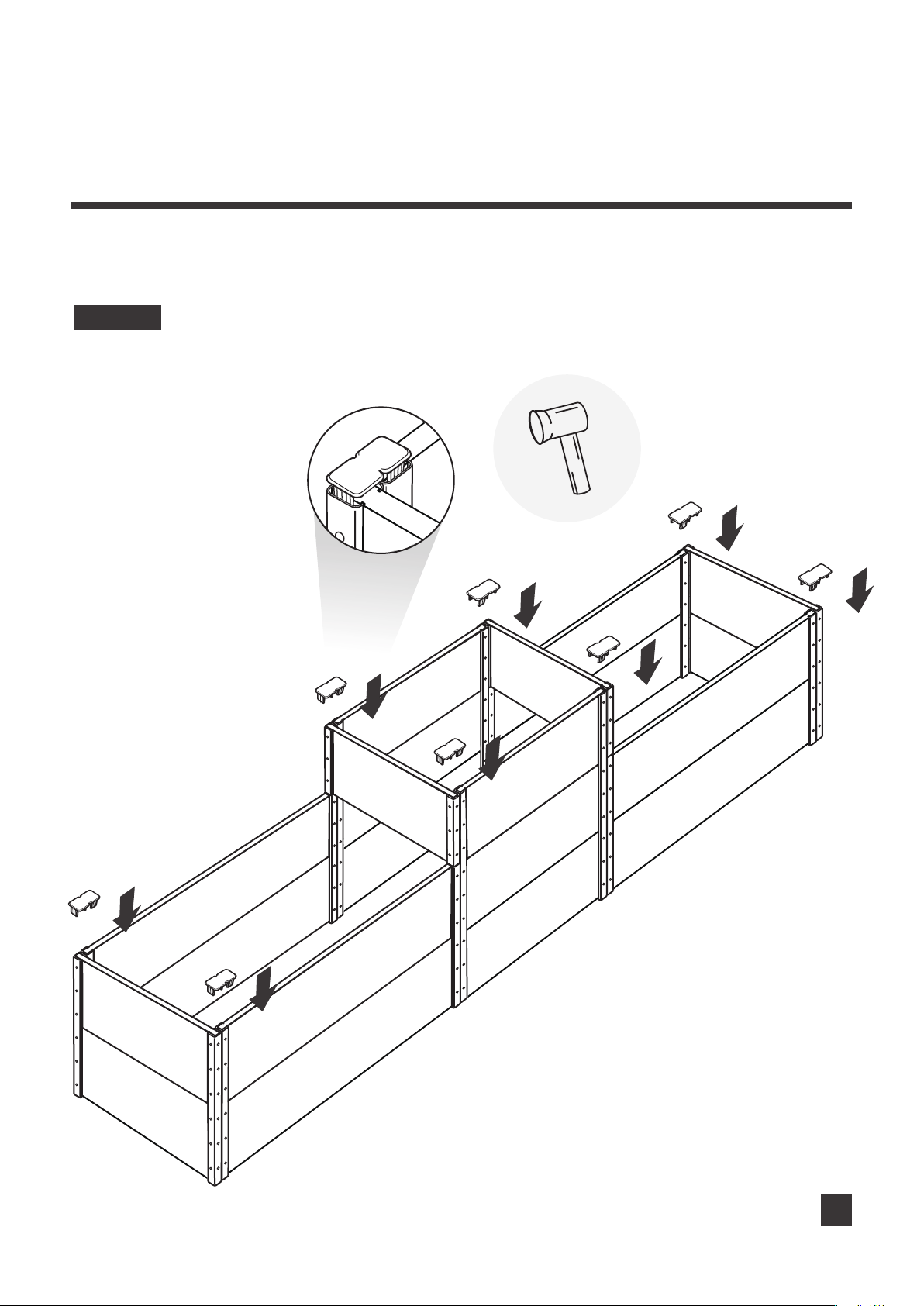

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the
8 end caps, as shown in Image 5.
IMAGE 5
Rubber
Mallet
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
Post Cap
X 1
Post Cap
X 1
X 1
Post Cap
X 1
7
Page 8
Assembly 1
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H
Now you get a Low-Hi-Low triple garden bed, as shown in Image 6.
IMAGE 6
Note: Store the
additional caps for
future use.
8
Page 9
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

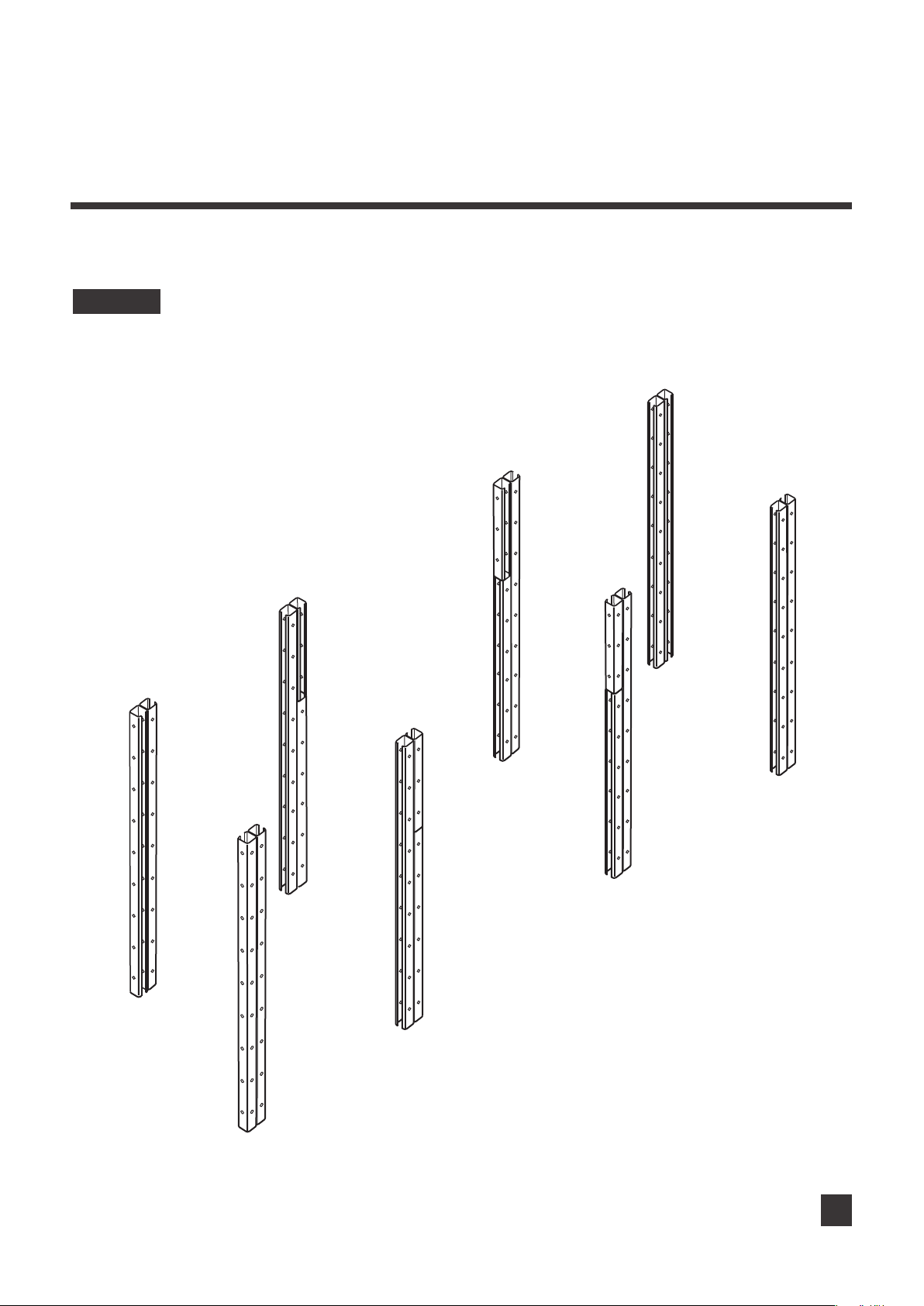

Start by making sure each corner post is oriented correctly. Reference image 7.
IMAGE 7
Right Corner
(540mm)
From R212421
Left Joiner
Corner
Right Joiner
Corner
Post
Left Corner
Post
(540mm)
From R212421
Left Corner
Post
(540mm)
From R212421
Right Joiner
Corner
Left Joiner
Corner
Right Corner
Post
(540mm)
From R212421
9
Page 10
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

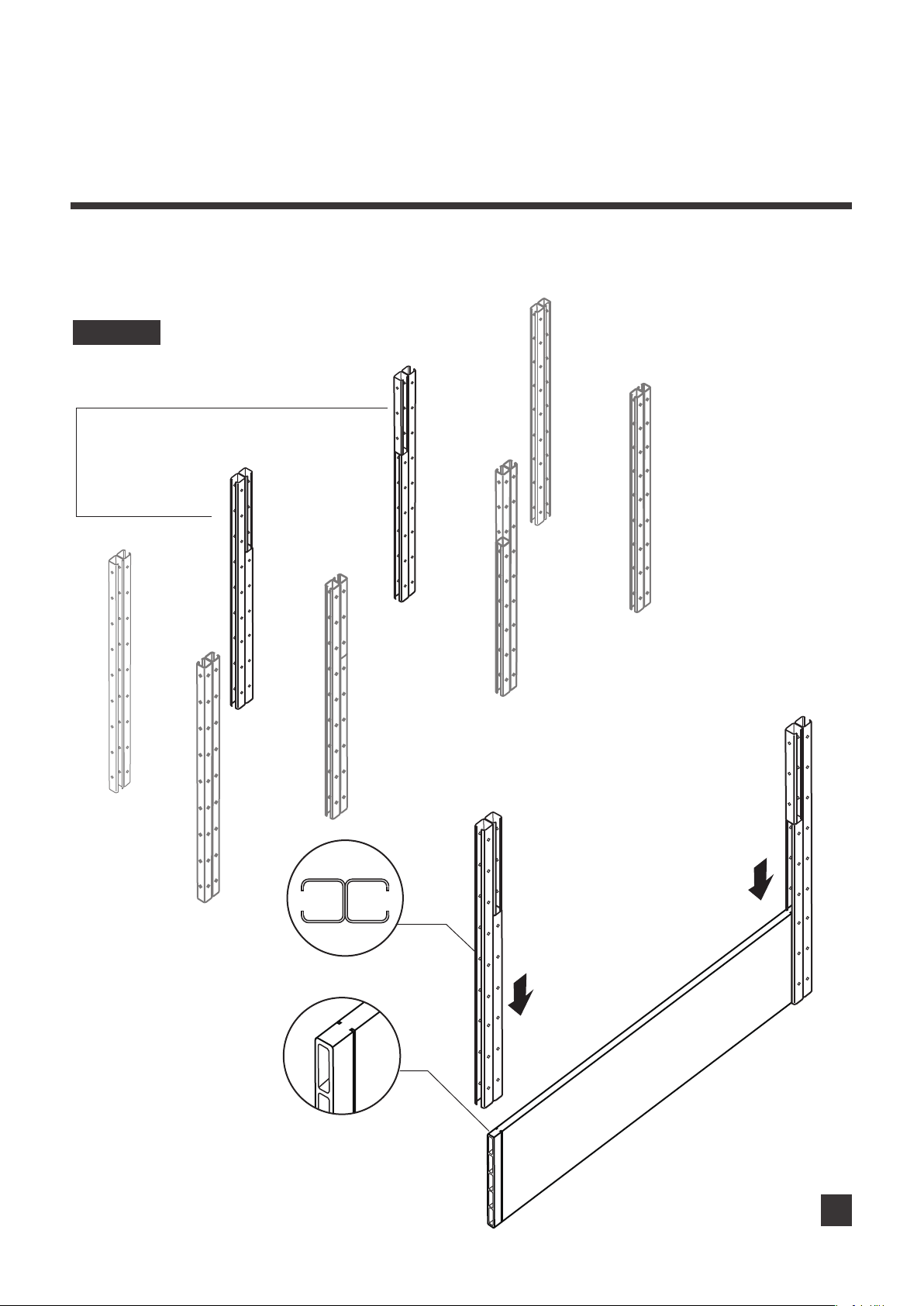

Fix the right joiner corner and left joiner corner on one long board from above, as shown in Image 8.
Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 8).
IMAGE 8
Left Joiner
Corner
Right Joiner
Corner
Left
Joiner
Corner
Right
Joiner
Corner
Long
Board
10
Page 11
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

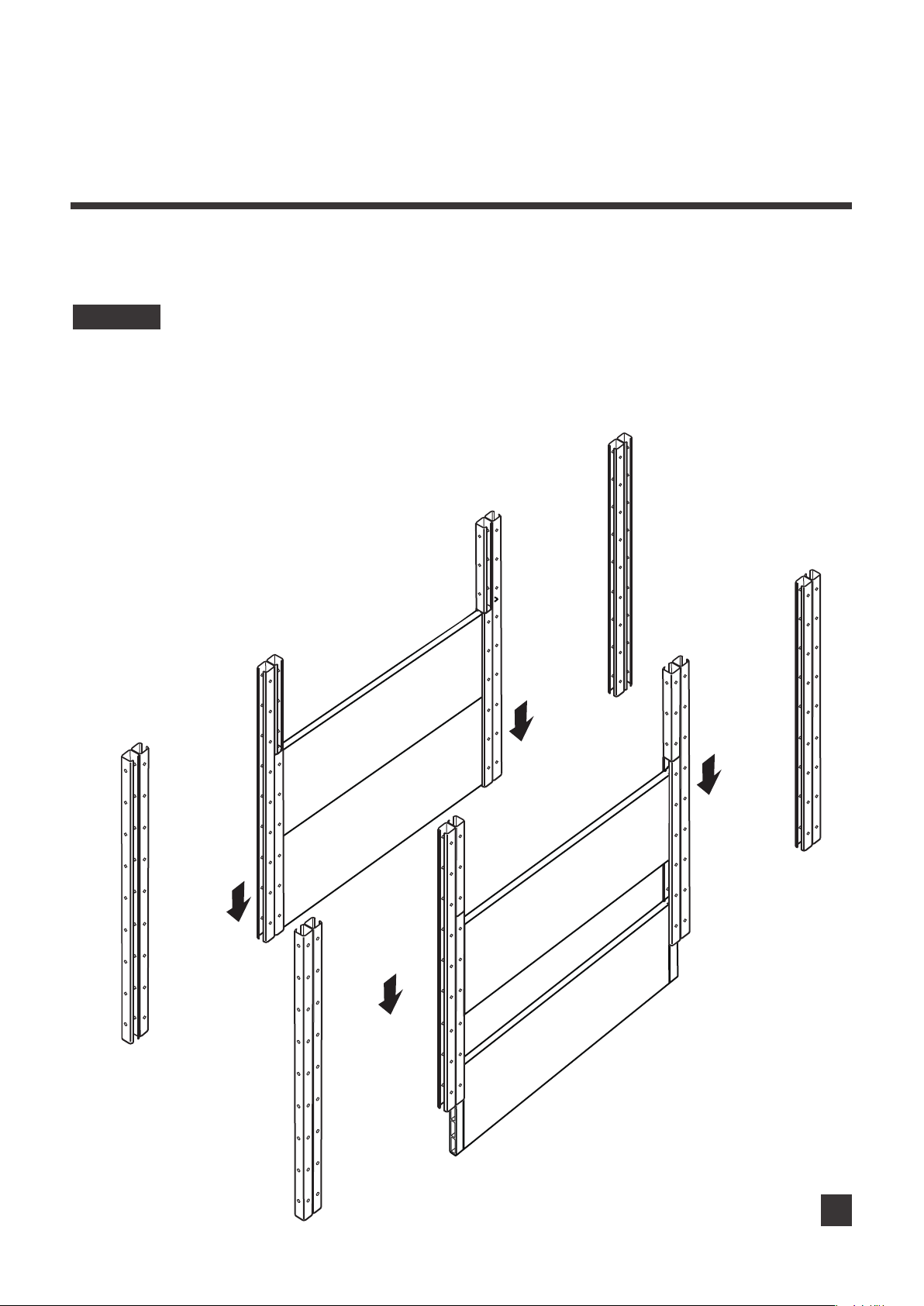

Slide another long board from bottom and fix another two joiner corners on long boards from above, as
shown in Image 9.
IMAGE 9
Right Corner
Post
(540mm)
From R212421
Left Joiner
Corner
Left Corner
Post
(540mm)
From R212421
Left Corner
Post
(540mm)
From R212421
Right Joiner
Corner
Long
Board x 2
Long
Board x 2
Right Joiner
Corner
Right Corner
Post
(540mm)
From R212421
Left Joiner
Corner
11
Page 12
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

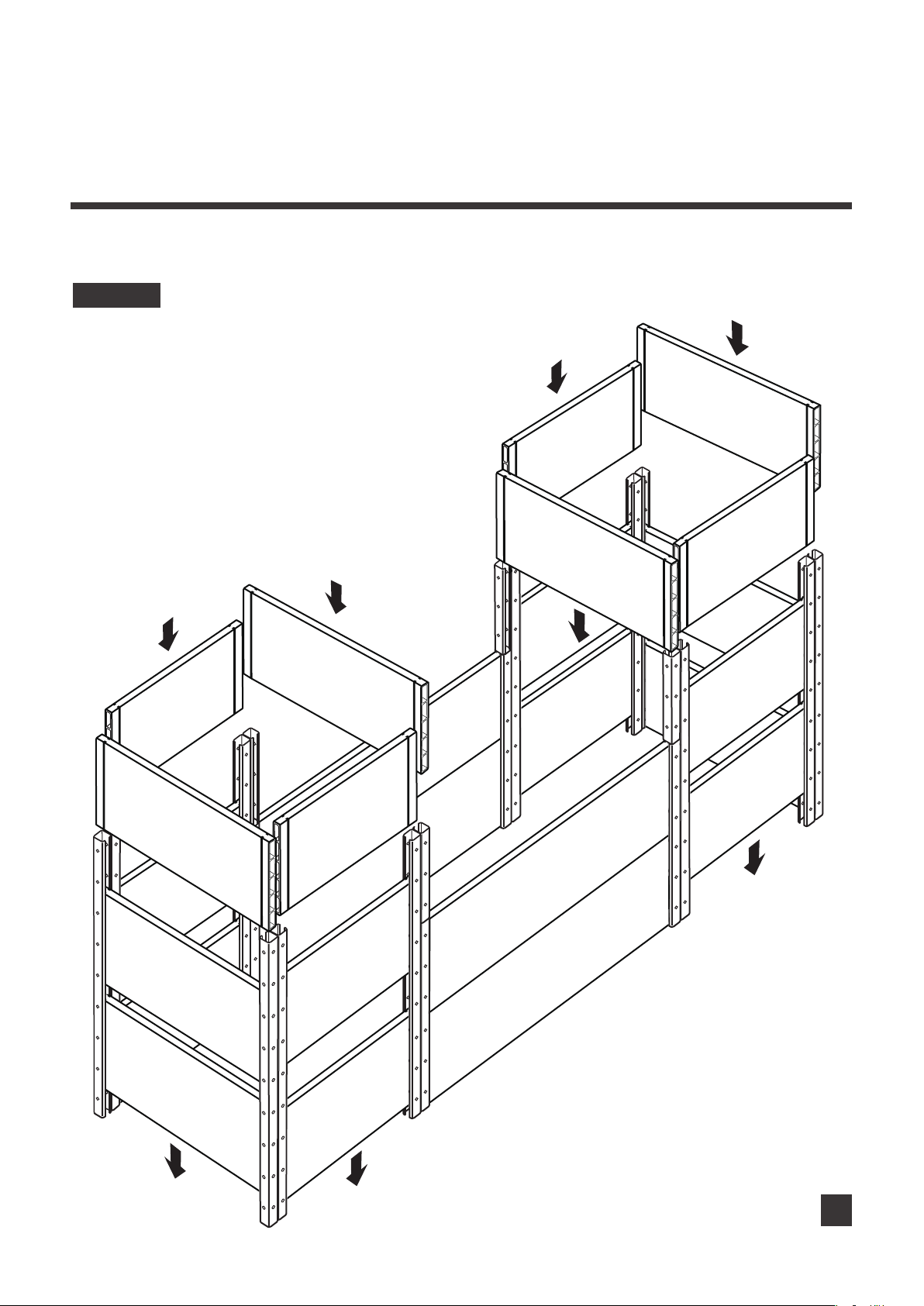

Slide all the short boards to form the bed, as shown in Image 10.
IMAGE 10
Board x 3
Short
Short
Board
Short
Board x 3
Short
Board x 3
Short
Board
Short
Board x 3
Short
Board x 3
Short
Board x 3
12
Page 13
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

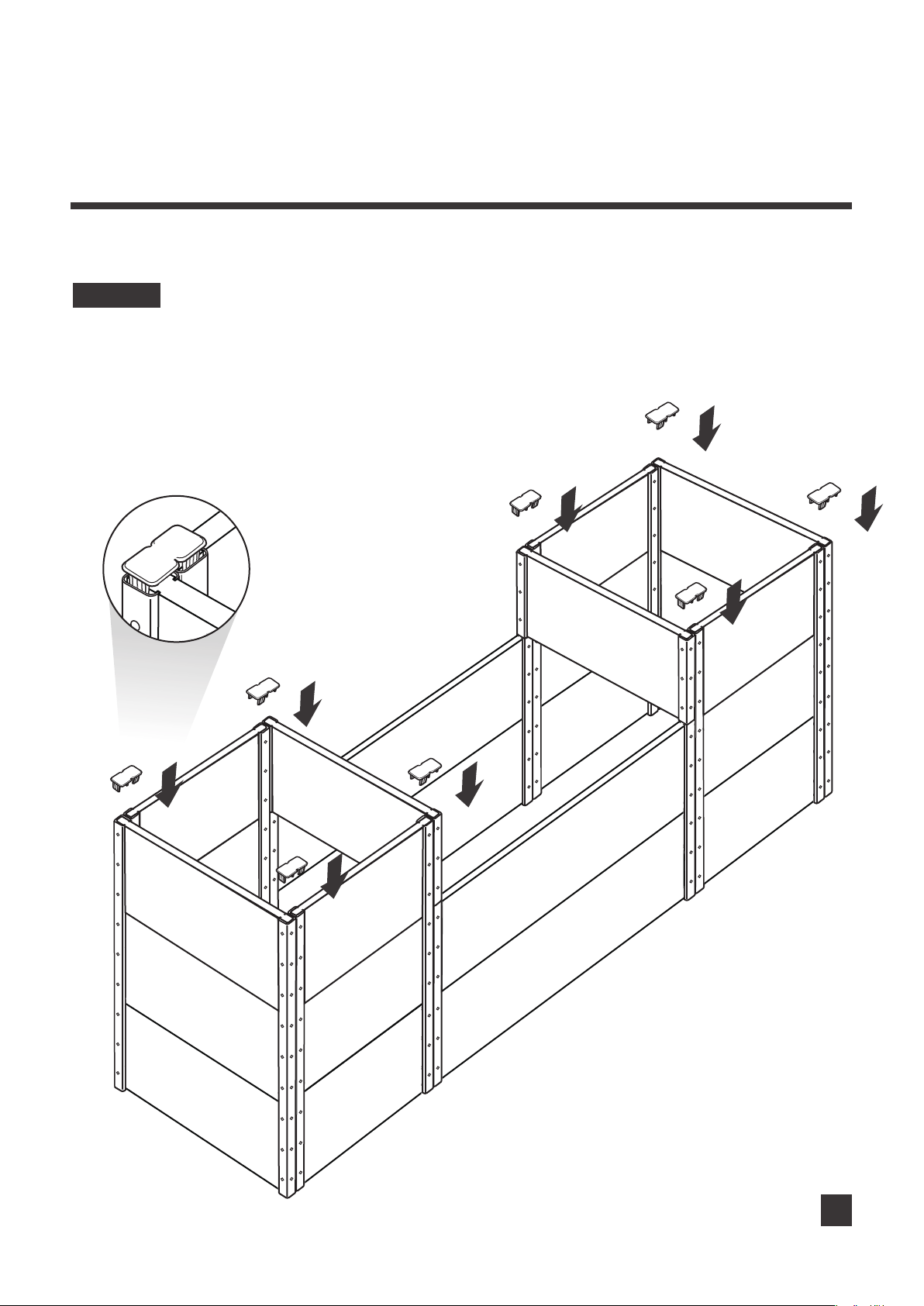

If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 8
end caps, as shown in Image 11.
IMAGE 11
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
Post Cap
X 1
13
Page 14
Assembly 2
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

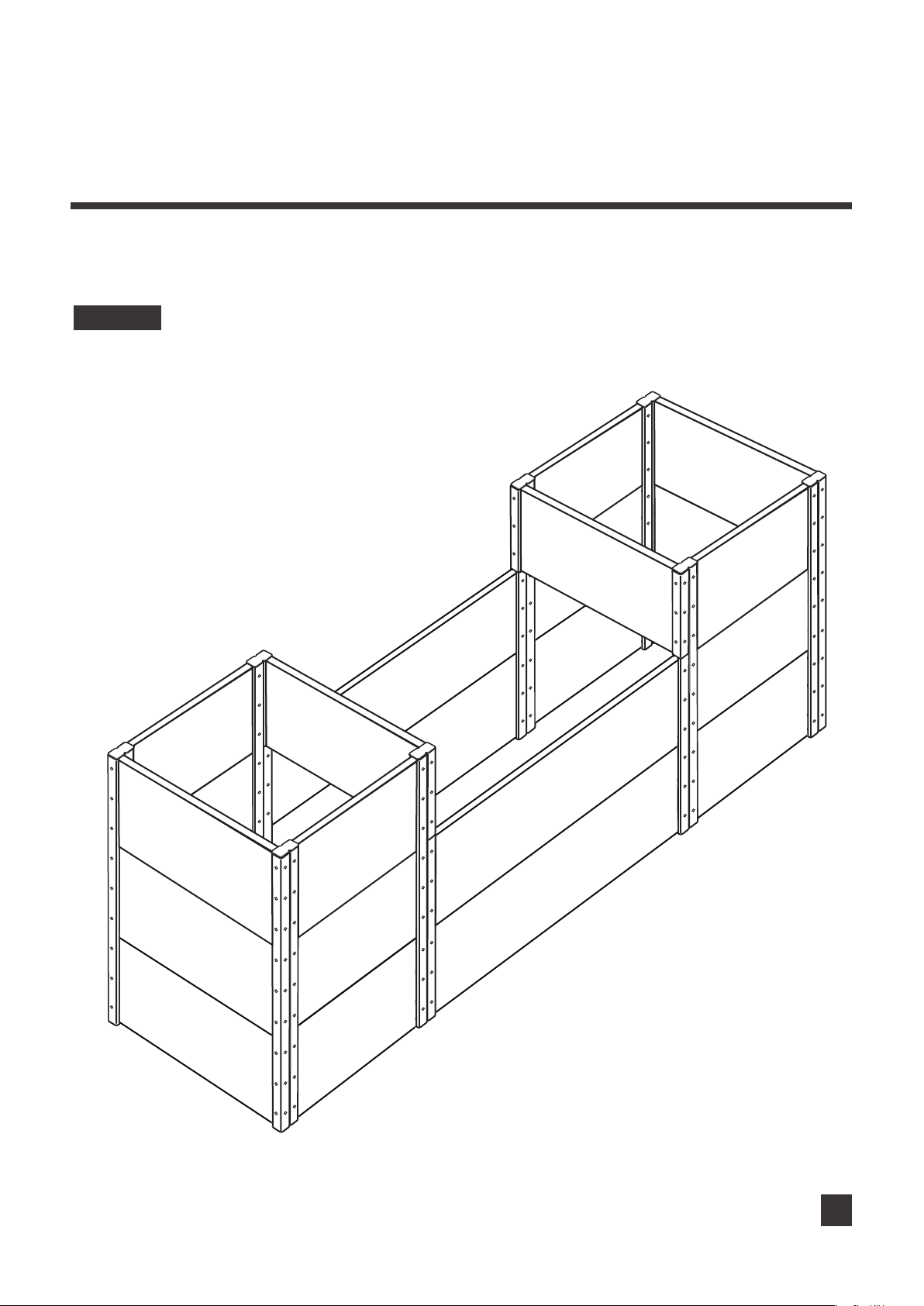

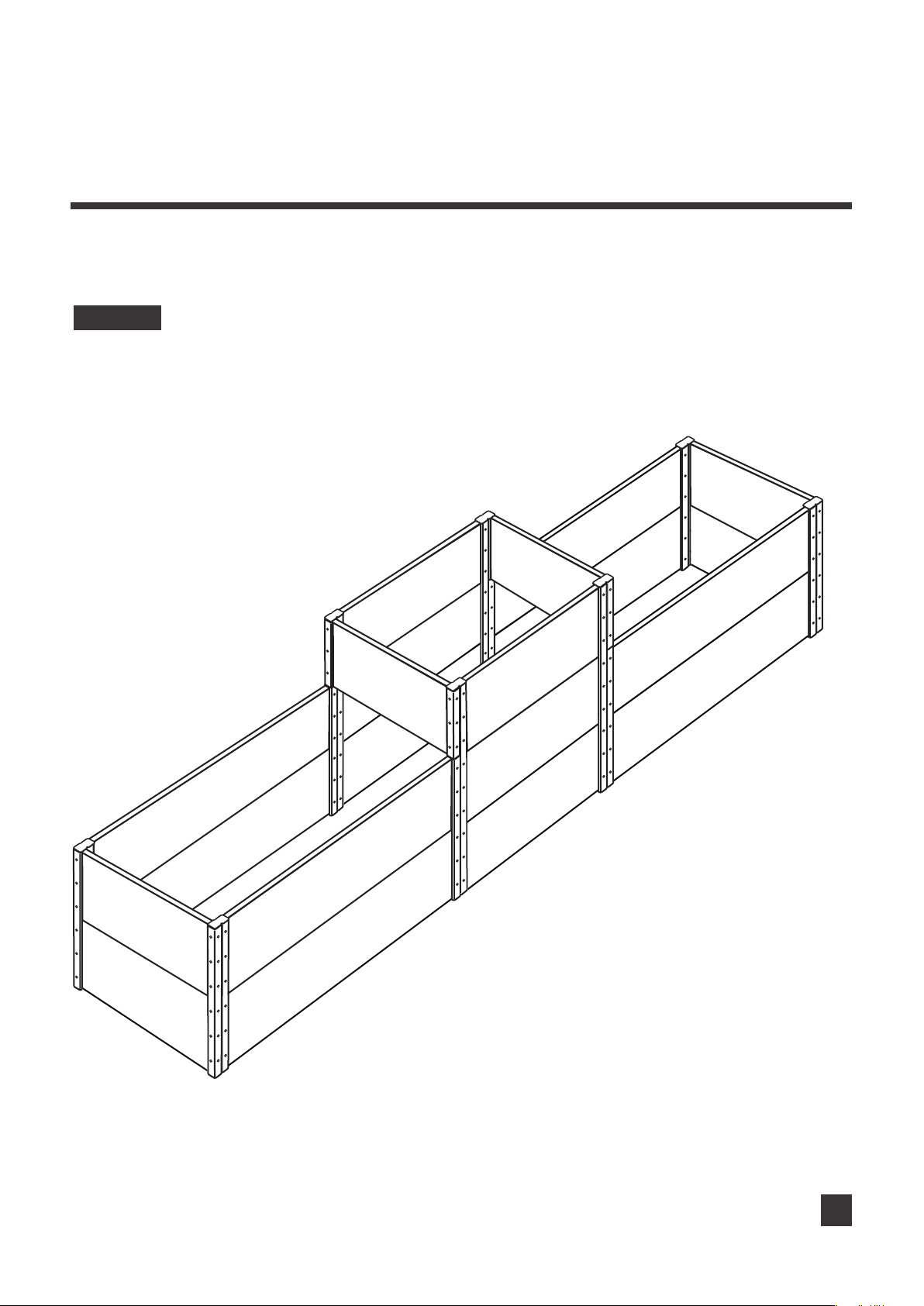

Now you get a Hi-Low-Hi triple garden bed, as shown in Image 12.
IMAGE 12
Note: Store the
additional caps for
future use.
14
Page 15
Note
Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H

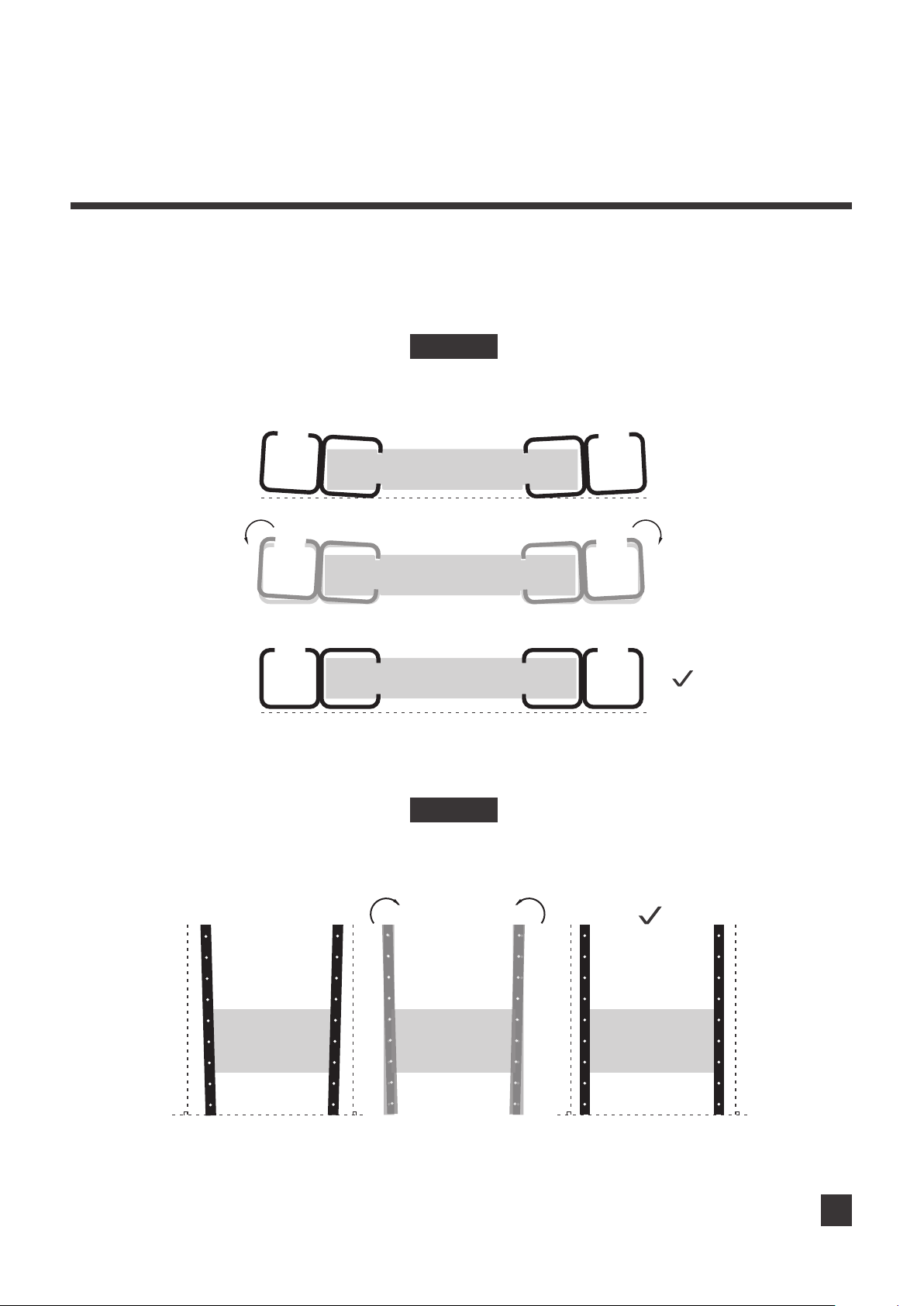

Sometimes there might be a misalignment of the Corner Posts as shown in Image 13 and Image 14, which
