everActive NC 900U User Manual

NC 900U

Professional Universal Charger

EN USER’S MANUAL

PL INSTRUKCJA OBSŁUGI

DE BEDIENUNGSANLEITUNG

Read carefully before using

Przeczytaj uważnie przed użyciem

Lesen Sie vor der Verwendung

www.everactive.pl

EN NC900U charger USER’S MANUAL

This high quality, genuine micro-processor charger is intended to charge Ni-MH, Ni-Cd cells. It
incorporates 6 charging slots for 1-6 pcs of R6(AA)/R03(AAA) rechargeable batteries,
interchangeable with 1-4 pcs of R14(C)/R20(D) and additional 2 slots for charging 1-2 pcs of
6HR22 (9V). Batteries can be charged in every possible combination.

Input: 100-240V AC 50/60Hz 30W
Charge current: R6/R14/R20: 1000mA, R03: 500mA, 6HR22 (9V): 60mA
Pre-charge current: R6/R14/R20: 500mA, R03: 300mA, 6HR22 (9V): 30mA
Discharge current: R6/R14/R20: 120mA, R03: 80mA, 6HR22 (9V): 30mA
Trickle charge current: R6/R14/R20: 40mA, R03: 20mA, 6HR22 (9V): 3mA

1. Connect the power supply cable to the AC socket power source. After powering on, the
charger runs self-diagnostic program – it is indicated by LCD showing “180%” and triple orange
flash of LEDs. When the charger is ready to operate it flashes green LEDs repeatedly.
Insert the cells into the charger, preserving the correct polarity.

2. For the first 3s the charger determines the state of charge and diagnoses the inserted
rechargeable batteries. Depending on the cell's condition the multi-step charging mode can be
performed (including the discharge, pre-charge followed by the regular charge and trickle
charge).
The charger shows the approximate charge progress in “%” scale. Please note that the
indicated charging progress may not correspond to the actual charge level of the battery and
the charger should not be considered as an independent battery tester.

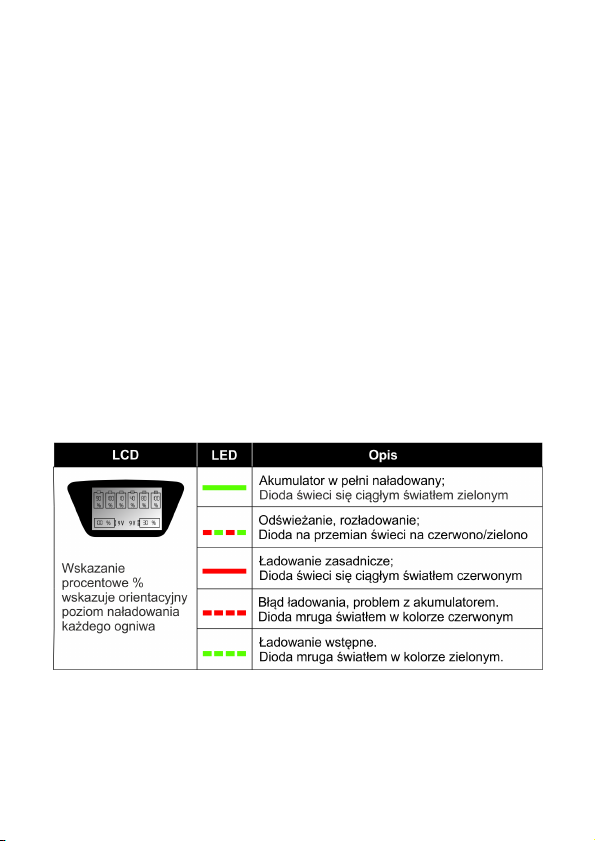

The charging process and status is also indicated by LED diodes.

3. When the inserted cell is fully charged the 100% indication can be read on the LCD and the
green LED is ON next to the corresponding charging slot. Additional supervision is
recommended while charging 9V cells. In case when the LED corresponding to the 9V charging
slot did not turn green after the certain time, it is recommended to manually stop the
operation. Time limits are as follows: for the capacity 150 mAh - 3h, 200 mAh - 4h, 250 mAh –

2

5h.

4. When the charge is complete, it is recommended to wait for about 15mins to allow the cells
and the unit to cool-down.

5. Disconnect the power supply cable, remove the cells from the charger.

Additional information:

1. The charger indicates potential battery problems by flashing red LED. Such battery will not
be charged.

2. The unit is equipped with the battery's automatic maintenance program. It includes
discharging, pre-charging of the cells – these modes are triggered automatically based upon
the state of charge of the inserted cell.

NOTICE:

- the charger determines the full charge state of all types of rechargeable batteries (including
the 9V cells) by using the ∆V termination method – when the cells are fully charged the trickle
charge is applied to maintain the full charge state,

- the charger uses additional timer protection for maximum safety,

- additional supervision is recommended while charging 9V cells,

- use only under supervision, do not leave the charger unattended,

- use only for charging Ni-MH, Ni-Cd rechargeable batteries, charging other types can lead to
damage, or leakage,

- for indoor use only,

- the rechargeable batteries may become hot while charging – be careful when removing them
from charger,

- the charger is not meant to be used by children,

- do not leave the charger connected to AC power source when not in use,

- the product should be disposed of properly according to applicable law. At the end
of life the product should be passed to the waste collection, electronic recycling
point. It is not allowed to dispose the product with the regular household wastes.

Warranty:

- 2 years limited warranty, for details please contact your retailer,

- the charger shall be used according to this manual,

- if the charger was proven to be defective, it will be repaired or replaced,

- warranty does not affect and is in addition to legal (statutory) rights under applicable national
laws relating to the sale of consumer products.

Distributor:
Baltrade sp.z o.o.
Gen. J.Hallera 132
80-416 Gdansk, Poland
www.everActive.pl
