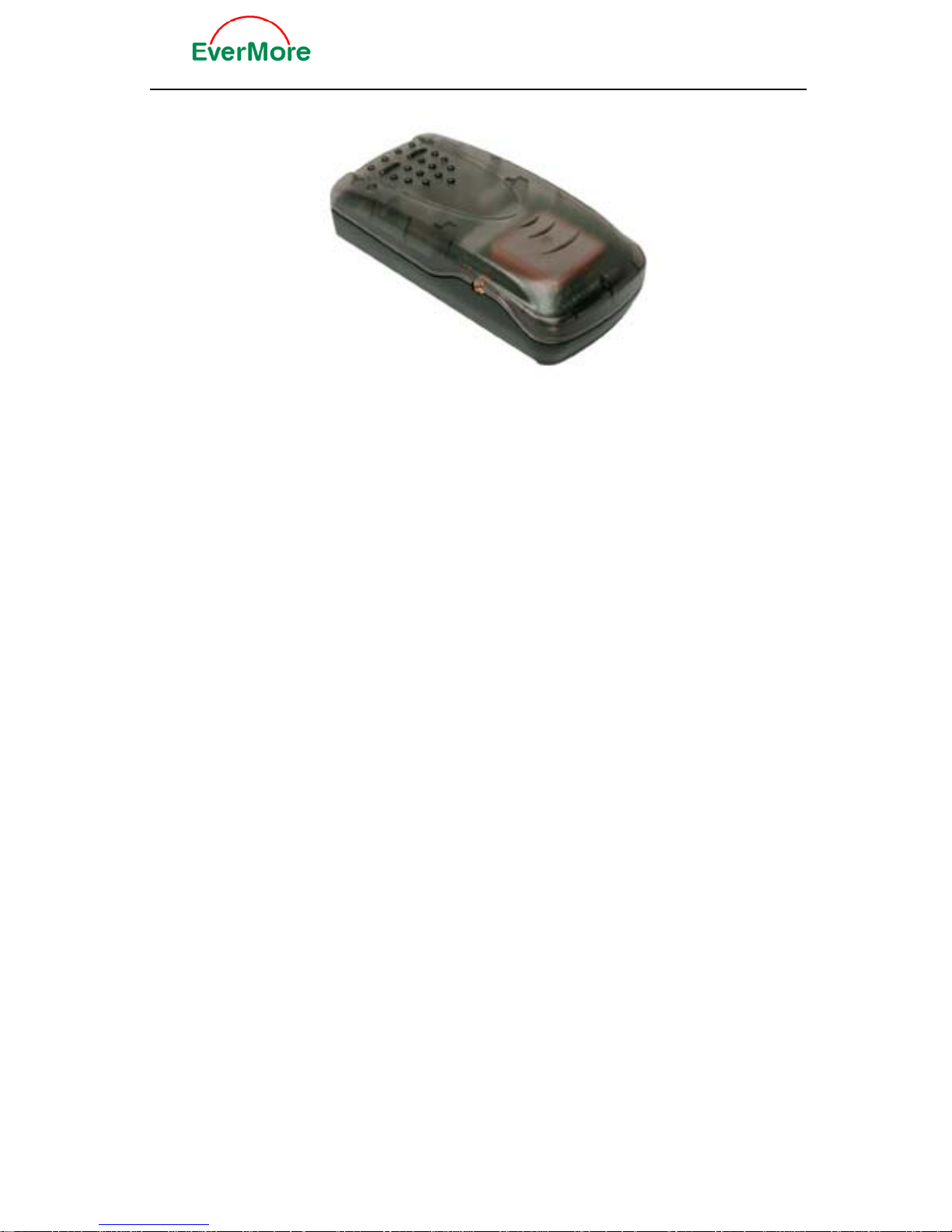

DL-200BT Data Logger
The DL-200BT is a unique with Wireless interface for vehicle tracking device in use
friendly. DL-200BT uses the Global Positioning System (GPS) to record vehicle
movement, speed, route and duration of stops. This information can be displayed on
a GIS mapping with MapInfo formatted while download data to P.C. so user can
view vehicle activity in precise details. Additionally.
Features
z Support Wireless interface to PC/Notebook
z Built-in patch antenna
z Receiver, Twelve parallel tracking channels
z Fast TTFF and low power consumption
z On-board rechargeable battery sustaine d real-time clock and memory for fast
satellite acquisition during power-up
z Automatic cold start with no user initialization required
z Large capacity for continuous records for 25,000 positions
z
Lithium-ion rechargeable battery lasts for more than 6 hours of use
Applications
z Land/Marine Navigation
z Telematics
z Fleet Management
z Asset Tracking
z Timing Reference
DL-200BT Data Logger
Specification
Features Description
General
L1 1575.42MHz, C/A code, 12-channel, Carrier-Aided with HWTrack©
Sensitivity
-143 dBm minimum
Update Rate
1Hz
Accuracy
Position: 15m CEP without S/A
Velocity: 0.1 m/sec without S/A
Time:
± 1µs
W AAS Accuracy
Position: 5m CEP
Velocity: 0.05m/sec
Acquisition
Cold start: 60sec averagr
Warm start: 45sec average
Hot start: 15sec average
Reacquisition
<100msec
Dynamics
Altitude: -1000m to 18000m
Velocity: 500 m/sec
Acceleration: ±4g
Protocol
EverMore Private @ 4800/9600 baud, 8-None-1
NMEA-0183 v2.20 @ 4800/9600 baud, 8-None-1
Datum
219 standard datum, default WGS-84
Antenna
Built-in Patch Antenna / Option active antenna, MMCX jack
NMEA Mess a ge
GGA, GLL, GSA, GSV, RMC, and VTG
Dimension ; Weight
93*84* 31mm / 94.8g
Power Specifications
Features
Description
Battery
Lithium-Ion Rechargeable Battery 3.7V/1100mAH
Charger Power
5V ±0.5Vp-p ripple (DC-Jack)
Current Consumption
150 mA
Operation Time
Up to 6 Hours after full charge
Interface Specification
Features Description
Interface
Wireless Interface
DL-200BT Data Logger
LED Indicators
Symbols LED Color Light indication
Low Battery Red
ON: Battery Low
Charger Green
ON: Charging
OFF: Full charge
Switch Specification
Features Description
Power Switch
System power switch except char ge u nit
Environmental Specification
Features Description
Operation Temperature
-20oC to +70oC
Storage Temperature
-40oC to +90oC
Operating Humidity
5% to 95%
* Preliminary Specification, Subject To Change Without Notice
