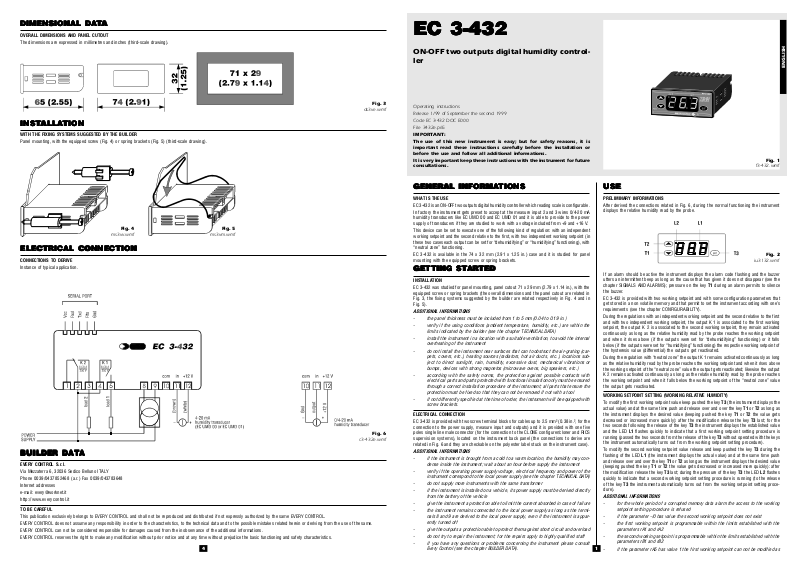

Page 1
DIMENSIONAL DADIMENSIONAL DA
DIMENSIONAL DA
DIMENSIONAL DADIMENSIONAL DA

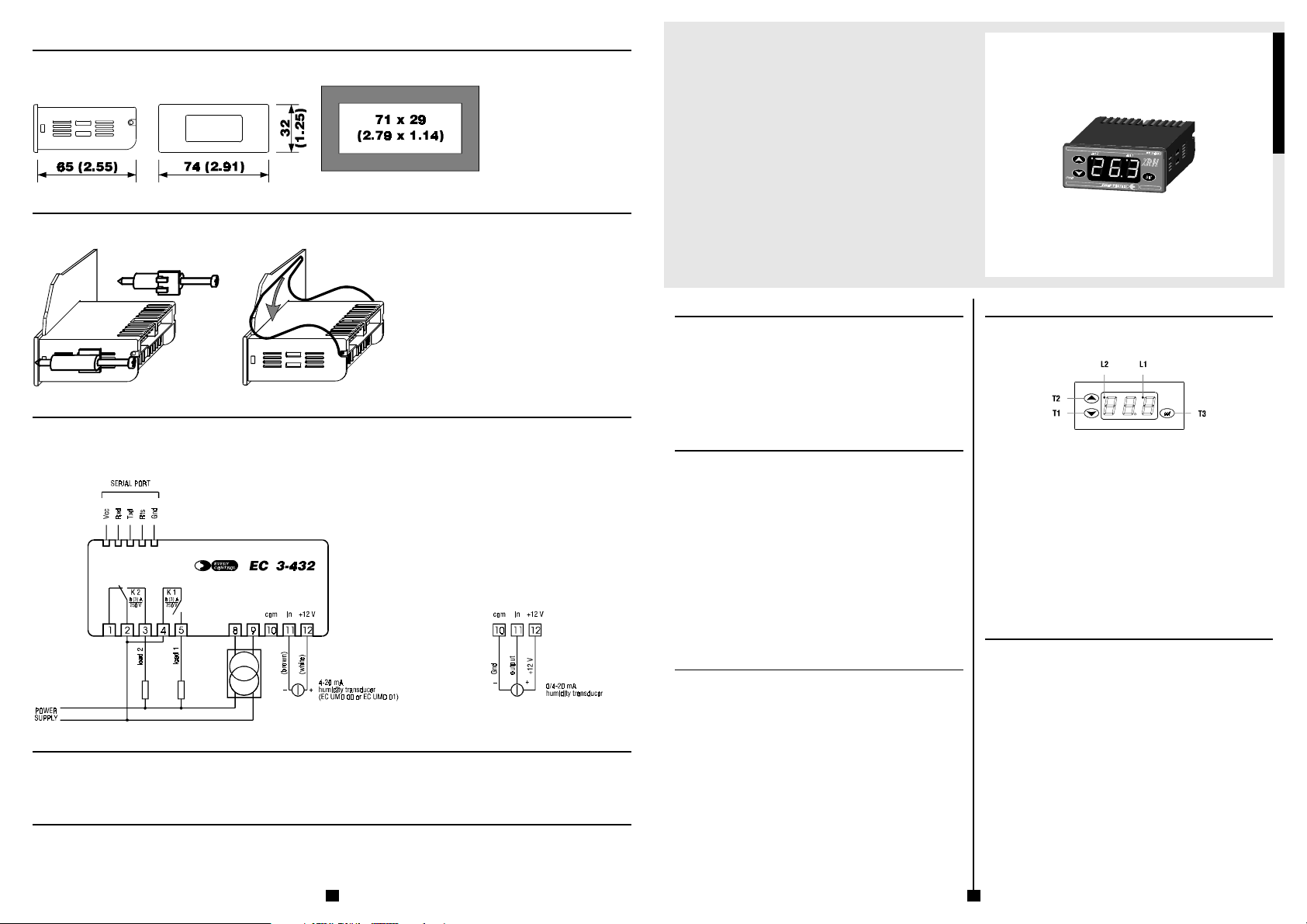

OVERALL DIMENSIONS AND PANEL CUTOUT
The dimensions are expressed in millimetres and inches (third-scale drawing).
TT
AA
T
A
TT
AA
EC 3-432EC 3-432
EC 3-432
EC 3-432EC 3-432
ON-OFF two outputs digital humidity control-
ler
ENGLISH
ds3ve.wmf
INSTINST
ALLAALLA
ALLA
ALLAALLA
TIONTION
TION
TIONTION
TT
T
TT
Fig. 4
ms3vv.wmf
AA
A
AA
ms3vm.wmf
4
Fig. 5
c3-432e.wmf
INST
INSTINST
WITH THE FIXING SYSTEMS SUGGESTED BY THE BUILDER
Panel mounting, with the equipped screw (Fig. 4) or spring brackets (Fig. 5) (third-scale drawing).
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
ELECTRICAL CONNECTION
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
CONNECTIONS TO DERIVE
Instance of typical application.
BUILDER DABUILDER DA
BUILDER DA
BUILDER DABUILDER DA
EVERY CONTROL S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039/0437852468 (a.r.) Fax 0039/043783648
Internet addresses
e-mail: [email protected]
http://www.everycontrol.it
TO BE CAREFUL
This publication exclusively belongs to EVERY CONTROL and shall not be reproduced and distributed if not expressly authorized by the same EVERY CONTROL.
EVERY CONTROL does not assume any responsibility in order to the characteristics, to the technical data and to the possible mistakes related herein or deriving from the use of the same.
EVERY CONTROL can not be considered responsible for damages caused from the inobservance of the additional informations.
EVERY CONTROL reserves the right to make any modification without prior notice and at any time without prejudice the basic functioning and safety characteristics.
Fig. 3
Fig. 6
Operating instructions
Release 1/99 of September the second 1999
Code EC 3-432 DOC E000
File 3432e.p65
IMPORTANT:
The use of this new instrument is easy; but for safety reasons, it is
important read these instructions carefully before the installation or
before the use and follow all additional informations.
It is very important keep these instructions with the instrument for future
consultations.
GENERAL INFORMAGENERAL INFORMA
GENERAL INFORMA
GENERAL INFORMAGENERAL INFORMA
WHAT IS THE USE
EC 3-432 is an ON-OFF two outputs digital humidity controller which reading scale is configurable.
In factory the instrument gets preset to accept at the measure input 2 and 3 wires 0/4-20 mA
humidity transducers like EC UMD 00 and EC UMD 01 and it is able to provide to the power
supply of transducers if they are studied to work with a voltage included from +9 and +16 V.
This device can be set to execute one of the following kind of regulation: with an independent
working setpoint and the second relative to the first, with two independent working setpoint (in
these two cases each output can be set for dehumidifying or humidifying functioning), with
neutral zone functioning.
EC 3-432 is available in the 74 x 32 mm (2.91 x 1.25 in.) case and it is studied for panel
mounting with the equipped screw or spring brackets.
GETTING STGETTING ST
GETTING ST
GETTING STGETTING ST
INSTALLATION
EC 3-432 was studied for panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.), with the
equipped screw or spring brackets (the overall dimensions and the panel cutout are related in
Fig. 3, the fixing systems suggested by the builder are related respectively in Fig. 4 and in
Fig. 5).
ADDITIONAL INFORMATIONS
- the panel thickness must be included from 1 to 5 mm (0.04 to 0.19 in.)
- verify if the using conditions (ambient temperature, humidity, etc.) are within the
limits indicated by the builder (see the chapter TECHNICAL DATA)
- install the instrument in a location with a suitable ventilation, to avoid the internal
overheating of the instrument
- do not install the instrument near surfaces that can to obstruct the air-grating (car-
pets, covers, etc.), heating sources (radiators, hot air ducts, etc.), locations sub-
ject to direct sunlight, rain, humidity, excessive dust, mechanical vibrations or
bumps, devices with strong magnetos (microwave ovens, big speakers, etc.)
- according with the safety norms, the protection against possible contacts with
electrical parts and parts protected with functional insulation only must be ensured
through a correct installation procedure of the instrument; all parts that ensure the
protection must be fixed so that they can not be removed if not with a tool
- if not differently specified at the time of order, the instrument will be equipped with
screw brackets.
ELECTRICAL CONNECTION
EC 3-432 is provided with two screw terminal blocks for cables up to 2.5 mm² (0.38 in.², for the
connection to the power supply, measure input and outputs) and it is provided with one five
poles single line male connector (for the connection to the CLONE configurer/cloner and RICS
supervision systems), located on the instrument back panel (the connections to derive are
related in Fig. 6 and they are checkable on the polyester label stuck on the instrument case).
ADDITIONAL INFORMATIONS
- if the instrument is brought from a cold to a warm location, the humidity may con-
dense inside the instrument; wait about an hour before supply the instrument
- verify if the operating power supply voltage, electrical frequency and power of the
instrument correspond to the local power supply (see the chapter TECHNICAL DATA)
- do not supply more instruments with the same transformer
- if the instrument is installed on a vehicle, its power supply must be derived directly
from the battery of the vehicle
- give the instrument a protection able to limit the current absorbed in case of failure
- the instrument remains connected to the local power supply as long as the termi-
nals 8 and 9 are derived to the local power supply, even if the instrument is appar-
ently turned off
- give the outputs a protection able to protect them against short circuit and overload
- do not try to repair the instrument; for the repairs apply to highly qualified staff
- if you have any questions or problems concerning the instrument please consult
Every Control (see the chapter BUILDER DATA).
ARAR
AR
ARAR
TEDTED
TED
TEDTED
TIONSTIONS
TIONS
TIONSTIONS
USEUSE
USE
USEUSE
PRELIMINARY INFORMATIONS
After derived the connections related in Fig. 6, during the normal functioning the instrument
displays the relative humidity read by the probe.
iu3132.wmf
If an alarm should be active the instrument displays the alarm code flashing and the buzzer
utters an intermittent beep as long as the cause that has given it does not disappear (see the
chapter SIGNALS AND ALARMS); pressure on the key T1 during an alarm permits to silence
the buzzer.
EC 3-432 is provided with two working setpoint and with some configuration parameters that
get stored in a non volatile memory and that permit to set the instrument according with ones
requirements (see the chapter CONFIGURABILITY).
During the regulations with an independent working setpoint and the second relative to the first
and with two independent working setpoint, the output K 1 is associated to the first working
setpoint, the output K 2 is associated to the second working setpoint, they remain activated
continuously as long as the relative humidity read by the probe reaches the working setpoint
and when it rises above (if the outputs were set for dehumidifying functioning) or it falls
below (if the outputs were set for humidifying functioning) the respective working setpoint of
the hysteresis value (differential) the outputs get reactivated.
During the regulation with neutral zone the output K 1 remains activated continuously as long
as the relative humidity read by the probe reaches the working setpoint and when it rises above
the working setpoint of the neutral zone value the output gets reactivated; likewise the output
K 2 remains activated continuously as long as the relative humidity read by the probe reaches
the working setpoint and when it falls below the working setpoint of the neutral zone value
the output gets reactivated.
WORKING SETPOINT SETTING (WORKING RELATIVE HUMIDITY)
To modify the first working setpoint value keep pushed the key T3 (the instrument displays the
actual value) and at the same time push and release over and over the key T1 or T2 as long as
the instrument displays the desired value (keeping pushed the key T1 or T2 the value gets
decreased or increased more quickly): after the modification release the key T3 last; for the
two seconds following the release of the key T3 the instrument displays the established value
and the LED L1 flashes quickly to indicate that a first working setpoint setting procedure is
running (passed the two seconds from the release of the key T3 without operated with the keys
the instrument automatically turns out from the working setpoint setting procedure).
To modify the second working setpoint value release and keep pushed the key T3 during the
flashing of the LED L1 (the instrument displays the actual value) and at the same time push
and release over and over the key T1 or T2 as long as the instrument displays the desired value
(keeping pushed the key T1 or T2 the value gets decreased or increased more quickly): after
the modification release the key T3 last; during the pressure of the key T3 the LED L2 flashes
quickly to indicate that a second working setpoint setting procedure is running (to the release
of the key T3 the instrument automatically turns out from the working setpoint setting proce-
dure).
ADDITIONAL INFORMATIONS
- for the whole period of a corrupted memory data alarm the access to the working
setpoint setting procedure is refused
- if the parameter -/0 has value the second working setpoint does not exist
- the first working setpoint is programmable within the limits established with the
parameters rA1 and rA2
- the second working setpoint is programmable within the limits established with the
parameters rB1 and rB2
1
- if the parameter rA5 has value 1 the first working setpoint can not be modified as
Fig. 1
f3-432.wmf
Fig. 2
Page 2
long as the parameter rA5 gets set to 0
- if the parameter rB5 has value 1 the second working setpoint can not be modified as
long as the parameter rB5 gets set to 0
- the working setpoint values get stored in a non volatile memory even if a lack of
power supply happens.
CONFIGURATION PARAMETERS SETTING
Configuration parameters are arranged on two levels, to protect the most tricky settings against
undesirable violations and they are arranged in families that can be recognized through the
initial letter of the label.
To gain access to the first level keep pushed at the same time for four seconds at least the keys
T1 and T2 (passed four seconds the instrument displays the label PA).
To select a parameter of the first level push and release over and over the key T1 or T2 as long
as the instrument displays the label of the desired parameter.
To modify the parameter value keep pushed the key T3 (the instrument displays the actual
value) and at the same time push and release over and over the key T1 or T2 as long as the
instrument displays the desired value (keeping pushed the key T1 or T2 the value gets de-
creased or increased more quickly); after the modification release the key T3 last (to the
release of the key T3 the instrument displays the label of the parameter again).
To gain access to the second level enter inside the first level and select the label PA.
Keep pushed the key T3 (the instrument displays the actual value) and at the same time push
and release over and over the key T1 or T2 as long as the instrument displays -19 (keeping
pushed the key T1 or T2 the value gets decreased or increased more quickly): after the modi-
fication release the key T3 last (to the release of the key T3 the instrument displays the label PA
again); keep pushed at the same time for four seconds at least the keys T1 and T2 (passed four
seconds the instrument displays the first parameter of the second level).
To select a parameter of the second level push and release over and over the key T1 or T2 as
long as the instrument displays the label of the desired parameter.
To modify the parameter value keep pushed the key T3 (the instrument displays the actual
value) and at the same time push and release over and over the key T1 or T2 as long as the
instrument displays the desired value (keeping pushed the key T1 or T2 the value gets de-
creased or increased more quickly); after the modification release the key T3 last (to the
release of the key T3 the instrument displays the label of the parameter again).
To turn out from the configuration parameters setting procedure keep pushed at the same time
for four seconds at least the keys T1 and T2 or do not operate with the keys for fifty seconds
at least (time-out exit).
ADDITIONAL INFORMATIONS
- for the whole period of a corrupted memory data alarm the access to the configura-
tion parameters setting procedure is refused
- the modification of a parameter value which unit of measure is the hour or the
minute or the second has not immediate effect; to obtain this effect it must not be
executed during the course of the value
- the configuration parameters values get stored in a non volatile memory even if a
lack of power supply happens.
CONFIGURABILITYCONFIGURABILITY
CONFIGURABILITY
CONFIGURABILITYCONFIGURABILITY
WORKING SETPOINT
LABEL MIN. MAX. U.M. ST. WORKING SETPOINT
rA1 rA2 % r.H. 0.0 first working setpoint
If the parameter -/0 has value 1 or 2 it establishes the relative humidity associated to the
output K 1, if the parameter -/0 has value 3 it establishes the relative humidity associated to the
outputs K 1 and K2.
rB1 rB2 % r.H. 0.0 second working setpoint
It establishes the relative humidity associated to the output K 2.
CONFIGURATION PARAMETERS
LABEL MIN. MAX. U.M. ST. PASSWORD
PA -90 100 --- 0 password (§)
It is the password that permits to gain access to the second level.
LABEL MIN. MAX. U.M. ST. KIND OF REGULATOR
-/0 1 3 --- 2 kind of regulator
It establishes the kind of regulator, as indicated:
1 = first working setpoint independent and the second relative to the first
2 = first and second working setpoint independent
3 = neutral zone.
LABEL MIN. MAX. U.M. ST. MEASURE INPUT
/0 30 31 --- 30 kind of probe
It establishes the kind of probe that the instrument must recognize to its measure input, as
indicated:
30 = 2 and 3 wires 4-20 mA humidity transducer
31 = 2 and 3 wires 0-20 mA humidity transducer.
/1 -9.0 +10.0 % r.H. 0.0 calibration (§)
It establishes a threshold to add algebraically to the signal coming from the measure input (for
instance to correct the signal).
/2 0 6 --- 3 digital filter
It establishes a time constant to apply to the signal coming from the measure input, as indi-
cated:
0 = 0 sec. 1 = 0.4 sec.
2 = 1.2 sec. 3 = 3.0 sec.
4 = 8.0 sec. 5 = 19.8 sec.
6 = 48.0 sec.
/4 0 1 --- 0 leading zeroes displaying
It establishes if to display the leading zeroes, as indicated:
0 = the leading zeroes get not displayed
1 = the leading zeroes get displayed.
/5 0 1 --- 1 decimal point
It establishes the resolution with which the relative humidity gets displayed, as indicated:
0 = the relative humidity gets displayed with the resolution of the unit of measure
1 = the relative humidity gets displayed with the resolution of 1/10 of the unit of measure.
/6 -99 +999 points 0.0 lower end of scale for 0/4-20 mA input (it coincides with
It establishes the lower end of scale for 0/4-20 mA input and it must coincide with the mini-
mum calibration value of the transducer.
/7 -99 +999 points +100 upper end of scale for 0/4-20 mA input (it coincides with
It establishes the upper end of scale for 0/4-20 mA input and it must coincide with the maxi-
mum calibration value of the transducer.
LABEL MIN. MAX. U.M. ST. ON-OFF RELATIVE HUMIDITY REGULATOR ASSOCIATED
rA0 -99 +99.9 % r.H. -0.2 hysteresis (differential) (§)
It establishes the hysteresis (differential) relative to the working setpoint.
If the parameter -/0 has value 3 the parameter rA0 establishes the neutral zone value.
rA1 -99 +999 % r.H.0 .0 minimum working setpoint programmable
It establishes the minimum working setpoint programmable; the instrument automatically veri-
fies if the value established with the parameter rA1 is below the maximum working setpoint
programmable established with the parameter rA2.
rA2 -99 +999 % r.H.+100 maximum working setpoint programmable
It establishes the maximum working setpoint programmable; the instrument automatically
verifies if the value established with the parameter rA2 is above the minimum working setpoint
programmable established with the parameter rA1.
rA3 0 1 --- 1 dehumidifying or humidifying functioning
It establishes the output functioning, as indicated:
0 = dehumidifying functioning
1 = humidifying functioning.
rA4 0 1 --- 0 kind of hysteresis (kind of differential)
It establishes the kind of hysteresis (kind of differential), as indicated:
0 = asymmetrical
1 = symmetrical.
rA5 0 1 --- 0 locking of the working setpoint modification
It establishes if to prevent the modification of the working setpoint, as indicated:
0 = the working setpoint can be modified
1 = the working setpoint can not be modified as long as the parameter rA5 gets set to 0.
LABEL MIN. MAX. U.M. ST. ON-OFF RELATIVE HUMIDITY REGULATOR ASSOCIATED
rB0 -99 +99.9 % r.H. -0.2 hysteresis (differential) (§)
It has the same significance of the parameter rA0.
rB1 -99 +999 % r.H.0 .0 minimum working setpoint programmable
It has the same significance of the parameter rA1.
rB2 -99 +999 % r.H.+100 maximum working setpoint programmable
It has the same significance of the parameter rA2.
rB3 0 1 --- 1 dehumidifying or humidifying functioning
It has the same significance of the parameter rA3.
rB4 0 1 --- 0 kind of hysteresis (kind of differential)
It has the same significance of the parameter rA4.
rB5 0 1 --- 0 locking of the working setpoint modification
It has the same significance of the parameter rA5.
LABEL MIN. MAX. U.M. ST. OUTPUT K 1 PROTECTION
CA0 0 999 sec. 0 disabling time to the output activation from the instru-
It establishes the time that disables the output activation from the moment of the instrument
start.
CA1 0 999 sec. 0 disabling time to the output activation from the previous
It establishes the time that disables the output activation from the moment of the previous
output activation.
CA2 0 999 sec. 0 disabling time to the output activation from the previous
It establishes the time that disables the output activation from the moment of the previous
output deactivation.
CA3 0 1 --- 0 output status during a probe failure alarm
It establishes the status to which the output gets forced during a probe failure alarm, as indi-
cated:
0 = during a probe failure alarm the output gets forced to the status OFF
1 = during a probe failure alarm the output gets forced to the status ON.
CA4 0 1 --- 0 disabling time to the output activation and deactivation
It establishes if to disable the output activation and deactivation for a fixed time, as indicated:
0 = inactive
1 = the output activation and deactivation get disabled for 3 sec.
LABEL MIN. MAX. U.M. ST. OUTPUT K 2 PROTECTION
CB0 0 999 sec. 0 disabling time to the output activation from the instru-
It has the same significance of the parameter CA0.
CB1 0 999 sec. 0 disabling time to the output activation from the previous
It has the same significance of the parameter CB1.
CB2 0 999 sec. 0 disabling time to the output activation from the previous
2 3
the minimum calibration value of the transducer)
the maximum calibration value of the transducer)
TO THE FIRST WORKING SETPOINT AND TO THE OUTPUT
K 1
TO THE SECOND WORKING SETPOINT AND TO THE OUT-
PUT K 2
ment start
activation
deactivation
ment start
activation
deactivation
It has the same significance of the parameter CB2.
CB3 0 1 --- 0 output status during a probe failure alarm
It has the same significance of the parameter CB3.
CB4 0 1 --- 0 disabling time to the output activation and deactivation
It has the same significance of the parameter CB4.
LABEL MIN. MAX. U.M. ST. RELATIVE HUMIDITY ALARM REGULATOR ASSOCIATED
AA0 +0.1 +99.9 % r.H. +0.1 hysteresis (differential)
It establishes the hysteresis (differential) relative to the parameter AA1.
AA1 -99 +999 % r.H. 0.0 alarm setpoint
It establishes the relative humidity to which the relative humidity alarm gets activated accord-
ing with the modality established with the parameter AA4.
AA3 0 999 min. 0 disabling time to the alarm activation from the instru-
It establishes the time that disables the relative humidity alarm activation from the moment of
the instrument start.
AA4 1 7 --- 1 kind of alarm
It establishes the kind of relative humidity alarm that the instrument must manage, as indi-
cated:
1 = the relative humidity alarm never gets activated
2 = absolute lower relative humidity alarm
3 = absolute upper relative humidity alarm
4 = lower relative humidity alarm relative to the first working setpoint
5 = upper relative humidity alarm relative to the first working setpoint
6 = lower relative humidity alarm relative to the first working setpoint with automatic
recomputation and reenabling
7 = upper relative humidity alarm relative to the first working setpoint with automatic
recomputation and reenabling.
LABEL MIN. MAX. U.M. ST. RELATIVE HUMIDITY ALARM REGULATOR ASSOCIATED
Ab0 +0.1 +99.9 % r.H.+0.1 hysteresis (differential)
It has the same significance of the parameter AA0.
Ab1 -99 +999 % r.H. 0.0 alarm setpoint
It has the same significance of the parameter AA1.
Ab3 0 999 min. 0 disabling time to the alarm activation from the instru-
It has the same significance of the parameter AA3.
Ab4 1 7 --- 1 kind of alarm
It has the same significance of the parameter AA4.
LABELMIN. MAX. U.M. ST. CONNECTION IN A SERIAL NETWORK WITH EVCOBUS
L1 1 15 --- 1 instrument address
It establishes the address to which the instrument (slave) answers when it is connected to a
serial network with EVCOBUS protocol communication managed from a master (for instance a
Personal Computer).
L2 0 7 --- 0 instrument group
It establishes the group to which the instrument (slave) answers when it is connected to a
serial network with EVCOBUS protocol communication managed from a master (for instance a
Personal Computer).
ADDITIONAL INFORMATIONS
- the symbol (§) indicates that the parameter is of the first level
- if the parameter -/0 has value 3 the parameters of the family rB do not exist.
SIGNALS AND ALARMSSIGNALS AND ALARMS
SIGNALS AND ALARMS
SIGNALS AND ALARMSSIGNALS AND ALARMS
SIGNALS
If the LED L1 is turned ON it means that the output K 1 is activated.
If the LED L2 is turned ON it means that the output K 3 is activated.
If the LED L1 flashes it means that a count of a disabling time to the output K 1 activation is
running (see the parameters CA0, CA1, CA2 and CA4).
If the LED L2 flashes it means that a count of a disabling time to the output K 2 activation is
running (see the parameters CB0, CB1, CB2 and CB4).
If the instrument displays the indication
modified (see the parameters rA5 and rB5).
ALARMS
If the instrument displays the indication E2 flashing and the buzzer utters an intermittent
beep (corrupted memory data alarm) it means that there is a corruption of the configuration
data in the memory (turn OFF and turn ON again the instrument: if to the turning ON again the
alarm does not disappear the instrument must be replaced); during this alarm the access to the
working setpoint setting and the configuration parameters setting procedures is refused and
all outputs get forced to the status OFF.
If the instrument displays the indication E0 flashing and the buzzer utters an intermittent
beep (probe failure alarm) it means that: the kind of connected probe is not proper (see the
parameter /0), the probe is faulty (verify the probe integrity), there is a mistake in the instru-
ment-probe connection (verify the instrument-probe connection integrity), the relative humid-
ity read by the probe is outside the limits permitted by the probe in use (verify that the relative
humidity near the probe be inside the limits permitted by the probe); during this alarm the
output K 1 gets forced to the status established with the parameter CA3 and the output K 2 gets
forced to the status established with the parameter CB3.
If the instrument displays the indication AL1 flashing alternated to the relative humidity read
by the probe and the buzzer utters an intermittent beep (first relative humidity alarm) it
means that the relative humidity read by the probe is outside the limit established with the
parameter AA1 (see the parameters AA0, AA1 and AA4); inactive.
If the instrument displays the indication AL2 flashing alternated to the relative humidity read
by the probe and the buzzer utters an intermittent beep (second relative humidity alarm) it
TO THE FIRST RELATIVE HUMIDITY ALARM
ment start
TO THE SECOND RELATIVE HUMIDITY ALARM
ment start
PROTOCOL COMMUNICATION
≡≡≡≡≡≡
≡≡≡ it means that the working setpoint can not be
≡≡≡≡≡≡
means that the relative humidity read by the probe is outside the limit established with the
parameter Ab1 (see the parameters Ab0, Ab1 and Ab4); inactive.
ADDITIONAL INFORMATIONS
- if the parameter /0 has value 31 during a probe failure alarm given by a mistake in
the instrument-probe connection the instrument displays the indication 0 flash-
ing and the buzzer utters an intermittent beep
- the alarm codes are related in order of precedence.
TECHNICAL DATECHNICAL DA
TECHNICAL DA
TECHNICAL DATECHNICAL DA
TECHNICAL DATA
Case: plastic black (PC-ABS), self-extinguishing.
Size: 74 x 32 x 65 mm (2.91 x 1.25 x 2.55 in.).
Installation: panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.),
Type of protection: IP 54.
Connections: screw terminal blocks with pitch 5 mm (0.19 in., power
Ambient temperature: from 0 to +60 °C (+32 to +140 °F, 10 ... 90 % of not con-
Power supply: 12 Vac/dc or 12-24 Vac/dc, 50/60 Hz, 1.5 VA.
Insulation class: II.
Alarm buzzer: incorporated.
Measure inputs: 1 configurable for 2 and 3 wires 0/4-20 mA humidity trans-
Working range: configurable.
Setting range: all the working range.
Resolution: configurable for 0.1 or 1 % r.H.
Display: 3-digit display 12.5 mm (0.49 in.) high red LED display
Outputs: two 6 (3) A @ 250 Vac relays (NO and change-over con-
Serial port: TTL with EVCOBUS protocol communication, for the con-
HOW TO ORDERHOW TO ORDER
HOW TO ORDER
HOW TO ORDERHOW TO ORDER
CODING SYSTEM
Instrument name: EC 3-432.
Desired measure input: I (for 2 and 3 wires 0/4-20 mA humidity transducers).
Desired power supply: 012 (12 Vac/dc),
Options: custom configuration, green LED display, SSR outputs.
TT
AA
T
A
TT
AA
with the equipped screw or spring brackets.
supply, measure input and outputs) for cables up to 2.5
mm² (0.38 in.²), five poles single line male connector with
pitch 5.08 mm (0.2 in., serial port).
densing relative humidity).
ducers (Ri 56 Ohm); at terminal 12 +12 V (+30 %, -20 %)
are available to supply the transducer.
with automatic decimal point, output status indicators.
tact) for regulation loads management.
nection to the CLONE configurer/cloner and RICS supervi-
sion systems.
024 (12-24 Vac/dc).
Loading...
