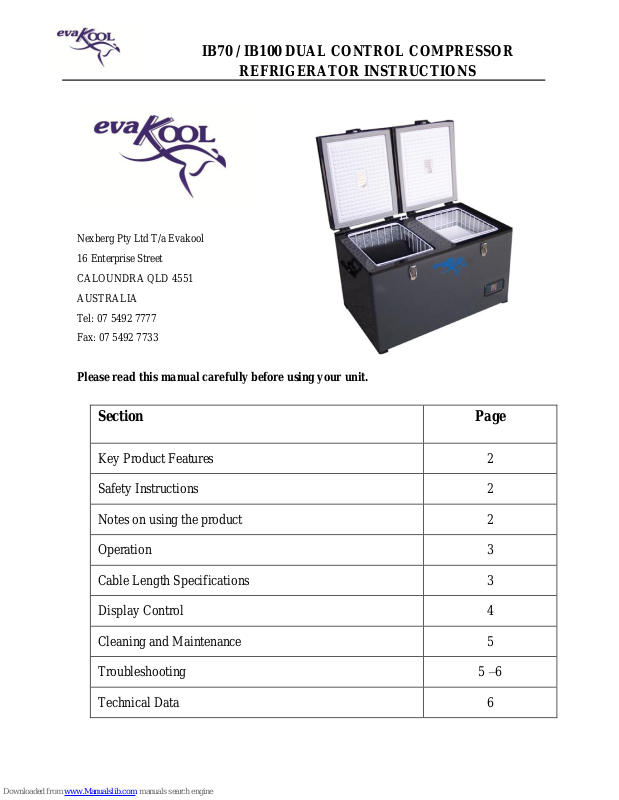

Page 1
IB70 / IB100 DUAL CONTROL COMPRESSOR
REFRIGERATOR I
NSTRUCTIONS
Nexberg Pty Ltd T/a Evakool
16 Enterprise Street
CALOUNDRA QLD 4551
AUSTRALIA
Tel: 07 5492 7777
Fax: 07 5492 7733
Please read this manual carefully before using your unit.
Section
Page
Key Product Features
2
Safety Instructions
2
Notes on using the product
2
Operation
3
Cable Length Specifications
3
Display Control
4
Cleaning and Maintenance
5
Troubleshooting
5 –6
Technical Data
6
Page 2
IB70 / IB100 DUAL CONTROL COMPRESSOR
REFRIGERATOR INSTRUCTIONS
Key Product Features:
The most reliable portable cooling system in the world – Powered by Danfoss
Danfoss electronic technology = high efficiency, low energy consumption
The unit uses a double circle cooling system; it can be a freezer in both
compartments, a fridge in either compartments or a freezer on one side and a
fridge in the other compartment.
Digital thermostat = accurate temperature control
Adjustable battery protection helps protect your battery efficiently (DC only)
CFC free insulation
Safety Instructions
Do not use your unit if any cabling is damaged, frayed or there is exposed wiring.
Do not attempt or continue to operate your unit if water or moisture gets near the
electronic components and wiring.
When using the unit ensure the circuit being used has a fuse or circuit breaker,
recommended size for DC 12 Volt is 15 Amp, DC 24 Volt is 7.5 Amp and AC is 4
Amp.
Make sure the voltage is within the correct range for socket and cable being used.
The technical data label on the side of the unit shows the voltage ranges.
Do not place any electrical devices inside the refrigerator as they may be damaged.
Notes on using the product
Your unit requires good ventilation, especially at the compressor vents; allow a gap
of at least 100mm around all sides.
Do not allow a large amount of frost to build up on the inside walls as this may
impair cooling. Defrost by turning the unit off, allowing the frost to melt and wiping
out the water.
The lower the ambient temperature, the lower the power usage, in order to maximize
efficiency keeps the unit in a cool location out of direct sunlight.
It is recommended to operate the unit on a flat surface, but it will operate at angles
up to 30º.
Page 3
IB70 / IB100 DUAL CONTROL COMPRESSOR
REFRIGERATOR I
NSTRUCTIONS
Operation

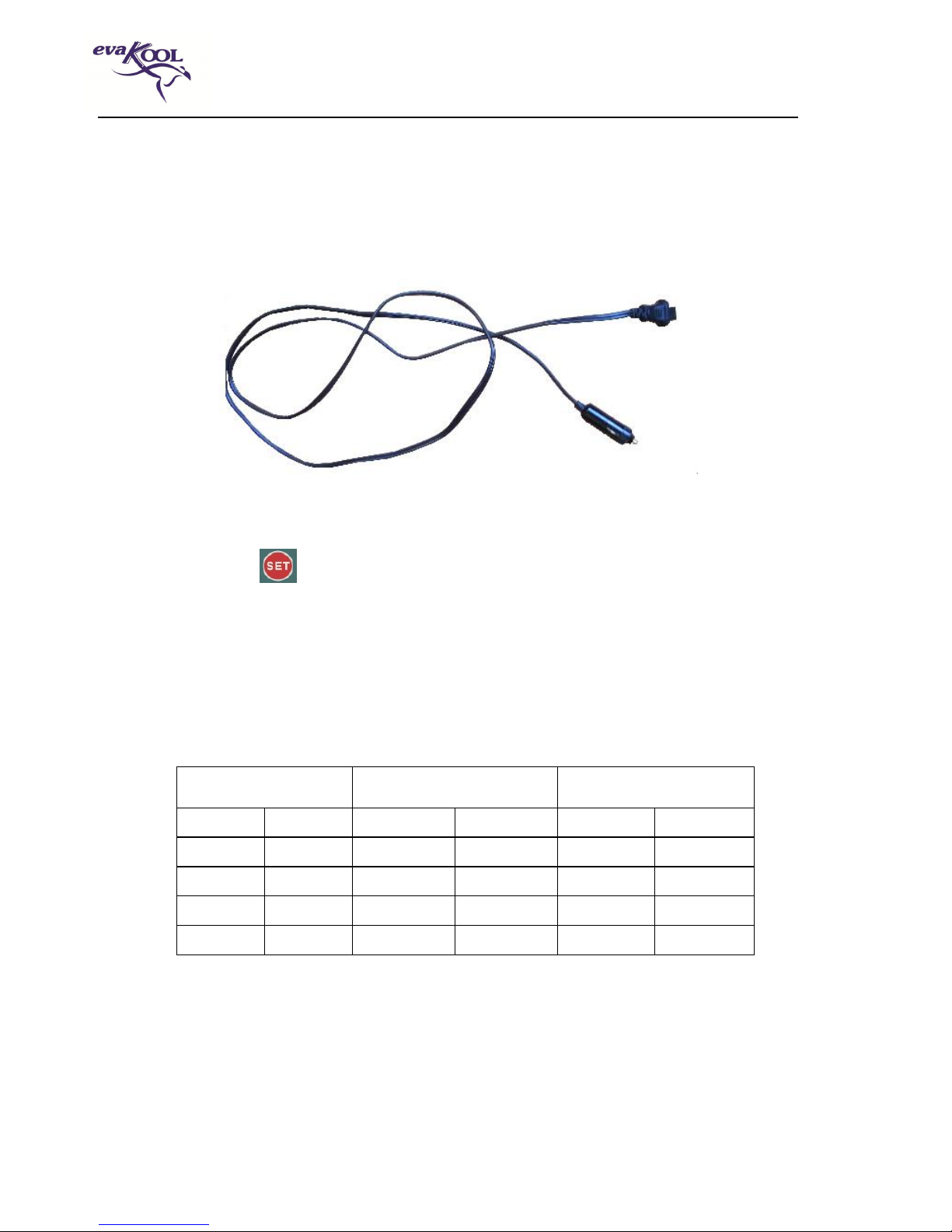

Power： The fridge can be powered by DC 12 and 24 Volt using the 12 Volt lead supplied or
with an AC Adaptor the unit can be run off 240V (mains power).
Battery Protection:
Push and hold the button for three seconds and the Battery Voltage will flash. You can
adjust the low voltage cutout to your own needs. The default and recommended voltage is
10.5 Volts.
Cable Length Specification
The DC cables must have a suitable cross-section for their length** (measured from the
battery to the unit), according to this table:
Cable Area
12V Max Cable
Length
24V Max Cable
Length
[mm2]
AWG
[m]
[ft.]
[m]
[ft.]
2.5
14
2.5 8 5
16
4
12 4 13 8 26 6 10 6 20
12
39
10
8
10
33
20
66
**The length is from the battery to the refrigerator.
Page 4
IB70 / IB100 DUAL CONTROL COMPRESSOR
REFRIGERATOR I
NSTRUCTIONS

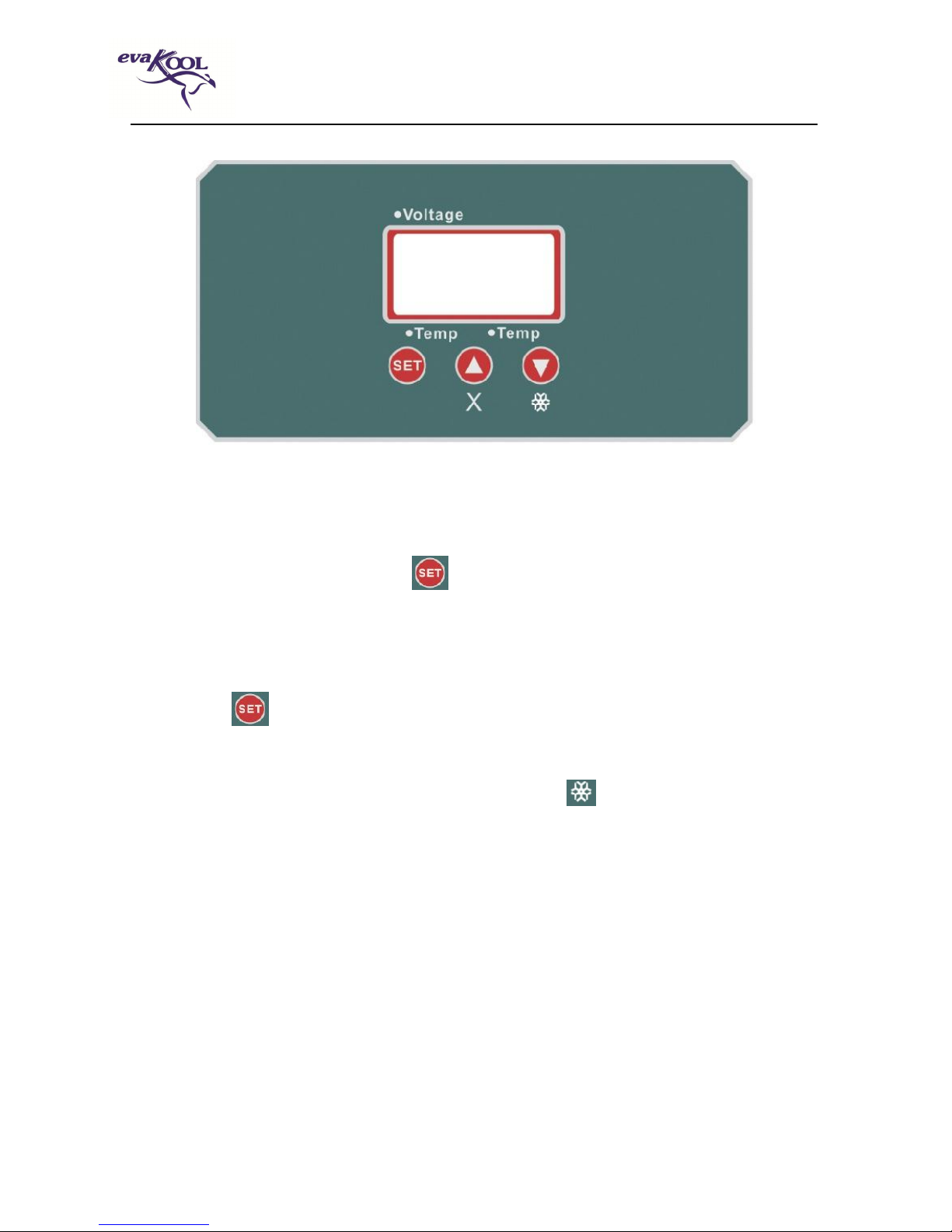

Display Control
The temperature on either side can be set between -18Cº and 10Cº.
The LED can display between -20Cº and 40Cº
To set the temperature - press – The bin temperature you are setting will now
start to flash.
Press the △ button or ▽ button to adjust the temperature the unit aims to
achieve. Press the △ button to increase or the ▽ button to decrease the
temperature.
Press to move to the next bin and repeat the above process.
Press the
▽ button
for 3 seconds to set the speed of the compressor to
MAX（3000 RPM） and press and hold the
△ button
for 3 seconds to reset
the compressor speed to MIN
（2000 RPM）；the light will be on in
MAX mode. If the ambient temperature is above 30oC then please use MAX
mode. Also if you would like to freeze products faster please use MAX mode.
MAX mode will increase the amount of current used.
If the power source is cut off or disconnected, the unit will switch off
automatically and once the power is restored it will automatically switch back
on with the same settings.
Page 5
IB70 / IB100 DUAL CONTROL COMPRESSOR REFRIGERATOR
INSTRUCTIONS
Cleaning and maintenance
Never use abrasive products, detergents or soap. After washing, wipe out with a
clean cloth and dry carefully.
Clean the appliance inside and out with a damp cloth every week. If it is dirty, use
sodium bicarbonate dissolved in lukewarm water to clean the unit.
Never clean the appliance under running water or in dish water. Do not use
hard
objects during cleaning as these can damage the refrigerator.
Do not store electronic items inside the unit.
Do not store perishables inside the unit if it is not on.
When putting the unit into storage ensure that it is completely dry and also leave the
lid slightly ajar to allow ventilation.
Troubleshooting
The unit does not turn on
o Check whether the unit has been turned on and plugged in.
o Check the power supply (try a different power source, i.e. different vehicle, power
socket or power adaptor)
o Check whether the plug and the socket have a good connection.
o Check whether the fuse has been burned out or blown.
Low refrigeration performance
o Too much product has been placed inside the unit
o There is too much warm product inside the unit
o The lid is unlatched / or open
o The lid seal is broken
o Problems arising from poor ventilation (ensure at least 100mm of space around all
vents)
o The ambient temperature is too high
o The temperature setting is too high
Can hear the sound of running water from inside the unit
o This is normal, due to the flow of refrigerant in the unit.
Unusual noise when refrigerator is working
o This may be caused by your refrigerator not running on a level surface.
If none of the above solves your issue please contact Evakool on 07 5492 7777 or your local
Evakool service centre.
Page 6
IB70 / IB100 DUAL CONTROL COMPRESSOR
REFRIGERATOR I
NSTRUCTIONS
Technical Data:
Model
IB70
IB100
Type of environment
T / ST / N / SN
T / ST / N / SN
Safe class
III
III
DC current（V）
12/24V
12/24V
DC fuse（A）
15A
15A
Input power（W）
50
50
Energy consumption (A)
3.5A – 5.4A
3.5A – 5.4A
Refrigerant (g)
90g
90g
Net weight (Kg)
31Kg
33Kg
