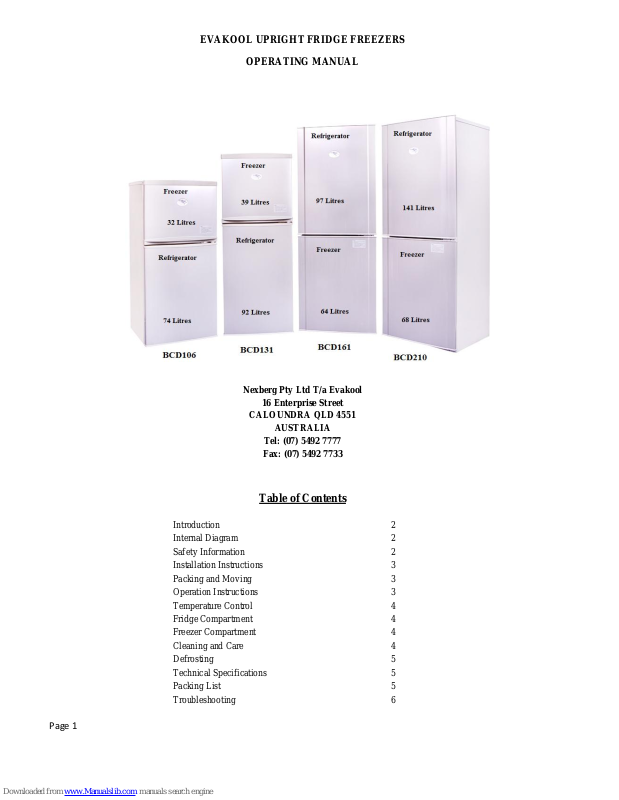

EvaKool BCD106, BCD161, BCD210, BCD131 Operating Manual

EVAKOOL UPRIGHT FRIDGE FREEZERS

OPERATING MANUAL

Page 1

Nexberg Pty Ltd T/a Evakool

16 Enterprise Street

CALOUNDRA QLD 4551

AUSTRALIA

Tel: [phone]

Fax: [phone]

Table of Contents

Introduction 2
Internal Diagram 2
Safety Information 2
Installation Instructions 3
Packing and Moving 3
Operation Instructions 3
Temperature Control 4
Fridge Compartment 4
Freezer Compartment 4
Cleaning and Care 4
Defrosting 5
Technical Specifications 5
Packing List 5
Troubleshooting 6

EVAKOOL UPRIGHT FRIDGE FREEZERS

OPERATING MANUAL

Page 2

Introduction

Thank you for purchasing an Evakool Upright Fridge Freezer. These units utilize a 12/24V compressor, offering lower power consumption and
great cooling performance. Evakool offers a 2 year warranty, valid from the date of purchase.

Internal Diagram

1 – Freezer Compartment
2 – Shelf (Only in BCD-131)
3 – Temperature Controller / Light
4 – Fridge Compartment
5 – Vegetable and Fruit Crisper
6 – Freezer door shelf (Only in BCD-131)
7 – Fridge door bottle shelf

1 – Egg Tray
2 – Temperature Controller / Light
3 - Bottle Shelf
4 – Fridge Compartment
5 - Large Bottle Shelf
6 – Water drain
7 – Vegetable and Fruit Crisper
8 – Freezer Compartment

Safety Information

Please read and follow all safety instructions

● When removing the plug from the power source, hold the plug and do not pull the cable.

● Avoid any moisture or liquids coming into contact with the electronics.

● Never store glass bottles or soft drink / beer cans in the freezer as these may shatter or explode.

● Whenever the unit is operating please ensure it is upright and level.

● Always make sure the correct voltage is being used.

● Never obstruct the vents as they supply the necessary cooling airflow to the compressor and fan.

● Do not place any electrical devices (e.g. power adaptors) inside the refrigerator as they may be damaged by moisture and humidity

generated during use of the fridge.
