1 INTRODUCTION

1.1 Introducing the CyberScan Series 5000

Thank you for selecting a Eutech Instruments CyberScan Bench meter. This manual describes the operation of the CyberScan Series 5000 bench meters. The state-of-art meter that you have purchased is easy to operate and will guide you through the various functions by displaying easy to understand prompts. This instruction manual should answer any questions that might arise in operating your meter, however, do not hesitate to call our Technical Support at (65) 67786876 (ext 837) or fax at (65) 67730836.

This bench meter provides microprocessor precision in a compact benchtop design that is easy to use. One touch screen controls all procedures, letting you:

 Measure pH, absolute mV, relative mV , ion concentration (CyberScan pH5500 only)

 Select one of three sets of standard buffer groups  Implement automatic buffer recognition  Standardize with up to five standard or customer buffers  Customise your display screen and operating parameters  Assign operator and sample identification numbers  Store 250 data points in the meter’s memory or transfer data to

a computer or printer.  Access extensive online help with just a touch a button

It all adds up to rapid, completely automatic, intuitive operation.



You will find this symbol appearing in this manual; it indicates useful tips that ease your meter operation.

1

Instruction Manual CyberScan pH5500/ 5000

2 UNPACKING THE METER

The following is a listing of what you should have received with your new CyberScan meter.

Meter package includes

 Meter  Power adapter (120 VAC/ 12VDC) OR (220 VAC/ 12 VDC)

depending on order code.

 Electrode arm support bracket  Electrode arm  ATC probe  Instruction Manual

If any of these items are missing, please contact your nearest Authorized Distributor.

Accessory conductivity probes and ion selective electrodes are available and can be ordered by contacting any Authorized Distributor or Eutech Instruments Marketing (65) 67786876.

2

Instruction Manual CyberScan pH5500/ 5000

3 GETTING STARTED

3.1 Connectors

1. Review the layout and arrangement of the rear connector panel.

3

Instruction Manual CyberScan pH5500/ 5000

2. Connect the electrode arm to the base.

3. Connect the power cable to the connector cable to the rear connector panel power jack and to a power source.



To connect RS232, see Data Management on Section 15.2.

4

Instruction Manual CyberScan pH5500/ 5000

3.2 pH Electrodes & Ion Specific Electrodes

(Ion Specific Electrode applicable for CyberScan pH5500 only) This meter allows you to use two types of pH electrodes: the

conventional glass pH electrode and the field effect transistor (FET) pH electrode.



If both types of pH electrodes are connected, the meter will read the FET electrode.

1. Carefully remove the protective cover from the end of the electrode. Before first using your glass pH electrode, soak it 2-4 hours in an electrode storage solution, pH 4 buffer, or KCI solution.

2. Remove the shorting cap on BNC connector. Connect the combination pH electrode in to the BNC input connector.

If a combination electrode is not used, connect the indicating pH

electrode into the BNC input connector. Plug the reference electrode into the reference pin jack. Also, install the ATC probe

into the ATC jack. Note:

Be sure to connect all probes to the appropriate channel connectors (for example: Input 1, Ref 1 and ATC1).

5

Instruction Manual CyberScan pH5500/ 5000

Option: Connect the optional FET electrode by plugging it into the FET jack on the back meter panel. Allow the FET electrode to warm up five minutes before use.

Connect ion specific electrodes in the same manner as pH electrodes.



If both a conventional and a FET electrode are connected to the meter, do not put them in a solution together because you will get inaccurate measurements. Do not discard the BNC shorting cap.

3. Rinse and blot-dry (do not wipe) electrodes between each measurement. Rinse electrodes with distilled or deionized water, or a portion of the next solution to be measured.

4. Between measurements, store conventional pH electrodes storage solution, pH 4 buffer, or KCI solution. Always leave the filling hole of liquid filled combination electrodes open. Refill when the level of solution gets below the manufacturer’s recommended level.



Proper electrode care is fundamental to obtaining reliable pH measurements. Improper care of the electrode may cause the meter reading to drift, respond slowly, or produce erroneous readings. For this reason, the electrode should always be conditional and used in accordance with manufacturer’s instructions.

6

Instruction Manual CyberScan pH5500/ 5000

4 USING THE METER

E U T E C H

INSTRUMENTS

11:11 am

Touch anywhere to resume

7

Instruction Manual CyberScan pH5500/ 5000

4.1 Touch screen Operation

This new CyberScan research benchtop meter operates with a state of art touch screen. The touch screen makes this the easiest meter on the market to operate and care for. When this meter is first plugged in, the STANDBY screen will appear. Touch anywhere on this screen to access the functions of the meter.

The buttons on the right side of the screen control all of the functions of the meter. Alight touch on the screen is all you need to access the various functions. Once you touch a button you will get an audible

the screen will not change until you lift your finger.

tone; This design prevents rapid uncontrolled scrolling through the various

function screens. Easy to understand prompts guide you through the operation of the meter in the selected mode. If you are ever in doubt about what to do, just touch help on the bottom right corner of the screen for detailed information about the screen.

The touch screen is made of a durable polyester material that is chemically resistant. Maintenance is simple with this meter. To clean the screen you just need to wipe it with a damp cloth and dry it with a clean dry towel. For additional information, see Cleaning and Troubleshooting sections of the manual. (Pg 121-122)

8

Instruction Manual CyberScan pH5500/ 5000

n

4.2 Choosing a Channel (For CyberScan pH5500 only)

Main Screen Channel Scree

E U T E C H

INSTRUMENTS

CyberScan pH 5500

Select from the options to the right

January 15, 2002 11:11 am

Measure

pH

mV

Ion

setup

pH channel 1

9.295

ID#

00000

auto bu ffer

Buffers

January 15, 2002 11:11 am

abs mV channel 2

ATC

ON

slope

mV

Last std: Jan 15 @ 11:11

E U T E C H

INSTRUMENTS

CyberScan pH 5500

Select from the options to the right

January 15, 2002 11:11 am

1

2

25.0°C

000.0%

0000.0

am

1

2

dual

177.0

defualt

ID#

00000

Dual Scree

25.0°C

9

Instruction Manual CyberScan pH5500/ 5000

The CyberScan pH5500 is a multi-channel meter. With this meter you can switch from channel 1 to channel 2. You can also view both channels at the same time by accessing the dual channel mode. If you set the meter to view both channels, you cannot change the parameters without choosing the screen that you want to modify. The setup parameters for each screen independently of one another.

Choosing a channel

1. Touch anywhere on the standby screen.

OR Touch channel on the main screen THEN

2. Touch 1, 2 or dual to access the channel that you want to view.

To access System Setup from the standby screen

1. Touch anywhere on the standby screen.

2. Touch 1, 2 or dual to access the channel that you want to view.

3. Touch setup.

4. Touch system on the setup screen.



If you are in any measure mode, touch mode until you access the main screen.

10

Instruction Manual CyberScan pH5500/ 5000

4.3 Button Functions

The touch screen of your CyberScan bench meter has “buttons” along the right side of the screen that are common to many of the screens. The following indicates the function of these common buttons.

This is the standby button and it allows you to access the standby mode. When in standby, the meter will not take measurements. It is in a state of rest. When you touch stdby the meter will return to the standby screen which says “Eutech Instruments” and displays the time.

This button allows you to access the channel screen to choose what channel you want to view. This button appears only on multi-channel meter such as CyberScan pH5500. This button also allows you to move from the main mode to the channel screen to access the standby mode.

The mode button allows you to switch between the various

mode

enter

save

close

more

back

operations of the meter. These operations, depending upon which meter you have, include four measuring modes (pH, mV, ion) as well as a setup mode.

The enter button allows you to accept any changes that you have made on one setup screens or accept values that you have input with keypads. When touched, enter will save the changes and return you to the previous screen.

The save button allows you to save multiple changes that you have made on one screen as a group. It functions like the enter button does for an individual changes.

The exit button allows you to leave the screen you are currently viewing and return to the previous screen without making any changes.

The help button allows you to access helpful information on any screen. When you touch the help button, information about the current screen appears. This information will include step by step instructions for operating the meter from the current screen and possible applications information for that screen.

The close key appears on the bottom of all help screens and allows you to exit the help screen and return to the previous screen.

The more button appears on the help screens and allows you to advance to the next help screen for additional information.

The back button appears on the help screen and allows you to move back to a previous help screen.

11

Instruction Manual CyberScan pH5500/ 5000

std

meas

setup

print

edit

clear

BS

delete

This button accesses the standardization screen from the various measurement modes and initiates standardization of the meter once the standardization screen is accessed.

This button is the measure button and directs the meter to measure your sample when in the Auto Read function of the pH mode.

This button will access the setup screens for the measuring mode that you are currently using. It can also be used to access the system setup screen that allows you to set parameters that are not related to measurements such as the times and the date.

The print button will send information to the output device that you have connected to your meter. The output device can be a printer, data logger or a computer. In addition to this, touching the print button will also send data to the data storage center of the meter if a sample ID # has been assigned to your sample.

The arrow keys on he screen move the cursor up and down in order to highlight parameters that you would like to review or edit.

T

The edit button appears on the setup screens. After you have highlighted a parameter that you would like to change, the edit button allows you to access the available options for that parameter.

The clear button allows you to remove a setup parameter or standard buffer value from the meter’s memory that may have been entered at a previous time or by a previous user that is no longer of value to you. Touching the clear button erases the value so you may enter a new one. It can also erase the data from the memory of the meter.

The BS button is a backspace button. It appears on keypad screens and it allows you to back up and delete a character entered in error.

The delete button appears on the “View Stored Data” screens. This button allows you to erase the data from the memory of the meter.

The prev button appears on the Data Screens when the data stored in the meter’s memory has been accessed. It allows you to scroll through data points sorted and stored prior to the current data point displayed.

The next button appears on the Data Screens when the data stored in the meter’s memory has been accessed. It allows you to scroll through data points sorted and stored prior to the current data point displayed.

12

Instruction Manual CyberScan pH5500/ 5000

5 SYSTEM SETUP

System Setup

S

SYSTEM SETUP OPTIONS

-

Select

Language

- Set

Date

T

Time

- Set

Beeper Status

- Set

Print Configuration

edit

- Set

Operator

- Set

Display Contrast

- Display

- Reset to

Meter Information

Factory Defaults

13

Instruction Manual CyberScan pH5500/ 5000

5.1 Access System Setup

E U T E C H

INSTRUMENTS

1

E U T E C H

INSTRUMENTS

pH

CyberScan pH 5500

2

CyberScan pH 5500

mV

Select from the options to the right

January 15, 2002 11:11 am

Setup



Select from the options to the right

dual

pH

mV

Ion

Select from the options to the right

January 15, 2002 11:11 am

System Setup

SYSTEM SETUP OPTIONS

- Selec t

Language

- Set

Date

- Set

Time

- Set

Beeper S tatus

- Set

Print Configuration

- Set

Operator

- Set

Display Contrast

- Displa y

Meter Informati on

- Reset to

Factory Defaults

Ion

setup

S

T

edit

setup

14

Instruction Manual CyberScan pH5500/ 5000

The system setup function allows you to customise the meter display options to meet your personal preference. Once set, these will rarely need to be changed.

To access System Setup

1. Touch anywhere on the standby screen

2. Touch setup on the main screen

3. Touch system on the setup screen The system setup options are now displayed on the screen.

To access a System Setup option

1. Use the arrow keys to scroll through the setup options and

highlight the option to be reviewed.

2. Touch edit to view the current status of the selected option.

The following is a detailed description of the system setup option screens

15

Instruction Manual CyberScan pH5500/ 5000

5.2 Select Language

Set

Language

Current LANGUAGE

English

French

German

Spanish



Use to highlight desired language

arrow keys

and then touch to accept

enter

English

S

T

enter

16

Instruction Manual CyberScan pH5500/ 5000

This option allows you to choose the language in which all prompts and directions will appear on the touch screen.

To Select Language

1. Access the select language screen from the system setup

screen. The current language is displayed on the screen.

2. Use the arrow keys to highlight the desired language

3. Touch enter to accept the language and return to the system

setup screen.

OR

Touch exit to return to the system setup screen, without making

any changes.

17

Instruction Manual CyberScan pH5500/ 5000

5.3 Set Date

Set

Date

enter

Current MM/DD/YY

1 2 3

4 5 6

7 8 9

BS 0 /



Touch clear to delete current date



Use numeric touchpad to input the new

date and then touch enter to accept

D/M/Y

clear

18

Instruction Manual CyberScan pH5500/ 5000

This screen can be used to set the present date which will be displayed on the measure screens. This date will also be printed on demand and stored in the data storage center of the meter when data is saved. There are two format options for the date: month/ day/ year

(M/ D/ Y) or the European format of day/ month/ year (D/ M/ Y)

To Set Date

1. Access the Set Date screen from the System Setup screen. The

current date and numeric keypad are displayed on the screen.

2. Touch clear to delete the current entry.

3. Touch D/ M /Y or M/ D/ Y to set the date format.

4. Use the numeric touch pad to enter the desired date, separating

the day, the month and the year by touching the / key on the keypad.

5. Touch enter to accept the date in the current format.

OR

Touch exit to return to the system setup screen, without making

any changes.



If you do not use “/”, the meter will not accept the date entry.

19

Instruction Manual CyberScan pH5500/ 5000

5.4 Set Time

Set

Time

enter

Current 12HR:

10:40 am

1 2 3

4 5 6

7 8 9

BS 0 /



Touch to delete current time

clear



Use to input the new

numeric touchpad

time and then touch to accept

enter

24hr

pm

clear

20

Instruction Manual CyberScan pH5500/ 5000

This screen can be used to set the present time which will be displayed on the measure screens. This time will also be printed on demand and stored in the data storage center of the meter when data is saved. There are two formats options for the time. The clock can be set as either a 12 hour clock or a 24 hour clock.

To Set Time

1. Access the set time screen from the System Setup screen. The

current time and numeric keypad are displayed on the screen.

2. Touch clear to delete the current entry.

3. Touch the 24hr or 12hr button to format the clock as either a 12

hour or a 24 hour clock.

4. Touch am or pm to set the appropriate time.

5. Use the numeric touch pad to enter desired time, separating the

hour and the minutes by touching the “

6. Touch enter to accept the time in the current format

OR

Touch exit to return to the System Setup screen, without making any changes.

Current 12HR

Current 24HR

5:15 pm

17:15

:” key in the keypad.



If you do not use the “:”, the meter will not accept the time.

21

Instruction Manual CyberScan pH5500/ 5000

5.5 Set Beeper Status

Set

Beeper Status

S

Current BEEPER STATUS

-

After STABLE Reading

OFF

- After KEY Touch

- On LIMIT Exceeded



Use to highlight beeper

arrow keys

option and then touch to change

Touch to accept changes

save



ON/OFF

OFF

T

ON

save

22

Instruction Manual CyberScan pH5500/ 5000

This screen allows you to turn on or off the beeper. You may choose to have an audible signal when the meter recognizes that the current measurement is stable, each time a function button is touched and/ or when the set limits of a measurement mode have been exceeded.

After stable reading

When active, the meter delivers an audible tone each time the meter recognizes the current measurement as stable. If deactivated, you will not hear an audible tone at a stable measurement. You will still see the STABLE indicator even if there is no audible tone.

After key activation

When active, the meter delivers an audible tone each time you touch a function button or a key on an alphanumeric keypad. If deactivated, you will not hear a tone after a key touch. The changes will only be visible on the screen.

On LIMIT Exceeded

When active, the meter delivers an audible tone each time the set limits in a measurement mode have been exceeded. If deactivated, you will not hear an alarm tone when the limits in the measurement modes have been exceeded. You will see the LIMIT indicator on the measurement screen. For additional information on the alarm limits of the meter, see the setup sections of this manual for each of the measurement modes.

To Set Beeper Status

1. Access the set beeper status screen from the System Setup

screen. The current beeper status is displayed on the screen.

2. Use the arrow keys to highlight the beeper status option that you

would like to modify.

3. Touch ON or OFF until the desired status is visible in the current

beeper status box.

4. Touch save to accept the change sand return to the System

Setup screen.

OR

Touch exit to return to the System Setup screen without making any changes.

23

Instruction Manual CyberScan pH5500/ 5000

5.6 Select Procedural Level

Select

Procedural Level

Current LEVEL

LEVEL 1

LEVEL 2

1

- Basic Level

- Advanced Level

Procedural Level 1

January 15, 2002 11:11am

enter

1

2

Temperature

Electrode Performance

25.0°C

100%

Procedural Level 2

January 15, 2002 11:11am

ID#

00000

auto buffer

ON

ATC slope mV

25.0°C 100%

0000.0

24

Instruction Manual CyberScan pH5500/ 5000

This selection screen allows you to choose the amount of information that you want to have displayed on the screen. There are two levels to choose from. Both of the levels provide identical results. The amount of information appearing on the measure screens and the number of setup parameters you can manipulate will vary from Basic to Advanced procedural levels.

LEVEL1- Basic level

This level option offers a full set of prompts to guide you through the basic operation of the meter. The information provided on the screen is minimal to reduce clutter. It includes the measurement and the last standardization time and buffer values. The data box at the bottom of the measure screen includes the current date, time, sample temperature and the electrode performance. In addition to the limited information appearing on the measure screen, there are also fewer options available to you in the setup screens of the various measurement modes.

LEVEL 2- Advanced level

This option allows you to access to all of the features available on the meter. A full set of prompts is available on virtually every screen to lead you through the operation of the meter. You are also given access to all setup parameters for the various measurement modes. Any parameter not appearing on the basic level setup screens will maintain the value previously set in the advanced level setup screens. They will not automatically default to factory default settings. This is ideal if you want to “lock” in a parameter in the Advanced Level and switch to the Basic Level so others cannot accidentally modify the parameters.

To Select Procedural Level

1. Access the select procedural level screen from the System Setup screen. The current procedural level is displayed on the screen.

2. Use the numbered buttons on the right of the screen to select the desired procedural level.

3. Touch enter to accept the procedural level and return to the System Setup screen.

OR

Touch exit to return to the System Setup screen, without making

any changes.

25

Instruction Manual CyberScan pH5500/ 5000

5.7 Set Print Configuration

Set

Print Configuration

S

Current PRINT CONFIGURATION

- Baud Rate

- Number of Bits

- Stop Bits

- Parity

- Serial Output Mode



Use to highlight desired print setting and then touch to change

NONE

arrow keys

19200

TEXT

edit

8

1

T

edit

26

Instruction Manual CyberScan pH5500/ 5000

You can adjust the print configuration of this meter from this screen. The configuration of the following screens must match the configuration of the printer or computer to which the data will be sent.

To Set Print Configuration

1. Access the Print Configuration screen from the System Setup screen. The current Print Configuration is displayed on the screen.

2. Use the arrow keys to highlight the configuration option to be modified.

3. Touch edit to access the parameters for the highlighted option

OR

Touch exit to return to the system Setup screen, without making any changes.

27

Instruction Manual CyberScan pH5500/ 5000

5.8 Set Baud Rate

This configuration option will control the speed at which the data will be transmitted by the printer. This parameter needs to match the baud rate designated by the printer or computer.

To Set Baud Rate

1. Access the Set Baud Rate screen from the Set Print Configuration screen. The current baud rate is displayed on the screen.

2. Use the arrow keys to highlight the baud rate option that matches the baud rate of your printer or computer.

3. Touch enter to accept the baud rate and return to the Set Print Configuration screen.

OR

Touch exit to return to the Set Print Configuration screen, without making any changes.

Set

Baud Rate

Current BAUD RATE

9600

110 300

600 1200 2400 4800

9600

19200 38400

S

T

enter

28

Instruction Manual CyberScan pH5500/ 5000

5.9 Set Number of Bits

To Set Number of Bits

1. Access the Set number of Bits screen from the Set Print Configuration screen. The current number of bits is displayed on the screen.

2. Touch 7 or 8 to select the number of bits.

3. Touch enter to accept the bit value and return to the Set print Configuration screen.

OR

Touch exit to return to the Set Point Configuration screen, without making any changes.

Set

Number of Bits

Current NUMBER OF BITS

enter

7

8

29

Instruction Manual CyberScan pH5500/ 5000

5.10 Set Stop Bits

To Set Stop Bits

1. Access the Set Stop Bits screen from the Set Print Configuration screen. The current number of bits is displayed on the screen.

2. Touch 1 or 2 to set the desired number of stop bits.

3. Touch enter to accept the stop bit value and return to the Set Print Configuration screen.

OR

Touch exit to return to the Set Print Configuration screen, without making any changes.

Set

Stop Bits

Current STOP BITS

enter

1

2

30

Instruction Manual CyberScan pH5500/ 5000

5.11 Set Parity

To Set Parity

1. Access the Set Parity screen from the Set Print Configuration screen. The current Parity is displayed on the screen.

2. Touch ODD or EVEN or NONE to set the desired parity.

3. Touch enter to accept the parity setting and return to the Set Print Configuration screen.

OR

Touch exit to return to the Set Print Configuration screen, without making any changes.

Set

Parity

Current PARITY

enter

NONE

EVEN

ODD

31

Instruction Manual CyberScan pH5500/ 5000

A

Y

5.12 Set Operator

Set

Operator

enter

Current Operator

B C 1

D E F 2

G H I 3

J K L 4

M N O 5

P Q R 6

S T U 7

V W X 8

Z - 9

BS / . 0

clear

32

Instruction Manual CyberScan pH5500/ 5000

This option allows you to identify the user of the meter. This information can be saved in the meter’s memory. It can also be printed out with measurement data on demand. The operator identification can be up to 9 characters in length.

To Set Operator

1. Access the Set Operator screen from the System Setup screen. The current operator identification is displayed on the screen.

2. Touch clear to remove the current operator identification.

3. Use the alphanumeric keys on the touch screen to enter the desired operator identification. The BS button will allow you to backspace to remove a character that was incorrectly entered. The operator identification code can be a maximum of 9 characters in length.

4. Touch enter to accept the new operator identification.

OR

To deactivate the operator identification: a) Touch clear to erase the current user identification. b) Touch enter to return to the System Setup screen.

OR Touch exit to return to the System Setup screen. OR

Touch exit to return to the System Setup screen, without making any changes.

33

Instruction Manual CyberScan pH5500/ 5000

5.13 Set Display Contrast

Set

Display Contrast

lighter

darker

17



Touch o r t o ad j ust

lighter darker

contrast and then touch to accept



The value displayed ranges from

0(darkest) to 25 (lightest)

save

34

Instruction Manual CyberScan pH5500/ 5000

This option allows you to change the contrast on the screen to improve the readability of the information presented on the screen. The numbering system that appears on the screen is from 0 to 25. The darkest setting is 0 and the lightest setting is 25.

To Set Display Contrast

1. Access the Set Display Contrast screen from the System Setup screen. The current display contrast value is displayed on the screen.

2. Use the lighter or darker button to adjust the contrast of the screen to the desired level.

3. Touch save to accept the contrast setting and return to the System Setup screen.

OR

Touch exit to return to the System Setup screen, without making any changes.



The display contrast of the screen is affected by the internal temperature of the meter. The meter will warm up after being plugged in. during this period (approximately 20 minutes), the display contrast of the screen will get lighter. You may need to adjust the contrast during this period to meet your specifications.

35

Instruction Manual CyberScan pH5500/ 5000

5.14 Display Meter Information

This screen displays the model number, serial number and current software revision of your meter.

E U T E C H

INSTRUMENTS

CyberScan pH 5500

Unit Serial Number: XX999XXX Software Revision: 1.04b

36

Instruction Manual CyberScan pH5500/ 5000

Y

5.15 Reset to Factory Defaults

This screen allows you to reset all functions and setup parameters of the meter of the settings originally programmed at the factory.

To Reset to Factory Defaults

1. Access the Reset to Factory Defaults screen from the System Setup screen.

2. Touch Yes to reset all parameters to the original factory default settings.

OR

Touch NO to return to the System Setup screen, without making any changes.

Reset to Factory Defaults

You are about to reset all parameters of the meter to factory default settings.

Are you sure you want to do this?

ES

NO

37

Instruction Manual CyberScan pH5500/ 5000

6 pH SETUP

pH Setup

pH SETUP OPTIONS

- Set

Sample ID#

- Select

- Set

- View

Buffer Group

Buffer Recognition

Auto Read Mode

pH Stability Criteria

Default Temperature

Isopotential Point

Alarm Limits

Print Criteria

Print Interval

Data Storage Criteria

Display Resolution

Display Configuration

Stored Data

S

T

edit

The operating parameters of the pH mode can be set and controlled from the pH setup screen. The following sections will guide you through the various options available in the pH setup mode.

38

Instruction Manual CyberScan pH5500/ 5000

6.1 Access pH setup

E U T E C H

INSTRUMENTS

pH

Setup

pH

CyberScan pH 5500

mV

Ion



Select from the options to the right

Ion



Select from the options to the rig ht

Last std: Jan 15 @ 11:11 am

pH Setup

pH SETUP OPTIONS

- Set

Sample ID#

- Select

Buffer Group

-

Select

Buffer Recognition

- Select

Auto Read Mode

- Set

pH Stability Criteria

- Set

Default Tempe rature

- Set

Isopotential Point

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criter ia

- Set

Display Resolution

- Set

Display Configuration

- View

Stored Data

setup

S

T

edit

system

There are two ways to access the pH Setup screen.

From the setup screen

1. Touch setup on the main screen. Touch pH to access the pH Setup screen.

2. Use the arrow keys to highlight the setup option that you would like to review.

3. Touch edit to access the screen for the selected option.

.

39

Instruction Manual CyberScan pH5500/ 5000

J

E U T E C H

INSTRUMENTS

pH

Measure

pH

channel 1

std

CyberScan pH 5500

mV

Ion

7.00

7

Last std: Jan 15 @ 11:11 am

BUFFERS

meas



Select from the options to the right

setup

Last std: Jan 15 @ 11:11 am



Touch to measure sample

meas

or

Touch to acc ess standardize

std



anuary 15, 2002 11:11am

00000

ID#

auto buffer

ATC

ON

Slope

mV

25.0°C

NA

0000.0

From the pH measure screen

1. Touch pH on the main screen to access the pH mode. Touch setup option that you would like to review.

2. Use the arrow keys to highlight the setup option that you would like to review

3. Touch edit to access the screen for the selected option.

pH Setup (Channel 1)

pH SETU P OPTIONS

- Set

Sample ID#

- Select

Buffer Group

-

Select

Buffer Recognition

- Select

Auto Read Mode

- Set

pH Stability Criteria

- Set

Default Tempe rature

- Set

Isopotential Point

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criter ia

- Set

Display Resolution

- Set

Display Configuration

- View

Stored Data

S

T

edit



For CyberScan pH 5500, pH/ mV/ Ion setups are done independently for Channel 1 and 2.

40

Instruction Manual CyberScan pH5500/ 5000

A

Y

6.2 Set Sample ID#

Set

pH Sample ID#

enter

Manual ID#

B C 1

D E F 2

G H I 3

J K L 4

M N O 5

P Q R 6

S T U 7

V W X 8

Z - 9

BS / . 0

clear

41

Instruction Manual CyberScan pH5500/ 5000

When this option is active, each time you touch print on the Measure screen the pH value along with the date/ time/ channel and the sample ID# will be sent to data storage. (See Data Storage Criteria page 68 for additional information on saved parameters). You can manually enter an alphanumeric identification number of up to 9 characters for any sample or you can have the meter sequentially number your samples beginning at the number of your choice. You may choose to deactivate the sample ID#.

To Set Sample ID#

Manual ID# Assignment

1. Access the Set Sample ID# screen from the pH (mV, Ion) Setup screen.

2. Touch man for manual ID# entry. The current ID# is displayed on the screen.

3. Touch clear to delete the current ID#.

4. Use the alphanumeric keypad on the screen to meter the desired Sample ID#. The BS Key will allow you to backspace to remove a character that was incorrectly entered.

5. Touch enter to accept the current ID# and return to the pH (mV, Ion) Setup screen.

42

Instruction Manual CyberScan pH5500/ 5000

Set

pH Sample ID#

enter

Sequential ID#

1 2 3

4 5 6

7 8 9

BS 0 .



Touch to delete current ID

clear



Use to input the new

numeric touchpad

starting ID and then touch to accept

enter

24hr

clear

43

Instruction Manual CyberScan pH5500/ 5000

Sequential ID# Assignment

1. Access the Set Sample ID# screen from the pH (mV, Ion) Setup screen.

2. Touch seq for sequential ID# assignment. The current ID# is displayed on the screen.

3. Touch clear to delete the current ID#.

4. Use the alphanumeric keypad on the screen to enter the number that you would like your sequential ID# assignment to begin with. Every time you touch print on the measure screen, the ID# will increase by 1. The BS key will allow you to backspace to remove a character that was incorrectly entered.

5. Touch enter to accept the first sequential ID# and return to the pH (mV, Ion) Setup screen.

OR

To Deactivate the Sample ID# Assignment

1. Access the Set Sample ID# screen from the pH (mV, Ion) Setup screen.

2. Touch man for manual ID# entry. The current ID# is displayed on the screen.

3. Touch clear to delete the current ID#.

4. Touch enter. The ID# assignment is now deactivated. No number will be assigned to your samples. The meter will return to the pH (mV, Ion) Setup screen.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.

44

Instruction Manual CyberScan pH5500/ 5000

6.3 Select Buffer Group

View

pH Buffer Group

enter

Current Buffer Group

USA

2 4 7 10 12



Use to display desired buffer group

keys

and then touch to accept

enter

EURO

NIST

custom

45

Instruction Manual CyberScan pH5500/ 5000

This setup option allows you to select from 3 different buffer groups each containing 5 buffers, for auto buffer recognition. Or you can create a custom group of buffers for auto buffer recognition by touching custom.

The 3 existing buffer groups are:

USA buffers: 2,4,7,10 and 12 European buffers: 1,3,6, 8 and 10 NIST buffers: 1.68, 4.01. 6.86. 9.18 and 12.45

To Select Buffer Group

1. Access the select pH buffer group screen from the pH Setup screen. The current buffer group is displayed on the screen.

2. Touch USA or NIST or EURO or custom on the right of the screen to select a buffer group

3. Touch enter to accept the buffer group to be used for auto recognition.

OR

Touch exit to return to pH Setup Screen, without making any changes.

46

Instruction Manual CyberScan pH5500/ 5000

6.4 Set pH Custom Buffer Group

View

pH Custom Buffer Group

Current BUFFER GROUP

CUSTOM

enter

View

pH Custom Buffer Group

Current BUFFER GROUP

CUSTOM

W



Use to display desired buffer group

keys

and then touch to accept

enter

View

edit

pH Custom Buffer Group

Current BUFFER GROUP

CUSTOM

1.78 3.65



Use to display desired buffer group

keys

and then touch to accept

enter

edit

X

edit

enter



Use to display desired buffer group

keys

and then touch to accept

enter

47

Instruction Manual CyberScan pH5500/ 5000

To Set pH Custom Buffer Group

This option allows you to create a custom buffer group of up to 5 buffers to be used for auto buffer recognition. To obtain optimal

results, it is important to maintain at least 2 pH units between selected buffers in the custom group.

1. Touch custom on the Set pH Buffer Group screen. The current buffer box will show the current custom buffer group.

2. Touch edit to alter the present group or create a new custom buffer group. The newly displayed Set pH Custom Buffer Group screen has 5 beakers in the current buffer group box.

3. Use the arrow keys to highlight the beaker icon with the pH value you want a change. If there are no buffers in the group then proceed to the next step.

4. Touch edit to add a buffer or make changes to the current buffer group OR touch clear to delete the highlighted buffer value.

5. Use the numeric keypad that is now displayed to enter the pH buffer value that you want ion your custom buffer set.

6. Touch enter to accept the value. If you have entered an erroneous value, use the BS key on the keypad to erase the last digit entered and correct the mistake. If you decide not to change the buffer value on the highlighted beaker icon, touch exit on the numeric keypad to return to the Set pH Custom Buffer Group screen.

7. Repeat steps 3 through 6 to add up to 5 buffers to your custom buffer group.

8. Touch exit to return to the Set pH Custom Buffer Group screen to view the current Custom Buffer Group, without making any changes to the custom buffer group.

9. Touch enter to accept the group and return to the pH Setup screen, OR touch edit to modify the group and repeat steps 3 through 6.

OR

Touch exit to return to the Set pH Buffer Group screen, without making any changes to the custom buffer group.



If you use the custom buffer group for auto buffer recognition, when you access the Set pH Buffer Group from the pH Setup screen, the current buffer group that appears on the screen is the custom buffer group. In order to access the edit option for the custom buffer group, you need to touch any of the other buffer group buttons and then touch custom to access the edit screen.

6.5

48

Instruction Manual CyberScan pH5500/ 5000

Select Buffer Recognition

This option allows you to select automatic buffer recognition or manual buffer recognition when standardizing. With the Automatic buffer recognition activated, the meter will automatically recognize the buffers from the chosen buffer group and accept them when the meter recognizes the reading as stable.

When in the manual buffer recognition mode, you must enter the buffer value during the standardization procedure. The meter will accept the manually entered buffer when it recognizes that the measurement is stable. During the standardization procedure, you may accept the buffer value before the meter recognizes it as stable by touching std.

To Select Buffer Recognition

1. Access the select buffer recognition screen from the pH setup screen. The current method of recognition is displayed on the screen.

2. Touch MAN or AUTO to choose the method of buffer selection.

3. Touch enter to accept the method of buffer recognition and return to the pH Setup screen.

OR

Touch exit to return to the pH setup screen, without making any changes.

Set

pH Buffer Recognition

enter

Current RECOGNITION

AUTO

MAN



Regardless of which buffer Recognition Mode you select, STABLE will appear on the measure screen when the meter recognizes the value as stable.

49

Instruction Manual CyberScan pH5500/ 5000

6.6 Select Auto Read Mode

You can use this meter when the Auto Read Mode function is active or when it is inactive. When the Auto Read function is active, the meter will lock onto a reading when the meter recognizes it as stable. The meter will not deviate from this reading until meas is touched. If the auto Read function is inactive, then the meter will continuously monitor the pH of the sample and the Measure screen display will indicate any fluctuation in the sample pH.

To Select Auto Read Mode

1. Access the Select Auto Read Mode screen from the pH Setup screen. The current Read Mode id displayed on the screen.

2. Touch AUTO or MAN to choose the desired read mode.

3. Touch enter to accept the read mode and return to the pH setup screen.

OR

Touch exit to return to the pH Setup Screen, without making any changes.

Set

pH Auto Read Mode

Current MODE

enter

AUTO

MAN

50

Instruction Manual CyberScan pH5500/ 5000

6.7 Set pH Stability Criteria

Set

pH Stability Criteria

Current CRITERIA

Fast

Medium

Slow



Use to highlight stability

arrow keys

criteria and then touch to accept

Medium

enter

S

T

enter

51

Instruction Manual CyberScan pH5500/ 5000

This setup screen allows you to determine how quickly the meter will respond to electrode drift. There are 3 speed settings: fast, medium and slow.

To set pH Stability Criteria

1. Access the Set pH Stability Criteria screen from the pH (Ion) Setup screen. The current stability criteria are displayed on the screen.

2. Use the arrow keys to highlight the desired stability criteria.

3. Touch enter to accept the stability criteria and return to the pH (Ion) Setup screen and return to the pH Setup screen.

OR

Touch exit to return to the pH (Ion) Setup screen, without making any changes.



Stability criteria are more stringent at the slower setting. Therefore, if the highest precision is required, then a slow setting would be desired. The default setting is the medium speed and this would be adequate for the majority of applications.

52

Instruction Manual CyberScan pH5500/ 5000

6.8 Set Default Temperature

Set

pH Default Temperature

enter

Current DEFAULT

1 2 3

4 5 6

25.0°C

7 8 9

BS 0 .



Touch to delete current default temp

clear

Use to input the new

numeric touchpad



temperature and then touch to accept

enter

clear

53

Instruction Manual CyberScan pH5500/ 5000

It is a well known fact that pH is a temperature dependent measurement. The factory default setting is 25. if you are taking the pH of a solution that is not 25 and you are not using an Automatic Temperature Compensation (ATC)( probe, then you should meter the temperature value of that solution in order to get the correct pH value. The current default temperature setting will be displayed when the Set Default Temperature screen is displayed.

To Set the Default Temperature

1. Access the Set Default Temperature screen from the pH (ion) Setup screen. The current default temperature is displayed on the screen.

2. Touch clear to erase the current temperature value.

3. Select the temperature units by touching the appropriate unit key C (Celsius), F (Fahrenheit) or K (Kelvin).

4. Use the numeric keypad to enter the desired default temperature.

5. Touch enter to accept the temperature setting and return to the pH (ion) Setup screen.

OR

Touch exit to return to the pH (ion) Setup screen, without making any changes.



The use of an ATC probe provides a measured temperature value to the meter and will override any value entered in the default temperature screen. This measured value will be used by the meter to make pH calculations.

54

Instruction Manual CyberScan pH5500/ 5000

6.9 Set Isopotential Point

Set

pH Isopotential Point

enter

Current ISO POINT

1 2 3

0.0 mV

4 5 6

7 8 9

BS 0 .



Touch to delete current Iso Point

clear

Use to input the new

numeric touchpad



Iso Point and then touch to accept

enter

clear

55

Instruction Manual CyberScan pH5500/ 5000

The Isopotential point is the millivolts reading for an electrode at which temperature has no effect on the measurement. pH electrodes are constructed so that the isopotential point is theoretically zero millivolts. This is very close to a pH of 7. Most pH electrodes do not achieve this value precisely. However, they are close enough so that it is not usually necessary to use an isopotential point other than zero. The true isopotential point of any given electrode must be determined experimentally. (See appendix: Determining Isopotential Points Experimentally, pg 124)

To Set Isopotential Point

1. Access the Set Isopotential Poin t screen from the pH (Ion) Setup screen. The current isopotential point is displayed on the screen.

2. Touch clear to remove the current mV Value.

3. Use the numeric keypad to enter the desired mV setting for the new isopotential point.

4. Touch enter to accept this value and return to the pH (Ion) Setup screen.

OR

Touch exit to return to the pH Setup screen, without making any changes.

56

Instruction Manual CyberScan pH5500/ 5000

6.10 Set Alarm Limits

Set

pH Limits

S

Current LIMITS

Set

mV Limits

mV Alarm

mV Minimum

mV Maximum

pH Alarm

pH Minimum

pH Maximum

Current LIMITS

OFF

-1800.0

1800.0

OFF

0.00

14.00

Set

Ion Limits

Ion Alarm

Ion Minimum

Ion Maximum

T

edit

Current LIMITS

OFF

0.00

1.00E6

57

Instruction Manual CyberScan pH5500/ 5000

This option allows you to set alarm limits for the pH measuring mode. If the pH value of the measurement is outside the boundaries set by the minimum and maximum limits, an audible alarm and/ or a visual warning will appear to let you know that your sample measurement was outside of the set limits.

To Set Alarm Limits

1. Access the Set Alarm Limits screen from the pH (mV, Ion) Setup screen. The current alarm limits are displayed on the screen.

2. Use the arrow keys to highlight the pH (mV, Ion) Alarm option you want to modify.

3. Touch ON or OFF to set the status of the alarm for the pH (mV, Ion) mode.

4. Use the arrow keys to highlight the desired pH (mV, Ion) alarm limit.

5. Touch edit to change the value.

6. Use the keypad to enter the new limit value

7. Touch enter on the keypad to accept this limit and return to the set pH (mV, Ion) limits screen. If you do not want to change the limit value, you can touch exit on the keypad and return to the Set pH (mV, Ion) limits screen.

8. Repeat steps 4 through 7 to set other pH (mV, Ion) alarm limit.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.

58

Instruction Manual CyberScan pH5500/ 5000

6.11 Set Print Criteria

Set

pH Print Criteria

Set

mV Print Criteria

Current PRINT CRITERIA

- Date/Time/Channel

- Sample ID#

ON

Current PRINT CRITERIA

- Date/Time/Channel

- Sample ID#

ON

- pH Measurement

- Temperature - ATC

ON

- mV Measurement

- Temperature - ATC

ON

- Last Standardization

- Current Buffers

- Slope

- mV Measurement

- Meter Model # / serial #

- Operator

OFF

ON

-- Meter Model # / serial #

- Operator

ON

Set

Ion Print Criteria

Current PRINT CRITERIA

- Date/Time/Channel

- Sample ID#

- Ion Measurement

- Temperature - ATC

- Last Standardization

- Current Standards

- Slope

ON

OFF

ON

- mV Measurement

- Meter Model # / serial #

ON

- Operator

- electrode/ method

ON

59

Instruction Manual CyberScan pH5500/ 5000

This screen allows you to select which criteria are printed with the measurement when you print the data or send it to the computer. The status of the current print criteria is displayed on the screen. The criteria option is active if “ON” appears to the right of the option. It is inactive if “OFF” appears to the right of the option. Any active criteria will be printed on demand.

To Set Print Criteria

1. Access the Set Print Criteria screen from the pH (mV, Ion) Setup screen. The current print criteria are displayed on the screen.

2. Use the arrow keys to highlight the print criteria option you want to modify.

3. Touch ON or OFF change the status of the criteria.

4. Repeat steps 2 and 3 with the remaining criteria.

5. Touch save to save the entire group of print criteria and return to the pH (mV, Ion) Setup screen.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.



The Date/ Time/ Channel option and the measurement option are always active and cannot be deactivated. These criteria will always be printed. Because they can not be changed, they will not be highlighted when using the arrow keys.

60

Instruction Manual CyberScan pH5500/ 5000

6.12 Set Print Interval

Set

pH Print Interval

enter

Current INTERVAL

1 2 3

4 5 6

manual

7 8 9

timed

BS 0 .

You have three options for setting the print interval: manual printing, stable reading printing, and timed interval printing.

For manual printing of data

In this mode, data is printed only when you touch print on the pH (mV, Ion) Measure screen.

1. Access the Set Print Interval screen from the pH (mV, Ion) Setup screen. The current print interval is displayed on the screen.

2. Touch MAN to set the meter for manual printing.

3. Touch enter to accept the print interval mode and return to the pH (mV, Ion) Setup screen.

Printing is now done manually by touching print on the Measure screen.

OR

Touch exit to return to the pH (mV, Ion) setup screen, without making any changes.

61

Instruction Manual CyberScan pH5500/ 5000

For stable reading printed

In this mode, data is printed every time the meter recognizes the current pH (mV, Ion) measurement as stable.

1. Access the Set Print Interval screen from the pH (mV, Ion) Setup screen. The current print interval is displayed on the screen.

2. Touch stable to set the meter for stable reading printing.

3. Touch enter to accept the print interval mode and return to the pH (mV, Ion) Setup screen.

Printing is now done when the meter recognizes the present reading as stable.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.

For timed interval printing

In this mode, data is printed at the timed interval that you select.

1. Access the Set Print Interval screen from the pH (mV, Ion) Setup screen. The current print interval is displayed on the screen.

2. Touch timed to access the timed interval mode and delete the current print interval time.

3. Use the keypad to enter the desired time for the print interval.

4. Touch enter to accept the new time interval for printing and return to the pH (mV, Ion) Setup screen.

Printing is now done at the set timed interval.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.

62

Instruction Manual CyberScan pH5500/ 5000

6.13 Set Data Storage Criteria

Set

pH Data Storage Criteria

Set

mV Data Storage Criteria

Current DATA STORAGE CRITERIA

- Date/Time/ Channel

- Sample ID#

ON

- Date/Time/ Channel

- Sample ID#

ON

- pH measurement

ON

- mV measurement

ON

- Temperature - ATC

- Last Standardization

- Current Buffers

- Slope

- mV measurement

- Meter model # / serial #

- Operator

ON

Set

Ion Data Storage Criteria

Current DATA STORAGE CRITERIA

- Date/Time/ Channel

- Sample ID

- Ion measurement

- Temperature - ATC

- Last Standardization

- Current Standards

- Temperature - ATC

- Meter model # / serial #

- Operator

ON

- Slope

- mV measurement

- Meter model # / serial #

- Operator

- electrode/ method

63

ON

Instruction Manual CyberScan pH5500/ 5000

This screen allows you to select what criteria are stored in the meter’s memory with the measurement when you save the data. Data is stored only if a Sample ID# has been assigned. The status of the current data storage criteria is displayed on the screen. The criteria option is active if “ON” appears to the right on the screen. It is inactive if “OFF” appears to the right of the option. All storage criteria will be stored in the meter’s memory with the measurement. However, only active items will appear on the View Stored Data screens. Changing the status of the storage criteria to active from inactive will allow the criteria to be displayed with the previously stored data.

To Set Data Storage Criteria

1. Access the Set Data Storage Criteria screen from the pH (mV, Ion) Setup screen. The current Data Storage Criteria are displayed on the screen.

2. Use the arrow keys to highlight the data storage criteria you want to modify.

3. Touch ON or OFF to change the status of the criteria.

4. Repeat steps 2 and 3 with the remaining criteria.

5. Touch save to save the entire group of data storage criteria and return to the pH (mV, Ion) setup screen.

OR

Touch exit to return to the pH (mV, Ion) setup screen, without making any changes.



The Date/ Time/ Channel criteria and the Measurement criteria are always active and cannot be deactivated. These criteria will always be stored with the measurement value. Because they cannot be changed, they will not be highlighted when using the arrow keys.

64

Instruction Manual CyberScan pH5500/ 5000

X

6.14 Set Display Resolution

Set

pH Display Resolution

enter

Current RESOLUTION

X.XX

X.X



Select desired display resolution and then

touch to accept

enter

.XX

.XXX

65

Instruction Manual CyberScan pH5500/ 5000

This mode allows you to set the display resolution that you desire on the screen. You have the choice of one, two or three decimal places.

To Set Display Resolution

1. Access the set display resolution screen from the pH Setup screen. The current Display Resolution is displayed on the screen.

2. Touch X.X, X.XX, X.XXX to select the desired resolution of the display. This will be the format in which your measurement will be displayed.

3. Touch enter to accept the resolution and return to the pH Setup screen.

OR

Touch exit to return to the pH Setup screen, without making any changes.

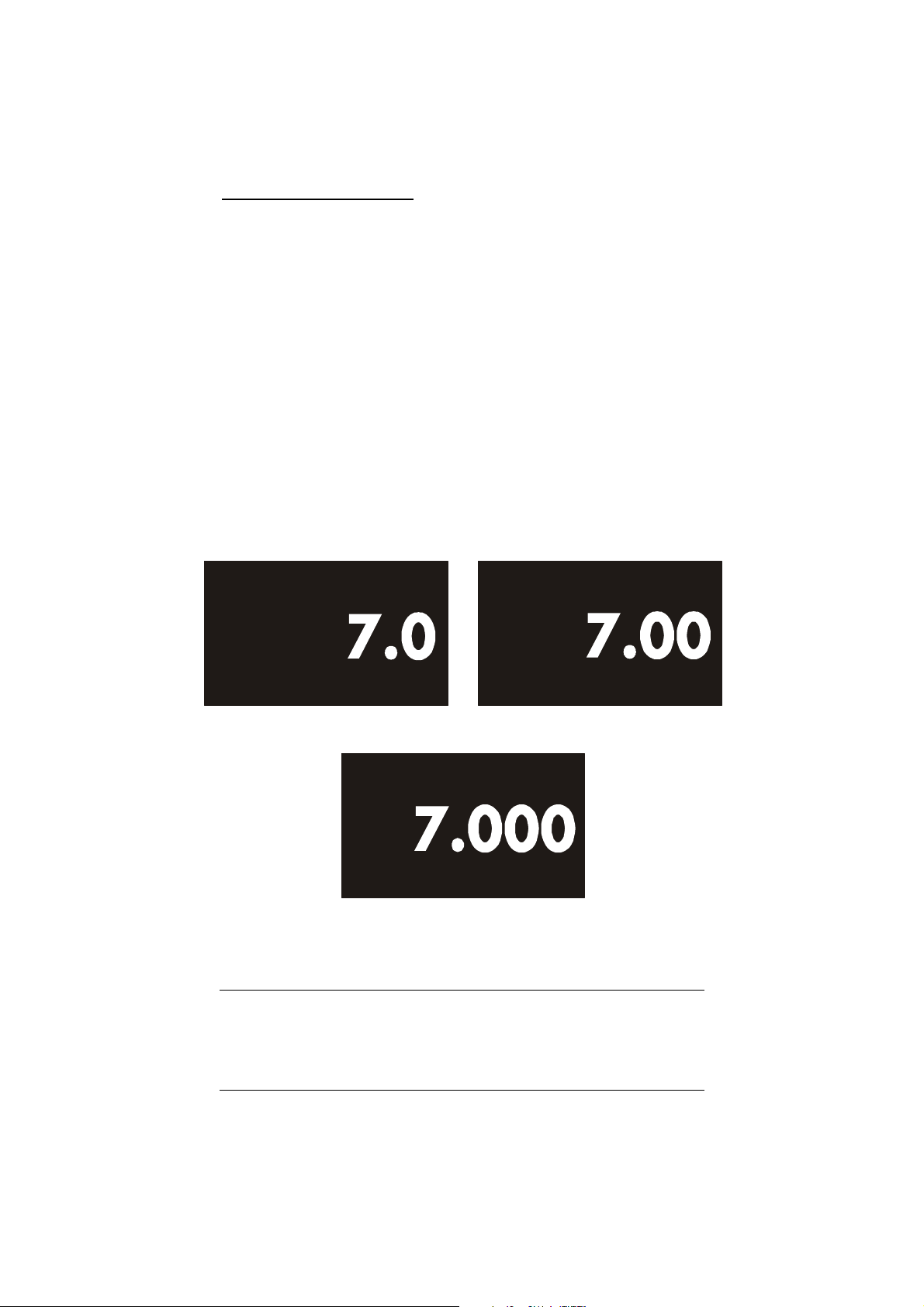

Example of X.X resolution

pH

channel 1

Example of X.XXX resolution

pH

Example of X.XX resolution

pH

channel 1



Remember, HELP is always just a touch of the button away.

66

Instruction Manual CyberScan pH5500/ 5000

6.15 Set Display Configuration

Set

pH Display Configuration

Set

mV Display Configuration

Current DISPLAY CONFIGURATION

- Last Standardization

- Date

ON

- Date

- Time

ON

- Time

- measurement channel

ON

- measurement channel

- sample ID#

ON

- sample ID#

- auto buffer status

- auto read status

- temperature

- slope

- mV Display

ON

- temperature

ON

Set

Ion Display Configuration

Current DISPLAY CONFIGURATION

- Last Standardization

- Date

- Time

- measurement channel

- sample ID#

- auto read status

- temperature

- slope

- mV Display

- electrode/ method

ON

67

Instruction Manual CyberScan pH5500/ 5000

This function will allow you to choose what information you would like to be displayed on the pH Measure screen, particularly the information contained in the data box at the bottom of that screen.

To Set Display Configuration

1. Access the Set Display Configuration screen from the pH (mV, Ion) Setup screen. The current display configuration is displayed on the screen.

2. Use the arrow keys to highlight the Display Configuration criteria you want to modify.

3. Touch ON or OFF to change the status of the criteria

4. Touch save to save the entire group of display configuration criteria and return to the pH (mV, Ion) Setup screen.

OR

Touch exit to return to the pH (mV, Ion) Setup screen, without making any changes.

pH Display Configuration

January 15, 2002 11:11am

ID#

00000

auto buffer

ON

ATC slope mV

0000.0

25.0°C 100%

68

Instruction Manual CyberScan pH5500/ 5000

6.16 View Stored Data

View

Stored Data

Data POINTS

Sample ID

Date

Operator



Use to highlight desired sort

arrow keys

option and then touch to accept

enter

17

S

T

enter

69

Instruction Manual CyberScan pH5500/ 5000

This meter has memory capacity of up to 250 data points. The View Stored Data screen allows you to sort and look at specific data points. The stored data can be sorted by sample identification number, date or operator identification number.

To View Stored Data

1. Access the view stored data screen from the pH (mV, Ion) setup screen. The number of data points in the memory and the sorting options are now displayed on the screen.

2. Use the arrow keys to highlight the desired data sort option.

3. Touch enter to access the sort option screen.

To sort by Sample ID#

1. Access the Sample ID sort option from the View Stored Data screen.

2. Use the keypad to enter the sample ID# entered in error and reenter the ID#

3. Touch clear to delete a Sample ID# entered in error and re-enter the ID#.

4. Touch enter. All data will be sorted by the meter and the first data point displayed on the screen will be the most recent data point saved under the selected Sample ID#.

5. Touch next or prev to scroll through additional data points saved in the memory of the meter.

6. Touch print to send the data to a printer or computer, OR touch delete to erase the data point from the meter’s memory, OR touch exit to return to the pH (mV, Ion) Setup screen.

If a sample ID# is entered and no data points are stored with that sample ID#, you will see a message indicating the sample ID# was not found. Touch OK to return to the sample ID# keypad and enter new sample ID #.

70

Instruction Manual CyberScan pH5500/ 5000

To sort by Date

1. Access the Date sort option from the View Stored Data screen.

2. Touch clear to delete the current date.

3. Use the numeric keypad to enter the date on which the data points you want to view were saved. Be sure to use/ to separate the month, the day and the year.

4. Touch enter. All data will be sorted by the meter and the first data point displayed on the screen will be the most recent data point saved under the selected Date.

5. Touch next or prev to scroll through additional data points saved in the memory of the meter.

6. Touch print to send the data to a printer, OR touch delete to erase the data point from the meter’s memory, OR touch exit to return to the pH (mV, Ion) Setup screen.

7. If a date is entered and no data points are stored with that date, you will see a message indicating the date was not found. Touch

OK to return to the operator ID keypad and enter a new date.

To sort by Operator

1. Access the Operator sort option from the View sort data screen

2. Use the keypad to enter the Operator ID of the data point(s) that you want to view.

3. Touch clear to delete an Operator ID entered in error and re- enter an ID#.

4. Touch enter. All data will be sorted by the meter and the first data point displayed on the screen will be the most recent data point saved under the selected Operator ID.

5. Touch next or prev to scroll through additional data points saved in the memory of the meter.

6. Touch print to send the data to a printer, OR touch delete to erase the data point from the meter’s memory, OR touch exit to return to the pH (mV, Ion) Setup screen.

71

Instruction Manual CyberScan pH5500/ 5000

If an operator ID is entered and no data points are stored with that operator ID, you will see a message indicating the operator ID was not found. Touch OK to return to the operator ID keypad and enter a new operator ID.

Note: Even if you do not know the appropriate information to access a specific data point, you can access the stored data through any of the sort options. Highlight the sort option of interest and touch enter to access the sort screen. Touch enter again and the meter will place you at a data point.

• The sample ID# sort option will place you at the first data point in numeric order by sample ID#.

• The operator sort option will place you at the first data point of the first operator ID in alphabetic order.

• The date sort option will place you at the most recent point on the last date that data was stored.

Once you access the data storage center, you can touch prev and next to scroll through the additional data points stored in memory.

View

Stored Data

Current STORED DATA

January 15, 2002

11:11 am

Channel:

sample ID#:

Ion value:

Ion method:

Ion electrode:

Temp er ature :

Last Std:

Current Stds:

Slope:

mV value:

model#/serial#:

Operator

1

110

1.0

Known Addition

AMMONIA

25.0°C

Jan.15@11:11am

10.0 100

102.2%

0.6

PC5500/ alpha 0001

Tom D.

72

Instruction Manual CyberScan pH5500/ 5000

7 mV SETUP

mV Setup (channel 1)

mV SETUP OPTIONS

- Set

Sample ID#

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criteria

- Set

Display Resolution

- Set

Display Configuration

- View

Stored Data

S

T

edit

73

Instruction Manual CyberScan pH5500/ 5000

7.1 Access mV Setup

E U T E C H

INSTRUMENTS

pH

Setup

pH

CyberScan pH 5500

mV



Select from the options to the right

Last std: Jan 15 @ 11:11 am

mV Setup (channel 1)

mV SETUP OPTIONS

- Set

Sample ID#

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criter ia

- Set

Display Resolution

- Set

Display Configuration

- View

Stored Data

Ion

setup

S

T

edit

Ion



Select from the options to the right

system

There are two ways to access the mV Setup screen.

From the setup screen

1. Touch setup on the main screen. Touch mV to access the mV Setup screen.

2. Use the arrow keys to highlight the setup option that you would like to review.

3. Touch edit to access the screen for the selected option.

74

Instruction Manual CyberScan pH5500/ 5000

J

E U T E C H

INSTRUMENTS

pH

Measure

abs mV

channel 1

REL

CyberScan pH 5500

mV

0.0

meas

Ion



Select from the options to the rig ht

Last std: Jan 15 @ 11:11 am

setup



Touch to measure sample

meas

or

Touch for Relative mV reading

REL



anuary 15, 2002 11:11am

00000

ID#

ATC

25.0°C

From the Setup screen

1. Touch setup on the mV Measure screen. The mV Setup screen is now displayed. Touch mV on the main screen to access the millivolts mode.

2. Use the arrow keys to highlight the setup option that you would like to review.

mV Setup (channel 1)

mV SETUP OPTIONS

- Set

Sample ID#

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criter ia

- Set

Display Resolution

- Set

Display Configuration

- View

Stored Data

S

T

edit

3. Touch edit to access the screen for the selected option.



For CyberScan pH 5500, pH/ mV/ Ion setups are done independently for Channel 1 and 2.

75

Instruction Manual CyberScan pH5500/ 5000

To Set Sample ID#

When this option is active, each time you touch print on the Measure screen the mV value along with the date/time/channel and the sample ID# will be sent to data storage. You can manually enter an alphanumeric identification number of up to 10 characters for any sample, or you can have the meter sequentially number your samples beginning at the number of your choice. You may also choose to deactivate the sample ID#.

The mV Sample ID# is set the same way as previously described in pH setup. See page 46 for instructions.

To Set Alarm Limit

This option allows you to set alarm limits for the mV measuring mode. If the mV value of the measurement is outside of the boundaries set by the upper and lower limits, an audible alarm and/ or a visual warning will appear to let you know that your sample measurement was outside of the set limits.

The mV alarm limits are set the same way as previously described in pH setup. See page 62 for instructions.

To Set Print Criteria

This screen allows you to select which criteria are printed with the measurement when you print the data or send it to the computer. The status of the current print criteria is displayed on the screen. The criteria option is active if “ON” appears to the right of the option. It is inactive if “OFF” appears to the right of the option. Any active criteria will be printed on demand.

The mV Print Criteria are set the same way as previously described in pH setup. See page 64 for instructions.



Remember, HELP is always just a touch of the button away.

76

Instruction Manual CyberScan pH5500/ 5000

To Set Print Interval

You have three options for setting the print interval: manual printing, stable reading printing and timed interval printing.

The mV Print Interval is set the same way as previously described in pH setup. See page 61 for instructions.

To Set Data Storage Criteria

This screen allows you to select what criteria are stored in the meter’s memory with the measurement when you save the data. The status of the current data storage criteria is displayed on the screen. The criteria option Is active if “ON” appears on the right of the screen. It is inactive is “OFF” appears to the right of the screen. All storage criteria will stored in the meter’s memory with the measurement. However, only active items will appear on the View Stored Data screens. Changing the status of the storage criteria to active from inactive will allow the criteria to be displayed with the previously stored data.

The mV Data Storage Criteria are set the same way as previously described in pH Setup. See page 63 for instructions.

To Set Display Configuration

This function will allow you to choose what information you would like to be displayed on the mV Measure screen, particularly the information contained in the data box at the bottom of that screen.

The mV display configuration is set the same way as previously described in pH Setup. See page 67 for instructions.

To View Stored Data

This meter has memory capacity for up to 250 data points. The View Stored Data screen allows sorting and looking, at specific data points. The stored data can be sorted by sample identification number, date or operator identification number.

The mV stored data is viewed the same way as previously described in pH setup. See page 69 for instructions.

77

Instruction Manual CyberScan pH5500/ 5000

X

7.2 Set Display Resolution

Set

mV Display Resolution

enter

Current RESOLUTION

X.XX

X.X

.XX



Select desired display resolution and then

touch to accept

enter

78

Instruction Manual CyberScan pH5500/ 5000

To Set Display Resolution

This mode allows you to set the display resolution that you desire on the screen. You have the choice of zero or one decimal place.

1. Access the set display resolution screen from the mV setup screen. The current display resolution is displayed on the screen.

2. Touch X or X.X to select the resolution of the display that you desire. This will be the format in which your measurement will be displayed.

3. Touch enter to accept the resolution and return to the mV setup screen.

OR

Touch exit to return to the mV setup screen, without making any changes.

Example of X resolution

mV

Example of X.X resolution

mV

channel 1

79

Instruction Manual CyberScan pH5500/ 5000

8 ION SETUP

Ion Setup (channel 1)

ISE SETUP OPTIONS

- Set

Sample ID#

- Select

- Set

- View

Ion Method

Measurement Units

Auto Read Mode

Ion Stability Criteria

Default Temperature

Electrode Type

Isopotential Point

Alarm Limits

Print Criteria

Print Interval

Data Storage Criteria

Significant Digits

Display Configuration

Stored Data

S

T

edit

The operating parameters of the ion mode can be set and controlled from the Ion Setup screen. The following sections will guide you through the various options available for the ion setup mode.

80

Instruction Manual CyberScan pH5500/ 5000

8.1 Access Ion Setup

E U T E C H

INSTRUMENTS

CyberScan pH 5500



Select from the options to the right

Last std: Jan 15 @ 11:11 am

Ion Setup (channel 1)

Ion SETUP OPTIONS

- Set

Sample ID#

- Select

Ion Method

- Select

Measurement Units

- Select

Auto Read Mode

- Set

pH

Stabili ty Criteria

- Set

Default Temperature

- Set

Electrode Type

- Set

Isop otential Point

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storag e Criter ia

- Set

Significant Digits

- Set

Display Configuratio n

- View

Stored Data

pH

mV

Ion

Cond

setup

S

T

edit

Setup



Select from the options to the right

pH

mV

Ion

Cond

system

There are two ways to access the Ion Setup screen

From the Setup screen

4. Touch setup on the main screen. Then touch Ion on the Ion Setup screen.

5. Use the arrow keys to highlight the setup option that you would like to review.

6. Touch edit to access the screen for the selected option.

81

Instruction Manual CyberScan pH5500/ 5000

J

E U T E C H

INSTRUMENTS

CyberScan pH 5500

pH

mV

Ion

Measure

ppm

STANDARDS

channel 1

0.0

Last std: Jan 15 @ 11:11 am

std

meas

setup



Select from the options to the right

Cond

Touch to access standardi ze mode



std

Last std: Jan 15 @ 11:11 am

setup

anuary 15, 2002 11:11am

00000

ID#

Nh3

ATC

Slope

mV

NA

25.0°C

0000.0

From the Ion Measure screen

1. Touch Ion on the main screen to access the Ion mode. Touch setup on the Ion Measure screen. The Ion Setup screen is now displayed.

2. Use the arrow keys to highlight the setup option that you would like to review.

3. Touch edit to access the screen for the selected option.

Ion Setup (channel 1)

ISE SET UP OPTIONS

- Set

Sample ID#

- Select

Ion Method

- Select

Measurement Units

- Select

Auto Read Mode

- Set

pH Stability Criteria

-

Set

Default Temperature

Electrode Type

- Set

Isopotential Point

- Set

Alarm Limits

- Set

Print Criteria

- Set

Print Interval

- Set

Data Storage Criter ia

- Set

Significant Digits

- Set

Display Configuration

- View

Stored Data

S

T

edit



For CyberScan pH 5500, pH/ mV/ Ion setups are done independently for Channel 1 and 2.

82

Instruction Manual CyberScan pH5500/ 5000

8.2 Select Ion Method

To Set Sample ID#

When this option is active, each time you touch print on the Measure screen the ion concentration value along with date/ time/ channel and the sample ID# will be sent to data storage. You can manually enter an alphanumeric identification number of up to 10 characters for any sample or you can have the meter sequentially number your samples beginning at the number of your choice. You may also choose to deactivate the sample ID#.

The ion sample ID# is set the same way as previously described in pH Setup. See page 41 for instructions.

To Select Ion Method

1. Use the arrow keys to highlight the method you want to use.

2. Touch enter to accept the method and return to the Setup screen.

OR

Touch exit to return to the Ion setup screen, without making any changes.

Select

Ion Method

Current METHOD

Direct Reading with Standards

Direct Read with Blank offset

Known Addition

Known Subtraction

Analate Addition

Analate Subtraction

Blank

S

T

enter

83

Instruction Manual CyberScan pH5500/ 5000

Direct Reading with Standards

The direct reading method is the most common method of ion measurement. When using this method, you will use standards of known values to standardize the meter with ion standards. An ionic strength adjuster (ISA) is added to both the standards and the sample. 2 to 5 standards are used to standardize the meter. The standards should bracket the expected value of the sample. The Ion specific electrode is immersed in a stirring sample and the ion concentration is read directly from the meter.

Direct Reading with Blank offset

The blank method is a method commonly used for determination of ion concentration in a sample with a very low level of ions present. Because of background interference at low concentration levels, a blank is used and the value of the ion concentration in the blank is subtracted from the value of the measured sample.

Known Addition Method

The known addition method is an incremental method used for samples with a complex matrix. A standard with a known concentration of the ion species of interest is added to the sample. The difference in mV potential is then used to calculate the concentration of the ion of interest.

Known Subtraction Method

The known subtraction method is also an incremental method. The ion of interest in the sample is not identical to the ion in the standard solution. The standard of known ion concentration that is added to the sample quantitatively reacts in the sample with the ion of interest. This reaction removes a fixed amount of the ion of interest from the sample solution. The ion concentration is then calculated based upon the difference in the mV potential.

Analate addition

The analate addition method is a modification of the known addition method. In the Analate Addition method, the initial mV measurement is recorded in a standard solution. The ion in the standard solution is the ion of interest and is detected by the ion selective electrode in use. A sample containing the ion of interest is then added to the standard solution. The difference in the mV potential is then used in the calculation of the concentration of the ion of interest. This method is useful if the sample temperature is significantly different than that of the standard. When the small volume of hot sample is added to the larger volume, the temperature impact becomes negligible.

84

Instruction Manual CyberScan pH5500/ 5000

Analate Subtraction

The analate subtraction method is particularly useful in the event that there is no ion specific electrode available to directly measure the concentration of the ion of interest. This method employs the addition of a sample of the ion of interest to a standard containing a different ion of known concentration. The ion of interest will quantitatively react with the ion in the standard, creating a complex and removing the ion from the standard solution. The ion specific electrode is specific for the ion in the standard solution and not for the ion of interest. The difference in mV potential is used to calculate the concentration of the ion of interest based upon this quantitative reaction.

8.3 Select Measurement Units

This screen allows you to select the units in which the meter will report the concentration of the ion of interest. The current units are displayed on the screen.

To Select Measurement Units

1. Access the Select Measurement Units screen from the Ion Setup screen. The current units are displayed on the screen.

2. Use the arrow keys to highlight the desired units.

3. Touch enter to accept these units and return to the Ion Setup screen.

OR Touch exit to return to the ion setup screen, without making any

changes

Select Ion

Measurement Units

S

Current UNITS

ppm

mg/ml

mg/L

mole/L

Percent

mg/ml

T

enter

85

Instruction Manual CyberScan pH5500/ 5000

To Select Auto Read Mode

You can use this meter when the Auto Read Mode function is active or when it is inactive. When the Auto Read function is active, the meter will lock onto a reading when the meter recognizes it as stable. The meter will not deviate from this reading until meas is touched. If the auto Read function is inactive, then the meter will continuously monitor the concentration of the ion of interest. The display on the measure screen display will indicate any fluctuation in the ion concentration.

The Ion sample ID# is set the same way as previously described in pH Setup. See page 41 for instructions.

To Set Ion Stability Criteria

The setup screen allows you to determine how quickly the meter will respond to electrode drift. There are 3 speed settings.

The Ion Stability Criteria is set the same way as previously described in pH Setup. See page 51 for instructions.

To Set Default Temperature

Ion concentration is a temperature dependent measurement. The default temperature option allows you to select the temperature that will be used by the meter to calculate the correct ion concentration. The factory default setting is 25°C. You should enter the temperature value of that solution as the default temperature in order to get the correct concentration value. The current default temperature setting will be displayed when the Set Default Temperature screen is displayed.

The Ion Default Temperature is set the same way as previously described in pH setup. See page 53 for instructions.



Regardless of the status of the Auto Read Mode, STABLE will be displayed as the meter recognizes the measurement as stable.



Stability criteria are more stringent at the slower setting. Therefore, if the highest precision is required, then a slow setting would be desired. The medium or slow setting is recommended for Ion work.



Best results are obtained when the standards and the samples are at the same temperature.

86

Instruction Manual CyberScan pH5500/ 5000

8.4 Select Electrode Type

This screen allows you to select the type of electrode that is specific for your ion of interest. Your choice of electrode informs the meter which default slope to use in the calculations made for the electrode efficiency and sample concentration. Once you have selected an electrode, you will not be required to enter the default slope numerically.

Note: The default slope value specific for the electrode that you choose is a theoretical slope value that is used in the calculations to determine the efficiency of your electrode. This slope value is not the slope value that is displayed in the data box of the measurement screen. You will still need to standardize the meter using ion standards to determine the actual efficiency of your electrode.

To Select Electrode Type

1. Access the Select Electrode Type screen from the Ion Setup screen. The current units are displayed on the screen.

2. Use the arrow keys to highlight the desired units.

3. Touch enter to accept Electrode Type and return to the Ion Setup screen.

OR Touch exit to return to the ion setup screen, without making any

changes

87

Instruction Manual CyberScan pH5500/ 5000

To Set Isopotential point

The Isopotential point is the millivolts reading for an electrode at which temperature has no effect on the measurement. Ion selective electrodes, unlike pH electrodes, are not designed to achieve any particular isopotential point. If samples and standards are at different temperatures when performing ISE experiments, it will be necessary to experimentally determine the isopotential point of your own Ion Specific Electrode.

The Ion Isopotential Point is set the same way as previously described in pH setup. See page 55 for instructions.

To Set Alarm Limits

This option allows you to set alarm limits for the Ion measuring mode. If the ion concentration measurement is outside the boundaries set by the minimum and maximum limits, an audible alarm and/ or a visual warning will appear to let you know that your sample measurement was outside of the set limits.

The Ion Alarm Limits is set the same way as previously described in pH setup. See page 57 for instructions.

To Set Print Criteria

This screen allows you to select which criteria are printed with the measurement when you print the data or send it to the computer. The status of the current print criteria is displayed on the screen. The criteria option is active if “ON” appears to the right of the option. It is inactive if “OFF” appears to the right of the option. Any active criteria will be printed on demand.

The Ion Print Criteria are set the same way as previously described in pH setup. See page 59 for instructions.

To Set Print Interval

You have three options for setting the print interval: manual printing, stable reading printing and timed interval printing.

The Ion Print Interval is set the same way as previously described in pH setup. See page 61 for instructions.

To Set Data Storage Criteria

This screen allows you to select what criteria are stored in the meter’s memory with the measurement when you save the data. The status of the current data storage criteria is displayed on the screen. The criteria option is active if “ON” appears to the right on the screen. It is inactive if “OFF” appears to the right of the option. Any active criteria will be stored with the measurement. All storage criteria will be stored in the meter’s memory with the measurement. However, only active items will appear on the View Stored Data screens. Changing the status of the storage criteria to active from inactive will allow the criteria to be displayed with the previously stored data.

The Ion Data Storage Criteria is set the same way as previously described in pH setup. See page 63 for instructions.

88

Instruction Manual CyberScan pH5500/ 5000

8.5 Set Significant Digits

Set

Ion Significant Digits

enter

Current SIG DIGITS

2

2423



Select desired significant digits and then

enter

touch to accept

Example of 1 significant digit

ppm

channel 1

Example of 2 significant digits

ppm

channel 1

Example of 3 significant digits

ppm

channel 1

89

Instruction Manual CyberScan pH5500/ 5000

This option allows you to select the number of significant figures that will be used when reporting your ion measurement. You have the choice of one, two or three significant digits.

To Set Significant Digits

1. Access the Set Significant Digits screen from the Ion Setup screen. The current Significant Digits is displayed on the screen.

2. Touch 2, 3 or 4 to select the desired significant digits.

3. Touch enter to accept the number of significant digits and return to the Ion Setup screen.

OR

Touch exit to return to the Ion Setup screen, without making any changes.

To Set Display Configuration

This function will allow you to choose what information you would like to be displayed on the Ion Measure Screen, particularly the information contained in the data box at the bottom of that screen.

The Ion Display Configuration is set the same way as previously described in pH setup. See page 67 for instructions.

To View Stored Data

This meter has memory capacity for up to 250 data points. The View Stored Data screen allows you to sort and look at specific data points. The stored data can be sorted by sample identification number, data or operator identification number.

The Ion Stored Data is set the same way as previously described in pH setup. See page 69 for instructions.

90

Instruction Manual CyberScan pH5500/ 5000

J

9 pH OPERATION

Measure

std

pH channel 1

7.00

4 7 10

Buffers



Touch

or



Touch to standardize

anuary 15, 2002 11:11am

ID#

auto buffer

Last std: Jan 15 @ 11:11 am

to measure sample

meas

std

00000

ON

ATC

slope

mV

25.0°C

100%

0000.0

meas

91

Instruction Manual CyberScan pH5500/ 5000

In this mode, you will able to measure the pH of a wide variety of samples. Before measuring pH, you will need to standardize the meter using buffers with known pH values. It is good practice to standardize the meter frequently using a minimum of two buffers. Using two buffers allows the meter to calculate and display an actual slope for the electrode, and therefore produce more accurate measurements. If there is no standardization in the memory of the meter or only one buffer has been used to standardize the meter, the slope value will appear as “NA”.

You can standardize your meter using automatic or manual buffer recognition. With the Automatic buffer recognition activated, the meter will automatically recognize the buffers from the chosen buffer group and accept them when the meter recognizes the reading as stable. When in manual buffer recognition mode, you must enter the buffer value during the standardization procedure. The meter will accept the manually entered buffer when it recognizes that the measurement is stable. During the standardization procedure, you may accept the buffer value before the meter recognizes it as stable by touching std.

See page 47-48 to select desired buffer recognition. At the basic procedural level the only setup options that you can

access are the buffer groups, the print interval and the display resolution. If you need to change any other parameter such as Buffer Recognition or Auto Read mode you will need to set the Procedural level to Advanced in the system setup screen. Any values previously saved in the pH setup screen of the advanced procedural level will become the default values for basic procedural level.

Remember to setup your pH measuring mode parameters. Refer to page 38 for pH setup instructions.

Connect the electrodes you will be using to the meter. See page 3 for details.

92

Instruction Manual CyberScan pH5500/ 5000

J

9.1 Standardizing

Measure

pH channel 1

std

7.00

STABLE

4 7

Buffers

Last std: Jan 15 @ 11:11



Touch

to measure sample

meas

or



Tou ch t o sta nd ard ize

std

anuary 15, 2002 11:11am

00000

ON

ATC

slope

mV

100%

0000.0

ID#

auto buffer

Standardize

pH channel 1

meas

am

25.0°C

std

7.00

meas

4 7 10

Buffers

Last std: Jan 15 @ 11:11

Current BUFFER GROUP



Touch

to delete previous buffers

clear

Insert electrode into buffer and stir



std

Touch to standardize new buffer

anuary 15, 2002 11:11am

ID#

auto buffer

00000

ON

ATC

slope

mV

am

USA

25.0°C

100%

0000.0

93

Instruction Manual CyberScan pH5500/ 5000

To Standardize the meter with Auto Buffer Recognition

1. Touch STD on the pH measure screen to access the standardized screen

2. Touch clear to delete a previous standardization. All pH standardization values will be cleared. The meter will remain on the standardization screen at this point.

OR

If the screen says “Not standardized” proceed to step 3.

3. Immerse your rinsed electrode (s) in a buffer solution from the selected buffer group that you chose during the setup process (see page 47) and stir gently.

4. Touch std again to standardize the meter using this buffer. The word MEASURING will flash until the signal is stable. The meter will accept the value once it recognizes that the reading is stable. At that time, STABLE will appear on the screen at this time. A beaker icon and the entered pH value will also appear on the screen at this time. The meter will then return to the measure screen.

5. Touch std on the pH measure screen to access the standardization screen and repeat steps 3 through 5 to standardize with up to 5 buffers.

Updating a standardization with Auto Buffer Recognition You can update a standardization at anytime. To update a

standardization, place your electrode in any of the buffers originally used to standardize the meter and touch std on the touch screen twice. The value for that buffer will be updated and stored in the meter’s memory. The time of standardization will also be updated on the pH measurement screen.

The efficiency of the electrode is reported as the slope. When doing a multi-point standardization, the slopes of the individual segment are calculated by the meter. The slope that appears on the screen is the slope that is the least perfect, or the farthest from 100%.



For optimal results, the meter should be standardized at a minimum of every 8 hours. For more accurate measurements, the meter should be standardized more frequently.

94

Instruction Manual CyberScan pH5500/ 5000

Standardize

pH channel 1

7.00

4 7 10

Buffers

Last std: Jan 15 @ 11:11

ATC

USA

25.0°C

100%

0000.0

Current BUFFER GROUP



Touch

to delete previous buffers

clear

Insert electrode into buffer and stir



Touch to standardize new buffer

std

January 15, 2002 11:11am

ID#

auto buffer

00000

ON

slope

mV

am

std

meas

Standardize

pH

STND

Not Standardized



Touch to measure sample

meas

or



Touch to access standardize mode

std

BS exit enter

channel 1

Enter pH

1 2 3

4 5 6

7 8 9

- 0 .

STABLE

std

meas

setup

95

Eutech Instruments CYBERSCAN PH 5000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
