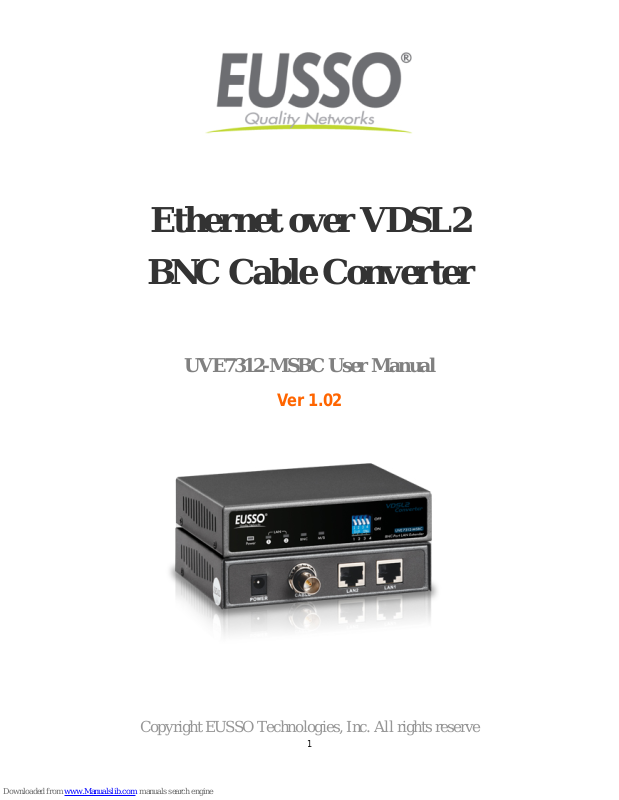

Page 1
1
Ethernet over VDSL2
BNC Cable Converter
UVE7312-MSBC User Manual
Ver 1.02
Copyright EUSSO Technologies, Inc. All rights reserve
Page 2
1
Table of Content
1. Introductions...................................................2
2. Application Notes...........................................2
3. Features.........................................................3
4. Packing Contents...........................................3
5. LED Indicators................................................4
6. Dip Switches Settings ....................................4
7. Data Rates & Distances.................................5
Page 3
2
1. Introductions
The UVE7312-MSBC, a VDSL2 (Very high-bit-rate Digital Subscriber Line) Cable Extender,
provides a broadband transmission up to 100 / 60Mbps of downstream/upstream data rate over single
pair coaxial cable for point-to-point Ethernet connectivity. With 100 / 60Mbps data rate,
UVE7312-MSBC supports transmission distance up to 400 meters, and 63 / 27 Mbps for 1.3km long
range connection. Users may also select a fixed data rate or a fixed SNR margin for different coaxial
cable ranging.
With plug and play features and minimum installation time, each UVE7312-MSBC can be configured
into either CO for central side or RT for remote side by dip switch setting. The UVE7312-MSBC
conforms to the ITU-T G.993.1 and G.993.2 to meet VDSL / VDSL2 and SG15Q4 DMT for network
requirements. A pair of UVE7312-MSBC offers a cost effective solution for bandwidth-hungry
applications such as Cable LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over
single pair coaxial cable.
2. Application Notes

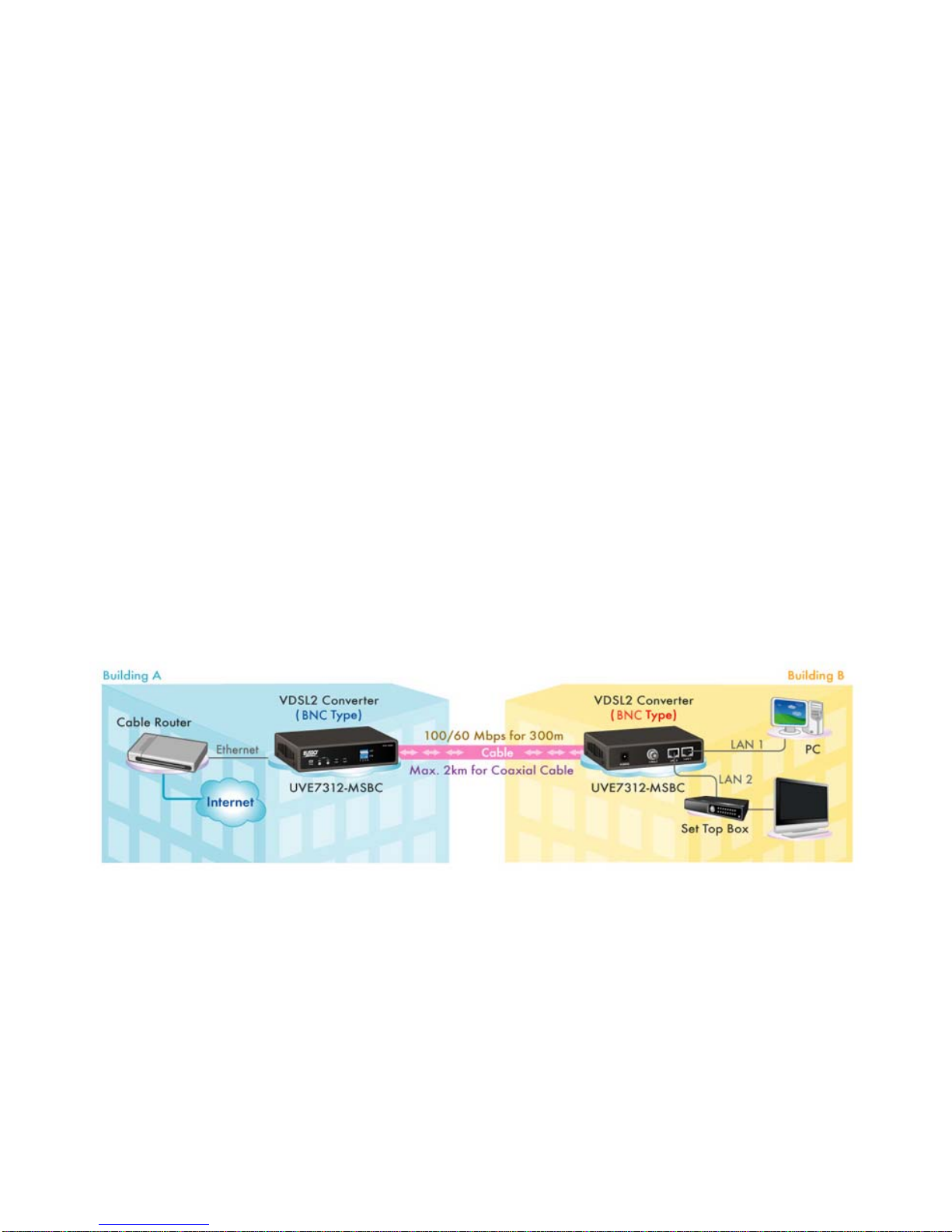

1) Ethernet To Ethernet Bridge Extension over Coaxial Cable
Page 4
3
3. Features
¾ ITU-T G.993.1, G.993.2 VDSL / VDSL2 and SG15Q4 DMT Compliance
¾ 100 / 60Mbps DownSream / UpStream for distance up to 400 meters
¾ Supports VDSL2 connection up to 2000 meters
¾ Line Surge Protection
¾ BNC Connector for Cable interfaces + RJ45 x 2 for Ethernet LAN port
¾ Five LED Indicators
¾ 4 Dip Switches for Configuration Settings
¾ Trellis Coding support up to 1024 Discrete Multi-Tone (DMT) bins
¾ Auto MDIX for 10/100 BaseT Ethernet LAN Ports
¾ Low-Latency for Video / Voice / Data applications
¾ Selectable Fast and Interleaved modes
z Fast mode guarantees a minimum end to end latency less than 1 ms.
z Interleaved mode provides impulse noises protection for any impulse noise with a
duration less than 250 us. Interleaved mode has a maximum end to end latency of 10 ms.
Interleaved mode is the default mode.
¾ Selectable fixed data rate and fixed SNR margin
z User may select fixed SNR margin (9 dB) or fixed target data rate.
z When fixed SNR margin is selected, the systems will maintain the SNR margin at 9 dB
across all available loop length.
z When fixed target data rate is selected, the system will lock the data rate at 50 / 20Mbps
whenever the calculated SNR margin is higher than 9 dB. This will result in the best
system stability and is the default mode.
4. Packing Contents
Inside the package you should find:
(1) One UVE7312-MSBC VDSL2 Cable Extender
(2) One AC to DC Power Adaptor (5VDC/2A)
(3) One User Manual CD
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.
Page 5
4
5. LED Indicators
On the front panel of UVE7312-MSBC, there are 5 LED indicators as the following
POWER: “Green On” indicates power is on and normal.
LAN1: “Green On” indicates Ethernet LAN1 port is in connection.
“Flashing” indicates Ethernet LAN1 data activities.
LAN2: “Green On” indicates Ethernet LAN2 port is in connection.
“Flashing” indicates Ethernet LAN2 data activities.
BNC: “Green On” indicates VDSL2 Cable is in connection.
“Flashing” indicates VDSL2 Cable is in line handshaking.
M/S: “Green On” indicates UVE7312-MSBC is set as Slave ( VTU-R ) mode.
“OFF” indicates UVE7312-MSBC is set as Master ( VTU-C ) mode.

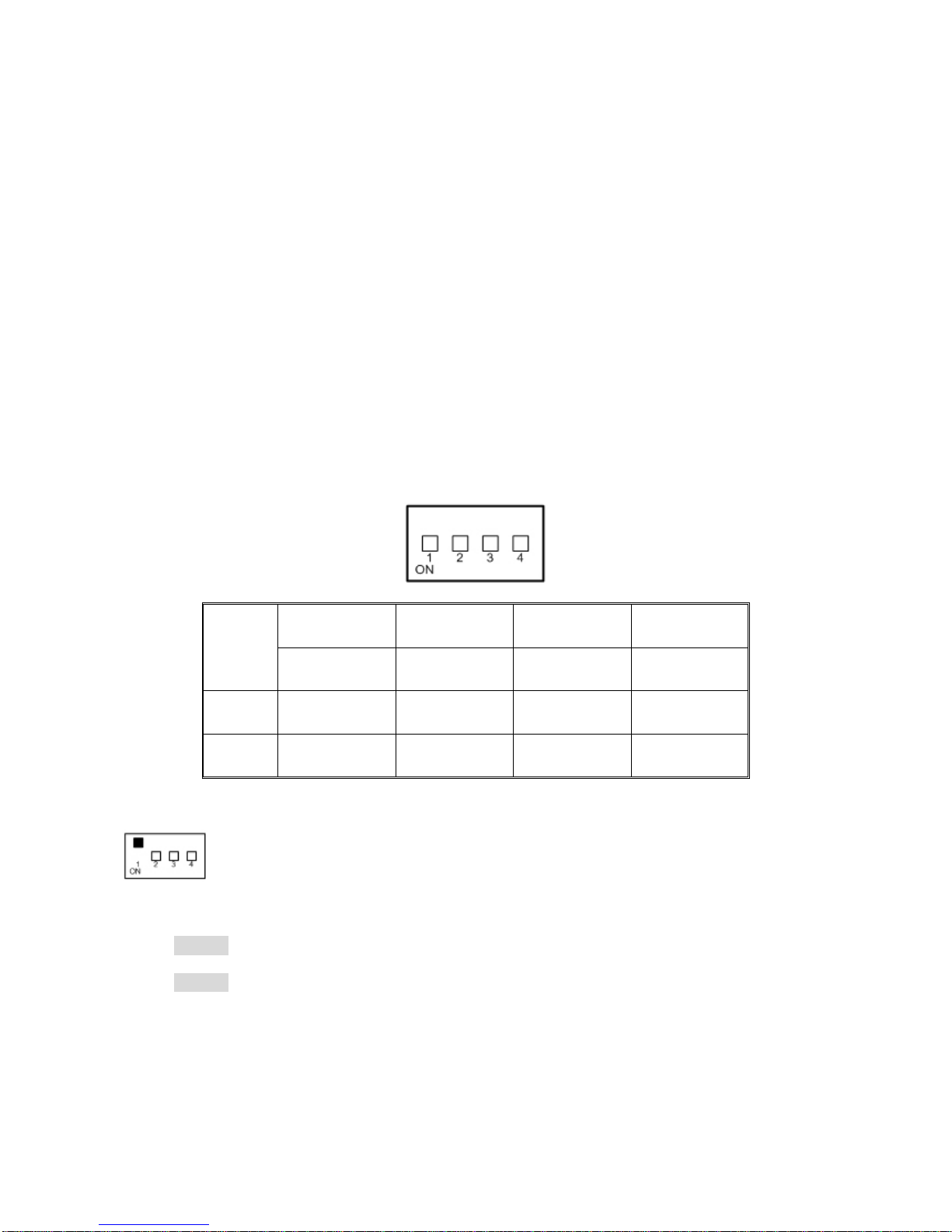

6. Dip Switches Settings
Pin 1 Pin 2 Pin 3 Pin 4
VTU-C/R Mode Rate Limit SNR
OFF
VTU-C Interleaved 50 / 20 Mbps 9dB
ON
VTU-R Fast Full Rate 6dB
Pin 1: VTU-C/R Switch
VTU-C: UVE7312-MSBC will act as at the Central Office (CO) side.
VTU-R: UVE7312-MSBC will act as at the Customer Premise Equipment (CPE) or Remote side.
Page 6
5

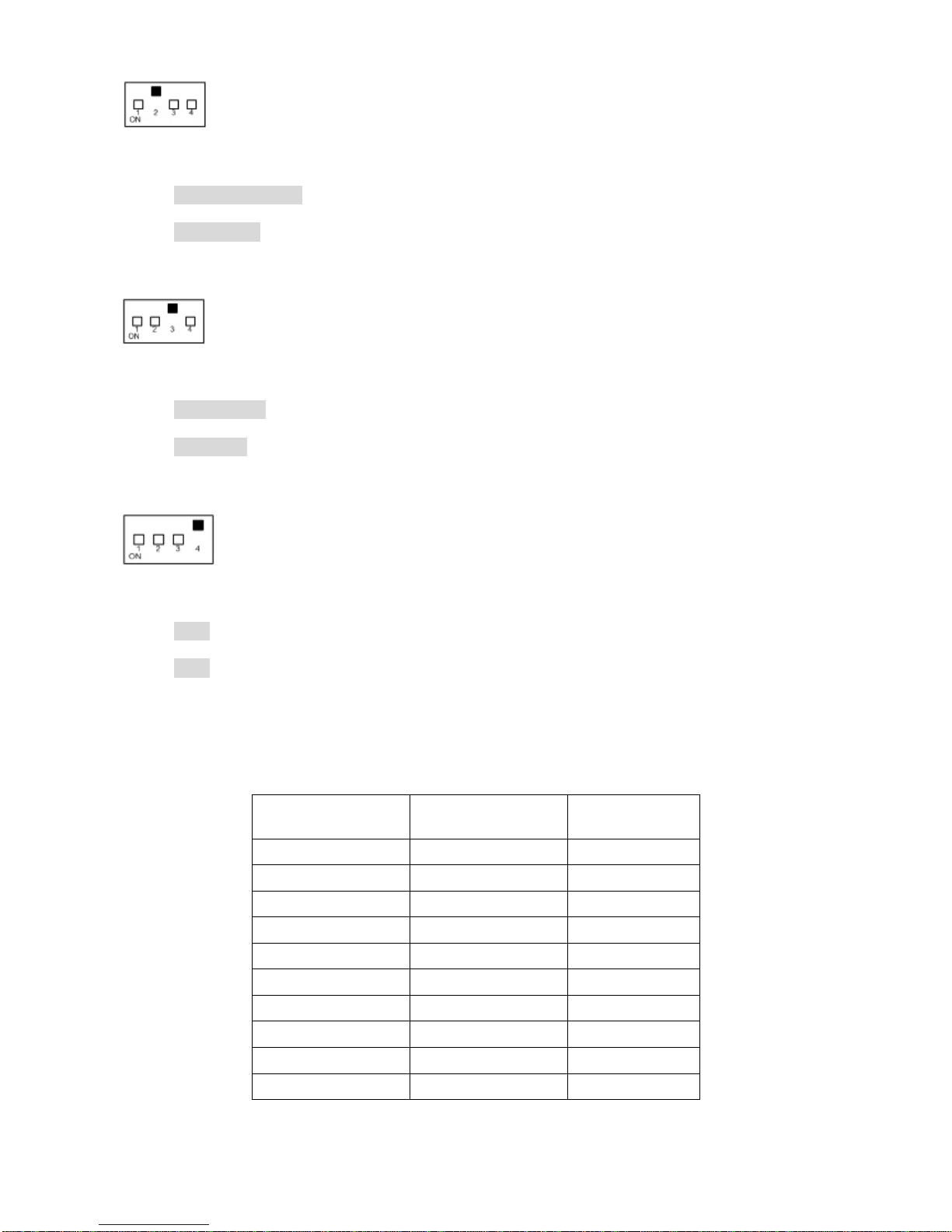

Pin 2: Mode for impulse noise protection
Interleave mode: Protection for up to 250ms impulse noises with latency less than 6 ms.
Fast mode: Direct data transmission with latency less than 1ms.
Pin 3: Rate limit control
50/20 Mbps: Line rate limited to 50 / 20 Mbps.
Full Rate: Provides up to 100Mbps / 60Mbps line rate in short line.
Pin 4: Signal to Noise Ratio (SNR)
9dB: Higher SNR margin ( 9dB ) will result in less error with more stable VDSL2 link.
6dB: Original and Normal channel noise protection with 6 dB SNR.
7. Data Rates & Distances
Performance in 5C2V Cable at 6dB with full rate
Down Stream
Data Rate (Mbps)
Up Stream
Data Rate (Mbps)
Distance
( feet )
107 60 500
103 58 1000
100 56 1250
98 53 1500
96 51 1750
88 48 2000
81 45 2500
77 37 3000
70 32 3500
63 27 4500
