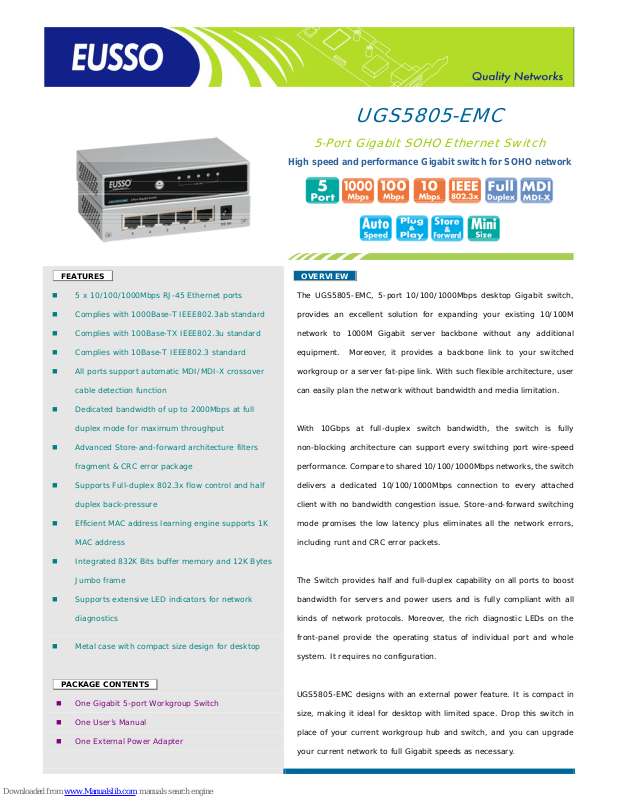

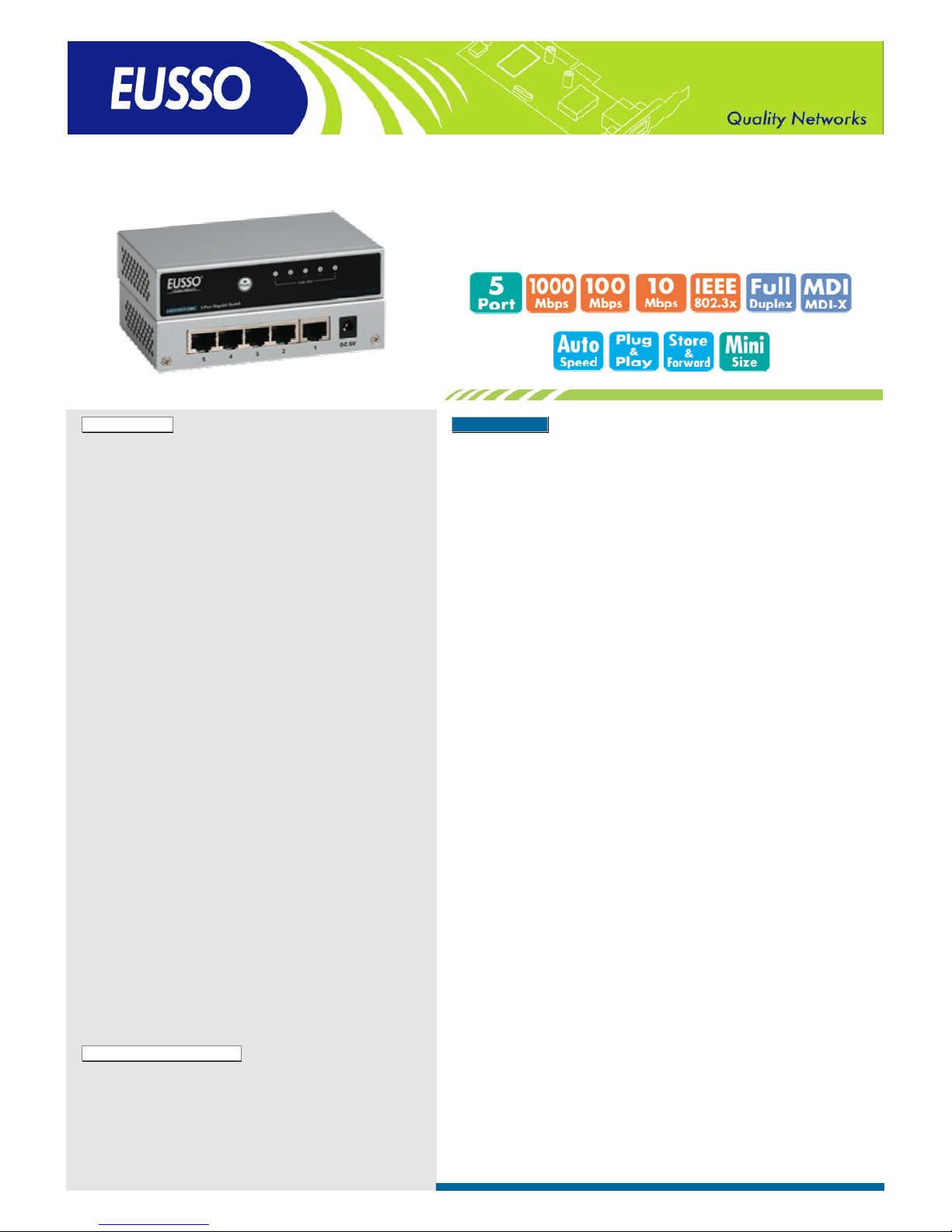

UGS5805-EMC
5-Port Gigabit SOHO Ethernet Switch
High speed and performance Gigabit switch for SOHO network
--FEATURES--
5 x 10/100/1000Mbps RJ-45 Ethernet ports
Complies with 1000Base-T IEEE802.3ab standard
Complies with 100Base-TX IEEE802.3u standard
Complies with 10Base-T IEEE802.3 standard
All ports support automatic MDI/MDI-X crossover
cable detection function
Dedicated bandwidth of up to 2000Mbps at full
duplex mode for maximum throughput
Advanced Store-and-forward architecture filters
fragment & CRC error package
Supports Full-duplex 802.3x flow control and half
duplex back-pressure
Efficient MAC address learning engine supports 1K
MAC address
Integrated 832K Bits buffer memory and 12K Bytes
Jumbo frame
Supports extensive LED indicators for network
diagnostics
Metal case with compact size design for desktop
--PACKAGE CONTENTS--
One Gigabit 5-port Workgroup Switch
One User’s Manual
One External Power Adapter
--OVERVIEW--
The UGS5805-EMC, 5-port 10/100/1000Mbps desktop Gigabit switch,
provides an excellent solution for expanding your existing 10/100M
network to 1000M Gigabit server backbone without any additional
equipment. Moreover, it provides a backbone link to your switched
workgroup or a server fat-pipe link. With such flexible architecture, user
can easily plan the network without bandwidth and media limitation.
With 10Gbps at full-duplex switch bandwidth, the switch is fully
non-blocking architecture can support every switching por t wire-speed
performance. Compare to shared 10/100/1000Mbps networks, the switch
delivers a dedicated 10/100/1000Mbps connection to every attached
client with no bandwidth congestion issue. Store-and-forward switching
mode promises the low latency plus eliminate s all the network errors,
including runt and CRC error packets.
The Switch provides half and full-dup lex capability on al l ports to boost
bandwidth for servers and power users and is fully compliant with all
kinds of network protocols. Moreover, the rich diagnostic LEDs on the
front-panel provide the operating status of individual port and whole
system. It requires no configuration.
UGS5805-EMC designs with an external power feature. It is compact in
size, making it ideal for desktop with limited space. Drop this switch i n
place of your current workgroup hub and switch, and you can upgrade
your current network to full Gigabit speeds as necessary.
Page 2
-SPECIFICATIONS—
System Specifications
Ethernet Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x Full duplex operation and flow control
Interface 5 * 10/100/1000Mbps RJ-45 Gigabit Ethernet ports
Uplink Auto MDI/MDI-X ( Auto Crossover )
Network Speed
10/100/1000Mbps & Full/Half duplex mode auto detection
(1000Mbps for Full-duplex only)
Diagnostic LED
Power : Green
Link/Act : Green
MAC Address Entry 1K MAC entries
Memory 832K bits buffer memory, 12K bytes Jumbo frame
Filtering / Forwarding Rate
10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps
1000Mbps 1,488,100pps
Installation Desktop, metal case, compact size
Operating Temperature 0° ~ 40°C (32° ~ 104°F)
Operation Humidity 10% ~ 90% (non-condensing)
Dimension 121 (L) x 75 (W) x 26 (H) mm
Weight 265 g
Power Supply External Power Adapter 5VDC, 1A
Emission Certification CE, FCC, VCCI Class A
-Application Diagram—

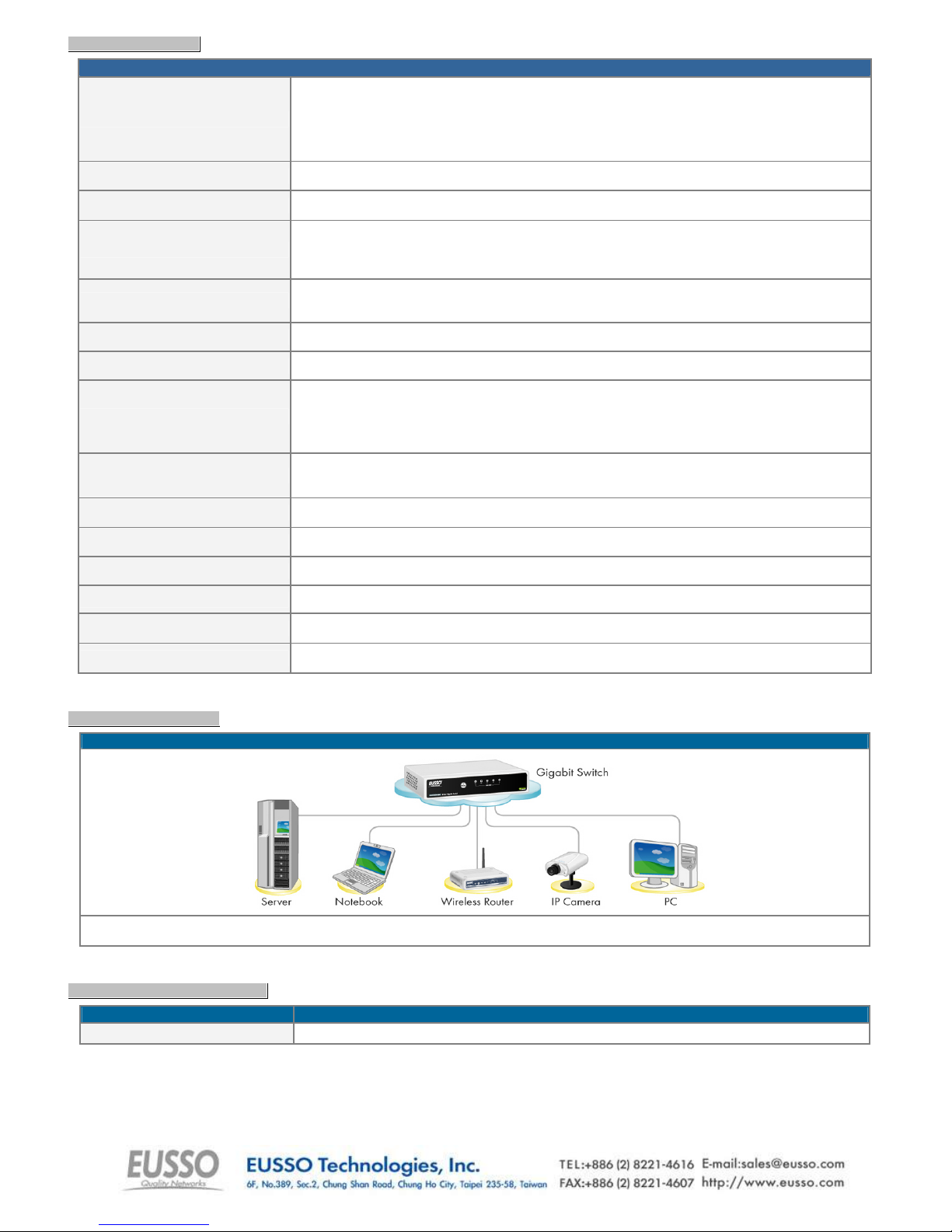

10/100/1000Mbps Gigabit SOHO Switch Application Diagram
The Gigabit Switch can be used to establish a high performance workgroup LAN
With all connections in mixed 10/100/1000Mbps network speed
-ORDERING INFORMATIONS—
Model Description
UGS5805-EMC 5-port Gigabit SOHO Ethernet Switch ( Metal Case, External Power )
EUSSO Technologies, Inc. is a dedicated data communication and networking company. With professional experiences in design, production, marketing
and service support, we deliver the full range networking products including Gigabit Ethernet, Fiber Optic, Wireless LAN, Switches, Hubs, LAN cards,
PCMCIA adapters, Converter, Transceivers. As well as Internet Telephony Gateway, Print Servers, Internet Sharing Servers and many others.
2008/1/23 ver 1.0
