Page 1
2200e
Engineering
Handbook
2200e Series Controllers
HA029989/3
July 2014
Page 2
Page 3
2200e Series Installation and Configuration Handbook Contents
2200e Series Controllers
Installation and Configuration Handbook
Models 2216e, 2208e and 2204e
Contents
1 Installation ................................................................................................................................................ 1-1
1.1 Instrument Layouts ......................................................................................................................................... 1-1
1.1.1 Outline Dimensions ................................................................................................................................................................................... 1-2
1.1.2 Recommended minimum spacing of controllers ............................................................................................................................. 1-2
1.2 Introduction.................................................................................................................................................... 1-3
1.2.1 Controller labels ......................................................................................................................................................................................... 1-3
1.3 Mechanical Installation ................................................................................................................................... 1-3
1.3.1 Unplugging and plugging-in the controller ........................................................................................................................................ 1-3
1.4 Wiring ............................................................................................................................................................. 1-4
1.4.1 Wire Sizes ..................................................................................................................................................................................................... 1-5
1.4.2 Sensor input connections ........................................................................................................................................................................ 1-6
1.4.3 Outputs 1 and 2 connections ................................................................................................................................................................. 1-6
1.5 PDS Modes ...................................................................................................................................................... 1-7
1.6 Snubbers ......................................................................................................................................................... 1-7
1.7 Typical single loop wiring diagram ................................................................................................................. 1-7
1.8 Logic Drive Fan Out ........................................................................................................................................ 1-8
1.9 EIA232/485/422 Communication connections .................................................................................................. 1-8
1.9.1 Wiring of EIA-485 serial communication links................................................................................................................................... 1-9
1.10 DeviceNet® Wiring to Series 2200e Controllers ............................................................................................ 1-10
1.10.1 DeviceNet Terminal Functions ............................................................................................................................................................. 1-10
1.10.2 Wiring Interconnections for DeviceNet Communications ........................................................................................................... 1-10
2 Operation .................................................................................................................................................. 2-1
2.1 Front Panel Layout .......................................................................................................................................... 2-1
2.2 Getting Started ............................................................................................................................................... 2-3
2.2.1 To View The Process Value and Setpoint ........................................................................................................................................... 2-3
2.2.2 To Adjust The Setpoint ............................................................................................................................................................................. 2-3
2.2.3 To View The Display Units ....................................................................................................................................................................... 2-3
2.2.4 Use Of The “SCROLL” Button ........................................................................................................................................................ 2-4
2.2.5 Use Of The ‘PAGE’ Button ............................................................................................................................................................... 2-4
2.3 Parameter Lists ............................................................................................................................................... 2-5
2.4 Manual or Automatic Control ......................................................................................................................... 2-6
2.4.1 To Select Auto/Manual Operation ........................................................................................................................................................ 2-6
2.4.2 To Manually Adjust Output Power........................................................................................................................................................ 2-6
2.5 Selecting SETPOINT 1 OR SETPOINT 2 ............................................................................................................. 2-7
2.5.1 To Select Setpoint 1 orSetpoint 2 ......................................................................................................................................................... 2-7
2.6 Ramp Dwell Function ...................................................................................................................................... 2-7
2.6.1 To Set up a Ramp/Time Program .......................................................................................................................................................... 2-8
2.6.2 To Run the Program .................................................................................................................................................................................. 2-8
2.6.3 Power Failure During Program Run ...................................................................................................................................................... 2-8

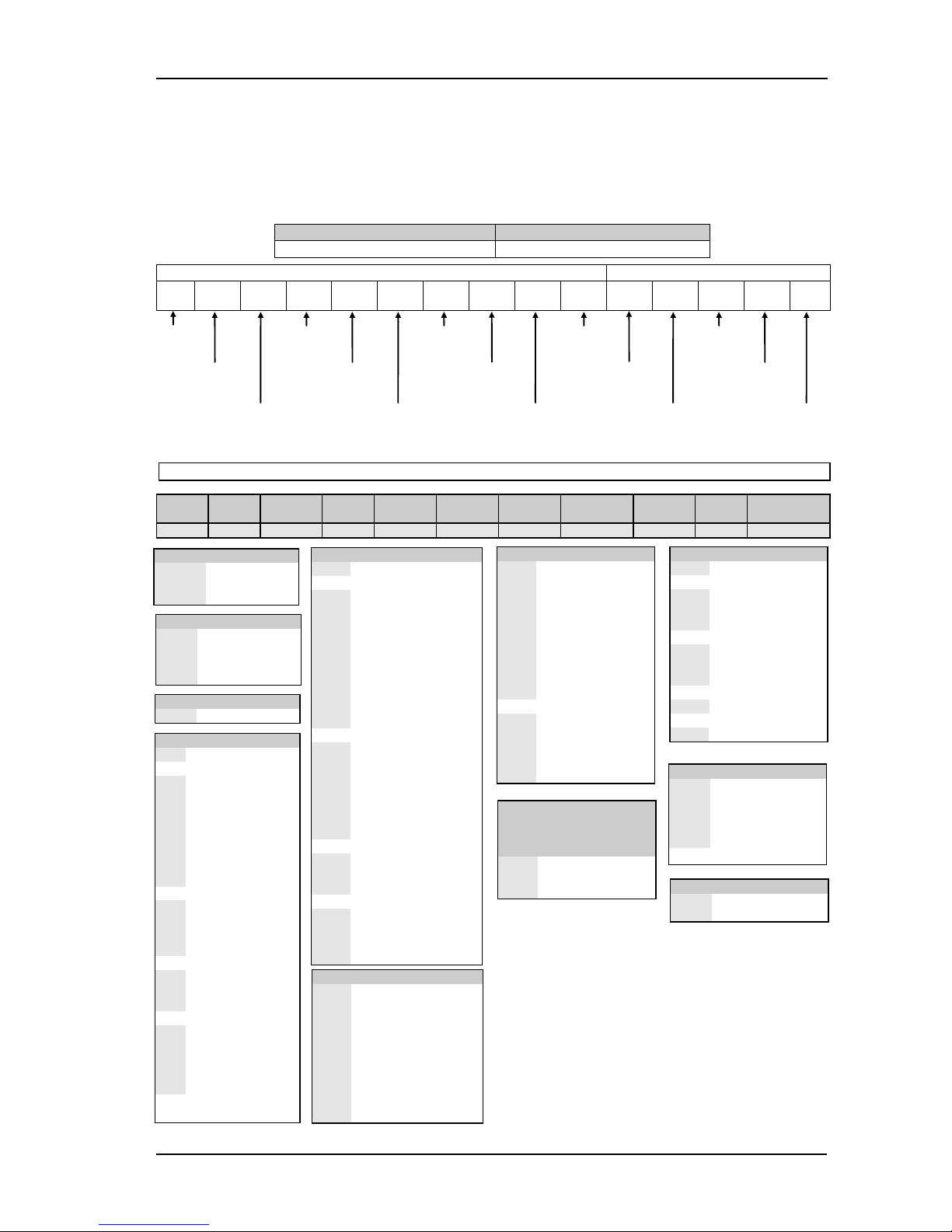

2.7 Location of Parameters - Block Diagram ......................................................................................................... 2-9

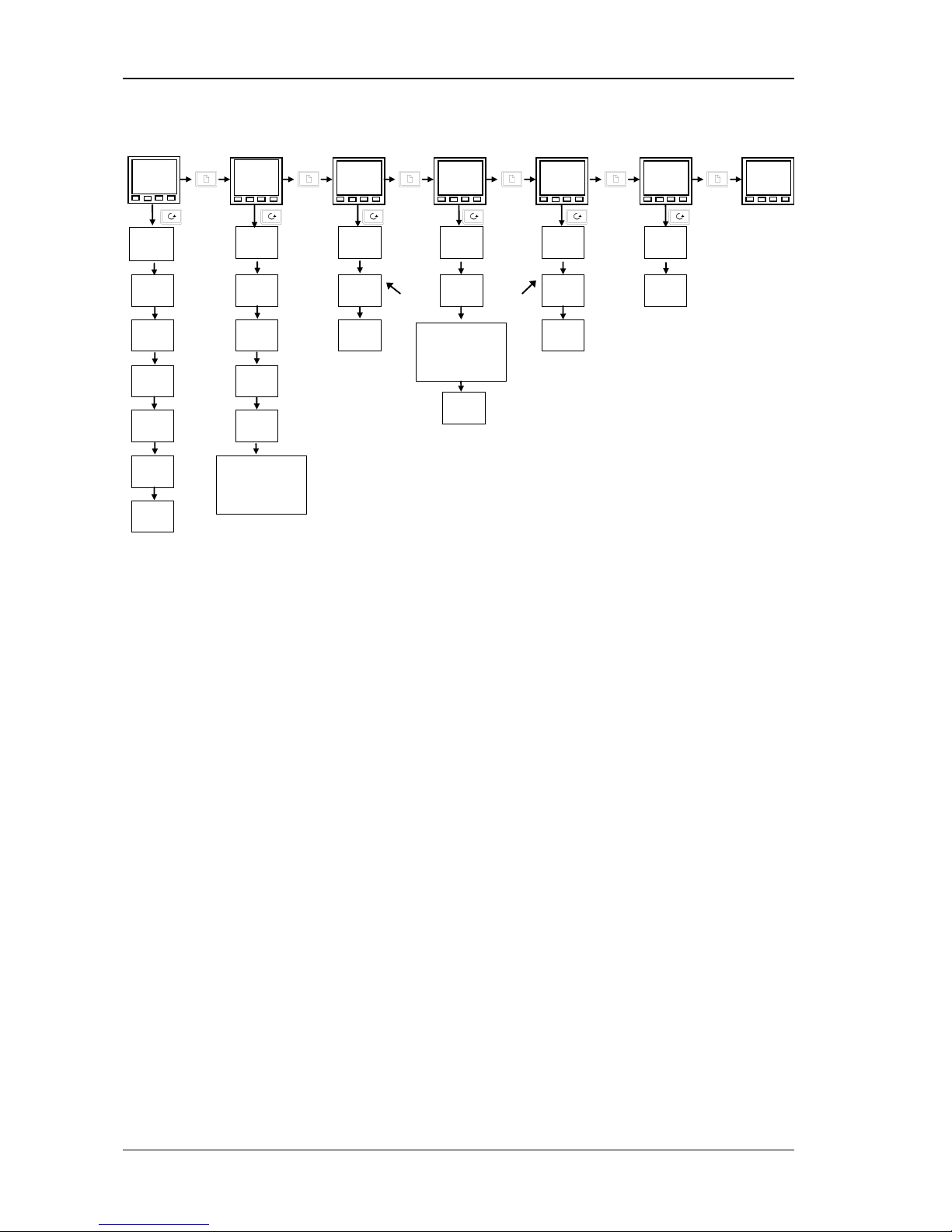

2.8 Navigation Diagram ...................................................................................................................................... 2-10
2.9 Parameter Tables .......................................................................................................................................... 2-11
2.9.1 HOME Display ............................................................................................................................................................................................ 2-11
2.9.2 Alarm List .................................................................................................................................................................................................... 2-11
2.9.3 Autotune List ............................................................................................................................................................................................. 2-12
2.9.4 PID List ......................................................................................................................................................................................................... 2-12
2.9.5 Setpoint List ............................................................................................................................................................................................... 2-12
2.9.6 Input List ..................................................................................................................................................................................................... 2-13
2.9.7 On/Off List.................................................................................................................................................................................................. 2-13
2.9.8 Output List ................................................................................................................................................................................................. 2-13
2.9.9 Communications List ............................................................................................................................................................................... 2-14
2.9.10 Access List .................................................................................................................................................................................................. 2-14
2.10 Alarms .......................................................................................................................................................... 2-15
2.10.1 Types of Alarm Used in the 2200 ........................................................................................................................................................ 2-15
2.11 Alarm Relay Output ...................................................................................................................................... 2-16
2.11.1 Setting Alarm Levels ................................................................................................................................................................................ 2-16
2.11.2 Alarm Indication and Acknowledgement.......................................................................................................................................... 2-17
2.11.3 Diagnostic Alarms .................................................................................................................................................................................... 2-18
i Part No. HA029989 Issue 3 CN31940 July-14
Page 4
Contents 2200e Series Installation and Configuration Handbook
3 Access Levels ............................................................................................................................................ 3-1
3.1 The Different Access Levels ............................................................................................................................. 3-1
3.2 Selecting An Access Level ................................................................................................................................ 3-1
3.2.1 Access list header ....................................................................................................................................................................................... 3-1
3.2.2 Password entry ............................................................................................................................................................................................ 3-1
3.2.3 Level Selection ............................................................................................................................................................................................. 3-2
3.2.4 Configuration password ............................................................................................................................................................................ 3-2
3.2.5 Configuration level ..................................................................................................................................................................................... 3-2
3.2.6 To Return to Operator Level ................................................................................................................................................................... 3-2
3.3 Edit Level ........................................................................................................................................................ 3-3
3.3.1 To Set Operator Access to a Parameter .............................................................................................................................................. 3-3
3.3.2 To Hide or Reveal a Complete List ........................................................................................................................................................ 3-3
3.3.3 To Promote a Parameter .......................................................................................................................................................................... 3-3
4 Tuning....................................................................................................................................................... 4-1
4.1 What Is Tuning?............................................................................................................................................... 4-1
4.2 Automatic Tuning ............................................................................................................................................ 4-1
4.2.1 Heating and Cooling Output Cycle Times ........................................................................................................................................... 4-1
4.3 How To Tune ................................................................................................................................................... 4-2
4.3.1 Typical automatic tuning cycle ............................................................................................................................................................... 4-2
4.3.2 Calculation of the cutback values .......................................................................................................................................................... 4-2
4.4 Manual Tuning ................................................................................................................................................ 4-3
4.4.1 Setting the cutback values ....................................................................................................................................................................... 4-3
4.4.2 Integrating Action and Manual Reset ................................................................................................................................................... 4-4
4.4.3 Automatic Droop Compensation (Adc) ............................................................................................................................................... 4-4
5 Configuration ........................................................................................................................................... 5-1
5.1 To Select Configuration Level .......................................................................................................................... 5-1
5.2 To Select a Configuration Parameter ............................................................................................................... 5-2
5.3 To Leave Configuration Level .......................................................................................................................... 5-2
5.4 Steps Involved In Configuring A Controller ..................................................................................................... 5-2
5.5 Navigation Diagram (PART A).......................................................................................................................... 5-3
5.6 Configuration Parameter Tables ...................................................................................................................... 5-5
5.6.1 Instrument Configuration ......................................................................................................................................................................... 5-5
5.6.2 Input Configuration .................................................................................................................................................................................... 5-6
5.6.3 Calibration Configuration ......................................................................................................................................................................... 5-6
5.6.4 Alarm Configuration .................................................................................................................................................................................. 5-7
5.6.5 Logic Inputs Configuration - 2208e and 2408e only. ....................................................................................................................... 5-7
5.6.6 AA Alarm Relay Configuration - 2208e and 2408e only ................................................................................................................. 5-8
5.6.7 Digital Communications Configuration ................................................................................................................................................ 5-8
5.6.8 Output 1 Configuration ............................................................................................................................................................................ 5-9
5.6.9 Output 2 Configuration ......................................................................................................................................................................... 5-10
5.6.10 Output 3 Configuration ......................................................................................................................................................................... 5-10
5.6.11 Output 4 Configuration ......................................................................................................................................................................... 5-10
5.6.12 Password Configuration ......................................................................................................................................................................... 5-10
5.6.13 Exit Configuration .................................................................................................................................................................................... 5-10
5.7 Configuration of Digital Communications ..................................................................................................... 5-11
5.7.1 To Configure the Function, and Baud Rate ..................................................................................................................................... 5-11
5.7.2 To Set Instrument Address ................................................................................................................................................................... 5-11
5.8 DeviceNet...................................................................................................................................................... 5-12
5.8.1 The EDS File ............................................................................................................................................................................................... 5-12
5.8.2 ODVA Compliance ................................................................................................................................................................................... 5-12
6 User Calibration ........................................................................................................................................ 6-1
6.1 What is the Purpose of User Calibration? ........................................................................................................ 6-1
6.2 User Calibration Enable ................................................................................................................................... 6-1
6.2.1 The User calibration configuration List ................................................................................................................................................ 6-1
6.3 Single Point Calibration ................................................................................................................................... 6-2
6.4 Two Point Calibration ...................................................................................................................................... 6-3
6.5 Calibration Points and Calibration Offsets ....................................................................................................... 6-3
7 Alarm Configuration ................................................................................................................................. 7-1
7.1 Definition Of Alarms And Events ..................................................................................................................... 7-1
7.1.1 Types of Alarms ........................................................................................................................................................................................... 7-1
7.2 Digital Output Functions ................................................................................................................................. 7-2
7.3 Step1 - To Configure the Four ‘Soft’ Alarms .................................................................................................... 7-3
7.4 Step 2 - To Attach an Alarm to A Physical Output ........................................................................................... 7-4
ii Part No. HA029989 Issue 3 July-14
Page 5
2200e Series Installation and Configuration Handbook Contents
7.5 Step 3 - To Group Alarms on a Single Output ................................................................................................. 7-5
7.6 Step 4 - To Remove Alarms From An Output ................................................................................................... 7-5
8 Motorised Valve Control ........................................................................................................................... 8-1
8.1 Parameters For Motorised Valve Control ........................................................................................................ 8-1
8.2 Commissioning the Motorised Valve Controller .............................................................................................. 8-1
8.2.1 Adjusting the minimum on-time ‘Ont.H’............................................................................................................................................ 8-1
8.3 Motorised Valve Applications ......................................................................................................................... 8-2
8.3.1 Auto Tuning ................................................................................................................................................................................................. 8-2
8.3.2 Valve Positioner Set-up Table ................................................................................................................................................................ 8-2
9 Load Current Monitoring and Diagnostics ................................................................................................ 9-1
9.1 Load Current Monitoring and Diagnostics ....................................................................................................... 9-1
9.2 Example Wiring Diagram (For mode 1 & 2 operation) ..................................................................................... 9-2
9.3 Example Wiring Diagram (for mode 5 operation) ............................................................................................ 9-3
9.4 Operation ....................................................................................................................................................... 9-4
9.4.1 To Read Load Current (modes 2 and 5 only) .................................................................................................................................... 9-4
9.4.2 To Display Load Current Continuously in the Lower Readout (modes 2 and 5 only) ........................................................... 9-4
9.4.3 Display Modes ............................................................................................................................................................................................. 9-4
9.4.4 How Heater Alarms Are Displayed ........................................................................................................................................................ 9-5
9.5 To Set The Alarm Trip Levels .......................................................................................................................... 9-5
9.6 Relay Outputs ................................................................................................................................................. 9-6
9.7 To Configure PDS Load Current Diagnostics.................................................................................................... 9-6
9.7.1 To Configure the Logic Module for PDS modes 1 or 2 .................................................................................................................. 9-6
9.7.2 To configure Logic Input 1 for PDS (Mode 5 only) ......................................................................................................................... 9-7
9.8 To Configure Low and High Current Trip Alarms............................................................................................. 9-7
9.9 To Attach Soft Alarms To A Relay Output ....................................................................................................... 9-8
9.10 The Scaling Factor .......................................................................................................................................... 9-9
9.10.1 To Adjust The Scaling Factor .................................................................................................................................................................. 9-9
10 Retransmission .............................................................................................................................. 10-1
10.1 What is retransmission .................................................................................................................................. 10-1
10.2 To Configure Retransmission ........................................................................................................................ 10-1
10.3 To Scale Retransmitted Output Signals ......................................................................................................... 10-2
10.3.1 To Range Retransmitted Output OP ................................................................................................................................................. 10-2
10.3.2 To Range Retransmitted Setpoint SP or Process Variable PV ................................................................................................ 10-2
10.3.3 To Range Retransmitted Error Err .................................................................................................................................................. 10-2
11 Understanding the Order Code ..................................................................................................... 11-1
12 SAFETY and EMC Information ....................................................................................................... 12-1
12.1 Technical Specification ................................................................................................................................. 12-3
13 Supplement 2208e Instruments ..................................................................................................... 13-1
14 Index ............................................................................................................................................. 14-3
This product is cove red by one or more of the f ollowing US Patent s :
5,484,206 and 5,793,754; Additional patents pending.
PDS is a registered trademark of Eurotherm.
INSTANT ACCURACY™, SSRx Load Doct or™ and SSRx Enhanced Load Doc t or ™
are trademarks of Eurotherm
Symbols in Use In This Handbook
Tip
Useful information
Button Operation
Caution, (refer to the
accompanying documents)
!
Part No. HA029989 Issue 3 July-14 iii
Page 6
Page 7
2200e Series Installation and Configuration Handbook Installation
1 Installation
1.1 Instrument Layouts
Figure 1-1: 2216e 1/16 DIN Controller
Figure 1-2: 2208e 1/8 DIN Controller
Figure 1-3: 2204e 1/4 DIN Controller#
KEY
1. Display screen
2. Latching ears
3. Panel sealing gasket
4. Panel retaining clips
5. Label
6. Sleeve
7. Connection Terminals
8. Keypad
5
6
7
8
3
1
2 2 4
4
1
2
3
4
4
5
6
7
8
2
5 2 1 8 6 7 3 2 4
4
Part No. HA029989 Issue 3 July-14 1-1
Page 8
Installation 2200e Series Installation and Configuration Handbook
1.1.1 Outline Dimensions
Figure 1-4: 2216e Controller
Figure 1-5: 2208e Controller
Figure 1-6: 2204e Controller
The controller plugs into a plastic sleeve, which in turn fits into the panel cut-out.
1.1.2 Recommended minimum spacing of controllers
Panel cutout
45 x 45
-0 + 0.6 mm
1.77 x 1.77
-0 + 0.02
in
48mm
(1.89in)
48mm
(1.89in)
103mm (4.01in)
12.5mm
(0.5in)
103mm (4.01in)
12.5mm
(0.5in)
48mm
(1.89in)
96mm
(3.78in)
Panel cutout
45 x 92 mm
-0 + 0.6 -0 + 0.8
1.77 x 3.62 in
-0 + 0.02 -0 + 0.03
Panel cutout
92 x 92
-0 +0.8mm
3.62 x 3.62
-0 +0.03
in
103mm (4.01in)
12.5mm
(0.5in)
96mm
(3.78in)
96mm
(3.78in)
38mm
(1.5in)
X = 10mm (0.4in)
(Not to
scale
)
X X X X X
1-2 Part No. HA029989 Issue 3 July-14
Page 9
2200e Series Installation and Configuration Handbook Installation
1.2 Introduction
The Models 2216e, 2208e and 2204e are precision temperature controllers with self tuning. They have a modular
hardware construction which provides two control outputs, alarm relays and one communications port. Two logic
inputs are provided as standard in 2208e and 2204e.
1.2.1 Controller labels
The labels on the sides of the controller identify the ordering code, the serial number, and the wiring connections.
Section 11, Understanding the Ordering Code explains the hardware and software configuration of your particular
controller.
1.3 Mechanical Installation
To install the controller
1. Cut the panel to the relevant hole size shown in Section 1.1.1.
2. Fit the IP65 sealing gasket behind the front bezel of the controller.
3. Insert the controller in its sleeve through the cut-out.
4. Spring the upper and lower panel retaining clips into place. Secure the controller in position by holding it level
and pushing both retaining clips forward.
5. Peel off the protective cover from the display.
Note: If the panel retaining clips subsequently need removing, they can be unhooked from the side with either your
fingers or a screwdriver.
1.3.1 Unplugging and plugging-in the controller
The controller can be unplugged from its sleeve by easing the latching ears outwards and pulling it forward out of the
sleeve. When plugging the controller back into its sleeve, ensure that the latching ears click into place to maintain
moisture sealing protection.
Part No. HA029989 Issue 3 July-14 1-3
Page 10
Installation 2200e Series Installation and Configuration Handbook
1.4 Wiring
Please read Section 12, Safety and EMC information before proceeding.
WARNING
Please ensure that the controller is correctly configured for your application. Incorrect configuration
could result in damage to the process being controlled, and/or personal injury. The controller may
either have been configured when ordered, or may need configuring now. See Section 5,
Configuration.
The wiring connections are shown below. Outputs are factory fitted modules which can be any one of the types
shown in section 1.4.3. Check the ordering code on the controller side label to determine which have been fitted.
Model 2216e Connections
Figure 1-7: 2216e Terminals
Model 2208e Connections
Figure 1-8: 2208e Terminals
Do not use unused terminals as wire holders.
!
- -
-
HA
HB
HC
HD
HE
HF
+ +
+
L
N
VI
V+
V-
1A
1B
2A
2B
3A
3B
2.49Ω
- + T/C
Pt100 mA
-
+
mV/V
-
+
Output 1
Output 2
Output 3
Line
Neutral
Digital
Comms
Sensor Input
L
N
LA
LB
LC
AA
AB
AC
VI
V+
V-
3A
3B
3C
1A
1B
2A
2B
HA
HB
HC
HD
HE
HF
+ +
- -
+
-
+
+
-
2.49Ω
-
+
T/C
Pt100
mA
-
+
mV/V
-
+
Output 1
Output 2
Output 3
Line
Neutral
Digital
Comms
Sensor Input
Output AA
Logic Inputs
1-4 Part No. HA029989 Issue 3 July-14
Page 11
2200e Series Installation and Configuration Handbook Installation
Model 2204e Connections
Figure 1-9: 2208e Terminals
Do not use unused terminals as wire holders.
1.4.1 Wire Sizes
All electrical connections are made to the screw terminals at the rear of the controller. They accept wire sizes from
0.5 to 1.5 mm
2
(16 to 22 AWG), and are protected by a hinged cover to prevent hands or metal making accidental
contact with live wires. Rear terminals should be tightened to a torque of 0.4Nm (3.5 lb in).
- -
L
N
LA
LB
LC
AA
AB
AC
VI
V+
V-
3A
3B
3C
1A
1B
2A
2B
HA
HB
HC
HD
HE
HF
+ +
+
-
+
+
-
2.49Ω
-
+
T/C
Pt100
mA
-
+
mV/V
-
+
Output 1
Output 2
Output 3
Line
Neutral
Digital
Comms
Sensor Input
Output AA
Logic Inputs
5C
5D
6A
6B
6C
6D
4A
4B
4C
4D
5A
5B
Part No. HA029989 Issue 3 July-14 1-5
Page 12
Installation 2200e Series Installation and Configuration Handbook
1.4.2 Sensor input connections
The connections for the various types of input are as follows:
Figure 1-10: Sensor Input Connections
Do not connect more than one sensor to any one input.
1.4.3 Outputs 1 and 2 connections
Outputs 1 and 2 can be any one of the types shown in the table below, configured to perform any one of the
functions shown.
To check which outputs are installed, and their configuration, refer to the ordering code and the wiring information
on the controller side labels.
Connections
Output 1 Output 2 Possible functions
Module type 1A 1B 2A 2B
Relay: 2-pin
(2A, 264 Vac max.)
Heating
Cooling
Alarms
Logic: non-isolated *
(18Vdc at 24mA)
+ - + -
♦
PDS modes 1 or 2 (SSRx)
Heating
Cooling
Alarms
Triac
(1A, 30 to 264Vac)
Heating or cooling
DC control: isolated
(18Vdc, 20mA max)
+
-
DC not available
in output 2
PID Heating or cooling
* Logic output can also be configured as logic input on module 2A.
♦
PDS Mode 1 & 2 are only supported in Module 1A.
Figure 1-11: Outputs 1 and 2 Connections
VI
V+
V-
VI
V+
V-
VI
V+
V-
VI
V+
V-
Thermocouple
Resistance
Thermometer
mA Input
Volts or mV
Inputs
+
PV
2.49Ω
current
sense
resistor
Line
Load
Line
Load
!
1-6 Part No. HA029989 Issue 3 July-14
Page 13
2200e Series Installation and Configuration Handbook Installation
1.5 PDS Modes
PDS is a proprietary technique developed for bi-directional communication over a single pair of wires. There are
several operating modes.
In SSRx Load Doctor™ a logic output delivers a power demand signal to a TE10 solid state (SSR) relay and the SSR
responds with a single load circuit failure message.
In SSRx Enhanced Load Doctor™ a logic output delivers a power demand signal to an SSR and the SSR responds with
the ON state rms load current, and two fault messages - SSR failure or heater circuit failure.
1.6 Snubbers
The controller is supplied with ‘snubbers’ (15nF +100Ω) which should be wired across the relay or triac outputs when
switching inductive loads such as mechanical contactors and solenoid valves. The snubbers are used to prolong
contact life and to suppress interference when switching such loads. Snubbers pass 0.6mA at 110Vac and 1.2mA at
240Vac, which may be sufficient to hold in high impedance relay coils. They should not, therefore, be used in such
installations.
WARNING
When a relay contact is used in an alarm circuit ensure that the current passing through the
snubber when the relay contact is open does not hold in low power electrical loads and thereby
interfere with the failsafe operation of the alarm circuit.

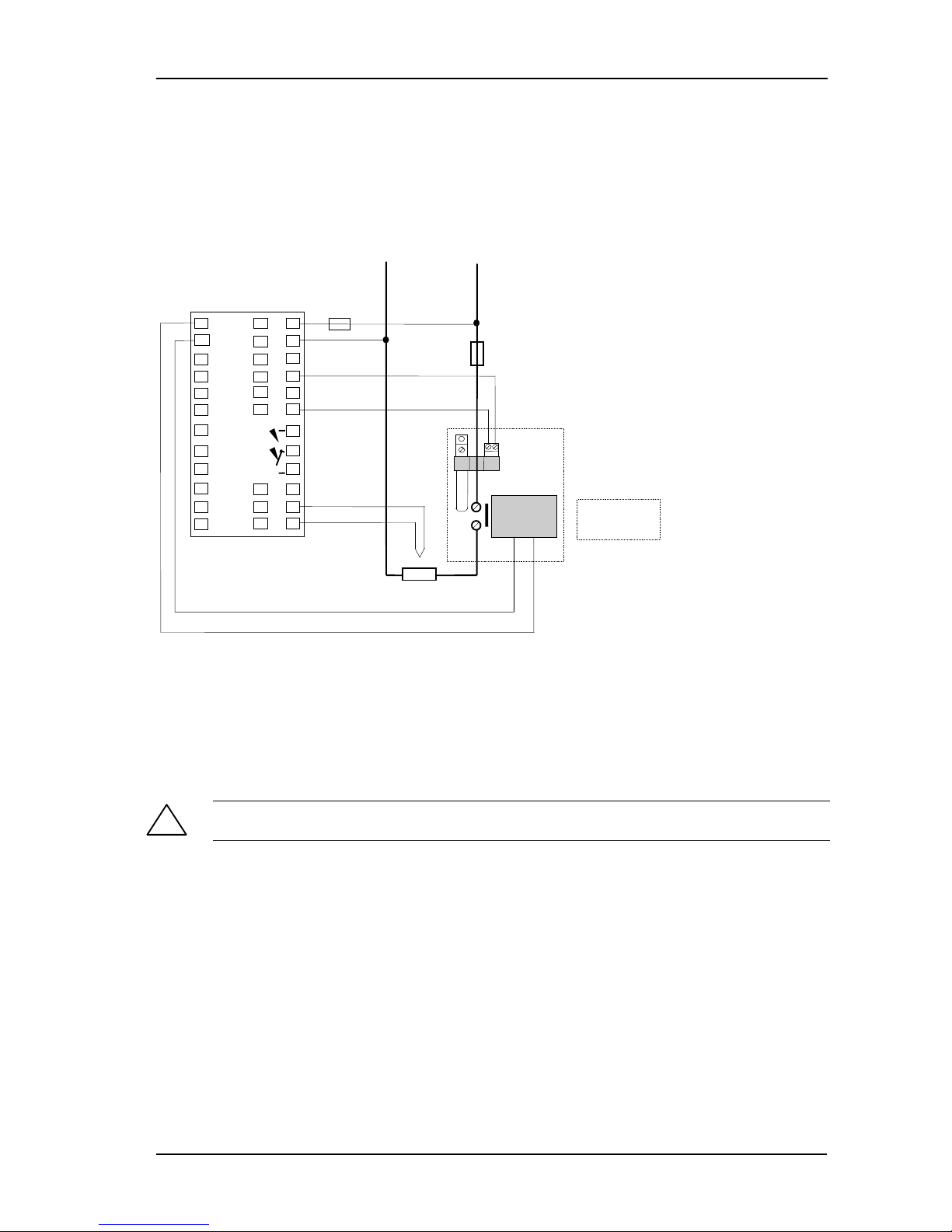

1.7 Typical single loop wiring diagram
Figure 1-12: Typical Wiring Diagram, Model 2216e Controller
Safety requirements for permanently connected equipment state:
• A switch or circuit breaker shall be included in the building installation
• It shall be in close proximity to the equipment and within easy reach of the operator
• It shall be marked as the disconnecting device for the equipment.
Note: a single switch or circuit breaker can drive more than one instrument.
!
Comms
Neutral
Heating
power fuse
(load
dependent)
Line
Thermocouple
Cooling Power
Fuse 1A(T)
Controller
Fuse 2A(T)
Solid State
Relay
e.g. TE10
+
-
Snubber
Heater
JA
JF
HA
HB
HC
HD
HE
HF
1A
1B
2A
2B
3A
3B
L
N
V1
V+
V-
Cooling
solenoid
valve
Circuit
breaker
Part No. HA029989 Issue 3 July-14 1-7
Page 14
Installation 2200e Series Installation and Configuration Handbook
1.8 Logic Drive Fan Out
The logic outputs from the 2200 series controllers are capable of driving more than one solid state relay (SSR) in
series or parallel. The following table shows the number of SSRs which can be driven depending on type of SSR.
S = Series; P = Parallel.
Drive
mA
SVDA RVDA TE10S 425S
Logic DC Logic DC Logic DC Logic 10V Logic 24V Logic 20mA
Logic 18V@24 4S 6P 4S 4P 3S 3/2P 3S 3P 1S 2P 6S 1P
450 TC1027CE TE200S TC2000CE RS3DA
Standard TTL Multi-drive Logic V Logic DC Logic DC Logic DC
Logic 2S 3P 1S 2P 6S 1P 3S 4/3P 3S 4P 3S 2/1P 4S 2P
1.9 EIA232/485/422 Communication connections
The communication option can be either of four types shown in the table below:-
Connection
Communications type HB HC HD HE HF
4-wire EIA-422 serial
communications
A’
(RX +)
B’
(RX -)
Common A
(TX +)
B
(TX -)
2-wire EIA-485 serial
communications
Do not use Do not use Common A (+)
B (-)
EIA-232 serial
communications
Not used Not used Common A B
PDS Setpoint input Not used Not used Not used Signal Common
Figure 1-13: Communications Connections
1-8 Part No. HA029989 Issue 3 July-14
Page 15
2200e Series Installation and Configuration Handbook Installation
1.9.1 Wiring of EIA-485 serial communication links
Local
Local
Earth
HF +
Series 2000™
Controller
Com
Note:
All termination resistors are 220 ohm 1/4W carbon composition.
Local grounds are at equipotential. Where equipotential is not available wire into
separate zones using a galvanic isolator.
A
B
PC
Universal Convertor
RXTXCom
ComTXRX
Up to 32
controllers or
Interface Units may
be included on the
network
232
ComBA
Com
A
B
Galvanic
Isolation
Barrier
Com
A
B
Com
A
B
Local Earth
Com
A
B
Earth
Universal
Converter
MMI
Series 2000™
Controller
Series 2000™
Controller
For safety reasons,
do not connect to
local earth here.
HD
HF+
HE
HD
HF+
HE
HE
HD
Figure 1-14: 2-Wire EIA-485 Wiring
Standard EIA-485 is a 2-
wire connection which allows up to 32 controllers to
be multi-dropped from a single communications link over a distance of up
to 1.2Km. To ensure reliable operation of the communications link, (without
data corruption due to noise or line reflections) the connections between
the controller should be made using a twisted pair of wires inside a shielded
cable with the connections terminated with resistors in the manner shown in
this diagram. This diagram also shows the use of a Comms converter to
connect the 2-wire EIA-485 link into a standard EIA-232 computer port.
Common and Local
Earth cannot be
connected together.
Part No. HA029989 Issue 3 July-14 1-9
Page 16
Installation 2200e Series Installation and Configuration Handbook
1.10 DeviceNet® Wiring to Series 2200e Controllers
This section covers the DeviceNet digital communications option for the model 2208e and 2204e controllers. To
configure DeviceNet communications refer to section 5.8.
1.10.1 DeviceNet Terminal Functions
Series 2200e
Terminal
CAN
Label
Color
Chip
Description
HA V+ Red DeviceNet network power positive terminal. Connect the red wire of the DeviceNet
cable here. If the DeviceNet network does not supply the power, connect to the
positive terminal of an external 11-25 Vdc power supply.
HB CAN_H White DeviceNet CAN_H data bus terminal. Connect the white wire of the DeviceNet cable
here.
HC SHIELD None Shield/Drain wire connection. Connect the DeviceNet cable shield here. To prevent
ground loops, the DeviceNet network should be grounded in only one location.
HD CAN_L Blue DeviceNet CAN_L data bus terminal. Connect the blue wire of the DeviceNet cable
here.
HE V- Black DeviceNet network power negative terminal. Connect the black wire of the DeviceNet
cable here. If the DeviceNet network does not supply the power, connect to the
negative terminal of an external 11-25 Vdc power supply.
Notes:
Power taps are recommended to connect the DC power supply to the DeviceNet trunk line. Power taps
include:
A Schottky Diode to connect the power supply V+ and allows for multiple power supplies to be connected.
Two fuses or circuit breakers to protect the bus from excessive current which could damage the cable and
connectors.
1.10.2 Wiring Interconnections for DeviceNet Communications
Figure 1-15: Wiring Connections for 2200e Series DeviceNet Controllers
!
Note:
The DeviceNet network is powered by an external
independent 24V supply which is separate from the
internal powering of the individual controllers.
The earth connection, HF, to be connected to the
main supply earth terminal at one point only.
* 121 1% 1/4W terminating resistor must be
connected across the blue and white wires at each
end of the DeviceNet trunk cable.
Note: this resistor is sometimes included in the
master or other devices but should only be switched
into circuit on the last device on the trunk cable.
DeviceNet Trunk Cable
DeviceNet Power
Supply
24Vdc (+/
- 1%)
250mV p
-p Ripple max
V+
V-
Ground
V- Shield V+
↑
Further Devices
2200_1
HA
HB
HC
HD
HE
HF
Drop
Line
MASTER
Drop Line
Drop
Line
Further Devices
↓
2200_2
HA
HB
HC
HD
HE
HF
*
*
CAN-L CAN-H
1-10 Part No. HA029989 Issue 3 July-14
Page 17
2200e Series Installation and Configuration Handbook Operation
2 Operation
2.1 Front Panel Layout
Figure 2-1: Model 2216e Front Panel Layout
Figure 2-2: Model 2208e Front Panel Layout
Figure 2-3: Model 2204e Front Panel Layout
Tip: The display may flash an alarm message. Refer to the Parameter Tables in section 2.9 for a complete
list and meaning of the messages.
Down
Button
Manual mode
Page
Button
Scroll
Button
Up
Button
Remote Setpoint
Output 2
Upper readout
Lower readout
Output 1
Setpoint 2 active
Setpoint rate limit active
20.00
20.00
OP1
OP2
2204e
SP2 REM
MAN
RUN
HOLD
Page Button
Scroll Button
Down Button
Up Button
Manual mode
Setpoint 2 active
PDS Remote Setpoint
Setpoint rate limit active
20.0.0
20.0.0
OP1
OP2
SP2
REM
2208e
Output 1
Output 2
Upper readout
Lower readout
MAN
RUN
HOLD
PDS Remote Setpoint
Setpoint 2 active
Output 1
Actual Temperature (Process Value)
Output 2
Required Temperature (Setpoint)
20.0
23.0
OP1
OP2
SP2
Rem
Page Button
Scroll Button
Down Button
Up Button
Part No. HA029989 Issue 3 July-14 2-1
Page 18
Operation 2200e Series Installation and Configuration Handbook
Button or indicator Name Explanation
OP1 Output 1 When lit, it indicates that heating output is on.
OP2 Output 2 When lit, it indicates that cooling output is on.
SP2 Setpoint 2 When lit, this indicates that Setpoint 2 has been selected.
REM Remote Setpoint When lit, this indicates that the PDS remote Setpoint input has
been selected. ‘REM’ is also used to indicate that user comms is
active.
MAN Manual light When lit, it indicates that manual mode has been selected
RUN Run light When lit, it indicates that Setpoint rate limit is active.
Page button Press to select a new list of parameters.
Scroll button Press to select a new parameter in a list.
Down button Press to decrease a value in the lower readout.
Up button Press to increase a value in lower readout.
Figure 2-4: Controller Buttons and Indicators
Tip: For Valve Positioning, please refer to section 8 ‘Motorised Valve Control.
2-2 Part No. HA029989 Issue 3 July-14
Page 19
2200e Series Installation and Configuration Handbook Operation
2.2 Getting Started
Thank you for selecting this controller.
This section shows the principle of operation. Views are generally shown for 2404 controller.
2.2.1 To View The Process Value and Setpoint
Install and wire up the controller as explained in section 1.4 and switch on.
Following a 3 second self-test sequence, this is the display you will see,
Figure 2-5: The "HOME Display"
Tip: The display may flash an alarm message. Refer to the Parameter Tables in section 2.9 for a
complete list and meaning of the messages.
2.2.2 To Adjust The Setpoint
Figure 2-6: The Lower Readout Shows the Setpoint
After 2 seconds the lower readout will ‘blink’ indicating that the new value has been accepted.
For everyday use you may not need to do anymore than this.
2.2.3 To View The Display Units
Figure 2-7: Viewing the Display Units
Tip: If you get lost, pressing and together will return you to the Home display.
Press and hold to
increase temperature
Press and hold to
decrease temperature
20.0
140.0
OP1
OP2
Output 1
Actual Temperature (Process Value)
Output 2
Required Temperature (Setpoint)
20.0
23.0
OP1
OP2
Display Units
“
C
Degrees Centigrade
“
F
Degrees Farenheit
K
Degrees Kelvin
No units - Linear inputs
Momentarily press either button
0.5 sec.
23.0
“
C
20.0
140.0
Part No. HA029989 Issue 3 July-14 2-3
Page 20
Operation 2200e Series Installation and Configuration Handbook
2.2.4 Use Of The ‘SCROLL’ Button
Pressing the scroll button will display the output power level. Continued pressing will display further parameters in
the operator scroll list.
Figure 2-8: The Scroll Button
2.2.5 Use Of The ‘PAGE’ Button
The page button accesses parameter LISTS.
Parameters are settings in the instrument which, generally, can be changed by the user to suit the process. Examples
are: Alarms, Self Tune, etc. They are found under headings called LISTS and a full set is given later in this chapter.
Figure 2-9: The Page Button
Tip: The actual list headings may be longer or shorter than indicated above and you can customise this for the
operator’s convenience in EDIT level, section 3.
Keep pressing to return to the Home display or select
further parameters (if available)
2nd press
3rd press
Output
Actual output level %
OP
100.0
Manual/Auto
Actual state
m-A
Auto
Keep pressing to
select more list headings
1st press
0.2 sec.
23.0
“
C
20.0
1400
3rd press
2nd press
AL
LiSt
atun
LiSt
20.0
14.00
2-4 Part No. HA029989 Issue 3 July-14
Page 21
2200e Series Installation and Configuration Handbook Operation
2.3 Parameter Lists
Press to choose a LIST - “ALARMS” is a good one. This list allows you to set the alarm trip levels. The
parameters which appear in the list will vary according to the configuration of your controller.
Tip: If, at any time, no key is pressed within 45 seconds, the display will always return to the “HOME” display.
A description of the parameter lists is given in section 2.9.
Figure 2-10: Choosing a List of Parameters
or to change trip level
or to change trip level
1st press
2nd press
0.2 sec.
23.0
“
C
20.0
140.0
There are 4 alarms in the controller. The first
character is the alarm number. The following
three letters indicate alarm type as follows:
-FSL
Full Scale Low
-FSH
Full Scale High
-dHi
Deviation High
-dLo
Deviation Low
-dEv
Deviation Band
-Lcr
Low current
-Hcr
High current
Disabled alarms will not be displayed.
Section
7 gives a full description of alarms.
Alarm
List
Alarm 1
Now press the
SCROLL button
2nd press
AL
LiSt
1---
50.0
2---
200.0
Keep pressing
2. to scroll through further parameters
3. to return to list header
Alarm 2
Part No. HA029989 Issue 3 July-14 2-5
Page 22
Operation 2200e Series Installation and Configuration Handbook
2.4 Manual or Automatic Control
The controller can be used in two modes:
Automatic mode - in which the output power is automatically adjusted to hold the temperature at the required
value. The controller normally operates in this mode.
Manual mode - in which the output is manually adjusted by the Operator. In this mode the ‘MAN’ light will be on.
One other mode is available:
Remote setpoint - The setpoint is generated as an input signal from a master 2000 or 3000 series controller. In this
mode the REM light is on.
2.4.1 To Select Auto/Manual Operation
Figure 2-11: Auto/Manual Select
2.4.2 To Adjust Output Power in Manual Mode
Figure 2-12: The "Home" Display in Manual Mode
Tip: Manual mode is generally used for test and commissioning purposes, take care not to leave the controller in
this mode since damage to the process or personal injury could occur.
or to select
Auto automatic mode
Man manual mode
2 sec.
23.0
“
C
20.0
1st press
Output
Actual output level %
Manual/Auto
2nd press
3rd press
OP
100.0
m-A
Keep pressing
to return to “HOME” display
Actual Temperature (Process Value)
20.0
50.0
OP1
OP2
Output Power Demand
Manual Indicator on
Press and hold to increase power
Press and hold to decrease power
2-6 Part No. HA029989 Issue 3 July-14
Page 23
2200e Series Installation and Configuration Handbook Operation
2.5 SETPOINT 1 OR SETPOINT 2
The instrument has the facility to select between two setpoints. This may be useful, for example, where it is required
to switch control between two different setpoints or to control in a standby condition, thus avoiding the necessity to
change the setpoint manually each time.
2.5.1 To Select Setpoint 1 or Setpoint 2
This may be done in two ways:-
1. By an external switch or relay contact wired to a digital input
2. Through the front panel using the SP list
Figure 2-13: Selecting Setpoint 1 or 2
2.6 Ramp Dwell Function
The ramp dwell function is selected by turning the setpoint rate limit parameter SPrr to a value. It can be set to
RUN in two ways:-
1. Through the front panel using the SP list
2. By an external switch or relay contact wired to a digital input configured for reset (rset). When closed the
program will reset. When open the program will run. To run the program from the initial reset state, it is
necessary to first close the switch then open it.
The controller will then ramp from setpoint 1 to setpoint 2 at a rate set by the SPrr parameter.
When the controller reaches setpoint 2 it can remain at this level for a timed period, using the dwel parameter.
At the end of the dwell period the action of the controller is determined by the End Type parameter End.t.
Press to select SP list
20.0
140.0
Setpoint List
Press scroll button to SSEL
SP
LiSt
SSEL
SP
Press
o r
to change between SP 1 and SP 2
When setpoint 2 is selected
the SP2 beacon illuminates.
Part No. HA029989 Issue 3 July-14 2-7
Page 24
Operation 2200e Series Installation and Configuration Handbook
2.6.1 To Set up a Ramp/Time Program
Set setpoint 1 to the value at which to start the ramp. Set setpoint 2 to the value which you wish to ramp to. This is
described in the previous section.
Figure 2-14: Ramp/Dwell Program

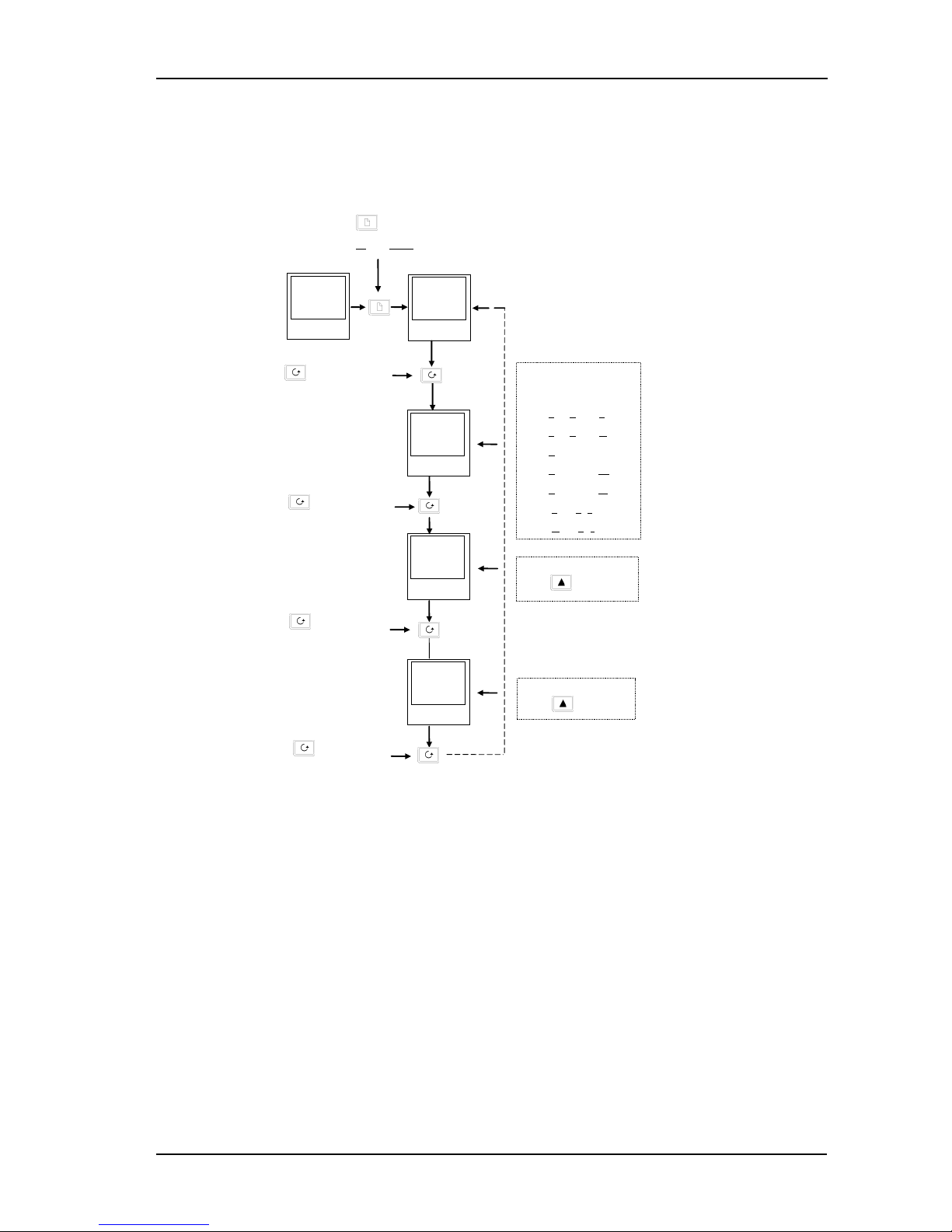

2.6.2 To Run the Program
Figure 2-15: Program Run
A program may also be reset or run using an external switch contact if a digital input has been configured. See
Configuration section 5.
2.6.3 Power Failure During Program Run
1. During Ramp. After return of power, the working setpoint will servo to the current PV value, and the ramp
continues to SP2 followed by the timed dwell.
2. During Dwell. After return of power the working setpoint will servo to PV, the ramp continues to SP2 followed
by full programmed dwell. In effect this causes the program to restart.
Tip: Use the Hide, Reveal and Promote features to customise the display for a programmer. See section 3.

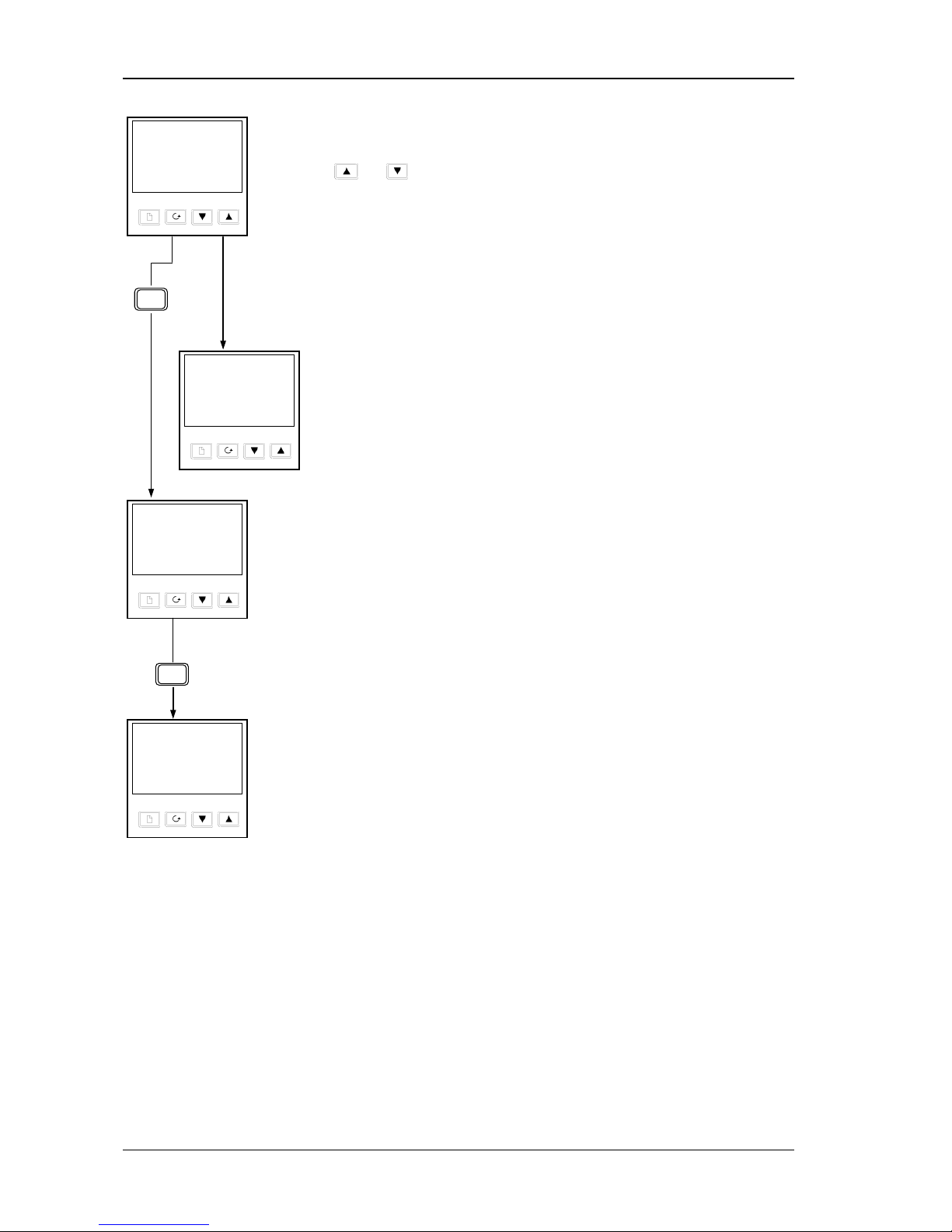

In Run mode the controller will ramp from SP 1 to SP 2 at 20.0 units per minute
Press scroll button to dwEl
SPrr
20.0
dwel
60.0
Press
or
to set the SP ramp rate in units per minute
Press
o r
to set the dwell time in minutes
In Run mode the controller will dwell at SP 2 for 60 minutes
Press scroll button to End.t
End.t
rSEt
In Run mode the controller will reset at the end of the dwell time. Other choices are:-
HoLd
The program will freeze
StbY
The program will go into standby
dwel
The program will dwell for an unlimited period
Press
o r
to choose the action required at the end of the dwell time
Now press until
SPrr
is displayed
From the previous view, press
scroll button to ProG
Prog
run
Press or to choose run
To reset the controller to start conditions, select
rSEt
From the previous view,
press scroll button to StAt
StAt
rmp
The status may be any one of the following:
rmp
Ramping from SP1 to SP2
dwel
Dwelling at SP2
End
The program is complete.
If
End.t
=
rSEt, End
will flash briefly before changing to
OFF
OFF
The program is in the reset state
In Full access level the Status of the
program can be read as follows:
-
2-8 Part No. HA029989 Issue 3 July-14
Page 25
2200e Series Installation and Configuration Handbook Operation
2.7 Location of Parameters - Block Diagram
The controller consists of a number of internal function blocks connected together to create a temperature
controller. Each function block has a number of parameters found in lists to which the user has access. The block
diagram shows location of these parameters within the controller.
Figure 1-14 Controller Block Diagram
20.0
23.0
OP1
OP2
For example
Output power
Setpoint
Auto/Manual
HOME List
LA*, LB*,
Module 2
Logic I/P
Alarm 1
Input
SP
PLANT INPUTS
PLANT OUTPUTS
Remote SP
TCs
PRT
Pyrometer
mA. mV, Volts
Relay, Logic, triac,
mA, Volts
Setpoint
PV
SP List
PiD List
OP List
iP List
Atun List
Control
Parameters
Digital
Comms
RS232
RS484
RS422
cms List
Digital Comms
Retrans-
mission
mA,
Volts
OP
PV
Err
SP
2 to 5 logic inputs
Functions
listed in
LA/LB
Relay
output
Relay, Logic,
triac
Alarm 2
Alarm 3
Alarm 4
Other
alarms
Normal/
Invert
OR
AL List
These are available in configuration level only
Alarms
Logic Inputs
Retrans-mission
Display Parameters
* LA & LB are not
available in 2216
Part No. HA029989 Issue 3 July-14 2-9
Page 26
Operation 2200e Series Installation and Configuration Handbook

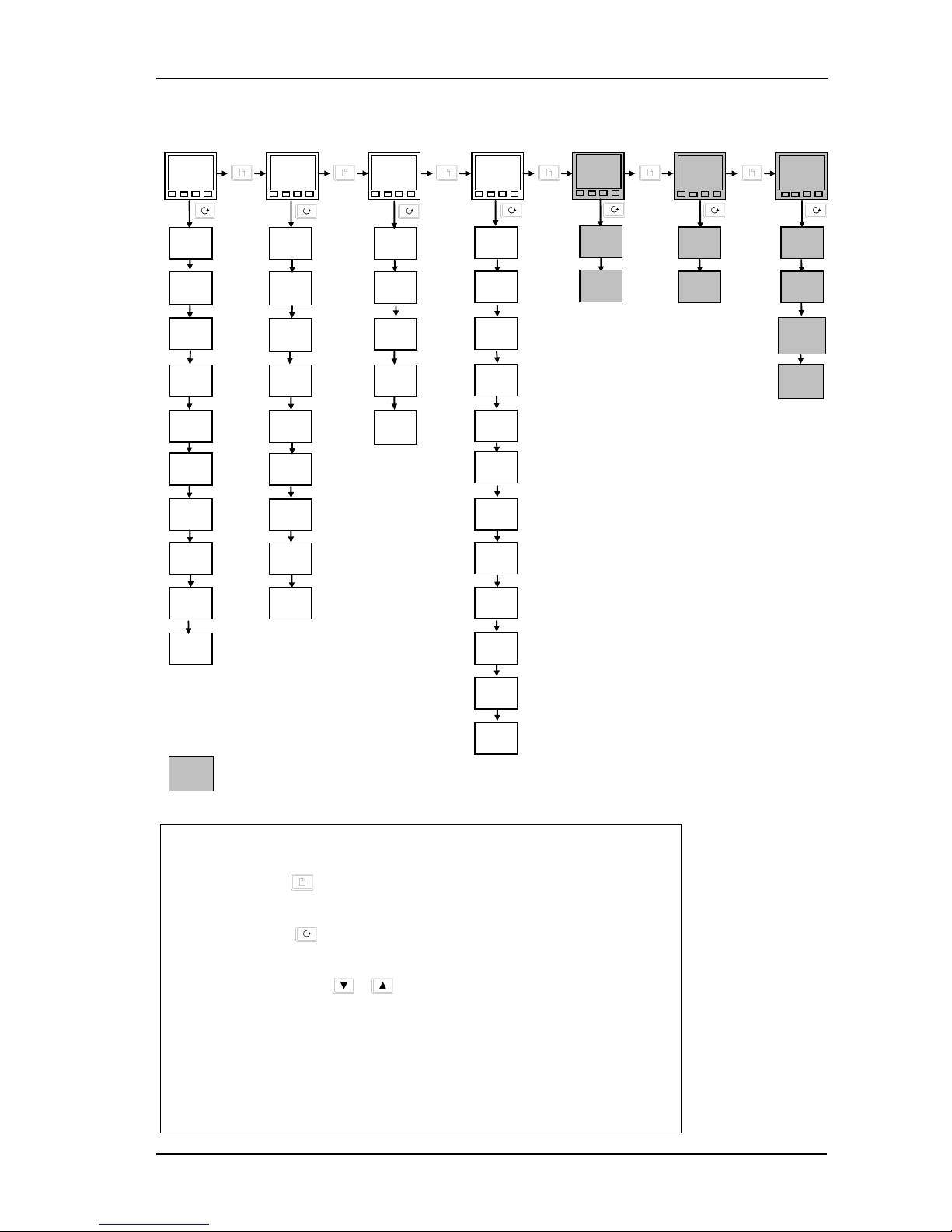

2.8 Navigation Diagram
The navigation diagram shows a complete list of possible parameters. However, some may not appear because they
are dependent upon a particular controller variant.
Figure 2-16: Navigation Diagram
20.0
20.0
Home
List
Atun
LiSt
Pid
LiSt
PID
(1)
List
AL
LiSt
Alarm
List
Autotune
List
SP
LiSt
Setpoint
List
OP
100.0
AmPS
5
5
m-A
Auto
1---
2
100.0
2--
2
20.00
3--
2
0.0
4--
2
0.0
TunE
OFF
Lbt
OFF
Pb
50
Ti
300
td
50.0
rES
0.0
Lcb
Auto
Hcb
Auto
SSEL
SP 1
L-r
8
Loc
SP 1
20.0
SP 2
0.0
rm.SP
8
0.0
Loc.t
8
0.0
rEL.C
1.00
SP1.L
3
0.0
SP1.H
3
10
0.0
Loc.L
8
100.0
Loc.H
8
0.0
SPrr
OFF
SP2.H
3
100.0
SP2.L
3
0.0
VPOS
4
100.0
WSP
9
20.0
SP
20.0
diSP
stnd
CID
1.0
HY
1.0
Adc
Notes:
1. Either the PID list or the On/Off list
will be present depending upon the
type of control in use.
2. The last three characters depend
upon the type of alarm configured
3. Absolute setpoint limits are set in
configuration, see section 5.
4. VPOS only for VP. Refer to VP Ch8.
5. Amps is Mode 2 or Mode 5 PDSIO.
6. mtr used for VP version. Refer to
VP Ch 8
7. Beware! Used for calibration. See
section 6.
8. Is only available if using PDSIO®
comms in the HA slot.
9. WSP is available if using ramp to
setpoint.
Return
to
Home
Display
DwEl
0.0
End.t
rset
ProG
rset
StAt
OFF
iP
LiSt
Input
List
oP
LiSt
Output
List
CmS
LiSt
Comms
List
ACCS
LiSt
Access
List
OnOF
LiSt
On Off
List
(1)
FiLt
1.0
CAL
7
FACT
CAL.S
7
Lo
OP.Lo
0.0
OP.Hi
100.0
Sb.OP
100.0
CYC.H
20.0
ont.H
1.0
CYC.C
5.0
hYS.H
1.0
hYS.C
1.0
HC.db
0.0
Addr
1
coDE
PASS
Goto
OPEr
ont.C
1.0
ConF
0
OFST
0.0
Mtr
6
20.0
AdJ
7
0.0
CJC
21.0
mV
1.17
Complete lists or individual parameters
normally hidden in Operator level. To see
all the available parameters you must select
Full level. See section 3 Access Levels
Only displayed when option selected
Summary
To step through list headers press the Page button
until the required header is obtained
To step through parameters within a particular list press
the Scroll button
until the required parameter is
obtained
To change the value (or state) of a parameter press the
Raise button
or the Lower button
2-10 Part No. HA029989 Issue 3 July-14
Page 27
2200e Series Installation and Configuration Handbook Operation
The remainder of this chapter provides a complete list of all parameters available.
2.9 Parameter Tables
The tables which follow list all parameters that are available in Full operator level.
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
Display mnemonic
Brief description of
parameter or function
Factory configured value
2.9.1 HOME Display
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
Home List
Home
Measured Value and
Setpoint(SP)
SP=25°C SP=75°F
as display
vPoS
Valve positioner output power
0.0 100.0
%of mtr
OP
% Output Level
-100.0 100.0
%
wSP
Working setpoint
as display
SP
Setpoint
-999 9999
as display
AmPS
Heater current (PDS modes 2
and 5)
0 100 Amps
m-A
Auto/manual select
Auto Auto
diSP
Configure lower readout of
home display
StD StD
None“ StD“
AmPS“ OP“
stat“ vPoS
Cid
Customer ID
0 0 0 9999
Additional parameters may appear in the Home display if the ‘promote’ feature has been used (see Edit Level, section 3).
2.9.2 Alarm List
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
AL
Al
arm List
1---
Alarm 1 set point value
0 0
as display
2---
Alarm 2 set point value
0 0
as display
3---
Alarm 3 set point value
0 0
as display
4---
Alarm 4 set point value
0 0
as display
In place of dashes, the last three characters indicate the alarm type, as follows:
-FSH
Full Scale High alarm
-999 9999
as display
-FSL
Full Scale Low alarm
-999 9999
as display
-DEv
Deviation band alarm
0 9999
as display
-dHi
Deviation High alarm
0 9999
as display
-dLo
Deviation Low alarm
0 9999
as display
-Lcr
Low current alarm
0 100
AMPS
-Hcr
High current alarm
0 100
AMPS
Hy
Hysteresis
0 9999
as display
Hy.EV
Hysteresis for event alarms.
See Note 1
0 9999
as display
Lbt
Loop break time
OFF OFF 0 9999
secs
Note 1: This parameter has been added from software version 4. Event alarms are configured in the AL Conf List.
Part No. HA029989 Issue 3 July-14 2-11
Page 28
Operation 2200e Series Installation and Configuration Handbook
2.9.3 Autotune List
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
Atun
A
uto
tune
List
tunE
Self tune enable
OFF OFF OFF On
Adc
Automatic droop
compensation (Manual Reset)
enable (only present if ti set
to OFF)
MAn MAn MAn CALC
2.9.4 PID List
Pid
PID List
Pb
Proportional band
20.0 30 1
9999
as display
ti
Integral time
360 360 OFF 9999
seconds
td
Derivative time
60 60 OFF 9999
seconds
rES
Manual reset (appears when
ti
set to OFF)
0.0 0.0 0.00 100.0
%
Lcb
Cutback low
Auto Auto 0 9999
as display
Hcb
Cutback high
Auto Auto 0 9999
as display
rEL.C
Relative cool gain (set 1)
1.00 1.00 0.01 9.99
2.9.5 Setpoint List
SP
Set Point List
SSEL
Select SP1 or SP2
SP1 SP1 SP1 SP2
L-r
Local or remote setpoint
select
Loc Loc Loc rmt
SP1
Setpoint 1 value
25 70
As display range
SP2
Setpoint 2 value
25 70
As display range
rm.SP
Remote setpoint
0 0
As display range
Loc.t
Local trim
0 0
As display range
SP1.L
Setpoint 1 low limit
0 32
As display range
SP1.H
Setpoint 1 high limit
1000 2100
As display range
SP2.L
Setpoint 2 low limit
0 32
As display range
SP2.H
Setpoint 2 high limit
1000 2100
As display range
Loc.L
Local setpoint trim low limit
-210 -346
As display range
Loc.H
Local setpoint trim high limit
1200 2192
As display range
SPrr
Setpoint rate limit
OFF Off
Units per minute
dwEl
Dwell time
OFF OFF
0.1 to 999.9 minutes
EnD.t
End type
rset rset rset
hoLd
Stby
dwel
ProG
Program control
rset rset run“
rset
Stat
Status of program
Off OFF rmp
dwel
end
Off
2-12 Part No. HA029989 Issue 3 July-14
Page 29
2200e Series Installation and Configuration Handbook Operation
2.9.6 Input List
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
iP
Input list
*FiLt
Input filter time constant
1.6 1.6 0.0 off 999.9
secs
OFSt
PV Offset
-999 9999
as display
The next 5 parameters will appear if User calibration has been enabled in configuration level. To perform a user calibration refer
to Ch 6.
CAL
FACt will re-instate factory settings and disable User Calibration. Default setting FACt
USEr will re-instate any previously set User Calibration offsets and make available User Calibration parameters as
follows:
CAL.S
User cali
bration select
none none
Hi“ Lo“
none
Adj~
Adjust calibrated reference
source
The following two parameters are always present in Full Access level but not in Operator level
CJCo
Cold Junction
compensation temperature
mV
Millivolt input
* A minimum filter time constant of one second is recommended to provide sufficient noise immunity.
~ Do not make adjustments to the AdJ parameter unless you wish to offset the controller calibration.
2.9.7 On/Off List
OnOf
On/of
f list
This set of parameters only appear if On/Off control has been configured
hYS.H
Heat hysteresis
0 0 0 9999
as display
hYS.C
Cool hysteresis
0 0 0 9999
as display
HC.db
Heat/Cool dead band
1 1 0 9999
as display
2.9.8 Output List
oP
Output list
Note; If On/Off control is configured only
Sb.OP, ont.H
and
ont.C
will appear in the
following list
OP.Lo
Low (power) output limit 0.0 or -100.0
(cool)
-100.0 100.0
%
OP.Hi
High (power) output limit
100.0 100.0 -100.0 100.0
%
Sb.OP
Output setting when in
sensor break
0.0 -100.0 100.0
%
(1)
CYC.H
Heat cycle time
1.0 (logic) 20
(relay)
0.2 999.9
secs
ont.H
Heat output min. on time
0.1 0.1 Auto
(50mS)
999.9
(1)
CYC.C
Cool cycle time 1.0 (logic) 20
(relay)
0.2 999.9
secs
(1)
ont.C
Cool output min. on time
0.1 0.1 Auto
(50mS)
999.9
secs
mtr
VP motor travel time
0.0 999.9
secs
(1) Not used for Valve Position Control.
Part No. HA029989 Issue 3 July-14 2-13
Page 30
Operation 2200e Series Installation and Configuration Handbook
2.9.9 Communications List
Name
Parameter Description
Default Value
Min Value
Max Value
Units
Customer Setting
UK
USA
cmS
Comms list
Addr
Communications address
1 1 1 254
2.9.10 Access List
ACCS
Acces
s list
codE
Full and Edit level password
1 1 0 9999
Goto
Goto level -OPEr“FuLL“
Edit“or conF
OPEr OPEr OPEr conF
ConF
Configuration level password
2 2 0 9999
2-14 Part No. HA029989 Issue 3 July-14
Page 31
2200e Series Installation and Configuration Handbook Operation
2.10 Alarms
Alarms are used to alert an operator when a pre-set level has been exceeded. They are normally used to switch an
output (see 2.11) – usually a relay – to provide external actions to the process.
Soft Alarms are indication only and do not operate an output.
Events are generally defined as conditions, which occur as part of the operation of the plant. They do not require
operator intervention and, therefore, do not cause an alarm message to be displayed. They can be attached to
operate an output (relay) in the same way as an alarm.
2.10.1 Types of Alarm Used in the 2200
This section shows graphically the operation of different types of alarm used in the controller. The graphs show
changes in PV plotted against time.
Full scale low
On
On
Deviation low
On
On
Deviation high On
Deviation band
On
On On
Full scale high
On
Rate of change
On

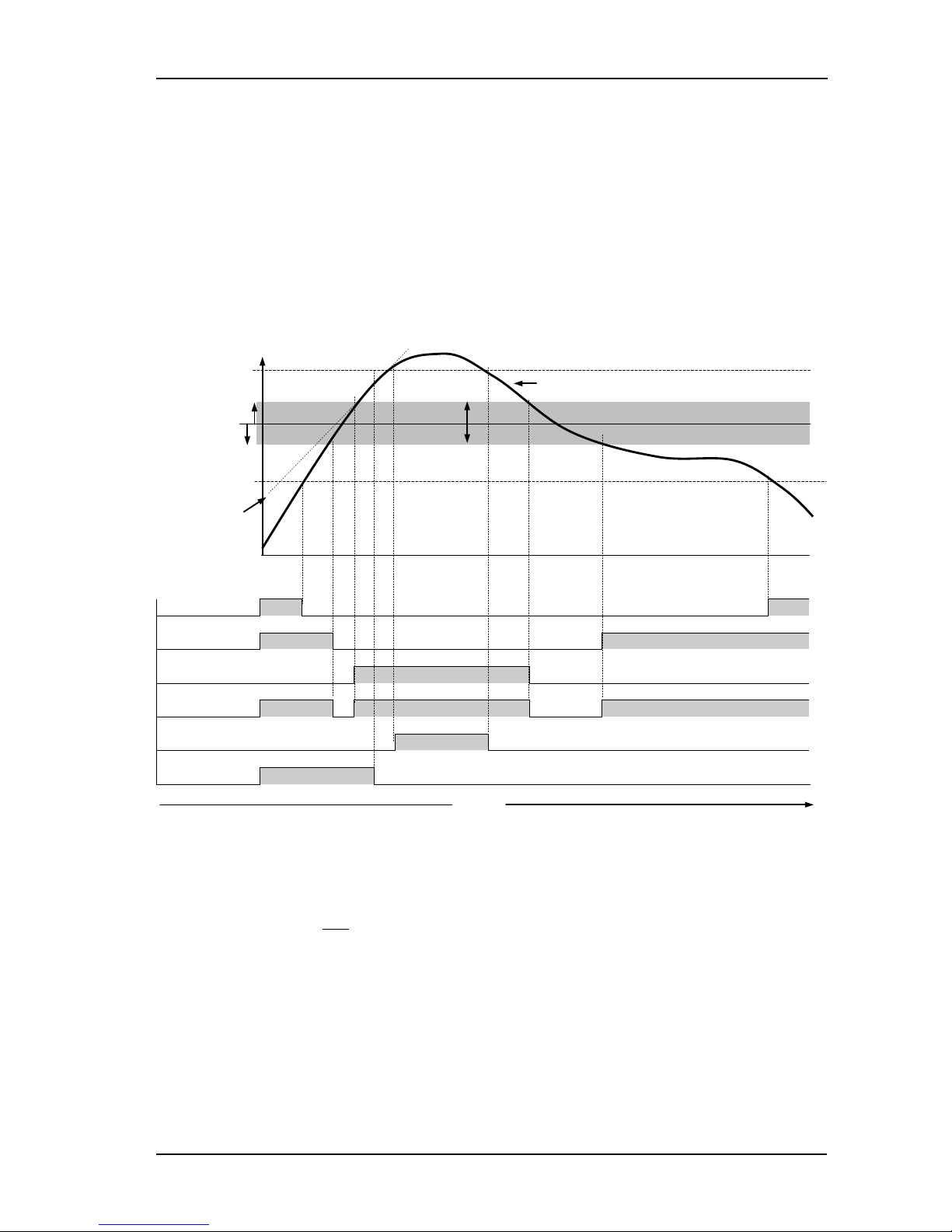

Figure 2-17: Alarm Types
Hysteresis is the difference between the point at which the alarm switches ON and the point at which it switches OFF.
It is used to prevent relay chatter.
Blocking Alarms only occur after the start up phase when the alarm has first entered a safe state. The alarm is only
indicated the next time it is active. It is used, for example, to ignore start up conditions which are not representative
of running conditions.
Latching Alarms see 7.1.1.
Loop Break Alarm. The control loop is considered to be open if the output demand signal increases to saturation
level but the error does not reduce after a set period of time. The time period can be set manually, depending on the
response time of the loop, using the parameter Lbt in the Alarm List (section 2.9.2). It is, also set automatically,
following an autotune (see section 4), to 3 x Ti (integral time). The time period, Lbt, starts from the point at which
the output demand reaches saturation. The loop break alarm L.br is displayed (as a diagnostic alarm, see section
2.11.3) at the end of this period.
Time
Setpoint (SP)
Full Scale High
Full Scale Low
Deviation High
Deviation Low
Deviation
Band
PV
Rate of Change
Process Variable (PV)
Alarm Type
Output State
Part No. HA029989 Issue 3 July-14 2-15
Page 32
Operation 2200e Series Installation and Configuration Handbook
2.11 Alarm Relay Output
Tip. Alarms can operate a specific output (usually a relay). Any individual alarm can operate an individual relay or
any combination of alarms can operate an individual relay. They are either supplied pre-configured in accordance
with the ordering code or set up in configuration level.
See section 5 for further information.

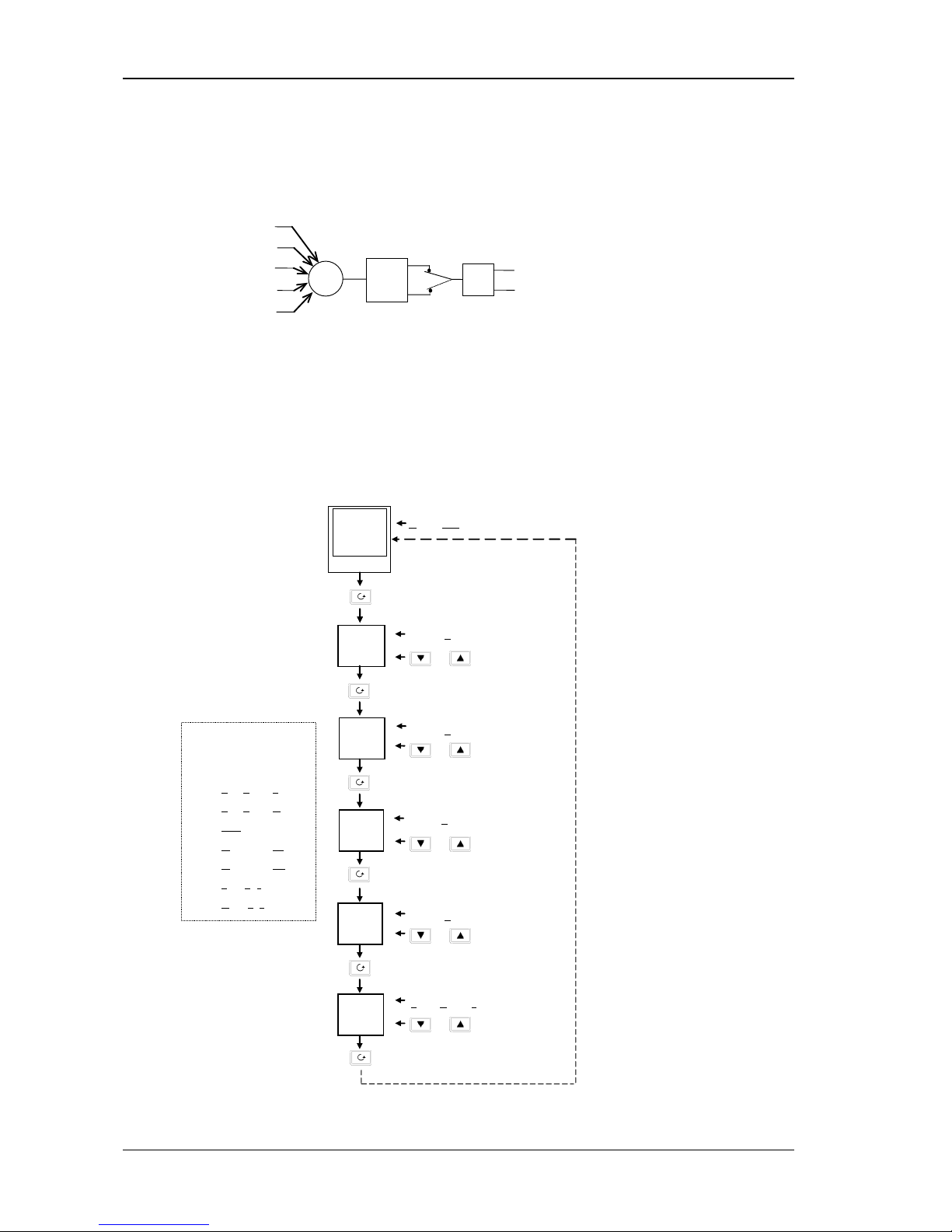

Figure 2-18: Attaching Alarms to an Output
2.11.1 Setting Alarm Levels
Up to 4 Alarms may be configured. Each alarm is given a name to describe its function - see table below:
If an alarm is not configured it does not appear in the list below.
Figure 2-19: To Set Alarm Trip Levels
dIG
SEnS
nor
inv
Relay
output 1
Any combination of alarms can operate the relay.
Typical alarms are shown
ANY
Alarm 1
Alarm 2
Sensor break
Input fail
Alarm 3
2---
200
1---
100
3---
0
4---
0
AL
LiSt
Lbt
OFF
In place of dashes, letters
indicate alarm type as
follows:
-FSL Full Scale Low
-FSH Full Scale High
-dEv Deviation Band
-dHi Deviation High
-dLo Deviation Low
-Lcr Low current
-Hcr High current
Alarm List
Alarm 1
2nd press
or to change
3rd press
4th press
5th press
Alarm 2
Alarm 3
Alarm 4
Loop break time
Press to return
to list header
or to change
or to change
or to change
or to change
2-16 Part No. HA029989 Issue 3 July-14
Page 33
2200e Series Installation and Configuration Handbook Operation
2.11.2 Alarm Indication and Acknowledgement
When an alarm occurs, the alarm mnemonic (e.g. 1FSH) will be indicated by a double flash in the HOME display.
Similarly, if more than one alarm occurs the relevant mnemonics are flashed in the HOME display. The double flash
will continue whilst the alarm condition is present and is not acknowledged.
Press
and together to acknowledge the alarm.
If the alarm condition is still present when the alarm is acknowledged, it will be indicated by a single flash of the
alarm mnemonic and this single flash will be repeated for as long as the alarm condition remains. When the alarm
condition disappears the indication will also disappear.
If the alarm condition is no longer present when the alarm is acknowledged, the flashing message will disappear
immediately on acknowledgement.
If a relay has been attached to the alarm output (see section 7 ‘Alarm Operation’), it will operate when the alarm
condition occurs and remain in the operated condition until the alarm is acknowledged AND it is no longer present
Part No. HA029989 Issue 3 July-14 2-17
Page 34
Operation 2200e Series Installation and Configuration Handbook
2.11.3 Diagnostic Alarms
These indicate that a fault exists in either the controller or the connected devices.
Display
shows
What it means
What to do about it
EE.Er
Electrically Erasable Memory
Error:
The value of an operator or
configuration parameter has
been corrupted
This fault will automatically take you into configuration level. Check
all of the configuration parameters before returning to operator
level. Once in operator level, check all of the operator parameters
before resuming normal operation. If the fault persists or occurs
frequently, contact your supplier
S.br
Sensor Break:
Input sensor is unreliable or the
input signal is out of range
Check that the sensor is correctly connected
L.br
Loop Break:
The feedback loop is open circuit
Check that the heating and cooling circuits are working properly
Ld.F
Load failure
Indication that there is a fault in
the heating circuit or the solid
state relay
This is an alarm generated by feedback from a TE10S solid state
relay (SSR) operating in PDS SSRx mode. It indicates either an open
or short circuit SSR, blown fuse, missing supply or open circuit
heater
SSr.F
Solid state relay failure
Indication that there is a fault in
the solid state relay
This is an alarm generated by feedback from a TE10S solid state
relay (SSR) operating in PDS SSRx mode. It indicates either an open
or short circuit condition in the SSR
Htr.F
Heater failure
Indication that there is a fault in
heating circuit
This is an alarm generated by feedback from a TE10S solid state
relay (SSR) operating in PDS SSRx mode. It indicates either a blown
fuse, missing supply or open circuit heater
HW.Er
Hardware error
Indication that a module is the
wrong type
Check that the correct modules are fitted
no. io
No I/O module
Modules are configured but not
fitted
This error message normally occurs when pre-configuring a
controller without installing any of the required I/O modules
rmt.F
Remote input failure. The PDS
input is open circuit. (PDS Also
known as SST – Smart Setpoint
Transmission)
Check for open or short circuit wiring on the PDS input
LLLL
Out of Display range, low reading
Check the value of the display range
HHHH
Out of Display range, high
reading
Check the value of the display range
Err1
Error 1: ROM self-test fail
Return the controller for repair
Err2
Error 2: RAM self-test fail
Return the controller for repair
Err3
Error 3: Watchdog fail
Return the controller for repair
Err4
Error 4: Keyboard failure Stuck
button, or a button was pressed
during power up.
Switch the power off and then on without touching any of the
controller buttons.
Err5
Error 5: Input circuit failure
Return the controller for repair*
Pwr.F
Power failure. The line voltage is
too low
Check that the supply to the controller is within the rated limits
TU.Er
Tune error. If any one stage of
the tuning process exceeds 2
hours the tune error alarm
occurs
Check response time of process: check that the sensor has not
failed: check that the loop is not broken. Acknowledge by pressing
‘page’ button and ‘scroll’ button together.
Figure 2-20: Diagnostic Alarms
* If the user has disassembled and reassembled the instrument, this error can occur if any connectors are not seated
properly.
2-18 Part No. HA029989 Issue 3 July-14
Page 35
2200e Series Installation and Configuration Handbook Access Levels
3 Access Levels

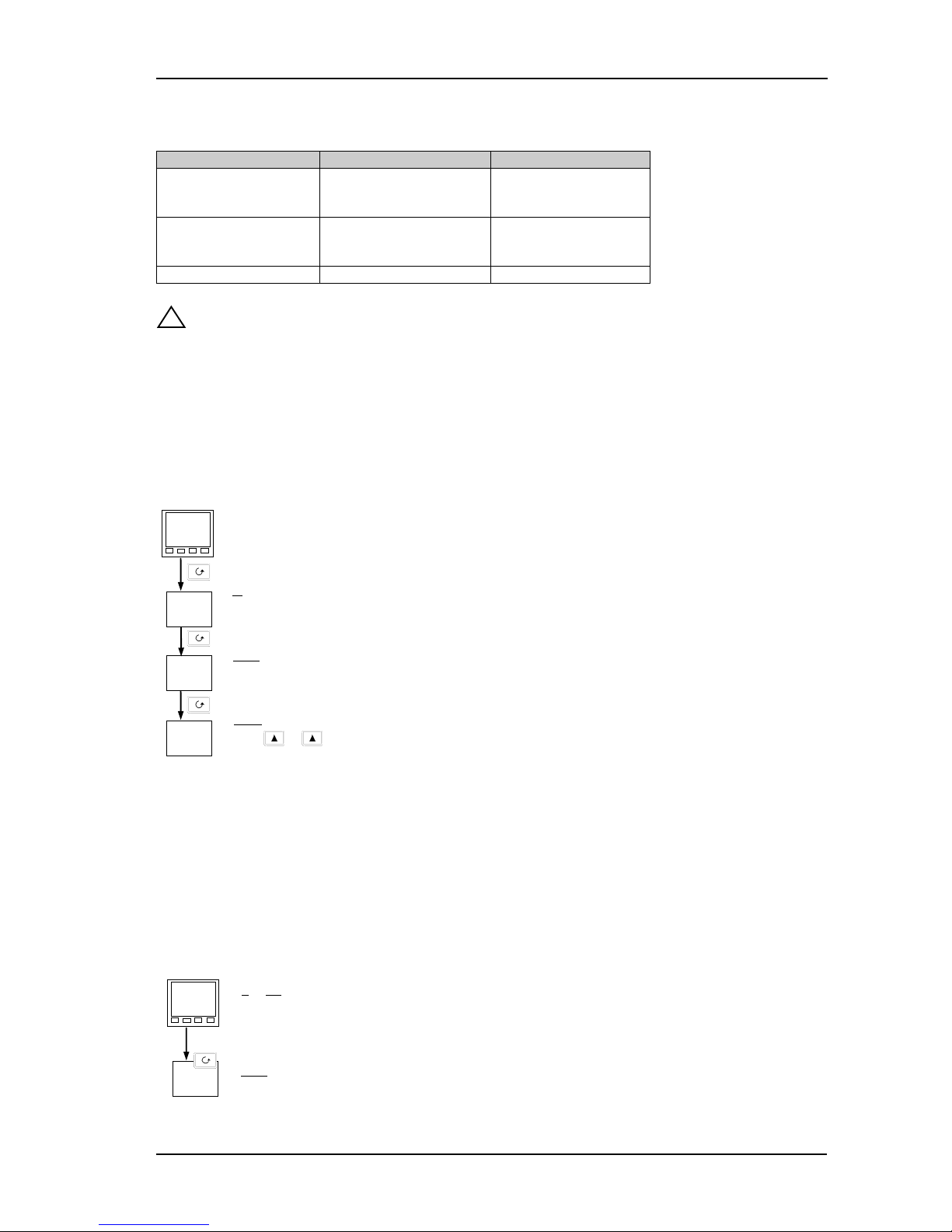

3.1 The Different Access Levels
Access level Display
shows
What you can do
Password
Protection
Operator
OPEr
In this level operators can view and adjust the value of parameters
defined in Edit level (see below).
No
Full
FuLL
In this level all the parameters relevant to a particular configuration are
visible. All alterable parameters may be adjusted.
Yes
Edit
Edit
In this level you can set which parameters an operator in Operator level
is able to view and adjust. You can hide or reveal complete lists and
individual parameters within each list, and you can make parameters
read-only or alterable. You can also promote parameters to the home
list. (See Edit level at the end of the chapter).
Yes
Configurati
on
ConF
This special level allows access to set up the fundamental characteristics
of the controller.
Yes

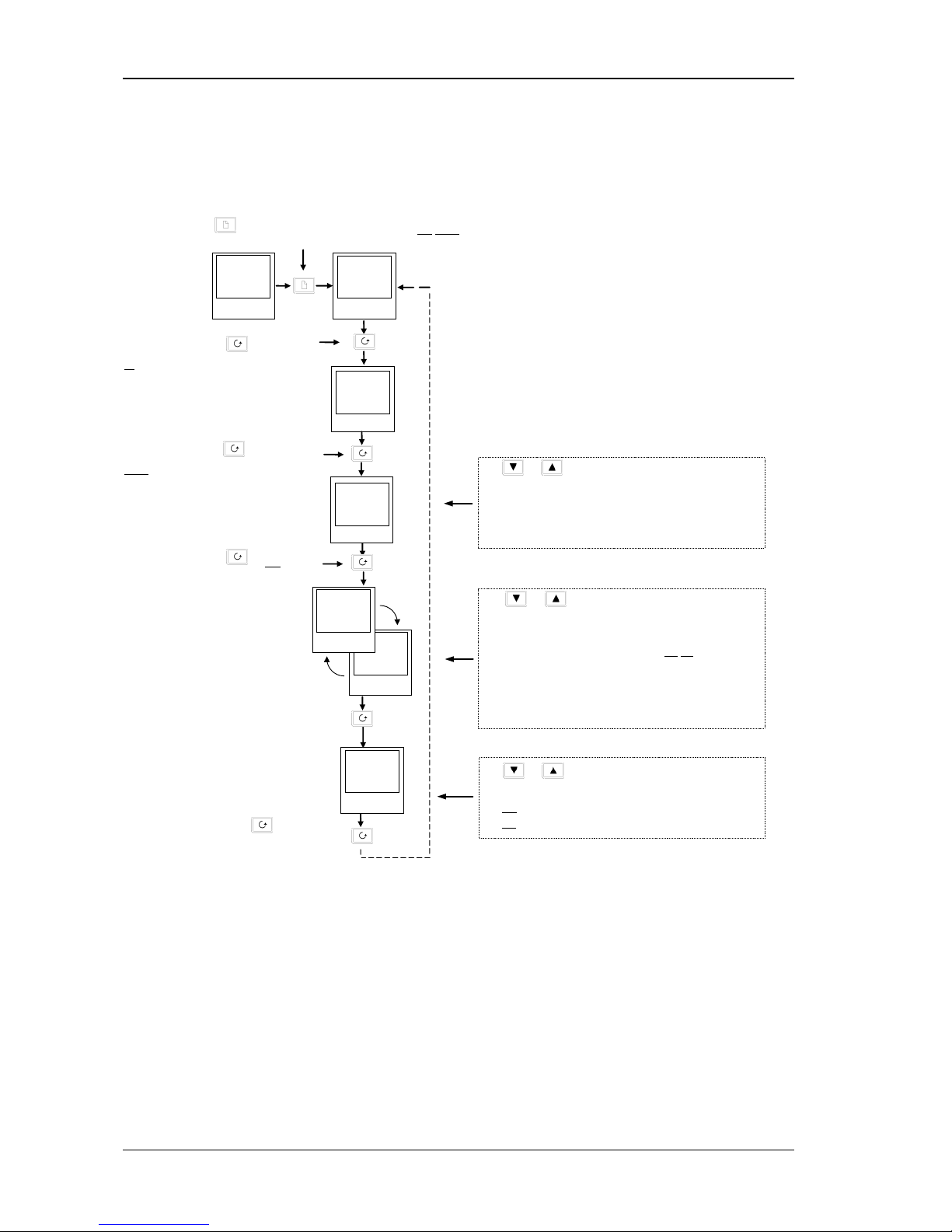

3.2 Selecting An Access Level
Access to Full, Edit or Configuration levels is protected by a password to prevent unauthorised access.
If you need to change the password, see section 5 , Configuration

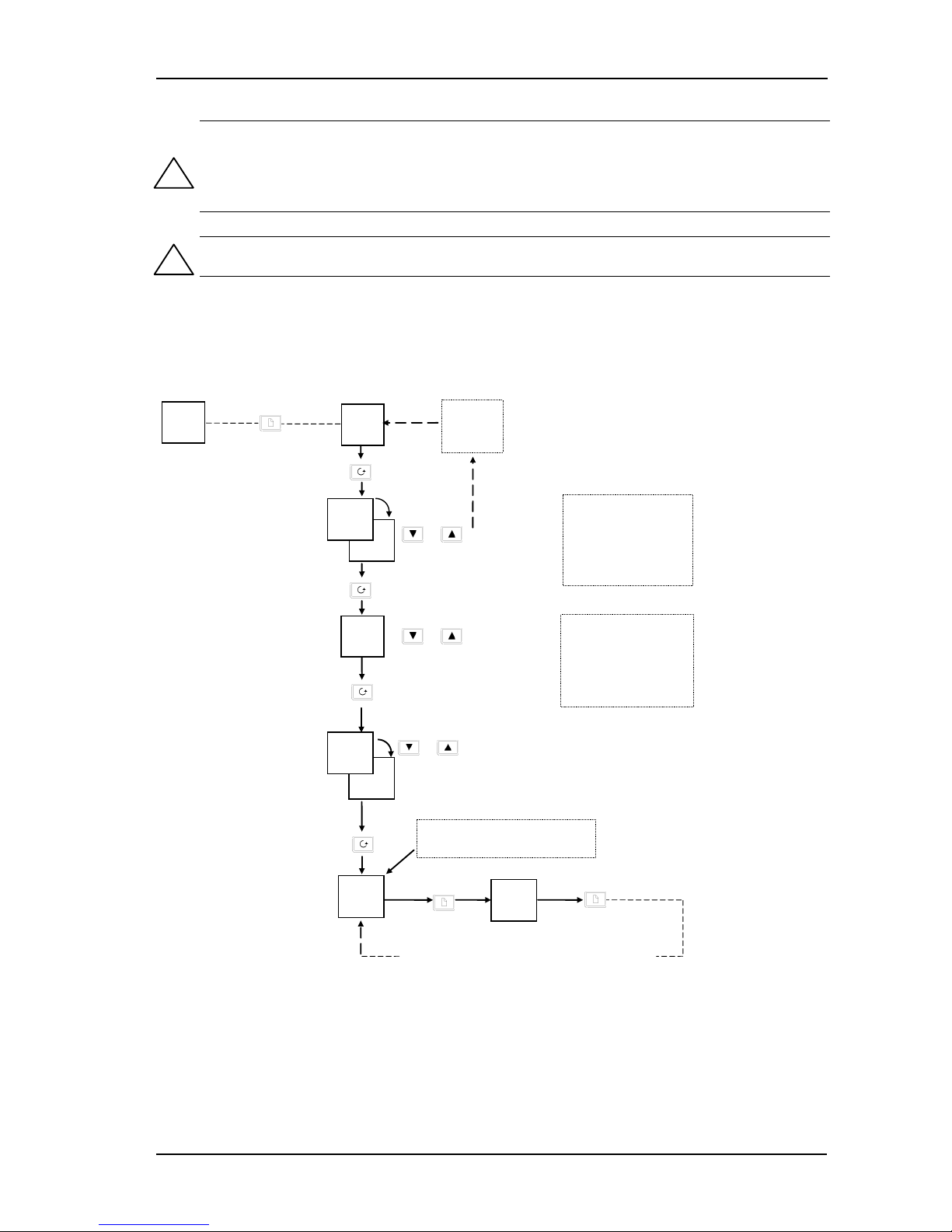

3.2.1 Access list header
Press
until you reach the access list header ‘ACCS’.
Press the Scroll button
3.2.2 Password entry
The password is entered from the ‘CodE“ display.
Enter the password using the or buttons. Once the correct password has been
entered, there is a two second delay after which the lower readout will change to show
‘PASS“ indicating that access is now unlocked.
The pass number is set to ‘1’ when the controller is shipped from the factory.
Note; A special case exists if the password has been set to ‘0’. In this case access will be
permanently unlocked and the lower readout will always show ‘PASS’
Press the Scroll button to proceed to the ‘goto’ display.
(If an incorrect password has been entered and the controller is still ‘locked’ then pressing
Scroll at this point will simply return you to the aCCs list header.)
Note: From this code display, you can access “read only” configuration level by pressing
and together.
To escape, press and together
accs
List
Code
0
Part No. HA029989 Issue 3 July-14 3-1
Page 36
Access Levels 2200e Series Installation and Configuration Handbook

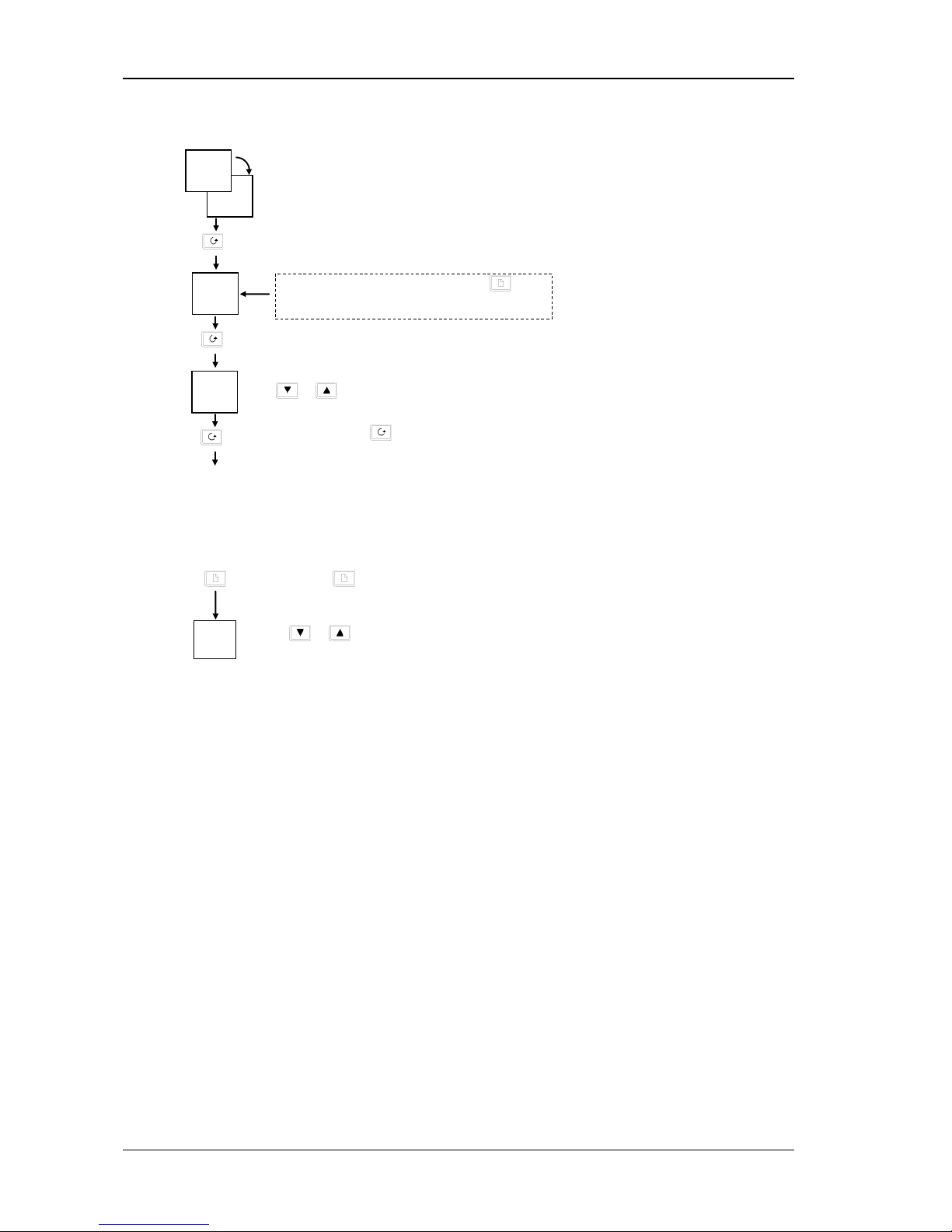

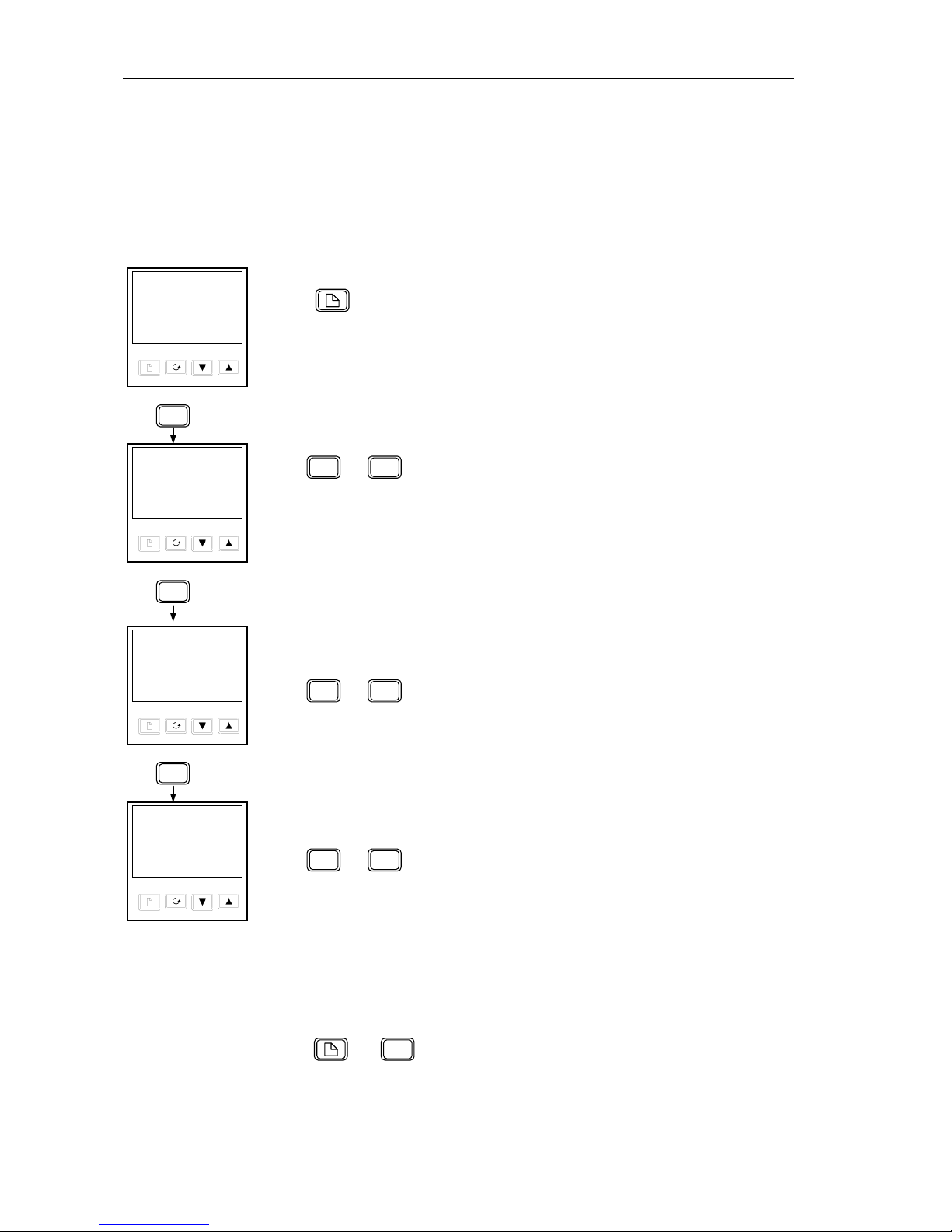

3.2.3 Level Selection
The “Goto“ display allows you to select the required access level.
Use and to select from the following display codes:
OPEr: Operator level
FuLL: Full level
Edit: Edit level
conF: Configuration level
Press the Scroll button
If you selected either ‘OPEr, FuLL or Edit level you will be returned to the
‘ACCS list header in the level that you chose. If you selected ‘conF’, you will get an
alternative display showing ‘ConF’ in the upper readout (see below).
3.2.4 Configuration password
When the ‘ConF’ display appears, you must enter the Configuration password in
order to gain access to Configuration level. Do this by repeating the password entry
procedure described in the previous section
The configuration password is set to ‘2’ when the controller is shipped from the
factory. If you need to change the configuration password, see section 5
Configuration.
3.2.5 Configuration level
Press the Scroll button
The first display of configuration is shown. See section 5, Configuration for details of
the configuration parameters.
For instructions on leaving configuration level see section 5, Configuration.
3.2.6 To Return to Operator Level
To return to operator level from either ‘FuLL’ or ‘Edit’ level, select ‘OPEr’ on the ’Goto’ display, or turn the
controller off and on.
In ‘Edit’ level the controller will automatically return to operator level if no button is pressed for 45 seconds.
goto
fuLL
Conf
pass
accs
List
inst
Conf
3-2 Part No. HA029989 Issue 3 July-14
Page 37
2200e Series Installation and Configuration Handbook Access Levels
3.3 Edit Level
Edit level is used to set which parameters you can see and adjust in Operator level. It also gives access to the
‘Promote’ feature which allows you to select and add (‘Promote’) up to twelve parameters into the Home display list,
thereby giving simple access to commonly used parameters.
3.3.1 To Set Operator Access to a Parameter
First you must select Edit level, as shown on the previous page.
Once in Edit level you select a list or a parameter within a list in the same way as you would in Operator or Full
level. Τhat is, you move from list header to list header by pressing the Page button, and from parameter to
parameter within each list using the Scroll button. However, in Edit level what is displayed is not the value of a
selected parameter but a code representing the parameter’s availability in Operator level.
When you have selected the required parameter, use the
and buttons to set its availability in operator level.
There are four codes:
ALtr Makes a parameter alterable in Operator level
Pro Promotes a parameter into the Home display list
rEAd Makes a parameter or list header read-only (it can be viewed but not altered)
HidE Hides a parameter or list header.
For example:
3.3.2 To Hide or Reveal a Complete List
To hide a complete list of parameters, all you have to do is hide the list header. If a list header is selected only two
selections are available: rEAd and HidE.
(It is not possible to hide the ‘ACCS’ list which will always display the code: ‘LiSt’)
3.3.3 To Promote a Parameter
Scroll through the lists to the required parameter and choose the ‘Pro’ code. The parameter is then automatically
added (promoted) into the Home display list (the parameter will also be accessible as normal from the standard lists.
a maximum of 12 parameters can be promoted. Promoted parameters are automatically ‘alterable’.
The parameter selected is the set point
for Alarm 2 - Full Scale Low
It will be alterable in Operator level
2fsL
aLtr
Part No. HA029989 Issue 3 July-14 3-3
Page 38
Access Levels 2200e Series Installation and Configuration Handbook
3-4 Part No. HA029989 Issue 3 July-14
Page 39
2200e Series Installation and Configuration Handbook Tuning
4 Tuning
4.1 What Is Tuning?
Before tuning please read section 2, Operation, to learn how to select and change a parameter.
In tuning you match the characteristics of the controller to that of the process being controlled in order to obtain
good control. Good control means:
Stable ‘straight-line’ control of the temperature at setpoint without fluctuation
Acceptable overshoot or undershoot of the temperature setpoint
Quick response to deviations from the setpoint caused by external disturbances, thereby restoring the temperature
rapidly to the setpoint value.
Tuning involves calculating and setting the value of the parameters listed in Table 4-1. These parameters appear in
the PiD list.
Parameter Code Meaning or Function
Proportional
band
Pb
The bandwidth in display units over which the output power is proportioned between
minimum and maximum.
Integral time
ti
Determines the time taken by the controller to remove steady-state error signals.
Derivative
time
td
Determines how strongly the controller will react to the rate-of-change of the
measured value.
Low cutback
Lcb
The number of display units below setpoint at which the controller will cutback the
output power in order to prevent overshoot on heat up.
High
Cutback
Hcb
The number of display units above setpoint at which the controller will increase the
output power in order to prevent undershoot on cool down.
Relative cool
gain
rEL.C
Only present if cooling has been configured. Sets the cooling proportional band by
dividing the Pb value by the rEL.C value.
Table 4-1: Tuning Parameters
4.2 Automatic Tuning
This method automatically determines the value of the parameters listed in table 4-1 on the previous page.
The 2216e uses a ‘one-shot’ tuner which works by switching the output on and off to induce an oscillation in the
measured value. From the amplitude and period of the oscillation, it calculates the tuning parameter values.
If the process cannot tolerate full heating or cooling being applied during tuning, then the level of heating or cooling
can be restricted by setting the heating and cooling power limits in the Output list. However, the measured value
must oscillate to some degree for the tuner to be able to calculate values
A One-shot Tune can be performed at any time but normally it is performed only once during the initial
commissioning of the process. However, if the process under control subsequently becomes unstable (because its
characteristics have changed), you can re-tune again for the new conditions.
It is best to start tuning with the process at ambient temperature. This allows the tuner to calculate more accurately
the low cutback and high cutback values that restrict the amount of overshoot or undershoot.
4.2.1 Heating and Cooling Output Cycle Times
Before commencing a tuning cycle, set the values of CYC.H (heat cycle time) and CYC.C (cool cycle time) in the op
(output list). These values apply if you are using a logic, relay or triac output. They have no effect on a DC output.
A logic output switching a solid state relay can be set to values such as 1 sec.
A relay or triac output should be set to 20 sec.
Part No. HA029989 Issue 3 July-14 4-1
Page 40
Tuning 2200e Series Installation and Configuration Handbook
4.3 How To Tune
Set the setpoint to the value at which you will normally operate the process.
In the ‘Atun’ list, select ‘tunE’ and set it to ‘on’
Press the Page and Scroll buttons together to return to the Home display. The display will flash ‘tunE’ to indicate
that tuning is in progress.
The controller will induce an oscillation in the temperature by turning the heating on and then off. The first cycle will
not complete until the measured value has reached the required setpoint.
After two cycles of oscillation the tuning will be completed and the tuner will switch itself off.
The controller will then calculate the tuning parameters listed in Table 4-1 and will resume normal control action.
If you want ‘Proportional only’ or ‘PD’ or ‘PI’ control, you should set the ‘ti’ or ‘td’ parameters to OFF before
commencing the tuning cycle. The tuner will leave them off and will not calculate a value for them.
For valve position tuning and set-up, please refer to Section 4.

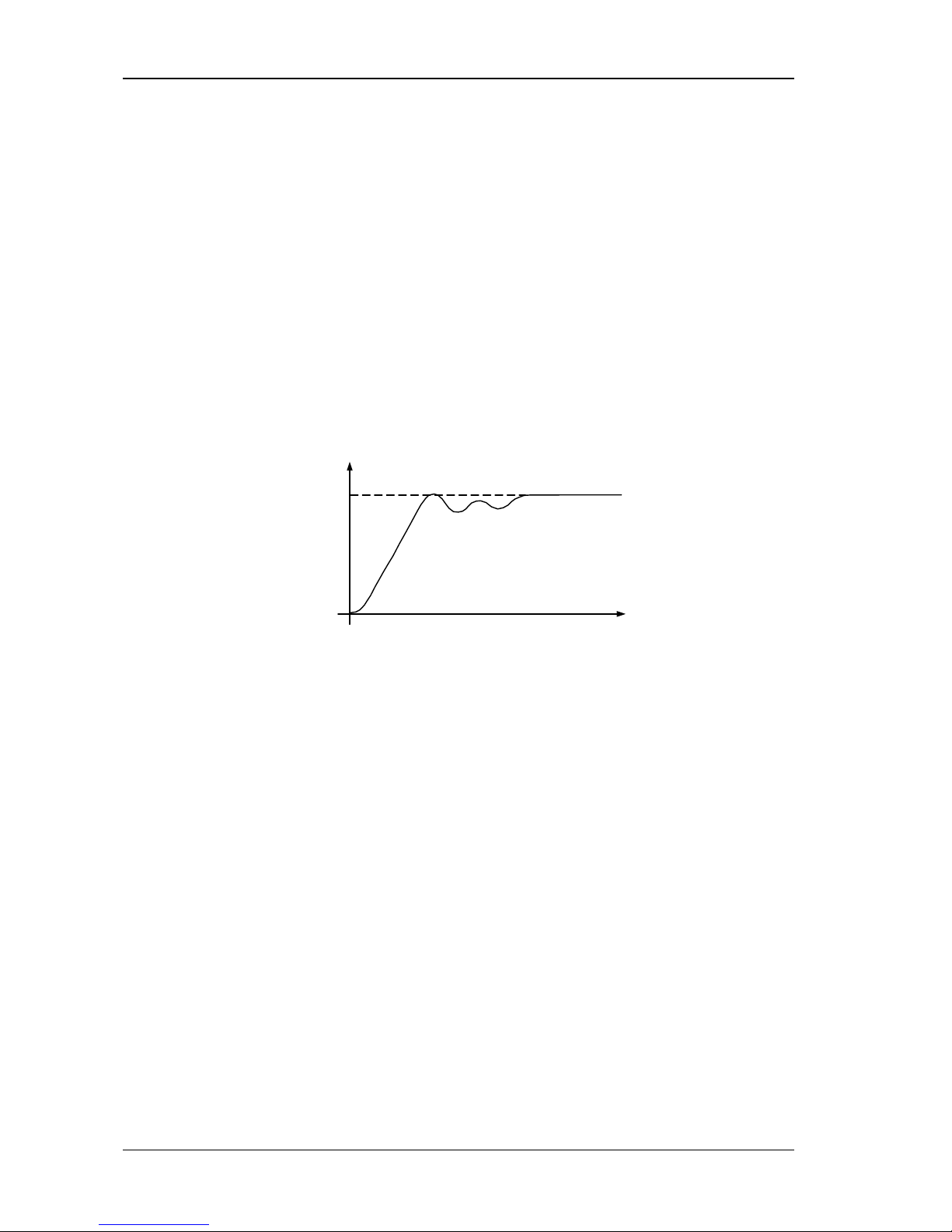

4.3.1 Typical automatic tuning cycle
4.3.2 Calculation of the cutback values
Low cutback and High cutback are values that restrict the amount of overshoot or undershoot that occur during large
step changes in temperature (for example, under startup conditions).
If either low cutback or high cutback is set to ‘Auto’ the values will be fixed at three times the proportional band,
and will not be changed during automatic tuning.
Time
Setpoint
Temperature
4-2 Part No. HA029989 Issue 3 July-14
Page 41
2200e Series Installation and Configuration Handbook Tuning

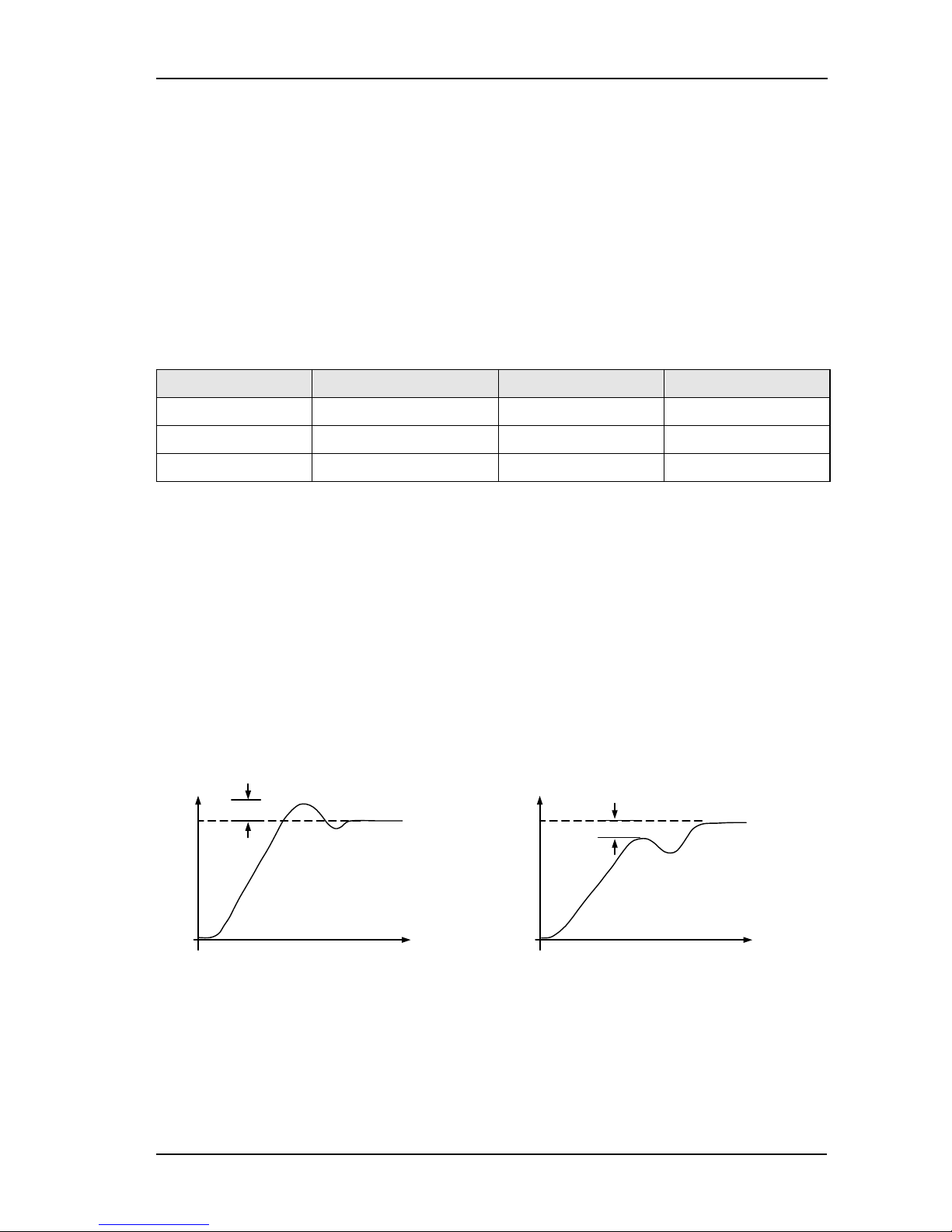

4.4 Manual Tuning
If for any reason automatic tuning gives unsatisfactory results, you can tune the controller manually. There are a
number of standard methods for manual tuning. The one described here is the Ziegler-Nichols method.
With the process at its normal running temperature:
1. Set the Integral Time ‘ti’ and the Derivative Time ‘td’ to OFF.
2. Set High Cutback and Low Cutback, ‘Hcb’ and ‘Lcb’, to ‘Auto’.
3. Ignore the fact that the temperature may not settle precisely at the setpoint.
4. If the temperature is stable, reduce the proportional band ‘Pb’ so that the temperature just starts to oscillate. If
the temperature is already oscillating, increase the proportional band until it just stops oscillating. Allow enough
time between each adjustment for the loop to stabilise. Make a note of the proportional band value ‘B’ and the
period of oscillation ‘T’.
5. Set the Pb, ti, td parameter values according to the calculations given in Table 4-2.
Type of control Proportional band ‘Pb’ Integral time ‘ti’ Derivative time ‘td’
Proportional only 2xB OFF OFF
P + I control 2.2xB 0.8xT OFF
P + I + D control 1.7xB 0.5xT 0.12xT
Table 4-2: Tuning Values
4.4.1 Setting the cutback values
The above procedure sets up the parameters for optimum steady state control. If unacceptable levels of overshoot
or undershoot occur during start-up or for large step changes in temperature, then manually set the cutback
parameters Lcb and Hcb.
Proceed as follows:
1. Set the low and high cutback values to three proportional bandwidths (that is to say, Lcb = Hcb = 3 x Pb).
2. Note the level of overshoot or undershoot that occurs for large temperature changes (see the diagrams below).
In example (a) increase Lcb by the overshoot value. In example (b) reduce Lcb by the undershoot value.
Example (a)
Where the temperature approaches setpoint from above, you can set Hcb in a similar manner.
Overshoot
Setpoint
Time
Temperature
Undershoot
Setpoint
Time
Temperature
Example (b)
Part No. HA029989 Issue 3 July-14 4-3
Page 42
Tuning 2200e Series Installation and Configuration Handbook
4.4.2 Integrating Action and Manual Reset
In a full three-term controller (that is, a PID controller), the integral term ‘ti’ automatically removes steady state
errors from the setpoint. If the controller is set up to work in two-term mode (that is, PD mode), the integral term
will be set to OFF. Under these conditions the measured value may not settle precisely at setpoint. When the
integral term is set to OFF the parameter manual reset (code rES) appears in the PiD LisT in ‘FuLL’ Access
level. This parameter represents the value of the power output that will be delivered when the error is zero. You
may set this value manually in order to remove the steady state error.
4.4.3 Automatic Droop Compensation (Adc)
The steady state error from the setpoint, which occurs when the integral term is set to OFF, is sometimes referred to
as ‘droop’. Adc automatically calculates the manual reset value in order to remove this droop. To use this facility,
you must first allow the temperature to stabilise. Then, in the autotune parameter list, you must set Adc to ‘CALC’.
The controller will then calculate a new value for manual reset, and switch Adc to ‘mAn’.
Adc can be repeated as often as you require but between each adjustment you must allow time for the temperature
to stabilise.
4-4 Part No. HA029989 Issue 3 July-14
Page 43
2200e Series Installation and Configuration Handbook Configuration
5 Configuration
WARNING
Configuration is protected and should only be carried out by an authorised person. Incorrect
configuration could result in damage to the process being controlled and/or personal injury. It is the
responsibility of the person commissioning the instrument to ensure that the configuration is correct.
Whenever the configuration menus are displayed or accessed all controller outputs are held at the
power off state and control operation is suspended until exiting from configuration.
5.1 To Select Configuration Level
Figure 5-1: Selecting Configuration Level
!
!
Press Page button
repeatedly until
Access List appears
PASS
“HOME”
display
Goto
conF
20.0
20.0
ACCS
LiSt
or to enter
password
(factory default = 1)
If incorrect
password
entered
Note: Selecting
OPEr“FuLL“or
Edit will allow direct
entry to these levels at
this point
1st press
2nd press
3rd press
If the password has
been set to ‘0’ - access
is permanently unlocked
& the lower readout
always shows PASS
2 secs
or to select ConF.
CodE
1
PASS
At this point the controller is in
configuration level
or to enter
password
(factory default = 2)
Repeated pressing of “Page” button selects
configuration list headings in a continuous loop
ConF
2
4th press
Inst
ConF
IP
ConF
Part No. HA029989 Issue 3 July-14 5-1
Page 44
Configuration 2200e Series Installation and Configuration Handbook
5.2 To Select a Configuration Parameter
(continued from previous page)
Figure 5-2: Selecting a Parameter
5.3 To Leave Configuration Level
Figure 5-3: Leaving Configuration Level
5.4 Steps Involved In Configuring A Controller
The navigation diagram which follows shows the general location of parameters which define the way in which the
controller works. They are grouped under headings.
The actual parameters shown in your controller may differ slightly since some appear only as a result of selecting
others. A full list of possibilities is included in the PARAMETER TABLES which follow the navigation diagram.
Exit
no
Keep pressing until Exit display appears
Press
or to select YES.
After a 2 second delay the screen will blank, the instrument
will reset, and revert to the Home display
PASS
Select the desired configuration list using
See Navigation diagram for the full list of headings
or to select oC oF or oK
Continue to press
to access all parameters in the
list before returning to list header.
ConF
2
1st press
Inst
ConF
Unit
o
C
2nd press
5-2 Part No. HA029989 Issue 3 July-14
Page 45
2200e Series Installation and Configuration Handbook Configuration
5.5 Navigation Diagram (PART A)
Summary
Step through List Headers
using the ‘Page’ button
Choose a parameter from a list
using the ‘Scroll’ button
Change value
using the ‘Raise/Lower’ buttons
or
The first four headings set up the controller functions, as follows:
Instrument Config. - Groups those parameters associated with the display and control action.
Input Config. - selects the input sensor type
User cal. Config. - to calibrate to external reference sources
Alarms Config. - sets up the alarm types
Not available in 2216e controllers
See
table B
Unit
°C
inSt
ConF
DEc.P
nnnn
CtrL
Pid
Act
rEv
CooL
Lin
PwrF
on
Pd.tr
no
FoP
no
Sbr.t
Sb.OP
LC.Hi
100
iP
ConF
InPt
K.tc
rng.L
0.0
InP.L
4.0
InP.H
20.0
VAL.L
0.0
VAL.H
100.0
CJC
Auto
Imp
Auto
rng.H
100.0
CAL
ConF
AdJ
no
Pnt.L
0.0
Pnt.H
100.0
OFS.L
0.0
OFS.H
0.0
Ltch
no
AL
ConF
AL1
FSH
BLoc
no
AL 2
FSL
Ltch
no
BLoc
no
AL 3
OFF
Ltch
no
BLoc
no
AL 4
OFF
Ltch
no
BLoc
no
id
LoG.i
Func
mAn
La
ConF
Lb
ConF
id
Log.I
Func
SP.2
AA
ConF
iD
rELy
Sens
nor
Func
diG
Input
Config
Instrument
Config
User Cal.
Config
Alarms
Config
Logic Input 1
Config
Logic Input 2
Config
Output 3
Config
Part No. HA029989 Issue 3 July-14 5-3
Page 46
Configuration 2200e Series Installation and Configuration Handbook
Navigation Diagram (Part B)
* The 10Amp output option (4A) was available on 2404e controllers only until 01 Jan 04. It is not available in 2216e
and 2208e controllers.
Figure 5-4: Navigation Diagram
Exit
no
id
cmS
HA
ConF
Func
cms
Baud
9600
PrtY
nonE
RESn
Ful
VaL.L
0.0
VaL.H
100.0
See Table B
parameter table,
section 5.6.8.
1A
ConF
id
dC.OP
Func
HEAT
SEnS
inv
Out.L
0.0
Out.H
100.0
2A
ConF
id
rELy
Func
COOL
SEnS
nor
See Table B
parameter table
,
section 5.6.8.
3A
ConF
id
rELy
Func
diG
SEnS
nor
4A
ConF
id
rELy
Func
HEAt
SEnS
nor
PASS
ConF
ACC.P
1
cnF.P
2
Comms
Config
Output 1
Config
Output 2
Config
Output 3
Config
* 10A Output
Config
Password
Config
Exit
Config
5-4 Part No. HA029989 Issue 3 July-14
Page 47
2200e Series Installation and Configuration Handbook Configuration
5.6 Configuration Parameter Tables
Heading
Input/Output Functions
Wiring Terminals
The first four headings set up the controller functions as follows:
InSt ConF
Sets up display and control parameters
Not applicable
IP ConF
Selects the input sensor type
Not applicable
CAL ConF
To calibrate to external reference sources Not applicable
AL ConF
Sets up the alarm types
Not applicable
The remaining headings configure the controller input/output functions.
The upper readout corresponds to rear terminal numbers associated with a particular i/o.
LA LB Conf
Sets up the action of the two digital inputs - not 2216e.
LA & LB
AA Conf
Sets up the action of the fixed relay on output AA - not 2216e. AA to AC
HA Conf
Sets up digital comms type
HB to HF
1A 2A Conf
Sets up the output modules 1A and 2A
1A & 1B / 2A & 2B
3A Conf
Sets up the action of the fixed relay on output 3A - not 2216e.
3A to 3C
4A Conf
Sets the action of the 10A output relay in 2204e only (until Jan 04).
4A to 6D
Pass Conf
To choose new passwords
Exit no/Yes
To leave configuration level and return to operator level
Tip: Factory default parameter values and states are included where applicable and are indicated by the shaded
areas in the following tables.
5.6.1 Instrument Configuration
Name
Parameter description
Values
Meaning
inSt
Instrument configuration
unit
Instrument
o
C
Centigrade (default UK)
units
o
F
Fahrenheit (default USA)
o
k
Kelvin
nonE
Units are not displayed
dEc.P
Decimal places in the
nnnn
None displayed value
nnn.n
One
nn.nn
Two
CtrL
Control type
on.OF
On/off control
Pid
PID control
vp
Boundless VP Control (no feedback pot required)
Act
Control action
rEv
Reverse acting (required for temperature control) - output decreases
on approach to SP
dir
Direct acting
cooL
Type of cooling
Lin
Linear
oiL
Oil (50mS min on time)
H2O
Water(non-linear)
FAn
Fan (0.5S min on time)
PwrF
Power feedback
on
Power feedback is on (compensates for changes in supply voltage)
OFF
Power feedback is off
Pd.tr
Bumpless manual/auto
no
Non-bumpless transfer
transfer when using PD
control
YES
Bumpless transfer (auto to manual and manual to auto)
FoP
Forced manual output
no
Bumpless manual/auto transfer
Yes
Returns to the manual value last set in manual mode.
Sbr.t
Sensor break output
Sb.OP
Go to pre-set value (maintains output at a known, safe level)
HoLd
Freeze output (maintains output at value immediately before break)
LC.Hi
Load Current Scaling Factor
100
See section 9.10.
Part No. HA029989 Issue 3 July-14 5-5
Page 48
Configuration 2200e Series Installation and Configuration Handbook

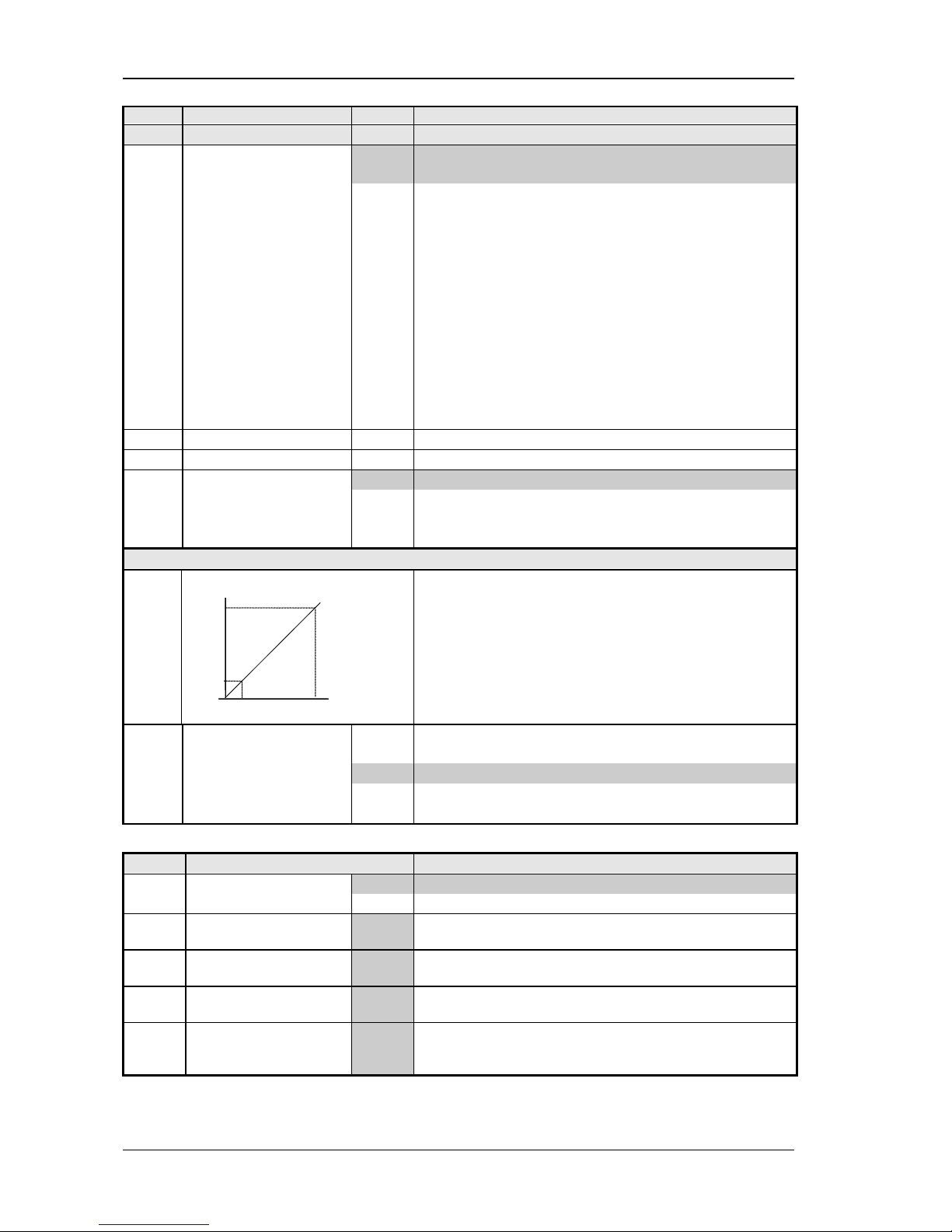

5.6.2 Input Configuration
Name
Parameter description
Values
Meaning
iP
Input configuration
inPt
Input type
J.tc
J thermocouple (default USA)
K.tc
K thermocouple (default UK)
L.tc
L thermocouple
r.tc
R thermocouple (Pt/Pt13%Rh)
b.tc
B thermocouple (Pt30%Rh/Pt6%Rh)
n.tc
N thermocouple
t.tc
T thermocouple
S.tc
S thermocouple (Pt/Pt10%Rh)
PL.2
PL 2 thermocouple
NOTE:
rtd
100Ω platinum resistance thermometer.
After selecting an input type,
do not forget to adjust the
setpoint limits in Full Access
level.
C.tc
Custom downloaded input type. The default is C thermocouple, or the
name of the downloaded custom input will be displayed.
mV
Linear millivolt (Also mA input via an external 2.49Ω current sense
resistor)
voLt
Linear voltage
rng.L
Input range low
Display low range for input
rng.H
Input range high
Display high range for input
CJC
CJC ref. temperature
Auto
Automatic cold junction compensation
(CJC does not appear for
0“C
0°C external reference
linear inputs)
45“C
45°C external reference
50“C
50°C external reference
Linear Input Scaling - The next 4 parameters only appear if a linear input is chosen
inPL
Input value low
inPH
Input value high
VALL
Displayed reading low
VALH
Displayed reading high
ImP
Sensor break input
impedance trip level
OFF
Sensor break detection is disabled.
Appears for mV or V inputs only
Auto
Trip level set by the sensor input table
Hi
Trip level set at 7.5KΩ
HiHi
Trip level set at 15KΩ (must be selected when
voLt
input is enabled)
5.6.3 Calibration Configuration
CAL
User calibration config.
See section 6 - User calibration
AdJ
User cal enable
no
User calibration is disabled
YES
User calibration is enabled
Pnt.L
User calibration point low
0
This is the value (in display units) at which a User last performed a low
point calibration
Pnt.H
User calibration point high
100
This is the value (in display units) at which a User last performed a high
point calibration
OFS.L
Low point calibration offset
0
Offset, in display units, at the user low calibration point ‘Pnt.L’. This
value is automatically calculated when performing low point calibration.
OFS.H
High point calibration offset
0
Offset, in display units, at the user high calibration point ‘Pnt.H’. This
value is automatically calculated when performing a high point
calibration.
If User calibration is enabled, then the User calibration parameters will appear in the Input list of Operator Full access

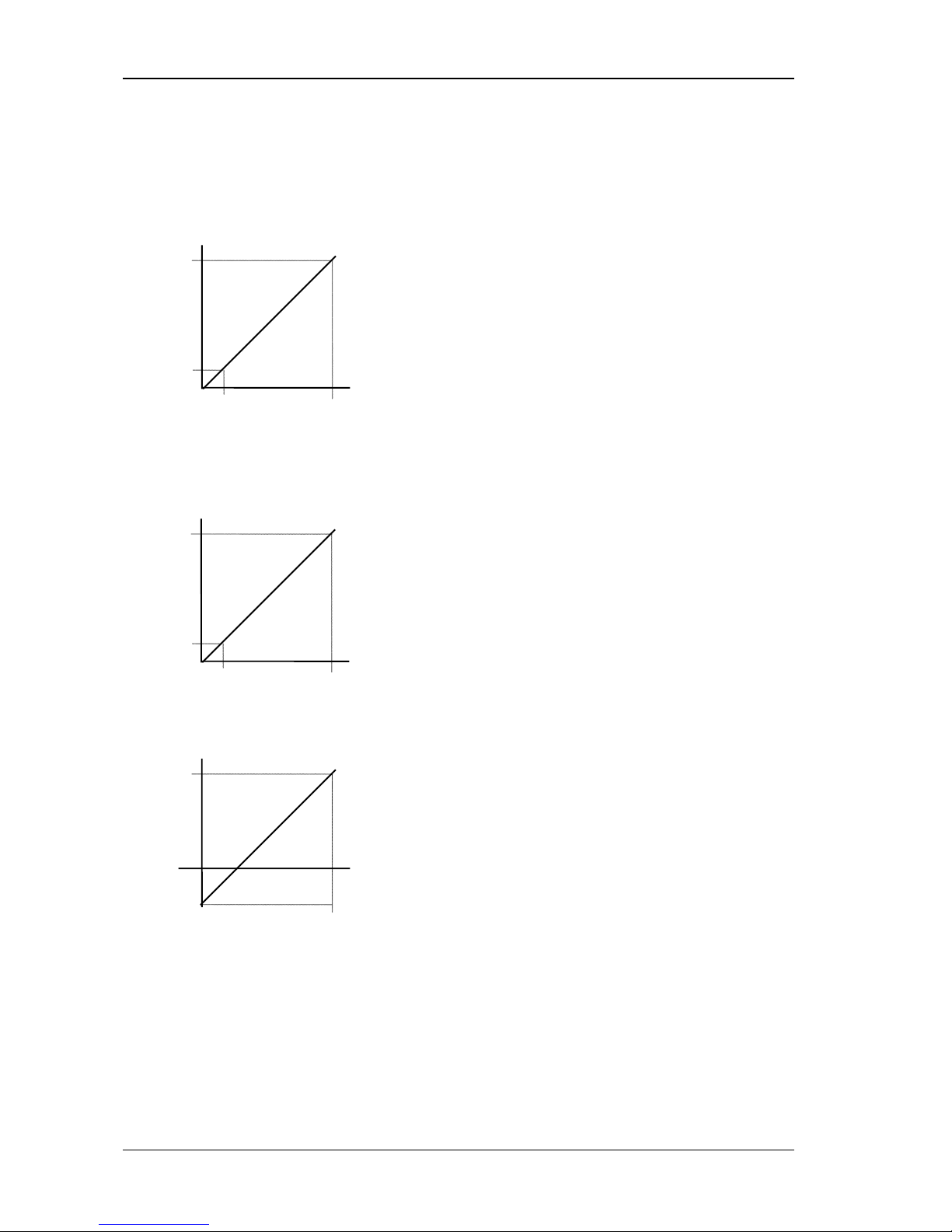

level. See section 6, User calibration.
VAL.L
VAL.H
InP.L
InP.H
Displayed Value
Electrical Input
5-6 Part No. HA029989 Issue 3 July-14
Page 49
2200e Series Installation and Configuration Handbook Configuration
5.6.4 Alarm Configuration
AL
Alarm configuration
Values
Defaults if not specified
AL1
Alarm 1 Type
As table A
OFF
bLoc
Alarm 1 Blocking
(1)
no/YES
no
Ltch
Alarm 1 Latching
no/Auto/man/Evt
no
AL2
Alarm 2 Type As table A
OFF
bLoc
Alarm 2 Blocking
(1)
no/YES
no
Ltch
Alarm 2 Latching
no/Auto/man/Evt
no
AL3
Alarm 3 Type
As table A
OFF
bLoc
Alarm 3 Blocking
(1)
no/YES
no
Ltch
Alarm 3 Latching no/Auto/man/Evt
no
AL4
Alarm 4 Type
As table A
OFF
bLoc
Alarm 4 Blocking
(1)
no/YES
no
Ltch
Alarm 4 Latching
no/Auto/man/Evt
no
Table A: Alarm types
OFF
No alarm
FSL
Full scale low
FSH
Full scale high
dEv
Deviation band
dHi
Deviation high
dLo
Deviation low
Lcr
Low current
Hcr
High current
(1) Blocking allows the alarm to become active only after it has first entered a safe state.
Tip: These are ‘soft’ alarms, i.e. Indication only. They would normally be attached to an output. See section 7
‘Alarm Configuration’ for a step by step guide.
5.6.5 Logic Inputs Configuration - 2208e and 2408e only.
LA
Logic input 1 configuration
Functions
Action on contact closure
id
Identity of input
LoG.i
Logic input
Func
Function
nonE
None
mAn
Manual mode select
rmt
Remote setpoint select
SP.2
Setpoint 2 select
ti H
Integral hold
Ac.AL
Acknowledge alarms
Loc.b
Lock Key pad
rset
Reset
StbY
Standby - ALL outputs = OFF
AmPS
PDS load current input
Lb
Logic input 2 configuration
Functions
Action on contact closure
As per Logic input 1 except ‘
AmPS
’ not available
Part No. HA029989 Issue 3 July-14 5-7
Page 50
Configuration 2200e Series Installation and Configuration Handbook
5.6.6 AA Alarm Relay Configuration - 2208e and 2408e only
AA
Alarm relay configuration
Functions
Meaning
id
Identity of output
rELy
Relay
Func
Function
nonE
None
diG
Function set by
diG.F
(as in Table B)
HEAt
Heating
COOL
Cooling
For
func
tion =
diG
go to table B on the next page
SEnS
Sense of output (always
appears)
nor
inv
Normal (heat & cool outputs)
Inverted (alarms de-energised in the alarm state)
5.6.7 Digital Communications Configuration
HA
Comms module config
Functions
Meaning
id
Identity of the option installed
PDS.i
PDS setpoint input
cmS
2- or 4-wire EIA-485 (422) or
EIA-232 comms module
Func
Function
Some of the following parameters may appear if one of the comms options is installed
cms
DIGITAL Communication protocol ordered (ModBus, EIBisynch or
DeviceNet)
nonE
None
The following parameters will appear if the PDSIO setpoint input option is installed.
nonE
No PDS function
SP.iP
PDS setpoint input
VAL.L
PDS low input value
Range = -999 to 9999
VAL.H
PDS high input value Range = -999 to 9999
The following parameters will appear if id =
cms
BAud
Baud Rate - EIBisynch
2400, 4800, 9600, 19.20, 1920 (19200)
BAud
Baud Rate - ModBus
1200, 2400, 4800, 9600, 19.20, 1920 (19200)
BAud
Baud Rate - DeviceNet
125(K), 250(K), 500(K)
Prty
(1)
Comms Parity
nonE
No parity
EvEn
Even parity
Odd
Odd parity
RESn
(1)
Comms Resolution
FuLL
Full resolution
Int
Integer resolution
Note 1: Not used with some communication protocols. Please consult factory.
5-8 Part No. HA029989 Issue 3 July-14
Page 51
2200e Series Installation and Configuration Handbook Configuration
5.6.8 Output 1 Configuration
1A
Output 1 configuration Function Meaning
id
Identity of module installed
nonE
No module fitted
RELy
Relay output
dC.OP
DC output (isolated)
LoG
Logic or PDS output
SSr
Triac output
Func
Function
NonE
Module does not operate
DIG
Function set by diG.F
HEAt
Heating output
COOL
Cooling output
Only appear for id = dC.OP
OP
Retransmission of output demand
Only appear for id = dC.OP
PV
Retransmission of Process Value
Only appear for id = dC.OP
Err
Retransmission of error
Only appear for id = dC.OP
wSP
Retransmission of setpoint
Only appear for id = LoG
SSr.1
PDS mode 1 heating
Only appear for id = LoG
SSr.2
PDS mode 2 heating
For
func
tion =
diG
(refer to table B on page 5-14)
SEnS
Sense of output
nor
inv
Normal (e.g.heating and cooling)
Inverted (alarms - de-energise in alarm)
DC output scaling For id =
dC.OP
the following parameters appear
Out.L
DC output minimum
0mA to
Out.H
or 20mA
Out.H
DC output maximum Out.L or 0mA to 20mA
Table B The following parameters appear if ‘
diG
’ is chosen as the function.
diG.F
Digital output functions
Any number of the functions
listed can be combined on to
the output. Use the
and
buttons to select a desired
digital function.
After two seconds the display
will blink and return to the
‘noch’ display.
Use the arrows again to scroll
through the function list.
The previously selected
function display will show two
decimal points indicating that
it has been added to the
output.
noch
No change
cLr
Clear all existing functions
1 - - -
*
Alarm 1 *
2 - - -
*
Alarm 2 *
3 - - -
*
Alarm 3 *
4 - - -
*
Alarm 4 *
MAn
Manual/Auto
Sbr
Sensor Break
Lbr
Loop Break
Htrf
Heater Fail
Ld.F
Load Fail
ENd
END Program
SPAn
PV Out of Range
SSrF
PDS® SSR Failure
NwaL
New Alarm
RmtF
Remote Sp Fail
Ct.OP
CTx open circuit
Ct.Sh
CTx short circuit
* From previous page. In place of the dashes, the last three characters indicate the alarm type as per table A in the
AL list: eg 1FSL = Full Scale Low.
If an alarm is not configured the displayed name will differ: e.g. ‘AL 1’ will be shown, for the first alarm.
Part No. HA029989 Issue 3 July-14 5-9
Page 52
Configuration 2200e Series Installation and Configuration Handbook
5.6.9 Output 2 Configuration
2A
Output 2 configuration
Function
Meaning
id
Identity of module installed
nonE
No module fitted
rELy
Relay output
LoG
Logic
SSr
Triac output
Func
Function
nonE
none
Outputs
diG
Function set by
diG.F
HEAt
Heating output
COOL
Cooling output Logic Inputs
mAn
Manual mode select
rmt
Remote setpoint select
SP.2
Setpoint 2 select
ti H
Integral hold
Ac.AL
Acknowledge alarms
Loc.b
Lock Key pad
rset
Reset
StbY
Standby - ALL outputs = OFF
AmPS
PDS load current input
For
Func
=
diG
(Refer to table B).
SEnS
Sense of output
nor
inv
Normal (heat and cool outputs)
Inverted (alarms - de-energise in alarm)
5.6.10 Output 3 Configuration
3A
Output 3 configuration
As per output 2A configuration
5.6.11 Output 4 Configuration
4A
10Amp heating output
Available on 2204e only.
As per Output 3A configuration
Note: The 10Amp output option is not available on controllers from 01 Jan 04
5.6.12 Password Configuration
PASS
Password list
ACC.P
FuLL or Edit level password
cnF.P
Configuration level Password
Note:- When passwords are changed please make a note of the new numbers
5.6.13 Exit Configuration
Exit
Exit Configuration
no/YES
5-10 Part No. HA029989 Issue 3 July-14
Page 53
2200e Series Installation and Configuration Handbook Configuration
5.7 Configuration of Digital Communications
2200e series controllers can be fitted with the following digital communications modules:-
Protocol
Module Fitted
Order Code
ModBus
2-wire EIA485
4-wire EIA 422
EIA 232
2YM
2FM
2AM
EI-Bisynch
2-wire EIA 485
4-wire EIA 422
EIA 232
2YE
2FE
2AE
DeviceNet
2DN
!
Warning. The 2200 series has a limited number of writes to EEPROM. Please ensure that
parameters which do not require updating on a regular basis (for example, setpoints, alarm trip levels,
hysteresis, etc) are only written to when a change in the parameter value occurs. Failure to do this could
result in permanent damage to the internal EEPROM. Alternatively, a special version (EU0555-2200) can be
supplied with specific handling to allow the working setpoint to be changed over digital communications
without being written to eeprom.
5.7.1 To Configure the Function, and Baud Rate
All devices on a network must have the same Baud Rate, Parity and Resolution.
Parity and Resolution can be set by the same procedure. These will normally be set to None and Full respectively
5.7.2 To Set Instrument Address
All devices on a network must have a different node address.
Instrument address is set in Full operator level.
Exit configuration level. This is described in section 5.3.
Comms list
From the HOME display, press the Page button until you reach the
cmS list
Address
Press the raise or lower buttons until the desired address is set. The
choices are:-
0 to 99 for Modbus and EI
-Bisynch
0 to 64 for DeviceNet.
id
Cms
Addr
7
Comms configuration list - HA
Identity of module
This is a read
-only parameter displaying the identity of the module fitted
Function
Set
Func = CmS to select the protocol. Ensure that the correct Comms module has been fitted.
To disable comms set
Func to nonE.
HA
ConF
id
CmS
Func
CmS
bAud
9600
Baud Rate
Press
or to set the Baud Rate. The choices are:-
1200. 2400, 4800, 9600, 19,200 for Mod
bus
2400, 4800, 9600, 19,200 for EI
-Bisynch
125(K), 250(K), or 500(K) for DeviceNet
Part No. HA029989 Issue 3 July-14 5-11
Page 54
Configuration 2200e Series Installation and Configuration Handbook
5.8 DeviceNet
The following is applicable to DeviceNet only.
5.8.1 The EDS File
The EDS (Electronic Data Sheet) file for the Series 2200e is named 2K2DN.EDS and is available from your supplier, or
electronically by going to Web site (www.eurotherm.co.uk). The EDS file is designed to automate the DeviceNet
network configuration process by precisely defining vendor-specific and required device parameter information.
Following a data sheet metaphor, the EDS file describes a device’s configurable parameters, including its legal and
default values and the public interfaces to those parameters. Software configuration tools utilize the EDS files to
configure a DeviceNet network.
5.8.2 ODVA Compliance
This interface has been tested to comply with the full requirements of the ODVA (Open DeviceNet Vendors
Association) conformity tests.
5-12 Part No. HA029989 Issue 3 July-14
Page 55
2200e Series Installation and Configuration Handbook User Calibration
6 User Calibration
This section has five topics:
• WHAT IS THE PURPOSE OF USER CALIBRATION?
• USER CALIBRATION ENABLE
• SINGLE POINT CALIBRATION
• TWO POINT CALIBRATION
• CALIBRATION POINTS AND CALIBRATION OFFSETS
To understand how to select and change parameters in this section you will need to have read Section 2 - Operation,
Section 3 - Access Levels and Section 5 - Configuration.
6.1 What is the Purpose of User Calibration?
The basic calibration of the controller is highly stable and set for life. User calibration allows you to offset the
‘permanent’ factory calibration to either:
1. Calibrate the controller to your reference standards
2. Match the calibration of the controller to that of a particular transducer or sensor input
3. Calibrate the controller to suit the characteristics of a particular installation.
User calibration works by introducing zero and span offsets onto the factory set calibration. The factory set
calibration can always be retrieved.
6.2 User Calibration Enable
The User calibration facility must first be enabled in configuration level by setting the parameter ‘AdJ' in the CAL
conf list to 'YES' This will make the User calibration parameters appear in Operator ‘FuLL’ level.
Select configuration level as shown in section 5, Configuration.
6.2.1 The User calibration configuration List
Press
until you reach the ‘CAL conf list
Press the Scroll button until you reach
User calibration enable
Use
or
to select:
YES:
Calibration enable
no: Calibration disabled
Press
and
together to go to the Exit display
Exit configuration
Use
or
to select ‘YES’ and return to Operator level.
CaL
Conf
Adj
yes
exit
yes
Part No. HA029989 Issue 3 July-14 6-1
Page 56
User Calibration 2200e Series Installation and Configuration Handbook
6.3 Single Point Calibration
Your controller is calibrated for life against known reference sources during manufacture. A calibration offset is often
used to allow the controller to compensate for sensor and other system errors. The normal procedure is to set up
the system under test against a known independent reference, as follows:
Set up the process to be calibrated such that the known reference displays the required value (temperature).
Observe the reading on the controller. If it is different, proceed as follows:
Select ‘FuLL Access level as described in section 3 Access levels.
Input list header
Press
until you reach the input list header.
Press Scroll until you reach the ‘CAL’ display
Calibration type
Use
or
to select either ‘FACt’ or ‘USEr’.
Selecting ‘FACt’ will reinstate the factory calibration and hide the following User
calibration parameters.
Selecting ‘USEr’ will reinstate any previously set User calibration and make available the
User parameters, as follows:
Press the Scroll button
Calibrate low point?
Use
or
to select ‘YES’
Selecting ‘no’ will hide the next parameter
Press the Scroll button
Adjust the low point calibration
The controller will display the current measured input value in the lower readout.
Use
or
to adjust the reading to the reference source value, if different.
After a two second delay the display will blink and the reading will change to the new,
calibrated value. You can calibrate at any point over the entire display range
This is a single point calibration which applies a fixed offset over the full display range of
the controller.
The calibration is now complete. You can return to the factory calibration at any time by
select ‘FACt’ in the CAL display shown earlier.
Press
and
together to return to the Home display
To protect the calibration against unauthorised adjustment return to Operator level and make sure that the
calibration parameters are hidden. Parameters are hidden using the ‘Edit’ facility described in section 3.3.
ip
List
CAL
USER
CAL.S
Lo
adj
50.0
6-2 Part No. HA029989 Issue 3 July-14
Page 57
2200e Series Installation and Configuration Handbook User Calibration
6.4 Two Point Calibration
The previous section described how to perform a single point calibration which applies a fixed offset over the full
display range of the controller. A two-point calibration is used to calibrate the controller at two points and apply a
straight line between them. Any readings above or below the two calibration points will be an extension of this
straight line. For this reason it is best to calibrate with the two points as far apart as possible.
Proceed as follows:
1. Decide upon the low and high points at which you wish to calibrate.
2. Perform a single point calibration at the low calibration point in the manner described above
3. Set the process under calibration such that the known reference exhibits the required higher Process Value
(temperature) and allow to stabilize.
4. Press the Scroll button to obtain the high calibration point as shown in the following diagrams.
Calibrate high point?
Use
or
to select ‘Hi’
Press the Scroll button
Adjust the high point calibration
The controller will display the current measured input value in the lower readout.
Use
or
to adjust the reading to the reference source value, if different.
After a two second delay the display will blink and the reading will change to the new,
calibrated value.
The calibration is now complete. You can return to the factory calibration at any time by select ‘FACt’ in the CAL display
shown earlier.
Press
and
together to return to the Home display
To protect the calibration against unauthorised adjustment return to Operator level and make sure that the
calibration parameters are hidden. Parameters are hidden using the ‘Edit’ facility described in section 3.3.
6.5 Calibration Points and Calibration Offsets
If you wish to see the points at which the User calibration was performed and the value of the offsets introduced
these are shown in Configuration, under CAL ConF. The parameters are:
Name Parameter description Meaning
Pnt.L
User low calibration point This is the value (in display units) at which a User last performed an ‘AdJ.L’ (adjust
low calibration).
Pnt.H
User high calibration point This is the value (in display units) at which a User last performed an ‘AdJ.H’ (adjust
high calibration).
OFS.L
Low point calibration offset Offset, in display units, at the user low calibration point ‘Pnt.L
OFS.H
High point calibration
offset
Offset, in display units, at the user high calibration point ‘Pnt.H“.
CaL.s
Hi
Adj
800.0
Part No. HA029989 Issue 3 July-14 6-3
Page 58
User Calibration 2200e Series Installation and Configuration Handbook
6-4 Part No. HA029989 Issue 3 July-14
Page 59
2200e Series Installation and Configuration Handbook Alarm Configuration
7 Alarm Configuration
The 2200e series controllers are capable of very sophisticated alarm strategies and, although setting up of alarms has
already been covered in previous sections, this section has been included to enable operators and commissioning
engineers to design their own strategies for optimum plant operation.
7.1 Definition Of Alarms And Events
See also section 2.10 for further information on Alarms.
Alarms are used to alert an operator when a pre-set level or condition has been exceeded. They are normally used
to switch an output - usually a relay - to provide interlocking of the machine or plant or external audio or visual
indication of the condition.
Soft Alarms are indication only within the controller and are not attached to an output (relay).
Events - can also be alarms - but are generally defined as conditions which occur as part of the normal operation of
the process. They do not generally require operator intervention.
Events are referred to as Digital Output Functions in the manual (see Table B, section 5.6.8).
For the purposes of the operation of this instrument alarms and events can be considered the same.
7.1.1 Types
of Alarms
The use of alarms in the 2200e series controllers is extremely versatile.
Up to 4 alarms can be configured. Any combination of these 4 alarms can be attached to any one or more outputs,
or any number of the available “soft” alarms can be combined to operate a single output.
Note: In a three term controller at least one of these outputs is used to maintain the required
temperature of the process.
Outputs 1A and 2A Are plug in modules.
Normally used for control outputs, eg. Heat and Cool, but can be used for alarm
outputs.
Outputs AA (2208e & 2204e
only) and 3A
Are fixed relays.
Normally used for alarms or events, but can be used as control outputs.
10A Output 4A (2204e only) Is a plug in 10 Amp relay output.
Normally used to switch heaters directly in control mode, but can be used as an
alarm output.
Note:- This option is not available on controllers after Jan-04
!
Part No. HA029989 Issue 3 July-14 7-1
Page 60
Alarm Configuration 2200e Series Installation and Configuration Handbook
There are seven process alarm types listed below. Alarm Types are found in configuration mode under the Alarm
Config. List.
ALARMS
Full Scale High The PV exceeds a set high level
Full Scale Low The PV exceeds a set low level
Deviation Band The difference between PV & SP is outside a set band
Deviation High The difference between PV & SP is higher than a set level
Deviation Low The difference between PV & SP is lower than a set level
High Current The measured current returned from a PDS slave is higher than a set level. See also section 9.
Low Current The measured current returned from a PDS slave is lower than a set level. See also section 9.
Each alarm can be set to:
Latching Alarm is indicated until acknowledged
(Off, Auto, MAN)
Auto Acknowledge: ( Ltch Auto)
If the alarm is acknowledged while the alarm condition is still present, it will cause the alarm
to reset as soon as the alarm condition is removed.
Manual Acknowledge: ( Ltch mAn)
If the alarm is acknowledged while the alarm condition is still present, it will be ignored. A
further acknowledgement is required when the alarm condition has been removed to cause
the alarm to reset.
Blocking Alarm occurs after it has been through a start up phase not in alarm condition.
Sense Of Output Relay energised or de-energised in alarm condition. See also sections 2.11 and 7.3.
Soft Alarms Indication only and do not operate an output.
See also Section 2.10.1 for further information on alarm types.
7.2 Digital Output Functions
In addition there are nine “digital output functions” used as events or alarms depending upon the requirements of the
process under control:
Sensor Break The input is open circuit
Loop Break The controller does not measure a response to an output change
Load Failure Used with PDS Mode 1 load failure. See also section 9.
Manual Controller in manual mode
PV Out Of Range Process Variable too high or too low
Remote SP Fail No signal measured at the remote set point input terminals
Heater Fail Used with PDS Mode 2 heater open circuit. See also section 9. .
SSR Fail Used with PDS Mode 2 solid state relay open or short circuit. See also section 9.
Program END Signals the end of a program
New Alarm Signals a new alarm
The Sense of the Output can be set to relay energised or de-energised in the alarm condition for any of
the above functions.
!
7-2 Part No. HA029989 Issue 3 July-14
Page 61
2200e Series Installation and Configuration Handbook Alarm Configuration
7.3 Step1 - To Configure the Four ‘Soft’ Alarms
Soft alarms are indication only and do not operate a relay
Go To Configuration Level - Refer to section 5.
Figure 7-1: Configuring 'Soft' Alarms
ConF
PASS
AL
Conf
AL 1
Dev
Ltch
no
Press “PAGE” key as many times as
necessary to find Alarm Configuration
Press “SCROLL” key to the alarm
which needs to be configured
Alarm Type choices are
OFF OFF
FSL Full Scale Low
FSH Full Scale High
dEv deviation Band
dHi deviation High
dLo deviation low
Lcr Low current
Hcr High current
Press “SCROLL” key to choose
alarm 1 latching or non-latching
Choices No/Auto/Man
Press
bLoc
no
Press “SCROLL” key to choose
alarm 1 blocking
Choices Yes/No
Press
Press “SCROLL” key
to repeat for
alarms 2 - 4 or to return to list header
Part No. HA029989 Issue 3 July-14 7-3
Page 62
Alarm Configuration 2200e Series Installation and Configuration Handbook
7.4 Step 2 - To Attach an Alarm to A Physical Output
This may be necessary if:
1. The instrument has been supplied un-configured or it is required to re-configure.
2. Alarm relays are added.
Figure 7-2: Attaching an Alarm to a Physical Output
GF
3FSH
Id
rELy
Func
diG
Press “PAGE” key as many times as necessary to find AA Configuration
Press “SCROLL” key to
identification of output type (this is
read only)
Press “SCROLL” key to output
Function
ConF
PASS
AA
Conf
Use or to select diG
Other choices are:
1. Heat
2. COOL
3. None
Use or buttons to select a desired digital
function, e.g., 3FSH. Other choices are shown in the
table on the next page. After two seconds, the display
will blink and return to the ‘noch’ (no ch
ange) display.
Use the arrows agai
n to scroll through the function list.
The previously selected function will show 2 decimal
points indicating that it has been added to the output,
i.e., 3F.S.H.
Use or
to select:
1. inverted (relay de-energised in alarm)
2. direct (relay energised in alarm)
Press “SCROLL” key to digital
output function
Keep pressing “SCROLL”
button to return to list header
SEnS
inv
DiGF
noch
7-4 Part No. HA029989 Issue 3 July-14
Page 63
2200e Series Installation and Configuration Handbook Alarm Configuration

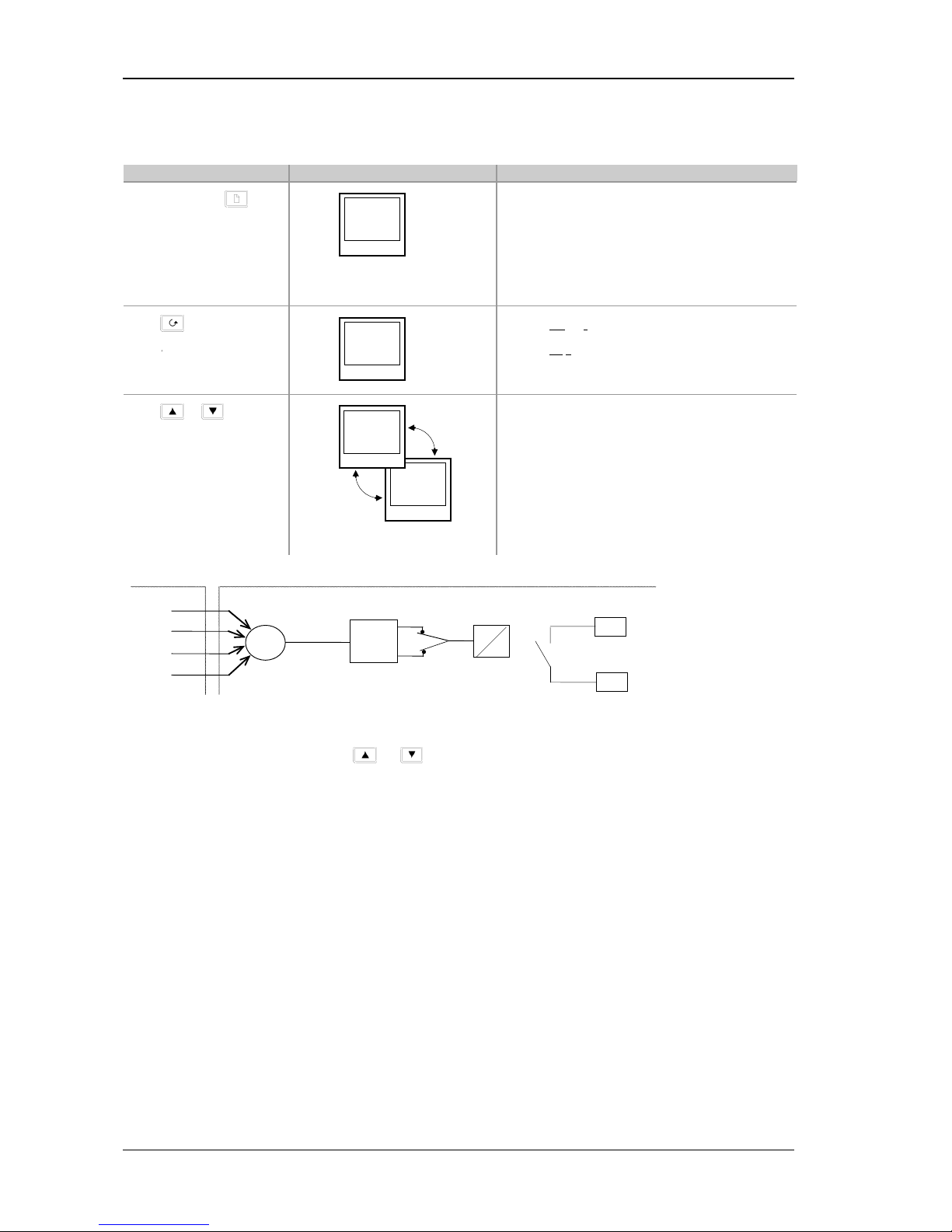

7.5 Step 3 - To Group Alarms on a Single Output
In the previous example one alarm condition is allocated to one output relay.
The 2200e series controllers allow alarms and events to be grouped on to a single output. These events are shown in
the table below:-
* See Table B in section 5.6.8.
See also section 2.11 for further information on alarm grouping.
Figure 7-3: Grouping Alarms on a Single Output
7.6 Step 4 - To Remove Alarms From An Output
Figure 7-4: Removing Alarms from an Output
Press once to show clear
After 2 sec. the lower readout reverts to no change clearing all events from the chosen output.
Each time you scroll through the table of alarms, note that 2 decimal points appear confirming
acceptance that the particular alarm has been attached to the output, i.e., 3F.S.H, S.b.r, etc.
diGF
CLr
DiGF
noch
diGF
3FS
DiGF
noch
Press until you reach the 1
st
soft alarm you wish to
attach to an output, e.g., 3FSH.
The display returns to no change after 2 seconds accepting
the condition.
diGF
Sbr
DiGF
noch
Press until you reach the 2nd soft alarm you wish to
attach to the output, e.g., Sbr.
The display returns to no change after 2 seconds accepting
the condition.
Repeat for all alarms to be attached to the chosen output
noch
No change
CLr
Clear all existing functions
1 - - -
Alarm 1*
2 - - -
Alarm 2*
3 - - -
Alarm 3*
4 - - -
Alarm 4*
Part No. HA029989 Issue 3 July-14 7-5
Page 64
Alarm Configuration 2200e Series Installation and Configuration Handbook
7-6 Part No. HA029989 Issue 3 July-14
Page 65
2200e Series Installation and Configuration Handbook Motorised Valve Control
8 Motorised Valve Control
8.1 Parameters For Motorised Valve Control
The 2200e series can be configured for motorised valve control as an alternative to the standard PID control
algorithm. This algorithm is designed specifically for positioning motorised valves.
The motorised valve algorithm operates in the boundless mode, which does not require a position feedback
potentiometer for control purposes.
The following parameter list will appear in the navigation diagram shown in section 2.8 if your controller is configured
for motorised valve control.
Name Description Values
oP
Output list Min Max Default
mtr
Valve travel time in seconds.
This is the time taken for the valve to travel from its fully closed
position to its fully open position.
0.0 999.9 30.0
OP.Lo
OP.Lo is the low output power limit.
-100.0 100.0 -100.0
OP.Hi
OP.Hi is the High output power limit
-100.0 100.0 100.0
Ont.H
Output pulse minimum on time, in seconds.
Auto 999.9 0.2
Table 8-1: Motorised Valve Parameter List
8.2 Commissioning the Motorised Valve Controller
Proceed as follows:
1. Measure the time taken for the valve to be raised from its fully closed to its fully open position and enter this as
the value in seconds into the ‘mtr’ parameter.
2. Set all the other parameters to the default values shown in Table 8-1.
The controller can then be tuned using the automatic or manual tuning techniques.
8.2.1 Adjusting the minimum on-time ‘
Ont.H
’
The default value of 0.2 seconds is satisfactory for most processes. The minimum on time determines how accurately
the valve can be positioned. The shorter the time, the more precise the control. However, if the time is set too short,
process noise will cause an excessively busy valve.
Part No. HA029989 Issue 3 July-14 8-1
Page 66
Motorised Valve Control 2200e Series Installation and Configuration Handbook
8.3 Motorised Valve Applications
8.3.1 Auto Tuning
Before the auto tune is activated, the TD parameter must be set to a numeric value. The TD parameter cannot be
set to OFF when an auto tune is activated. When the auto tune is complete, the auto tune will set the TD parameter
back to the OFF position.
To set td, press
to access the PID List in Operator Level. Then press until td is displayed. Press or
to select any value other than Off.
8.3.2 Valve Positioner Set-up Table
Name Description Value
ConF Configuration Mode
Ctr
In the Inst configuration list set the CtrL to vP.
vP
1A
Module 1A id needs to be a rELy or a SSR.
The Func for 1A should be configured for Heat. (Open Valve)
HEAt
2A
Module 2A id needs to be a rELy or a SSR.
The Func for 2A should be configured for COOL. ( Close Valve)
COOL
OPER
Operating Mode (OP List)
mtr
Valve travel time in seconds.
This is the time taken for the valve to travel from its fully closed position to its fully
open position.
30.0
OP.Lo
Low output power limit.
-100.0
OP.Hi
High output power limit
100.0
Ont.H
Output pulse minimum on-time, in seconds.
0.2
OPER
Home List
VPOS
Calculated position of valve % of motor
travel time
Table 8-2: Valve Positioner Set up Table
The following operating parameters do not effect the 2200e when the valve positioner option has
been configured:
CYC.H Heat Cycle Time
CYC.C Cool Cycle Time
ont.C Minimum on time for cooling
!
8-2 Part No. HA029989 Issue 3 July-14
Page 67
2200e Series Installation and Configuration Handbook Load Current Monitoring and Diagnostics
9 Load Current Monitoring and Diagnostics
9.1 Load Current Monitoring and Diagnostics
Current flowing in a system of electrical heating elements (the ‘Load’) can be displayed on the controller by using a
TE10 SSR fitted with intelligent current transformer, PDCTX, or an SSR or contactor with an external PDCTX.
Load current monitoring and diagnostics may be used with any time proportioned output, fitted in module position
1A, and uses the logic output wires which drive the SSR to return signals back to the controller. These signals
represent the RMS value of the load current during the ON period, or load related alarm conditions. It is not
designed for analogue outputs i.e. phase angle control.
It is also designed for single phase operation only.
There are three modes of operation:-
1. Mode 1
This is used with TE10 SSR only. It detects if there is a break in the heater circuit. This includes heater or SSR open
circuit. A single Load Failure alarm message is displayed on the lower readout of the controller.
2. Mode 2
This is used with TE10 SSR plus PD/CTX intelligent current transformer, and provides:-
Display of true RMS load current
On the lower readout of the controller
Displays the true RMS current in the ON state to the load.
Low current alarm Analogous to
Partial Load Failure (PLF) supplied in
some SSRs
Provides advanced warning of failure of one or more heaters in parallel
High current alarm Activated when
the heater exceeds a set limit
Typically used where element bunching may occur
SSR short circuit This will apply full power to the heaters which could result in an over
temperature condition. This alarm provides early warning.
Heater failure Indicates open circuit load conditions
3. Mode 5 - 2208e & 2204e only
This mode is for use with contactors or other devices which do not use the PDS logic output from the controller as
the drive signal. For example, a time proportioning logic,relay or triac output. Mode 5, therefore, requires an
additional input to the controller to display the load conditions. It uses the digital input terminals for this, as shown
in Figure 9-2. Mode 5 provides the same features as mode 2 with two additional alarms:-
Current Transformer Open Circuit An alarm is shown if the PDS connection to PDCTX or SSR become
disconnected
Current Transformer Short Circuit An alarm is shown if the PDS connection from PDCTX or SSR are short
circuited
Part No. HA029989 Issue 3 July-14 9-1
Page 68
Load Current Monitoring and Diagnostics 2200e Series Installation and Configuration Handbook
1.

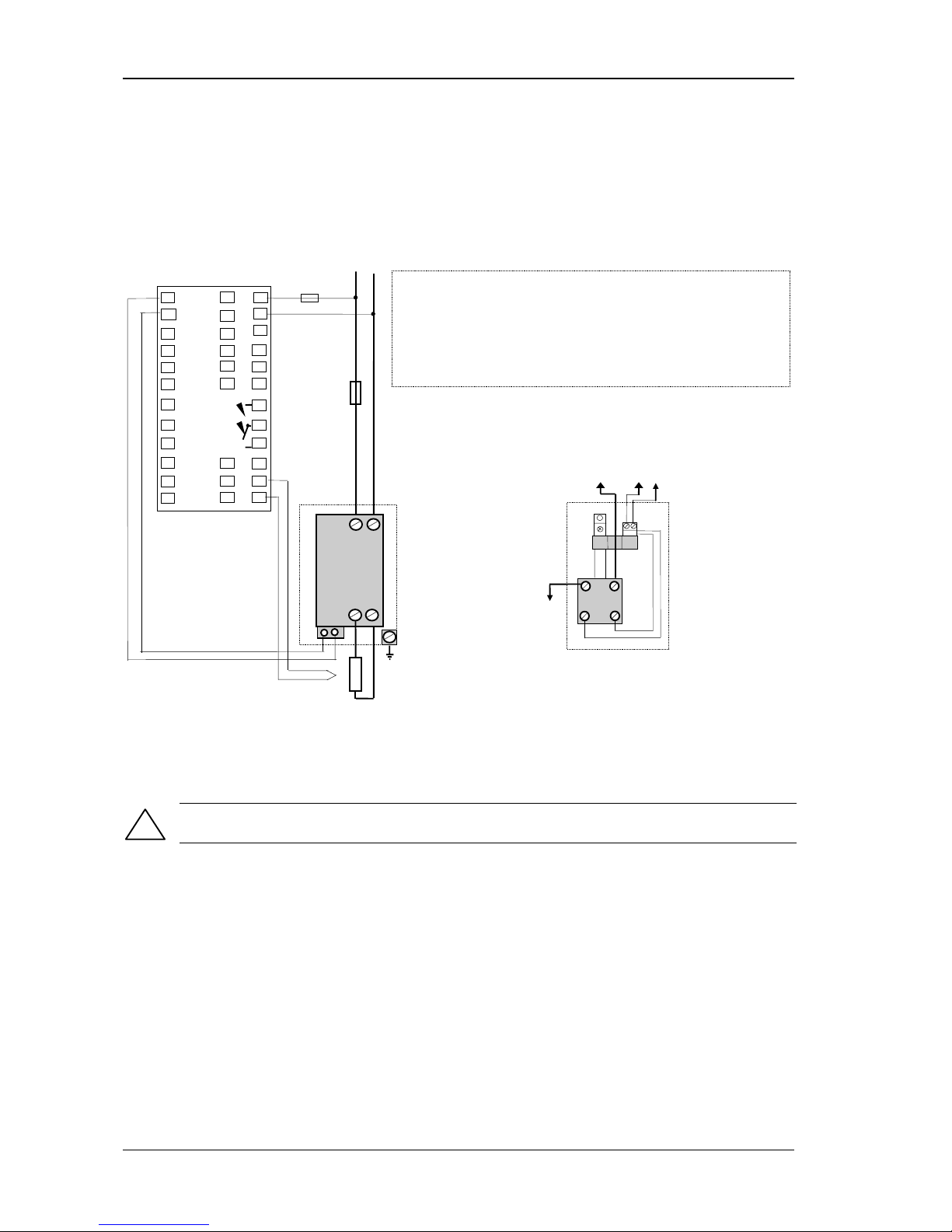

9.2 Example Wiring Diagram (For mode 1 & 2 operation)
Hardware Required
1. SSR type TE10/PDS2 OR
2. Intelligent current transformer type PD/CTX + contactor or zero voltage switching SSR
2216e, 2208e or 2204e controller configured for PDS mode 2 option using logic output. This module must be fitted
in module position 1. (order code M2).
Figure 9-1: Connections for Mode 1 & 2
Warning
Take care that the controller is correctly wired for the mode of operation which is configured.
Failure to do so may be hazardous in some situations.
!
Heater
L N
Controller
Fuse 2A(T)
N
L
V+
V-
1B
1A
M
O
D
U
L
E
1
C
O
M
M
S
1
+
-
+
PV
-
C
O
M
M
S
2
Alternative current regulator arrangements:-
The TE10/PDS2 contains integral power regulator and intelligent PDCTX
The PDCTX can be supplied separately for use with any SSR or logic thyristor
unit as shown in the diagram below.
The output drive capability of the PDCTX is 5V at 7mA maximum
TE10 Solid
State Relay
T/C
-
L
N
PDCTX Intelligent
Current Transformer
Logic input
SSR
+
-
-
To Heater
To L
To logic output 1A & 1B
This represents a single
turn through the CT
Heater fuse
(load
dependent)
Rear terminals shown
for 2208e.
Use the same terminal
references for 2216e &
2404e.
9-2 Part No. HA029989 Issue 3 July-14
Page 69
2200e Series Installation and Configuration Handbook Load Current Monitoring and Diagnostics
9.3 Example Wiring Diagram (for mode 5 operation)
Hardware Required
1. Eurotherm intelligent current transformer type PD/CTX + contactor
2. 2208e or 2204e controller configured for PDS mode 5 option using logic, relay or triac output. This module must
be fitted in module position 1. Digital input LA (order code M5) must be configured to accept PDCTX input as
described in the configuration section of this section.
The controller will have the order code M5 in the Logic Input position.
Figure 9-2: Example Wiring Connections for Contactor Operation (mode 5)
Warning!
Take care that the controller is correctly wired for the mode of operation which is configured.
Failure to do so may be hazardous in some situations.
!
Contactor +
PDCTX mode 5
+
-
Contactor
Heater power fuse
(load dependent)
L
N
Controller
Fuse 2A(T)
N
V+
V-
1B
1A
M
O
D
U
L
E
1
C
O
M
M
S
1
+
PV
-
C
O
M
M
S
2
Heater
T/C
LA
LC
Rear terminals shown
for 2208e.
Use the same terminal
references for 2404e.
Part No. HA029989 Issue 3 July-14 9-3
Page 70
Load Current Monitoring and Diagnostics 2200e Series Installation and Configuration Handbook
9.4 Operation
9.4.1 To Read Load Current (modes 2 and 5 only)
Do This
This Is The Display You Should See
Additional Notes
From the ‘HOME’ display, Figure 1.6,
Press
until AmPS is shown in the
upper display
Amps
5
Current will be displayed in
the lower readout. See also ‘Display Modes’ below.
Amps
----
This display will be shown if:
The controller is unable to resolve the reading
The controller is not obtaining a reading
The measurement has timed out i.e. current has not
flowed for 15 seconds, in mode 2.
It will revert to the HOME
display after 45 seconds or
10 seconds if an alarm is
present
Mode 5 not available in
2216e.
9.4.2 To Display Load Current Continuously in the Lower Readout (modes 2 and 5 only)
Do This
This Is The Display You Should See
Additional Notes
From the ‘HOME’ display, Figure 1.6,
Press until diSP is shown in the
upper display
Press
or until AmPS is
displayed in the lower display
disp
amps
Current will be displayed in
the lower readout
continuously when the
controller reverts to the
HOME display, see also
‘Display Modes’ below.
Mode 5 not available in
2216e.
9.4.3 Display Modes
SSR RMS On State Current
This is the default state when high or low current alarms are configured. The load current displayed is the steady
state true rms current measured during the ON period.
The minimum on times are:-
Mode 2 0.1second
Mode 5 (not available in 2216e) 3 seconds
Meter Mode
Meter mode applies to mode 5 only. If low current alarms are not configured the current displayed is a filtered
instantaneous RMS value. This behaves like a damped analogue meter. It may be used in applications where the
current sensor is not linked to control, for example, telemetry, indication.
9-4 Part No. HA029989 Issue 3 July-14
Page 71
2200e Series Installation and Configuration Handbook Load Current Monitoring and Diagnostics

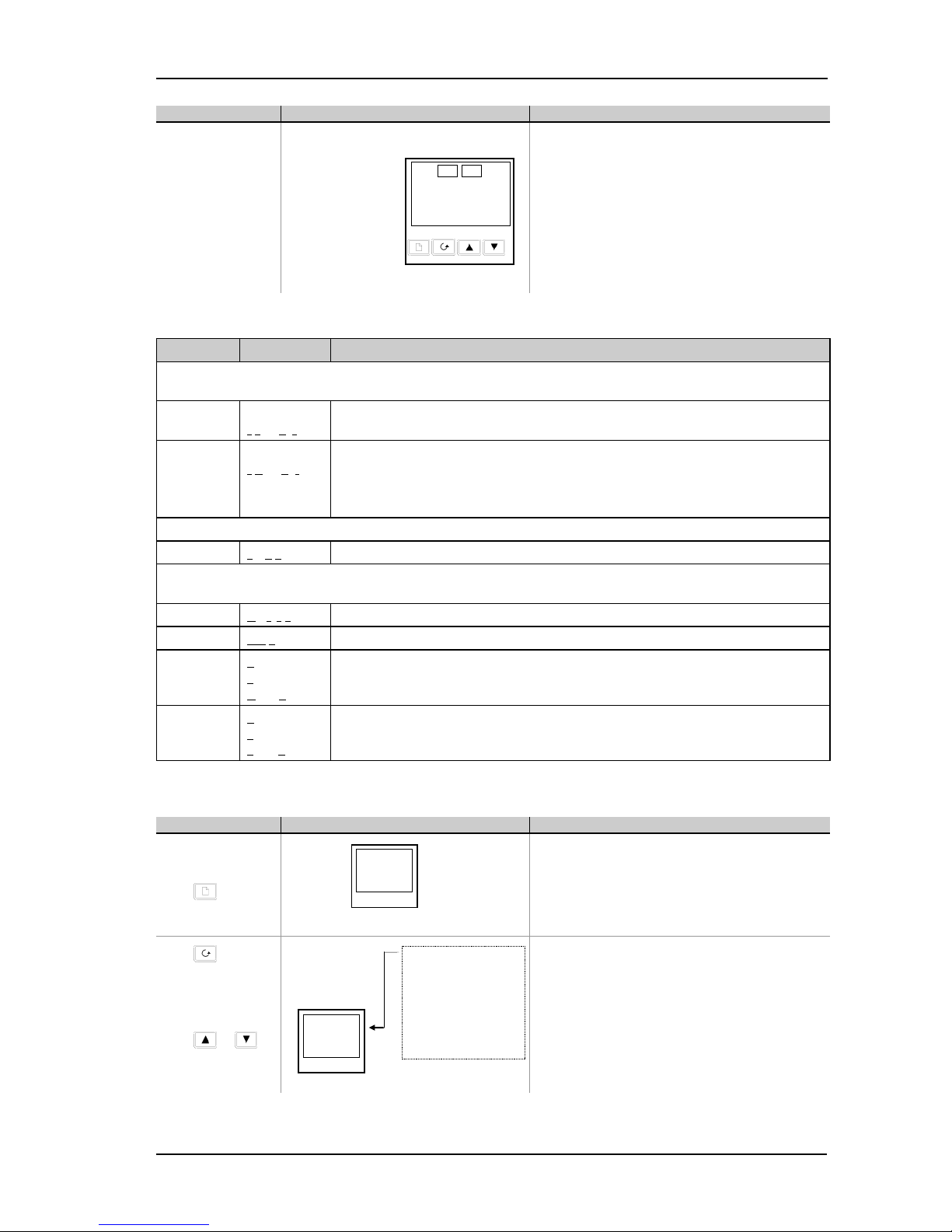

9.4.4 How Heater Alarms Are Displayed
Do This
This Is The Display You Should See
Additional Notes
If an alarm is present
it will flash a four
character mnemonic
in the lower display
HOME Display
20.0
1LCr
OP1
OP2
If more than one alarm is active, the display will
alternate between the alarm messages and the default
parameter in the lower display.
The Alarm Messages are:-
Mnemonic Meaning Description
The following two messages are alarms which are produced as a result of failure within the process. In place of dashes the alarm
number will appear i.e 1, 2, 3, or 4
-LCr
Alarm number
- Low Current
Used for partial load failure detection. To avoid nuisance tripping due to supply voltage
variations set to a value at least 15% below the minimum normal operating current
-HCr
Alarm number
- High Current
Used for load overcurrent protection. To avoid nuisance tripping due to supply voltage
variations set to a value at least 15% above the maximum normal operating current.
Note: This alarm is not intended to provide instantaneous safety protection from short
circuit fault conditions
The following message is a diagnostic alarm which appears for mode 1 operation only.
LdF
Load Fail This includes failure of the heater circuit or the SSR
The following four messages are diagnostic alarms produced as a result of failure within the equipment or wiring connections.
They appear for modes 2 and 5 operation only.
Htr.F
Heater Fail No current is being drawn while the controller output demand signal is on
SSr.F
SSR Fail The load is continuously on while the controller output demand signal is off
Ct.OP
Current
Transformer
Open Circuit
Indicates that the PDS input is open circuit.
Mode 5 only.
Ct.Sh
Current
Transformer
Short Circuit
Indicates that the PDS input is short circuit.
Mode 5 only.
9.5 To Set The Alarm Trip Levels
Do This
This Is The Display You Should See
Additional Notes
From the HOME
display
press
until the
AL LiSt
is
displayed
aL
List
To select the Alarm List header
Press button
until the desired
alarm number is
displayed
Press
or
to adjust the alarm
trip level
1---
123
To select the diagnostic alarm parameter found under
the Alarm List header
The alarm trip level is set to 123
Actual
Temperature (PV)
1 2 3 or 4
indicates the alarm
number;
--- indicates the
alarm type:e.g. LCr or HCr
Part No. HA029989 Issue 3 July-14 9-5
Page 72
Load Current Monitoring and Diagnostics 2200e Series Installation and Configuration Handbook
9.6 Relay Outputs
The fixed relay output connected to terminals AA to AC in a 1/8 or 1/4 DIN controller is normally used for alarm
purposes. In addition, any plug in module can be used for alarms provided they are not already being used for
another purpose , such as control. Any one or more alarms can be attached to an output, which will operate when an
alarm occurs. Contacts are rated at 2A 264Vac for operating external beacons or audible devices.
9.7 To Configure PDS Load Current Diagnostics
Configuration of PDS load current diagnostics is in four parts:-
1. Configure the Logic Module for PDS Mode 1 or 2 operation. If the control device is a contactor or standard SSR,
configure the LA digital input (2208e & 2204e only) for mode 5 operation.
2. Configure the Low and High Current trip alarms.
3. Attach the alarms to operate an output relay.
4. Set up the Scaling Factor.
First enter Configuration Level. See section 5.1.
9.7.1 To Configure the Logic Module for PDS modes 1 or 2
Do This
This Is The Display You Should See
Additional Notes
Press until the 1A Conf is
displayed
1A
Conf
This opens the configuration list associated
with module position 1A
Press to show id
id
Log
This shows the identity of the module
The module identity is logic output
Press to show Func
Press
or to show SSr1
or SSr 2 as required.
Func
SSr1
This shows the function of module
The module function is set to PDS mode 1
Press to show SEnS
Press
or to show nor
SEnS
nor
This sets the output signal to normal for
heating control
9-6 Part No. HA029989 Issue 3 July-14
Page 73
2200e Series Installation and Configuration Handbook Load Current Monitoring and Diagnostics
9.7.2 To configure Logic Input 1 for PDS (Mode 5 only)
Do This
This Is The Display You Should See
Additional Notes
Press button until the La
Conf is displayed
LA
Conf
Press to show id
id
Log.i
This identifies the LA input as logic and is
read only
Press to show Func
Press
or to select AmPs
Func
Amps
To configure the input for the PDCTX.
The system is designed to operate in either mode 2 or mode 5 configuration only. Selecting both
simultaneously will disable the output. However, mode 1 and mode 5 may be used together.
9.8 To Configure Low and High Current Trip Alarms
Alarm 1 will be configured as Load Current Low (Lcr)
Alarm 2 will be configured as Load Current High (Hcr)
Do This
This Is The Display You Should See
Additional Notes
Press button until the AL
Conf is displayed
AL
Conf
This opens the configuration list which
contains the Alarms
Press
to show AL1 (alarm 1)
Press
or to show LCr
AL1
LCr
After 0.5 sec the display will blink to
show the alarm type has been accepted
To select alarm 1
To make alarm 1 = Low Current
Press until AL2 (alarm 2)
appears
Press
or to show HCr
AL2
HCr
After 0.5 sec the display will blink to
show the alarm type has been accepted
To select alarm 2.
To make alarm 2 = High Current
Note:- The above alarms are known as SOFT ALARMS because they are indication only.
!
Part No. HA029989 Issue 3 July-14 9-7
Page 74
Load Current Monitoring and Diagnostics 2200e Series Installation and Configuration Handbook
9.9 To Attach Soft Alarms To A Relay Output
Any one alarm indicated above may be attached to an output (normally a relay). Alternatively any combination of
alarms may be attached to operate a relay using the procedure below:-
Do This
This Is The Display You Should See
Additional Notes
Press “PAGE” key as
many times as necessary to
aA ConF
AA
Conf
Any output module can be configured for an alarm
output provided it is not used for any other purpose,
eg as a control output.
In place of AA you should select the module required,
i.e. 1A, 2A, 3A
Press until dig.f
appears
dig.f
no.ch
DiGF = digital functions
noch = no change
Press or until the
first alarm you wish to attach
to the AA output is displayed
e.g. Htrf
Repeat the above step for
every alarm to be attached
to the output
dig.f
HtrF
0.5 sec
dig.f
no.ch
After 0.5 second the display will revert to noch to
attach the alarm
Each time you scroll through the table of alarms note
that two decimal points appear. This confirms that the
particular alarm has been attached to the output, i.e.
Ht.r.F SS.r.F etc
To remove alarms from an output press
or until CLr appears in the lower display. This will clear all alarms
attached to this output.
Alarms Connected to a Relay Output (AA, 1A, 2A or 3A)
dIG
SEnS
nor
inv
Output
Soft
Alarms
OR
AA AB
9-8 Part No. HA029989 Issue 3 July-14
Page 75
2200e Series Installation and Configuration Handbook Load Current Monitoring and Diagnostics
9.10 The Scaling Factor
The value of the current displayed on the controller is scaled using the scaling factor. This is found in the inSt
ConF list. It is set, by default, to 100 and assumes a single turn through the current transformer. If two turns are
made through the current transformer it will be necessary to adjust the scaling factor to 50 to obtain the same
reading.
Under normal conditions you should not need to change the scaling factor.
If, however, you wish to change the sensitivity of the current reading, for example, to read very low currents you may
need to change the number of turns through the PDCTX and/or adjust the scaling factor to compensate. See also
note 1 below.
9.10.1 To Adjust The Scaling Factor
Do This
This Is The Display You Should See
Additional Notes
Press button until inSt
Conf is displayed
inst
Conf
Press until LC.Hi is displayed
Press
or to change the
scaling factor
LC.Hi
100
Note 1:-
Minimum Resolvable Current
TE10 4A RMS. It is not possible to read currents lower than 4A when using a TE10.
PDCTX 4A RMS for a single turn through the PDCTX
Should you wish to read currents lower than 4A using a PDCTX it is necessary to increase the number of turns
through the PDCTX and adjust the scaling factor to compensate.
For example: To read 1.0A wind 4 turns through the PDCTX and adjust the scaling factor to 25 as shown in the table
below.
Scalar = 100/N Where N = Turns through PDCTX
N
Scalar
1
100 2 50 4 25 5 20
10
10
Maximum Resolvable Current
TE10 Determined by the maximum range of the SSR
PDCTX 100A (or 100 ampere turns)
Finally Exit configuration level. See section 5.3.
Part No. HA029989 Issue 3 July-14 9-9
Page 76
Load Current Monitoring and Diagnostics 2200e Series Installation and Configuration Handbook
9-10 Part No. HA029989 Issue 3 July-14
Page 77
2200e Series Installation and Configuration Handbook Retransmission
10 Retransmission
10.1 What is retransmission
The controller can be configured to generate an analogue output signal which represents a selected parameter.
The parameters which can be configured for retransmission are:-
1. Process Variable
2. Setpoint
3. Error
4. Control Output
The retransmission signal is available as 0-20mA, 4-20mA, 0-5V, 1-5V or 0-10V and is connected to terminals 1A and
1B when module 1A is fitted as a DC module.
10.2 To Configure Retransmission
A DC module must be fitted in module position 1A.
First enter configuration level. See section 5.1.
Then:-
Do This
This Is The Display You Should See
Additional Notes
Press button until the 1A
Conf is displayed
1A
Conf
This opens the configuration list for module 1A.
Press
to show id
id
dC.OP
This is the identity of the module fitted in this
position
The module must be a DC output dC.OP
Press to show Func
Press
or to select the
parameter for retransmission
Func
PV
The choices are:nonE Output turned off
Control Outputs
HEAT Heat control output
COOL Cool control output
Retransmission
OP Output demand
PV Process Variable
Err Error
wSP Setpoint (working)
Press to show SEns
sens
nor
If Func is a retransmission parameter the value of
Sens has no effect.
Press to show Out.L
Out.L
0.0
The retransmitted output signal can be limited by
adjusting these parameters.
Press to show Out.H
Out.H
20.0
To reverse the output, set Out.L to 20.0 and Out.H
to 0.0.
Part No. HA029989 Issue 3 July-14 10-1
Page 78
Retranmission 2200e Series Installation and Configuration Handbook
10.3 To Scale Retransmitted Output Signals
The analogue output signal may be set between 0 and 20mA. A 4-20mA output is achieved by applying an offset as
described below.
A 0 to 10Vdc output may be achieved by fitting a 500 ohm resistor across the output terminals 1A and 1B. A 0 to
5Vdc output may be achieved by fitting a 250 ohm resistor across the output terminals 1A and 1B. Suitable resistors
are supplied with the controller.
10.3.1 To Range Retransmitted Output
OP
10.3.2 To Range Retransmitted Setpoint
SP
or Process Variable
PV
10.3.3 To Range Retransmitted Error
Err
OuT.H
OuT.L
% Output
For output of 0-100% = 0-20mA
set Out.H to 20.0 and Out.L to 0.0
For output of 0-100% = 4-20mA
set Out.H to 20.0 and Out.L to 4.0
For output of 0 - 1000oC = 0 - 20mA
set Out.L to 0.0 and Out.H to 20.0
and rnG.L to 0.0 and rnG.H to 1000
rnG.L is the low limit of the input range
rnG.H is the high limit of the input range
These are found in the iP ConF list as described in section 5. If the range
limits are not set the retransmitted output is the maximum input range as stated
in the order code, section 11.
OuT.H
OuT.L
rng.L
rng.H
The retransmitted output value is dependent upon the range limits rnG.H and
rnG.L set in the iP ConF list of the controller.
The following examples are given to illustrate the retransmitted error values:
Example 1:
Type K thermocouple,
rnG.L = -200
rnG.H = +200
Retransmitted Value
0mA for an error of -200
10mA for an error of 0
20mA for an error of +200
Example 2:
As above but rnG.L = -10 and rnG.H = 400
Retransmitted Value
0mA for an error of -10
0.0487mA for an error of 0
20mA for an error of +400
Note:
To read a negative error it is necessary to set rnG.L to a negative limit
OuT.H
OuT.L
rng.L
rng.H
0
10-2 Part No. HA029989 Issue 3 July-14
Page 79
2200e Series Installation and Configuration Handbook Order Code
11 Understanding the Order Code
2200e series controllers have a modular hardware construction with the option of up to four outputs and one
communications port. Two logic inputs are provided as standard in 2208e & 2204e.
The ordering code is in two parts: the hardware code followed by the software code. The hardware code specifies
the hardware build of the controller, and the software code the software configuration. The software code is
optional.
UK Default
USA Default
Type K thermocouple 0 to 1000°C
Type J thermocouple 32 to 2192°F Hardware Code
Software Code
Hardware code
Model
number
Function
Supply
voltage
I/O 1
I/O 2
Output 3
Output 4
(not 2216e)
10A output *
Comms
Manual
Default Settings
VH
Comms
2XX
None
Modbus protocol
2YM
2-wire RS485
2FM
4-wire RS422
2AM
RS232
EI-Bisynch
2YE
2-wire RS485
2FE
4-wire RS422
2AE
RS232
DeviceNet
2DN
DeviceNet
PDS Input
2RS
Setpoint
Function
Model
number
Supply
voltage
I/O1
I/O2
Output 3
Output 4
(not 2216e)
10A output
(early 2204e only)
Comms
Manual
language
Sensor
input
Range min
Range max
Units
Options
Supply voltage
VH
100-230Vac
Function
CC
Controller
VC
Valve Positioner
NF
On/Off
AL
Alarm unit
10A output 2204e only
* Note:- This option is not
available on controllers after
Jan-04.
XX
None
R5
fitted unconfiig.
RH
PID heating
Manual
XXX
No manual
ENG
English
FRA
French
GER
German
ITA
Italian
I/O 1
XX
None
Relay: 2-pin
R1
Unconfigured
RU
VP raise O/P
RH
PID heating
FH
High alarm 1
FL
Low alarm 1
DB
Deviation band 1
DL
Low dev. alarm 1
DH
High dev alarm 1
Logic: non-isolated
L1
Unconfigured
LH
PID heating
M1
PDS mode 1 note 1
M2
PDS mode 2 note 2
Triac
T1
Unconfigured
TH
PID heating
TU
VP raise O/P
DC control -isolated
D3
Unconfigured
H6
0-20mA PID heating
H7
4-20mA PID heating
C6
0-20mA PID cooling
C7
4-20mA PID cooling
DC Retrans. (isolated)
Select from table A
Table A
D6
Fitted unconfigured
V-
PV retrans
S-
Setpoint retrans
O-
Output retrans
Z-
Error retrans
-1
0-20mA
-2
4-20mA
-3
0-5V
-4
1-5V
-5
0-10V I/O 2
XX
None
Relay: 2-pin
R1
Unconfigured
RC
Cooling output
RH
Heating output
RW
VP lower O/P
FH
High alarm 2
FL
Low alarm 2
DB
Deviation band 2
DL
Low deviation alarm 2
DH
High deviation alarm 2
AL
Hi & Lo alarms 1 & 2
Logic Input
AM
Auto manual select
S2
Setpoint 2 select
AC
Alarm ack/reset
EH
Integral hold
SB
Standby mode
SR
PDS remote SP select
M5
CTX mode 5 current input
Logic output
L1
Unconfigured
LC
PID cooling
LH
Heating output
Triac
T1
Unconfigured
TC
PID cooling
TW
VP lower O/P
TH
Heating output
Outputs 3 and 4
XX
None
RF
Unconfigured
RH
PID heating
RC
PID cooling
FH
High alarm 3
FL
Low alarm 3
DB
Deviation band 3
DL
Low deviation. alarm 3
DH
High deviation alarm 3
AL
High and Low alarms
PDS Alarms
LF
Heater break
HF
Current monitoring
heater break
SF
Current monitoring
SSR failure
Model number
2216e
48x48mm unit
2208e
48x96mm unit
2204e
96x96mm unit
Default settings
AO
American
EO
European
Part No. HA029989 Issue 3 July-14 11-1
Page 80
Order Code 2200e Series Installation and Configuration Handbook
Software code
Sensor input
Range min
Range max
Units
Digital input 1
Digital input 2
Options
(note 2)
(note 2)
Digital inputs are not available in 2216e
Notes:
1. PDS heater break detect will transmit the power demand to a TE10 solid state relay and read back a heater break
alarm.
2. PDS current monitoring will transmit the power demand to a TE10 solid state relay and read back load current
and open and short circuit alarms.
3. Setpoint limits: Include the decimal position required in the displayed value – up to one for temperature inputs,
up to two for process inputs
4. An external 1% current sense resistor is supplied as standard. If greater accuracy is required, a 0.1% 2.49Ω can be
ordered as part number SUB2K/249R.1.
Example ordering code:
2208e-CC-VH-LH-TC-FL-FH-2YM-ENG-K-0-1000-C-XX-XX-XX-XX-XX
2208e controller, 100 to 240Vac, logic heating, triac cooling, low alarm relay, high alarm relay, EIA485 Modbus comms, English
manual, type K thermocouple, 0 to 1000
O
C, digital input 1 no function, digital input 2 no function, reverse acting, power feedback
enabled, linear cooling.
Sensor input
Range Min
Range Min
Standard sensors
Min °C
max
Min °F
max J J thermocouple
-210 1200
-340 2192
K
K thermocouple
-200 1372
-325 2500
T
T thermocouple
-200 400
-325 750
L
L thermocouple
-200 900
-325 1650
N
N thermocouple
-200 1300
-325 2370
R
R thermocouple
-50 1768
-58 3200
S
S thermocouple
-50 1768
-58 3200
B
B thermocouple
0 1820
32 3310
P
Platinel II
therm’ple
0 1369
32 2496
Z
RTD/PT100
-200 850
-325 1562
Custom sensors (*replaces C thermocouple)
C
*C thermocouple
W5%Re/W26%Re
(Hoskins)
0 2319
32 4200
D
W3%Re/W25%Re
0 2399
32 4350
E
E thermocouple
-200 1000
-325 1830
1
Ni/Ni18%Mo
0 1399
32 2550
2
Pt20%Rh/Pt40%Rh
0 1870
32 3398
3
W/W26%Re
(Englehard)
0 2000
32 3632
4
W/W26%Re
(Hoskins)
0 2010
32 3650
5
W5%Re/W26%Re
(Englehard)
10 2300
50 4172
6
W5%Re/W26%Re
(Bucose)
0 2000
32 3632
7
Pt10%Rh/Pt40%Rh
-200 1800
392 3272
8
Exergen K80 IR
pyrometer
-45 650
Process inputs
Min
Max M -9.99 to +80.00mV
-999
9999 Y 0 to 20mA
-999
9999 A 4 to 20ma
-999
9999 W 0 to 5Vdc
-999
9999 G 1 to 5Vdc
-999
9999 V 0 to 10Vdc
-999
9999 Options
Control action
XX
Reverse acting (standard)
DP
Direct acting PID
Power feedback
XX
Enabled on logic, relay & triac heating
outputs
PD
Power feedback disabled
Cooling options
XX
Linear cooling
CF
Fan cooling
CW
Water cooling
Digital inputs 1 & 2 (2208e & 2204e only)
XX
No function
AM
Manual select
SR
Remote setpoint select
S2
Second setpoint
EH
Integral hold
AC
Alarm acknowledge
SB
Standby mode
M5
CTX mode 5 current input (input
1 only)
Units C Centigrade
F
Fahrenheit
K
Kelvin X Linear input
11-2 Part No. HA029989 Issue 3 July-14
Page 81
2200e Series Installation and Configuration Handbook Safety and EMC Information
12 SAFETY and EMC Information
This instrument is intended for industrial temperature and process control applications within the requirements of the
European Directives on Safety and EMC.
The information contained in this manual is subject to change without notice. While every effort has been made to
ensure the accuracy of the information, your supplier shall not be held liable for errors contained herein.
W The safety and EMC protection can be seriously impaired if the unit is not used in the manner specified. The
installer must ensure the safety and EMC of the installation.
Safety. This instrument complies with the European Low Voltage Directive 2006/95/EC, by the application of the
safety standard EN 61010.
Unpacking and storage. If on receipt, the packaging or unit is damaged, do not install but contact your supplier. If
being stored before use, protect from humidity and dust in an ambient temperature range of -10oC to +70oC.
Electrostatic discharge precautions. Always observe all electrostatic precautions before handling the unit.
Service and repair. This instrument has no user serviceable parts. Contact your supplier for repair.
Cleaning. Isopropyl alcohol may be used to clean labels. Do not use water or water based products. A mild soap
solution may be used to clean other exterior surfaces.
Electromagnetic compatibility. This instrument conforms with the essential protection requirements of the EMC
Directive 2004/108/EC, by the application of a Technical Construction File. It satisfies the general requirements of the
industrial environment defined in EN 61326.
Caution: Charged capacitors. Before removing an instrument from its sleeve, disconnect the supply and wait at
least two minutes to allow capacitors to discharge. Avoid touching the exposed electronics of an instrument when
withdrawing it from the sleeve.
Safety Symbols. Symbols used on the instrument have the following meaning:
W Caution, refer to accompanying documents). - Equipment protected throughout by DOUBLE
INSULATION
Installation Category and Pollution Degree. This unit has been designed to conform to BSEN61010 installation
category II and pollution degree 2, defined as follows:-
Installation Category II (CAT II). The rated impulse voltage for equipment on nominal 230V supply is 2500V.
Pollution Degree 2. Normally only non conductive pollution occurs. However, a temporary conductivity caused
by condensation must be expected.
Personnel. Installation must only be carried out by suitably qualified personnel.
Enclosure of Live Parts. To prevent hands or metal tools touching parts that may be electrically live, the controller
must be installed in an enclosure.
Caution: Live sensors. The controller is designed to operate if the temperature sensor is connected directly to an
electrical heating element. However, you must ensure that service personnel do not touch connections to these
inputs while they are live. With a live sensor, all cables, connectors and switches for connecting the sensor must be
mains rated for use in 230Vac +15%: CATII.
Wiring. It is important to connect the unit in accordance with the data in this sheet ensuring that the protective earth
connection is ALWAYS fitted first and disconnected last. Wiring must comply with all local wiring regulations, i.e. UK,
the latest IEE wiring regulations, (BS7671), and USA, NEC Class 1 wiring methods.
W Do not connect AC supply to low voltage sensor input or low level inputs and outputs.
Voltage rating. The maximum continuous voltage applied between any of the following terminals must not exceed
230Vac +15%::
Part No. HA029989 Issue 3 July-14 12-1
Page 82
Safety and EMC Information 2200e Series Installation and Configuration Handbook
relay output to logic, dc or sensor connections;
any connection to ground.
The controller must not be wired to a three phase supply with an unearthed star connection. Under fault conditions
such a supply could rise above 240Vac with respect to ground and the product would not be safe.
Conductive pollution. Electrically conductive pollution i.e. carbon dust, MUST be excluded from the enclosure in
which the controller is installed. To secure a suitable atmosphere in conditions of conductive pollution, fit an air filter
to the air intake of the enclosure. Where condensation is likely, include a thermostatically controlled heater in the
enclosure.
Grounding of the temperature sensor shield. In some installations it is common practice to replace the
temperature sensor while the controller is still powered up. Under these conditions, as additional protection against
electric shock, we recommend that the shield of the temperature sensor is grounded. Do not rely on grounding
through the framework of the machine.
Over-temperature protection
When designing any control system it is essential to consider what will happen if any part of the system should fail. In
temperature control applications the primary danger is that the heating will remain constantly on. Apart from
spoiling the product, this could damage any process machinery being controlled, or even cause a fire.
Reasons why the heating might remain constantly on include:
• the temperature sensor becoming detached from the process
• thermocouple wiring becoming short circuit;
• the controller failing with its heating output constantly on
• an external valve or contactor sticking in the heating condition
• the controller setpoint set too high.
Where damage or injury is possible, we recommend fitting a separate over-temperature protection unit, with an
independent temperature sensor, which will isolate the heating circuit.
Please note that the alarm relays within the controller will not give protection under all failure conditions.
Installation Requirements for EMC. To comply with European EMC directive certain installation precautions are
necessary:-
General guidance. Refer to EMC Installation Guide, Part no. HA025464.
Relay outputs. It may be necessary to fit a suitable filter to suppress conducted emissions.
Table top installation. If using a standard power socket, compliance with commercial and light industrial
emissions standard is usually required. To comply with conducted emissions standard, a suitable mains filter
must be installed.
Routing of wires
To minimise the pick-up of electrical noise, the low voltage DC connections and the sensor input wiring should be
routed away from high-current power cables.
Where this is impractical, shielded cables should be used for the signal wiring. Where signal wiring is carrying (or
could carry, under fault conditions) hazardous voltages*, double insulation should be used.
* A full definition of ‘hazardous’ voltages appears under ‘Hazardous Live’ in BS EN61010. Briefly, under normal
operating conditions Hazardous voltage levels are defined as >30V RMS (42.2V peak) or >60V dc.
12-2 Part No. HA029989 Issue 3 July-14
Page 83
2200e Series Installation and Configuration Handbook Safety and EMC Information
12.1 Technical Specification
Inputs
General Range +100mV and 0 to 10Vdc (auto ranging)
Sample rate 9Hz (110mS)
Calibration accuracy 0.25% of reading, ±1 LSD or ±1°C/F
Resolution <1µV for ± 100mV range, <0.2mV for 10Vdc range
Linearisation accuracy <0.1% of reading
Input filter 1.0 to 999.9secs
Zero offset User adjustable over the fully display range
Thermocouple Types Refer to Sensor inputs and display ranges table
Cold junction compensation Automatic compensation typically >30 to 1 rejection of ambient
temperature change (incorporates INSTANT ACCURACY™ cold junction
sensing technology).
External references 32, 113 and 122°F (0, 45 and 50°C)
RTD/PT100 Type 3-wire, Pt100 DIN43760
Bulb current 0.2mA
Lead compensation No error for 22 ohms in all 3 leads
Process Linear -9.99 to 80.00mV, 0 to 20mA or 0 to 10Vdc (All configurable between
limits)
Digital Type Contact closure
Application Manual select, 2nd setpoint, keylock, setpoint rate limit enable
Outputs
Relay Rating: 2-pin relay Min: 12V, 100mA dc Max: 2A, 264Vac resistive
Rating: change-over, alarm relay Min: 6V, 1mA dc Max: 2A, 264Vac resistive
Application Heating, cooling or alarms
Logic Rating 18Vdc at 24mA (non-isolated)
Application Heating, cooling or alarms
PDS mode 1: SSRx Load Doctor™ logic heating with load failure alarm
PDS mode 2: SSRx Enhanced Load Doctor™ logic heating with load/SSC
failure alarm and load current display
Triac Rating 1A, 30 to 264Vac resistive
Application Heating or cooling
High current Rating 10A, 264Vac resistive.
Note:- This option is not available on controllers
after Jan-04.
Application Heating
Analog Range Isolated 0 to 20mA or 0 to 10Vdc (configurable between limits)
Application Heating or cooling
Communications
Digital Transmission standard EIA-485 2wire, EIA-422 4 wire or EIA-232 at 1200, 2400, 4800, 9600, 19,200
baud. 1200 baud is not available with EI-Bisynch.
125K, 250K, 500K for DeviceNet
Protocols Modbus®, EI-Bisynch, DeviceNet
PDS Setpoint input Setpoint input from master PDS controller
Part No. HA029989 Issue 3 July-14 12-3
Page 84
Safety and EMC Information 2200e Series Installation and Configuration Handbook
Control functions
Control Modes PID or PI with overshoot inhibition, PD, P only or On/Off
Application Heating and cooling
Auto/manual Bumpless transfer
Setpoint rate limit 0.01 to 99.99 degrees or display units per minute.
Cooling algorithms Linear; Water (non-linear); Fan (minimum on time), Oil, proportional only
Tuning One-shot tune Automatic calculation of PID and overshoot inhibition parameters
Automatic droop compensation Automatic calculation of manual reset value when using PD control
Alarms Types Full scale high or low. Deviation high, low, or band
Modes Latching or non-latching. Normal or blocking action
Up to four process alarms can be combined onto a single output
General
Display Dual, 4 digit x 7 segment high intensity LED
Dimensions and weight 2216e:- 48W x 48H x 103Dmm (1.89W x 1.89H x 4.04D inches) 250g (8.8oz)
2208e:- 48W x 96H x 103Dmm (1.89W x 3.78H x 4.06D inches) 320g (11oz)
2204e:- 96W x 96H x 103Dmm (3.78W x 3.78H x 4.06D inches) 600g (21oz)
Supply 100 to 230Vac +/-15%, 48 to 62Hz. 10watts max
Temperature and RH Operating: 32 to 131°F (0 to 55°C), RH: 5 to 90% non-condensing. Storage:
14 to 158°F (-10 to 70°C)
Panel sealing IP 65
Electromagnetic compatibility EN61326-1 generic standards for industrial environments
Safety standards EN61010, installation category 2 (voltage transients must not exceed 2.5kV)
Atmospheres Electrically conductive pollution must be excluded from the cabinet in
which this controller is mounted. This product is not suitable for use above
6,562ft (2000m) or in corrosive or explosive atmospheres without further
protection.
12-4 Part No. HA029989 Issue 3 July-14
Page 85
2200e Series Installation and Configuration Handbook Safety and EMC Information
Part No. HA029989 Issue 3 July-14 12-5
Page 86
Page 87
2200e Series Installation and Configuration Handbook Supplement
13 Supplement 2208e Instruments
New Short Sleeve Design MkIII
This supplement applies to:-
2208e
Controllers
Manufactured from Feb-03
The month and year of manufacture are shown in the last two
pairs of digits of the instrument serial number.
From Feb-03 an improved design of 1/8 DIN short sleeve is shipped with all new 2208e controllers (and 2108i
indicators).
Details
A new sealing gasket will be fitted onto the instrument bezel . This gasket replaces the gasket which was moulded
into the front of the sleeve of all previous instruments.
The gasket previously moulded into the sleeve where it fits behind the panel is now supplied as a separate item .
Reasons for the Change
This change is to ensure that IP65 sealing is reliably achieved and less physical effort is required to insert the
instrument into the new sleeve.
Recommendations
1. An instrument delivered after Jan 03 should be used with the sleeve supplied
2. If the instrument is required to replace one already in use, the existing sleeve should also be replaced
3. A new instrument can be fitted into an existing sleeve by carefully removing gasket but IP65 sealing will
not be maintained
4. An existing instrument can be fitted into a new sleeve but IP65 sealing will not be maintained
It is, however, possible to achieve IP65 sealing for 3 and 4 above. A gasket kit is available from Eurotherm by quoting
Part No SUB24/GAS2408.
Then:-
5. To fit a new instrument in an older sleeve carefully remove gasket . Replace it with the thinner (1.25mm)
gasket from the kit
6. To fit an existing instrument into a new sleeve fit the thicker (1.6mm) gasket from the kit between the
instrument and the sleeve
The seal supplied as a separate item with a new instrument, should be placed over the sleeve prior to mounting it
through the panel cut out as shown below:-
Panel
New
Sleeve seal
(supplied as a
separate item)
Instrument
sleeve
New gasket fitted onto bezel
Part No. HA029989 Issue 3 July-14 13-1
Page 88
Supplement 2200e Series Installation and Configuration Handbook
13-2 Part No. HA029989 Issue 3 July-14
Page 89
2200e Series Installation and Configuration Handbook Index
14 Index
A
Acknowledge, 2-18, 5-7, 5-10, 7-2
Address, 5-11
AL1, 5-7, 9-7
Alarm, 2-11, 2-15, 2-16, 2-17, 5-7, 5-8, 5-9, 7-1, 7-2, 7-
4, 9-5, 9-7
Alarm Relay, 2-16, 5-8
Automatic, 2-6, 2-12, 4-1, 4-4, 5-6, 12-4, 12-5
B
Block Diagram, 2-9
Blocking Alarms, 2-15
C
Calibration, 2-13, 5-6, 6-1, 6-2, 6-3, 12-4
CLr, 9-8
Configuration,1-4, 2-8, 2-14, 3-1, 3-2, 5-1, 5-2
, 5-5, 56, 5-7, 5-8, 5-9, 5-10, 5-11, 6-1, 6-3, 7-1, 7-3, 8-2, 96
Current Transformer, 9-1, 9-5
Cutback, 2-12
D
DC, 1-6, 1-8, 1-10, 4-1, 5-9, 10-1, 12-3
Derivative Time, 4-3
Dimensions, 1-2, 12-5
Display Mnemonic
Ac.AL, 5-7, 5-10
AL1, 5-7, 9-7
AL2, 5-7, 9-7
AL3, 5-7
AL4, 5-7
Auto, 2-6, 2-11, 2-12, 2-13, 4-2, 4-3, 5-6
, 5-7, 5-9,
7-2, 8-1, 8-2, 12-5
b.tc, 5-6
C.tc, 5-6
CAL, 2-13, 5-5, 5-6, 6-1, 6-2, 6-3
CAL.S, 2-13
CJC, 5-6
Conf, 2-11, 5-5, 9-6, 9-7, 9-9, 10-1
Dwell, 2-7, 2-8, 2-12
EVENT, 2-11
Heat, 2-13, 7-1, 8-2, 10-1
J.tc, 5-6
L.tc, 5-6
Lbr, 5-9
Loc.b, 5-7, 5-10
mAn, 4-4, 5-7, 5-10, 7-2
n.tc, 5-6
none
, 1-10, 2-11, 5-5, 5-7, 5-8, 5-11
r.tc, 5-6
S.tc, 5-6
Sbr, 5-5, 5-9
SP1, 2-12
SP2,
2-2, 2-8, 2-12
t.tc, 5-6
TC,
11-2
TD,
8-2
E
Event, 2-11
H
Heat, 2-13, 7-1, 8-2, 10-1
High Cutback, 4-1, 4-3
HOME, 2-3, 2-5, 2-11, 2-17, 9-4, 9-5
Hysteresis, 2-11, 2-15
I
ID, 2-11
Input, 1-6, 2-13, 2-18, 5-5, 5-6, 6-2, 9-3
, 9-7, 12-4
Input filter, 2-13, 12-4
Input Type
Type mV, 2-13, 5-6
Input/Output, 5-5
Installation, 1-1, 1-3, 12-1, 12-2, 12-3
Integral, 2-12, 4-1, 4-3, 5-7, 5-10
Integral Time, 4-3
Internet Site
UK, 5-12
L
Latching Alarm, 2-15
Linear, 5-5, 5-6, 12-4, 12-5
Logic, 1-6, 1-8, 5-7, 5-9, 5-10, 9-3, 9-6, 9-7, 12-4
Low Cutback, 4-3
M
mAn, 4-4, 5-7, 5-10, 7-2
Manual,
2-2, 2-6, 2-12, 4-3, 4-4, 5-7, 5-9, 5-10, 7-2, 11-
1, 12-4
Modbus, 11-2, 12-4
N
Name, 2-2, 2-11, 2-12, 2-13, 2-14, 5-5, 5-6, 6-3, 8-1, 8-
2
O
One-shot, 4-1, 12-5
Output Power, i, 2-6
Part No. HA029989 Issue 3 July-14 14-3
Page 90
Index 2200e Series Installation and Configuration Handbook
P
PID, 1-6, 2-12, 4-4, 5-5, 8-1, 8-2, 12-5
PV, 2-8, 2-13, 2-15, 5-9, 7-2, 10-1, 10-2, 12-2
R
ramp, 2-7, 2-8
Relay, 1-6, 5-8, 5-9, 5-10, 7-2, 9-6, 9-8, 12-4
Reset, 2-12, 4-4, 5-7, 5-10
RTD, 12-4
Run, 2-2, 2-8
S
SETPOINT 1, 2-7
SETPOINT 2, 2-7
Sleeve, 13-1
T
Terminals, 1-4, 1-5, 5-5
Thermocouple, 12-4
Type b – b.tc, 5-6
Type C – C.tc
, 5-6
Type J – J.tc, 5-6
Type L – L.tc, 5-6
Type n – n.tc, 5-6
Type r – r.tc, 5-6
Type S – S.tc, 5-6
Type t – t.tc, 5-6
Tuning, 4-1, 4-3, 8-2, 12-5
U
User calibration, 2-13, 5-6, 6-1, 6-2, 6-3
W
Wiring, 1-4, 1-7, 1-9, 1-10, 5-5, 9-2, 9-3, 12-2
