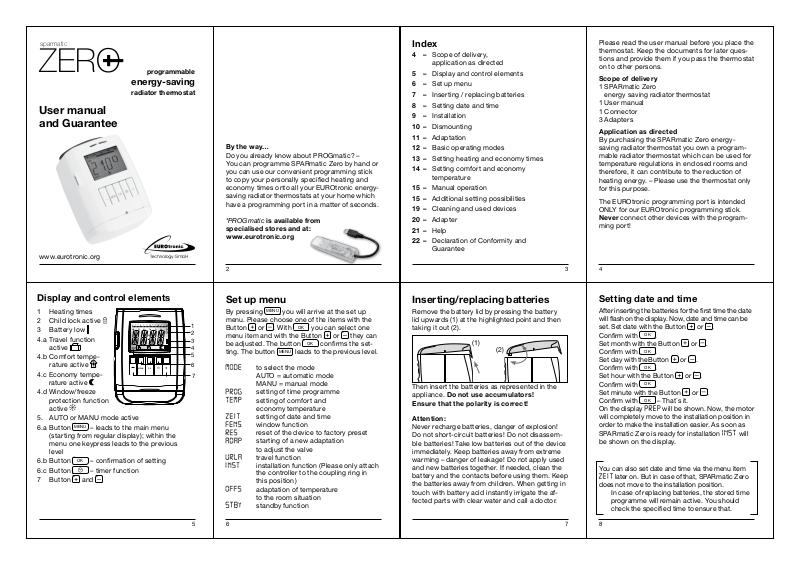

Eurotronic SPARmatic Zero User guide

Download

sparmatic

ZERO

User manual and Guarantee

www.eurotronic.org

programmable

energy-saving

radiator thermostat

By the way…

Do you already know about PROGmatic? – You can programme SPARmatic Zero by hand or you can use our convenient programming stick to copy your personally speciﬁ ed heating and economy times onto all your EUROtronic energysaving radiator thermostats at your home which have a programming port in a matter of seconds.

*PROGmatic is available from specialised stores and at : www.eurotronic.org

Index

4 – Scope of delivery,

application as directed

5 – Display and control elements 6 – Set up menu 7 – Inserting / replacing batteries 8 – Setting date and time 9 – Installation 10 – Dismounting 11 – Adaptation 12 – Basic operating modes 13 – Setting heating and economy times 14 – Setting comfort and economy

temperature

15 – Manual operation 15 – Additional setting possibilities 19 – Cleaning and used devices 20 – Adapter 21 – Help 22 – Declaration of Conformity and

Guarantee

Please read the user manual before you place the thermostat. Keep the documents for later questions and provide them if you pass the thermostat on to other persons.

Scope of delivery

1 SPARmatic Zero

energy saving radiator thermostat 1 User manual 1 Connector 3 Adapters

Application as directed

By purchasing the SPARmatic Zero energysaving radiator thermostat you own a programmable radiator thermostat which can be used for temperature regulations in enclosed rooms and therefore, it can contribute to the reduction of heating energy. – Please use the thermostat only for this purpose.

The EUROtronic programming port is intended ONLY for our EUROtronic programming stick. Never connect other devices with the programming port!

Display and control elements

1 Heating times 2 Child lock active 3 Battery low

4.a Travel function active

4.b Comfort tempe rature active

4.c Economy tempe -

rature active

4.d Window/freeze

protection function active

5. AUTO or MANU mode active

6.a Button

– leads to the main menu (star ting from regular display); within the menu one keypress leads to the previous level

6.b Button

6.c Button 7 Button

– conﬁ rmation of setting

– timer function

and

0 246 12 18

Mo Di Mi Do Fr Sa So

AUTO

MANU

MENU OK

Set up menu

By pressing

1 2

3 4 5

menu. Please choose one of the items with the Button menu item and with the Button be adjusted. The button ting. The button

reset of the device to factor y preset

the controller to the coupling ring in this position)

you will arrive at the set up

or . With OK you can select one

or they can

conﬁ rms the set-

leads to the previous level.

to select the mode

AUTO = automatic mode

MANU = manual mode setting of time programme setting of comfor t and

economy temperature

setting of date and time

window function

starting of a new adaptation

to adjust the valve travel function

installation function ( Please only attach

adaptation of temperature

to the room situation standby function

Inserting/replacing batteries

Remove the battery lid by pressing the batter y lid upwards (1) at the highlighted point and then taking it out (2) .

(1)

(2)

Then insert the batteries as represented in the appliance. Do not use accumulators!

Ensure that the polarit y is correct !

Attention :

Never recharge batteries, danger of explosion! Do not shor t-circuit batteries! Do not disassemble batteries! Take low batteries out of the device immediately. Keep batteries away from extreme warming – danger of leakage! Do not apply used and new batteries together. If needed, clean the battery and the contacts before using them. Keep the batteries away from children. When getting in touch with battery acid instantly irrigate the affected parts with clear water and call a doctor.

Setting date and time

After inserting the batteries for the ﬁ rst time the date will ﬂ ash on the display. Now, date and time can be set. Set date with the Button Conﬁ rm with Set month with the Button Conﬁ rm with Set day with theButton Conﬁ rm with Set hour with the Button Conﬁ rm with Set minute with the Button Conﬁ rm with On the display

– That´s it.

will be shown. Now, the motor will completely move to the installation position in order to make the installation easier. As soon as SPARmatic Zero is ready for installation be shown on the display.

You can also set date and time via the menu item

later on. But in case of that, SPARmatic Zero does not move to the installation position.  In case of replacing batteries, the stored time

programme will remain active. You should check the speciﬁ ed time to ensure that.

or .

will

Installation

SPARmatic Zero can be quickly and easily mounted on all common valves (see adapter table). It can be installed without grime and water spots because the heating circuit is not interrupted.

valve – cou pling rin g

1. Turn the manual thermostat head up completely, loosen the fastening and pull the thermostat off of the valve.

2. Use an appropriate adapter, if required, and push it onto the valve.

3. Screw the connector on the valve or the adapter.

4. Now, you put SPARmatic Zero on the connector until it noticeably clicks into place.

ATTENTION : It must be possible to insert SPARmatic Zero without applying force, ensure that the appliance is in the „

Additional info rmation about the differe nt adapters are provided on page 20 or at: w ww.eurotro nic.o rg

valve – adapter – coup ling rin g

“ or „ “ position.

➔ In case of a later installation, please switch

in the menu to

before you install the

device. Herewith the installation is facilitated.

Only mount it in this position.

Dismounting

press

➔ To remove SPARmatic Zero remove this at the

, position, wait for a short period and then press on the unlocking device to detach the quick-release catch. Then pull the SPARmatic Zero from the valve.

Adaptation

Initial installation: Press the button OK until

appears on the display so that SPARmatic Zero will be able to start its adaptation. The device will adapt itself to the stroke of your valve body. To do this the valve will now be opened and closed several times to store the end points. In some cases this process can take a few minutes. After successful adaptation it returns to normal mode.

➔ Should adaptation become necessary again,

e.g. if your radiator does not cool down in the

-Position, please press in the menu the

button

➔ If the mistake

SPARmatic Zero onto the radiator valve and then take the batteries out for a short time in order to execute a reset.

until adaptation star ts again.

is shown on the display place

Basic operating modes

MANU-mode In the MANU-mode SPARmatic Zero adjusts to the manually speciﬁ ed temperature.

AUTO-mode In the AUTO-mode SPARmatic Zero changes between to temperatures according to the time programme that has been set:

comfort temperature (factory preset 21°C)

economy temperature (factor y preset 16°C)

The heating and economy times can be speciﬁ ed via the adjustable time programme. It is possible to set 8 switch points (4 heating and 4 economy times) per day at the most. SPARmatic Zero has the following factory preset:

Heating time:

Heating with comfort temperature (factor y preset: 1

Economy time :

lowering to economy temperature (factor y preset: 1

heating time at 07:00)

economy time at 22:00)

Setting heating and economy times

With SPARmatic Zero it is possible to set 4 heating and 4 economy times per day – one for each day or one for a block of several days. TAG1 to TAG7 represent the weekdays from Monday to Sunday. Additionally, the corresponding days are shown as abbreviation below the menu bar on the display.

Block construction:

T1– 5 = same programme from Monday to Friday T

1– 6 = same programme from Monday to Satur-

day T 1– 7 = same programme from Monday to Sunday

 For non-programmed days the factory preset

remains active.

Sett ing of an individual progr amme :

Press Button shown on the display. Select day/block with the Button ning of the 1 ton of the 1

. Select the menu item with the

or . Press OK. for Monday is

or . Conﬁ rm with OK. Set the begin-

heating time (symbol )with the But-

or . Conﬁ rm with OK. Set the beginning

economy time (symbol ) with the Button

or . Conﬁ rm with OK.

Now, if desired, a 2nd, 3rd or 4th heating/economy time can be entered.

➔ If you do not want to set a further heating/

economy time conﬁ rm „

“ with OK.

The next day for programming is shown on the display.

➔ If you do not want to enter a further day, leave

the menu with

. If the temperature is shown on the display the programming is ﬁ nished.

➔ By the way: Maximum energy saving can be obtained with an economy temperature which is about 5 ˚C below the comfort temperature.

Manual operation

With the Button or an adaptation of the room temperature is possible at any time. In the AUTO-mode it remains active until the next switch point is reached. Now, the usual programme becomes active again.

➔ Within the blocks you can also overwrite single

days with differing times.

Setting comfort and economy temperature

Press Button temperature with the Button with Button

Area Area

. Select the menu item with the

or . Conﬁ rm with OK. Set comfort

. Set the economy temperature with the

or . Conﬁ rm

or . Conﬁ rm with OK.

: 8°C, freeze protection function is active

: valve is completely open

Further functions

Timer function

The timer function is selected with the timerbutton temperature for a programmable period can be entered. This can be very useful in case of a party, for example. Press which the time programme has been deactivated is shown. Conﬁ rm with temperature can be set. Conﬁ rm with

. With this function an user-deﬁ ned

. First, the time for

. Now, the desired

Offset

If the perceived temperature signiﬁ cantly differs from the set thermostat temperature a temperature set up can be executed.

Press Button setting

. Select the menu item with the

or . Conﬁ rm with OK. The degree

will ﬂ ash on the display. Now, set up the desired adaptation for the temperature (from -5 up to +5°C) with the Button Conﬁ rm your entry with

. The temperature

or .

display does not change!

Window funct ion

If you open a window and consequently the temperature drops signiﬁ cantly, SPARmatic Zero will automatically close the heating valve in order to save energy. The display will show

. Afterwards, SPARmatic Zero will resume normal operation. For the set up select the menu. Conﬁ rm with ity is selected with the Button high sensibility, preset),

= low sensibility). Conﬁ rm with

. First, the sensibil-

or ( =

= medium sensibility (factor y

Now, you enter the time (10 min (factory preset) 60 min) for which the valve should remain closed. Conﬁ rm with

Travel function

For the time you are absent you can select an individual temperature. After this period the originally deﬁ ned programme becomes active again.

Press with Select with the Button travel function (= date of the recommencement of the regular heating times). Conﬁ rm with the time and conﬁ rm with the button signal temperature and conﬁ rm with on the display. With

. Select the menu item . Conﬁ rm

(suitcase

appears on the display. Now set the

appears on the display).

or the end of the

the function can be

. appears

. Set

. The

deactivated.

Child lock

You can lock SPARmatic Zero to protect the device from unauthorized activation. Press the buttons seconds until the signal

+ at the same time for about 2

appears on the display in order to lock the device. By using this button combination again the symbol disappears and you release the lock.

Heating pause – Closing the SPARmatic Zero

Press Button and conﬁ rm with the display to

. Select the menu item with the

or . Conﬁ rm with OK. Select

. Set the temperature on

. The valve is now closed and will work without a time programme. The calciﬁ cation protection function remains active once a week. After the heating pause you switch in the menu to the AUTO-mode and the personally set programme will be executed again.

LCD standby indicator

Press Button

. Select the menu item with the

or . Conﬁ rm with

. After about 30 seconds, the LCD indica-

Select

tor switches into standby mode. By pressing any button, the display will be activated again. (by removing the battery, standby mode will be reseted). Increases the battery life time.

Going back to factory preset/All reset

Press Button conﬁ rm with again. Now, proceed as described for the initial

. Select the menu item with the

or . Conﬁ rm with

. SPARmatic Zero is reset

. ﬂ ashes,

operation (see p. 8 ).

Freeze protection and calciﬁ cation protection function are active automatically:

Freeze protection fu nction

If the temperature drops below 6°C, SPARmatic Zero opens the valve until the temperature again rises above 8°C. This prevents the radiators from freezing.

Calciﬁ cation protection function

To prevent radiator valves from calcifying SPARmatic Zero is submitted to a calciﬁ cation protection programme once a week on Friday mornings.

Cleaning and used devices

Cleaning

To clean the SPARmatic Zero use only a dr y or lightly wet cloth. Avoid chemical solvent – it can probably damage the device.

Used devices

Do not throw old devices and packaging into the household waste. They can be recycled. You receive further information at your local government.

Adapters

Heimei er, Junkers L andys +Gyr, MNG , Honey well, Brau kmann th readmeasur e dimens ion of M 30x1,5

Danfos s RAV (acc ompany ing pin must be pl ugged on t he valve ta pped)

Danfos s RA

Danfos s RAVL

Please remove all the connection pieces of the plastic adapters before you use one of the attached adapters!

Please completely remove the connection rods highlighted in grey prior to assembly the adapter.

no adapte r requir ed

+ accompanying pin, only for RAV!

You can ﬁ nd additional brass adapter models that are subject to a charge: ww w.eurotronic.org

Help

Problem Cause Solution

Heating element does not warm up.

Heating element does not cool down.

Pressure piece falls out (This can also cause an E1-error)

Batteries do not have enough power.

Is the boiler water temperature O.K.?

Valve does not open, is it calciﬁ ed after the summer pause / heating pause?

Valve does not close completely. It may be that the closing point of your valve seat has shifted.

Due to an endlessthread the pressure piece, which is situated at the bottom, can fall out if the device has not been afﬁ xed on the valve.

By pressing any key the error message will be deleted in the display and the adapter is re-started.

Replace batteries.

Adjust the temperature of the boiler water.

Remove the SPARmatic Zero, move the valve stem back and forth per hand or with a tool.

Adapt again (see “Adapting”) Move the valve stem several times by hand, it may be that adaptation is impossible because your valve is calciﬁ ed or the seat no longer performs its function.

Put in the pressure piece. The device can be adapted by pressing the

-point or by removing and inserting the batteries. The endlessthread is rotating now and ﬁ xes the pressure piece again. Just install it to the radiator and adapt it once again.

Problem Cause Solution

No adaptation possible. SPARmatic Zero is not installed to the heater.

Valve stroke is too short.

Motor movement is not possible.

Is the installation OK? Install SPARmatic Zero to the heater.

Open and close the valve several times manually or replace the batteries.

Does the valve stem move freely?

Declaration of Conformity

The Declaration of Conformity is provided at: www.eurotronic.org

to a charge. Your legal rights are not affected by this guarantee.

There is no new warranty period starting when repairing or replacing the device. Please note that we only grant warranty on the function of the device. We will not grant warranty for the interaction between the thermostat and the bottom part of the valve. The technical data is only valid for the use of the following valves: Heimeier, Junkers Landys + Gyr, MNG, Honeywell, Braukmann (measure of thread M330 x 1,5), Oventrop (M30 x 1,5) Danfoss R A, RAV and RAVL. Please see the combinations of the devices on our website

Guarantee

(www.eurotronic.org /Adapter list)

The three-year warranty begins on the day of purchase. Please keep the receipt as evidence of purchase in the future. During the guarantee period, defective radiator thermostats may be sent to the service address below. Please ensure sufﬁ cient postage is paid. A new or repaired device will then be sent to you free of charge. Following expiry of the guarantee, you may still send the defective device to the address below for repairs. Please ensure sufﬁ cient postage is paid. Repairs carried out after the guarantee period are subject

EUROtronic does not issue a guarantee when using the thermostat with valves which are not mentioned above.

Eurotronic Technology GmbH

Südweg 1 36396 Steinau-Ulmbach Telefon: +49 (0) 66 67 / 9 18 47-0 Servicehotline: +49 (0) 66 67 / 9 18 47-17 eMail: info@ eurotronic.org Internet: www.eurotronic.org

*subject to a charge

pack.-n o. 900 000 137 1 | Stand: 2013 /01
