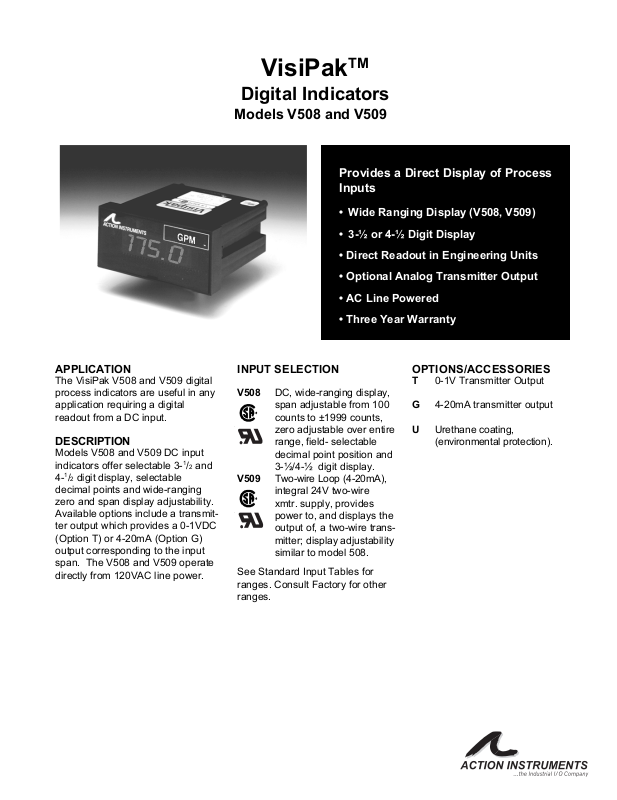

VisiPak
TM
Digital Indicators
Models V508 and V509
Provides a Direct Display of Process
Inputs
• Wide Ranging Display (V508, V509)
• 3-½ or 4-½ Digit Display
• Direct Readout in Engineering Units
• Optional Analog Transmitter Output
• AC Line Powered
• Three Year Warranty
APPLICATION
The VisiPak V508 and V509 digital
process indicators are useful in any
application requiring a digital
readout from a DC input.
DESCRIPTION
Models V508 and V509 DC input
indicators offer selectable 3-1/2 and
4-1/2 digit display, selectable
decimal points and wide-ranging
zero and span display adjustability.
Available options include a transmitter output which provides a 0-1VDC
(Option T) or 4-20mA (Option G)
output corresponding to the input
span. The V508 and V509 operate
directly from 120VAC line power.
INPUT SELECTION
V508 DC, wide-ranging display,
span adjustable from 100
counts to ±1999 counts,
zero adjustable over entire
range, field- selectable
decimal point position and
3-½/4-½ digit display.
V509 Two-wire Loop (4-20mA),
integral 24V two-wire
xmtr. supply, provides
power to, and displays the
output of, a two-wire transmitter; display adjustability
similar to model 508.
See Standard Input Tables for
ranges. Consult Factory for other
ranges.
OPTIONS/ACCESSORIES
T 0-1V Transmitter Output
G 4-20mA transmitter output
U Urethane coating,
(environmental protection).

CALIBRATION
Zero and span adjustments are
located behind the lens. Zero is
adjusted for the desired minimum
display with the input at its minimum. Span is adjusted for the
desired maximum display with the
input at its maximum. Repeat
adjustments as needed.
Units with Option T or G have
separate transmitter zero and span
adjustments through the back of the
case. Transmitter zero and span
adjustment is similar to the display
adjustment.
Decimal Position
INSTALLATION
Mechanical: Indicators are installed
from the front of the panel into a
1.65 x 3.60" (42 x 91mm) cutout.
Cam-locks secure the indicator
from behind the panel. To install,
remove the front lens and slide the
indicator into the panel cutout. Turn
the screws on either side of the
display CCW until the cams clear
the panel thickness. Rotate the
screws CW to swing the cam-locks
into position and secure the
indicator.
Electrical: All connections are
made to the rear panel using
standard barrier-terminal strip
connectors.
General (fixed)
±±
i.8.8.8
±
±±
3 210
i.8.8.8.8
±±
±
±±
4
Standard Inputs
DC Input V508*
0 to 10mV 1 to 5V 0 to 1mA
0 to 50mV 0 to 1V 0 to 20mA
0 to 200mV 0 to 2V 4 to 20mA
0 to 500mV 0 to 5V 10 to 50 mA
3 210
(no decimal)
0 to 10V
0 to 20V
0 to 200V
3-1/2 digit
4-1/2 digit
(no decimal)
V508 and V509 Decimal and Display Configuration
±±
i.8.8.8.8
±
±±
4
Decimal position and display selection
selection is set by placement of a jumper on
the front pin-connector as follows:
±±± ±± ±±
3 210
(no decimal)
For no decimal
(position '0') place
decimal jumper on
any of the two
storage pins.
±±± ±± ±±
storage
43213-1/2 / 4-1/2 digit
(jumper ON for 4-1/2 digit)
Two-Wire
Transmitter Input V509*
4 - 20mA
Input Limits
Minimum Maximum
Input Span Input
Voltage: 10mV Voltage: 500V
Current: 100mA Current: 1A

SPECIFICATIONS
Digit Type
V508, V509: 7 Segment
LED,selectable 3½ or 4½ digits
Digit Height
0.56" (14.2mm)
Decimal Point Indication
(see Decimal Position)
Field-selectable
Display Span (counts)
3-½ digit:
Min: 100: Max: ±1,999
4-½ digit:
Min: 1000: Max: ±19,999
Overrange Indication
Flashing '0000' or '-0000' is
displayed to show polarity
Conversion Time
(display update)
400mS
Input Impedance
V508:
Voltage:> 100K ohms
4 - 20 mA: 20 ohms
0 - 1 mA: 100 ohms
Accuracy
3-½ digit: 0.1%, ±2
counts, 4-½ digit: 0.02%,
±10 counts
Linearity
(referenced to linearity of input)
< 0.01% of full-scale input
± 2 counts
Response Time
500mSec to 0.1% accuracy
Stability (@ max. span)
< 0.025% of span/°C
Loop Output Drive (V509)
R max=(24 - V2-wire)/I max
Loop Supply (V509)
Output Current: 60mA, max.
Output Voltage: 24VDC, ±5%
Ripple: < 0.1%
Transmitter Outputs
Option T (0-1V):
Output Impedance: < 10 ohms
Output Drive: 5mA, max.
(250 ohms, min.)
Option G (4-20mA)
Compliance: 5V, typical
(250Ω, max.)
Linearity: 0.25% of span
Noise Rejection
CMR: 100dB @ 50/60 Hz
CMV: 600VDC or peak AC
Operating Temperature Range
0 to 60°C (32 to 140°F)
DC Power: 0 to 50°C (32 to 122°F)
Weight:
0.84lbs
Power
Consumption: 3.5W typical,
5.5W max.
Standard: 120VAC ±10%, 50-
400Hz
Available: 220, 240VAC (±10%,
50-400Hz)
ORDERING INFORMATION
Specify:
1. Model: V508-V509
2. Input Range (see table)
3. Display Range (see table)
4. Options: CS, T, G, U
5. Line Power (see specs)
Terminal Connections
V508/V509V508/V509
V508/V509
V508/V509V508/V509
1. AC Power (Hot)
2. AC Power (Neu)
3. Xmtr. (-)
4. Xmtr. (+)
5. N.C.
6. N.C.
7. Input (-)
8. Input (+)
Dimensions
Dimensions are in Millimeters (Inches)
Specifications subject to change without notice
