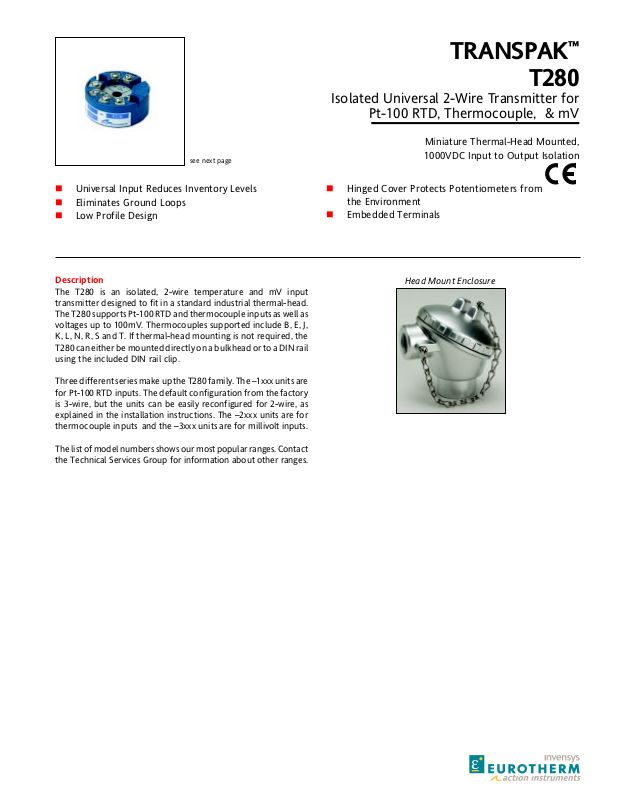

TRANSPAK
™
T280
Isolated Universal 2-Wire Transmitter for
Pt-100 RTD, Thermocouple, & mV
Miniature Thermal-Head Mounted,
1000VDC Input to Output Isolation
Universal Input Reduces Inventory Levels
Eliminates Ground Loops
Low Profile Design
Description
The T280 is an isolated, 2-wire temperature and mV input
transmitter designed to fit in a standard industrial thermal-head.
The T280 supports Pt-100 RTD and thermocouple inputs as well as
voltages up to 100mV. Thermocouples supported include B, E, J,
K, L, N, R, S and T. If thermal-head mounting is not required, the
T280 can either be mounted directly on a bulkhead or to a DIN rail
using the included DIN rail clip.
Three different series make up the T280 family. The –1xxx units are
for Pt-100 RTD inputs. The default configuration from the factory
is 3-wire, but the units can be easily reconfigured for 2-wire, as
explained in the installation instructions. The –2xxx units are for
thermocouple inputs and the –3xxx units are for millivolt inputs.
The list of model numbers shows our most popular ranges. Contact
the Technical Services Group for information about other ranges.
Hinged Cover Protects Potentiometers from
the Environment
Embedded Terminals
Head Mount Enclosure
Page 2
Specifications
r
Input
Thermocouple: B, E, J, K, L, N, R, S, T
RTD: Pt-100, 2-wire or 3-wire
mV: 100mV max.
Input Span
Thermocouple: 5mV min. span
RTD: 20°C min. 500°C max.
mV: 5mV min span
Adjustability:
±15% for both zero & span
Output Span
4-20mA, limiting @ <28mA
Models
Thermocouple Models
T280-2000-JC 0 to 500°C
T280-2001-JC 0 to 760°C
T280-2002-JC -200 to 600°C
T280-2003-JF 0 to 1000°F
T280-2004-JF 0 to 1400°F
T280-2005-JF -350 to 1100°F
T280-2006-KC 0 to 500°C
T280-2007-KC 0 to 1000°C
T280-2008-KC 0 to 1200°C
T280-2009-KC -270 to 500°C
T280-2010-KF 0 to 1000°F
T280-2011-KF 0 to 2000°F
T280-2012-KF 0 to 2500°F
T280-2013-KF -450 to 1000°F
T280-2014-TC 0 to 250°C
T280-2015-TC 0 to 400°C
T280-2016-TC -270 to 400°C
Burnout Detection
Upscale
Linearity
Thermocouple/mV:
Better than ±0.1% of span, linear to
mV input
RTD:
Better then ±0.1% of span, linear to
temperature
Stability
Thermocouple/mV:
0.02% of span/°C (25mV input)
RTD:
0.02% of span/°C (100°C span)
Thermocouple Models (cont'd)
T280-2017-TF 0 to 500°F
T280-2018-TF 0 to 750°F
T280-2019-TF -450 to 750°F
T280-2020-JC 0 to 400°C
T280-2021-JF 0 to 500°F
T280-2023-JF 200 to 600°F
T280-2024-KF 0 to 1500°F
T280-2025-SC 0 to 1500°C
T280-2026-EC 0 to 600°C
T280-2027-EC 0 to 500°C
T280-2028-JC -100 to 300°C
T280-2029-TF 0 to 300°F
mV Models
T280-3000 0 to 20mV
T280-3001 0 to 50mV
T280-3002 0 to 100mV
T/C CJC
<0.05°C/°C of ambient temperature
Isolation
1000VDC
Supply Voltage
10 to 40VDC polarity protected
Maximum Load
Rmax = (Vsupply – 10V)/20mA
Operating Temperature
-20°C to +70°C
Humidity
0 to 95% RH, non-condensing
Agency Approvals
CE Compliance per EMC directive 89/3/36 EEC
RTD Models
T280-1000-C 0 to 100°C
T280-1001-C 0 to 150°C
T280-1002-C 0 to 200°C
T280-1003-C 0 to 300°C
T280-1004-C 0 to 500°C
T280-1005-F 0 to 200°F
T280-1006-F 0 to 300°F
T280-1007-F 0 to 400°F
T280-1008-F 0 to 500°F
T280-1009-F 0 to 900°F
T280-1010-F 0 to 100°F
T280-1011-F 0 to 250°F
T280-1012-C 0 to 50°C
T280-1013-F -328 to 100°F
T280-1014-F -200 to 100°F
T280-1015-F 32 to 390°F
Ordering Information
Models & Accessories
Specify:
T280-1xxx-C (F) for RTD Input, or
T280-2xxx-[tc type] C (F) for thermocouple, or
T280-3xxx for mV input
Accessories
AP9046 Action Pak 24/40VDC, 65mA Loop Power Supply
V560/565 3-1/2 digit remote loop powered indicator with wide
ranging display.
T25H-0000 Head Mount Enclosure - 1/2 NPT for Thermowell and Conduit.
Printed on recycled pape
Note that detailed installation instructions are
available on our website.
Dimensions
