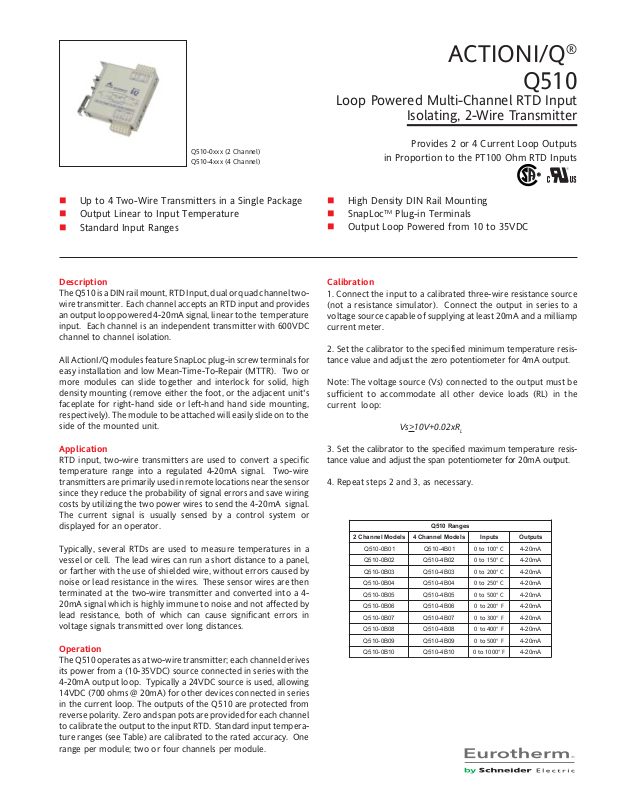

Page 1
ACTIONI/Q
®
Q510
Loop Powered Multi-Channel RTD Input
Isolating, 2-Wire Transmitter
Q510-0xxx (2 Channel)
Q510-4xxx (4 Channel)
Up to 4 Two-Wire Transmitters in a Single Package
Output Linear to Input Temperature
Standard Input Ranges
Description
The Q510 is a DIN rail mount, RTD Input, dual or quad channel twowire transmitter. Each channel accepts an RTD input and provides
an output loop powered 4-20mA signal, linear to the temperature
input. Each channel is an independent transmitter with 600VDC
channel to channel isolation.
All ActionI/Q modules feature SnapLoc plug-in screw terminals for
easy installation and low Mean-Time-To-Repair (MTTR). Two or
more modules can slide together and interlock for solid, high
density mounting (remove either the foot, or the adjacent unit's
faceplate for right-hand side or left-hand hand side mounting,
respectively). The module to be attached will easily slide on to the
side of the mounted unit.
Provides 2 or 4 Current Loop Outputs
in Proportion to the PT100 Ohm RTD Inputs
High Density DIN Rail Mounting
TM
SnapLoc
Plug-in Terminals
Output Loop Powered from 10 to 35VDC
Calibration
1. Connect the input to a calibrated three-wire resistance source
(not a resistance simulator). Connect the output in series to a
voltage source capable of supplying at least 20mA and a milliamp
current meter.
Set the calibrator to the specified minimum temperature resis-
2.
tance value and adjust the zero potentiometer for 4mA output.
Note: The voltage source (Vs) connected to the output must be
sufficient to accommodate all other device loads (RL) in the
current loop:
>10V+0.02xR
Vs
L
Application
RTD input, two-wire transmitters are used to convert a specific
temperature range into a regulated 4-20mA signal. Two-wire
transmitters are primarily used in remote locations near the sensor
since they reduce the probability of signal errors and save wiring
costs by utilizing the two power wires to send the 4-20mA signal.
The current signal is usually sensed by a control system or
displayed for an operator.
Typically, several RTDs are used to measure temperatures in a
vessel or cell. The lead wires can run a short distance to a panel,
or farther with the use of shielded wire, without errors caused by
noise or lead resistance in the wires. These sensor wires are then
terminated at the two-wire transmitter and converted into a 420mA signal which is highly immune to noise and not affected by
lead resistance, both of which can cause significant errors in
voltage signals transmitted over long distances.
Operation
The Q510 operates as a two-wire transmitter; each channel derives
its power from a (10-35VDC) source connected in series with the
4-20mA output loop. Typically a 24VDC source is used, allowing
14VDC (700 ohms @ 20mA) for other devices connected in series
in the current loop. The outputs of the Q510 are protected from
reverse polarity. Zero and span pots are provided for each channel
to calibrate the output to the input RTD. Standard input temperature ranges (see Table) are calibrated to the rated accuracy. One
range per module; two or four channels per module.
3. Set the calibrator to the specified maximum temperature resistance value and adjust the span potentiometer for 20mA output.
4. Repeat steps 2 and 3, as necessary.
segnaR015Q
sledoMlennahC2sledoMlennahC4stupnIstuptuO
10B0-015Q10B4-015Q 001ot0C° Am02-4
20B0-015Q20B4-015Q 051ot0C° Am02-4
30B0-015Q30B4-015Q 002ot0C° Am02-4
40B0-015Q40B4-015Q 052ot0C° Am02-4
50B0-015Q50B4-015Q 005ot0C° Am02-4
60B0-015Q60B4-015Q 002ot0F° Am02-4
70B0-015Q70B4-015Q 003ot0F° Am02-4
80B0-015Q80B4-015Q 004ot0F° Am02-4
90B0-015Q90B4-015Q 005ot0F° Am02-4
01B0-015Q01B4-015Q 0001ot0F° Am02-4
Page 2
Specifications
r
Input:
Accepts two or four, 3-wire Pt100 RTDs (alpha = 0.00385Ohms/Ohm/°C)
Ranges: see Table
Input Excitation:
0.8mA, typical, each channel
Input Leadwire Effect:
<1% of full scale output, max. @40Ohms max./ lead
Output Range:
4-20mA
Supply Voltage Range:
10 to 35VDC, each channel
Output Accuracy:
< 0.1% of full-scale input typical, <0.4% max., including linearity,
repeatability and hysteresis
Adjustablity:
Front accessed 10 turn pot., +2% of span for zero and span, typical.
Stability:
< 0.025%/oC of full-scale maximum for full-scale and zero
ESD Susceptibility:
Meets IEC 801-2 level 2 (4kV)
Response Time:
50mSec typical (10 to 90%)
Q510 (2 Channel) Terminals
lanimreTnoitcennoClanimreTnoitcennoC
1A
2A
3A detcennoCtoN 3C
4A
5A
6A detcennoCtoN 6C
1lennahC
)+(tuptuO&rewoP
1lennahC
)-(tuptuO&rewoP
2lennahC
)+(tuptuO&rewoP
2lennahC
)-(tuptuO&rewoP
1C
2C
4C
5C
2lennahC
nruteRtupnIDTR
2lennahC
)-(tupnIDTR
2lennahC
)+(tupnIDTR
1lennahC
nruteRtupnIDTR
1lennahC
)-(tupnIDTR
1lennahC
)+(tupnIDTR
Temperature:
Operating: -40 to 80
o
C (-40 to 176oF)
Storage: -40 to 80oC (-40 to 176oF)
Humidity (non-condensing):
Operating: 15 to 90% @45oC
Wire Terminals:
Socketed screw terminals for 12-22 AWG
Weight:
0.34lbs
Agency Approvals:
CSA certified per standard C22.2 (File No. LR42272).
UL recognized per standard UL508 (File No. E99775).
Q510 (4 Channel) Terminals
lanimreTnoitcennoClanimreTnoitcennoC
1A
2A
3A detcennoCtoN 3C
4A
5A
6A detcennoCtoN 6C
1B
2B
3B
4B
1lennahC
1lennahC
2lennahC
2lennahC
3lennahC
3lennahC
4lennahC
4lennahC
1C
)+(tuptuO&rewoP
2C
)-(tuptuO&rewoP
4C
)+(tuptuO&rewoP
5C
)-(tuptuO&rewoP
1D
)+(tuptuO&rewoP
2D
)-(tuptuO&rewoP
3D
)+(tuptuO&rewoP
4D
)-(tuptuO&rewoP
5D
6D
2lennahC
nruteRtupnIDTR
2lennahC
)-(tupnIDTR
2lennahC
)+(tupnIDTR
1lennahC
nruteRtupnIDTR
1lennahC
)-(tupnIDTR
1lennahC
)+(tupnIDTR
4lennahC
nruteRtupnIDTR
4lennahC
)-(tupnIDTR
4lennahC
)+(tupnIDTR
3lennahC
nruteRtupnIDTR
3lennahC
)-(tupnIDTR
3lennahC
)+(tupnIDTR
Ordering Information
Models & Accessories
Specify:
1. Model: Q510 (see Table)
2. Channels: 2 or 4
3. Input Range: (see Table)
4. Accessories: (see Accessories)
Accessories
ActionI/Q modules mount on standard TS32 (model MD02) or TS35 (model
MD03) DIN rail. In addition the following accessories are available:
MD02 TS32 DIN rail
MD03 TS35 x 7.5 DIN rail
WV905 24VDC Power Supply (500mA)
H910 24VDC Power Supply (1 Amp)
H915 24VDC Power Supply (2.3 A)
Printed on recycled pape
Dimensions
