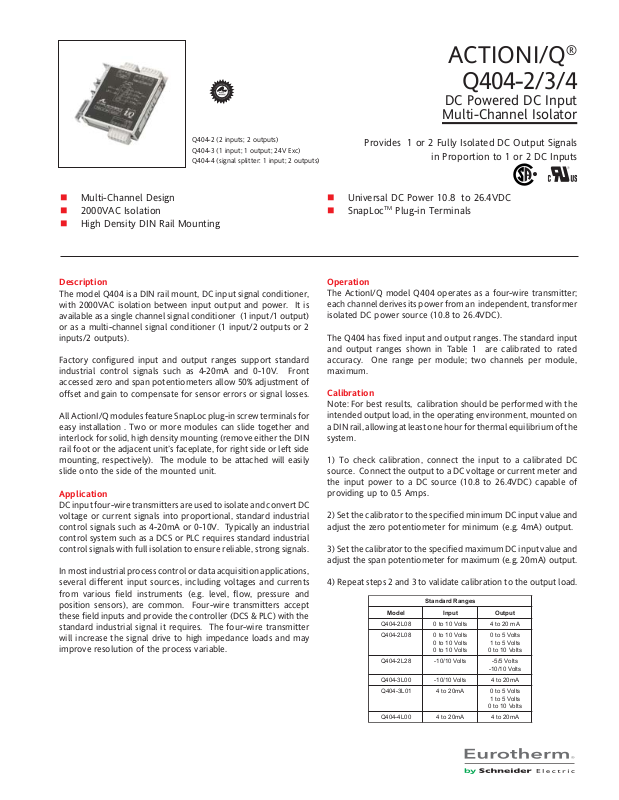

Page 1
ACTIONI/Q
®
Q404-2/3/4
DC Powered DC Input
Multi-Channel Isolator
Q404-2 (2 inputs; 2 outputs)
Q404-3 (1 input; 1 output; 24V Exc)
Q404-4 (signal splitter: 1 input; 2 outputs)
Multi-Channel Design
2000VAC Isolation
High Density DIN Rail Mounting
Description
The model Q404 is a DIN rail mount, DC input signal conditioner,
with 2000VAC isolation between input output and power. It is
available as a single channel signal conditioner (1 input/1 output)
or as a multi-channel signal conditioner (1 input/2 outputs or 2
inputs/2 outputs).
Factory configured input and output ranges support standard
industrial control signals such as 4-20mA and 0-10V. Front
accessed zero and span potentiometers allow 50% adjustment of
offset and gain to compensate for sensor errors or signal losses.
All ActionI/Q modules feature SnapLoc plug-in screw terminals for
easy installation . Two or more modules can slide together and
interlock for solid, high density mounting (remove either the DIN
rail foot or the adjacent unit’s faceplate, for right side or left side
mounting, respectively). The module to be attached will easily
slide onto the side of the mounted unit.
Application
DC input four-wire transmitters are used to isolate and convert DC
voltage or current signals into proportional, standard industrial
control signals such as 4-20mA or 0-10V. Typically an industrial
control system such as a DCS or PLC requires standard industrial
control signals with full isolation to ensure reliable, strong signals.
In most industrial process control or data acquisition applications,
several different input sources, including voltages and currents
from various field instruments (e.g. level, flow, pressure and
position sensors), are common. Four-wire transmitters accept
these field inputs and provide the controller (DCS & PLC) with the
standard industrial signal it requires. The four-wire transmitter
will increase the signal drive to high impedance loads and may
improve resolution of the process variable.
Provides 1 or 2 Fully Isolated DC Output Signals
in Proportion to 1 or 2 DC Inputs
Universal DC Power 10.8 to 26.4VDC
TM
SnapLoc
Operation
The ActionI/Q model Q404 operates as a four-wire transmitter;
each channel derives its power from an independent, transformer
isolated DC power source (10.8 to 26.4VDC).
The Q404 has fixed input and output ranges. The standard input
and output ranges shown in Table 1 are calibrated to rated
accuracy. One range per module; two channels per module,
maximum.
Calibration
Note: For best results, calibration should be performed with the
intended output load, in the operating environment, mounted on
a DIN rail, allowing at least one hour for thermal equilibrium of the
system.
1) To check calibration, connect the input to a calibrated DC
source. Connect the output to a DC voltage or current meter and
the input power to a DC source (10.8 to 26.4VDC) capable of
providing up to 0.5 Amps.
2) Set the calibrator to the specified minimum DC input value and
adjust the zero potentiometer for minimum (e.g. 4mA) output.
3) Set the calibrator to the specified maximum DC input value and
adjust the span potentiometer for maximum (e.g. 20mA) output.
4) Repeat steps 2 and 3 to validate calibration to the output load.
Plug-in Terminals
ledoMtupnItuptuO
80L2-404QstloV01ot0Am02ot4
80L2-404QstloV01ot0
82L2-404QstloV01/01-stloV5/5-
00L3-404QstloV01/01-Am02ot4
10L3-404QAm02ot4stloV5ot0
00L4-404QAm02ot4Am02ot4
stloV01ot0
stloV01ot0
segnaRdradnatS
stloV5ot0
stloV5ot1
stloV01ot0
stloV01/01-
stloV5ot1
stloV01ot0
Page 2
Specifications
r
Input:
Range: see Table 1
Impedance:
>1M ohms (voltage inputs)
< 20 ohms (current inputs)
Protection:
withstands up to 24VDC (current input)
120VAC (voltage input) without damage
Common Mode: 2000VAC, input to ground
Output:
Range: see Table 1
Voltage Output Drive: 10mA (1k ohms, min.)
Current Output Compliance: 15V (750 ohms, max.)
LED Indication:
Green LED indicates power on
Output Accuracy:
< +0.1% of full-scale input typical
< +0.2% maximum @ 23°C including linearity, repeatability and hysteresis
Adjustability:
Front accessed 10 turn pot., + 50% of range for zero and span
Stability:
< 0.025%/C of full-scale maximum for full-scale and zero
Isolation:
> 2000VAC between input and output and channel to channel
Response Time:
25mSec typical (10 to 90%)
Power:
10.8 to 26.4VDC, 2W per channel max.
Temperature:
Operating: -5 to 60°C (23 to 140°F)
Storage: -40 to 80°C (-40 to 176°F)
Humidity (non-condensing):
Operating: 15 to 90% @45°C
Soak: 90% for 24 hours @60°C
Wire Terminal:
Socketed screw terminals for 12-22 AWG
Agency Approvals:
CSA certified per standard 22.2 (File No LR42272).
UL recognized per standard UL508 (File No E99775).
+
2-Wire
Transmitter
Powered 4-20mA
from
4-Wire Transmitter
Figure 1. Connections for a Loop Powered 2-Wire Transmitter
or a Powered 4-20mA Input
-
+
-
C4
C4
C6
C6
C5
+24V
C6
Input (+)
C5
Input (-)
Ordering Information
Models & Accessories
Specify:
1. Model: Q404-2L08: Two 0-10Vdc inputs, two 4-20mA outputs
Q404-2L09: Two 0-10Vdc inputs, two 0-10Vdc outputs
Q404-2L28: Two -10/+10Vdc inputs, two -10/+10Vdc outputs
Q404-3L00: One 4-20mA input, one 4-20mA output, 24V Exc.
Q404-3L01: One 4-20mA input, one 0-10Vdc output, 24V Exc.
Q404-4L00: One 4-20mA input, two 4-20mA outputs
2. Input Range: (see Table 1)
3. Output Range: (see Table 1)
4. Accessories: (see Accessories)
Accessories
ActionI/Q modules mount on standard TS32 (model MD02) or TS35 (model
MD03) DIN rail. In addition the following accessories are available:
MD02 TS32 DIN rail
MD03 TS35 x 7.5 DIN rail
WV905 24VDC Power Supply (500mA)
H910 24VDC Power Supply (1 Amp)
H915 24VDC Power Supply (2.3 Amp)
lanimreTnoitcennoClanimreTnoitcennoC
1A )+(tuptuO,1lennahC 3C )+(tupnICD,2lennahC
2A )-(tuptuO,1lennahC 4C )CDV42+(ylppuSegatloV
3A detcennoCtoN 5C )-(tupnICD,1lennahC
4A )+(tuptuO,2lennahC 6C )+(tupnICD,1lennahC
5A )-(tuptuO,2lennahC 1B detcennoCtoN
6A detcennoCtoN 2B detcennoCtoN
1C detcennoCtoN 3B )+(rewoPCD
2C )-(tupnICD,2lennahC 4B )-(rewoPCD
Dimensions
Printed on recycled pape
