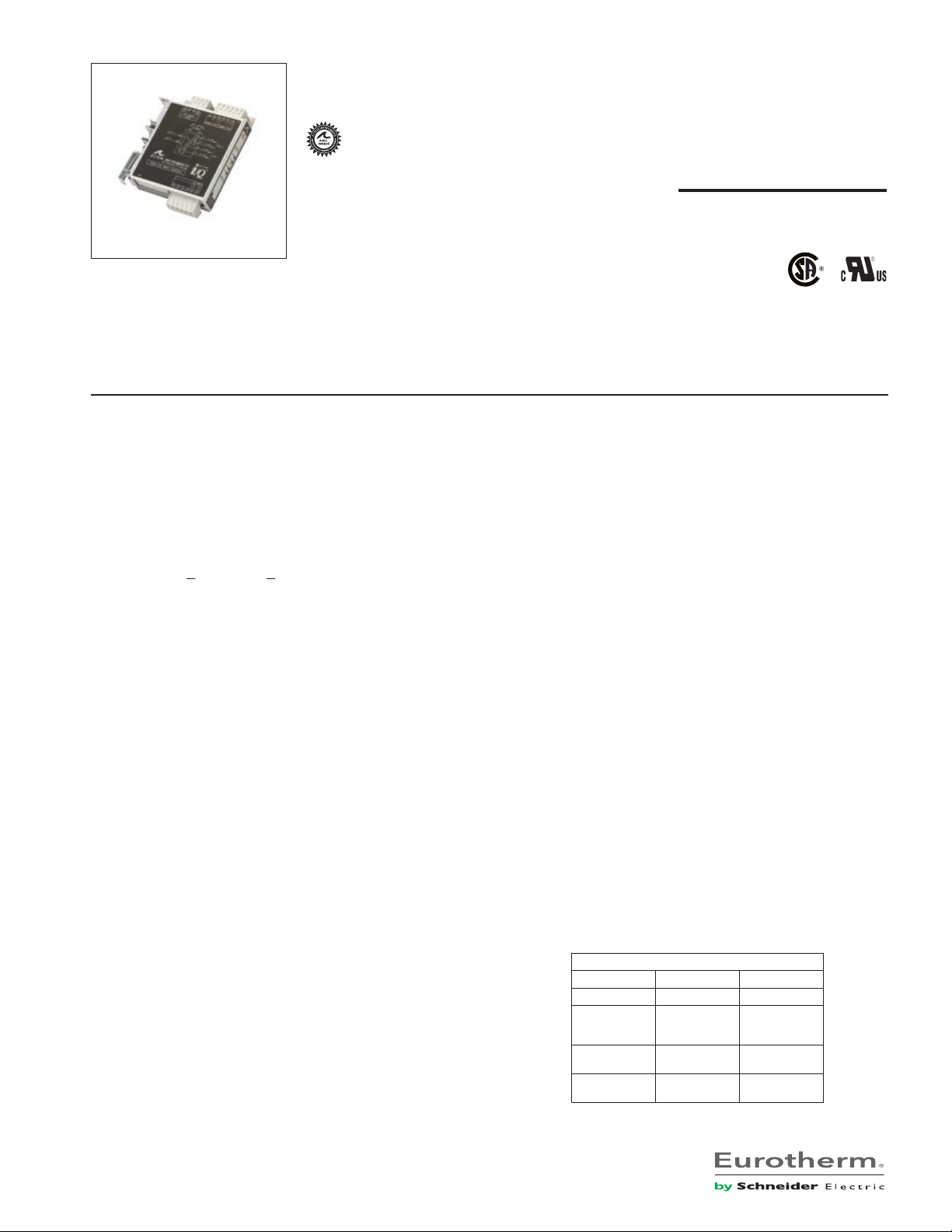

Page 1
ACTIONI/Q
®
Q403
AC Powered DC Input
Multi-Channel Isolator
Q403-1 (1 input; 1 output)
Q403-2 (2 inputs; 2 outputs)
Multi-Channel Design
2000VAC Isolation
High Density DIN Rail Mounting
Description
The model Q403 is a fast response, DIN rail mount, DC input signal
conditioner with 2000VAC isolation between input, output and
power. It is available as a single channel signal conditioner (1
input/1 output) or multi-channel signal conditioner (2 inputs/2
outputs).
Factory configured input and output ranges support bipolar
voltage signals (
20mA, 0-5 Volts, 0-10 Volts and 1-5 Volts. Front accessed zero and
span potentiometers allow adjustment of offset and gain to
compensate for sensor errors or signal losses.
All ActionI/Q modules feature SnapLoc plug-in, screw terminals
for easy installation. Two or more modules can slide together and
interlock for solid, high density mounting (remove either the DIN
rail foot or the adjacent unit’s face plate, for right side or left side
mounting, respectively). The module to be attached will easily
slide on to the side of the mounted unit.
+5 Volts and +10 Volts) or unipolar ranges of 4-
Provides 1 or 2 Fully Isolated DC Output Signals
in Proportion to 1 or 2 DC Inputs
Universal AC Power 85 to 265 VAC
SnapLocTM Plug-in Terminals
Fast Response
Operation
The Q403 operates as a four-wire transmitter; each channel
derives its power from an independent, transformer isolated, AC
to DC power source (85 to 265VAC).
The Q403 has fixed input/output ranges. The standard I/O ranges
in Tables 1 are calibrated to rated accuracy. One range per
module; two channels per module, maximum.
Calibration
Note: For best results, calibration should be performed with the
intended output load, in the operating environment, mounted on
a DIN rail, allowing at least one hour for thermal equilibrium of the
system.
1. To check calibration connect the input to a calibrated DC
source. Connect the output to a DC voltage or current meter and
the input power to an AC source (between 85 and 256 VAC)
capable of providing up to 0.5 Amps.
Application
DC input four-wire transmitters are used to isolate and convert DC
voltage or current signals into proportional, standard industrial
control signals such as -5/5V or -10/10V. Typically an industrial
control system such as a DCS or PLC requires standard industrial
control signals and isolation to ensure reliable strong signals.
In most industrial process control or data acquisition applications
several different input sources, including voltages and currents
from various field instruments (e.g. level, flow, pressure and
position sensors), are common. Four-wire transmitters accept
these field inputs and provide the controller (DCS & PLC) with the
standard industrial signals it requires. The four-wire transmitter
will increase the signal drive to high impedance loads and may
improve resolution of the process variable.
The 2000VAC isolation capability of the Q403 prevents ground
loops from causing errors in DC signals. Filtering and common
mode rejection are included to reduce susceptibility to EMI and
RFI. Isolation also provides protection from high voltages and
current spikes which can damage expensive Supervisory Control
and Data Acquisition (SCADA) equipment.
2. Set the calibrator to the specified minimum DC input value and
adjust the zero potentiometer for minimum (e.g. -10V) output.
3. Set the calibrator to the specified maximum DC input value and
adjust the span potentiometer for maximum (e.g. +10V) output.
4. Repeat steps 2 and 3 to validate calibration to the output load.
Table 1: Standard Ranges
sledoMelbaliavA
Output
mA02ot4
stloV01ot0
stloV01ot0
stloV01/01stloV01/01-
)slennahChtob(
stloV5ot0
stloV5ot1
stloV01ot0
stloV5/5-
stloV01/01-
Am02ot4
)slennahChtob(
90L1-304Q1tloV0ot0
82L1-304Q
00L2-304Q
InputModel
0 to 10 VoltsQ403-1L08
Am02ot4
Page 2
Specifications
r
Inputs:
Range: see Table 1
Impedance: >1M ohms (voltage inputs)
< 20 ohms (current inputs)
Protection:
withstands up to 24VDC (current input), 120VAC (voltage input)
without damage
Common Mode: 2000VAC, input to ground
Outputs:
Range: see Table 1
Voltage Output Drive: 10mA (1k ohms, min.)
Current Output Compliance: 15V (750 ohms, max.)
Output Accuracy:
< +0.1% of full-scale input typical,
< +0.2% maximum @ 23°C including linearity, repeatability and
hysteresis
LED Indication:
Green LED indicates power on
Adjustability:
Front accessed 10 turn pot. for zero and span
Stability:
< 0.025%/°C maximum for full-scale and zero
ESD Susceptibility:
Capable of meeting IEC 801-2 level 3 (8kV)
Isolation:
> 2000VAC between input, output, power and channel to channel
Response Time:
285 microSec, -3dB @ 3500Hz (bipolar)
25mSec (10 to 90%)(unipolar)
Power:
85 to 256VAC, 2.5W per channel max.
Temperature:
Operating: -5 to 60°C (23 to 140°F)
Storage: -40 to 80°C (-40 to 176°F)
Humidity (non-condensing):
Operating: 15 to 90% @45°C
Soak: 90% for 24 hours @60°C
Wire Terminal:
Socketed screw terminals for 12-22 AWG
Agency Approvals:
CSA certified per standard 22.2 (File No LR42272).
UL recognized per standard UL508 (File No E99775).
Ordering Information
Models & Accessories
Specify:
1. Model: Q403-1: One Input, one output
Q403-2: Two inputs, two outputs
2. Input Range: (see Table 1)
3. Output Range: (see Table 1)
4. Accessories: (see Accessories)
Accessories
ActionI/Q modules mount on standard TS3(model MD02) or TS35 (model
MD03) DIN rail. In addition the following accessories are available:
MD02 TS32 DIN rail
MD03 TS35 x 7.5 DIN rail
Terminal
Connection
1A )+(tuptuO,1lennahC 3C )+(tupnICD,2lennahC
2A )-(tuptuO,1lennahC 4C detcennoCtoN
3A detcennoCtoN 5C )-(tupnICD,1lennahC
4A )+(tuptuO,2lennahC 6C )+(tupnICD,1lennahC
5A )-(tuptuO,2lennahC 1B )toH(rewoPCA
6A detcennoCtoN 2B detcennoCtoN
1C detcennoCtoN 3B detcennoCtoN
2C )-(tupnICD,2lennahC 4B )lartueN(rewoPCA
Terminal
Connection
Printed on recycled pape
Dimensions
